Sayfa 3-10 - Isuzu EPC

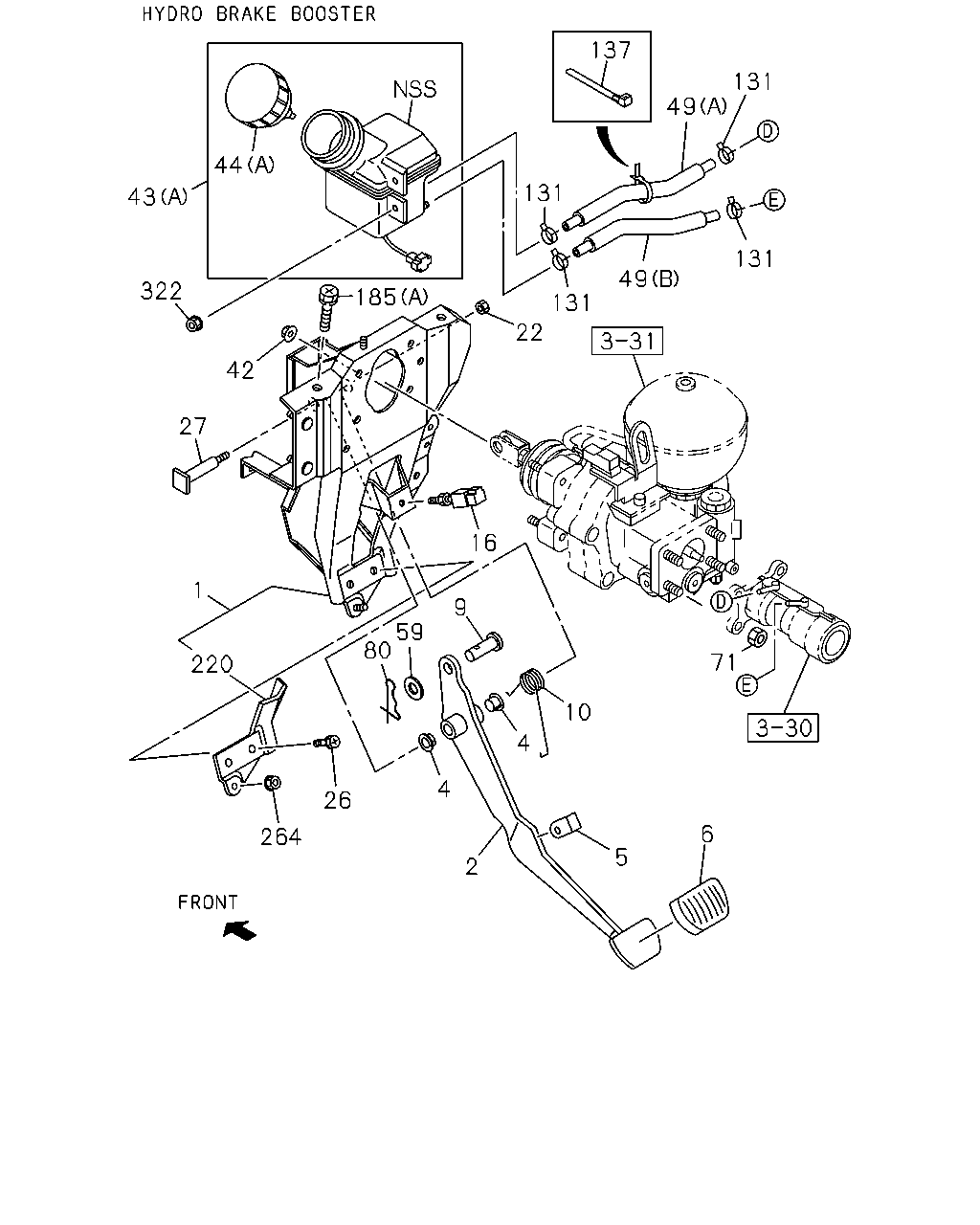

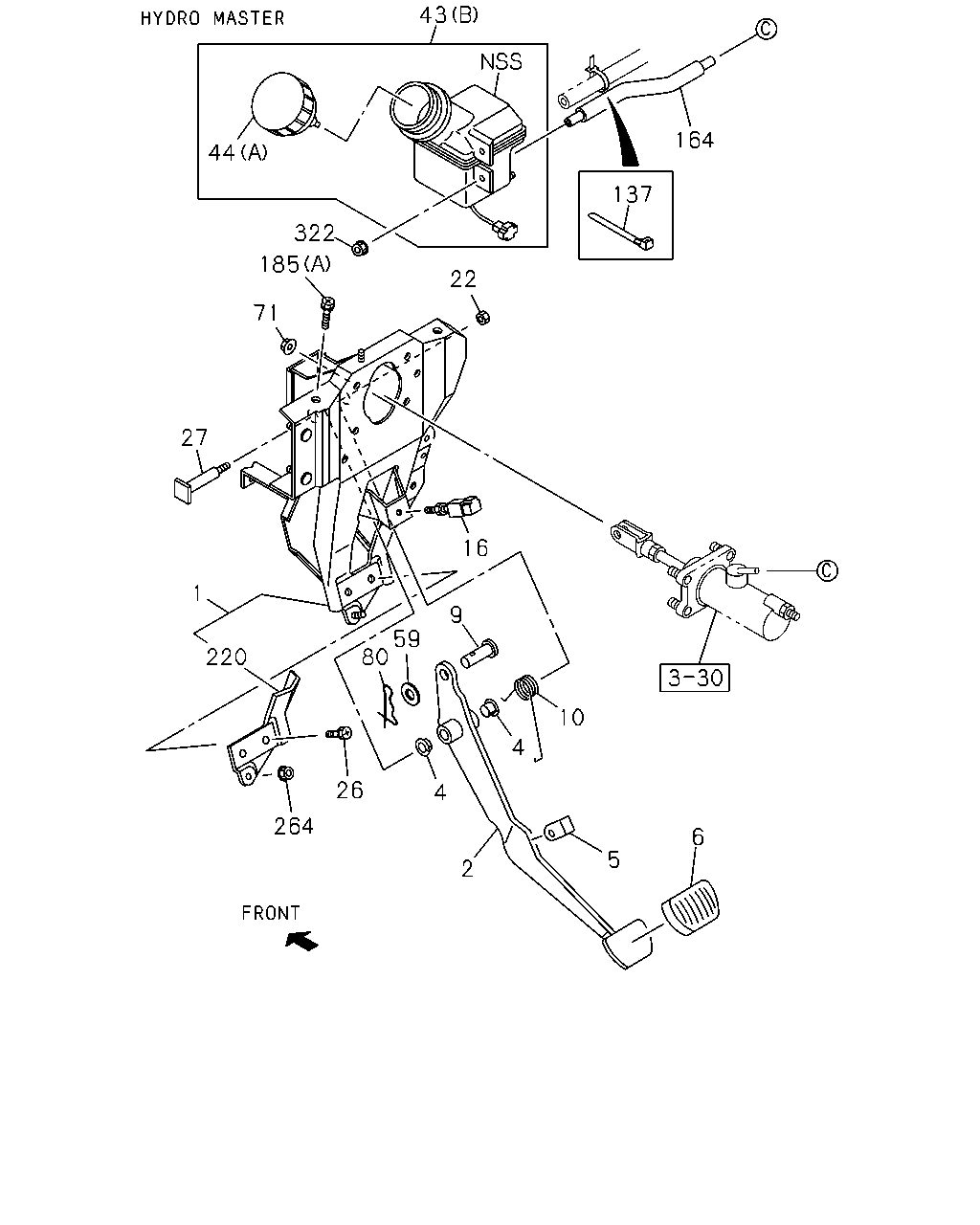

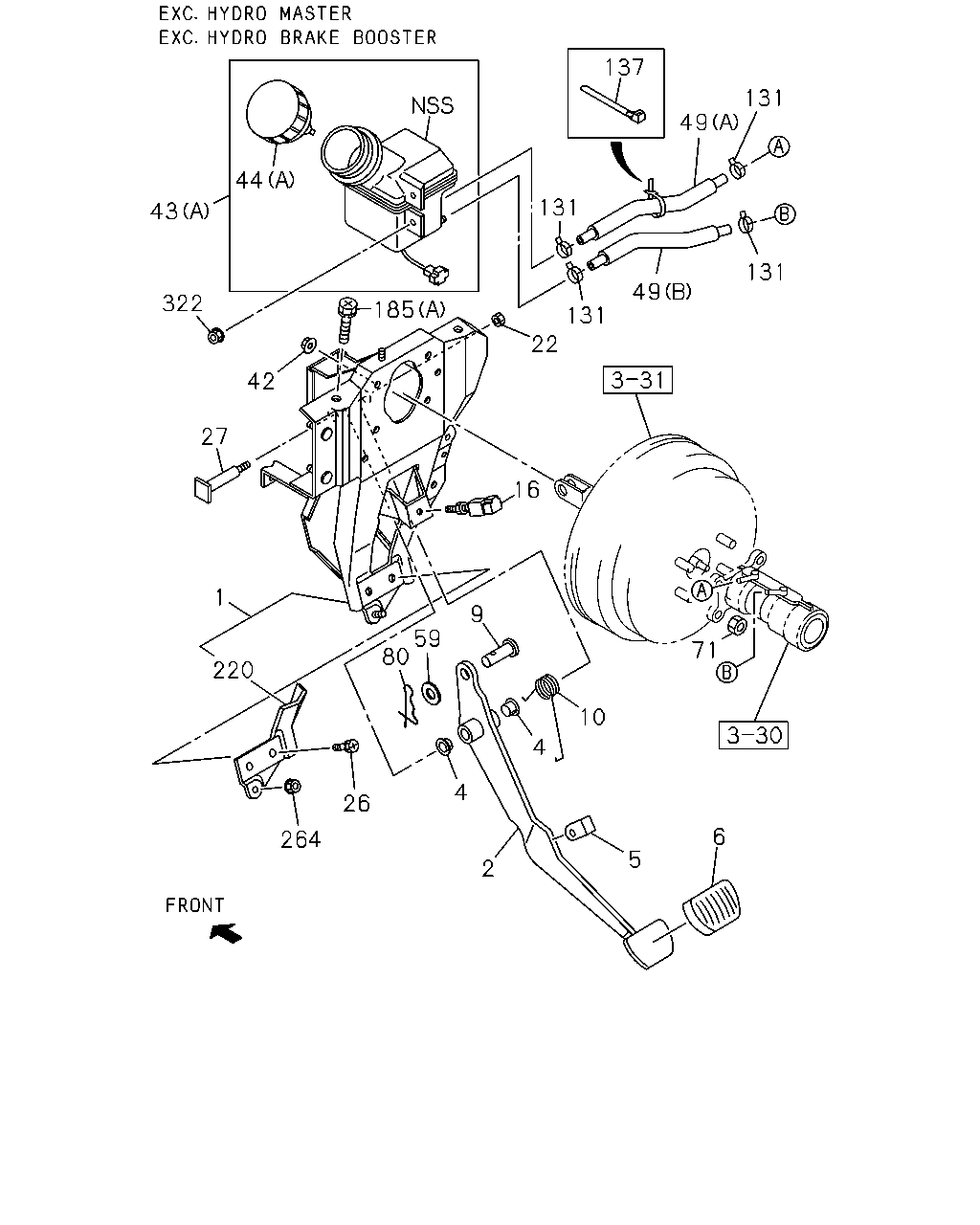

3-10 — BRAKE PEDAL AND CONTROL (#22034) — 292 parça

137 131 49 44 131 43 131 49 322 185 131 22 42 27 16 1 9 59 80 71 220 10 4 4 26 6 264 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.634 BRACKET ASM; PEDAL	8-97857-042-6	01	1	9811-9905	●	●	●	●	●	●
1	04.634 BRACKET ASM; PEDAL	8-97896-969-1	01	1	9906-	●	●	●	●	●	●
2	04.625 PEDAL; BRK HYDRO BRAKE BOOSTER<7QQ>	8-97867-872-2	01	1	9811-0105	●	●	●	●
2	04.625 PEDAL; BRK	8-97867-872-2	01	1	9811-0105					●
2	04.625 PEDAL; BRK 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ>	8-97867-872-3	01	1	0106-		●	●	●	●
2	04.625 PEDAL; BRK EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97856-336-2	01	1	9811-	●	●	●	●		●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	9811-	●	●	●	●	●	●
5	04.634 STOPPER; BRK PEDAL	8-97853-602-1	01	1	9811-	●	●	●	●	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	01	1	9811-	●	●	●	●	●	●
9	04.634 PIN; JAW JOINT	8-94410-276-0	01	1	9811-	●	●	●	●	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	9811-	●	●	●	●	●	●
16	02.447 SWITCH; STOP LAMP	8-97855-187-0	01	1	9811-	●	●	●	●	●	●
22	04.634 NUT; SHAFT 00.833 M10 FLANGE	1-09440-022-0	01	1	9811-	●	●	●	●	●	●
26	04.634 BOLT; PEDAL M10X22 W/WASHER	8-94279-099-0	02	1	9811-0110	●	●	●	●	●	●
26	04.634 BOLT; PEDAL 00.833 M10X22 W/PL WASHER	8-97313-188-0	02	1	0111-	●	●	●	●	●	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	9811-	●	●	●	●	●	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	9811-	●				●	●
42	04.898 NUT; BRK PEDAL EXC. HYDRO MASTER<7LT> 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	9811-		●	●	●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (C)	8-97163-767-3	01	1	9811-0010	●	●	●	●
43	04.651 TANK ASM; OIL (C)	8-97163-767-3	01	1	9811-0010					●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (C)	8-97306-217-0	01	1	0011-0105	●	●	●	●
43	04.651 TANK ASM; OIL (C)	8-97306-217-0	01	1	0011-0105					●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (C)	8-97306-217-0	01	1	0106-		●	●	●
43	04.651 TANK ASM; OIL (C)	8-97306-217-0	01	1	0106-					●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97049-569-4	01	1	9811-9812	●	●	●	●	●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97179-814-1	01	1	9901-0105	●	●	●	●	●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97179-814-1	01	1	0106-0202	●	●	●	●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97179-814-1	01	1	0203-	●	●	●	●		●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97049-568-4	01	1	9811-9811	●	●	●	●	●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97179-813-1	01	1	9812-0105	●	●	●	●	●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97179-813-1	01	1	0106-0202	●	●	●	●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97179-813-1	01	1	0203-	●	●	●	●		●
43	04.651 TANK ASM; OIL HYDRO MASTER<7LT> (B)	8-97130-217-1	01	1	9811-9904		●	●	●
43	04.651 TANK ASM; OIL HYDRO MASTER<7LT> (B)	8-97180-682-1	01	1	9905-		●	●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52> FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97178-245-1	01	1	9811-0105		●	●		●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52> FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97178-245-1	01	1	0106-		●	●	●	●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52> EXC. FLOOR REMOTE SHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97178-246-1	01	1	9811-9811		●	●		●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52> EXC. FLOOR REMOTE SHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97178-246-1	01	1	9812-		●	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	9811-0105	●	●	●	●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	9811-0105					●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	0106-		●	●	●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0106-					●
44	04.651 CAP; OIL TANK EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9811-9811	●	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9811-9811		●	●	●
44	04.651 CAP; OIL TANK EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9812-9812	●	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9812-9812		●	●	●
44	04.651 CAP; OIL TANK HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9901-9904		●	●	●
44	04.651 CAP; OIL TANK DISC BRAKE FRT<J52> EXC. HYDRO MASTER<7LT> (A)	8-97178-291-0	01	1	9811-9811		●	●		●	●
44	04.651 CAP; OIL TANK FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97178-291-0	01	1	9812-9812	●	●	●	●	●
44	04.651 CAP; OIL TANK DISC BRAKE FRT<J52> EXC. HYDRO MASTER<7LT> (A)	8-97178-291-0	01	1	9812-9812		●	●	●	●	●
44	04.651 CAP; OIL TANK (A)	8-97178-291-0	01	1	9901-9904	●				●	●
44	04.651 CAP; OIL TANK EXC. HYDRO MASTER<7LT> (A)	8-97178-291-0	01	1	9901-9904		●	●	●
44	04.651 CAP; OIL TANK (A)	8-97178-291-1	01	1	9905-	●	●	●	●	●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL (A) L=335	8-97129-586-0	01	1	9811-	●				●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL EXC. HYDRO MASTER<7LT> (A) L=335	8-97129-586-0	01	1	9811-		●	●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL (B) L=340	8-97130-440-0	01	1	9811-	●				●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL EXC. HYDRO MASTER<7LT> (B) L=340	8-97130-440-0	01	1	9811-		●	●	●
59	04.634 WASHER; PL,JAW JOINT 02.575 ID=15	9-09160-514-0	01	1	9811-	●	●	●	●	●	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	9811-	●	●	●	●	●	●
80	04.634 PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	9811-	●	●	●	●	●	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR	8-97130-480-0	04	1	9811-	●				●	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR EXC. HYDRO MASTER<7LT>	8-97130-480-0	04	1	9811-		●	●	●
137	04.681 CLIP; BAND,RUBBER HOSE 02.559 L=250	5-09707-030-1	01	1	9811-	●	●	●	●	●	●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●	●	●	●
185	04.634 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	9811-0105					●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-		●	●	●
185	04.634 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-					●
185	04.634 BOLT; BRKT 09.003 (A) M10X25 FLANGE	0-28691-025-0	02	1	9811-	●	●	●	●	●	●
220	04.634 BRACKET; STRG SHAFT	8-97857-044-1	01	1	9811-	●	●	●	●	●	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 04.010 M8 FLANGE	8-97046-127-0	01	1	9811-	●	●	●	●	●	●
322	04.651 NUT; OIL TANK 04.594 M6 FLANGE	0-91150-106-0	02	1	9811-	●	●	●	●	●	●

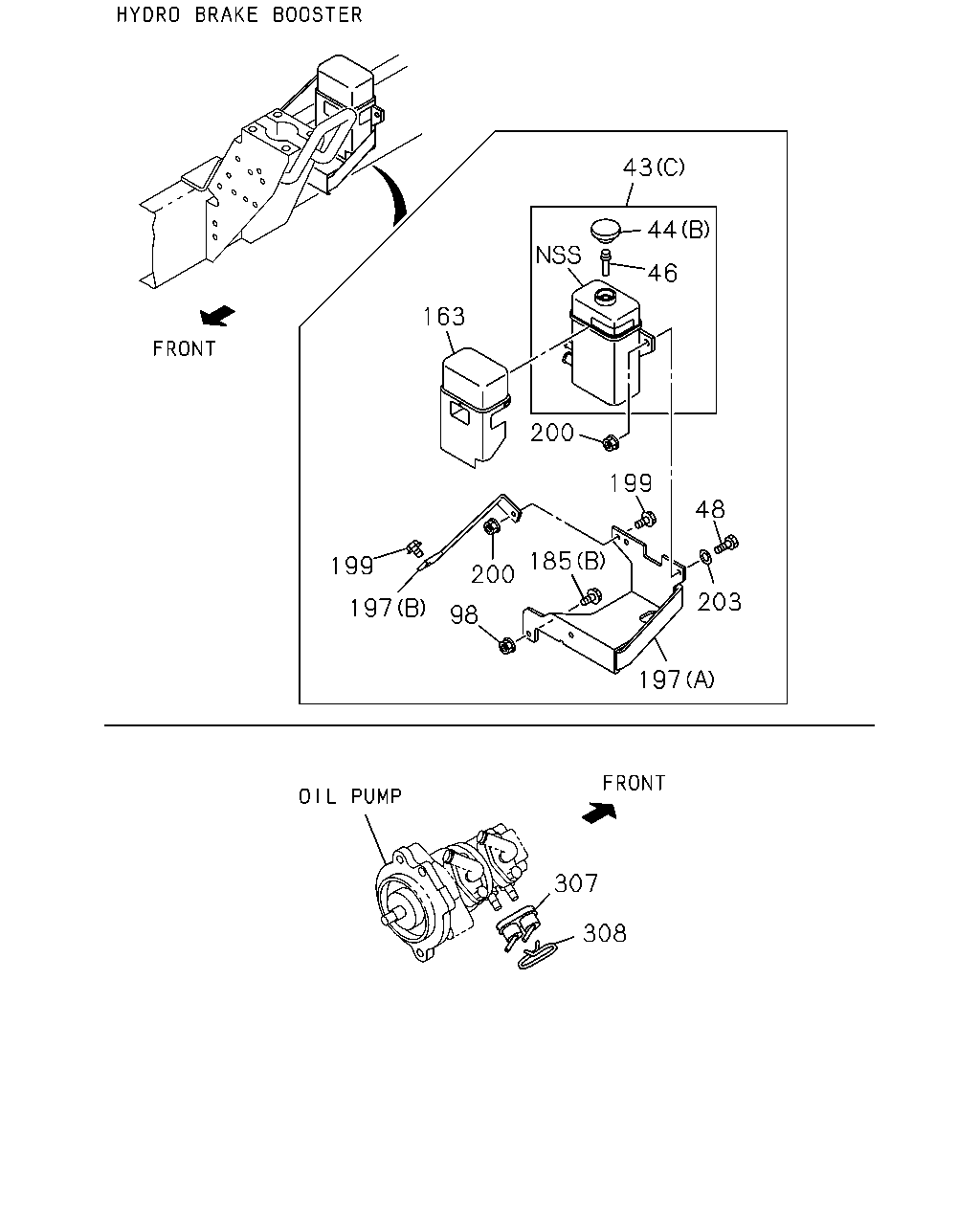

43 44 46 163 200 199 48 185 199 200 203 197 98 197 307 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (C)	8-97163-767-3	01	1	9811-0010	●	●	●	●
43	04.651 TANK ASM; OIL (C)	8-97163-767-3	01	1	9811-0010					●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (C)	8-97306-217-0	01	1	0011-0105	●	●	●	●
43	04.651 TANK ASM; OIL (C)	8-97306-217-0	01	1	0011-0105					●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (C)	8-97306-217-0	01	1	0106-		●	●	●
43	04.651 TANK ASM; OIL (C)	8-97306-217-0	01	1	0106-					●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97049-569-4	01	1	9811-9812	●	●	●	●	●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97179-814-1	01	1	9901-0105	●	●	●	●	●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97179-814-1	01	1	0106-0202	●	●	●	●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97179-814-1	01	1	0203-	●	●	●	●		●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97049-568-4	01	1	9811-9811	●	●	●	●	●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97179-813-1	01	1	9812-0105	●	●	●	●	●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97179-813-1	01	1	0106-0202	●	●	●	●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97179-813-1	01	1	0203-	●	●	●	●		●
43	04.651 TANK ASM; OIL HYDRO MASTER<7LT> (B)	8-97130-217-1	01	1	9811-9904		●	●	●
43	04.651 TANK ASM; OIL HYDRO MASTER<7LT> (B)	8-97180-682-1	01	1	9905-		●	●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52> FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97178-245-1	01	1	9811-0105		●	●		●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52> FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97178-245-1	01	1	0106-		●	●	●	●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52> EXC. FLOOR REMOTE SHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97178-246-1	01	1	9811-9811		●	●		●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52> EXC. FLOOR REMOTE SHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97178-246-1	01	1	9812-		●	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	9811-0105	●	●	●	●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	9811-0105					●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	0106-		●	●	●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0106-					●
44	04.651 CAP; OIL TANK EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9811-9811	●	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9811-9811		●	●	●
44	04.651 CAP; OIL TANK EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9812-9812	●	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9812-9812		●	●	●
44	04.651 CAP; OIL TANK HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9901-9904		●	●	●
44	04.651 CAP; OIL TANK DISC BRAKE FRT<J52> EXC. HYDRO MASTER<7LT> (A)	8-97178-291-0	01	1	9811-9811		●	●		●	●
44	04.651 CAP; OIL TANK FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97178-291-0	01	1	9812-9812	●	●	●	●	●
44	04.651 CAP; OIL TANK DISC BRAKE FRT<J52> EXC. HYDRO MASTER<7LT> (A)	8-97178-291-0	01	1	9812-9812		●	●	●	●	●
44	04.651 CAP; OIL TANK (A)	8-97178-291-0	01	1	9901-9904	●				●	●
44	04.651 CAP; OIL TANK EXC. HYDRO MASTER<7LT> (A)	8-97178-291-0	01	1	9901-9904		●	●	●
44	04.651 CAP; OIL TANK (A)	8-97178-291-1	01	1	9905-	●	●	●	●	●	●
46	04.651 FILTER; RESERVOIR,BRK HYDRO BRAKE BOOSTER<7QQ> 06.600	8-97094-732-0	01	1	9811-0105	●	●	●	●
46	04.651 FILTER; RESERVOIR,BRK 06.600	8-97094-732-0	01	1	9811-0105					●
46	04.651 FILTER; RESERVOIR,BRK HYDRO BRAKE BOOSTER<7QQ> 06.600	8-97094-732-0	01	1	0106-		●	●	●
46	04.651 FILTER; RESERVOIR,BRK 06.600	8-97094-732-0	01	1	0106-					●
48	04.651 BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●	●	●	●
48	04.651 BOLT; OIL TANK TO BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105					●
48	04.651 BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-		●	●	●
48	04.651 BOLT; OIL TANK TO BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-					●
98	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0105	●	●	●	●
98	04.634 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0105					●
98	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-		●	●	●
98	04.634 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-					●
163	04.651 COVER; OIL TANK HYDRO BRAKE BOOSTER<7QQ>	8-97164-749-1	01	1	9811-0105	●	●	●	●
163	04.651 COVER; OIL TANK	8-97164-749-1	01	1	9811-0105					●
163	04.651 COVER; OIL TANK HYDRO BRAKE BOOSTER<7QQ>	8-97164-749-1	01	1	0106-		●	●	●
163	04.651 COVER; OIL TANK	8-97164-749-1	01	1	0106-					●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●	●	●	●
185	04.634 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	9811-0105					●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-		●	●	●
185	04.634 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-					●
185	04.634 BOLT; BRKT 09.003 (A) M10X25 FLANGE	0-28691-025-0	02	1	9811-	●	●	●	●	●	●
197	04.634 BRACKET; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (A)	8-97173-342-2	01	1	9811-0105	●	●	●	●
197	04.634 BRACKET; OIL TANK (A)	8-97173-342-2	01	1	9811-0105					●
197	04.634 BRACKET; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (A)	8-97173-342-2	01	1	0106-		●	●	●
197	04.634 BRACKET; OIL TANK (A)	8-97173-342-2	01	1	0106-					●
197	04.634 BRACKET; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (B)	8-97181-897-0	01	1	9811-0105	●	●	●	●
197	04.634 BRACKET; OIL TANK (B)	8-97181-897-0	01	1	9811-0105					●
197	04.634 BRACKET; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (B)	8-97181-897-0	01	1	0106-		●	●	●
197	04.634 BRACKET; OIL TANK (B)	8-97181-897-0	01	1	0106-					●
199	04.634 BOLT; OIL TANK BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●	●	●	●
199	04.634 BOLT; OIL TANK BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105					●
199	04.634 BOLT; OIL TANK BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-		●	●	●
199	04.634 BOLT; OIL TANK BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-					●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	03	1	9811-0105	●	●	●	●
200	04.634 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	03	1	9811-0105					●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-		●	●	●
200	04.634 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-					●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-		●	●	●
200	04.634 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-					●
203	04.634 WASHER; PL,OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	9811-0105	●	●	●	●
203	04.634 WASHER; PL,OIL TANK 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	9811-0105					●
203	04.634 WASHER; PL,OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0106-		●	●	●
203	04.634 WASHER; PL,OIL TANK 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0106-					●
307	04.651 CAP; EYE JOINT HYDRO BRAKE BOOSTER<7QQ>	8-97166-154-1	01	1	9811-0105	●	●	●	●
307	04.651 CAP; EYE JOINT	8-97166-154-1	01	1	9811-0105					●
307	04.651 CAP; EYE JOINT HYDRO BRAKE BOOSTER<7QQ>	8-97166-154-1	01	1	0106-		●	●	●
307	04.651 CAP; EYE JOINT	8-97166-154-1	01	1	0106-					●
308	04.651 CLAMP; PUMP CAP HYDRO BRAKE BOOSTER<7QQ>	8-97166-181-1	01	1	9811-0105	●	●	●	●
308	04.651 CLAMP; PUMP CAP	8-97166-181-1	01	1	9811-0105					●
308	04.651 CLAMP; PUMP CAP HYDRO BRAKE BOOSTER<7QQ>	8-97166-181-1	01	1	0106-		●	●	●
308	04.651 CLAMP; PUMP CAP	8-97166-181-1	01	1	0106-					●

137 131 49 44 131 43 131 49 322 185 131 22 42 27 16 1 9 59 80 71 220 10 4 4 26 6 264 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.634 BRACKET ASM; PEDAL	8-97857-042-6	01	1	9811-9905	●	●	●	●	●	●
1	04.634 BRACKET ASM; PEDAL	8-97896-969-1	01	1	9906-	●	●	●	●	●	●
2	04.625 PEDAL; BRK HYDRO BRAKE BOOSTER<7QQ>	8-97867-872-2	01	1	9811-0105	●	●	●	●
2	04.625 PEDAL; BRK	8-97867-872-2	01	1	9811-0105					●
2	04.625 PEDAL; BRK 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ>	8-97867-872-3	01	1	0106-		●	●	●	●
2	04.625 PEDAL; BRK EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97856-336-2	01	1	9811-	●	●	●	●		●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	9811-	●	●	●	●	●	●
5	04.634 STOPPER; BRK PEDAL	8-97853-602-1	01	1	9811-	●	●	●	●	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	01	1	9811-	●	●	●	●	●	●
9	04.634 PIN; JAW JOINT	8-94410-276-0	01	1	9811-	●	●	●	●	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	9811-	●	●	●	●	●	●
16	02.447 SWITCH; STOP LAMP	8-97855-187-0	01	1	9811-	●	●	●	●	●	●
22	04.634 NUT; SHAFT 00.833 M10 FLANGE	1-09440-022-0	01	1	9811-	●	●	●	●	●	●
26	04.634 BOLT; PEDAL M10X22 W/WASHER	8-94279-099-0	02	1	9811-0110	●	●	●	●	●	●
26	04.634 BOLT; PEDAL 00.833 M10X22 W/PL WASHER	8-97313-188-0	02	1	0111-	●	●	●	●	●	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	9811-	●	●	●	●	●	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	9811-	●				●	●
42	04.898 NUT; BRK PEDAL EXC. HYDRO MASTER<7LT> 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	9811-		●	●	●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (C)	8-97163-767-3	01	1	9811-0010	●	●	●	●
43	04.651 TANK ASM; OIL (C)	8-97163-767-3	01	1	9811-0010					●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (C)	8-97306-217-0	01	1	0011-0105	●	●	●	●
43	04.651 TANK ASM; OIL (C)	8-97306-217-0	01	1	0011-0105					●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (C)	8-97306-217-0	01	1	0106-		●	●	●
43	04.651 TANK ASM; OIL (C)	8-97306-217-0	01	1	0106-					●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97049-569-4	01	1	9811-9812	●	●	●	●	●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97179-814-1	01	1	9901-0105	●	●	●	●	●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97179-814-1	01	1	0106-0202	●	●	●	●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97179-814-1	01	1	0203-	●	●	●	●		●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97049-568-4	01	1	9811-9811	●	●	●	●	●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97179-813-1	01	1	9812-0105	●	●	●	●	●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97179-813-1	01	1	0106-0202	●	●	●	●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97179-813-1	01	1	0203-	●	●	●	●		●
43	04.651 TANK ASM; OIL HYDRO MASTER<7LT> (B)	8-97130-217-1	01	1	9811-9904		●	●	●
43	04.651 TANK ASM; OIL HYDRO MASTER<7LT> (B)	8-97180-682-1	01	1	9905-		●	●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52> FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97178-245-1	01	1	9811-0105		●	●		●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52> FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97178-245-1	01	1	0106-		●	●	●	●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52> EXC. FLOOR REMOTE SHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97178-246-1	01	1	9811-9811		●	●		●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52> EXC. FLOOR REMOTE SHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97178-246-1	01	1	9812-		●	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	9811-0105	●	●	●	●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	9811-0105					●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	0106-		●	●	●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0106-					●
44	04.651 CAP; OIL TANK EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9811-9811	●	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9811-9811		●	●	●
44	04.651 CAP; OIL TANK EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9812-9812	●	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9812-9812		●	●	●
44	04.651 CAP; OIL TANK HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9901-9904		●	●	●
44	04.651 CAP; OIL TANK DISC BRAKE FRT<J52> EXC. HYDRO MASTER<7LT> (A)	8-97178-291-0	01	1	9811-9811		●	●		●	●
44	04.651 CAP; OIL TANK FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97178-291-0	01	1	9812-9812	●	●	●	●	●
44	04.651 CAP; OIL TANK DISC BRAKE FRT<J52> EXC. HYDRO MASTER<7LT> (A)	8-97178-291-0	01	1	9812-9812		●	●	●	●	●
44	04.651 CAP; OIL TANK (A)	8-97178-291-0	01	1	9901-9904	●				●	●
44	04.651 CAP; OIL TANK EXC. HYDRO MASTER<7LT> (A)	8-97178-291-0	01	1	9901-9904		●	●	●
44	04.651 CAP; OIL TANK (A)	8-97178-291-1	01	1	9905-	●	●	●	●	●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL (A) L=335	8-97129-586-0	01	1	9811-	●				●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL EXC. HYDRO MASTER<7LT> (A) L=335	8-97129-586-0	01	1	9811-		●	●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL (B) L=340	8-97130-440-0	01	1	9811-	●				●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL EXC. HYDRO MASTER<7LT> (B) L=340	8-97130-440-0	01	1	9811-		●	●	●
59	04.634 WASHER; PL,JAW JOINT 02.575 ID=15	9-09160-514-0	01	1	9811-	●	●	●	●	●	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	9811-	●	●	●	●	●	●
80	04.634 PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	9811-	●	●	●	●	●	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR	8-97130-480-0	04	1	9811-	●				●	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR EXC. HYDRO MASTER<7LT>	8-97130-480-0	04	1	9811-		●	●	●
137	04.681 CLIP; BAND,RUBBER HOSE 02.559 L=250	5-09707-030-1	01	1	9811-	●	●	●	●	●	●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●	●	●	●
185	04.634 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	9811-0105					●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-		●	●	●
185	04.634 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-					●
185	04.634 BOLT; BRKT 09.003 (A) M10X25 FLANGE	0-28691-025-0	02	1	9811-	●	●	●	●	●	●
220	04.634 BRACKET; STRG SHAFT	8-97857-044-1	01	1	9811-	●	●	●	●	●	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 04.010 M8 FLANGE	8-97046-127-0	01	1	9811-	●	●	●	●	●	●
322	04.651 NUT; OIL TANK 04.594 M6 FLANGE	0-91150-106-0	02	1	9811-	●	●	●	●	●	●

43 164 44 137 322 185 22 71 27 16 1 9 59 80 220 10 4 26 4 264 6 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.634 BRACKET ASM; PEDAL	8-97857-042-6	01	1	9811-9905	●	●	●	●	●	●
1	04.634 BRACKET ASM; PEDAL	8-97896-969-1	01	1	9906-	●	●	●	●	●	●
2	04.625 PEDAL; BRK HYDRO BRAKE BOOSTER<7QQ>	8-97867-872-2	01	1	9811-0105	●	●	●	●
2	04.625 PEDAL; BRK	8-97867-872-2	01	1	9811-0105					●
2	04.625 PEDAL; BRK 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ>	8-97867-872-3	01	1	0106-		●	●	●	●
2	04.625 PEDAL; BRK EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97856-336-2	01	1	9811-	●	●	●	●		●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	9811-	●	●	●	●	●	●
5	04.634 STOPPER; BRK PEDAL	8-97853-602-1	01	1	9811-	●	●	●	●	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	01	1	9811-	●	●	●	●	●	●
9	04.634 PIN; JAW JOINT	8-94410-276-0	01	1	9811-	●	●	●	●	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	9811-	●	●	●	●	●	●
16	02.447 SWITCH; STOP LAMP	8-97855-187-0	01	1	9811-	●	●	●	●	●	●
22	04.634 NUT; SHAFT 00.833 M10 FLANGE	1-09440-022-0	01	1	9811-	●	●	●	●	●	●
26	04.634 BOLT; PEDAL M10X22 W/WASHER	8-94279-099-0	02	1	9811-0110	●	●	●	●	●	●
26	04.634 BOLT; PEDAL 00.833 M10X22 W/PL WASHER	8-97313-188-0	02	1	0111-	●	●	●	●	●	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	9811-	●	●	●	●	●	●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (C)	8-97163-767-3	01	1	9811-0010	●	●	●	●
43	04.651 TANK ASM; OIL (C)	8-97163-767-3	01	1	9811-0010					●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (C)	8-97306-217-0	01	1	0011-0105	●	●	●	●
43	04.651 TANK ASM; OIL (C)	8-97306-217-0	01	1	0011-0105					●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (C)	8-97306-217-0	01	1	0106-		●	●	●
43	04.651 TANK ASM; OIL (C)	8-97306-217-0	01	1	0106-					●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97049-569-4	01	1	9811-9812	●	●	●	●	●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97179-814-1	01	1	9901-0105	●	●	●	●	●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97179-814-1	01	1	0106-0202	●	●	●	●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97179-814-1	01	1	0203-	●	●	●	●		●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97049-568-4	01	1	9811-9811	●	●	●	●	●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97179-813-1	01	1	9812-0105	●	●	●	●	●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97179-813-1	01	1	0106-0202	●	●	●	●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97179-813-1	01	1	0203-	●	●	●	●		●
43	04.651 TANK ASM; OIL HYDRO MASTER<7LT> (B)	8-97130-217-1	01	1	9811-9904		●	●	●
43	04.651 TANK ASM; OIL HYDRO MASTER<7LT> (B)	8-97180-682-1	01	1	9905-		●	●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52> FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97178-245-1	01	1	9811-0105		●	●		●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52> FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97178-245-1	01	1	0106-		●	●	●	●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52> EXC. FLOOR REMOTE SHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97178-246-1	01	1	9811-9811		●	●		●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52> EXC. FLOOR REMOTE SHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97178-246-1	01	1	9812-		●	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	9811-0105	●	●	●	●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	9811-0105					●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	0106-		●	●	●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0106-					●
44	04.651 CAP; OIL TANK EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9811-9811	●	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9811-9811		●	●	●
44	04.651 CAP; OIL TANK EXC. DISC BRAKE FRT<J52>,FLOOR REMOTESHIFT<M11>,HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9812-9812	●	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9812-9812		●	●	●
44	04.651 CAP; OIL TANK HYDRO MASTER<7LT> (A)	8-97095-698-0	01	1	9901-9904		●	●	●
44	04.651 CAP; OIL TANK DISC BRAKE FRT<J52> EXC. HYDRO MASTER<7LT> (A)	8-97178-291-0	01	1	9811-9811		●	●		●	●
44	04.651 CAP; OIL TANK FLOOR REMOTE SHIFT<M11> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A)	8-97178-291-0	01	1	9812-9812	●	●	●	●	●
44	04.651 CAP; OIL TANK DISC BRAKE FRT<J52> EXC. HYDRO MASTER<7LT> (A)	8-97178-291-0	01	1	9812-9812		●	●	●	●	●
44	04.651 CAP; OIL TANK (A)	8-97178-291-0	01	1	9901-9904	●				●	●
44	04.651 CAP; OIL TANK EXC. HYDRO MASTER<7LT> (A)	8-97178-291-0	01	1	9901-9904		●	●	●
44	04.651 CAP; OIL TANK (A)	8-97178-291-1	01	1	9905-	●	●	●	●	●	●
59	04.634 WASHER; PL,JAW JOINT 02.575 ID=15	9-09160-514-0	01	1	9811-	●	●	●	●	●	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	9811-	●	●	●	●	●	●
80	04.634 PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	9811-	●	●	●	●	●	●
137	04.681 CLIP; BAND,RUBBER HOSE 02.559 L=250	5-09707-030-1	01	1	9811-	●	●	●	●	●	●
164	04.681 HOSE; RUBBER,OIL TANK HYDRO MASTER<7LT>	8-97129-629-0	01	1	9811-		●	●	●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●	●	●	●
185	04.634 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	9811-0105					●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-		●	●	●
185	04.634 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-					●
185	04.634 BOLT; BRKT 09.003 (A) M10X25 FLANGE	0-28691-025-0	02	1	9811-	●	●	●	●	●	●
220	04.634 BRACKET; STRG SHAFT	8-97857-044-1	01	1	9811-	●	●	●	●	●	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 04.010 M8 FLANGE	8-97046-127-0	01	1	9811-	●	●	●	●	●	●
322	04.651 NUT; OIL TANK 04.594 M6 FLANGE	0-91150-106-0	02	1	9811-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
