◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#2203) — 67 parça

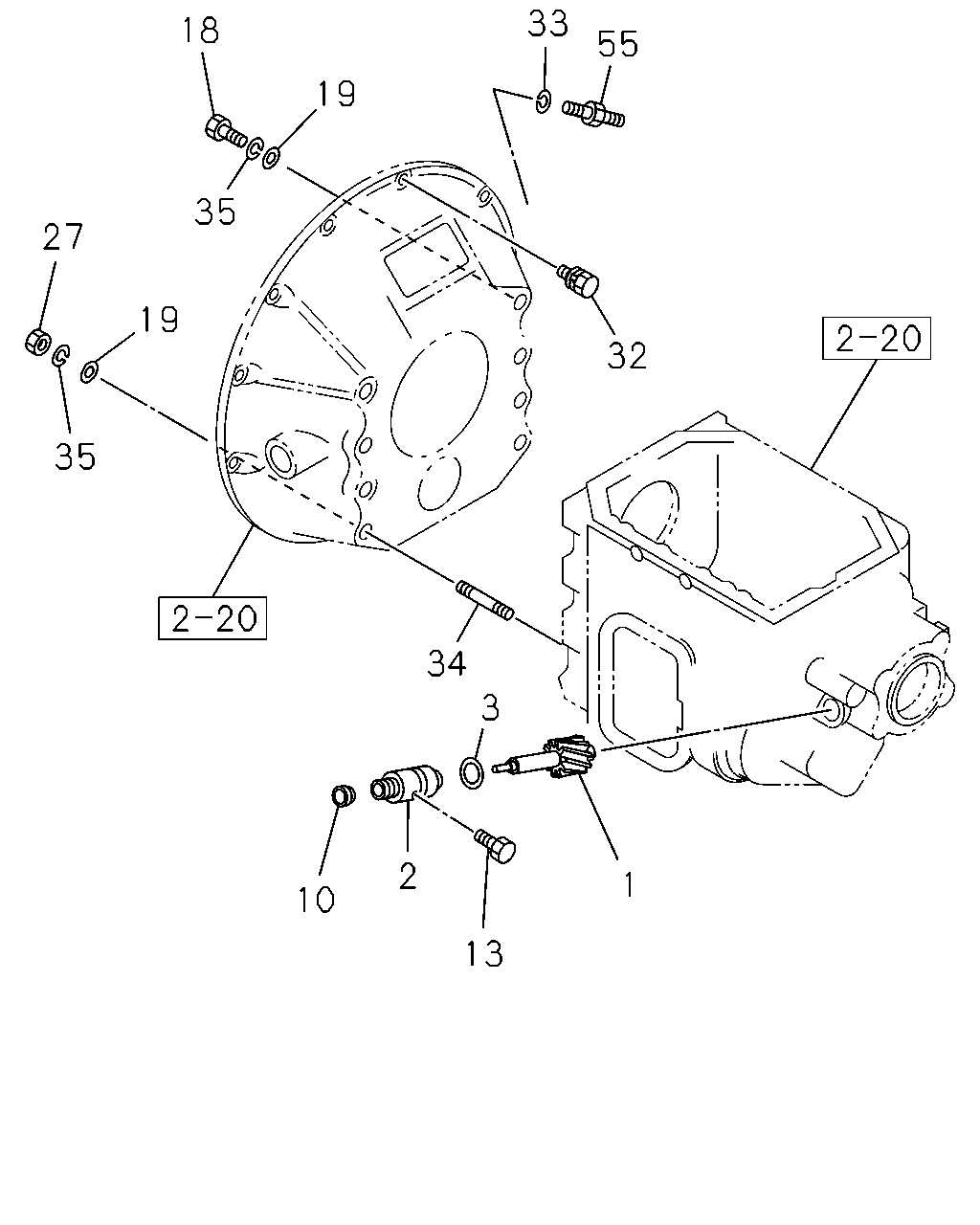

çizim 93975
33 18 55 19 35 27 19 32 35 34 3 2 1 10 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 GEAR; DRIVEN,SPD
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R) TIRE 8.25-20-14 RIB(90S) Z=19 		1-33372-122-4 01 1 0204-0407 ●
1 GEAR; DRIVEN,SPD
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 9.00-20-14 RIB(10T) Z=19 		1-33372-122-4 01 1 0204-0407 ●
1 GEAR; DRIVEN,SPD
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 9.00-20-14 RIB(10T) Z=19 		1-33372-122-4 01 1 0408- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 15.5"(W3K) TIRE 9.00-20-14 RIB(10T),TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R) Z=16 		1-33372-119-4 01 1 0204- ●
1 GEAR; DRIVEN,SPD
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R) TIRE 9.00-20-14 RIB(10T) Z=18 		1-33372-121-4 01 1 0204- ● ● ●
1 GEAR; DRIVEN,SPD
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R) Z=18 		1-33372-121-4 01 1 0204- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/6 15.5"(W1T) Z=20 		1-33372-123-4 01 1 9101-0203 ● ● ● ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 15.5"(W3K) Z=16 		1-33372-119-4 01 1 9101-0203 ● ● ● ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/7 15.5"(W1R) Z=18 		1-33372-121-2 01 1 9101-9103 ● ● ● ● ● ●
1 GEAR; DRIVEN,SPD
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R) Z=18 		1-33372-121-2 01 1 9104-9310 ● ● ● ● ● ●
1 GEAR; DRIVEN,SPD
LEFT HAND DRIVE(MTR6FB) FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T) Z=18 		1-33372-121-2 01 1 9104-9310 ● ● ● ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T) Z=18 		1-33372-121-4 01 1 9311-0203 ● ● ● ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T) Z=19 		1-33372-122-4 01 1 9101-0203 ● ● ● ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 15.5"(W3K) Z=17 		1-33372-120-2 01 1 9101-9310 ● ● ● ● ●
1 GEAR; DRIVEN,SPD
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/7 15.5"(W3K) Z=17 		1-33372-120-2 01 1 9101-9310 ●
1 GEAR; DRIVEN,SPD
LEFT HAND DRIVE(MTR6FB) FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/7 15.5"(W3K) Z=17 		1-33372-120-2 01 1 9101-9310 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/7 15.5"(W3K) Z=17 		1-33372-120-4 01 1 9311-0203 ● ● ● ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/6 15.5"(W1T) Z=13 		1-33372-070-5 01 1 9101-0203 ●
1 GEAR; DRIVEN,SPD
Z=13 		1-33372-070-5 01 1 0204- ●
1 GEAR; DRIVEN,SPD
EXC. CLUTCH SYSTEM MINIPACK(B1Z) Z=11 		1-33372-068-3 01 1 9101-9204 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 14.5"(W1H) Z=11 		1-33372-068-3 01 1 9205-9205 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 14.5"(W1H),FINAL GEAR 39/7 15.5"(W3K) Z=11 		1-33372-068-5 01 1 9206-0203 ●
1 GEAR; DRIVEN,SPD
EXC. CLUTCH SYSTEM MINIPACK(B1Z) Z=12 		1-33372-069-3 01 1 9101-9204 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/7 15.5"(W1R) Z=12 		1-33372-069-5 01 1 9205-0203 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-039-1 01 1 0204- ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-039-1 01 1 9101-0203 ● ● ● ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-052-0 01 1 9101- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-370-0 01 1 0204- ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-370-0 01 1 9101-0203 ● ● ● ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-371-0 01 1 9101- ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9101-0203 ● ● ● ● ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0204-0407 ● ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0408- ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9101-0203 ● ● ● ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 0204-0407 ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 0408- ● ● ● ●
18 BOLT; CLU HSG TO TRANS
M14X40 W/LK&PL WASHER 		0-50151-440-0 05 1 0204- ● ● ●
18 BOLT; CLU HSG TO TRANS
M14X40 		0-23801-440-0 05 1 9101-9203 ● ● ● ● ● ●
18 BOLT; CLU HSG TO TRANS
M14X40 W/LK&PL WASHER 		0-50151-440-0 05 1 9204-0203 ● ● ● ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X35 		0-23801-635-0 06 1 9101-9203 ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50151-640-0 06 1 9204- ●
19 WASHER; PL,CLU HSG TO TRANS
ID=15 		9-09160-514-0 01 1 0204- ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=15 		9-09160-514-0 01 1 9204-0203 ● ● ● ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 		9-09160-516-0 02 1 9204- ●
27 NUT; CLU HSG TO TRANS
M14 		9-99110-514-0 01 1 0204- ● ● ●
27 NUT; CLU HSG TO TRANS
M14 		9-99110-514-0 01 1 9101-0203 ● ● ● ● ● ●
27 NUT; CLU HSG TO TRANS
M16 		9-99110-516-0 02 1 9101- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
RIGHT HAND DRIVE(MTR5FB) M10X30 W/LK WASHER 		0-50051-030-0 11 1 9101-0203 ● ● ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
RIGHT HAND DRIVE(MTR5FB) M10X30 W/LK WASHER 		0-50051-030-0 11 1 0204- ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
LEFT HAND DRIVE(MTR6FB) M10X30 W/LK WASHER 		0-50051-030-0 09 1 9101- ● ● ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 W/LK WASHER 		0-50051-030-0 09 1 9101- ●
33 WASHER; LK,CLU HSG
ID=10.2 		9-09150-510-0 01 1 9101-0203 ● ● ● ● ● ●
33 WASHER; LK,CLU HSG
RIGHT HAND DRIVE(MTR5FB) ID=10.2 		9-09150-510-0 01 1 0204- ● ● ●
33 WASHER; LK,CLU HSG
LEFT HAND DRIVE(MTR6FB) ID=10.2 		9-09150-510-0 03 1 9101- ● ● ● ● ● ●
33 WASHER; LK,CLU HSG
ID=10.2 		9-09150-510-0 03 1 9101- ●
34 STUD; CLU HSG
M14X39 L=57 		1-09302-145-1 01 1 0204- ● ● ●
34 STUD; CLU HSG
M14X39 L=57 		1-09302-145-1 01 1 9101-0203 ● ● ● ● ● ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 9101- ●
35 WASHER; LK,CLU HSG TO TRANS
ID=14.2 		9-09150-514-0 01 1 0204- ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=14.2 		9-09150-514-0 06 1 9101-9203 ● ● ● ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=14.2 		9-09150-514-0 01 1 9204-0203 ● ● ● ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 08 1 9101-9203 ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 9204- ●
55 STUD; FLYWHEEL HSG
RIGHT HAND DRIVE(MTR5FB) 		1-09029-048-0 01 1 9101-0203 ● ● ● ● ● ●
55 STUD; FLYWHEEL HSG
RIGHT HAND DRIVE(MTR5FB) 		1-09029-048-0 01 1 0204- ● ● ●
55 STUD; FLYWHEEL HSG
LEFT HAND DRIVE(MTR6FB) 		1-09029-048-0 03 1 9101- ● ● ● ● ● ●
55 STUD; FLYWHEEL HSG 1-09029-048-0 03 1 9101- ●
