Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#22029) — 217 parça

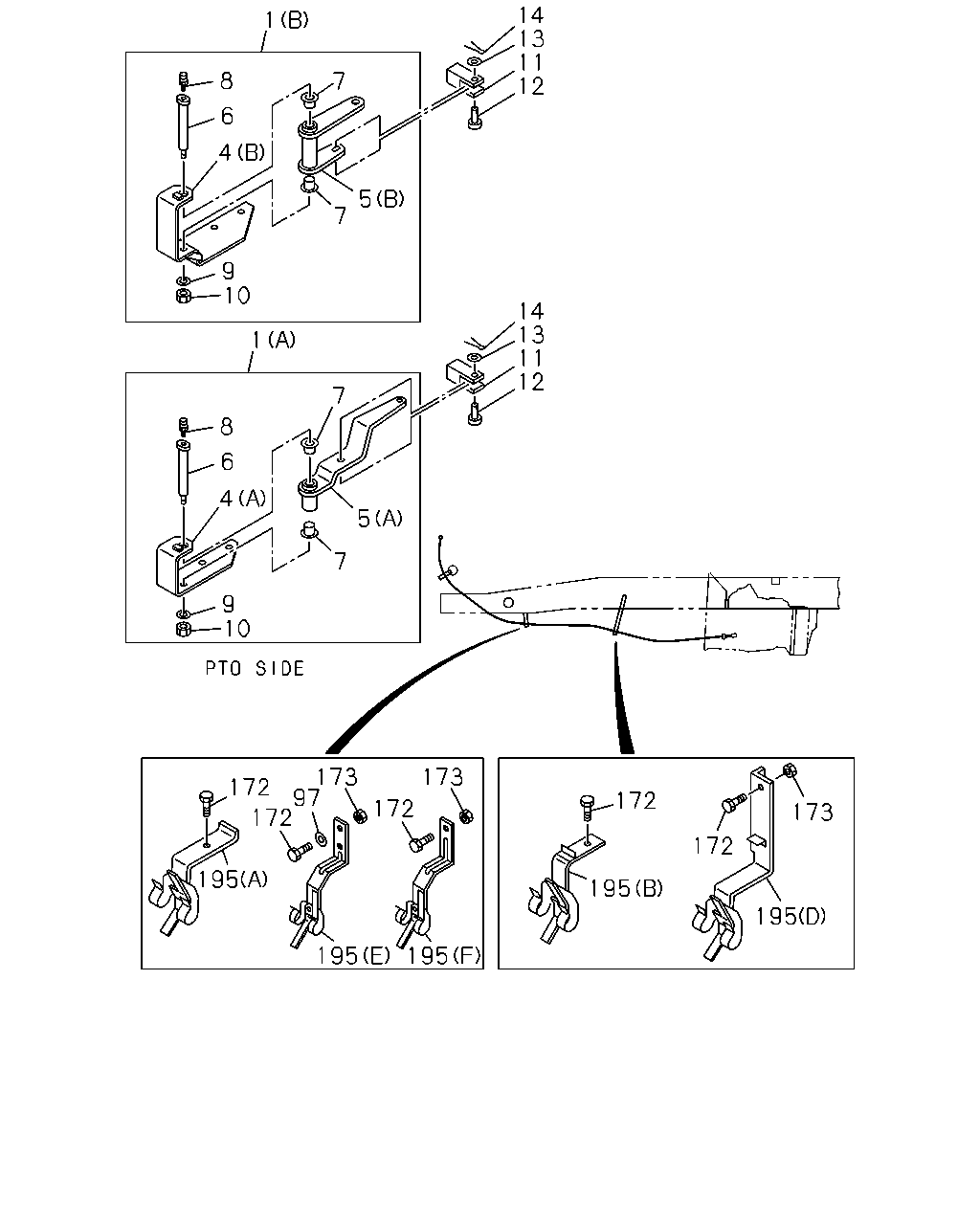

14 13 11 12 1 8 7 6 4 5 7 9 10 14 13 11 12 1 7 8 6 4 5 7 9 10 173 97 172 173 172 172 172 173 172 195 195 195 195 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-114-1	01	1	9811-	●	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (B)	8-94169-638-3	01	1	9811-0105				●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97019-744-0	01	1	9811-	●	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (B)	8-94169-639-0	01	1	9811-0105				●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-115-0	01	1	9811-	●	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (B)	8-94147-828-0	01	1	9811-0105				●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94419-941-1	01	1	9811-	●	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94147-829-1	01	1	9811-0105				●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	9811-0105	●	●	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0106-	●	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	9811-0105	●	●	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0106-	●	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	9811-0105	●	●	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	0106-	●	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	9811-0105	●	●	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	0106-	●	●	●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	9811-0105	●	●	●	●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	0106-	●	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	9811-0105	●	●	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0106-	●	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	9811-0105	●	●	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	0106-	●	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	9811-0105	●	●	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	0106-	●	●	●
14	04.439 PIN; SPLIT,YOKE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 08.938 OD=2.8 L=18	9-08113-018-0	01	1	9811-					●	●	●
97	04.439 WASHER; LK 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	9811-9812	●	●			●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0105	●	●	●		●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-0106	●	●	●		●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-0106				●
172	04.439 BOLT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-0202	●	●	●		●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0203-	●	●	●		●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●	●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0106	●	●	●	●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0106	●	●	●		●	●
172	04.439 BOLT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0202	●	●	●		●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0202	●	●	●
172	04.439 BOLT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0203-	●	●	●		●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0203-	●	●	●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●			●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9811-0105					●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0106-0207	●	●	●		●	●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0208-					●	●	●
173	04.439 NUT; BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0105	●	●	●	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0106	●	●	●		●	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0106				●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0202	●	●	●	●	●	●
173	04.439 NUT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0203-	●	●	●		●	●	●
173	04.439 NUT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●			●	●
173	04.439 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●
173	04.439 NUT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	9811-0105					●	●
173	04.439 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	0106-0207	●	●	●		●	●
173	04.439 NUT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0208-					●	●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B)	8-97085-695-3	01	1	9811-0105	●	●	●		●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B)	8-97085-695-3	01	1	0106-0106	●	●	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97085-695-3	01	1	0106-0106				●
195	04.439 BRACKET; CONT CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B)	8-97085-695-3	01	1	0106-0202	●	●	●		●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B)	8-97085-695-3	01	1	0203-	●	●	●		●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97079-559-2	01	1	9811-0202	●	●	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97079-559-2	01	1	0203-	●	●	●		●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97079-560-3	01	1	9811-0105	●	●	●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97079-560-3	01	1	0106-	●	●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E)	8-97106-210-0	01	1	9811-9812	●	●			●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E)	8-97076-428-6	01	1	9901-9904	●	●			●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (F)	8-97229-563-0	01	1	9905-0105	●	●			●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> (F)	8-97229-563-0	01	1	0106-0202	●	●	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> (F)	8-97229-563-0	01	1	0203-	●	●	●		●	●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C)	8-97210-766-0	01	1	9811-9903					●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (G)	8-97227-060-0	01	1	9904-9907					●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (G)	8-97231-502-0	01	1	9908-0105					●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (G)	8-97231-502-0	01	1	0106-0207	●	●	●		●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (G)	8-97231-502-0	01	1	0208-					●	●	●

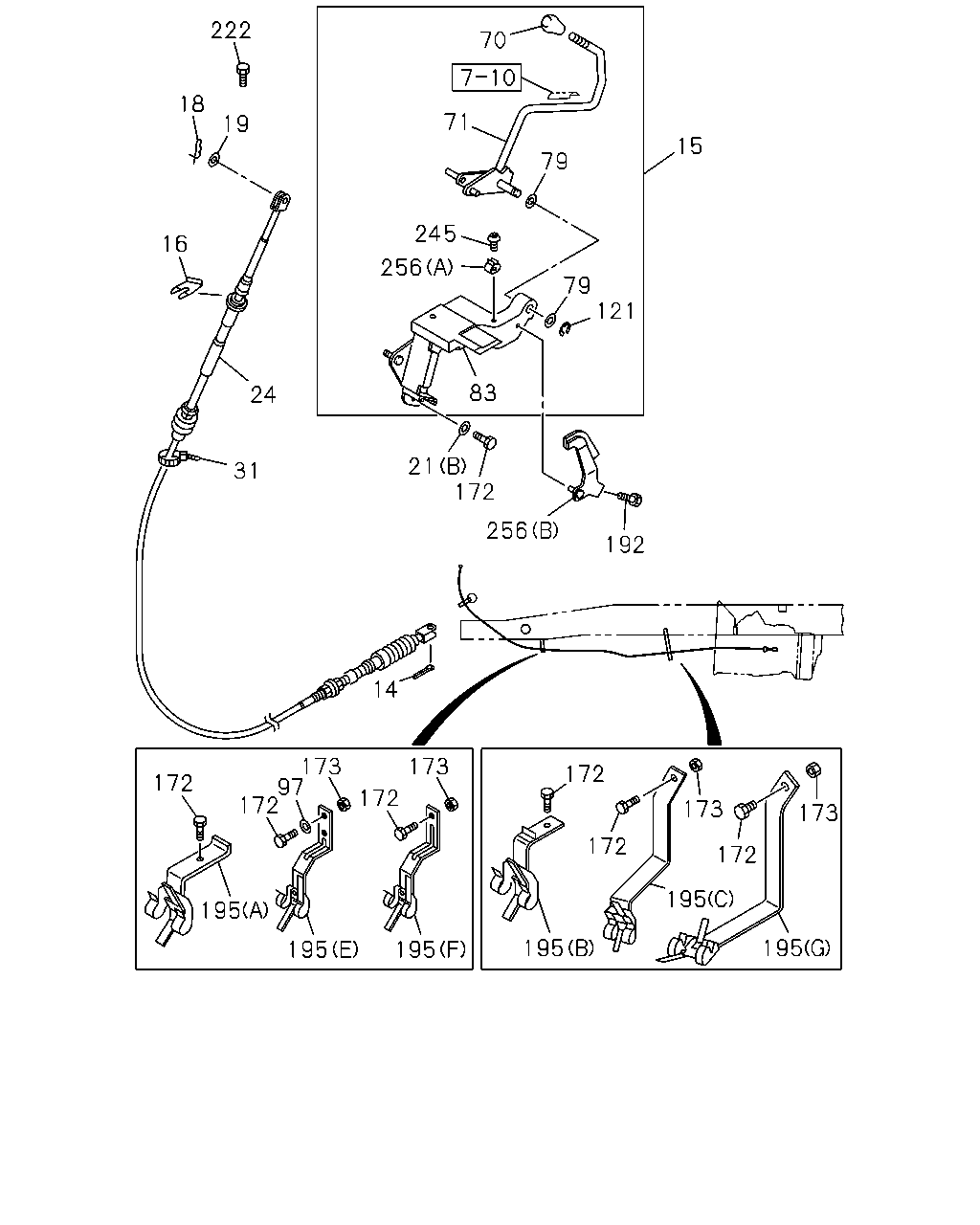

222 70 18 71 19 15 79 245 16 256 79 121 83 24 21 172 31 256 192 14 173 97 172 173 172 172 172 173 173 172 172 195 195 195 195 195 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	9811-0105	●	●	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	0106-	●	●	●
14	04.439 PIN; SPLIT,YOKE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 08.938 OD=2.8 L=18	9-08113-018-0	01	1	9811-					●	●	●
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-217-1	01	1	9811-	●	●	●	●	●	●	●
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027	8-94152-900-0	01	1	9811-	●	●	●	●	●	●	●
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9811-	●	●	●	●	●	●	●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	9811-	●	●	●	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	9811-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	9811-	●	●	●	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9811-0105				●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-1	01	1	0208-							●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3294	8-97329-044-0	01	1	0208-							●
24	04.439 CABLE; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> L=2931	8-97142-490-0	01	1	9811-	●	●	●
24	04.439 CABLE; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3107	8-97204-987-0	01	1	9811-	●	●	●
24	04.439 CABLE; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3077	8-97204-988-0	01	1	9811-	●	●	●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3208	8-97142-498-1	01	1	9811-					●	●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3282	8-97184-373-0	01	1	9811-					●	●
24	04.439 CABLE; PTO CONT 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2811	8-97142-486-0	01	1	9811-0105				●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) 02.559 L=250	5-09707-030-1	01	1	9811-0202	●	●	●	●	●	●
31	04.439 CLIP; BAND,CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0203-	●	●	●		●	●	●
31	04.439 CLIP; BAND,CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0203-	●	●	●		●	●	●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=300	1-09707-001-1	01	1	9811-0202	●	●	●	●	●	●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=300	1-09707-001-1	01	1	0203-	●	●	●		●	●	●
70	04.439 KNOB; DUMP CONT PTO TRANSMISSION SIDE(V66)	8-94147-332-1	01	1	9811-	●	●	●	●	●	●	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-218-0	01	1	9811-	●	●	●	●	●	●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.008 ID=14 OD=16	8-94252-671-0	02	1	9811-0204	●	●	●	●	●	●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.792	8-94238-596-0	02	1	0205-	●	●	●	●	●	●	●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97118-977-0	01	1	9811-	●	●	●	●	●	●	●
97	04.439 WASHER; LK 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	9811-9812	●	●			●	●
121	04.439 RING; SNAP PTO TRANSMISSION SIDE(V66) 08.934 ID=10	9-09185-410-0	01	1	9811-	●	●	●	●	●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0105	●	●	●		●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-0106	●	●	●		●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-0106				●
172	04.439 BOLT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-0202	●	●	●		●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0203-	●	●	●		●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●	●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0106	●	●	●	●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0106	●	●	●		●	●
172	04.439 BOLT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0202	●	●	●		●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0202	●	●	●
172	04.439 BOLT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0203-	●	●	●		●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0203-	●	●	●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●			●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9811-0105					●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0106-0207	●	●	●		●	●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0208-					●	●	●
173	04.439 NUT; BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0105	●	●	●	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0106	●	●	●		●	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0106				●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0202	●	●	●	●	●	●
173	04.439 NUT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0203-	●	●	●		●	●	●
173	04.439 NUT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●			●	●
173	04.439 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●
173	04.439 NUT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	9811-0105					●	●
173	04.439 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	0106-0207	●	●	●		●	●
173	04.439 NUT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0208-					●	●	●
192	04.439 BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66) M6X16 FLANGE	0-28680-616-0	01	1	9811-	●	●	●	●	●	●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B)	8-97085-695-3	01	1	9811-0105	●	●	●		●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B)	8-97085-695-3	01	1	0106-0106	●	●	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97085-695-3	01	1	0106-0106				●
195	04.439 BRACKET; CONT CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B)	8-97085-695-3	01	1	0106-0202	●	●	●		●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B)	8-97085-695-3	01	1	0203-	●	●	●		●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97079-559-2	01	1	9811-0202	●	●	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97079-559-2	01	1	0203-	●	●	●		●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97079-560-3	01	1	9811-0105	●	●	●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97079-560-3	01	1	0106-	●	●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E)	8-97106-210-0	01	1	9811-9812	●	●			●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E)	8-97076-428-6	01	1	9901-9904	●	●			●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (F)	8-97229-563-0	01	1	9905-0105	●	●			●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> (F)	8-97229-563-0	01	1	0106-0202	●	●	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> (F)	8-97229-563-0	01	1	0203-	●	●	●		●	●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C)	8-97210-766-0	01	1	9811-9903					●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (G)	8-97227-060-0	01	1	9904-9907					●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (G)	8-97231-502-0	01	1	9908-0105					●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (G)	8-97231-502-0	01	1	0106-0207	●	●	●		●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (G)	8-97231-502-0	01	1	0208-					●	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	03	1	9811-0010	●	●	●	●	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	0011-	●	●	●	●	●	●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	9811-	●	●	●	●	●	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (B)	8-97118-983-0	01	1	9811-	●	●	●	●	●	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (A)	8-97142-947-0	01	1	9811-	●	●	●	●	●	●	●

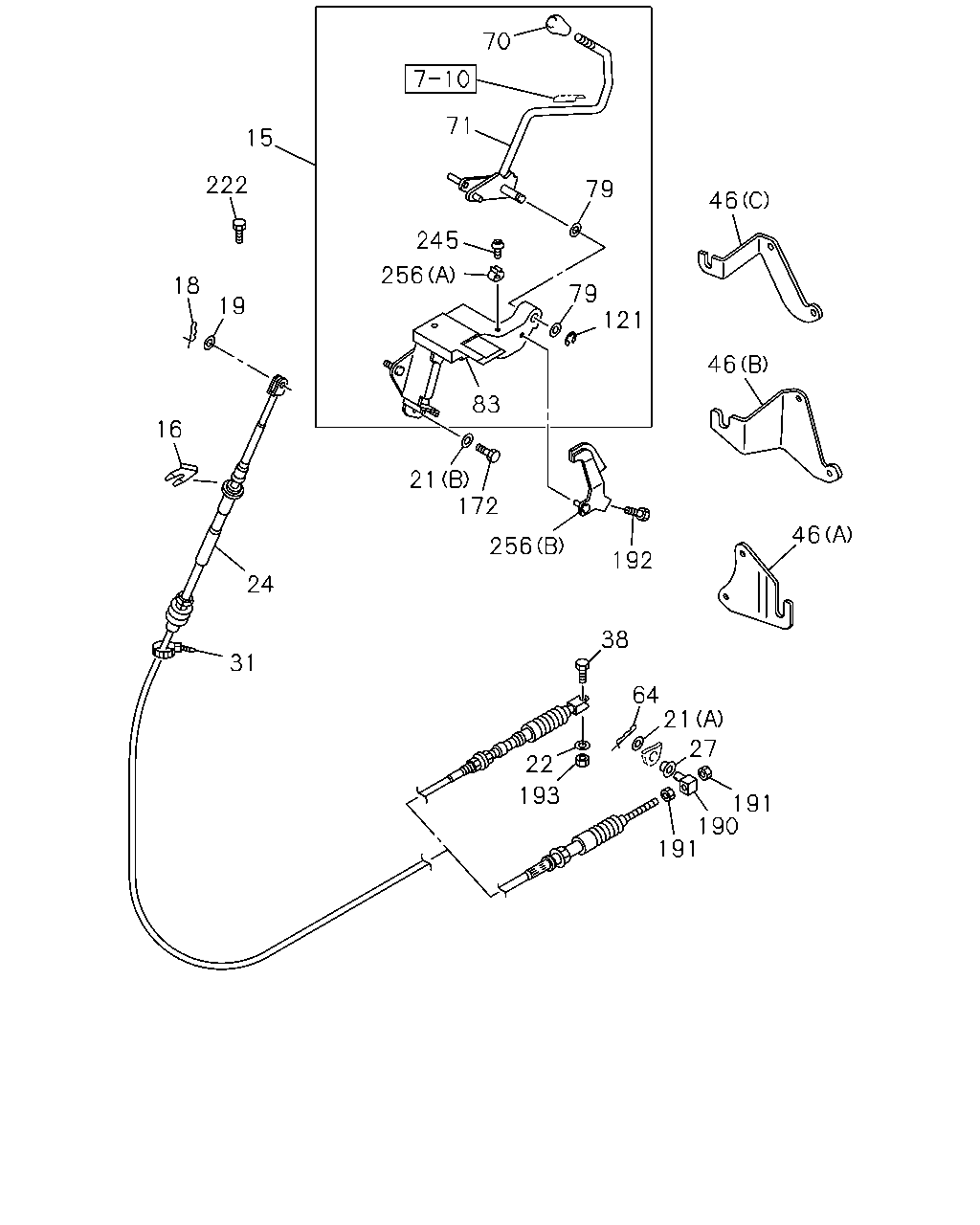

70 71 15 222 79 46 245 256 79 121 18 19 46 83 16 21 172 46 256 192 24 38 31 64 21 27 22 193 191 190 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-217-1	01	1	9811-	●	●	●	●	●	●	●
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027	8-94152-900-0	01	1	9811-	●	●	●	●	●	●	●
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9811-	●	●	●	●	●	●	●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	9811-	●	●	●	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	9811-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	9811-	●	●	●	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9811-0105				●
22	04.439 WASHER; LK,LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	9811-	●	●	●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-1	01	1	0208-							●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3294	8-97329-044-0	01	1	0208-							●
24	04.439 CABLE; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> L=2931	8-97142-490-0	01	1	9811-	●	●	●
24	04.439 CABLE; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3107	8-97204-987-0	01	1	9811-	●	●	●
24	04.439 CABLE; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3077	8-97204-988-0	01	1	9811-	●	●	●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3208	8-97142-498-1	01	1	9811-					●	●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3282	8-97184-373-0	01	1	9811-					●	●
24	04.439 CABLE; PTO CONT 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2811	8-97142-486-0	01	1	9811-0105				●
27	04.439 BUSHING; LEVER,PTO 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	9811-	●	●	●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) 02.559 L=250	5-09707-030-1	01	1	9811-0202	●	●	●	●	●	●
31	04.439 CLIP; BAND,CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0203-	●	●	●		●	●	●
31	04.439 CLIP; BAND,CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0203-	●	●	●		●	●	●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=300	1-09707-001-1	01	1	9811-0202	●	●	●	●	●	●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=300	1-09707-001-1	01	1	0203-	●	●	●		●	●	●
38	04.439 PIN; JOINT,CABLE TO LEVER 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 04.047	8-94153-035-0	01	1	9811-0105				●
46	04.439 BRACKET; PTO,TRANS SIDE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) (B)	8-97022-848-1	01	1	9811-9812	●	●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) (B)	8-97219-994-0	01	1	9901-9910	●	●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) (C)	8-97240-638-0	01	1	9911-	●	●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) (A)	8-94157-541-0	01	1	9811-0105				●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9811-9812	●	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9901-0105	●	●	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0106-	●	●	●
70	04.439 KNOB; DUMP CONT PTO TRANSMISSION SIDE(V66)	8-94147-332-1	01	1	9811-	●	●	●	●	●	●	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-218-0	01	1	9811-	●	●	●	●	●	●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.008 ID=14 OD=16	8-94252-671-0	02	1	9811-0204	●	●	●	●	●	●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.792	8-94238-596-0	02	1	0205-	●	●	●	●	●	●	●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97118-977-0	01	1	9811-	●	●	●	●	●	●	●
121	04.439 RING; SNAP PTO TRANSMISSION SIDE(V66) 08.934 ID=10	9-09185-410-0	01	1	9811-	●	●	●	●	●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0105	●	●	●		●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-0106	●	●	●		●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-0106				●
172	04.439 BOLT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-0202	●	●	●		●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0203-	●	●	●		●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●	●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0106	●	●	●	●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0106	●	●	●		●	●
172	04.439 BOLT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0202	●	●	●		●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0202	●	●	●
172	04.439 BOLT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0203-	●	●	●		●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0203-	●	●	●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●			●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9811-0105					●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0106-0207	●	●	●		●	●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0208-					●	●	●
190	04.439 BOSS; LEVER,PTO 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	9811-	●	●	●
191	04.439 NUT; BOSS 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	9811-	●	●	●
192	04.439 BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66) M6X16 FLANGE	0-28680-616-0	01	1	9811-	●	●	●	●	●	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	9811-0105	●	●	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	0106-	●	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	03	1	9811-0010	●	●	●	●	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	0011-	●	●	●	●	●	●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	9811-	●	●	●	●	●	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (B)	8-97118-983-0	01	1	9811-	●	●	●	●	●	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (A)	8-97142-947-0	01	1	9811-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
