◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-56 - AUTO TRANS CONTROL LINK ▶
2-56 — AUTO TRANS CONTROL LINK (#22027) — 17 parça

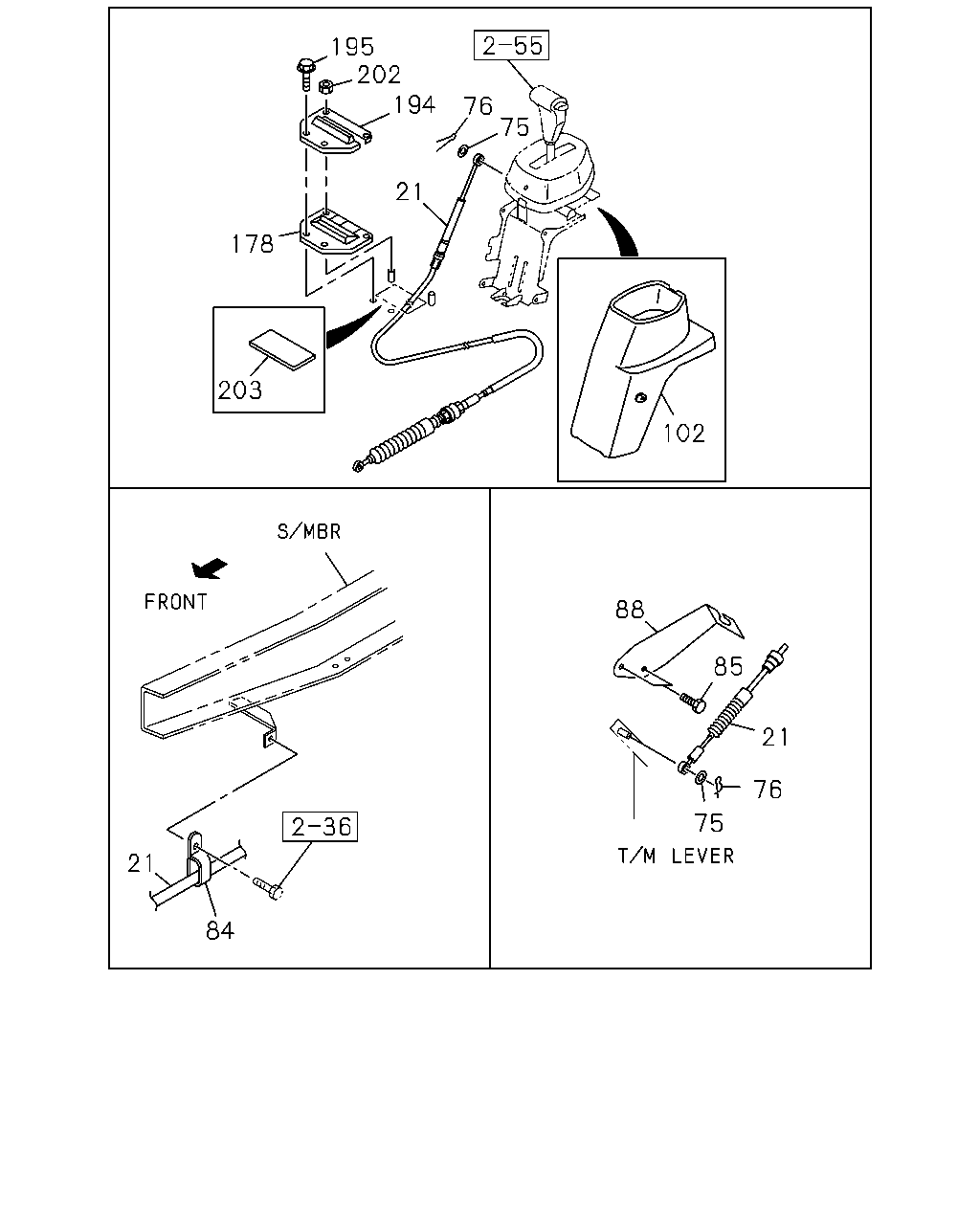

çizim 47612
195 202 194 76 75 21 178 203 102 88 85 21 76 75 21 84
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
21 04.047 CABLE; A/T
CHARGE AIR COOLER<6PL> L=3263 		8-97148-605-3 01 1 9811- ●
75 04.275 WASHER; PL,CONT CABLE TO A/T
02.183 ID=6.4 OD=14 		9-09160-606-0 02 1 9811- ●
76 04.275 PIN; SNAP,A/T CONT
04.027 L=21.2 		8-94111-136-0 02 1 9811- ●
84 04.047 CLIP; A/T CONT CABLE
CHARGE AIR COOLER<6PL> 03.162 ID=14X29 H=15 L=20 		1-09700-744-0 01 1 9811- ●
85 04.047 BOLT; A/T CONT CABLE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9811-0210 ●
85 04.047 BOLT; A/T CONT CABLE
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211- ●
88 04.047 BRACKET; A/T CONT CABLE
04.040 		8-97148-638-0 01 1 9811- ●
102 04.047 COVER; GEAR CONT
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) NQR SGL CAB&SUPER LONG(NPC6SS) 04.015 DARK GRAY 		8-97098-522-0 01 1 9811- ●
178 04.047 GROMMET; CONT CABLE 8-97095-128-0 01 1 9811- ●
194 04.047 RETAINER; GROMMET 1-33657-674-0 01 1 9811- ● ● ● ● ● ● ● ●
195 04.047 BOLT; GROMMET FIX
00.785 M6X20 FLANGE 		0-28480-620-0 02 1 9811- ● ● ● ● ● ● ● ●
202 04.047 NUT; GROMMET
01.062 M6 FLANGE 		0-91150-206-0 02 1 9811- ● ● ● ● ● ● ● ●
203 04.047 SEAL; CABLE
NPR/NQR SGL CAB(NP**S*) MANUAL TILT CAB<RWZ> 		8-97096-753-0 01 1 9811- ● ● ● ● ● ● ● ●
çizim 48485
195 202 194 203
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
194 04.047 RETAINER; GROMMET 1-33657-674-0 01 1 9811- ● ● ● ● ● ● ● ●
195 04.047 BOLT; GROMMET FIX
00.785 M6X20 FLANGE 		0-28480-620-0 02 1 9811- ● ● ● ● ● ● ● ●
202 04.047 NUT; GROMMET
01.062 M6 FLANGE 		0-91150-206-0 02 1 9811- ● ● ● ● ● ● ● ●
203 04.047 SEAL; CABLE
NPR/NQR SGL CAB(NP**S*) MANUAL TILT CAB<RWZ> 		8-97096-753-0 01 1 9811- ● ● ● ● ● ● ● ●
