Isuzu WW
▶
TRUCKS
▶
NPR
▶
50815 - NPR/NQR-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-55 - AUTO TRANS SHIFT CONTROL LEVER
▶

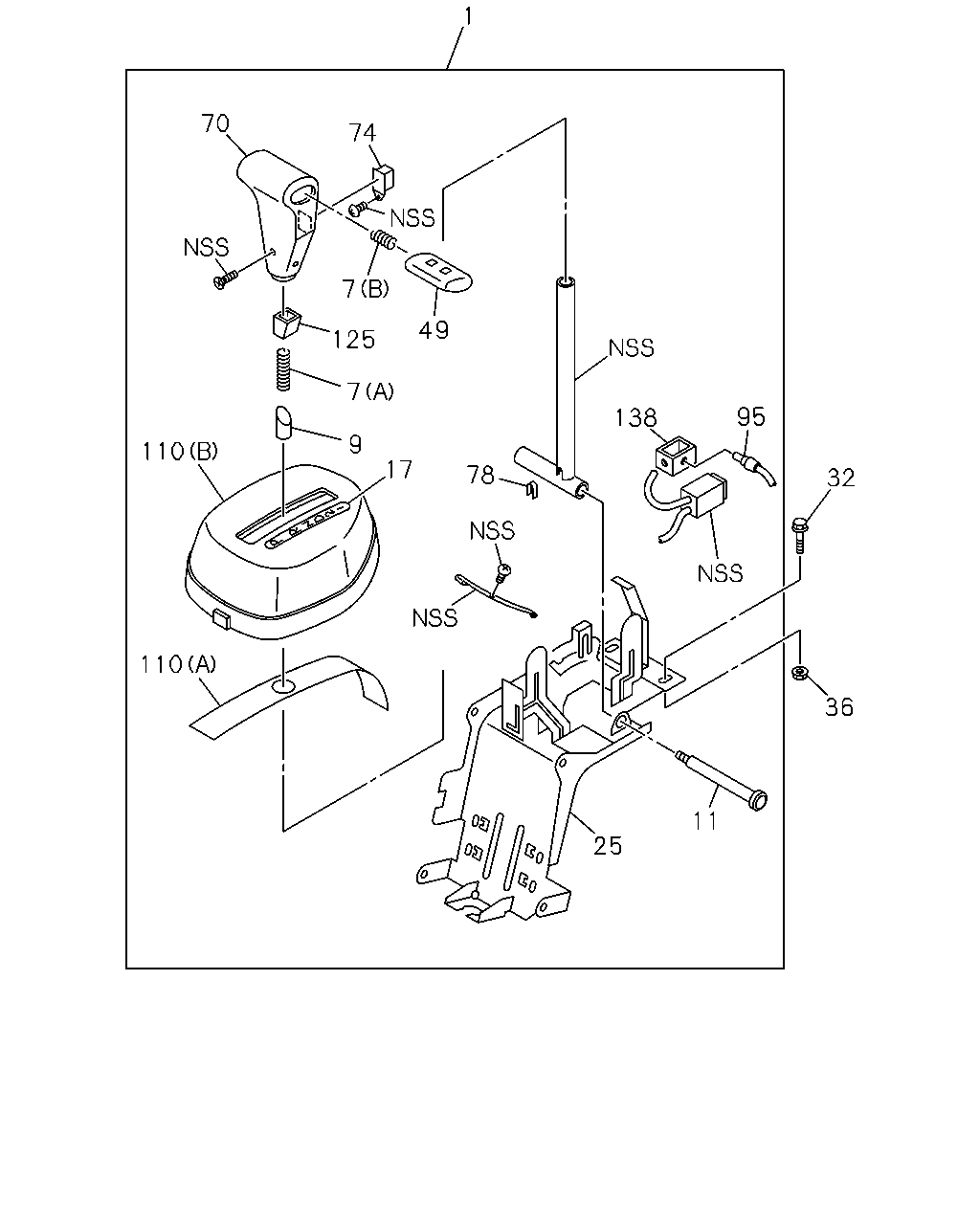

2-55 — AUTO TRANS SHIFT CONTROL LEVER
(#22026) — 18 parça
1
70
74
7
49
125
7
95
138
9
110
17
78
32
110
36
11
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.006 LEVER; SHIFT,A/T
DARK GRAY
8-97158-891-0
01
1
9811-
7
04.008 SPRING; RETURN,ROD
(A)
8-97135-689-0
01
1
9811-
7
04.008 SPRING; RETURN,ROD
(B)
8-97135-690-0
01
1
9811-
9
04.006 SLEEVE; KNOB,SHIFT LEVER
8-97135-691-0
01
1
9811-
11
04.040 LEVER; A/T SHIFT LEVER TO LINK
8-97135-696-0
01
1
9811-
17
04.020 PLATE; INDICATOR
8-97180-768-0
01
1
9811-
25
04.010 PLATE SUB ASM; AUTO SHIFT LEVER
8-97180-767-0
01
1
9811-
32
04.008 BOLT; CONT LEVER TO BODY
01.062 M8X16 FLANGE
0-28080-816-0
02
1
9811-
36
04.008 NUT; CONT LEVER
07.633 M8 FLANGE
0-91150-108-0
02
1
9811-
49
04.006 BUTTON; PUSH,KNOB
DARK GRAY
8-97155-048-0
01
1
9811-
70
04.006 KNOB; SHIFT LEVER
DARK GRAY
8-97155-052-0
01
1
9811-
74
04.057 SWITCH; OVERDRIVE,A/T CONT LEVER
8-97135-693-0
01
1
9811-
78
04.057 PROTECTOR; LAMP CABLE,A/T CONT L
8-97135-692-0
01
1
9811-
95
04.006 LAMP; INDICATOR
8-97135-677-0
01
1
9811-
110
04.030 COVER; INDICATOR,A/T CONT
(A)
8-97135-681-0
01
1
9811-
110
04.030 COVER; INDICATOR,A/T CONT
(B) DARK GRAY
8-97155-038-0
01
1
9811-
125
04.020 COVER; SHIFT LEVER
DARK GRAY
8-97155-050-0
01
1
9811-
138
04.030 BOX; LAMP
04.020
8-97135-686-0
01
1
9811-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
