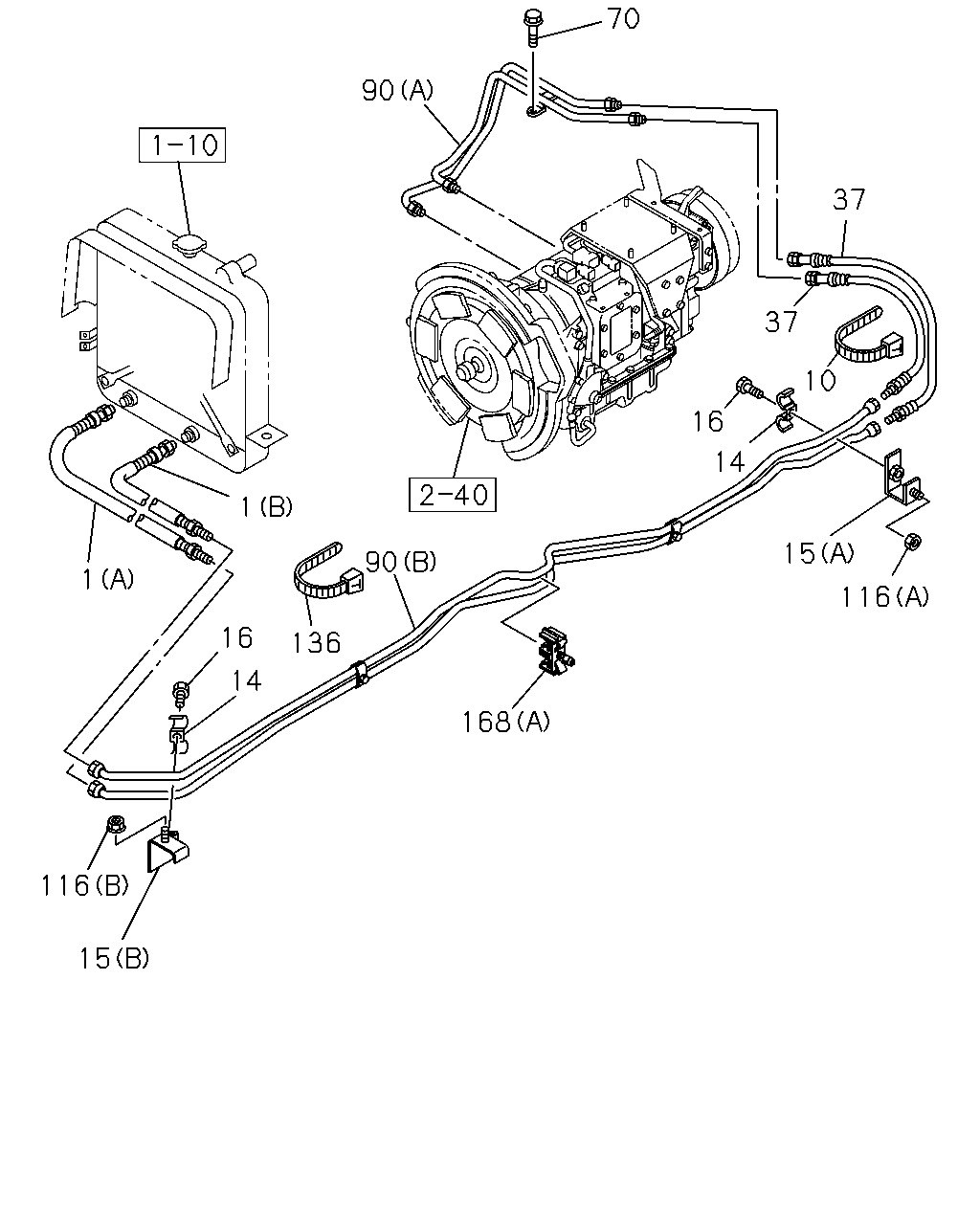

2-53 — TRANSMISSION OIL COOLER SYSTEM (#22025) — 40 parça

70 90 37 37 10 16 14 1 15 90 1 116 16 136 14 168 116 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (A) L=420	8-97012-838-1	01	1	9811-
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (B) L=630	8-97180-927-0	01	1	9811-
10	04.128 CLIP; A/T COOLER HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	9811-
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> 04.047 ID=13 & 13 L=16 & 16	1-09700-072-0	02	1	9811-
15	04.128 BRACKET; ATF PIPE (C)	8-97219-721-0	01	1	9901-
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-97148-826-1	01	1	9811-
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-637-0	01	1	9811-
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9811-
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ FRAME STRAIGHT TYPE<7KJ> 04.197 L=480	8-94455-052-2	02	1	9811-
70	04.128 BOLT; CLIP,A/T SIDE 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9811-
70	04.128 BOLT; CLIP,A/T SIDE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9901-
90	04.128 PIPE ASM; ATF (A)	8-97148-540-2	01	1	9811-9812
90	04.128 PIPE ASM; ATF (C)	8-97220-025-0	01	1	9901-
90	04.128 PIPE ASM; ATF (D)	8-97220-028-0	01	1	9901-
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> (B)	8-97215-629-1	01	1	9811-
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9811-
136	04.128 CLIP; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 L=140	5-09707-031-1	01	1	9811-
168	04.128 CLIP; A/T SIDE 04.047 (B) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9901-
168	04.128 CLIP; A/T SIDE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	9811-

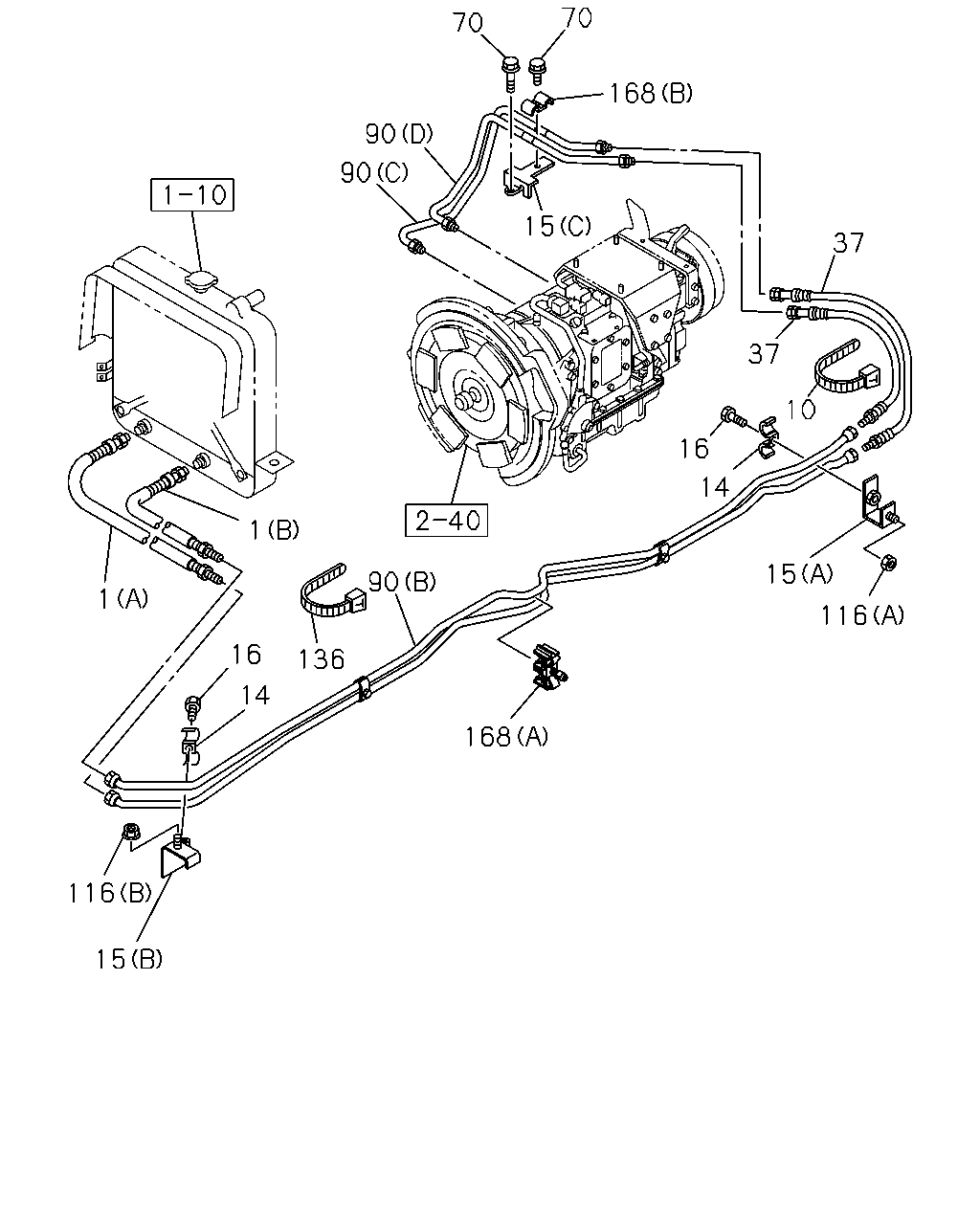

70 70 168 90 90 15 37 37 10 16 14 1 15 90 1 116 16 136 14 168 116 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (A) L=420	8-97012-838-1	01	1	9811-
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (B) L=630	8-97180-927-0	01	1	9811-
10	04.128 CLIP; A/T COOLER HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	9811-
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> 04.047 ID=13 & 13 L=16 & 16	1-09700-072-0	02	1	9811-
15	04.128 BRACKET; ATF PIPE (C)	8-97219-721-0	01	1	9901-
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-97148-826-1	01	1	9811-
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-637-0	01	1	9811-
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9811-
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ FRAME STRAIGHT TYPE<7KJ> 04.197 L=480	8-94455-052-2	02	1	9811-
70	04.128 BOLT; CLIP,A/T SIDE 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9811-
70	04.128 BOLT; CLIP,A/T SIDE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9901-
90	04.128 PIPE ASM; ATF (A)	8-97148-540-2	01	1	9811-9812
90	04.128 PIPE ASM; ATF (C)	8-97220-025-0	01	1	9901-
90	04.128 PIPE ASM; ATF (D)	8-97220-028-0	01	1	9901-
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> (B)	8-97215-629-1	01	1	9811-
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9811-
136	04.128 CLIP; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 L=140	5-09707-031-1	01	1	9811-
168	04.128 CLIP; A/T SIDE 04.047 (B) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9901-
168	04.128 CLIP; A/T SIDE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	9811-
