◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-49 - AUTO TRANS INHIBITOR SWITCH ▶
2-49 — AUTO TRANS INHIBITOR SWITCH (#22023) — 44 parça

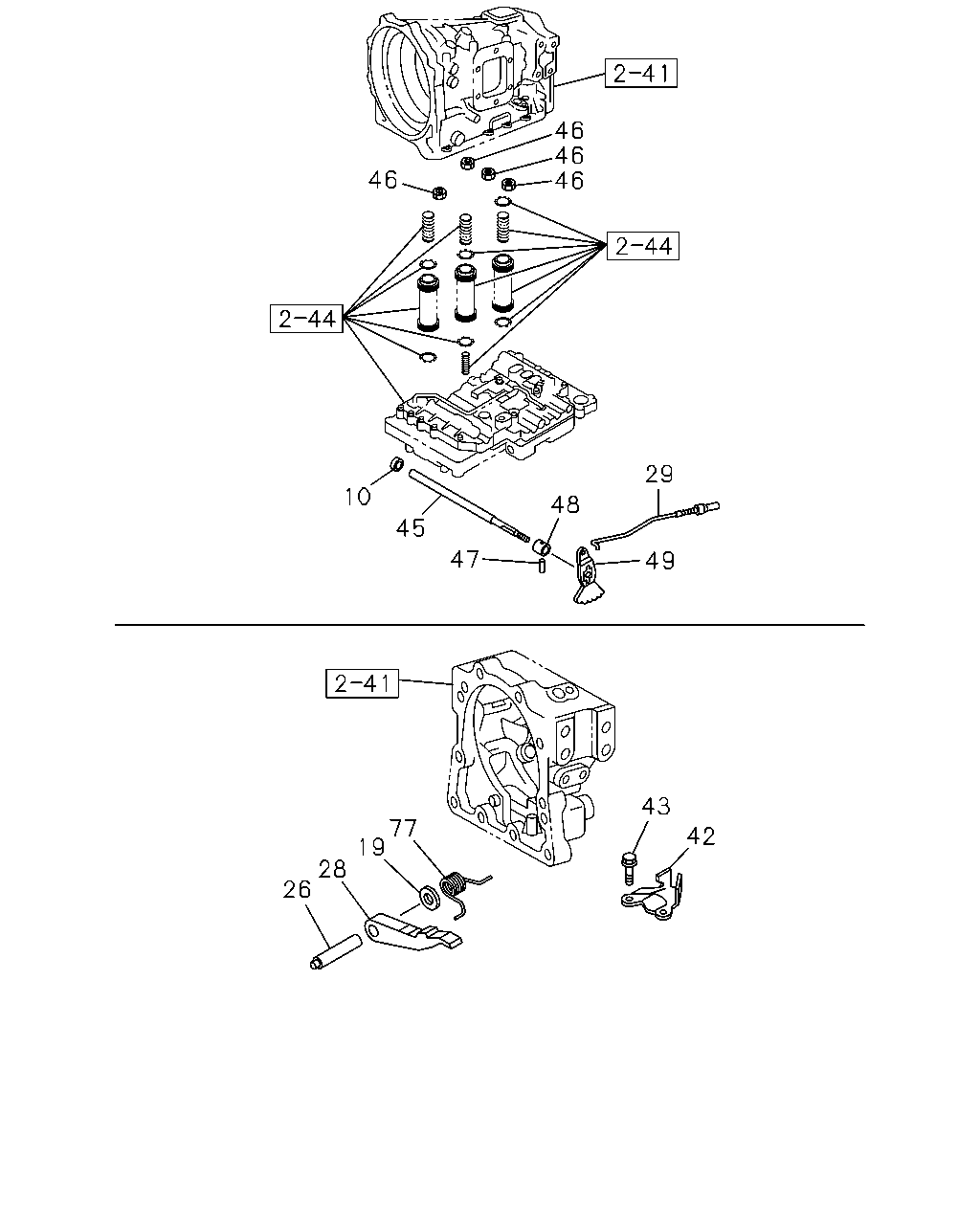

çizim 47227
46 46 46 46 29 10 48 45 47 49 43 77 19 42 28 26
BalonParca AdiParca NoAdetTipApplied Date
10 04.265 GASKET; MANUAL SHIFT,A/T 8-97218-279-0 02 1 9811-
19 04.275 WASHER; PARKING ROD,A/T 8-97257-077-0 01 1 9811-
26 04.294 SHAFT; PARKING PAWL,A/T 8-97257-059-0 01 1 9811-
28 04.294 PAWL; PARKING,A/T 8-97257-056-0 01 1 9811-
29 04.290 ROD ASM; CONT,A/T 8-97257-150-0 01 1 9811-
42 04.290 BRACKET; PARKING LOCK 8-97257-057-0 01 1 9811-
43 04.290 BOLT; BRKT 8-97257-058-0 02 1 9811-
45 04.275 SHAFT; VALVE LEVER 8-97257-081-0 01 1 9811-
46 04.282 SEAL; OIL 8-97257-107-0 04 1 9811-
47 04.275 PIN; ROLL SHAFT 8-97257-153-0 01 1 9811-
48 04.008 COVER; SLEEVE 8-97257-152-0 01 1 9811-
49 04.279 LEVER ASM; CAM 8-97257-151-0 01 1 9811-
77 04.295 SPRING; TORSION,PARKING BRK LK,A 8-97257-076-0 01 1 9811-

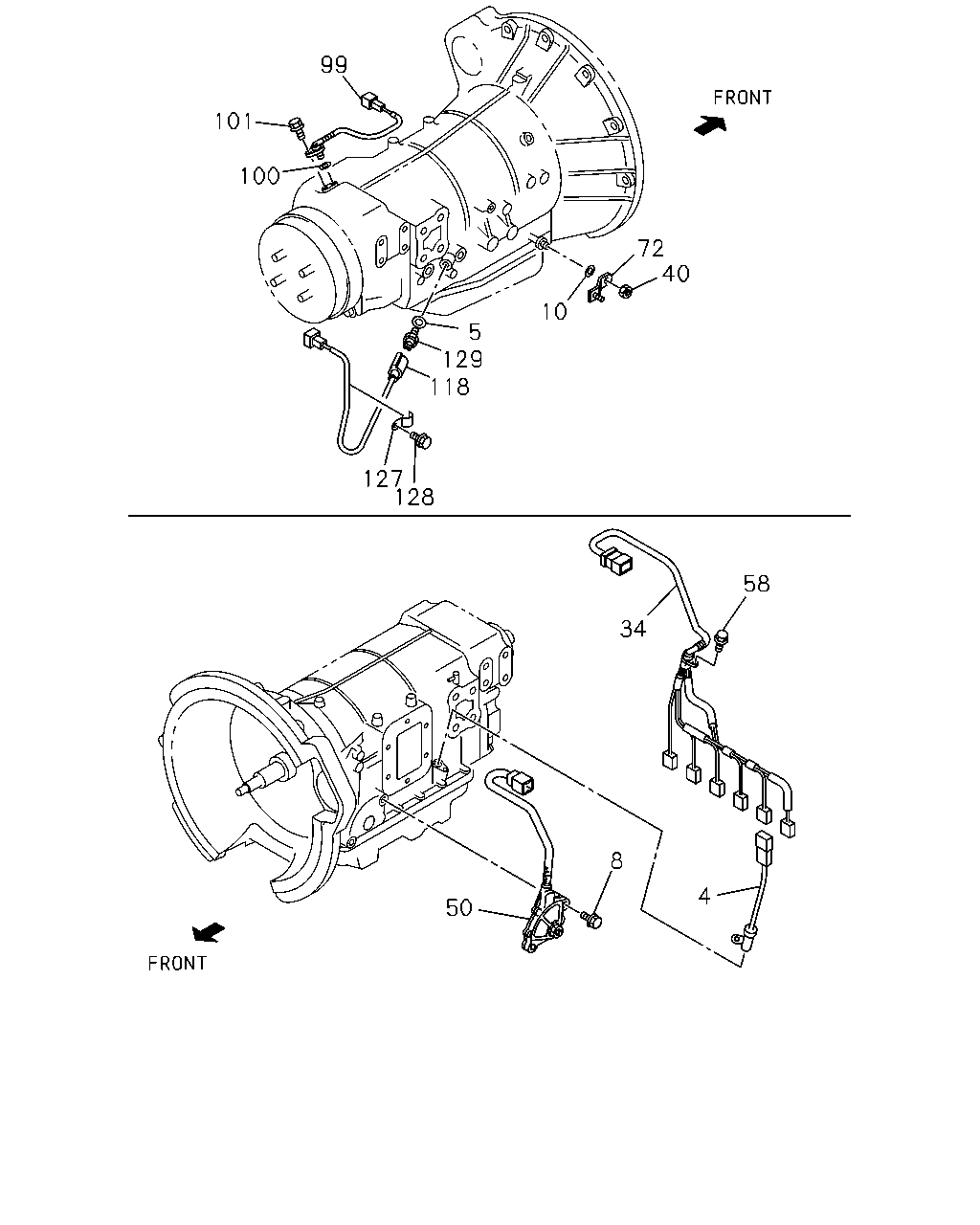

çizim 47666
99 101 100 72 40 10 5 129 118 127 128 58 34 8 4 50
BalonParca AdiParca NoAdetTipApplied Date
4 04.054 SENSOR; THERMO,A/T OIL 8-97257-142-0 01 1 9811-
5 04.054 GASKET; OIL THERMO SENSOR,A/T 8-97202-317-0 01 1 9811-
8 04.054 BOLT; NEUTRAL START SW,A/T 1-09020-158-0 02 1 9811-
10 04.265 GASKET; MANUAL SHIFT,A/T 8-97218-279-0 02 1 9811-
34 04.265 SOLENOID ASM; A/T 8-97202-075-0 01 1 9811-0001
34 04.265 SOLENOID ASM; A/T
VOLTAGE 24V<7AE> 		8-97202-075-0 01 1 0002-0105
34 04.265 SOLENOID ASM; A/T
EXC. VOLTAGE 24V<7AE> 		8-97229-532-0 01 1 0002-0105
34 04.265 SOLENOID ASM; A/T 8-97229-532-0 01 1 0106-
40 04.037 NUT; LEVER TO SHAFT 1-09464-025-0 02 1 9811-
50 04.054 SWITCH; NEUTRAL,A/T 8-97202-076-0 01 1 9811-0001
50 04.054 SWITCH; NEUTRAL,A/T
VOLTAGE 24V<7AE> 		8-97202-076-0 01 1 0002-0105
50 04.054 SWITCH; NEUTRAL,A/T
EXC. VOLTAGE 24V<7AE> 		8-97229-531-0 01 1 0002-0105
50 04.054 SWITCH; NEUTRAL,A/T 8-97229-531-0 01 1 0106-
58 04.260 BOLT; SOLENOID TO A/T
04.196 		8-97202-101-0 01 1 9811-
72 04.035 LEVER; SELECT CONT 8-97202-069-0 01 1 9811-
99 04.329 SENSOR; SPD 8-97202-077-0 01 1 9811-0001
99 04.329 SENSOR; SPD
VOLTAGE 24V<7AE> 		8-97202-077-0 01 1 0002-0105
99 04.329 SENSOR; SPD
EXC. VOLTAGE 24V<7AE> 		8-97229-529-0 01 1 0002-0105
99 04.329 SENSOR; SPD 8-97229-529-0 01 1 0106-
100 04.239 GASKET; SPD SENSOR 8-97202-085-0 01 1 9811-
101 04.329 BOLT; SPD SENSOR
04.196 		8-97202-101-0 01 1 9811-
118 02.530 CONNECTOR; HARNESS 8-97202-041-0 01 1 9811-0001
118 02.530 CONNECTOR; HARNESS
VOLTAGE 24V<7AE> 		8-97202-041-0 01 1 0002-0105
118 02.530 CONNECTOR; HARNESS
EXC. VOLTAGE 24V<7AE> 		8-97229-530-0 01 1 0002-0105
118 02.530 CONNECTOR; HARNESS 8-97229-530-0 01 1 0106-
127 02.559 CLAMP; HARNESS CONNECTOR 8-97202-094-0 01 1 9811-
128 02.559 BOLT; CLAMP 8-97202-100-0 01 1 9811-
129 04.248 SWITCH; OIL THERMO,TRANS
EXC. VOLTAGE 24V<7AE> 		8-97257-055-0 01 1 0002-0105
129 04.248 SWITCH; OIL THERMO,TRANS 8-97257-055-0 01 1 0106-
129 04.248 SWITCH; OIL THERMO,TRANS 8-97202-035-0 01 1 9811-0001
129 04.248 SWITCH; OIL THERMO,TRANS
VOLTAGE 24V<7AE> 		8-97202-035-0 01 1 0002-0105
