2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#22022) — 48 parça

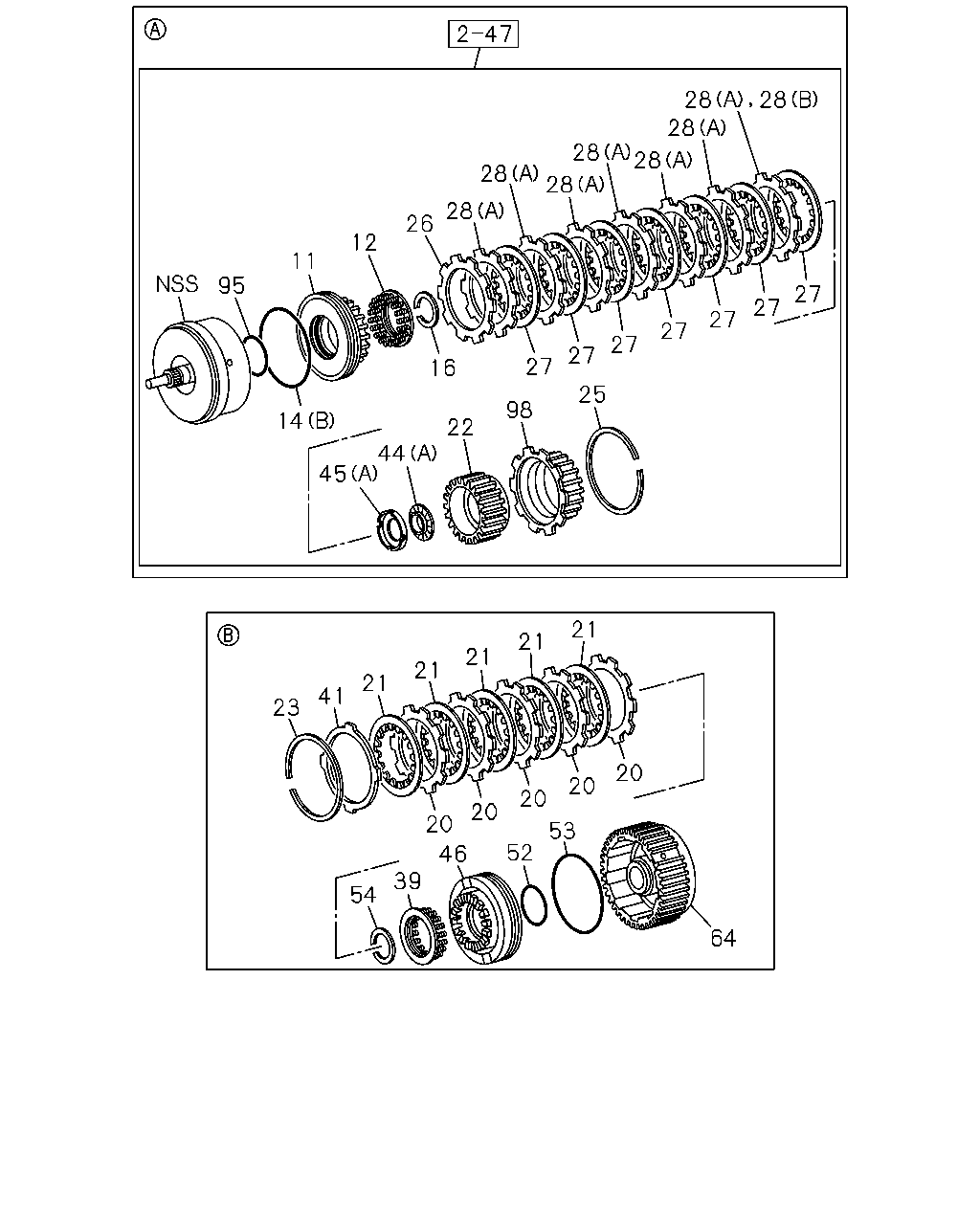

çizim 11784
28 28 28 28 28 28 28 28 26 12 11 95 27 27 27 27 27 27 27 16 25 98 14 22 44 45 21 21 21 21 21 41 23 20 20 20 20 20 53 52 46 39 54 64
BalonParca AdiParca NoAdetTipApplied Date
11 04.166 PISTON ASM; CLU,A/T 8-97256-961-0 01 1 9811-
12 04.164 SPRING; CLU RETURN,A/T 8-97256-964-0 01 1 9811-
14 04.166 GASKET; OUTER,CLU,A/T
(A) 		8-97256-927-0 03 1 9811-
14 04.166 GASKET; OUTER,CLU,A/T
04.460 (B) 		8-97256-963-0 01 1 9811-
16 04.166 RING; SNAP,CLU,A/T
04.472 		8-97256-966-0 01 1 9811-
20 04.163 DISC; CLU,A/T 8-97256-972-0 05 1 9811-
21 04.163 DISC ASM; CLU & FACING,A/T 8-97256-973-0 05 1 9811-
22 04.164 HUB; FWD CLU,A/T 8-97256-977-0 01 1 9811-
23 04.164 RING; RET,CLU,A/T 8-97256-979-0 01 1 9811-
25 04.164 RING; RET,BACKING PLATE,A/T 8-97256-979-0 01 1 9811-
26 04.163 PLATE; CLU,BACKING,A/T 8-97256-968-0 01 1 9811-
27 04.163 DISC ASM; CLU & FACING,A/T 8-97256-973-0 07 1 9811-
28 04.163 DISC; CLU,A/T
(A) T=1.8 		8-97256-967-0 07 1 9811-
28 04.163 DISC; CLU,A/T
(B) T=2.0 		8-97256-970-0 01 1 9811-
28 04.163 DISC; CLU,A/T
(B) T=2.2 		8-97256-971-0 01 1 9811-
28 04.163 DISC; CLU,A/T
(B) T=2.4 		8-97256-972-0 01 1 9811-
39 04.164 SPRING; DIRECT CLU RETURN 8-97257-149-0 01 1 9811-
41 04.164 FLANGE; DIRECT CLU
T=5.0 		8-97257-145-0 01 1 9811-
41 04.164 FLANGE; DIRECT CLU
T=5.2 		8-97257-146-0 01 1 9811-
41 04.164 FLANGE; DIRECT CLU
T=4.6 		8-97257-147-0 01 1 9811-
41 04.164 FLANGE; DIRECT CLU
T=4.8 		8-97257-148-0 01 1 9811-
44 04.164 BEARING; THRUST,INPUT SHAFT RR
(A) 		8-97256-976-0 01 1 9811-
44 04.164 BEARING; THRUST,INPUT SHAFT RR
(B) 		8-97257-049-0 01 1 9811-
45 04.164 RACE; THRUST BRG,INPUT SHAFT
(A) 		8-97256-975-0 01 1 9811-
45 04.164 RACE; THRUST BRG,INPUT SHAFT
(B) T=0.8 		8-97257-050-0 01 1 9811-
45 04.164 RACE; THRUST BRG,INPUT SHAFT
(B) T=1.0 		8-97257-051-0 01 1 9811-
45 04.164 RACE; THRUST BRG,INPUT SHAFT
(B) T=1.4 		8-97257-052-0 01 1 9811-
46 04.166 PISTON; DIRECT CLU,A/T 8-97257-144-0 01 1 9811-
52 04.167 GASKET; PISTON INNER,DIRECT CLU,
04.166 		8-97256-962-0 01 1 9811-
53 04.167 GASKET; PISTON OUTER,DIRECT CLU, 8-97256-948-0 01 1 9811-
54 04.166 RING; SNAP,PISTON RETURN SPRING
04.472 		8-97256-966-0 01 1 9811-
64 04.169 DRUM ASM; DIRECT CLU,A/T 8-97257-143-0 01 1 9811-
95 04.166 GASKET; CLU HUB 8-97256-962-0 01 1 9811-
98 04.166 HOUSING; CLU 8-97256-978-0 01 1 9811-

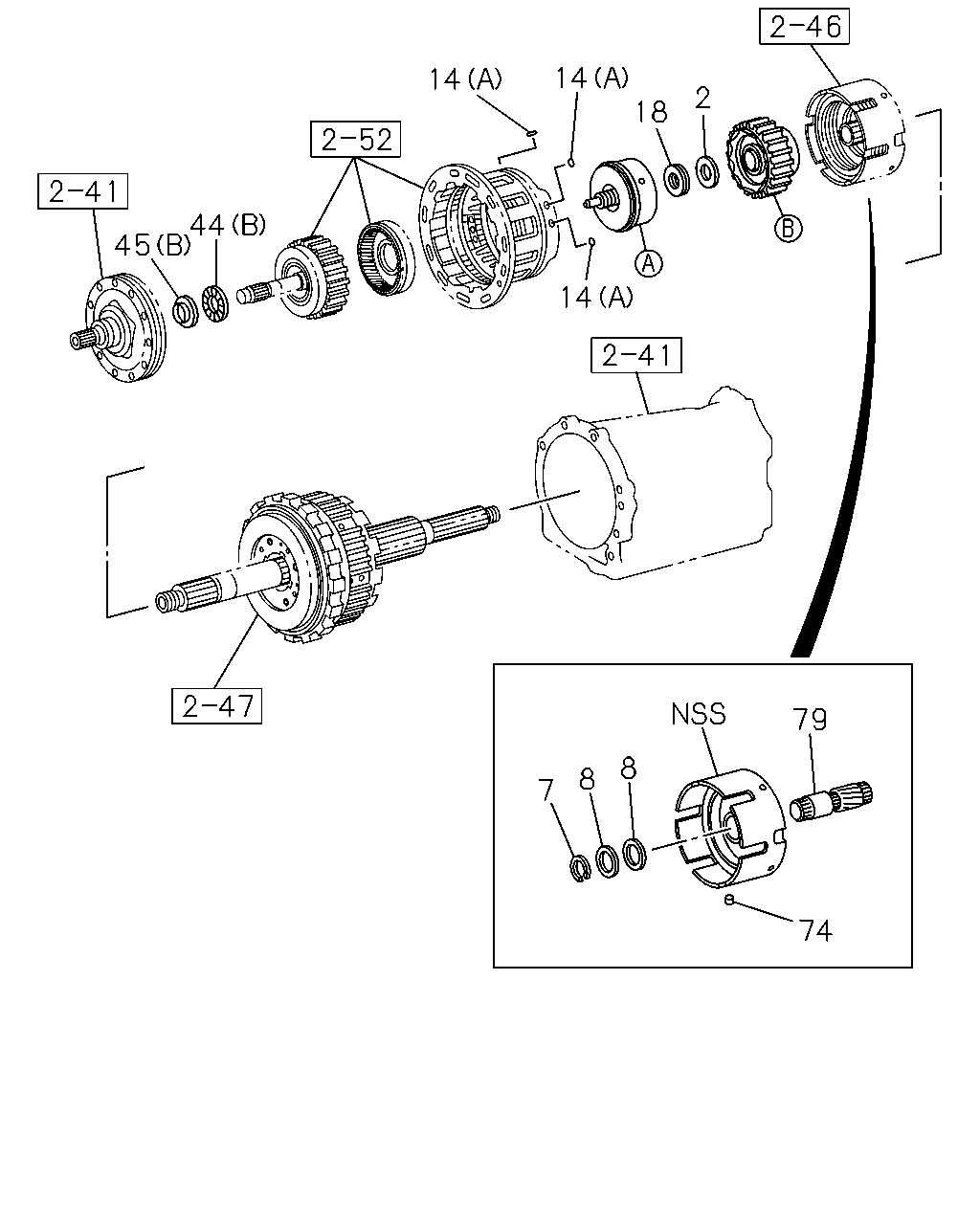

çizim 45985
14 18 14 2 44 45 14 79 8 8 7 74
BalonParca AdiParca NoAdetTipApplied Date
2 04.164 RACE; THRUST BRG,A/T 8-97256-975-0 01 1 9811-
7 04.159 RING; RET,PLANETARY GEAR,A/T 8-97257-017-0 01 1 9811-
8 04.169 RING; SEAL,PLANETARY GEAR,A/T
04.472 		8-97256-928-0 02 1 9811-
14 04.166 GASKET; OUTER,CLU,A/T
(A) 		8-97256-927-0 03 1 9811-
14 04.166 GASKET; OUTER,CLU,A/T
04.460 (B) 		8-97256-963-0 01 1 9811-
18 04.164 BEARING; THRUST,CLU,A/T 8-97256-976-0 01 1 9811-
44 04.164 BEARING; THRUST,INPUT SHAFT RR
(A) 		8-97256-976-0 01 1 9811-
44 04.164 BEARING; THRUST,INPUT SHAFT RR
(B) 		8-97257-049-0 01 1 9811-
45 04.164 RACE; THRUST BRG,INPUT SHAFT
(A) 		8-97256-975-0 01 1 9811-
45 04.164 RACE; THRUST BRG,INPUT SHAFT
(B) T=0.8 		8-97257-050-0 01 1 9811-
45 04.164 RACE; THRUST BRG,INPUT SHAFT
(B) T=1.0 		8-97257-051-0 01 1 9811-
45 04.164 RACE; THRUST BRG,INPUT SHAFT
(B) T=1.4 		8-97257-052-0 01 1 9811-
74 04.262 RING; RET
04.472 		8-97256-926-0 03 1 9811-
79 04.262 GEAR ASM; INPUT SUN 8-97257-016-0 01 1 9811-
