2-46 — AUTO TRANS SUPPORT AND PLANETARY GEAR (#22020) — 26 parça

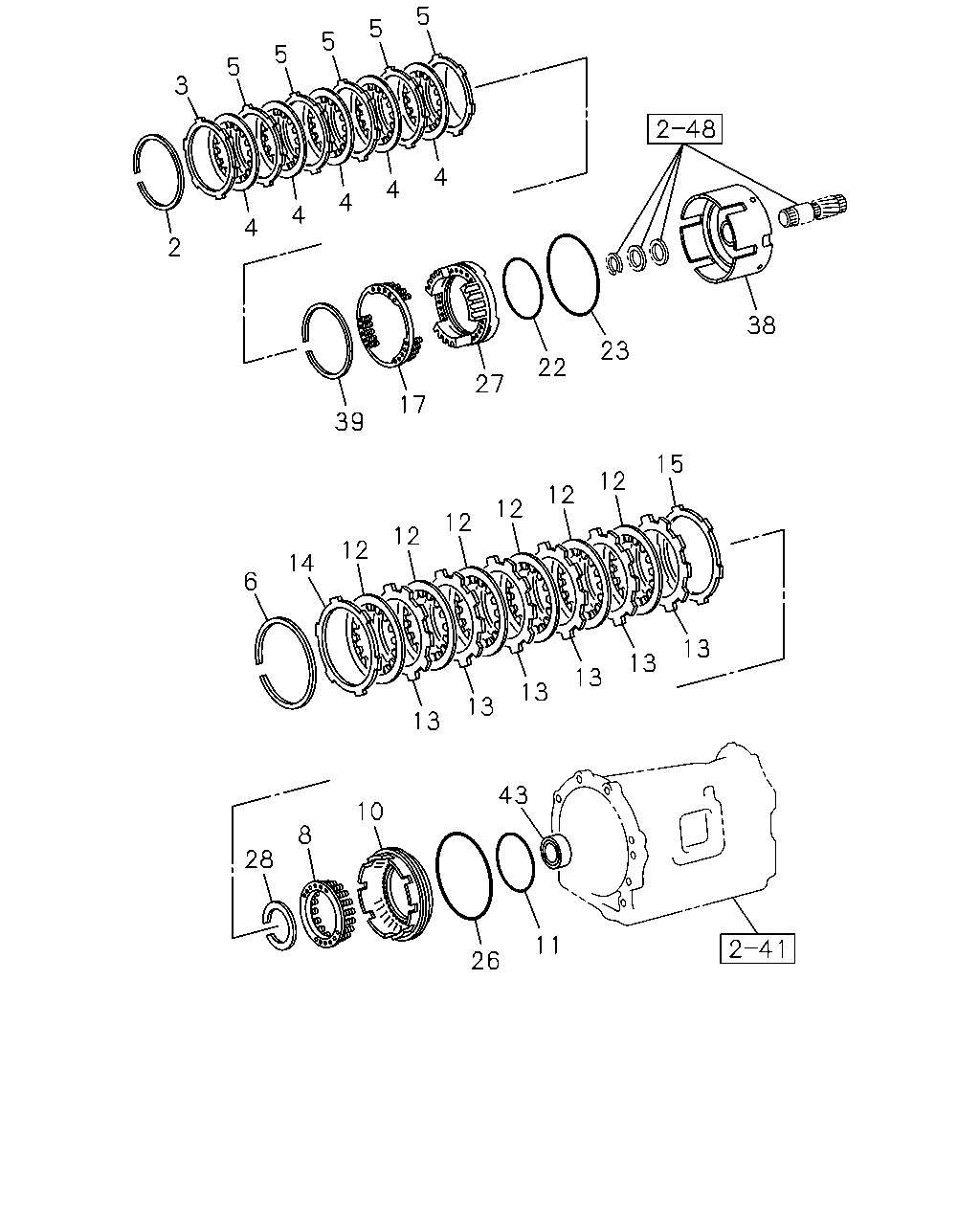

çizim 10060
3 5 5 5 5 5 4 4 4 4 4 2 39 17 27 22 23 38 6 14 12 12 12 12 12 12 15 13 13 13 13 13 13 28 8 10 43 26 11
BalonParca AdiParca NoAdetTipApplied Date
2 04.166 RING; RET,FRT BRK,2ND BRK,A/T
04.485 		8-97256-933-0 01 1 9811-
3 04.164 PLATE; CLU BACKING,2ND BRK,A/T
T=5.0 		8-97256-934-0 01 1 9811-
3 04.164 PLATE; CLU BACKING,2ND BRK,A/T
T=5.2 		8-97256-935-0 01 1 9811-
3 04.164 PLATE; CLU BACKING,2ND BRK,A/T
T=5.4 		8-97256-936-0 01 1 9811-
3 04.164 PLATE; CLU BACKING,2ND BRK,A/T
T=5.6 		8-97256-937-0 01 1 9811-
4 04.163 DISC ASM; CLU & FACING,2ND BRK,A 8-97256-938-0 05 1 9811-
5 04.163 DISC; CLU,2ND BRK,A/T 8-97256-939-0 05 1 9811-
6 04.166 RING; SNAP,FRT BRK,A/T
04.485 		8-97256-933-0 01 1 9811-
8 04.166 SPRING; RETURN,FRT BRK,A/T 8-97256-949-0 01 1 9811-
10 04.166 PISTON; BRK,FRT,2ND BRK,A/T 8-97256-946-0 01 1 9811-
11 04.166 GASKET; BRK PISTON,FRT,INNER,A/T 8-97256-947-0 01 1 9811-
12 04.166 PLATE; CLU,LOW & REV BRK,A/T 8-97256-954-0 06 1 9811-
13 04.163 DISC; CLU,LOW & REV BRK 8-97256-951-0 06 1 9811-
14 04.166 FLANGE; BRK,LOW & REV BRAKE
T=6.65 		8-97256-955-0 01 1 9811-
14 04.166 FLANGE; BRK,LOW & REV BRAKE
T=7.05 		8-97256-956-0 01 1 9811-
14 04.166 FLANGE; BRK,LOW & REV BRAKE
T=7.45 		8-97256-957-0 01 1 9811-
15 04.166 PLATE; BRK CUSHION,A/T 8-97256-952-0 01 1 9811-
17 04.166 SPRING; RETURN,RR BRK,A/T 8-97256-932-0 01 1 9811-
22 04.166 GASKET; BRK PISTON,RR,INNER,A/T
04.460 		8-97256-930-0 01 1 9811-
23 04.166 GASKET; BRK PISTON,RR,OUTER,A/T
04.460 		8-97256-931-0 01 1 9811-
26 04.166 GASKET; BRK PISTON,FRT,OUTER,A/T
04.460 		8-97256-931-0 01 1 9811-
27 04.166 PISTON; BRK,RR,2ND BRK,A/T 8-97256-929-0 01 1 9811-
28 04.163 RING; SNAP,RR BRK,A/T 8-97256-950-0 01 1 9811-
38 04.163 CLUTCH ASM; ONEWAY,2ND BRK,A/T 8-97256-925-0 01 1 9811-
39 04.164 RING; RET,SUN GEAR TO CLU
04.485 		8-97256-933-0 01 1 9811-
43 04.265 BEARING; THRUST,A/T 8-97256-860-0 01 1 9811-
