Sayfa 2-20 - Isuzu EPC

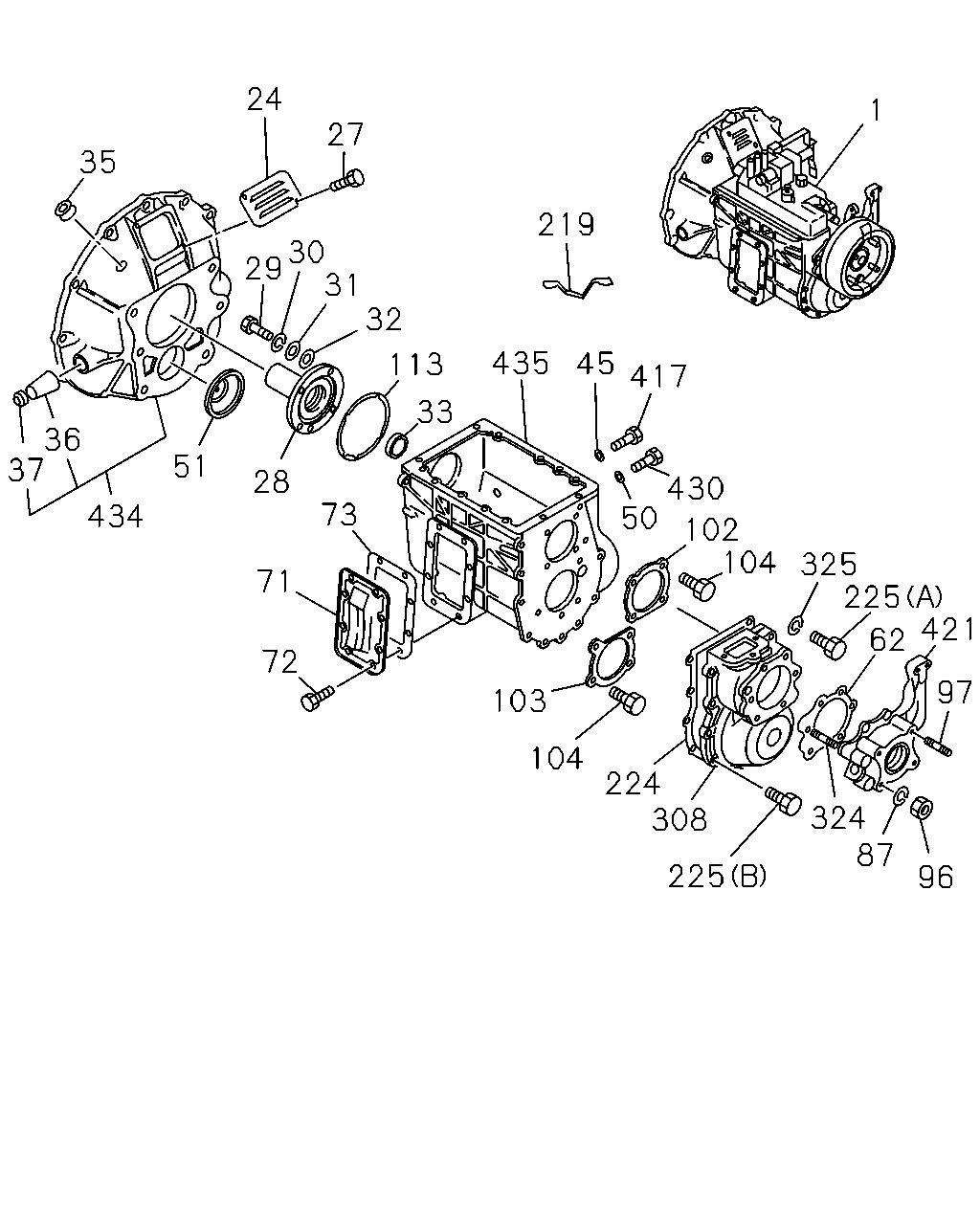

2-20 — MANUAL TRANSMISSION ASM AND CASE (#2202) — 464 parça

24 1 27 35 219 30 29 31 32 435 45 113 417 33 36 37 51 28 430 50 73 434 102 104 325 225 421 71 62 72 97 103 104 224 308 324 87 225 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	TRANSMISSION ASM; MANUAL EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-33020-013-0	01	1	9101-9204	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/7 14.5"(W1H) THAILAND EQUIPMENT(PM9) EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-33020-013-0	01	1	9205-0203	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5"(W1R)	1-33031-082-0	01	1	9101-9102	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5"(W1R) CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-33031-082-0	01	1	9103-9204	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) CLUTCH SYSTEM MINIPACK(B1Z) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9),15 INCH CLUTCH<RE9>	1-33037-287-0	01	1	9205-0203	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-33037-290-0	01	1	9205-0203	●
1	TRANSMISSION ASM; MANUAL	1-33037-291-0	01	1	0204-	●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB)	1-33019-793-0	01	1	9101-0203		●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R) TIRE 8.25-20-14 RIB(90S)	1-33019-818-0	01	1	0204-0407			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 9.00-20-14 RIB(10T)	1-33019-818-0	01	1	0204-0407			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 9.00-20-14 RIB(10T)	1-33019-818-0	01	1	0408-			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R) TIRE 9.00-20-14 RIB(10T)	1-33019-817-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R)	1-33019-817-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/7 15.5"(W3K) TIRE 9.00-20-14 RIB(10T),TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R)	1-33019-815-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB)	1-33019-815-0	01	1	9101-0203			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB)	1-33019-881-0	01	1	9101-0203				●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) CLUTCH SYSTEM MINIPACK(B1Z)	1-33030-388-0	01	1	9101-0203					●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-33030-382-0	01	1	9101-0203					●
1	TRANSMISSION ASM; MANUAL	1-33030-382-0	01	1	0204-					●
1	TRANSMISSION ASM; MANUAL	1-33019-839-0	01	1	0204-						●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB)	1-33019-837-0	01	1	9101-0203						●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB)	1-33019-859-0	01	1	9101-0203							●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB)	1-33019-903-0	01	1	9101-0203		●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB)	1-33019-925-0	01	1	9101-0203			●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB)	1-33019-925-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB)	1-33019-991-0	01	1	9101-0203				●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB) CLUTCH SYSTEM MINIPACK(B1Z)	1-33030-410-0	01	1	9101-0203					●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB) EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-33030-399-0	01	1	9101-0203					●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB) CLUTCH SYSTEM MINIPACK(B1Z)	1-33019-960-0	01	1	9101-0203						●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB) EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-33019-949-0	01	1	9101-0203						●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB)	1-33019-969-0	01	1	9101-0203							●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5"(W1R) CLUTCH SYSTEM MINIPACK(B1Z) BUS USER THAILAND BMTA<D5B> 15 INCH CLUTCH<RE9>	1-33031-084-0	01	1	9103-0203	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9101-9807	●	●	●	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9808-0203	●	●	●	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0204-	●		●		●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9204	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9101-9205	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9206-0104	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0203	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0204-	●		●		●	●
28	COVER; FRT,TRANS CASE	1-33121-079-0	01	1	0204-			●		●	●
28	COVER; FRT,TRANS CASE	1-33121-036-3	01	1	9101-9312		●	●	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-079-0	01	1	9401-0203		●	●	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9101-9204	●
28	COVER; FRT,TRANS CASE CLUTCH SYSTEM MINIPACK(B1Z)	1-33121-105-0	01	1	9205-0203	●
28	COVER; FRT,TRANS CASE EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-33121-105-0	01	1	9205-0203	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	0204-	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9101-9205	●	●	●	●	●	●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9205-9205	●	●	●	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9206-0203	●	●	●	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0204-	●		●		●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9101-9205	●	●	●	●	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9101-9205	●	●	●	●	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9101-9205	●	●	●	●	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9205-9205	●	●	●	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9101-0203	●	●	●	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0204-	●		●		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	0204-			●		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-502-0	01	1	9101-9306		●	●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	9307-0203		●	●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9101-9204	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). CLUTCH SYSTEM MINIPACK(B1Z)	1-09625-498-0	01	1	9205-0203	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-09625-498-0	01	1	9205-0203	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	0204-	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9101-0203	●	●	●	●	●	●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	0204-	●		●		●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9101-0203	●	●	●	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0204-	●		●		●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9101-0203	●	●	●	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0204-	●		●		●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9101-9405	●	●	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-0203	●	●	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0204-	●		●		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9101-0203	●	●	●	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0204-	●		●		●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-1	01	1	0204-			●		●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9101-0203		●	●	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-057-0	01	1	9101-9402	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9403-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	0204-			●			●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-025-2	01	1	0204-					●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9101-0203		●	●			●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-025-2	01	1	9101-0203				●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-051-0	01	1	9101-	●
71	COVER; SIDE,TRANS CASE	1-33141-028-0	01	1	9101-0203		●	●	●	●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-028-0	01	1	0204-			●		●	●
71	COVER; SIDE,TRANS CASE	1-33141-027-0	01	1	9101-	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0204-			●		●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	9-01921-020-0	08	1	9101-9204		●	●	●	●	●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205		●	●	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9206-0203		●	●	●	●	●	●
72	BOLT; SIDE COVER M10X25	9-01981-025-0	08	1	9101-9204	●
72	BOLT; SIDE COVER M10X25 W/LK&PL WASHER	0-50151-025-0	08	1	9205-9205	●
72	BOLT; SIDE COVER M10X25 W/LK&PL WASHER	0-50151-025-0	08	1	9205-9205	●
72	BOLT; SIDE COVER M10X22 FLANGE	0-28181-022-0	08	1	9206-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	0204-			●		●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9101-0203		●	●	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-031-0	01	1	9101-9405	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-039-0	01	1	9406-	●
87	WASHER; LK,RR COVER ID=10.2	9-09150-510-0	02	1	9101-9205		●	●			●	●
87	WASHER; LK,RR COVER ID=10.2	9-09150-510-0	06	1	9101-9205				●	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	01	1	9101-9205	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	01	1	9205-9205	●
96	NUT; RR COVER M10 FLANGE	0-91150-210-0	06	1	0204-					●
96	NUT; RR COVER M10	9-09110-410-0	06	1	9101-9205				●	●
96	NUT; RR COVER M10 FLANGE	0-91150-210-0	06	1	9206-0203				●	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	0204-			●		●	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	9101-0203		●	●	●	●	●	●
97	STUD; PARKING BRK M16X29 L=58	1-09302-058-0	03	1	9101-	●
97	STUD; PARKING BRK M16X25 L=54	1-09302-086-0	01	1	9101-	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-005-0	01	1	9101-0203				●	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-005-0	01	1	0204-					●
103	RETAINER; BRG	1-33151-029-0	01	1	9101-0203				●	●
103	RETAINER; BRG	1-33151-029-0	01	1	0204-					●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0204-					●
104	BOLT; BRG RET M10X30 W/LK WASHER	0-50051-030-0	04	1	9101-9205				●	●
104	BOLT; BRG RET M10X25	1-09049-006-1	04	1	9101-9205				●	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9206-0203				●	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-008-0	01	1	9101-9312		●	●	●	●	●	●
219	PLATE; TRANS CASE & QUAD BOX	1-33119-073-1	01	1	9101-0203		●	●	●	●	●	●
219	PLATE; TRANS CASE & QUAD BOX	1-33119-073-1	01	1	0204-			●		●	●
224	GASKET; CASE,OVERDRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T).	1-33112-014-1	01	1	0204-					●
224	GASKET; CASE,OVERDRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T).	1-33112-014-1	01	1	9101-0203				●	●
225	BOLT; CASE,OVERDRIVE GEAR (B) M10X25	1-09044-080-0	08	1	0204-					●
225	BOLT; CASE,OVERDRIVE GEAR (A) M12X16	1-09044-082-0	02	1	0204-					●
225	BOLT; CASE,OVERDRIVE GEAR (A) M10X50	1-09020-144-0	02	1	9101-9205				●	●
225	BOLT; CASE,OVERDRIVE GEAR (A) M12X16	1-09044-082-0	02	1	9206-0203				●	●
225	BOLT; CASE,OVERDRIVE GEAR (B) M10X30	9-01931-030-0	08	1	9101-9205				●	●
225	BOLT; CASE,OVERDRIVE GEAR (B) M10X25	1-09044-080-0	08	1	9206-0203				●	●
308	CASE; OVERDRIVE GEAR	1-33115-044-0	01	1	0204-					●
308	CASE; OVERDRIVE GEAR	1-33115-044-0	01	1	9101-0203				●	●
324	STUD; RR COVER M10X16.5 L=41	9-09831-154-0	04	1	9101-0203				●	●
324	STUD; RR COVER M10X16.5 L=41	9-09831-154-0	04	1	0204-					●
324	STUD; RR COVER M10X16.5 L=68	9-09831-156-0	02	1	9101-0203				●	●
324	STUD; RR COVER M10X16.5 L=68	9-09831-156-0	02	1	0204-					●
325	WASHER; LK,RR COVER ID=10.2	9-09150-510-0	02	1	9101-9205				●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9101-9405	●	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-9802	●	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE M24X17 FLANGE	1-09604-064-1	01	1	9803-0201	●	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-0203	●	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0204-	●		●		●	●
421	COVER; RR,TRANS	1-33131-058-5	01	1	0204-			●			●
421	COVER; RR,TRANS	1-33131-059-2	01	1	0204-					●
421	COVER; RR,TRANS	1-33131-058-5	01	1	9101-0203		●	●			●	●
421	COVER; RR,TRANS	1-33131-059-2	01	1	9101-0203				●	●
421	COVER; RR,TRANS	1-33131-057-2	01	1	9101-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9101-0203	●	●	●	●	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0204-	●		●		●	●
434	HOUSING; CLU	1-31110-085-2	01	1	0204-			●		●	●
434	HOUSING; CLU	1-31110-085-2	01	1	9101-0203		●	●	●	●	●	●
434	HOUSING; CLU	1-31110-092-1	01	1	9101-9204	●
434	HOUSING; CLU CLUTCH SYSTEM MINIPACK(B1Z)	1-31110-092-2	01	1	9205-0203	●
434	HOUSING; CLU EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-31110-092-2	01	1	9205-0203	●
434	HOUSING; CLU	1-31110-092-2	01	1	0204-	●
435	CASE; TRANS	1-33111-157-3	01	1	0204-			●			●
435	CASE; TRANS	1-33111-158-4	01	1	0204-					●
435	CASE; TRANS	1-33111-157-3	01	1	9101-0203		●	●			●	●
435	CASE; TRANS	1-33111-158-4	01	1	9101-0203				●	●
435	CASE; TRANS	1-33111-137-2	01	1	9101-	●

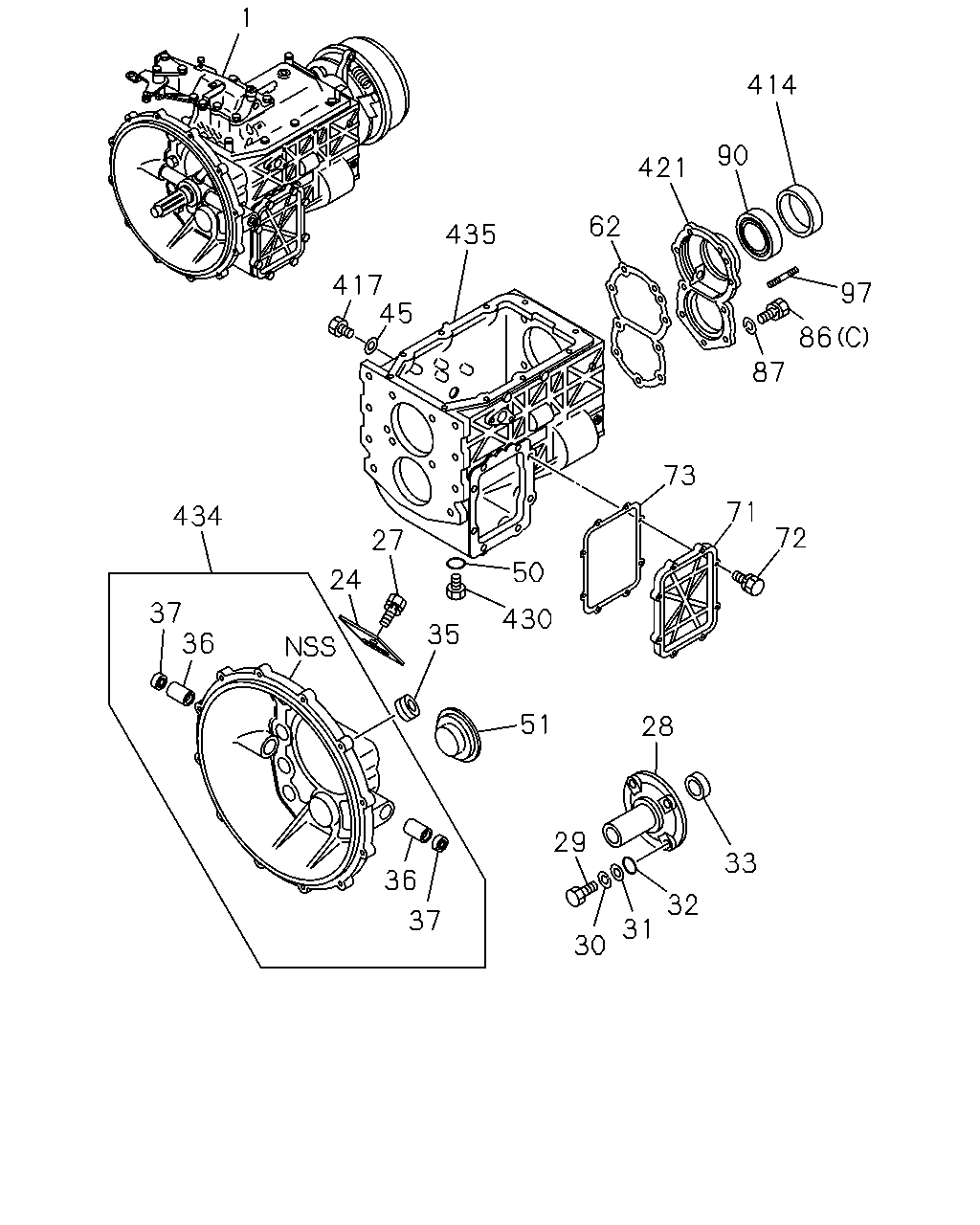

1 414 90 421 62 435 417 45 97 86 87 73 71 434 72 27 50 24 37 36 430 35 51 28 29 33 36 32 37 31 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	TRANSMISSION ASM; MANUAL EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-33020-013-0	01	1	9101-9204	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/7 14.5"(W1H) THAILAND EQUIPMENT(PM9) EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-33020-013-0	01	1	9205-0203	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5"(W1R)	1-33031-082-0	01	1	9101-9102	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5"(W1R) CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-33031-082-0	01	1	9103-9204	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) CLUTCH SYSTEM MINIPACK(B1Z) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9),15 INCH CLUTCH<RE9>	1-33037-287-0	01	1	9205-0203	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-33037-290-0	01	1	9205-0203	●
1	TRANSMISSION ASM; MANUAL	1-33037-291-0	01	1	0204-	●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB)	1-33019-793-0	01	1	9101-0203		●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R) TIRE 8.25-20-14 RIB(90S)	1-33019-818-0	01	1	0204-0407			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 9.00-20-14 RIB(10T)	1-33019-818-0	01	1	0204-0407			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 9.00-20-14 RIB(10T)	1-33019-818-0	01	1	0408-			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R) TIRE 9.00-20-14 RIB(10T)	1-33019-817-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R)	1-33019-817-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/7 15.5"(W3K) TIRE 9.00-20-14 RIB(10T),TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R)	1-33019-815-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB)	1-33019-815-0	01	1	9101-0203			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB)	1-33019-881-0	01	1	9101-0203				●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) CLUTCH SYSTEM MINIPACK(B1Z)	1-33030-388-0	01	1	9101-0203					●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-33030-382-0	01	1	9101-0203					●
1	TRANSMISSION ASM; MANUAL	1-33030-382-0	01	1	0204-					●
1	TRANSMISSION ASM; MANUAL	1-33019-839-0	01	1	0204-						●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB)	1-33019-837-0	01	1	9101-0203						●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB)	1-33019-859-0	01	1	9101-0203							●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB)	1-33019-903-0	01	1	9101-0203		●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB)	1-33019-925-0	01	1	9101-0203			●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB)	1-33019-925-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB)	1-33019-991-0	01	1	9101-0203				●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB) CLUTCH SYSTEM MINIPACK(B1Z)	1-33030-410-0	01	1	9101-0203					●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB) EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-33030-399-0	01	1	9101-0203					●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB) CLUTCH SYSTEM MINIPACK(B1Z)	1-33019-960-0	01	1	9101-0203						●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB) EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-33019-949-0	01	1	9101-0203						●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB)	1-33019-969-0	01	1	9101-0203							●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5"(W1R) CLUTCH SYSTEM MINIPACK(B1Z) BUS USER THAILAND BMTA<D5B> 15 INCH CLUTCH<RE9>	1-33031-084-0	01	1	9103-0203	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9101-9807	●	●	●	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9808-0203	●	●	●	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0204-	●		●		●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9204	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9101-9205	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9206-0104	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0203	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0204-	●		●		●	●
28	COVER; FRT,TRANS CASE	1-33121-079-0	01	1	0204-			●		●	●
28	COVER; FRT,TRANS CASE	1-33121-036-3	01	1	9101-9312		●	●	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-079-0	01	1	9401-0203		●	●	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9101-9204	●
28	COVER; FRT,TRANS CASE CLUTCH SYSTEM MINIPACK(B1Z)	1-33121-105-0	01	1	9205-0203	●
28	COVER; FRT,TRANS CASE EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-33121-105-0	01	1	9205-0203	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	0204-	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9101-9205	●	●	●	●	●	●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9205-9205	●	●	●	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9206-0203	●	●	●	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0204-	●		●		●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9101-9205	●	●	●	●	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9101-9205	●	●	●	●	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9101-9205	●	●	●	●	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9205-9205	●	●	●	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9101-0203	●	●	●	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0204-	●		●		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	0204-			●		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-502-0	01	1	9101-9306		●	●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	9307-0203		●	●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9101-9204	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). CLUTCH SYSTEM MINIPACK(B1Z)	1-09625-498-0	01	1	9205-0203	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-09625-498-0	01	1	9205-0203	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	0204-	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9101-0203	●	●	●	●	●	●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	0204-	●		●		●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9101-0203	●	●	●	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0204-	●		●		●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9101-0203	●	●	●	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0204-	●		●		●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9101-9405	●	●	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-0203	●	●	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0204-	●		●		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9101-0203	●	●	●	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0204-	●		●		●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-1	01	1	0204-			●		●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9101-0203		●	●	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-057-0	01	1	9101-9402	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9403-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	0204-			●			●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-025-2	01	1	0204-					●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9101-0203		●	●			●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-025-2	01	1	9101-0203				●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-051-0	01	1	9101-	●
71	COVER; SIDE,TRANS CASE	1-33141-028-0	01	1	9101-0203		●	●	●	●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-028-0	01	1	0204-			●		●	●
71	COVER; SIDE,TRANS CASE	1-33141-027-0	01	1	9101-	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0204-			●		●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	9-01921-020-0	08	1	9101-9204		●	●	●	●	●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205		●	●	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9206-0203		●	●	●	●	●	●
72	BOLT; SIDE COVER M10X25	9-01981-025-0	08	1	9101-9204	●
72	BOLT; SIDE COVER M10X25 W/LK&PL WASHER	0-50151-025-0	08	1	9205-9205	●
72	BOLT; SIDE COVER M10X25 W/LK&PL WASHER	0-50151-025-0	08	1	9205-9205	●
72	BOLT; SIDE COVER M10X22 FLANGE	0-28181-022-0	08	1	9206-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	0204-			●		●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9101-0203		●	●	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-031-0	01	1	9101-9405	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-039-0	01	1	9406-	●
86	BOLT; RR COVER (B) M10X25	1-09044-080-0	07	1	0204-			●			●
86	BOLT; RR COVER (A) M10X55	1-09044-083-0	02	1	0204-			●			●
86	BOLT; RR COVER (A) M10X60	9-01656-060-0	02	1	9101-9205		●	●			●	●
86	BOLT; RR COVER (B) M10X25	1-09044-080-0	07	1	9206-0203		●	●			●	●
86	BOLT; RR COVER (B) M10X30	9-01931-030-0	07	1	9101-9205		●	●			●	●
86	BOLT; RR COVER (A) M10X55	1-09044-083-0	02	1	9206-0203		●	●			●	●
86	BOLT; RR COVER (C) M12X70	9-01656-270-0	01	1	9101-9205	●
86	BOLT; RR COVER (C) M12X70	9-01656-270-0	01	1	9205-9205	●
86	BOLT; RR COVER (C) M12X65	1-09044-077-0	01	1	9206-0011	●
86	BOLT; RR COVER (C) M12X65 FLANGE	1-09044-113-0	01	1	0012-	●
86	BOLT; RR COVER (C) M12X35	9-01931-235-0	08	1	9101-9205	●
86	BOLT; RR COVER (C) M12X35	9-01931-235-0	08	1	9205-9205	●
86	BOLT; RR COVER (C) M12X30 FLANGE	1-09044-086-0	08	1	9206-	●
87	WASHER; LK,RR COVER ID=10.2	9-09150-510-0	02	1	9101-9205		●	●			●	●
87	WASHER; LK,RR COVER ID=10.2	9-09150-510-0	06	1	9101-9205				●	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	01	1	9101-9205	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	01	1	9205-9205	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9101-0203		●	●	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	0204-0212			●		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	02	1	0301-			●		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). KOYO	1-09625-522-0	01	1	9101-9710		●	●	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-515-0	01	1	9101-	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	0204-			●		●	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	9101-0203		●	●	●	●	●	●
97	STUD; PARKING BRK M16X29 L=58	1-09302-058-0	03	1	9101-	●
97	STUD; PARKING BRK M16X25 L=54	1-09302-086-0	01	1	9101-	●
414	COVER; DUST,RR COVER	1-33139-009-0	01	1	9101-	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9101-9405	●	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-9802	●	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE M24X17 FLANGE	1-09604-064-1	01	1	9803-0201	●	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-0203	●	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0204-	●		●		●	●
421	COVER; RR,TRANS	1-33131-058-5	01	1	0204-			●			●
421	COVER; RR,TRANS	1-33131-059-2	01	1	0204-					●
421	COVER; RR,TRANS	1-33131-058-5	01	1	9101-0203		●	●			●	●
421	COVER; RR,TRANS	1-33131-059-2	01	1	9101-0203				●	●
421	COVER; RR,TRANS	1-33131-057-2	01	1	9101-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9101-0203	●	●	●	●	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0204-	●		●		●	●
434	HOUSING; CLU	1-31110-085-2	01	1	0204-			●		●	●
434	HOUSING; CLU	1-31110-085-2	01	1	9101-0203		●	●	●	●	●	●
434	HOUSING; CLU	1-31110-092-1	01	1	9101-9204	●
434	HOUSING; CLU CLUTCH SYSTEM MINIPACK(B1Z)	1-31110-092-2	01	1	9205-0203	●
434	HOUSING; CLU EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-31110-092-2	01	1	9205-0203	●
434	HOUSING; CLU	1-31110-092-2	01	1	0204-	●
435	CASE; TRANS	1-33111-157-3	01	1	0204-			●			●
435	CASE; TRANS	1-33111-158-4	01	1	0204-					●
435	CASE; TRANS	1-33111-157-3	01	1	9101-0203		●	●			●	●
435	CASE; TRANS	1-33111-158-4	01	1	9101-0203				●	●
435	CASE; TRANS	1-33111-137-2	01	1	9101-	●

1 24 27 35 29 30 31 32 219 113 45 435 417 36 37 33 51 28 430 50 97 73 434 421 90 234 71 72 62 87 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	TRANSMISSION ASM; MANUAL EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-33020-013-0	01	1	9101-9204	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/7 14.5"(W1H) THAILAND EQUIPMENT(PM9) EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-33020-013-0	01	1	9205-0203	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5"(W1R)	1-33031-082-0	01	1	9101-9102	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5"(W1R) CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-33031-082-0	01	1	9103-9204	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) CLUTCH SYSTEM MINIPACK(B1Z) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9),15 INCH CLUTCH<RE9>	1-33037-287-0	01	1	9205-0203	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-33037-290-0	01	1	9205-0203	●
1	TRANSMISSION ASM; MANUAL	1-33037-291-0	01	1	0204-	●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB)	1-33019-793-0	01	1	9101-0203		●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R) TIRE 8.25-20-14 RIB(90S)	1-33019-818-0	01	1	0204-0407			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 9.00-20-14 RIB(10T)	1-33019-818-0	01	1	0204-0407			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 9.00-20-14 RIB(10T)	1-33019-818-0	01	1	0408-			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R) TIRE 9.00-20-14 RIB(10T)	1-33019-817-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R)	1-33019-817-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/7 15.5"(W3K) TIRE 9.00-20-14 RIB(10T),TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R)	1-33019-815-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB)	1-33019-815-0	01	1	9101-0203			●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB)	1-33019-881-0	01	1	9101-0203				●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) CLUTCH SYSTEM MINIPACK(B1Z)	1-33030-388-0	01	1	9101-0203					●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB) EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-33030-382-0	01	1	9101-0203					●
1	TRANSMISSION ASM; MANUAL	1-33030-382-0	01	1	0204-					●
1	TRANSMISSION ASM; MANUAL	1-33019-839-0	01	1	0204-						●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB)	1-33019-837-0	01	1	9101-0203						●
1	TRANSMISSION ASM; MANUAL RIGHT HAND DRIVE(MTR5FB)	1-33019-859-0	01	1	9101-0203							●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB)	1-33019-903-0	01	1	9101-0203		●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB)	1-33019-925-0	01	1	9101-0203			●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB)	1-33019-925-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB)	1-33019-991-0	01	1	9101-0203				●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB) CLUTCH SYSTEM MINIPACK(B1Z)	1-33030-410-0	01	1	9101-0203					●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB) EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-33030-399-0	01	1	9101-0203					●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB) CLUTCH SYSTEM MINIPACK(B1Z)	1-33019-960-0	01	1	9101-0203						●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB) EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-33019-949-0	01	1	9101-0203						●
1	TRANSMISSION ASM; MANUAL LEFT HAND DRIVE(MTR6FB)	1-33019-969-0	01	1	9101-0203							●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5"(W1R) CLUTCH SYSTEM MINIPACK(B1Z) BUS USER THAILAND BMTA<D5B> 15 INCH CLUTCH<RE9>	1-33031-084-0	01	1	9103-0203	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9101-9807	●	●	●	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9808-0203	●	●	●	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0204-	●		●		●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9204	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9101-9205	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9206-0104	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0203	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0204-	●		●		●	●
28	COVER; FRT,TRANS CASE	1-33121-079-0	01	1	0204-			●		●	●
28	COVER; FRT,TRANS CASE	1-33121-036-3	01	1	9101-9312		●	●	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-079-0	01	1	9401-0203		●	●	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9101-9204	●
28	COVER; FRT,TRANS CASE CLUTCH SYSTEM MINIPACK(B1Z)	1-33121-105-0	01	1	9205-0203	●
28	COVER; FRT,TRANS CASE EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-33121-105-0	01	1	9205-0203	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	0204-	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9101-9205	●	●	●	●	●	●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9205-9205	●	●	●	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9206-0203	●	●	●	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0204-	●		●		●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9101-9205	●	●	●	●	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9101-9205	●	●	●	●	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9101-9205	●	●	●	●	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9205-9205	●	●	●	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9101-0203	●	●	●	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0204-	●		●		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	0204-			●		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-502-0	01	1	9101-9306		●	●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	9307-0203		●	●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9101-9204	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). CLUTCH SYSTEM MINIPACK(B1Z)	1-09625-498-0	01	1	9205-0203	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-09625-498-0	01	1	9205-0203	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	0204-	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9101-0203	●	●	●	●	●	●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	0204-	●		●		●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9101-0203	●	●	●	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0204-	●		●		●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9101-0203	●	●	●	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0204-	●		●		●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9101-9405	●	●	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-0203	●	●	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0204-	●		●		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9101-0203	●	●	●	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0204-	●		●		●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-1	01	1	0204-			●		●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9101-0203		●	●	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-057-0	01	1	9101-9402	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9403-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	0204-			●			●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-025-2	01	1	0204-					●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9101-0203		●	●			●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-025-2	01	1	9101-0203				●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-051-0	01	1	9101-	●
71	COVER; SIDE,TRANS CASE	1-33141-028-0	01	1	9101-0203		●	●	●	●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-028-0	01	1	0204-			●		●	●
71	COVER; SIDE,TRANS CASE	1-33141-027-0	01	1	9101-	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0204-			●		●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	9-01921-020-0	08	1	9101-9204		●	●	●	●	●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205		●	●	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9206-0203		●	●	●	●	●	●
72	BOLT; SIDE COVER M10X25	9-01981-025-0	08	1	9101-9204	●
72	BOLT; SIDE COVER M10X25 W/LK&PL WASHER	0-50151-025-0	08	1	9205-9205	●
72	BOLT; SIDE COVER M10X25 W/LK&PL WASHER	0-50151-025-0	08	1	9205-9205	●
72	BOLT; SIDE COVER M10X22 FLANGE	0-28181-022-0	08	1	9206-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	0204-			●		●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9101-0203		●	●	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-031-0	01	1	9101-9405	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-039-0	01	1	9406-	●
86	BOLT; RR COVER (B) M10X25	1-09044-080-0	07	1	0204-			●			●
86	BOLT; RR COVER (A) M10X55	1-09044-083-0	02	1	0204-			●			●
86	BOLT; RR COVER (A) M10X60	9-01656-060-0	02	1	9101-9205		●	●			●	●
86	BOLT; RR COVER (B) M10X25	1-09044-080-0	07	1	9206-0203		●	●			●	●
86	BOLT; RR COVER (B) M10X30	9-01931-030-0	07	1	9101-9205		●	●			●	●
86	BOLT; RR COVER (A) M10X55	1-09044-083-0	02	1	9206-0203		●	●			●	●
86	BOLT; RR COVER (C) M12X70	9-01656-270-0	01	1	9101-9205	●
86	BOLT; RR COVER (C) M12X70	9-01656-270-0	01	1	9205-9205	●
86	BOLT; RR COVER (C) M12X65	1-09044-077-0	01	1	9206-0011	●
86	BOLT; RR COVER (C) M12X65 FLANGE	1-09044-113-0	01	1	0012-	●
86	BOLT; RR COVER (C) M12X35	9-01931-235-0	08	1	9101-9205	●
86	BOLT; RR COVER (C) M12X35	9-01931-235-0	08	1	9205-9205	●
86	BOLT; RR COVER (C) M12X30 FLANGE	1-09044-086-0	08	1	9206-	●
87	WASHER; LK,RR COVER ID=10.2	9-09150-510-0	02	1	9101-9205		●	●			●	●
87	WASHER; LK,RR COVER ID=10.2	9-09150-510-0	06	1	9101-9205				●	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	01	1	9101-9205	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	01	1	9205-9205	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9101-0203		●	●	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	0204-0212			●		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	02	1	0301-			●		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). KOYO	1-09625-522-0	01	1	9101-9710		●	●	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-515-0	01	1	9101-	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	0204-			●		●	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	9101-0203		●	●	●	●	●	●
97	STUD; PARKING BRK M16X29 L=58	1-09302-058-0	03	1	9101-	●
97	STUD; PARKING BRK M16X25 L=54	1-09302-086-0	01	1	9101-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-008-0	01	1	9101-9312		●	●	●	●	●	●
219	PLATE; TRANS CASE & QUAD BOX	1-33119-073-1	01	1	9101-0203		●	●	●	●	●	●
219	PLATE; TRANS CASE & QUAD BOX	1-33119-073-1	01	1	0204-			●		●	●
234	COVER; OIL SEAL	1-33139-001-1	01	1	9101-0203		●	●	●	●	●	●
234	COVER; OIL SEAL	1-33139-001-1	01	1	0204-			●		●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9101-9405	●	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-9802	●	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE M24X17 FLANGE	1-09604-064-1	01	1	9803-0201	●	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-0203	●	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0204-	●		●		●	●
421	COVER; RR,TRANS	1-33131-058-5	01	1	0204-			●			●
421	COVER; RR,TRANS	1-33131-059-2	01	1	0204-					●
421	COVER; RR,TRANS	1-33131-058-5	01	1	9101-0203		●	●			●	●
421	COVER; RR,TRANS	1-33131-059-2	01	1	9101-0203				●	●
421	COVER; RR,TRANS	1-33131-057-2	01	1	9101-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9101-0203	●	●	●	●	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0204-	●		●		●	●
434	HOUSING; CLU	1-31110-085-2	01	1	0204-			●		●	●
434	HOUSING; CLU	1-31110-085-2	01	1	9101-0203		●	●	●	●	●	●
434	HOUSING; CLU	1-31110-092-1	01	1	9101-9204	●
434	HOUSING; CLU CLUTCH SYSTEM MINIPACK(B1Z)	1-31110-092-2	01	1	9205-0203	●
434	HOUSING; CLU EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-31110-092-2	01	1	9205-0203	●
434	HOUSING; CLU	1-31110-092-2	01	1	0204-	●
435	CASE; TRANS	1-33111-157-3	01	1	0204-			●			●
435	CASE; TRANS	1-33111-158-4	01	1	0204-					●
435	CASE; TRANS	1-33111-157-3	01	1	9101-0203		●	●			●	●
435	CASE; TRANS	1-33111-158-4	01	1	9101-0203				●	●
435	CASE; TRANS	1-33111-137-2	01	1	9101-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
