◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-42 - AUTO TRANS OIL PAN AND OIL CONTROL ▶
2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#22017) — 27 parça

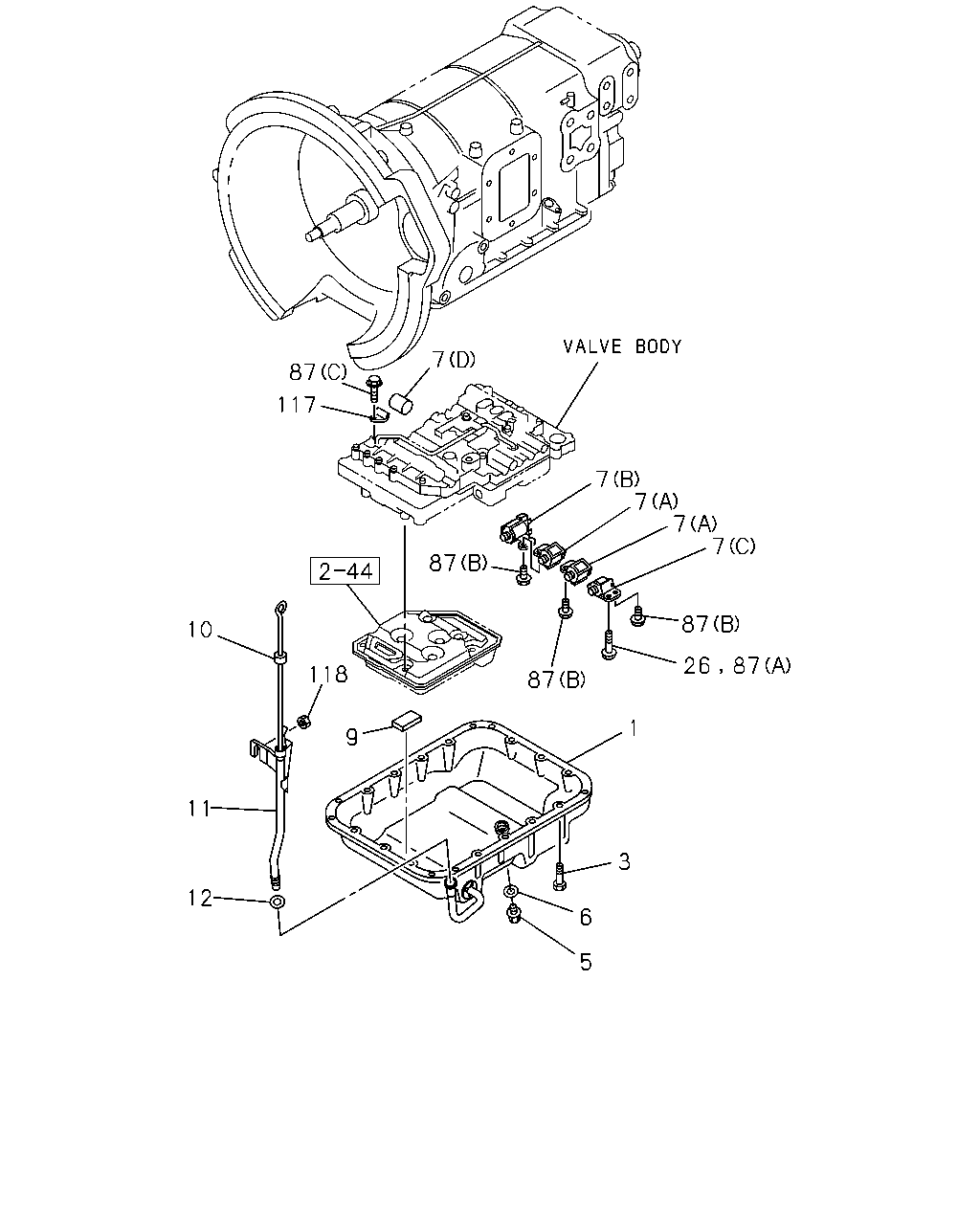

çizim 48442
7 87 117 7 7 7 7 87 87 7 10 118 87 1 9 11 3 12 6 5 26 87
BalonParca AdiParca NoAdetTipApplied Date
1 04.195 PAN ASM; OIL,A/T 8-97202-066-0 01 1 9811-
3 04.196 BOLT; OIL PAN TO CASE 8-97202-101-0 20 1 9811-
5 04.195 PLUG; OIL PAN 1-34139-022-0 01 1 9811-
6 04.195 GASKET; OIL PAN TO PLUG 8-97202-032-0 01 1 9811-
7 04.265 SOLENOID; DOWN SHIFT,A/T
(D) 		8-97257-141-0 01 1 9811-
7 04.265 SOLENOID; DOWN SHIFT,A/T
VOLTAGE 24V<7AE> (A) 		8-97216-036-0 02 1 9811-
7 04.265 SOLENOID; DOWN SHIFT,A/T
VOLTAGE 24V<7AE> (B) 		8-97216-037-0 01 1 9811-
7 04.265 SOLENOID; DOWN SHIFT,A/T
VOLTAGE 24V<7AE> (C) 		8-97216-038-0 01 1 9811-
7 04.265 SOLENOID; DOWN SHIFT,A/T
EXC. VOLTAGE 24V<7AE> (A) 		8-97202-072-0 02 1 9811-
7 04.265 SOLENOID; DOWN SHIFT,A/T
EXC. VOLTAGE 24V<7AE> (B) 		8-97202-073-0 01 1 9811-
7 04.265 SOLENOID; DOWN SHIFT,A/T
EXC. VOLTAGE 24V<7AE> (C) 		8-97202-074-0 01 1 9811-
9 04.195 MAGNET; OIL PAN 8-97202-068-0 04 1 9811-
10 04.197 GAUGE; OIL LEVEL 8-97210-885-0 01 1 9811-9812
10 04.197 GAUGE; OIL LEVEL
NPR/NQR SGL CAB(NP**S*) 		8-97210-885-0 01 1 9901-
10 04.197 GAUGE; OIL LEVEL
NPR DBL CAB(NP**W*) 		8-97220-599-0 01 1 9901-
11 04.197 TUBE; OIL FILLER 8-97148-538-2 01 1 9811-9812
11 04.197 TUBE; OIL FILLER
NPR/NQR SGL CAB(NP**S*) 		8-97148-538-3 01 1 9901-
11 04.197 TUBE; OIL FILLER
NPR DBL CAB(NP**W*) 		8-97220-544-1 01 1 9901-
12 04.197 GASKET; OIL FILLER TUBE TO A/T
04.133 ID=9.8 		9-09561-110-0 01 1 9811-
26 04.265 BOLT; ACTUATOR
VOLTAGE 24V<7AE> 		8-97202-080-0 02 1 9909-0001
26 04.265 BOLT; ACTUATOR 8-97202-080-0 02 1 0002-
87 04.265 BOLT; SOLENOID
(C) 		8-97257-139-0 01 1 9811-
87 04.265 BOLT; SOLENOID
(A) 		8-97202-080-0 01 1 9811-9908
87 04.265 BOLT; SOLENOID
EXC. VOLTAGE 24V<7AE> (A) 		8-97202-080-0 01 1 9909-0001
87 04.265 BOLT; SOLENOID
(B) 		8-97202-099-0 03 1 9811-
117 04.265 CLIP 8-97257-140-0 01 1 9811-
118 04.197 NUT; OIL FILLER TUBE
04.785 M10 FLANGE 		0-91150-110-0 01 1 9811-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
