◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP ▶
2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#22016) — 68 parça

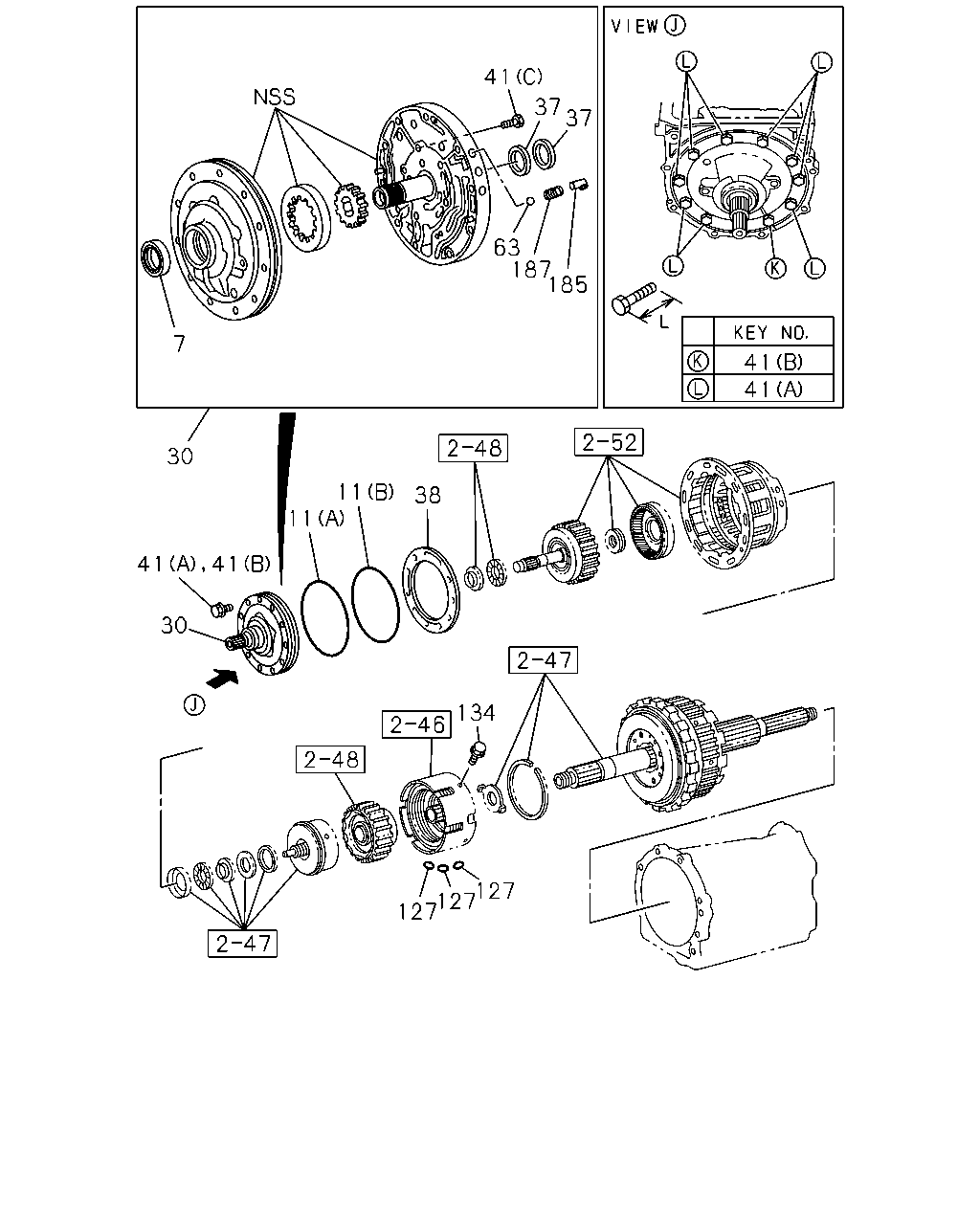

çizim 45907
41 37 37 63 187 185 7 41 41 30 11 38 11 41 41 30 134 127 127 127
BalonParca AdiParca NoAdetTipApplied Date
7 04.226 SEAL; OIL,LIP,A/T 8-97218-280-0 01 1 9811-
11 04.104 RING; SEALING,TRANS CASE
(A) 		8-97256-922-0 01 1 9811-
11 04.104 RING; SEALING,TRANS CASE
(B) 		8-97256-923-0 01 1 9811-
30 04.224 PUMP ASM; OIL,A/T 8-97256-916-0 01 1 9811-
37 04.226 RING; SEAL,OIL PUMP,A/T 8-97256-917-0 02 1 9811-
38 04.226 GASKET; OIL PUMP,A/T 8-97256-924-0 01 1 9811-
41 04.226 BOLT; OIL PUMP HSG,A/T
(A) L=60 		8-97256-910-0 10 1 9811-
41 04.226 BOLT; OIL PUMP HSG,A/T
(B) L=60 		8-97256-911-0 01 1 9811-
41 04.226 BOLT; OIL PUMP HSG,A/T
(C) 		8-97256-921-0 07 1 9811-
63 04.103 BALL; HSG 8-97256-918-0 01 1 9811-
127 04.103 GASKET; CASE TO COVER
04.166 		8-97256-927-0 03 1 9811-
134 04.103 BOLT; COVER TO CASE 8-97256-914-0 03 1 9811-
185 04.205 SEAT; SPR,REG VALVE 8-97256-920-0 01 1 9811-
187 04.205 VALVE; PRESSURE REG 8-97256-919-0 01 1 9811-

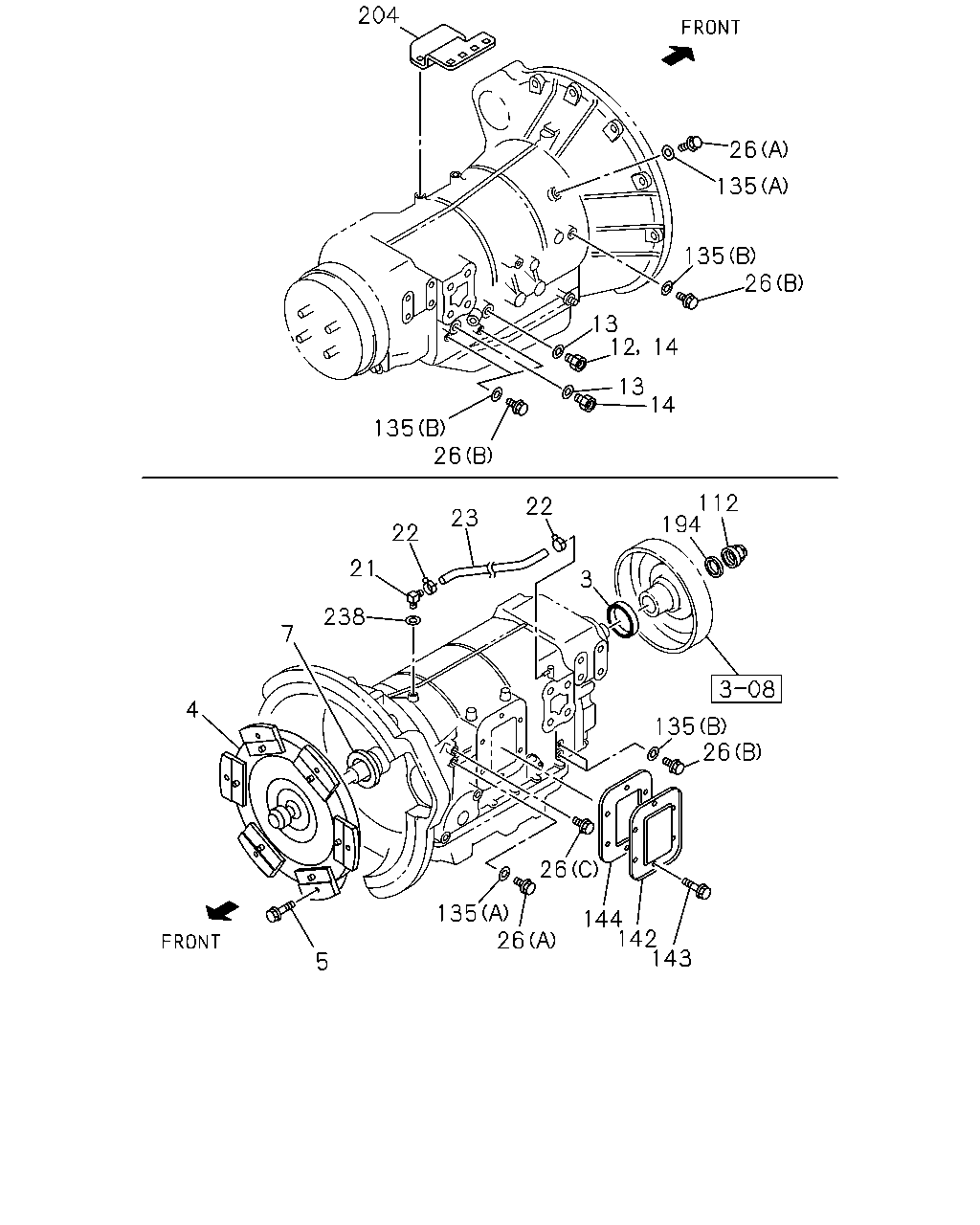

çizim 48423
204 26 135 135 26 13 12 14 13 14 135 26 112 194 22 23 22 21 3 238 7 4 135 26 26 13 26 144 142 143 5
BalonParca AdiParca NoAdetTipApplied Date
3 04.241 SEAL; OIL,RR COVER,A/T 8-97202-071-0 01 1 9811-
4 04.115 CONVERTER ASM; TORQUE,A/T 8-97202-043-0 01 1 9811-
5 04.008 BOLT; RR PLATE TO TORQUE CONV
03.417 M10X25 FLANGE 		0-28081-025-0 06 1 9811-
7 04.226 SEAL; OIL,LIP,A/T 8-97218-280-0 01 1 9811-
12 04.205 CONNECTOR; OIL COOLER OUTLET PIP 8-97202-090-0 01 1 9811-9908
12 04.205 CONNECTOR; OIL COOLER OUTLET PIP
EXC. VOLTAGE 24V<7AE> 		8-97202-090-0 01 1 9909-0001
13 04.205 GASKET; OIL COOLER PIPE 8-97202-084-0 02 1 9811-
14 04.205 UNION; OIL COOLER RETURN PIPE
VOLTAGE 24V<7AE> 		8-97202-090-0 02 1 9909-0001
14 04.205 UNION; OIL COOLER RETURN PIPE 8-97202-090-0 02 1 0002-
14 04.205 UNION; OIL COOLER RETURN PIPE 8-97202-090-0 01 1 9811-9908
14 04.205 UNION; OIL COOLER RETURN PIPE
EXC. VOLTAGE 24V<7AE> 		8-97202-090-0 01 1 9909-0001
21 04.104 PLUG; BREATHER,A/T 8-97202-098-0 01 1 9811-
22 04.101 CLIP; BREATHER HOSE,A/T 1-09701-190-0 02 1 9811-
23 04.101 HOSE; BREATHER,A/T 8-97202-070-0 01 1 9811-
26 04.195 PLUG; TRANS CASE
VOLTAGE 24V<7AE> (A) 		1-34119-017-0 03 1 9909-0001
26 04.195 PLUG; TRANS CASE
(A) 		1-34119-017-0 03 1 0002-
26 04.195 PLUG; TRANS CASE
(A) 		1-34119-017-0 02 1 9811-9908
26 04.195 PLUG; TRANS CASE
(B) 		1-34559-007-0 05 1 9811-
26 04.195 PLUG; TRANS CASE
VOLTAGE 24V<7AE> (C) 		8-97264-848-0 01 1 0106-
26 04.195 PLUG; TRANS CASE
EXC. VOLTAGE 24V<7AE> (A) 		1-34119-017-0 04 1 9909-0001
112 04.176 NUT; COUPLING DRIVER,A/T 8-97202-082-0 01 1 9811-
135 04.195 GASKET; PLUG,A/T CASE
VOLTAGE 24V<7AE> (A) 		1-09623-604-0 03 1 9909-0001
135 04.195 GASKET; PLUG,A/T CASE
(A) 		1-09623-604-0 03 1 0002-
135 04.195 GASKET; PLUG,A/T CASE
(A) 		1-09623-604-0 02 1 9811-9908
135 04.195 GASKET; PLUG,A/T CASE
VOLTAGE 24V<7AE> (B) 		1-09623-583-0 05 1 9811-9908
135 04.195 GASKET; PLUG,A/T CASE
EXC. VOLTAGE 24V<7AE> (B) 		1-09623-581-0 05 1 9811-9908
135 04.195 GASKET; PLUG,A/T CASE
(B) 		1-09623-581-0 05 1 9909-
135 04.195 GASKET; PLUG,A/T CASE
EXC. VOLTAGE 24V<7AE> (A) 		1-09623-604-0 04 1 9909-0001
142 04.318 COVER; PTO HOLE,A/T CASE 8-97202-050-0 01 1 9811-
143 04.319 BOLT; HOLE COVER,PTO,A/T 8-97202-102-0 06 1 9811-
144 04.316 GASKET; PTO HOLE COVER,A/T CASE 8-97202-051-0 01 1 9811-
194 04.205 GASKET; COUPLING DRIVE 8-97202-087-0 01 1 9811-
204 04.226 BRACKET; HARNESS CONNECTOR 8-97180-853-1 01 1 9811-
238 04.195 GASKET; PLUG 8-97202-083-0 01 1 9811-

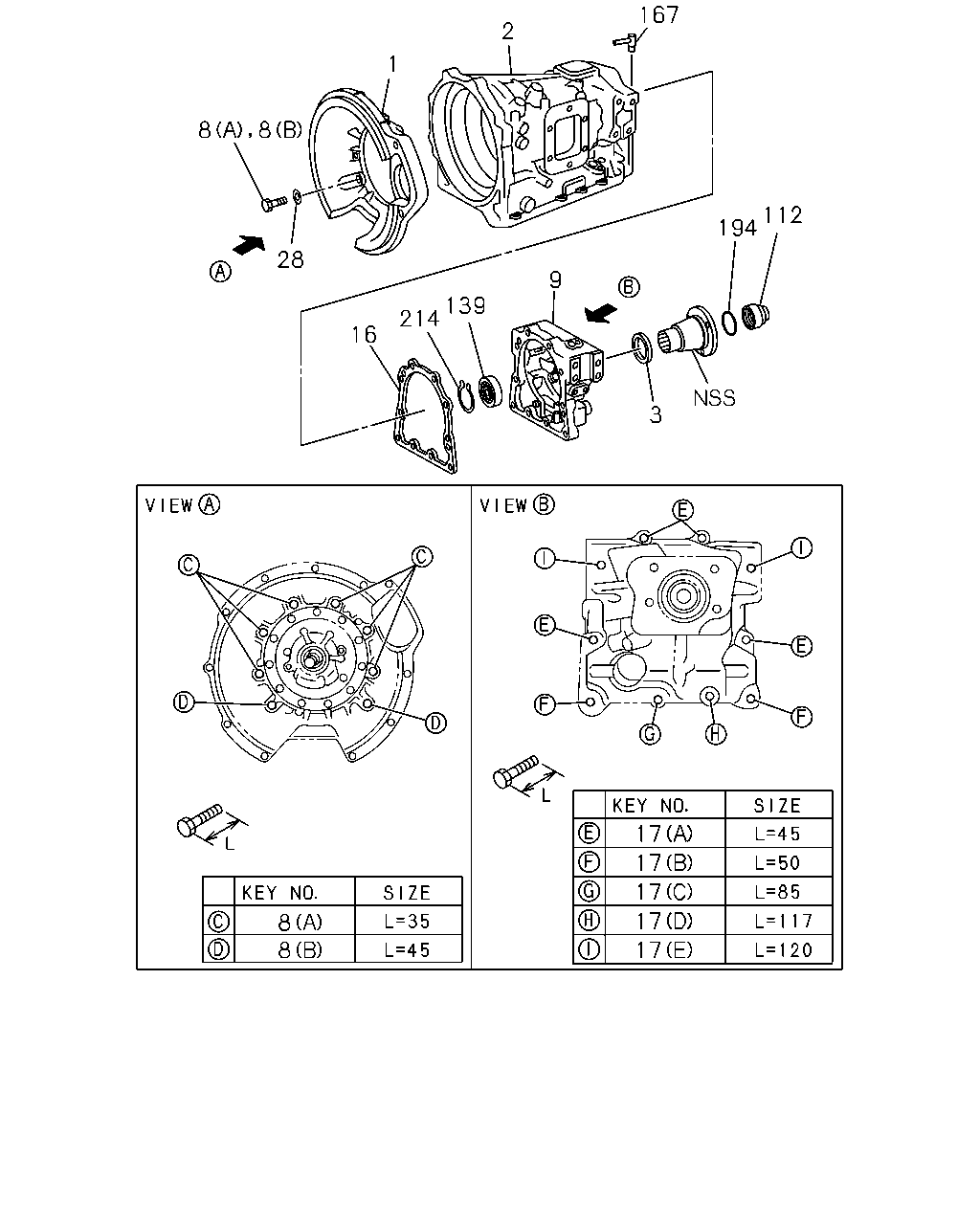

çizim 49222
167 2 1 8 8 112 194 28 9 139 214 16 3 17 17 17 17 8 8 17
BalonParca AdiParca NoAdetTipApplied Date
1 04.103 HOUSING; CONV,A/T 8-97257-079-0 01 1 9811-
2 04.103 CASE ASM; A/T 8-97256-859-0 01 1 9811-
3 04.241 SEAL; OIL,RR COVER,A/T 8-97202-071-0 01 1 9811-
8 04.217 BOLT; HSG TO CASE
(A) L=35 		8-97256-912-0 06 1 9811-
8 04.217 BOLT; HSG TO CASE
(B) L=45 		8-97256-913-0 02 1 9811-
9 04.317 COVER ASM; RR,A/T 8-97256-869-0 01 1 9811-0105
9 04.317 COVER ASM; RR,A/T
EXC. VOLTAGE 24V<7AE> 		8-97256-869-0 01 1 0106-
9 04.317 COVER ASM; RR,A/T
VOLTAGE 24V<7AE> 		8-97311-619-0 01 1 0106-
16 04.318 GASKET; EXT HSG 8-97256-870-0 01 1 9811-
17 04.319 BOLT; REAR COVER TO CASE
(A) L=45 		8-97256-873-0 04 1 9811-
17 04.319 BOLT; REAR COVER TO CASE
(B) L=50 		8-97256-874-0 02 1 9811-
17 04.319 BOLT; REAR COVER TO CASE
(C) L=85 		8-97256-887-0 01 1 9811-
17 04.319 BOLT; REAR COVER TO CASE
(D) L=117 		8-97256-908-0 01 1 9811-
17 04.319 BOLT; REAR COVER TO CASE
(E) L=120 		8-97256-909-0 02 1 9811-
28 04.105 WASHER; HSG TO CASE 8-97256-915-0 01 1 9811-
112 04.176 NUT; COUPLING DRIVER,A/T 8-97202-082-0 01 1 9811-
139 04.107 BEARING; OUTPUT SHAFT,RR END,A/T 8-97256-871-0 01 1 9811-
167 04.052 CONNECTOR; CASE,A/T 8-97256-868-0 01 1 9811-
194 04.205 GASKET; COUPLING DRIVE 8-97202-087-0 01 1 9811-
214 04.107 RING; SNAP,EXT HSG 8-97256-872-0 01 1 9811-
