◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-40 - AUTO TRANS ASM AND REPAIR KIT ▶
2-40 — AUTO TRANS ASM AND REPAIR KIT (#22015) — 22 parça

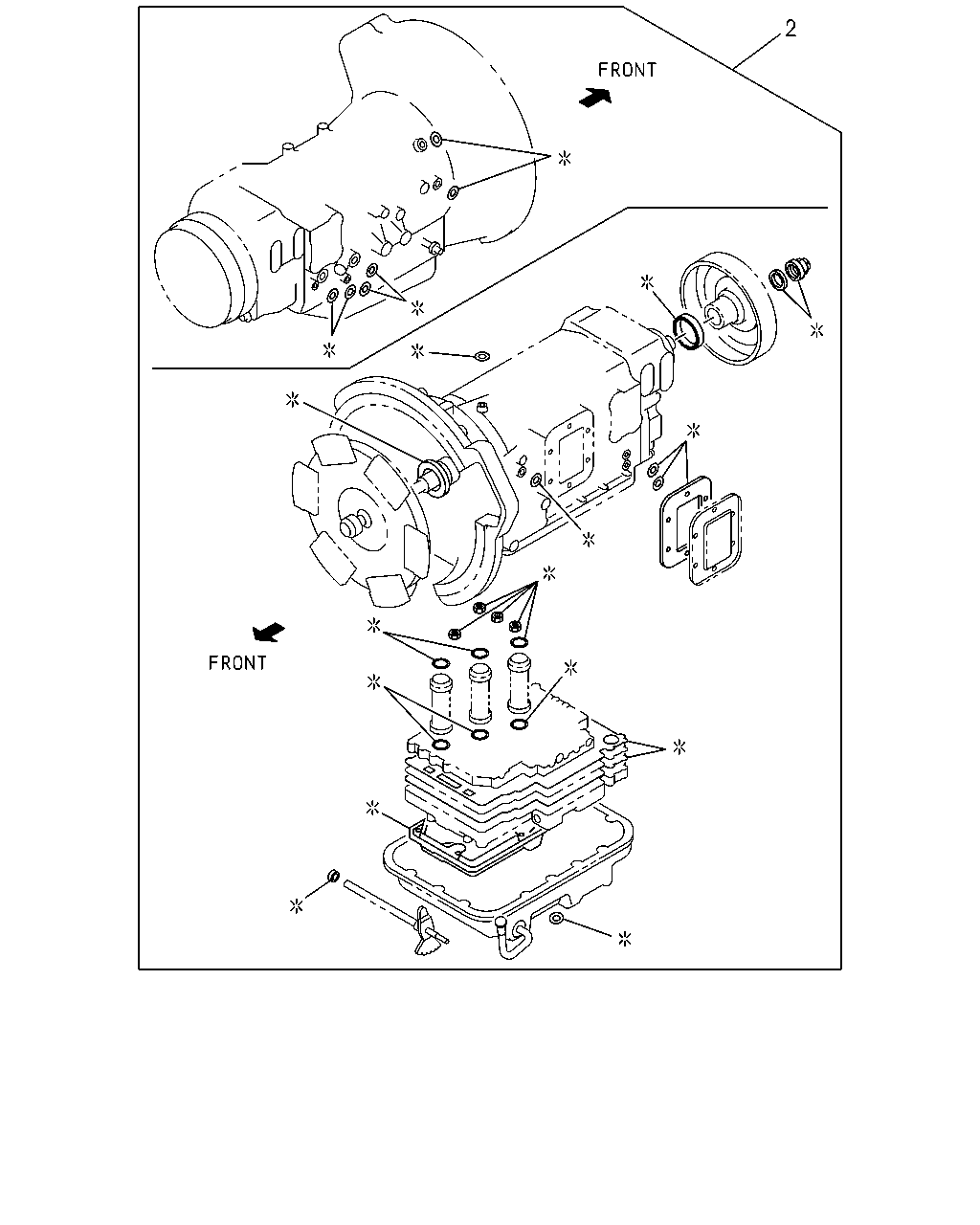

çizim 9420
2
BalonParca AdiParca NoAdetTipApplied Date
2 04.005 REPAIR KIT; A/T 8-97257-471-0 01 1 9911-

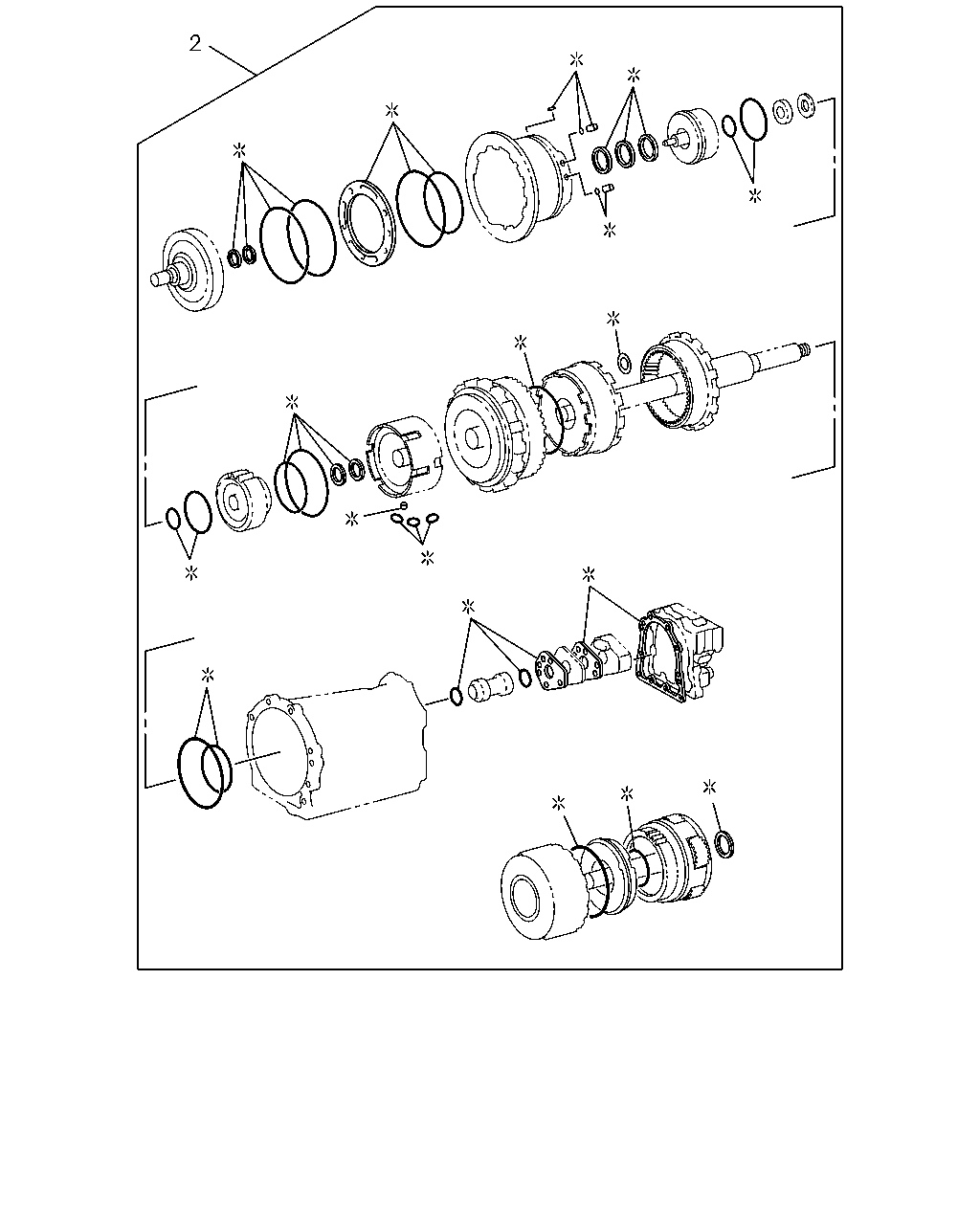

çizim 11304
2
BalonParca AdiParca NoAdetTipApplied Date
2 04.005 REPAIR KIT; A/T 8-97257-471-0 01 1 9911-

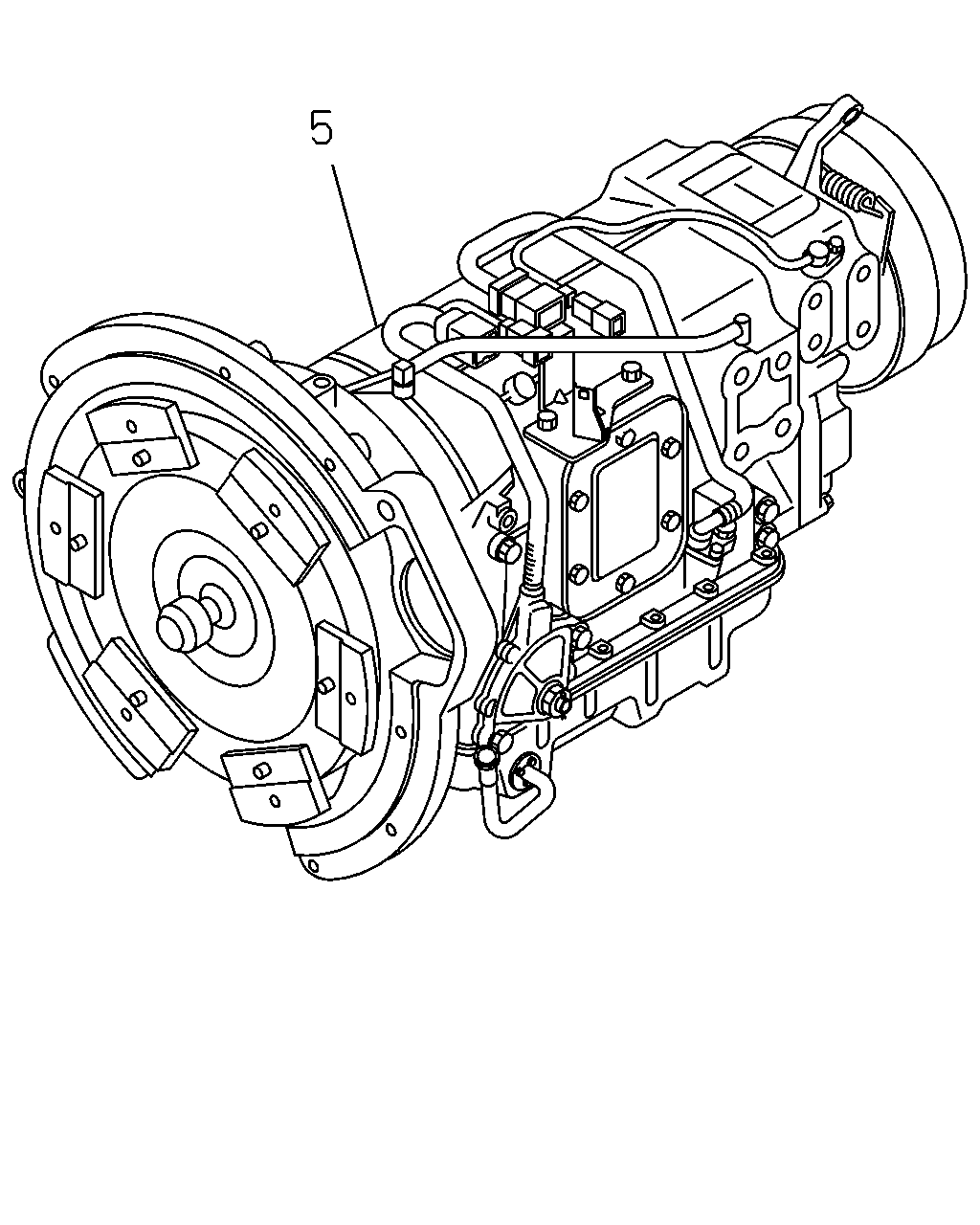

çizim 47435
5
BalonParca AdiParca NoAdetTipApplied Date
5 04.003 TRANSMISSION ASM; AUTO
FINAL GEAR RATIO 39/7(GV1) (AUH),(AUJ),(AUS),(AVK),(BPN),(BPP) ,(BPQ),(BPR),(BPT),(BQQ),(00C), (01C),(02C),(03C),(04C),(05C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V),(9BP),(95V),(97V) VOLTAGE 24V<7AE> EXC. PTO TRANSMISSION SIDE(V66) 		8-97184-231-0 01 1 9811-9903
5 04.003 TRANSMISSION ASM; AUTO
FINAL GEAR RATIO 43/8(R40) (AYS) VOLTAGE 24V<7AE> 		8-97184-231-0 01 1 9811-9903
5 04.003 TRANSMISSION ASM; AUTO
FINAL GEAR RATIO 39/7(GV1) (AUH),(AUJ),(AUS),(AVK),(BPN),(BPP) ,(BPQ),(BPR),(BPT),(BQQ),(00C), (01C),(02C),(03C),(04C),(05C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V),(9BP),(95V),(97V) VOLTAGE 24V<7AE> EXC. PTO TRANSMISSION SIDE(V66) 		8-97184-231-0 01 1 9904-9908
5 04.003 TRANSMISSION ASM; AUTO
FINAL GEAR RATIO 43/8(R40) (AYS),(BRT) VOLTAGE 24V<7AE> 		8-97184-231-0 01 1 9904-9908
5 04.003 TRANSMISSION ASM; AUTO
FINAL GEAR RATIO 39/7(GV1) (AUH),(AUJ),(AUS),(AVK),(BPN),(BPP) ,(BPQ),(BPR),(BPT),(BQQ),(00C), (01C),(02C),(03C),(04C),(05C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V),(9BP),(95V),(97V) VOLTAGE 24V<7AE> EXC. PTO TRANSMISSION SIDE(V66) 		8-97224-890-0 01 1 9909-9910
5 04.003 TRANSMISSION ASM; AUTO
FINAL GEAR RATIO 43/8(R40) (AYS),(BRT) VOLTAGE 24V<7AE> 		8-97224-890-0 01 1 9909-9910
5 04.003 TRANSMISSION ASM; AUTO
FINAL GEAR RATIO 39/7(GV1) (AUH),(AUJ),(AUS),(AVK),(BPN),(BPP) ,(BPQ),(BPR),(BPT),(BQQ),(BUM), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C),(55C),(83V),(9BP),(95V), (97V) VOLTAGE 24V<7AE> EXC. PTO TRANSMISSION SIDE(V66) 		8-97224-890-0 01 1 9911-0001
5 04.003 TRANSMISSION ASM; AUTO
FINAL GEAR RATIO 43/8(R40) (AYS),(BRT) VOLTAGE 24V<7AE> 		8-97224-890-0 01 1 9911-0001
5 04.003 TRANSMISSION ASM; AUTO
FINAL GEAR RATIO 39/7(GV1) (AUH),(AUJ),(AUS),(AVK),(BPN),(BPP) ,(BPQ),(BPR),(BPT),(BQQ),(BUM), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C),(55C),(83V),(9BP),(95V), (97V) VOLTAGE 24V<7AE> EXC. PTO TRANSMISSION SIDE(V66) 		8-97228-548-0 01 1 0002-0105
5 04.003 TRANSMISSION ASM; AUTO
FINAL GEAR RATIO 43/8(R40) (AYS),(BRT) VOLTAGE 24V<7AE> 		8-97228-548-0 01 1 0002-0105
5 04.003 TRANSMISSION ASM; AUTO
VOLTAGE 24V<7AE> 		8-97250-955-0 01 1 0106-
5 04.003 TRANSMISSION ASM; AUTO
FINAL GEAR RATIO 39/7(GV1) (AYS) VOLTAGE 24V<7AE> EXC. PTO TRANSMISSION SIDE(V66) 		8-97201-956-0 01 1 9811-9903
5 04.003 TRANSMISSION ASM; AUTO
FINAL GEAR RATIO 39/7(GV1) (AYS),(BRT) VOLTAGE 24V<7AE> EXC. PTO TRANSMISSION SIDE(V66) 		8-97224-891-0 01 1 9904-9908
5 04.003 TRANSMISSION ASM; AUTO
FINAL GEAR RATIO 39/7(GV1) (AYS),(BRT) VOLTAGE 24V<7AE> EXC. PTO TRANSMISSION SIDE(V66) 		8-97224-891-0 01 1 9909-0001
5 04.003 TRANSMISSION ASM; AUTO
FINAL GEAR RATIO 39/7(GV1) (AYS),(BRT) VOLTAGE 24V<7AE> EXC. PTO TRANSMISSION SIDE(V66) 		8-97228-550-0 01 1 0002-0105
5 04.003 TRANSMISSION ASM; AUTO
EXC. VOLTAGE 24V<7AE> 		8-97212-769-0 01 1 9811-9908
5 04.003 TRANSMISSION ASM; AUTO
EXC. VOLTAGE 24V<7AE> 		8-97224-889-0 01 1 9909-0001
5 04.003 TRANSMISSION ASM; AUTO
EXC. VOLTAGE 24V<7AE> 		8-97228-547-0 01 1 0002-0002
5 04.003 TRANSMISSION ASM; AUTO
EXC. VOLTAGE 24V<7AE> 		8-97250-957-0 01 1 0002-0111
5 04.003 TRANSMISSION ASM; AUTO
EXC. VOLTAGE 24V<7AE> 		8-97306-160-0 01 1 0112-
