◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#22013) — 48 parça
çizim 10950
356 401 401 401 249 185
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
185 04.012 BOLT; BRKT,COVER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9811- ● ● ● ● ● ● ● ●
249 04.012 BRACKET; COVER 8-97091-820-3 01 1 9811- ● ● ● ● ● ● ● ●
356 04.012 SCREW; COVER
FLOOR REMOTE SHIFT<M11> 02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9811- ● ● ● ● ● ●
356 04.012 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 9811- ● ● ● ● ● ● ● ●
401 04.012 CLIP; COVER
(A) DARK GRAY 		8-97098-523-0 02 1 9811- ● ● ● ● ● ● ● ●
401 04.012 CLIP; COVER
(B) DARK GRAY 		8-97098-524-0 01 1 9811- ● ● ● ● ● ● ● ●

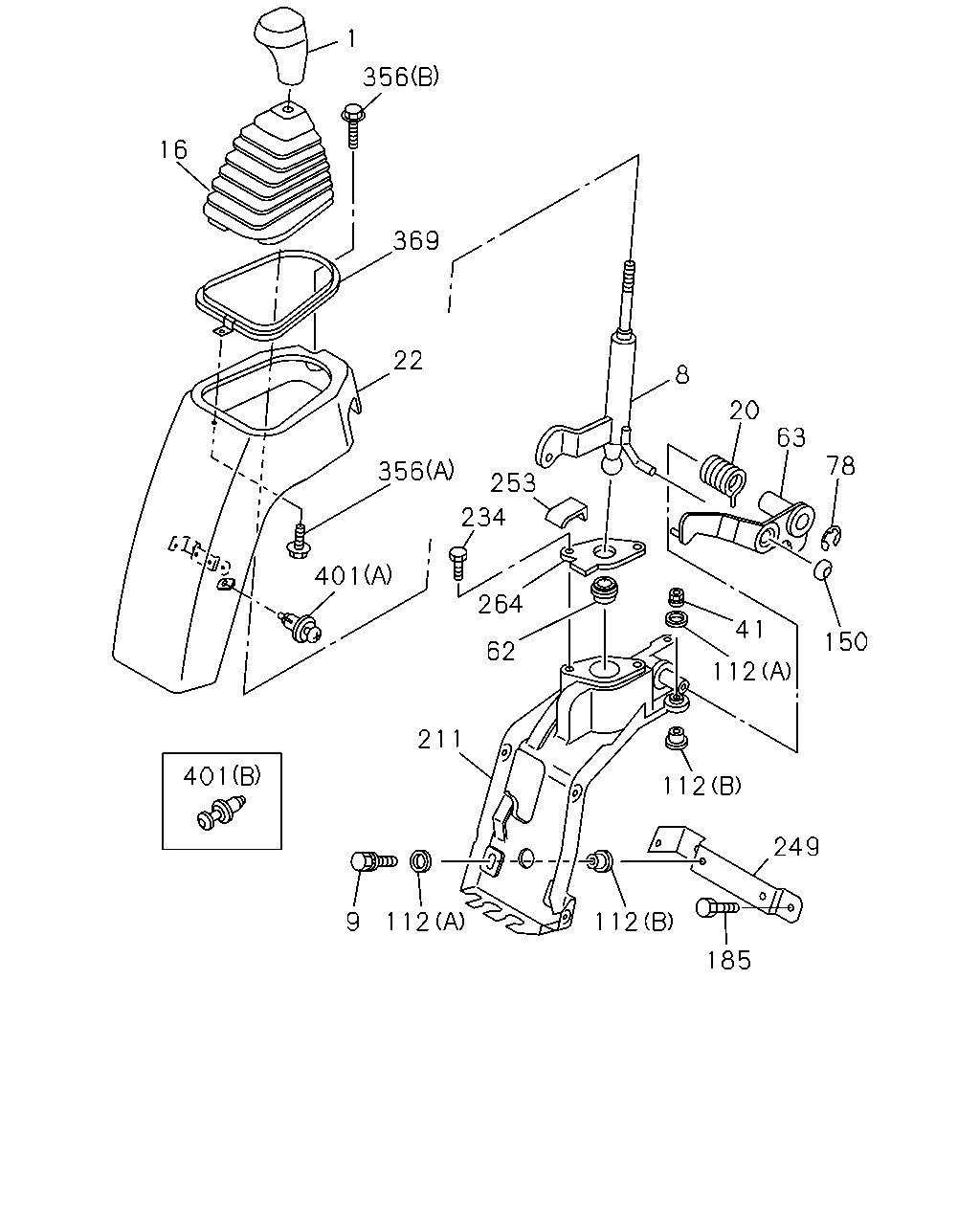

çizim 49153
1 356 16 369 22 8 20 63 253 78 356 234 401 264 41 150 62 112 211 401 112 249 9 112 112 185
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.006 KNOB; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> DARK GRAY 		8-97098-657-0 01 1 9811- ● ●
1 04.006 KNOB; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> DARK GRAY 		8-97155-986-0 01 1 9811- ● ● ● ●
1 04.006 KNOB; CHANGE LEVER
DARK GRAY 		8-97155-173-0 01 1 9811-0105 ●
8 04.006 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> 		8-97204-506-0 01 1 9811-0105 ● ● ●
8 04.006 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> 		8-97204-506-0 01 1 0106-0207 ● ●
8 04.006 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> 		8-97204-506-0 01 1 0208-0212 ● ● ●
8 04.006 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> 		8-97204-506-0 01 1 0301- ● ● ● ● ● ●
8 04.006 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> 		8-97204-508-0 01 1 9811-0212 ● ● ●
9 04.012 BOLT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 9811- ● ● ● ● ● ● ●
16 04.015 BOOT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97066-287-1 01 1 9811- ● ● ● ● ● ●
20 04.012 SPRING; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-514-0 01 1 9811-0105 ● ● ● ● ● ●
20 04.012 SPRING; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-514-0 01 1 0106- ● ● ● ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> DARK GRAY 		8-97098-666-3 01 1 9811- ● ● ● ● ● ●
41 04.012 NUT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 09.011 M8 W/LK WASHER 		8-97065-435-0 02 1 9811-0110 ● ● ● ● ● ● ●
41 04.012 NUT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 04.010 M8 FLANGE 		8-97046-127-0 02 1 0111- ● ● ● ● ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97011-895-1 01 1 9811-0105 ● ● ● ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97011-895-1 01 1 0106- ● ● ● ● ● ●
63 04.006 LEVER; RELAY,SELECT
FLOOR REMOTE SHIFT<M11> 		8-97143-199-0 01 1 9811- ● ● ●
63 04.006 LEVER; RELAY,SELECT
FLOOR REMOTE SHIFT<M11> 		8-97163-768-0 01 1 9811- ● ● ● ●
78 04.008 RING; SNAP,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 08.934 ID=10 		9-09185-410-0 01 1 9811-0208 ● ● ● ● ● ●
78 04.008 RING; SNAP,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 08.934 ID=10 		9-09185-410-0 01 1 0209- ● ● ● ● ● ●
112 04.012 RUBBER; CUSHION
FLOOR REMOTE SHIFT<M11> (A) 		8-97091-426-0 04 1 9811-0105 ● ● ● ● ● ●
112 04.012 RUBBER; CUSHION
FLOOR REMOTE SHIFT<M11> (A) 		8-97091-426-0 04 1 0106- ● ● ● ● ● ●
112 04.012 RUBBER; CUSHION
FLOOR REMOTE SHIFT<M11> (B) 		8-97091-427-0 04 1 9811-0105 ● ● ● ● ● ●
112 04.012 RUBBER; CUSHION
FLOOR REMOTE SHIFT<M11> (B) 		8-97091-427-0 04 1 0106- ● ● ● ● ● ●
150 04.008 BALL; DETENT,CONT LEVER
FLOOR REMOTE SHIFT<M11> 		8-97049-147-0 01 1 9811-0105 ● ● ● ● ● ●
150 04.008 BALL; DETENT,CONT LEVER
FLOOR REMOTE SHIFT<M11> 		8-97049-147-0 01 1 0106- ● ● ● ● ● ●
185 04.012 BOLT; BRKT,COVER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9811- ● ● ● ● ● ● ● ●
211 04.010 BRACKET; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-505-0 01 1 9811-0105 ● ● ● ● ● ●
211 04.010 BRACKET; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-505-0 01 1 0106- ● ● ● ● ● ●
234 04.010 BOLT; BRKT
FLOOR REMOTE SHIFT<M11> 		8-97204-512-0 02 1 9811-0105 ● ● ● ● ● ●
234 04.010 BOLT; BRKT
FLOOR REMOTE SHIFT<M11> 		8-97204-512-0 02 1 0106- ● ● ● ● ● ●
249 04.012 BRACKET; COVER 8-97091-820-3 01 1 9811- ● ● ● ● ● ● ● ●
253 04.012 STOPPER; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-510-0 01 1 9811-0105 ● ● ● ● ● ●
253 04.012 STOPPER; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-510-0 01 1 0106- ● ● ● ● ● ●
264 04.015 PLATE; COVER
FLOOR REMOTE SHIFT<M11> 		8-97204-511-0 01 1 9811-0105 ● ● ● ● ● ●
264 04.015 PLATE; COVER
FLOOR REMOTE SHIFT<M11> 		8-97204-511-0 01 1 0106- ● ● ● ● ● ●
356 04.012 SCREW; COVER
FLOOR REMOTE SHIFT<M11> 02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9811- ● ● ● ● ● ●
356 04.012 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 9811- ● ● ● ● ● ● ● ●
369 04.012 RETAINER; REINF
FLOOR REMOTE SHIFT<M11> 		8-97066-288-0 01 1 9811- ● ● ● ● ● ●
401 04.012 CLIP; COVER
(A) DARK GRAY 		8-97098-523-0 02 1 9811- ● ● ● ● ● ● ● ●
401 04.012 CLIP; COVER
(B) DARK GRAY 		8-97098-524-0 01 1 9811- ● ● ● ● ● ● ● ●
