Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#22012) — 662 parça

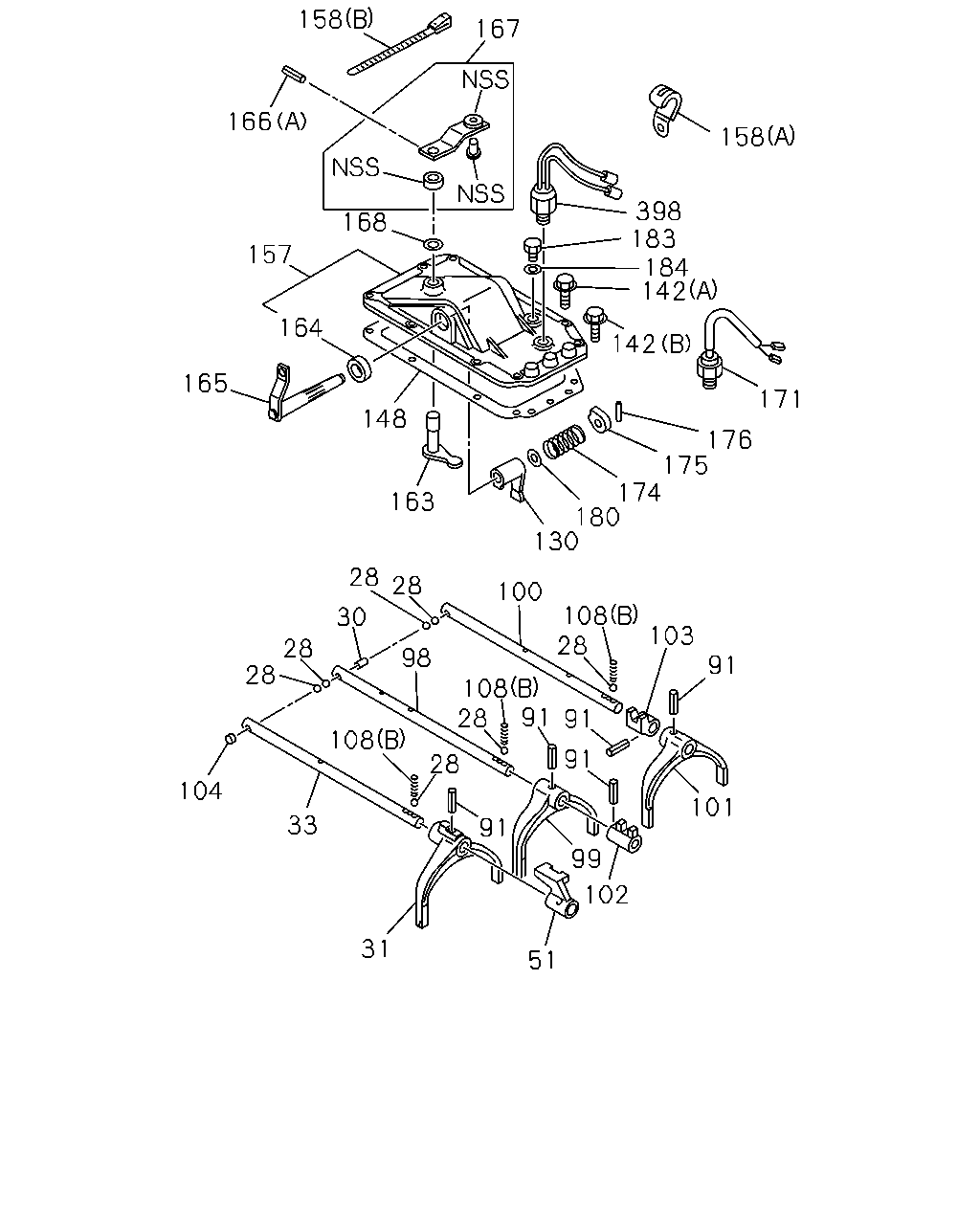

158 167 166 158 398 183 184 142 168 157 164 142 165 171 148 176 175 174 180 130 163 28 28 100 108 28 30 103 28 28 98 91 108 91 108 91 28 104 101 99 33 91 102 31 51 28 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	9811-0202	●	●	●	●	●
28	04.311 BALL; INTER LK 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	9-00097-010-0	07	1	0203-0210	●	●
28	04.311 BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-00097-010-0	07	1	0203-0210	●	●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0203-0210			●		●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0211-	●	●	●		●
28	04.311 BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-00097-010-0	10	1	9811-						●
30	04.307 PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-041-0	01	1	9811-	●	●
30	04.307 PIN; INTER LK 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-041-0	01	1	9811-	●	●
30	04.307 PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-041-0	02	1	9811-						●
30	04.307 PIN; INTER LK 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33534-002-0	03	1	9811-0108			●	●
30	04.307 PIN; INTER LK	1-33534-002-0	03	1	0109-			●	●
30	04.307 PIN; INTER LK 4JB1 ENG(RLF) 04.311	5-33534-001-0	01	1	9811-0105					●
31	04.302 ARM; SHIFT,LOW & 2ND 4JB1 ENG(RLF)	8-97011-365-1	01	1	9811-0105					●
33	04.309 ROD; SHIFT,LOW & 2ND 4JB1 ENG(RLF)	8-97011-370-1	01	1	9811-0105					●
51	04.303 BLOCK; SHIFT,1ST & 2ND 4JB1 ENG(RLF)	8-97022-837-2	01	1	9811-0105					●
91	04.302 PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.303 L=25 OD=5	8-94135-771-0	03	1	9811-	●	●				●
91	04.302 PIN; SPR,SHIFT ARM 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.303 L=25 OD=5	8-94135-771-0	03	1	9811-	●	●
91	04.302 PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4HF1 ENG(RLS) L=32	8-97011-596-2	02	1	9811-	●	●				●
91	04.302 PIN; SPR,SHIFT ARM 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) L=32	8-97011-596-2	02	1	9811-	●	●
91	04.302 PIN; SPR,SHIFT ARM 4JB1 ENG(RLF) 04.303 L=25 OD=5	8-94135-771-0	06	1	9811-0105					●
98	04.309 ROD; SHIFT,TOP & 3RD 4JB1 ENG(RLF)	8-97011-371-1	01	1	9811-0105					●
99	04.302 ARM; SHIFT,4TH & 3RD 4JB1 ENG(RLF)	8-97011-366-1	01	1	9811-0105					●
100	04.309 ROD; SHIFT,REV & 5TH 4JB1 ENG(RLF)	8-94316-923-0	01	1	9811-0105					●
101	04.302 ARM; SHIFT,REV & 5TH 4JB1 ENG(RLF)	8-97107-545-0	01	1	9811-0105					●
102	04.303 BLOCK; SHIFT,3RD & 4TH 4JB1 ENG(RLF)	8-97017-573-1	01	1	9811-0105					●
103	04.303 BLOCK; SHIFT,REV TO OD 4JB1 ENG(RLF)	8-94135-719-4	01	1	9811-0105					●
104	04.311 PLUG; PLATE 4JB1 ENG(RLF) 04.105 OD=16	9-09201-316-0	01	1	9811-0105					●
108	04.311 SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97035-053-0	01	1	9811-	●	●
108	04.311 SPRING; LOCK BALL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A)	8-97035-053-0	01	1	9811-	●	●
108	04.311 SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9811-0105	●	●
108	04.311 SPRING; LOCK BALL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9811-0105	●	●
108	04.311 SPRING; LOCK BALL 4JB1 ENG(RLF) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9811-0105					●
108	04.311 SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	0106-	●	●
108	04.311 SPRING; LOCK BALL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	0106-	●	●
108	04.311 SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS) (A),(B) OD=6.8 L=31.6	9-09740-114-0	04	1	9811-						●
130	04.302 LEVER; SHIFT,INTERNAL TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97306-647-0	01	1	0208-							●
130	04.302 LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94340-131-2	01	1	9811-	●	●				●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94340-131-2	01	1	9811-	●	●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33521-131-1	01	1	9811-0108			●	●
130	04.302 LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	0109-			●	●
130	04.302 LEVER; SHIFT,INTERNAL 4JB1 ENG(RLF)	8-94105-141-2	01	1	9811-0105					●
142	04.012 BOLT; QUAD BOX TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0208-							●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 00.685 M10X28 FLANGE	0-28181-028-0	15	1	9811-0108			●	●
142	04.012 BOLT; QUAD BOX 00.685 M10X28 FLANGE	0-28181-028-0	15	1	0109-			●	●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9811-0108			●	●
142	04.012 BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0109-			●	●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 08.900 M10X20,M10X26 L=56	1-09049-014-1	01	1	9811-0108			●	●
142	04.012 BOLT; QUAD BOX 08.900 M10X20,M10X26 L=56	1-09049-014-1	01	1	0109-			●	●
142	04.012 BOLT; QUAD BOX 4JB1 ENG(RLF) 04.105 (A) M8X25	8-94128-786-0	08	1	9811-0105					●
142	04.012 BOLT; QUAD BOX 4JB1 ENG(RLF) 04.105 (B) M8X30	8-97029-705-0	02	1	9811-0105					●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF) 04.012	8-94257-162-0	01	1	9811-0105					●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-066-0	01	1	9811-	●	●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97167-640-0	01	1	9811-9911	●	●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97249-547-0	01	1	9912-	●	●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-814-1	01	1	9811-9911						●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97249-549-0	01	1	9912-						●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (A)	1-33541-465-1	01	1	9811-0108			●	●
157	04.105 BOX; QUAD,TRANS (A)	1-33541-465-1	01	1	0109-			●	●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (B)	1-33541-503-0	01	1	9811-9903			●	●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (B)	1-33541-512-0	01	1	9904-0108			●	●
157	04.105 BOX; QUAD,TRANS (B)	1-33541-512-0	01	1	0109-			●	●
157	04.105 BOX; QUAD,TRANS 4JB1 ENG(RLF)	8-94340-145-0	01	1	9811-0105					●
158	04.105 CLIP; HARNESS 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 04.342	9-09716-059-0	02	1	9811-0108			●	●
158	04.105 CLIP; HARNESS 04.342	9-09716-059-0	02	1	0109-			●	●
158	04.105 CLIP; HARNESS 4JB1 ENG(RLF) 01.152 (A) ID=8.5	5-09700-275-0	01	1	9811-0105					●
158	04.105 CLIP; HARNESS 4JB1 ENG(RLF) 03.162 (B) L=140	5-09707-031-1	01	1	9811-0105					●
163	04.302 LEVER; SELECT,INTERNAL TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97305-663-0	01	1	0208-							●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-068-1	01	1	9811-	●	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	9811-	●	●				●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33522-130-0	01	1	9811-0108			●	●
163	04.302 LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	0109-			●	●
163	04.302 LEVER; SELECT,INTERNAL 4JB1 ENG(RLF)	8-94159-268-1	01	1	9811-0105					●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.309 (A) OD=27	8-94128-784-0	01	1	9811-0011	●	●				●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.309 (A) OD=27	8-94128-784-0	01	1	9811-0011	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) OD=27	8-97304-068-0	01	1	0012-	●	●				●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) OD=27	8-97304-068-0	01	1	0012-	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) OD=32	8-94462-019-0	01	1	9811-0011	●	●				●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (B) OD=32	8-94462-019-0	01	1	9811-0011	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) OD=32	8-97304-066-0	01	1	0012-	●	●				●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (B) OD=32	8-97304-066-0	01	1	0012-	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF) 04.309 OD=27	8-94128-784-0	02	1	9811-0011					●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF) OD=27	8-97304-068-0	02	1	0012-0105					●
165	04.302 LEVER; SHIFT 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-816-0	01	1	9811-	●	●				●
165	04.302 LEVER; SHIFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-816-0	01	1	9811-	●	●
165	04.302 LEVER; SHIFT 4JB1 ENG(RLF)	8-97036-221-0	01	1	9811-0105					●
166	04.302 PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9811-0105	●	●
166	04.302 PIN; SPR,SELECT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9811-0105	●	●
166	04.302 PIN; SPR,SELECT LEVER 4JB1 ENG(RLF) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9811-0105					●
166	04.302 PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	0106-	●	●
166	04.302 PIN; SPR,SELECT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	0106-	●	●
166	04.302 PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.303 (A) L=25 OD=5	8-94135-771-0	03	1	9811-						●
166	04.302 PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) L=32	8-97011-596-2	01	1	9811-						●
167	04.302 LEVER; SELECT,EXTERNAL TAIWAN EQUIPMENT(RWV)	8-97306-648-0	01	1	0208-							●
167	04.302 LEVER; SELECT,EXTERNAL CHILE EQUIPMENT(6KB)	8-97305-665-0	01	1	0208-							●
167	04.302 LEVER; SELECT,EXTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-558-1	01	1	9811-	●	●				●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-558-1	01	1	9811-	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33521-137-1	01	1	9811-0108			●	●
167	04.302 LEVER; SELECT,EXTERNAL	1-33521-137-1	01	1	0109-			●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JB1 ENG(RLF)	8-97035-560-1	01	1	9811-0105					●
168	04.302 WASHER; LK,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94249-250-1	01	1	9811-0105	●	●				●
168	04.302 WASHER; LK,SELECT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94249-250-1	01	1	9811-0105	●	●
168	04.302 WASHER; LK,SELECT LEVER 4JB1 ENG(RLF)	8-94249-250-1	01	1	9811-0105					●
168	04.302 WASHER; LK,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94249-250-1	01	1	0106-	●	●				●
168	04.302 WASHER; LK,SELECT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94249-250-1	01	1	0106-	●	●
171	04.054 SWITCH; NEUTRAL TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97316-688-1	01	1	0208-							●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-946-0	01	1	9811-0101	●	●				●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-946-0	01	1	9811-0101	●	●
171	04.054 SWITCH; NEUTRAL 4JB1 ENG(RLF)	8-97165-946-0	01	1	9811-0101					●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97165-946-1	01	1	0102-0105	●	●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-946-1	01	1	0102-0105	●	●
171	04.054 SWITCH; NEUTRAL	8-97165-946-1	01	1	0102-0105					●	●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-946-1	01	1	0106-	●	●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97165-946-1	01	1	0106-	●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-946-1	01	1	0106-		●				●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-82340-534-0	01	1	9811-0108			●	●
171	04.054 SWITCH; NEUTRAL	1-82340-534-0	01	1	0109-			●	●
174	04.307 SPRING; REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-052-0	01	1	9811-	●	●
174	04.307 SPRING; REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-052-0	01	1	9811-	●	●
174	04.307 SPRING; REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97076-906-0	01	1	9811-						●
174	04.307 SPRING; REV 4JB1 ENG(RLF)	8-97031-927-0	01	1	9811-0105					●
175	04.302 RING; STOPPER,SHIFT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-819-0	01	1	9811-	●	●				●
175	04.302 RING; STOPPER,SHIFT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-819-0	01	1	9811-	●	●
175	04.302 RING; STOPPER,SHIFT LEVER 4JB1 ENG(RLF)	8-94249-048-2	01	1	9811-0105					●
176	04.302 PIN; SPR,STOPPER 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.555 L=30 OD=4	9-09678-549-0	02	1	9811-0105	●	●				●
176	04.302 PIN; SPR,STOPPER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.555 L=30 OD=4	9-09678-549-0	02	1	9811-0105	●	●
176	04.302 PIN; SPR,STOPPER 4JB1 ENG(RLF) 04.555 L=30 OD=4	9-09678-549-0	02	1	9811-0105					●
176	04.302 PIN; SPR,STOPPER 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.555 L=30 OD=4	9-09678-549-0	02	1	0106-	●	●				●
176	04.302 PIN; SPR,STOPPER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.555 L=30 OD=4	9-09678-549-0	02	1	0106-	●	●
180	04.302 WASHER; REV STOP SPRING 4JB1 ENG(RLF) 04.307	8-94249-244-0	01	1	9811-0105					●
183	04.105 PLUG; SCREW,OIL FILTER 4JB1 ENG(RLF) M18	8-94337-946-1	01	1	9811-0105					●
184	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF) 04.422 ID=15.3	8-94336-511-0	01	1	9811-0105					●
398	02.698 SWITCH; REV LAMP TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 04.054	8-97316-688-1	01	1	0208-							●
398	02.698 SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-947-1	01	1	9811-0105	●	●				●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-947-1	01	1	9811-0105	●	●
398	02.698 SWITCH; REV LAMP 4JB1 ENG(RLF)	8-97165-947-1	01	1	9811-0105					●
398	02.698 SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-947-1	01	1	0106-	●	●				●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-947-1	01	1	0106-	●	●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-82440-083-2	01	1	9811-0108			●	●
398	02.698 SWITCH; REV LAMP	1-82440-083-3	01	1	0109-			●	●

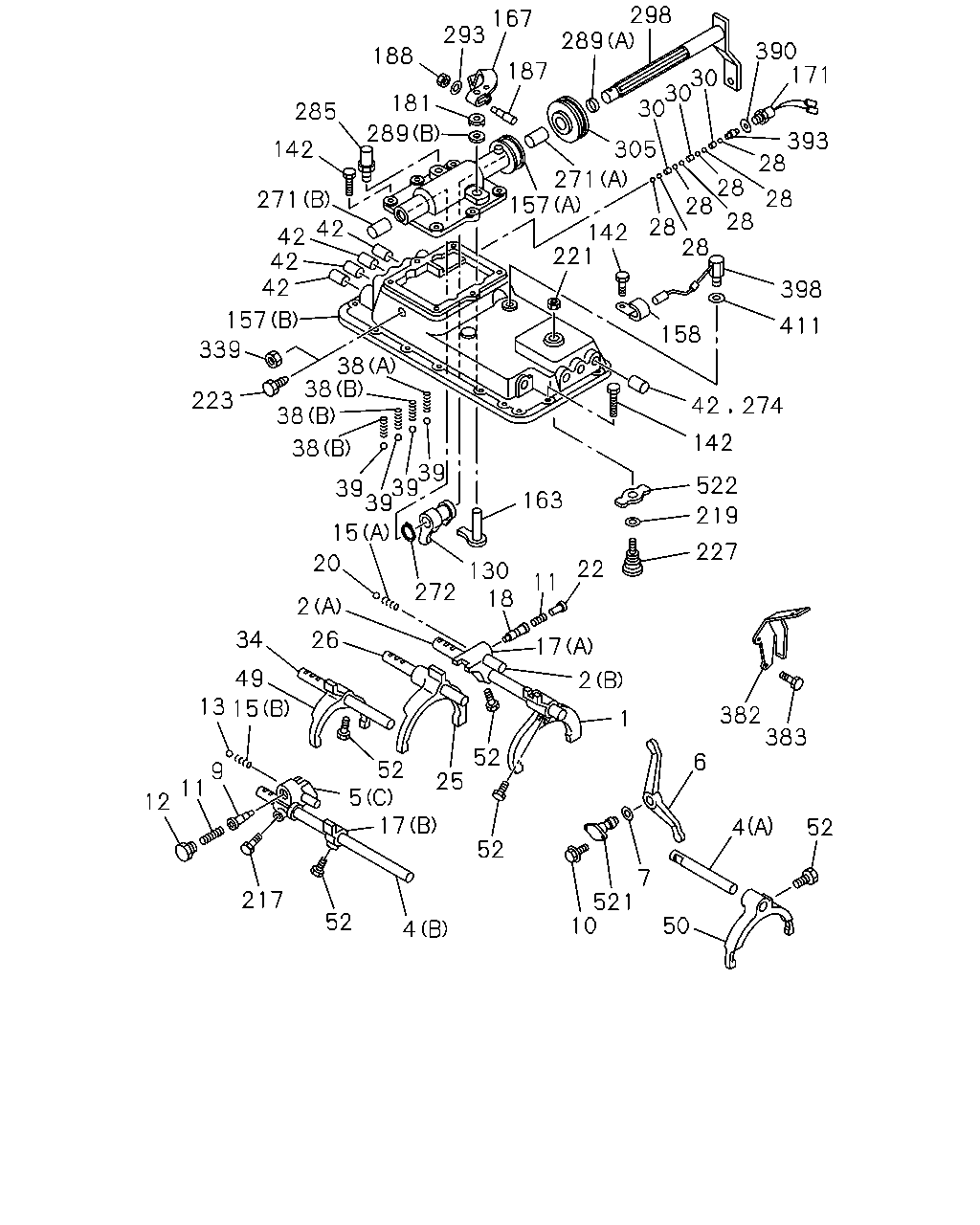

298 167 293 289 390 171 188 187 30 30 30 181 285 289 393 28 142 305 271 157 142 221 28 28 28 28 28 271 42 28 42 42 42 398 157 411 158 339 38 38 38 223 142 38 39 39 522 163 219 15 227 20 22 130 18 11 272 2 17 34 26 49 13 15 2 382 383 1 52 6 52 5 17 9 11 25 12 52 4 52 7 521 10 217 52 50 4 42 274 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.302 ARM; SHIFT,1ST & REV TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97241-319-2	01	1	0208-							●
1	04.302 ARM; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-825-1	01	1	9811-	●	●				●
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-825-1	01	1	9811-	●	●
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33511-502-1	01	1	9811-0108			●	●
1	04.302 ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	0109-			●	●
2	04.309 ROD; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97034-820-0	01	1	9811-	●	●				●
2	04.309 ROD; SHIFT,1ST & REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (C)	8-97034-820-0	01	1	9811-	●	●
2	04.309 ROD; SHIFT,1ST & REV 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (A)	1-33531-360-1	01	1	9811-0108			●	●
2	04.309 ROD; SHIFT,1ST & REV (A)	1-33531-360-1	01	1	0109-			●	●
2	04.309 ROD; SHIFT,1ST & REV 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (B)	1-33531-361-1	01	1	9811-0108			●	●
2	04.309 ROD; SHIFT,1ST & REV (B)	1-33531-361-1	01	1	0109-			●	●
4	04.309 ROD; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97034-824-0	01	1	9811-						●
4	04.309 ROD; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97129-495-0	01	1	9811-						●
4	04.309 ROD; SHIFT,6TH 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (B)	1-33531-341-1	01	1	9811-0108			●	●
4	04.309 ROD; SHIFT,6TH (B)	1-33531-341-1	01	1	0109-			●	●
4	04.309 ROD; SHIFT,6TH 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (A)	1-33531-387-0	01	1	9811-0108			●	●
4	04.309 ROD; SHIFT,6TH (A)	1-33531-387-0	01	1	0109-			●	●
5	04.303 BLOCK; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97034-836-0	01	1	9811-						●
5	04.303 BLOCK; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97123-420-0	01	1	9811-						●
5	04.303 BLOCK; SHIFT,6TH 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (C)	1-33511-326-1	01	1	9811-0108			●	●
5	04.303 BLOCK; SHIFT,6TH (C)	1-33511-326-1	01	1	0109-			●	●
6	04.302 LEVER; RELAY 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33511-462-0	01	1	9811-0005			●	●
6	04.302 LEVER; RELAY 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33511-574-0	01	1	0006-0108			●	●
6	04.302 LEVER; RELAY	1-33511-574-0	01	1	0109-			●	●
7	04.302 GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 01.456 ID=24.4	1-09623-057-0	01	1	9811-0108			●	●
7	04.302 GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). 01.456 ID=24.4	1-09623-057-0	01	1	0109-			●	●
9	04.307 SLEEVE; 6TH,SHIFT BLOCK 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33516-029-0	01	1	9811-0108			●	●
9	04.307 SLEEVE; 6TH,SHIFT BLOCK	1-33516-029-0	01	1	0109-			●	●
10	04.302 BOLT; SPINDLE 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 09.171 M14X20	1-09044-078-0	02	1	9811-0108			●	●
10	04.302 BOLT; SPINDLE 09.171 M14X20	1-09044-078-0	02	1	0109-			●	●
11	04.307 SPRING; RETURN,SHIFT SLEEVE 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	9-09941-160-0	02	1	9811-0108			●	●
11	04.307 SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	02	1	0109-			●	●
12	04.307 CAP; RETURN SPR,SHIFT BLOCK 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	9-33516-060-1	01	1	9811-0108			●	●
12	04.307 CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0109-			●	●
13	04.311 BALL; LK,SHIFT SLEEVE 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	9-00097-009-0	01	1	9811-0108			●	●
13	04.311 BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	0109-			●	●
15	04.307 SPRING; LK,SHIFT SLEEVE 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (A)	1-09580-445-0	01	1	9811-0108			●	●
15	04.307 SPRING; LK,SHIFT SLEEVE (A)	1-09580-445-0	01	1	0109-			●	●
15	04.307 SPRING; LK,SHIFT SLEEVE 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (B)	1-09580-526-0	01	1	9811-0108			●	●
15	04.307 SPRING; LK,SHIFT SLEEVE (B)	1-09580-526-0	01	1	0109-			●	●
17	04.303 BLOCK; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97034-829-1	01	1	9811-	●	●				●
17	04.303 BLOCK; SHIFT,1ST & REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (C)	8-97034-829-1	01	1	9811-	●	●
17	04.303 BLOCK; SHIFT,1ST & REV 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (B)	1-33511-432-1	01	1	9811-0108			●	●
17	04.303 BLOCK; SHIFT,1ST & REV (B)	1-33511-432-1	01	1	0109-			●	●
17	04.303 BLOCK; SHIFT,1ST & REV 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (A)	1-33511-578-1	01	1	9811-0108			●	●
17	04.303 BLOCK; SHIFT,1ST & REV (A)	1-33511-578-1	01	1	0109-			●	●
18	04.307 SLEEVE; 1ST & REV,SHIFT BLOCK 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33516-029-0	01	1	9811-0108			●	●
18	04.307 SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-029-0	01	1	0109-			●	●
20	04.311 BALL; DETENT SLEEVE 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	9-00097-009-0	01	1	9811-0108			●	●
20	04.311 BALL; DETENT SLEEVE	9-00097-009-0	01	1	0109-			●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	9-33516-060-1	01	1	9811-0108			●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0109-			●	●
25	04.302 ARM; SHIFT,2ND & 3RD TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97258-708-1	01	1	0208-							●
25	04.302 ARM; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-826-2	01	1	9811-	●	●				●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-826-2	01	1	9811-	●	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33511-580-1	01	1	9811-0108			●	●
25	04.302 ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	0109-			●	●
26	04.309 ROD; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97129-493-0	01	1	9811-	●	●				●
26	04.309 ROD; SHIFT,2ND & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97129-493-0	01	1	9811-	●	●
26	04.309 ROD; SHIFT,2ND & 3RD 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33531-384-0	01	1	9811-0108			●	●
26	04.309 ROD; SHIFT,2ND & 3RD	1-33531-384-0	01	1	0109-			●	●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	9811-0202	●	●	●	●	●
28	04.311 BALL; INTER LK 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	9-00097-010-0	07	1	0203-0210	●	●
28	04.311 BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-00097-010-0	07	1	0203-0210	●	●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0203-0210			●		●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0211-	●	●	●		●
28	04.311 BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-00097-010-0	10	1	9811-						●
30	04.307 PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-041-0	01	1	9811-	●	●
30	04.307 PIN; INTER LK 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-041-0	01	1	9811-	●	●
30	04.307 PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-041-0	02	1	9811-						●
30	04.307 PIN; INTER LK 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33534-002-0	03	1	9811-0108			●	●
30	04.307 PIN; INTER LK	1-33534-002-0	03	1	0109-			●	●
30	04.307 PIN; INTER LK 4JB1 ENG(RLF) 04.311	5-33534-001-0	01	1	9811-0105					●
34	04.309 ROD; SHIFT,4TH & 5TH ARM 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33531-385-0	01	1	9811-0108			●	●
34	04.309 ROD; SHIFT,4TH & 5TH ARM	1-33531-385-0	01	1	0109-			●	●
38	04.311 SPRING; DETENT 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (A)	1-09580-374-0	01	1	9811-0108			●	●
38	04.311 SPRING; DETENT (A)	1-09580-374-0	01	1	0109-			●	●
38	04.311 SPRING; DETENT 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (B)	1-09580-548-0	03	1	9811-0108			●	●
38	04.311 SPRING; DETENT (B)	1-09580-548-0	03	1	0109-			●	●
39	04.307 BALL; DETENT 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	9-00097-013-0	04	1	9811-0108			●	●
39	04.307 BALL; DETENT	9-00097-013-0	04	1	0109-			●	●
42	04.105 CAP; QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) OD=20	1-33545-002-1	08	1	9811-0108			●	●
42	04.105 CAP; QUAD BOX OD=20	1-33545-002-1	08	1	0109-			●	●
49	04.302 ARM; SHIFT,4TH & 5TH TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97258-709-2	01	1	0208-							●
49	04.302 ARM; SHIFT,4TH & 5TH 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33511-581-1	01	1	9811-0108			●	●
49	04.302 ARM; SHIFT,4TH & 5TH	1-33511-581-1	01	1	0109-			●	●
50	04.302 ARM; SHIFT,6TH TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97241-324-1	01	1	0208-							●
50	04.302 ARM; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-828-1	01	1	9811-						●
50	04.302 ARM; SHIFT,6TH 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33511-477-0	01	1	9811-0108			●	●
50	04.302 ARM; SHIFT,6TH	1-33511-477-0	01	1	0109-			●	●
52	04.302 BOLT; SHIFT ARM 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-09052-034-2	07	1	9811-0108			●	●
52	04.302 BOLT; SHIFT ARM	1-09052-034-2	07	1	0109-			●	●
130	04.302 LEVER; SHIFT,INTERNAL TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97306-647-0	01	1	0208-							●
130	04.302 LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94340-131-2	01	1	9811-	●	●				●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94340-131-2	01	1	9811-	●	●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33521-131-1	01	1	9811-0108			●	●
130	04.302 LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	0109-			●	●
130	04.302 LEVER; SHIFT,INTERNAL 4JB1 ENG(RLF)	8-94105-141-2	01	1	9811-0105					●
142	04.012 BOLT; QUAD BOX TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0208-							●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 00.685 M10X28 FLANGE	0-28181-028-0	15	1	9811-0108			●	●
142	04.012 BOLT; QUAD BOX 00.685 M10X28 FLANGE	0-28181-028-0	15	1	0109-			●	●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9811-0108			●	●
142	04.012 BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0109-			●	●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 08.900 M10X20,M10X26 L=56	1-09049-014-1	01	1	9811-0108			●	●
142	04.012 BOLT; QUAD BOX 08.900 M10X20,M10X26 L=56	1-09049-014-1	01	1	0109-			●	●
142	04.012 BOLT; QUAD BOX 4JB1 ENG(RLF) 04.105 (A) M8X25	8-94128-786-0	08	1	9811-0105					●
142	04.012 BOLT; QUAD BOX 4JB1 ENG(RLF) 04.105 (B) M8X30	8-97029-705-0	02	1	9811-0105					●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-066-0	01	1	9811-	●	●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97167-640-0	01	1	9811-9911	●	●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97249-547-0	01	1	9912-	●	●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-814-1	01	1	9811-9911						●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97249-549-0	01	1	9912-						●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (A)	1-33541-465-1	01	1	9811-0108			●	●
157	04.105 BOX; QUAD,TRANS (A)	1-33541-465-1	01	1	0109-			●	●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (B)	1-33541-503-0	01	1	9811-9903			●	●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (B)	1-33541-512-0	01	1	9904-0108			●	●
157	04.105 BOX; QUAD,TRANS (B)	1-33541-512-0	01	1	0109-			●	●
157	04.105 BOX; QUAD,TRANS 4JB1 ENG(RLF)	8-94340-145-0	01	1	9811-0105					●
158	04.105 CLIP; HARNESS 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 04.342	9-09716-059-0	02	1	9811-0108			●	●
158	04.105 CLIP; HARNESS 04.342	9-09716-059-0	02	1	0109-			●	●
158	04.105 CLIP; HARNESS 4JB1 ENG(RLF) 01.152 (A) ID=8.5	5-09700-275-0	01	1	9811-0105					●
158	04.105 CLIP; HARNESS 4JB1 ENG(RLF) 03.162 (B) L=140	5-09707-031-1	01	1	9811-0105					●
163	04.302 LEVER; SELECT,INTERNAL TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97305-663-0	01	1	0208-							●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-068-1	01	1	9811-	●	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	9811-	●	●				●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33522-130-0	01	1	9811-0108			●	●
163	04.302 LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	0109-			●	●
163	04.302 LEVER; SELECT,INTERNAL 4JB1 ENG(RLF)	8-94159-268-1	01	1	9811-0105					●
167	04.302 LEVER; SELECT,EXTERNAL TAIWAN EQUIPMENT(RWV)	8-97306-648-0	01	1	0208-							●
167	04.302 LEVER; SELECT,EXTERNAL CHILE EQUIPMENT(6KB)	8-97305-665-0	01	1	0208-							●
167	04.302 LEVER; SELECT,EXTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-558-1	01	1	9811-	●	●				●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-558-1	01	1	9811-	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33521-137-1	01	1	9811-0108			●	●
167	04.302 LEVER; SELECT,EXTERNAL	1-33521-137-1	01	1	0109-			●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JB1 ENG(RLF)	8-97035-560-1	01	1	9811-0105					●
171	04.054 SWITCH; NEUTRAL TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97316-688-1	01	1	0208-							●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-946-0	01	1	9811-0101	●	●				●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-946-0	01	1	9811-0101	●	●
171	04.054 SWITCH; NEUTRAL 4JB1 ENG(RLF)	8-97165-946-0	01	1	9811-0101					●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97165-946-1	01	1	0102-0105	●	●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-946-1	01	1	0102-0105	●	●
171	04.054 SWITCH; NEUTRAL	8-97165-946-1	01	1	0102-0105					●	●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-946-1	01	1	0106-	●	●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97165-946-1	01	1	0106-	●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-946-1	01	1	0106-		●				●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-82340-534-0	01	1	9811-0108			●	●
171	04.054 SWITCH; NEUTRAL	1-82340-534-0	01	1	0109-			●	●
181	04.302 WASHER; PL,SELECT LEVER TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	1-09503-280-0	01	1	0208-							●
181	04.302 WASHER; PL,SELECT LEVER 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) OD=37	1-09532-007-0	01	1	9811-0108			●	●
181	04.302 WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	0109-			●	●
187	04.302 BOLT; SELECT LEVER 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) M8X42	1-33659-045-0	01	1	9811-0108			●	●
187	04.302 BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0109-			●	●
188	04.302 NUT; SELECT LEVER 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) M8 FLANGE	1-09440-062-1	01	1	9811-0108			●	●
188	04.302 NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0109-			●	●
217	04.312 SCREW; SET,6TH SHIFT BLOCK 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) M8X12.5	9-09814-533-0	01	1	9811-0108			●	●
217	04.312 SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	0109-			●	●
219	04.302 WASHER; PL,SPINDLE 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) ID=14	9-09851-275-0	01	1	9811-0108			●	●
219	04.302 WASHER; PL,SPINDLE ID=14	9-09851-275-0	01	1	0109-			●	●
221	04.302 NUT; SPINDLE 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 04.785 M10 FLANGE	0-91150-110-0	01	1	9811-0108			●	●
221	04.302 NUT; SPINDLE 04.785 M10 FLANGE	0-91150-110-0	01	1	0109-			●	●
223	04.105 SCREW; SET,QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 04.312 M8X12.5	9-09814-533-0	01	1	9811-9902			●	●
223	04.105 SCREW; SET,QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9903-9903			●	●
223	04.105 SCREW; SET,QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 04.312 M8X12.5	9-09814-533-0	01	1	9904-0108			●	●
223	04.105 SCREW; SET,QUAD BOX 04.312 M8X12.5	9-09814-533-0	01	1	0109-			●	●
227	04.302 SPINDLE; 1ST & REV 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33519-130-0	01	1	9811-0108			●	●
227	04.302 SPINDLE; 1ST & REV	1-33519-130-0	01	1	0109-			●	●
271	04.105 BUSHING; QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (A) ID=25 OD=28	1-33549-107-0	01	1	9811-0108			●	●
271	04.105 BUSHING; QUAD BOX (A) ID=25 OD=28	1-33549-107-0	01	1	0109-			●	●
271	04.105 BUSHING; QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (B) ID=17 OD=19	1-33549-108-0	01	1	9811-0108			●	●
271	04.105 BUSHING; QUAD BOX (B) ID=17 OD=19	1-33549-108-0	01	1	0109-			●	●
272	04.027 RING; SNAP,QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 04.302	1-09588-174-0	01	1	9811-0108			●	●
272	04.027 RING; SNAP,QUAD BOX 04.302	1-09588-174-0	01	1	0109-			●	●
274	04.105 COVER; SHAFT,QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) OD=24 L=31	9-33545-011-1	01	1	9811-0108			●	●
274	04.105 COVER; SHAFT,QUAD BOX OD=24 L=31	9-33545-011-1	01	1	0109-			●	●
285	04.104 BREATHER; AIR,QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 05.387	1-33149-003-0	01	1	9811-0108			●	●
285	04.104 BREATHER; AIR,QUAD BOX 05.387	1-33149-003-0	01	1	0109-			●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (A)	1-09625-269-0	01	1	9811-0108			●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-269-0	01	1	0109-			●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (B)	1-09625-369-0	01	1	9811-0108			●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-369-0	01	1	0109-			●	●
293	04.302 WASHER; PL,TAPER BOLT 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9811-0108			●	●
293	04.302 WASHER; PL,TAPER BOLT 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0109-			●	●
298	04.309 SHAFT; SHIFT LEVER 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33522-115-1	01	1	9811-0108			●	●
298	04.309 SHAFT; SHIFT LEVER	1-33522-115-1	01	1	0109-			●	●
305	04.107 BOOT; LEVER SHAFT 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33529-051-0	01	1	9811-0108			●	●
305	04.107 BOOT; LEVER SHAFT	1-33529-051-0	01	1	0109-			●	●

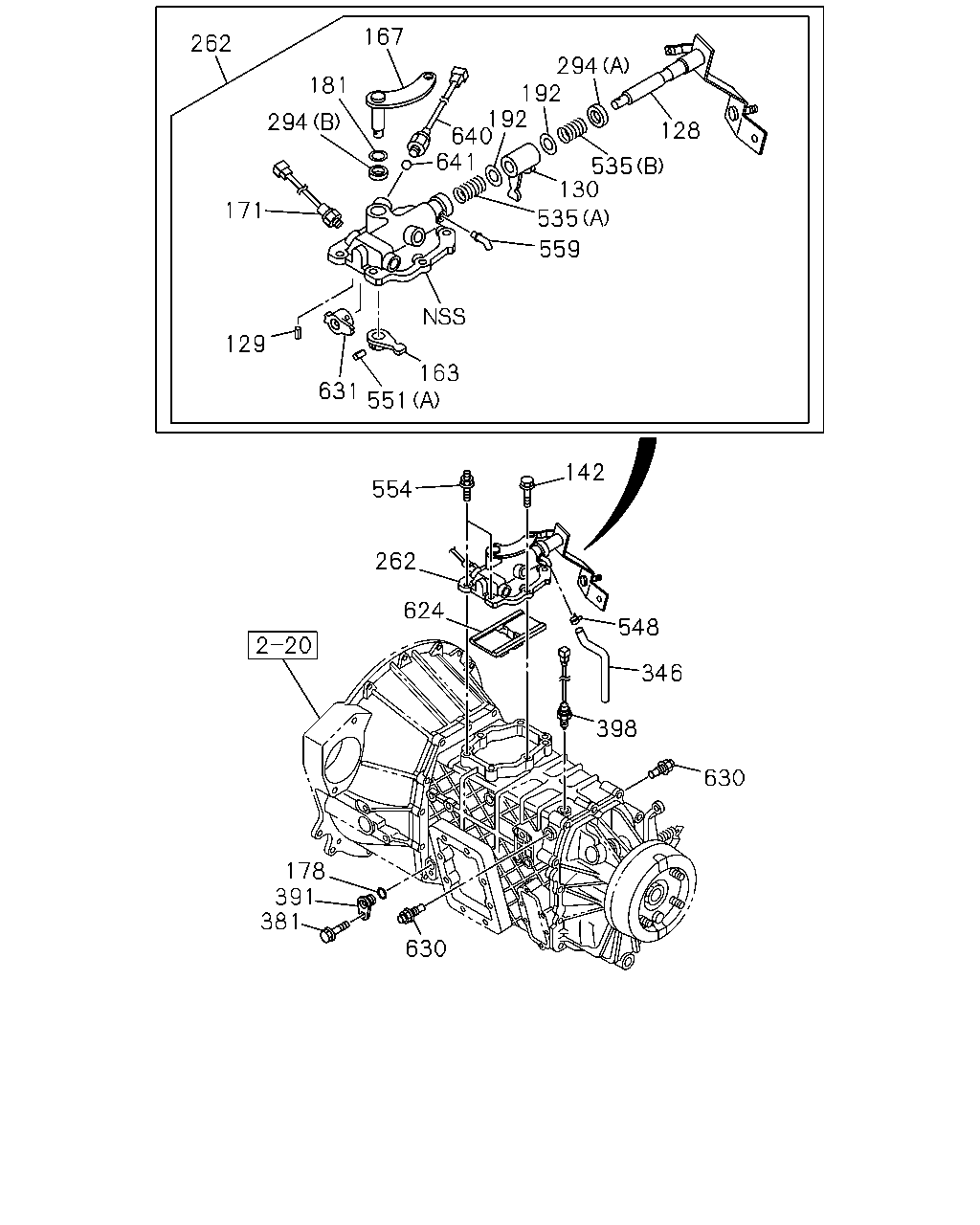

339	04.105 NUT; QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 01.540 M8 FLANGE	0-91150-208-0	01	1	9903-9903			●	●
382	04.105 BRACKET; PARKING BRK CONT CABLE FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/10(S7C)	8-97081-310-0	01	1	9811-9903			●
382	04.105 BRACKET; PARKING BRK CONT CABLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (BPT),(9BP) TIRE SIZE 8.25-16<7QP> EXC. BRAZIL EQUIPMENT(RWF)	8-97081-310-0	01	1	9811-9903			●
382	04.105 BRACKET; PARKING BRK CONT CABLE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (AUH),(AUJ),(AUS),(AVK)	8-97081-310-0	01	1	9811-9903			●
382	04.105 BRACKET; PARKING BRK CONT CABLE 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) EXC. BRAZIL EQUIPMENT(RWF),ENGINE POWER N-SPEC(7QV)	8-97081-310-0	01	1	9904-0105			●
382	04.105 BRACKET; PARKING BRK CONT CABLE EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX)	8-97081-310-0	01	1	0106-0108			●
382	04.105 BRACKET; PARKING BRK CONT CABLE EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX)	8-97081-310-0	01	1	0109-0111			●	●
382	04.105 BRACKET; PARKING BRK CONT CABLE EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX),ENGINE POWER N-SPEC(7QV)	8-97081-310-0	01	1	0112-0210			●	●
382	04.105 BRACKET; PARKING BRK CONT CABLE EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX),ENGINE POWER N-SPEC(7QV)	8-97081-310-0	01	1	0211-			●
382	04.105 BRACKET; PARKING BRK CONT CABLE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) BRAZIL EQUIPMENT(RWF) EXC. ENGINE POWER N-SPEC(7QV)	8-97177-321-1	01	1	9811-0108			●
382	04.105 BRACKET; PARKING BRK CONT CABLE 4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) EXC. ENGINE POWER N-SPEC(7QV)	8-97177-321-1	01	1	9811-0108				●
382	04.105 BRACKET; PARKING BRK CONT CABLE BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX)	8-97177-321-1	01	1	0109-			●	●
383	04.105 BOLT; BRKT,PARK BRAKE 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 03.604 M10X16 FLANGE	0-28181-016-0	01	1	9811-0108			●	●
383	04.105 BOLT; BRKT,PARK BRAKE 03.604 M10X16 FLANGE	0-28181-016-0	01	1	0109-			●	●
390	04.075 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) ID=14.2	8-94462-114-0	01	1	9811-0108			●	●
390	04.075 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	0109-			●	●
393	02.698 PIN; SW 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 04.307	1-33534-003-0	01	1	9811-0108			●	●
393	02.698 PIN; SW 04.307	1-33534-003-0	01	1	0109-			●	●
398	02.698 SWITCH; REV LAMP TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 04.054	8-97316-688-1	01	1	0208-							●
398	02.698 SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-947-1	01	1	9811-0105	●	●				●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-947-1	01	1	9811-0105	●	●
398	02.698 SWITCH; REV LAMP 4JB1 ENG(RLF)	8-97165-947-1	01	1	9811-0105					●
398	02.698 SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-947-1	01	1	0106-	●	●				●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-947-1	01	1	0106-	●	●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-82440-083-2	01	1	9811-0108			●	●
398	02.698 SWITCH; REV LAMP	1-82440-083-3	01	1	0109-			●	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 04.075 ID=14.2	8-94462-114-0	01	1	9811-0108			●	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	0109-			●	●
521	04.309 SPINDLE; 6TH 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33519-008-1	01	1	9811-0108			●	●
521	04.309 SPINDLE; 6TH	1-33519-008-1	01	1	0109-			●	●
522	16.069 LEVER; SHIFT,1-REV 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33521-135-0	01	1	9811-0108			●	●
522	16.069 LEVER; SHIFT,1-REV	1-33521-135-0	01	1	0109-			●	●

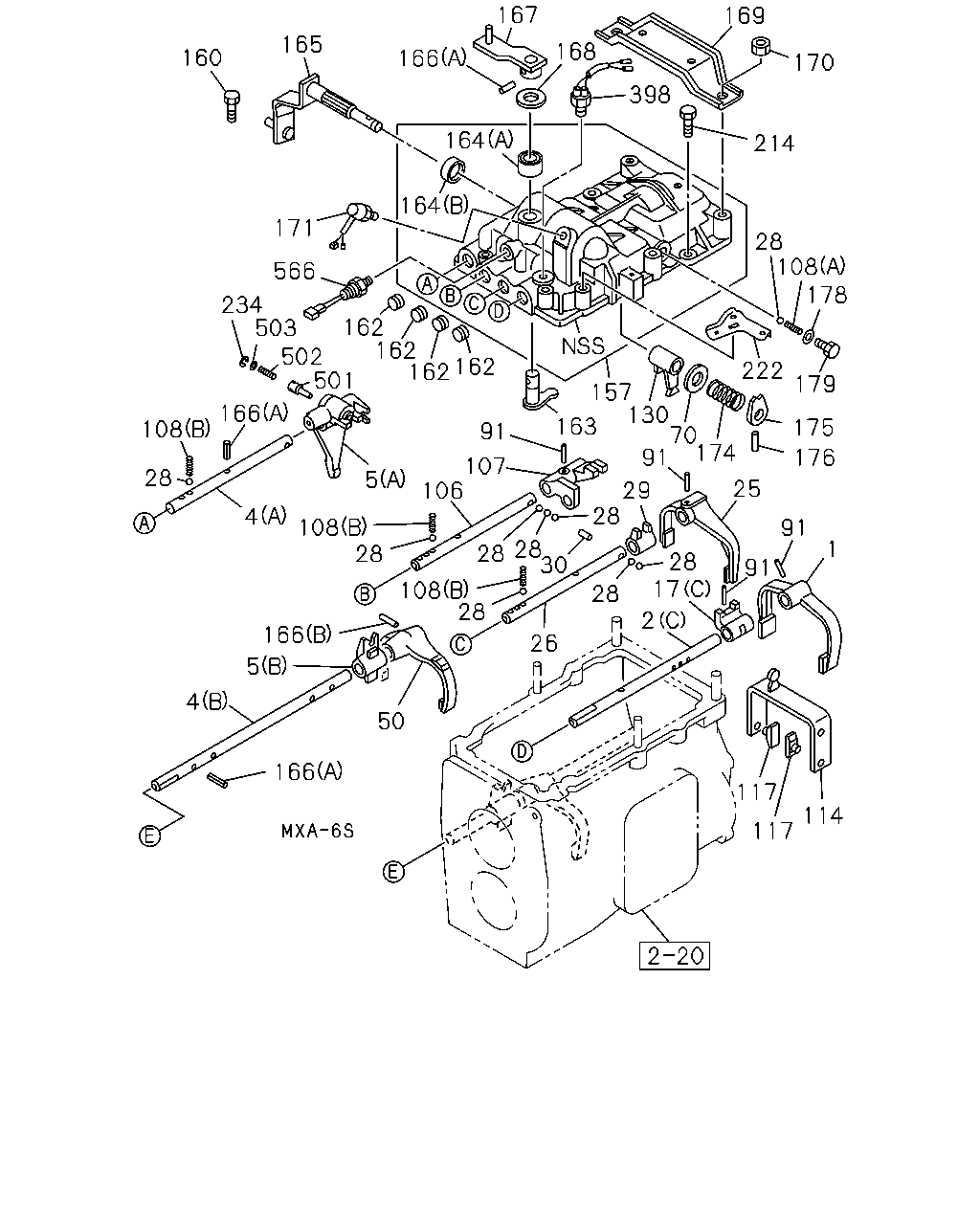

167 169 165 168 160 166 170 398 164 214 164 171 28 108 178 566 234 503 501 162 162 162 162 222 179 157 130 70 174 91 166 163 175 108 91 176 107 106 28 5 25 29 28 4 108 28 91 28 28 30 1 28 17 91 108 28 28 2 166 26 5 4 50 166 117 114 117 502

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G

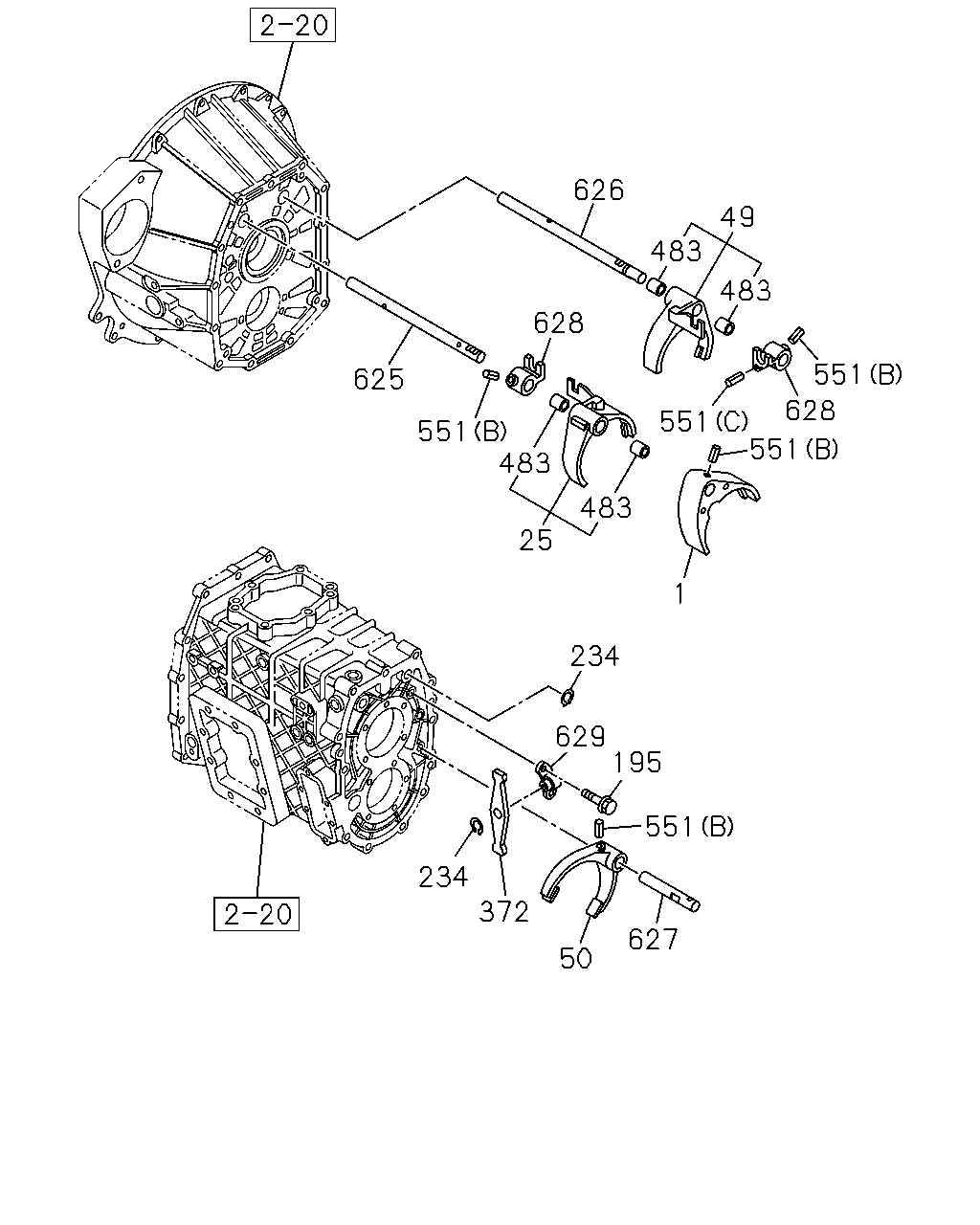

1	04.302 ARM; SHIFT,1ST & REV TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97241-319-2	01	1	0208-							●
1	04.302 ARM; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-825-1	01	1	9811-	●	●				●
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-825-1	01	1	9811-	●	●
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33511-502-1	01	1	9811-0108			●	●
1	04.302 ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	0109-			●	●
2	04.309 ROD; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97034-820-0	01	1	9811-	●	●				●
2	04.309 ROD; SHIFT,1ST & REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (C)	8-97034-820-0	01	1	9811-	●	●
2	04.309 ROD; SHIFT,1ST & REV 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (A)	1-33531-360-1	01	1	9811-0108			●	●
2	04.309 ROD; SHIFT,1ST & REV (A)	1-33531-360-1	01	1	0109-			●	●
2	04.309 ROD; SHIFT,1ST & REV 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (B)	1-33531-361-1	01	1	9811-0108			●	●
2	04.309 ROD; SHIFT,1ST & REV (B)	1-33531-361-1	01	1	0109-			●	●
4	04.309 ROD; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97034-824-0	01	1	9811-						●
4	04.309 ROD; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97129-495-0	01	1	9811-						●
4	04.309 ROD; SHIFT,6TH 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (B)	1-33531-341-1	01	1	9811-0108			●	●
4	04.309 ROD; SHIFT,6TH (B)	1-33531-341-1	01	1	0109-			●	●
4	04.309 ROD; SHIFT,6TH 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (A)	1-33531-387-0	01	1	9811-0108			●	●
4	04.309 ROD; SHIFT,6TH (A)	1-33531-387-0	01	1	0109-			●	●
5	04.303 BLOCK; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97034-836-0	01	1	9811-						●
5	04.303 BLOCK; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97123-420-0	01	1	9811-						●
5	04.303 BLOCK; SHIFT,6TH 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (C)	1-33511-326-1	01	1	9811-0108			●	●
5	04.303 BLOCK; SHIFT,6TH (C)	1-33511-326-1	01	1	0109-			●	●
17	04.303 BLOCK; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97034-829-1	01	1	9811-	●	●				●
17	04.303 BLOCK; SHIFT,1ST & REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (C)	8-97034-829-1	01	1	9811-	●	●
17	04.303 BLOCK; SHIFT,1ST & REV 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (B)	1-33511-432-1	01	1	9811-0108			●	●
17	04.303 BLOCK; SHIFT,1ST & REV (B)	1-33511-432-1	01	1	0109-			●	●
17	04.303 BLOCK; SHIFT,1ST & REV 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (A)	1-33511-578-1	01	1	9811-0108			●	●
17	04.303 BLOCK; SHIFT,1ST & REV (A)	1-33511-578-1	01	1	0109-			●	●
25	04.302 ARM; SHIFT,2ND & 3RD TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97258-708-1	01	1	0208-							●
25	04.302 ARM; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-826-2	01	1	9811-	●	●				●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-826-2	01	1	9811-	●	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33511-580-1	01	1	9811-0108			●	●
25	04.302 ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	0109-			●	●
26	04.309 ROD; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97129-493-0	01	1	9811-	●	●				●
26	04.309 ROD; SHIFT,2ND & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97129-493-0	01	1	9811-	●	●
26	04.309 ROD; SHIFT,2ND & 3RD 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33531-384-0	01	1	9811-0108			●	●
26	04.309 ROD; SHIFT,2ND & 3RD	1-33531-384-0	01	1	0109-			●	●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	9811-0202	●	●	●	●	●
28	04.311 BALL; INTER LK 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	9-00097-010-0	07	1	0203-0210	●	●
28	04.311 BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-00097-010-0	07	1	0203-0210	●	●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0203-0210			●		●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0211-	●	●	●		●
28	04.311 BALL; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-00097-010-0	10	1	9811-						●
29	04.303 BLOCK; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-830-0	01	1	9811-	●	●				●
29	04.303 BLOCK; SHIFT,2ND & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-830-0	01	1	9811-	●	●
30	04.307 PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-041-0	01	1	9811-	●	●
30	04.307 PIN; INTER LK 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-041-0	01	1	9811-	●	●
30	04.307 PIN; INTER LK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-041-0	02	1	9811-						●
30	04.307 PIN; INTER LK 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33534-002-0	03	1	9811-0108			●	●
30	04.307 PIN; INTER LK	1-33534-002-0	03	1	0109-			●	●
30	04.307 PIN; INTER LK 4JB1 ENG(RLF) 04.311	5-33534-001-0	01	1	9811-0105					●
50	04.302 ARM; SHIFT,6TH TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97241-324-1	01	1	0208-							●
50	04.302 ARM; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-828-1	01	1	9811-						●
50	04.302 ARM; SHIFT,6TH 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33511-477-0	01	1	9811-0108			●	●
50	04.302 ARM; SHIFT,6TH	1-33511-477-0	01	1	0109-			●	●
70	04.302 WASHER; PL,SHIFT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94461-345-0	01	1	9811-	●	●				●
70	04.302 WASHER; PL,SHIFT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94461-345-0	01	1	9811-	●	●
91	04.302 PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.303 L=25 OD=5	8-94135-771-0	03	1	9811-	●	●				●
91	04.302 PIN; SPR,SHIFT ARM 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.303 L=25 OD=5	8-94135-771-0	03	1	9811-	●	●
91	04.302 PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4HF1 ENG(RLS) L=32	8-97011-596-2	02	1	9811-	●	●				●
91	04.302 PIN; SPR,SHIFT ARM 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) L=32	8-97011-596-2	02	1	9811-	●	●
91	04.302 PIN; SPR,SHIFT ARM 4JB1 ENG(RLF) 04.303 L=25 OD=5	8-94135-771-0	06	1	9811-0105					●
106	04.309 ROD; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97166-578-0	01	1	9811-	●	●				●
106	04.309 ROD; SHIFT,OD TO TOP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97166-578-0	01	1	9811-	●	●
107	04.303 BLOCK; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-832-0	01	1	9811-	●	●
107	04.303 BLOCK; SHIFT,OD TO TOP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-832-0	01	1	9811-	●	●
107	04.303 BLOCK; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-831-1	01	1	9811-						●
108	04.311 SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97035-053-0	01	1	9811-	●	●
108	04.311 SPRING; LOCK BALL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A)	8-97035-053-0	01	1	9811-	●	●
108	04.311 SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9811-0105	●	●
108	04.311 SPRING; LOCK BALL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9811-0105	●	●
108	04.311 SPRING; LOCK BALL 4JB1 ENG(RLF) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9811-0105					●
108	04.311 SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	0106-	●	●
108	04.311 SPRING; LOCK BALL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	0106-	●	●
108	04.311 SPRING; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS) (A),(B) OD=6.8 L=31.6	9-09740-114-0	04	1	9811-						●
114	04.302 ARM; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-827-1	01	1	9811-	●	●				●
114	04.302 ARM; SHIFT,OD TO TOP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-827-1	01	1	9811-	●	●
117	04.302 PIECE; SHIFT,OD TO TOP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94316-996-0	02	1	9811-	●	●				●
117	04.302 PIECE; SHIFT,OD TO TOP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94316-996-0	02	1	9811-	●	●
130	04.302 LEVER; SHIFT,INTERNAL TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97306-647-0	01	1	0208-							●
130	04.302 LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94340-131-2	01	1	9811-	●	●				●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94340-131-2	01	1	9811-	●	●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33521-131-1	01	1	9811-0108			●	●
130	04.302 LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	0109-			●	●
130	04.302 LEVER; SHIFT,INTERNAL 4JB1 ENG(RLF)	8-94105-141-2	01	1	9811-0105					●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-066-0	01	1	9811-	●	●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97167-640-0	01	1	9811-9911	●	●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97249-547-0	01	1	9912-	●	●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-814-1	01	1	9811-9911						●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97249-549-0	01	1	9912-						●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (A)	1-33541-465-1	01	1	9811-0108			●	●
157	04.105 BOX; QUAD,TRANS (A)	1-33541-465-1	01	1	0109-			●	●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (B)	1-33541-503-0	01	1	9811-9903			●	●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) (B)	1-33541-512-0	01	1	9904-0108			●	●
157	04.105 BOX; QUAD,TRANS (B)	1-33541-512-0	01	1	0109-			●	●
157	04.105 BOX; QUAD,TRANS 4JB1 ENG(RLF)	8-94340-145-0	01	1	9811-0105					●
160	04.105 PLUG; BLIND 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. EXHAUST BRAKE<NF8> 08.971 M14X9	9-99202-314-0	01	1	0102-0105	●	●
160	04.105 PLUG; BLIND 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. EXHAUST BRAKE<NF8> 08.971 M14X9	9-99202-314-0	01	1	0106-	●
162	04.105 COVER; SHIFT ROD,QUAD BOX 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94101-319-0	04	1	9811-	●	●				●
162	04.105 COVER; SHIFT ROD,QUAD BOX 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94101-319-0	04	1	9811-	●	●
163	04.302 LEVER; SELECT,INTERNAL TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97305-663-0	01	1	0208-							●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-068-1	01	1	9811-	●	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	9811-	●	●				●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33522-130-0	01	1	9811-0108			●	●
163	04.302 LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	0109-			●	●
163	04.302 LEVER; SELECT,INTERNAL 4JB1 ENG(RLF)	8-94159-268-1	01	1	9811-0105					●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.309 (A) OD=27	8-94128-784-0	01	1	9811-0011	●	●				●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.309 (A) OD=27	8-94128-784-0	01	1	9811-0011	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) OD=27	8-97304-068-0	01	1	0012-	●	●				●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) OD=27	8-97304-068-0	01	1	0012-	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) OD=32	8-94462-019-0	01	1	9811-0011	●	●				●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (B) OD=32	8-94462-019-0	01	1	9811-0011	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) OD=32	8-97304-066-0	01	1	0012-	●	●				●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (B) OD=32	8-97304-066-0	01	1	0012-	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF) 04.309 OD=27	8-94128-784-0	02	1	9811-0011					●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF) OD=27	8-97304-068-0	02	1	0012-0105					●
165	04.302 LEVER; SHIFT 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-816-0	01	1	9811-	●	●				●
165	04.302 LEVER; SHIFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-816-0	01	1	9811-	●	●
165	04.302 LEVER; SHIFT 4JB1 ENG(RLF)	8-97036-221-0	01	1	9811-0105					●
166	04.302 PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9811-0105	●	●
166	04.302 PIN; SPR,SELECT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9811-0105	●	●
166	04.302 PIN; SPR,SELECT LEVER 4JB1 ENG(RLF) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9811-0105					●
166	04.302 PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	0106-	●	●
166	04.302 PIN; SPR,SELECT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	0106-	●	●
166	04.302 PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.303 (A) L=25 OD=5	8-94135-771-0	03	1	9811-						●
166	04.302 PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) L=32	8-97011-596-2	01	1	9811-						●
167	04.302 LEVER; SELECT,EXTERNAL TAIWAN EQUIPMENT(RWV)	8-97306-648-0	01	1	0208-							●
167	04.302 LEVER; SELECT,EXTERNAL CHILE EQUIPMENT(6KB)	8-97305-665-0	01	1	0208-							●
167	04.302 LEVER; SELECT,EXTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-558-1	01	1	9811-	●	●				●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-558-1	01	1	9811-	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33521-137-1	01	1	9811-0108			●	●
167	04.302 LEVER; SELECT,EXTERNAL	1-33521-137-1	01	1	0109-			●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JB1 ENG(RLF)	8-97035-560-1	01	1	9811-0105					●
168	04.302 WASHER; LK,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94249-250-1	01	1	9811-0105	●	●				●
168	04.302 WASHER; LK,SELECT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94249-250-1	01	1	9811-0105	●	●
168	04.302 WASHER; LK,SELECT LEVER 4JB1 ENG(RLF)	8-94249-250-1	01	1	9811-0105					●
168	04.302 WASHER; LK,SELECT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94249-250-1	01	1	0106-	●	●				●
168	04.302 WASHER; LK,SELECT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94249-250-1	01	1	0106-	●	●
169	00.029 BRACKET; ENG MTG TO TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94112-892-2	02	1	9902-9908	●	●
169	00.029 BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94112-892-2	02	1	9902-9908		●				●
169	00.029 BRACKET; ENG MTG TO TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94112-892-2	02	1	9909-	●
169	00.029 BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94112-892-1	02	1	9811-9901	●	●				●
169	00.029 BRACKET; ENG MTG TO TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94112-892-1	02	1	9811-9901	●	●
169	00.029 BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94112-892-2	04	1	9902-9908	●
169	00.029 BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94112-892-2	04	1	9909-0105	●	●				●
169	00.029 BRACKET; ENG MTG TO TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94112-892-2	04	1	9909-0105	●
169	00.029 BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94112-892-2	04	1	0106-	●	●				●
169	00.029 BRACKET; ENG MTG TO TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94112-892-2	04	1	0106-		●
170	04.105 NUT; CONT BOX 4HG1 ENG(RJH),4HF1 ENG(RLS) M12 FLANGE	8-94249-242-0	04	1	9811-	●	●				●
170	04.105 NUT; CONT BOX 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) M12 FLANGE	8-94249-242-0	04	1	9811-	●	●
171	04.054 SWITCH; NEUTRAL TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97316-688-1	01	1	0208-							●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-946-0	01	1	9811-0101	●	●				●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-946-0	01	1	9811-0101	●	●
171	04.054 SWITCH; NEUTRAL 4JB1 ENG(RLF)	8-97165-946-0	01	1	9811-0101					●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97165-946-1	01	1	0102-0105	●	●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-946-1	01	1	0102-0105	●	●
171	04.054 SWITCH; NEUTRAL	8-97165-946-1	01	1	0102-0105					●	●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-946-1	01	1	0106-	●	●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97165-946-1	01	1	0106-	●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-946-1	01	1	0106-		●				●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-82340-534-0	01	1	9811-0108			●	●
171	04.054 SWITCH; NEUTRAL	1-82340-534-0	01	1	0109-			●	●
174	04.307 SPRING; REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-052-0	01	1	9811-	●	●
174	04.307 SPRING; REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-052-0	01	1	9811-	●	●
174	04.307 SPRING; REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97076-906-0	01	1	9811-						●
174	04.307 SPRING; REV 4JB1 ENG(RLF)	8-97031-927-0	01	1	9811-0105					●
175	04.302 RING; STOPPER,SHIFT LEVER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-819-0	01	1	9811-	●	●				●
175	04.302 RING; STOPPER,SHIFT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-819-0	01	1	9811-	●	●
175	04.302 RING; STOPPER,SHIFT LEVER 4JB1 ENG(RLF)	8-94249-048-2	01	1	9811-0105					●
176	04.302 PIN; SPR,STOPPER 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.555 L=30 OD=4	9-09678-549-0	02	1	9811-0105	●	●				●
176	04.302 PIN; SPR,STOPPER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.555 L=30 OD=4	9-09678-549-0	02	1	9811-0105	●	●
176	04.302 PIN; SPR,STOPPER 4JB1 ENG(RLF) 04.555 L=30 OD=4	9-09678-549-0	02	1	9811-0105					●
176	04.302 PIN; SPR,STOPPER 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.555 L=30 OD=4	9-09678-549-0	02	1	0106-	●	●				●
176	04.302 PIN; SPR,STOPPER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.555 L=30 OD=4	9-09678-549-0	02	1	0106-	●	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	9-09567-113-0	01	1	0208-							●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS) 08.929	9-09571-612-0	01	1	9811-	●	●				●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 08.929	9-09571-612-0	01	1	9811-	●	●
179	04.311 PLUG; LOCK BALL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97031-668-0	01	1	9811-	●	●				●
179	04.311 PLUG; LOCK BALL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97031-668-0	01	1	9811-	●	●
214	04.510 BOLT; CONT BOX,SUB TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.105 M8X25	8-94128-786-0	04	1	9811-	●	●				●
214	04.510 BOLT; CONT BOX,SUB TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.105 M8X25	8-94128-786-0	04	1	9811-	●	●
214	04.510 BOLT; CONT BOX,SUB TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.105 M8X45	8-94132-164-0	06	1	9811-	●	●				●
214	04.510 BOLT; CONT BOX,SUB TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.105 M8X45	8-94132-164-0	06	1	9811-	●	●
222	04.057 BRACKET; CLIP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97061-051-0	01	1	9811-	●	●				●
222	04.057 BRACKET; CLIP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97061-051-0	01	1	9811-	●	●
234	04.311 RING; SNAP TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) ID=16.5	9-09180-418-0	02	1	0208-							●
234	04.311 RING; SNAP 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-09180-117-0	01	1	9811-						●
398	02.698 SWITCH; REV LAMP TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 04.054	8-97316-688-1	01	1	0208-							●
398	02.698 SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-947-1	01	1	9811-0105	●	●				●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-947-1	01	1	9811-0105	●	●
398	02.698 SWITCH; REV LAMP 4JB1 ENG(RLF)	8-97165-947-1	01	1	9811-0105					●
398	02.698 SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-947-1	01	1	0106-	●	●				●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-947-1	01	1	0106-	●	●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-82440-083-2	01	1	9811-0108			●	●
398	02.698 SWITCH; REV LAMP	1-82440-083-3	01	1	0109-			●	●
501	04.311 PLUNGER; SHIFT BLOCK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97123-165-0	01	1	9811-						●
502	04.311 SPRING; PLUNGER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97123-424-0	01	1	9811-						●
503	04.311 WASHER; PLUNGER 4HG1 ENG(RJH),4HF1 ENG(RLS) ID=4.5	8-97035-057-0	01	1	9811-						●
566	04.054 SWITCH; SELECT,LOW REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.052	8-97177-088-0	01	1	9811-	●	●

626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 234 629 195 551 234 372 627 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	F	G
1	04.302 ARM; SHIFT,1ST & REV TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97241-319-2	01	1	0208-						●
1	04.302 ARM; SHIFT,1ST & REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-825-1	01	1	9811-	●	●			●
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-825-1	01	1	9811-	●	●
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33511-502-1	01	1	9811-0108			●	●
1	04.302 ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	0109-			●	●
25	04.302 ARM; SHIFT,2ND & 3RD TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97258-708-1	01	1	0208-						●
25	04.302 ARM; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-826-2	01	1	9811-	●	●			●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-826-2	01	1	9811-	●	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33511-580-1	01	1	9811-0108			●	●
25	04.302 ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	0109-			●	●
49	04.302 ARM; SHIFT,4TH & 5TH TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97258-709-2	01	1	0208-						●
49	04.302 ARM; SHIFT,4TH & 5TH 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33511-581-1	01	1	9811-0108			●	●
49	04.302 ARM; SHIFT,4TH & 5TH	1-33511-581-1	01	1	0109-			●	●
50	04.302 ARM; SHIFT,6TH TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97241-324-1	01	1	0208-						●
50	04.302 ARM; SHIFT,6TH 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-828-1	01	1	9811-					●
50	04.302 ARM; SHIFT,6TH 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33511-477-0	01	1	9811-0108			●	●
50	04.302 ARM; SHIFT,6TH	1-33511-477-0	01	1	0109-			●	●
195	04.105 BOLT TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0208-						●
234	04.311 RING; SNAP TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) ID=16.5	9-09180-418-0	02	1	0208-						●
234	04.311 RING; SNAP 4HG1 ENG(RJH),4HF1 ENG(RLS)	9-09180-117-0	01	1	9811-					●
372	04.302 LEVER; RELAY,6TH TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97241-342-0	01	1	0208-						●
483	04.419 BUSHING; SHIFT ARM TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 00.683	8-97241-326-1	04	1	0208-						●
551	04.303 PIN; SPRING TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) (A) L=25 OD=5	1-09748-032-0	01	1	0208-						●
551	04.303 PIN; SPRING TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 04.302 (B) L=32	8-97011-596-2	04	1	0208-						●
551	04.303 PIN; SPRING TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) (C) L=20	8-97241-340-0	01	1	0208-						●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97241-332-2	01	1	0208-						●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97241-334-1	01	1	0208-						●
627	04.309 ROD; GEAR SHIFT,6TH SUB TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97241-339-0	01	1	0208-						●
628	04.303 BLOCK; SHIFT,LOW,REV & 6TH TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97241-327-1	02	1	0208-						●
629	04.555 BRIDGE; LEVER TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97241-345-1	01	1	0208-						●

167 262 294 192 192 640 641 181 294 128 535 130 171 535 559 129 163 551 631 142 554 262 624 548 346 398 630 178 391 381 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
128	04.030 LEVER; SHIFT,EXTERNAL TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97305-725-0	01	1	0208-							●
129	04.027 PIN; SPR,SHIFT TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) L=30 OD=4	1-09748-031-0	01	1	0208-							●
130	04.302 LEVER; SHIFT,INTERNAL TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97306-647-0	01	1	0208-							●
130	04.302 LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94340-131-2	01	1	9811-	●	●				●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94340-131-2	01	1	9811-	●	●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33521-131-1	01	1	9811-0108			●	●
130	04.302 LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	0109-			●	●
130	04.302 LEVER; SHIFT,INTERNAL 4JB1 ENG(RLF)	8-94105-141-2	01	1	9811-0105					●
142	04.012 BOLT; QUAD BOX TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0208-							●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 00.685 M10X28 FLANGE	0-28181-028-0	15	1	9811-0108			●	●
142	04.012 BOLT; QUAD BOX 00.685 M10X28 FLANGE	0-28181-028-0	15	1	0109-			●	●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9811-0108			●	●
142	04.012 BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0109-			●	●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 08.900 M10X20,M10X26 L=56	1-09049-014-1	01	1	9811-0108			●	●
142	04.012 BOLT; QUAD BOX 08.900 M10X20,M10X26 L=56	1-09049-014-1	01	1	0109-			●	●
142	04.012 BOLT; QUAD BOX 4JB1 ENG(RLF) 04.105 (A) M8X25	8-94128-786-0	08	1	9811-0105					●
142	04.012 BOLT; QUAD BOX 4JB1 ENG(RLF) 04.105 (B) M8X30	8-97029-705-0	02	1	9811-0105					●
163	04.302 LEVER; SELECT,INTERNAL TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97305-663-0	01	1	0208-							●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-068-1	01	1	9811-	●	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	9811-	●	●				●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33522-130-0	01	1	9811-0108			●	●
163	04.302 LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	0109-			●	●
163	04.302 LEVER; SELECT,INTERNAL 4JB1 ENG(RLF)	8-94159-268-1	01	1	9811-0105					●
167	04.302 LEVER; SELECT,EXTERNAL TAIWAN EQUIPMENT(RWV)	8-97306-648-0	01	1	0208-							●
167	04.302 LEVER; SELECT,EXTERNAL CHILE EQUIPMENT(6KB)	8-97305-665-0	01	1	0208-							●
167	04.302 LEVER; SELECT,EXTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-558-1	01	1	9811-	●	●				●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-558-1	01	1	9811-	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-33521-137-1	01	1	9811-0108			●	●
167	04.302 LEVER; SELECT,EXTERNAL	1-33521-137-1	01	1	0109-			●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JB1 ENG(RLF)	8-97035-560-1	01	1	9811-0105					●
171	04.054 SWITCH; NEUTRAL TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97316-688-1	01	1	0208-							●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-946-0	01	1	9811-0101	●	●				●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-946-0	01	1	9811-0101	●	●
171	04.054 SWITCH; NEUTRAL 4JB1 ENG(RLF)	8-97165-946-0	01	1	9811-0101					●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97165-946-1	01	1	0102-0105	●	●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-946-1	01	1	0102-0105	●	●
171	04.054 SWITCH; NEUTRAL	8-97165-946-1	01	1	0102-0105					●	●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-946-1	01	1	0106-	●	●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97165-946-1	01	1	0106-	●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-946-1	01	1	0106-		●				●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-82340-534-0	01	1	9811-0108			●	●
171	04.054 SWITCH; NEUTRAL	1-82340-534-0	01	1	0109-			●	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	9-09567-113-0	01	1	0208-							●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HF1 ENG(RLS) 08.929	9-09571-612-0	01	1	9811-	●	●				●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 08.929	9-09571-612-0	01	1	9811-	●	●
181	04.302 WASHER; PL,SELECT LEVER TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	1-09503-280-0	01	1	0208-							●
181	04.302 WASHER; PL,SELECT LEVER 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) OD=37	1-09532-007-0	01	1	9811-0108			●	●
181	04.302 WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	0109-			●	●
192	04.309 WASHER; PL TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97305-661-0	02	1	0208-							●
262	04.105 BOX ASM; SHIFT CONT TAIWAN EQUIPMENT(RWV)	8-97256-823-8	01	1	0208-							●
262	04.105 BOX ASM; SHIFT CONT CHILE EQUIPMENT(6KB)	8-97329-083-1	01	1	0208-							●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) (A)	1-09625-599-0	01	1	0208-							●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) (B)	8-97305-662-0	01	1	0208-							●
346	04.545 HOSE; AIR TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97309-855-0	01	1	0208-							●
381	04.105 BOLT TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0208-							●
391	04.104 PLUG; SW HOLE TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97300-273-1	01	1	0208-							●
398	02.698 SWITCH; REV LAMP TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 04.054	8-97316-688-1	01	1	0208-							●
398	02.698 SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-947-1	01	1	9811-0105	●	●				●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-947-1	01	1	9811-0105	●	●
398	02.698 SWITCH; REV LAMP 4JB1 ENG(RLF)	8-97165-947-1	01	1	9811-0105					●
398	02.698 SWITCH; REV LAMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97165-947-1	01	1	0106-	●	●				●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-947-1	01	1	0106-	●	●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV)	1-82440-083-2	01	1	9811-0108			●	●
398	02.698 SWITCH; REV LAMP	1-82440-083-3	01	1	0109-			●	●
535	04.302 SPRING; LEVER TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) (A)	8-97305-659-0	01	1	0208-							●
535	04.302 SPRING; LEVER TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) (B)	8-97305-660-0	01	1	0208-							●
548	04.457 CLIP; HOSE TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 03.278	8-97031-674-0	01	1	0208-							●
551	04.303 PIN; SPRING TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) (A) L=25 OD=5	1-09748-032-0	01	1	0208-							●
551	04.303 PIN; SPRING TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 04.302 (B) L=32	8-97011-596-2	04	1	0208-							●
551	04.303 PIN; SPRING TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) (C) L=20	8-97241-340-0	01	1	0208-							●
554	04.302 STUD; CONT BOX TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) M8X15,M8X25 L=49	8-97352-677-0	02	1	0208-							●
559	04.302 PIPE; BREATHER TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97305-517-0	01	1	0208-							●
624	04.105 PLATE; INTER LOCK TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97241-317-2	01	1	0208-							●
630	04.307 DETENT ASM TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97241-341-0	04	1	0208-							●
631	04.105 STOPPER; SPRING TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97305-666-0	01	1	0208-							●
640	04.054 SWITCH; SELECT CHILE EQUIPMENT(6KB)	8-97316-687-1	01	1	0208-							●
641	04.311 BALL CHILE EQUIPMENT(6KB)	8-97305-668-0	01	1	0208-							●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
