2-08 — CLUTCH MASTER CYLINDER (#22007) — 74 parça

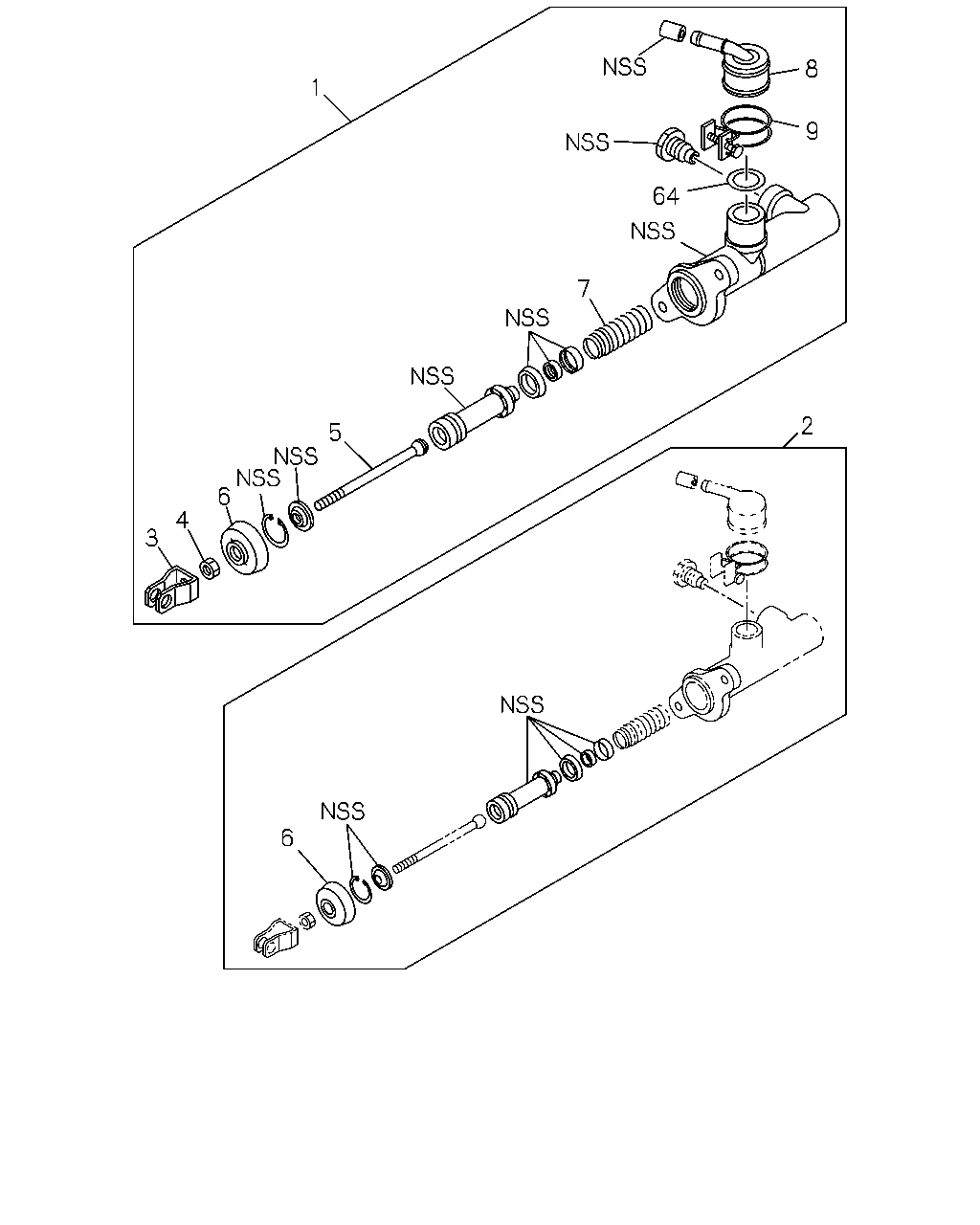

8 1 9 64 7 2 5 6 4 3 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.775 CYLINDER ASM; CLUTCH MASTER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97167-404-0	01	1	9811-9902	●	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97210-748-1	01	1	9903-0202	●	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH(S2T)	8-97210-748-1	01	1	0203-	●	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-406-0	01	1	9811-0105	●	●	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-406-0	01	1	0106-0202	●	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-406-0	01	1	0203-	●	●	●	●	●		●
2	00.775 REPAIR KIT; CLU M/CYL 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	5-87831-617-0	01	1	9811-0202	●	●	●	●	●
2	00.775 REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH(S2T)	5-87831-617-0	01	1	0203-	●	●	●	●	●
2	00.775 REPAIR KIT; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	5-87831-597-0	01	1	9811-0105	●	●	●	●	●	●
2	00.775 REPAIR KIT; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	5-87831-597-0	01	1	0106-0202	●	●	●	●	●
2	00.775 REPAIR KIT; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	5-87831-597-0	01	1	0203-	●	●	●	●	●		●
3	00.777 JOINT; JAW,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-770-0	01	1	9811-0105	●	●	●	●	●	●
3	00.777 JOINT; JAW,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-770-0	01	1	0106-0202	●	●	●	●	●
3	00.777 JOINT; JAW,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-770-0	01	1	0203-	●	●	●	●	●		●
4	00.777 NUT; JAW JOINT FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 00.787 M8	9-09111-408-0	01	1	9811-0105	●	●	●	●	●	●
4	00.777 NUT; JAW JOINT FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 00.787 M8	9-09111-408-0	01	1	0106-0202	●	●	●	●	●
4	00.777 NUT; JAW JOINT FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 00.787 M8	9-09111-408-0	01	1	0203-	●	●	●	●	●		●
5	00.775 ROD; PUSH,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-768-0	01	1	9811-0105	●	●	●	●	●	●
5	00.775 ROD; PUSH,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-768-0	01	1	0106-0202	●	●	●	●	●
5	00.775 ROD; PUSH,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-768-0	01	1	0203-	●	●	●	●	●		●
6	00.775 BOOT; CLU M/CYL 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97163-153-0	01	1	9811-0202	●	●	●	●	●
6	00.775 BOOT; CLU M/CYL POWER ASSIST CLUTCH(S2T)	8-97163-153-0	01	1	0203-	●	●	●	●	●
6	00.775 BOOT; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-94412-200-0	01	1	9811-0105	●	●	●	●	●	●
6	00.775 BOOT; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-94412-200-0	01	1	0106-0202	●	●	●	●	●
6	00.775 BOOT; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-94412-200-0	01	1	0203-	●	●	●	●	●		●
7	00.775 SPRING ASM; CLU M/CYL 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97163-148-0	01	1	9811-0202	●	●	●	●	●
7	00.775 SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH(S2T)	8-97163-148-0	01	1	0203-	●	●	●	●	●
7	00.775 SPRING ASM; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-780-0	01	1	9811-0105	●	●	●	●	●	●
7	00.775 SPRING ASM; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-780-0	01	1	0106-0202	●	●	●	●	●
7	00.775 SPRING ASM; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-780-0	01	1	0203-	●	●	●	●	●		●
8	00.777 CONNECTOR; PIPE,CLU M/CYL 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97163-190-0	01	1	9811-0202	●	●	●	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL POWER ASSIST CLUTCH(S2T)	8-97163-190-0	01	1	0203-	●	●	●	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-766-0	01	1	9811-0105	●	●	●	●	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-766-0	01	1	0106-0202	●	●	●	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-766-0	01	1	0203-	●	●	●	●	●		●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97163-143-0	01	1	9811-0202	●	●	●	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL POWER ASSIST CLUTCH(S2T)	8-97163-143-0	01	1	0203-	●	●	●	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-773-0	01	1	9811-0105	●	●	●	●	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-773-0	01	1	0106-0202	●	●	●	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-773-0	01	1	0203-	●	●	●	●	●		●
64	00.777 GASKET; CONNECTOR FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-767-0	01	1	9811-0105	●	●	●	●	●	●
64	00.777 GASKET; CONNECTOR FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-767-0	01	1	0106-0202	●	●	●	●	●
64	00.777 GASKET; CONNECTOR FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-767-0	01	1	0203-	●	●	●	●	●		●

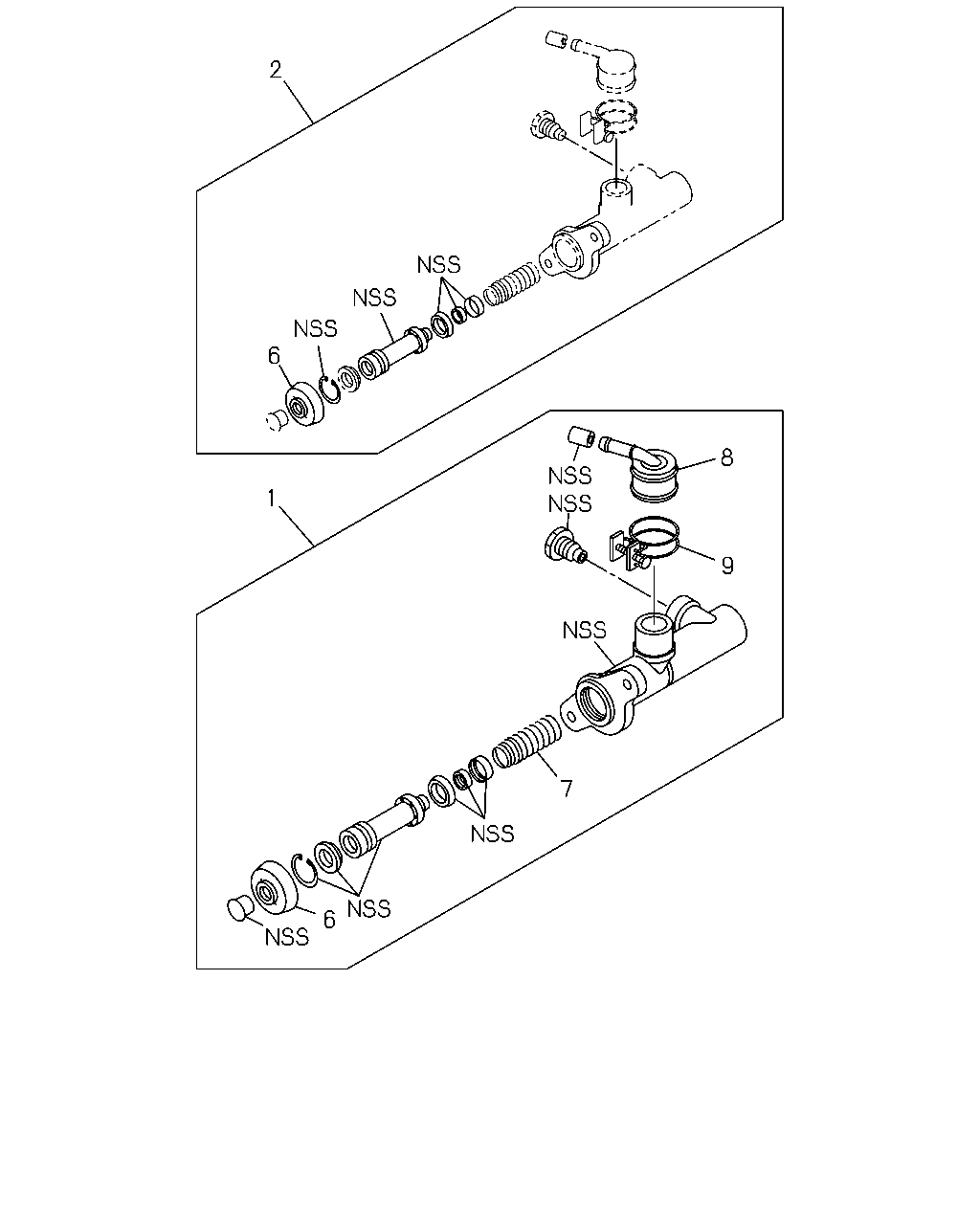

2 6 8 1 9 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.775 CYLINDER ASM; CLUTCH MASTER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97167-404-0	01	1	9811-9902	●	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97210-748-1	01	1	9903-0202	●	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH(S2T)	8-97210-748-1	01	1	0203-	●	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-406-0	01	1	9811-0105	●	●	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-406-0	01	1	0106-0202	●	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-406-0	01	1	0203-	●	●	●	●	●		●
2	00.775 REPAIR KIT; CLU M/CYL 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	5-87831-617-0	01	1	9811-0202	●	●	●	●	●
2	00.775 REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH(S2T)	5-87831-617-0	01	1	0203-	●	●	●	●	●
2	00.775 REPAIR KIT; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	5-87831-597-0	01	1	9811-0105	●	●	●	●	●	●
2	00.775 REPAIR KIT; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	5-87831-597-0	01	1	0106-0202	●	●	●	●	●
2	00.775 REPAIR KIT; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	5-87831-597-0	01	1	0203-	●	●	●	●	●		●
6	00.775 BOOT; CLU M/CYL 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97163-153-0	01	1	9811-0202	●	●	●	●	●
6	00.775 BOOT; CLU M/CYL POWER ASSIST CLUTCH(S2T)	8-97163-153-0	01	1	0203-	●	●	●	●	●
6	00.775 BOOT; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-94412-200-0	01	1	9811-0105	●	●	●	●	●	●
6	00.775 BOOT; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-94412-200-0	01	1	0106-0202	●	●	●	●	●
6	00.775 BOOT; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-94412-200-0	01	1	0203-	●	●	●	●	●		●
7	00.775 SPRING ASM; CLU M/CYL 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97163-148-0	01	1	9811-0202	●	●	●	●	●
7	00.775 SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH(S2T)	8-97163-148-0	01	1	0203-	●	●	●	●	●
7	00.775 SPRING ASM; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-780-0	01	1	9811-0105	●	●	●	●	●	●
7	00.775 SPRING ASM; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-780-0	01	1	0106-0202	●	●	●	●	●
7	00.775 SPRING ASM; CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-780-0	01	1	0203-	●	●	●	●	●		●
8	00.777 CONNECTOR; PIPE,CLU M/CYL 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97163-190-0	01	1	9811-0202	●	●	●	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL POWER ASSIST CLUTCH(S2T)	8-97163-190-0	01	1	0203-	●	●	●	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-766-0	01	1	9811-0105	●	●	●	●	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-766-0	01	1	0106-0202	●	●	●	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-766-0	01	1	0203-	●	●	●	●	●		●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97163-143-0	01	1	9811-0202	●	●	●	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL POWER ASSIST CLUTCH(S2T)	8-97163-143-0	01	1	0203-	●	●	●	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-773-0	01	1	9811-0105	●	●	●	●	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-773-0	01	1	0106-0202	●	●	●	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T)	8-97167-773-0	01	1	0203-	●	●	●	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
