2-05 — CLUTCH PIPING (#22004) — 189 parça
çizim 47678
107 4 99 87 15 4 5 15 6 11 16 74 92 7 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9811-0207 ● ● ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		9-09920-873-1 01 1 0208- ● ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9811-0105 ● ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 0106- ● ● ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97064-108-1 01 1 9811-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97064-108-1 01 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94248-703-2 01 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9811-0105 ● ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 0106- ● ● ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 9811- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 9811-9812 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97148-640-0 01 1 9901-9903 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) (A) 		8-97148-640-0 01 1 9901-9903 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0207 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0207 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0208- ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0208- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) ENGINE POWER N-SPEC(7QV) (A) 		8-97047-058-1 01 1 9901-9903 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 9904- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 9811-9812 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX),ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 9901-9903 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV), CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 9904-0207 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV), CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0208- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) (A) 		8-97070-114-1 01 1 9811-0105 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0207 ● ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811-0105 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0203-0207 ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0208- ● ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94366-288-0 01 1 0012-0101 ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94366-288-0 01 1 0102-0102 ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 9811-0011 ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0012-0012 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0102-0105 ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) 		8-97091-929-0 01 1 9811-0105 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9811-0105 ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 0106- ●
15 00.785 PIPE; CLU,FLEX HOSE
HYDRO MASTER<7LT> (A) 		8-97129-538-0 01 1 9811- ● ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO MASTER<7LT> (A) 		8-97073-074-2 01 1 9811-0111 ● ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO MASTER<7LT> (A) 		8-97328-482-0 01 1 0112- ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9811-0202 ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0203- ● ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97091-940-2 01 1 9811-9910 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97239-833-0 01 1 9911-0105 ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9811-0207 ● ● ● ● ●
16 00.785 CLIP; FLEX HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-94167-006-0 01 1 0208- ● ● ● ● ● ●
16 00.785 CLIP; FLEX HOSE
4JB1 ENG(RLF) 		8-94167-006-0 02 1 9811-0105 ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9811-0105 ●
74 00.785 CLIP; CLU OIL PIPE
4JB1 ENG(RLF) 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9811-0105 ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0106- ●
87 00.785 UNION; OIL PIPE
HYDRO MASTER<7LT> M12 2WAY 		1-09654-257-1 01 1 9811- ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> M12 STRAIGHT 		9-99227-006-0 01 1 9811- ● ● ● ● ● ● ● ●
92 00.785 CLIP; OIL PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9811-0202 ● ● ● ● ●
92 00.785 CLIP; OIL PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 0203- ● ● ● ● ● ●
99 00.785 WASHER; LK,UNION,OIL PIPE
HYDRO MASTER<7LT> 04.634 ID=12.2 		9-09150-512-0 01 1 9811- ● ● ●
107 00.785 NUT; UNION,OIL PIPE
HYDRO MASTER<7LT> 04.686 M12 		9-09840-280-0 01 1 9811- ● ● ●

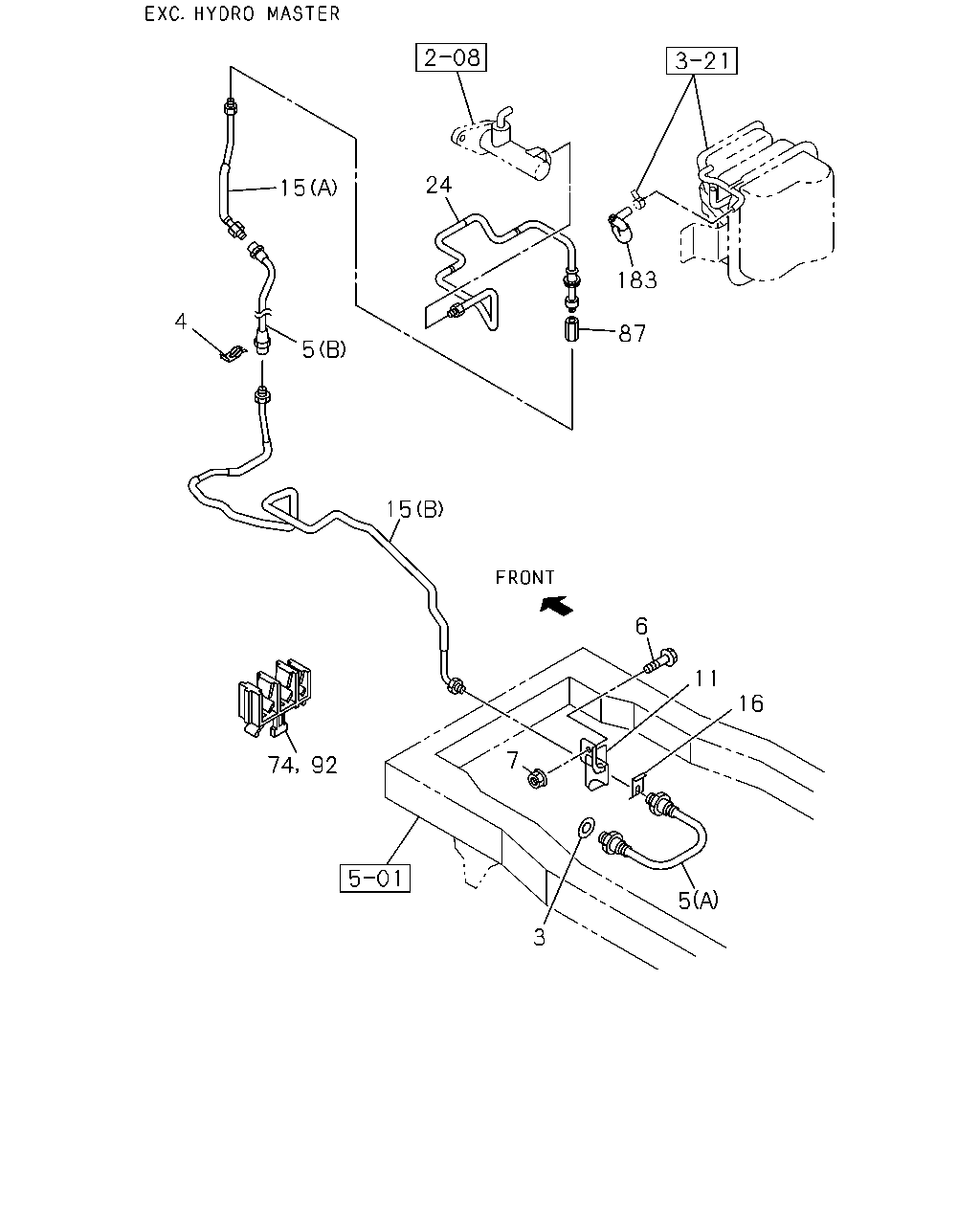

çizim 48835
24 15 183 4 87 5 15 6 11 16 7 92 74 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9811-0207 ● ● ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		9-09920-873-1 01 1 0208- ● ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9811-0105 ● ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 0106- ● ● ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97064-108-1 01 1 9811-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97064-108-1 01 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94248-703-2 01 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9811-0105 ● ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 0106- ● ● ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 9811- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 9811-9812 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97148-640-0 01 1 9901-9903 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) (A) 		8-97148-640-0 01 1 9901-9903 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0207 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0207 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0208- ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0208- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) ENGINE POWER N-SPEC(7QV) (A) 		8-97047-058-1 01 1 9901-9903 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 9904- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 9811-9812 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX),ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 9901-9903 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV), CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 9904-0207 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV), CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0208- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) (A) 		8-97070-114-1 01 1 9811-0105 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0207 ● ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811-0105 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0203-0207 ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0208- ● ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94366-288-0 01 1 0012-0101 ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94366-288-0 01 1 0102-0102 ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 9811-0011 ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0012-0012 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0102-0105 ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) 		8-97091-929-0 01 1 9811-0105 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9811-0105 ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 0106- ●
15 00.785 PIPE; CLU,FLEX HOSE
HYDRO MASTER<7LT> (A) 		8-97129-538-0 01 1 9811- ● ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO MASTER<7LT> (A) 		8-97073-074-2 01 1 9811-0111 ● ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO MASTER<7LT> (A) 		8-97328-482-0 01 1 0112- ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9811-0202 ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0203- ● ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97091-940-2 01 1 9811-9910 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97239-833-0 01 1 9911-0105 ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9811-0207 ● ● ● ● ●
16 00.785 CLIP; FLEX HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-94167-006-0 01 1 0208- ● ● ● ● ● ●
16 00.785 CLIP; FLEX HOSE
4JB1 ENG(RLF) 		8-94167-006-0 02 1 9811-0105 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 		8-97118-570-0 01 1 9811-0202 ● ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 		8-97118-570-0 01 1 0203- ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T), HYDROMASTER<7LT> 		8-97070-293-3 01 1 9811-0202 ● ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), HYDROMASTER<7LT> 		8-97070-293-3 01 1 0203- ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH(S2T) 		8-97129-536-0 01 1 9811- ● ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT> 		8-97217-337-0 01 1 9811- ● ● ● ● ● ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9811-0105 ●
74 00.785 CLIP; CLU OIL PIPE
4JB1 ENG(RLF) 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9811-0105 ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0106- ●
87 00.785 UNION; OIL PIPE
HYDRO MASTER<7LT> M12 2WAY 		1-09654-257-1 01 1 9811- ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> M12 STRAIGHT 		9-99227-006-0 01 1 9811- ● ● ● ● ● ● ● ●
92 00.785 CLIP; OIL PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9811-0202 ● ● ● ● ●
92 00.785 CLIP; OIL PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 0203- ● ● ● ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97093-993-1 01 1 9811-0202 ● ● ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97093-993-1 01 1 0203- ● ● ● ● ●

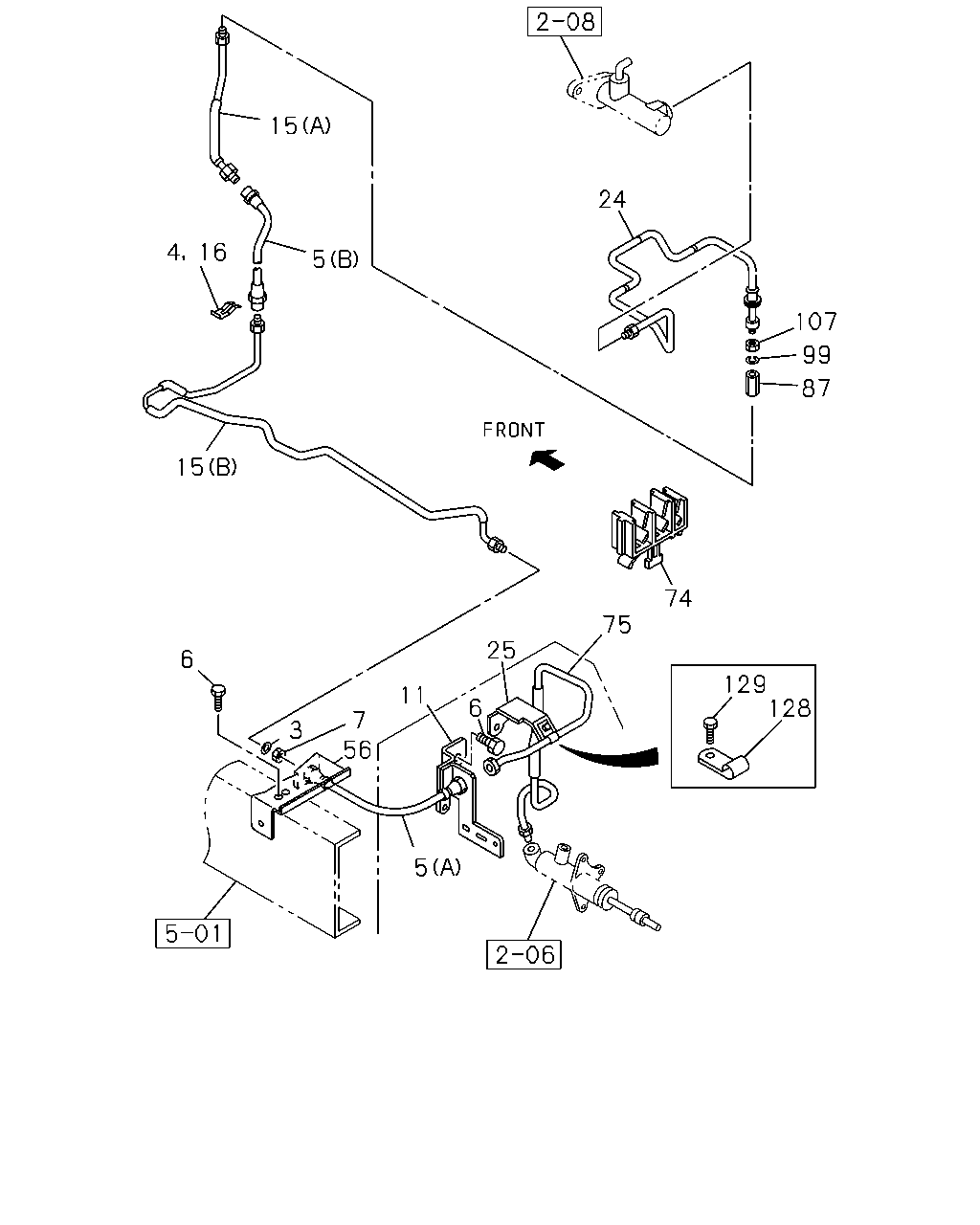

çizim 49281
15 24 16 4 5 107 99 87 15 74 75 25 6 129 128 11 6 7 56 3 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9811-0207 ● ● ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		9-09920-873-1 01 1 0208- ● ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9811-0105 ● ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 0106- ● ● ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97064-108-1 01 1 9811-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97064-108-1 01 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94248-703-2 01 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9811-0105 ● ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 0106- ● ● ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 9811- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 9811-9812 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97148-640-0 01 1 9901-9903 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) (A) 		8-97148-640-0 01 1 9901-9903 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0207 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0207 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0208- ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0208- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) ENGINE POWER N-SPEC(7QV) (A) 		8-97047-058-1 01 1 9901-9903 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 9904- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 9811-9812 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX),ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 9901-9903 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV), CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 9904-0207 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV), CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0208- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) (A) 		8-97070-114-1 01 1 9811-0105 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0207 ● ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811-0105 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0203-0207 ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0208- ● ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94366-288-0 01 1 0012-0101 ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94366-288-0 01 1 0102-0102 ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 9811-0011 ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0012-0012 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0102-0105 ● ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) 		8-97091-929-0 01 1 9811-0105 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9811-0105 ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 0106- ●
15 00.785 PIPE; CLU,FLEX HOSE
HYDRO MASTER<7LT> (A) 		8-97129-538-0 01 1 9811- ● ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO MASTER<7LT> (A) 		8-97073-074-2 01 1 9811-0111 ● ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO MASTER<7LT> (A) 		8-97328-482-0 01 1 0112- ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9811-0202 ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0203- ● ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97091-940-2 01 1 9811-9910 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97239-833-0 01 1 9911-0105 ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9811-0207 ● ● ● ● ●
16 00.785 CLIP; FLEX HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-94167-006-0 01 1 0208- ● ● ● ● ● ●
16 00.785 CLIP; FLEX HOSE
4JB1 ENG(RLF) 		8-94167-006-0 02 1 9811-0105 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 		8-97118-570-0 01 1 9811-0202 ● ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 		8-97118-570-0 01 1 0203- ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T), HYDROMASTER<7LT> 		8-97070-293-3 01 1 9811-0202 ● ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), HYDROMASTER<7LT> 		8-97070-293-3 01 1 0203- ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH(S2T) 		8-97129-536-0 01 1 9811- ● ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT> 		8-97217-337-0 01 1 9811- ● ● ● ● ● ●
25 00.785 BRACKET; OIL PIPE
4JB1 ENG(RLF) 		8-97013-211-1 01 1 9811-0105 ●
56 00.785 BRACKET; FLEX HOSE
4JB1 ENG(RLF) 		8-97090-299-0 01 1 9811-0105 ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9811-0105 ●
74 00.785 CLIP; CLU OIL PIPE
4JB1 ENG(RLF) 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9811-0105 ●
74 00.785 CLIP; CLU OIL PIPE
4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0106- ●
75 00.785 PIPE ASM; CLU,HSG
4JB1 ENG(RLF) 		8-97063-756-2 01 1 9811-0105 ●
87 00.785 UNION; OIL PIPE
HYDRO MASTER<7LT> M12 2WAY 		1-09654-257-1 01 1 9811- ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> M12 STRAIGHT 		9-99227-006-0 01 1 9811- ● ● ● ● ● ● ● ●
99 00.785 WASHER; LK,UNION,OIL PIPE
HYDRO MASTER<7LT> 04.634 ID=12.2 		9-09150-512-0 01 1 9811- ● ● ●
107 00.785 NUT; UNION,OIL PIPE
HYDRO MASTER<7LT> 04.686 M12 		9-09840-280-0 01 1 9811- ● ● ●
128 00.785 CLIP; AIR PIPE
4JB1 ENG(RLF) 03.145 ID=7 L=16 		9-09524-622-0 02 1 9811-0105 ●
129 00.785 BOLT; PIPE CLIP
4JB1 ENG(RLF) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9811-0105 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
