2-03 — CLUTCH PEDAL AND CONTROL (#22003) — 73 parça

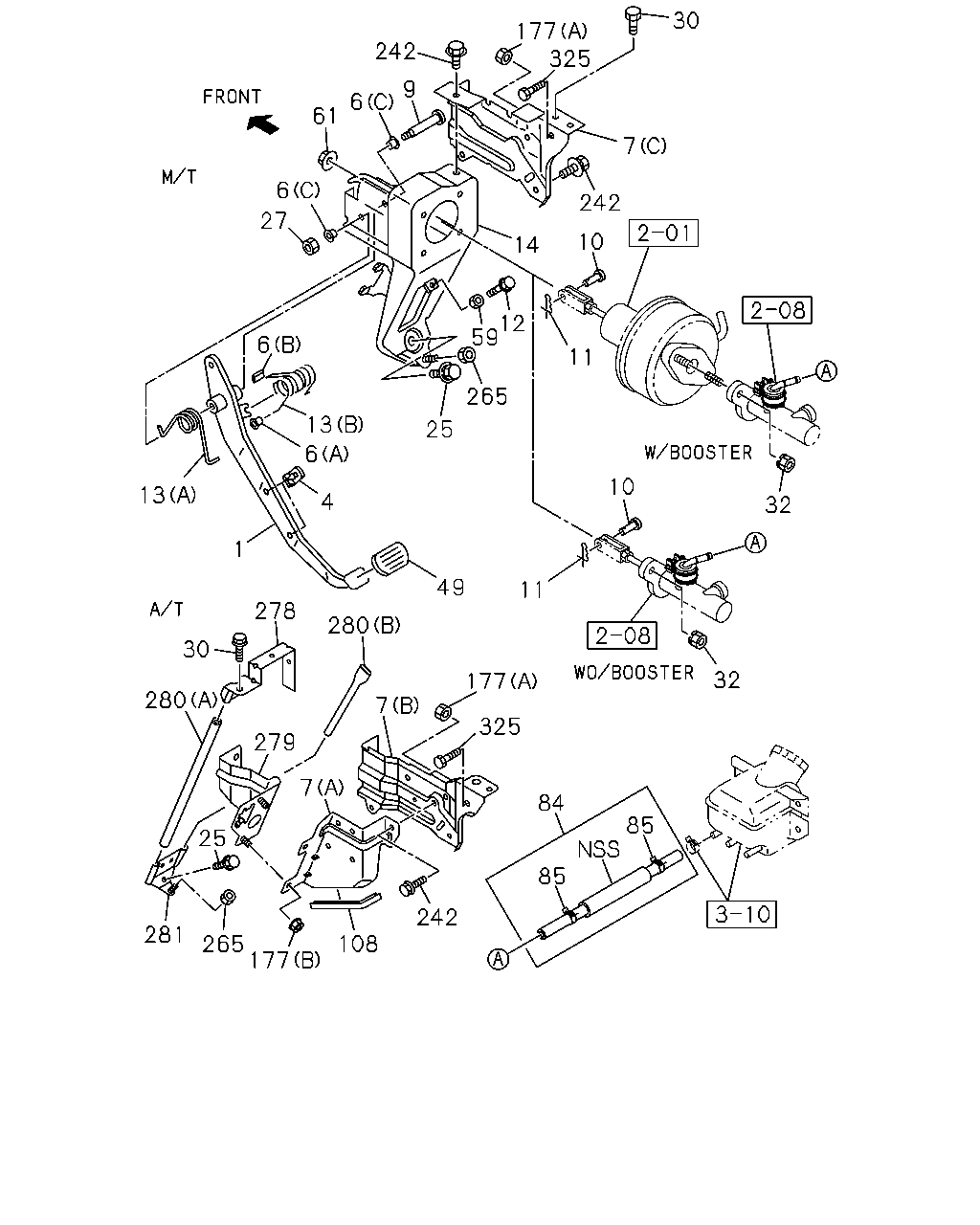

çizim 10564
30 177 325 242 9 6 61 7 6 242 27 10 14 12 59 6 11 265 13 25 6 10 13 4 32 1 49 11 278 280 30 32 177 280 7 325 279 7 84 85 25 85 242 281 108 265 177
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.830 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97853-220-1 01 1 9811-0105 ● ● ● ● ●
1 00.830 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 0106-0202 ● ● ● ●
1 00.830 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 0203- ● ● ● ● ●
1 00.830 PEDAL; CLU
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-2 01 1 9811- ● ● ● ● ● ●
1 00.830 PEDAL; CLU
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97853-219-1 01 1 9901-0105 ●
4 00.829 STOPPER; CLU PEDAL
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97853-534-0 02 1 9811-0105 ● ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97853-534-0 02 1 9811-0105 ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 		8-97853-534-1 02 1 0106- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 04.792 (C) 		8-94238-596-0 02 1 9811-0105 ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 04.792 (C) 		8-94238-596-0 02 1 9811-0105 ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 04.792 (C) 		8-94238-596-0 02 1 0106- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 9811- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 9811- ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-97856-307-2 01 1 9811-0105 ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (C) 		8-97856-307-2 01 1 9811-0105 ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
FLOOR REMOTE SHIFT<M11> (C) 		8-97856-307-2 01 1 0106- ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
A/T 4 SPEED-AISIN(RNJ) (A) 		8-97868-169-1 01 1 9811-0006 ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
A/T 4 SPEED-AISIN(RNJ) (A) 		8-97868-169-1 01 1 0007- ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
A/T 4 SPEED-AISIN(RNJ) (B) 		8-97868-177-0 01 1 9811-0006 ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
A/T 4 SPEED-AISIN(RNJ) (B) 		8-97868-177-0 01 1 0007- ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 04.634 		8-97866-667-0 01 1 9811-0105 ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 04.634 		8-97866-667-0 01 1 9811-0105 ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-97866-667-0 01 1 0106- ● ● ● ● ● ●
10 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-94410-276-0 01 1 9811- ● ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-94279-912-0 01 1 9811- ● ● ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
FLOOR REMOTE SHIFT<M11> EXC. EXHAUST BRAKE<NF8> 00.805 M10X35 		0-20801-035-0 01 1 0102- ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 9811-0105 ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 0106- ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 9811- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97868-002-0 01 1 9811-9903 ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97892-852-2 01 1 9904-0105 ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97892-852-2 01 1 0106- ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97868-003-0 01 1 9811-9903 ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-851-0 01 1 9901-9903 ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-851-2 01 1 9904- ● ● ● ● ● ●
25 00.833 BOLT; PEDAL
04.634 M10X22 W/WASHER 		8-94279-099-0 01 1 9811-0110 ● ● ● ● ● ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0111- ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) M10 FLANGE 		1-09440-022-0 01 1 9811-0105 ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) M10 FLANGE 		1-09440-022-0 01 1 9811-0105 ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
FLOOR REMOTE SHIFT<M11> M10 FLANGE 		1-09440-022-0 01 1 0106- ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 9811- ● ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
FLOOR REMOTE SHIFT<M11> M8 W/LK WASHER 		8-94279-050-0 02 1 9811- ● ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97853-413-1 01 1 9811-0105 ● ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97853-413-1 01 1 9811-0105 ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
FLOOR REMOTE SHIFT<M11> 		8-97853-413-2 01 1 0106- ● ● ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
FLOOR REMOTE SHIFT<M11> EXC. EXHAUST BRAKE<NF8> 09.011 M10 		9-09110-410-0 01 1 0102- ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 9811-0105 ● ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 0106- ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-97135-022-1 01 1 9811-0105 ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-97135-022-1 01 1 0106- ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T),PTO TRANSMISSION SIDE(V66) 		8-97135-023-1 01 1 9811- ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. POWER ASSIST CLUTCH(S2T) 		8-97135-027-1 01 1 9811- ● ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
FLOOR REMOTE SHIFT<M11> 04.681 		8-97130-480-0 02 1 9811- ● ● ● ● ● ●
108 00.829 PROTECTOR; EDGE,CLU PEDAL
A/T 4 SPEED-AISIN(RNJ) 		8-97868-559-0 01 1 9811-0006 ● ● ● ●
108 00.829 PROTECTOR; EDGE,CLU PEDAL
A/T 4 SPEED-AISIN(RNJ) 		8-97868-559-0 01 1 0007- ● ● ● ● ●
177 00.785 NUT; BRKT
00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 9811- ● ● ● ● ● ●
177 00.785 NUT; BRKT
A/T 4 SPEED-AISIN(RNJ) 01.540 (B) M8 FLANGE 		0-91150-208-0 02 1 9811-0006 ● ● ● ●
177 00.785 NUT; BRKT
A/T 4 SPEED-AISIN(RNJ) 01.540 (B) M8 FLANGE 		0-91150-208-0 02 1 0007- ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9811-0105 ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9811-0105 ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
FLOOR REMOTE SHIFT<M11> 08.155 M8X16 FLANGE 		0-28480-816-0 02 1 0106- ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
A/T 4 SPEED-AISIN(RNJ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9811-0006 ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
A/T 4 SPEED-AISIN(RNJ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0007- ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 9811- ● ● ● ● ● ●
278 00.833 REINFORCEMENT; VAC BRK
A/T 4 SPEED-AISIN(RNJ) 		8-97855-297-0 01 1 9811- ● ● ● ● ●
279 00.829 SUPPORT; VAC BRKT
A/T 4 SPEED-AISIN(RNJ) 		8-97855-299-1 01 1 9811- ● ● ● ● ●
280 00.829 ARM; VAC
A/T 4 SPEED-AISIN(RNJ) (A) 		8-97855-301-0 01 1 9811-0006 ● ● ● ●
280 00.829 ARM; VAC
A/T 4 SPEED-AISIN(RNJ) (A) 		8-97855-301-0 01 1 0007- ● ● ● ● ●
280 00.829 ARM; VAC
A/T 4 SPEED-AISIN(RNJ) (B) 		8-97855-302-0 01 1 9811-0006 ● ● ● ●
280 00.829 ARM; VAC
A/T 4 SPEED-AISIN(RNJ) (B) 		8-97855-302-0 01 1 0007- ● ● ● ● ●
281 00.829 STAY; VAC
A/T 4 SPEED-AISIN(RNJ) 		8-97855-303-1 01 1 9811-0006 ● ● ● ●
281 00.829 STAY; VAC
A/T 4 SPEED-AISIN(RNJ) 		8-97855-303-1 01 1 0007- ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811- ● ● ● ● ● ●
