2-01 — CLUTCH (#22002) — 269 parça

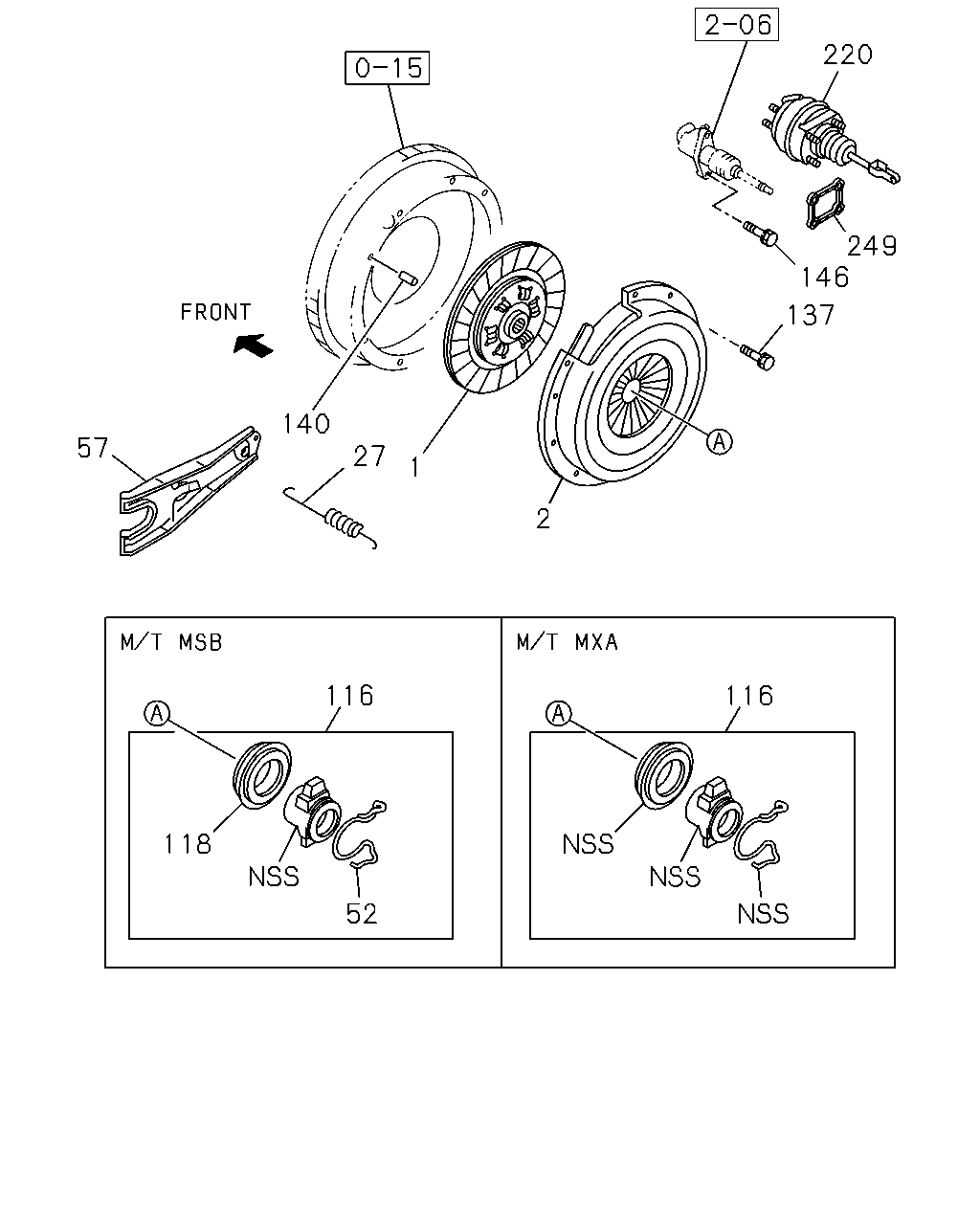

çizim 50197
220 249 146 137 140 57 27 1 2 116 116 118 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97307-712-0 01 1 0208- ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97320-355-0 01 1 0208- ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97259-940-0 01 1 0208- ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. ENGINE POWER N-SPEC(7QV) 		8-97259-940-0 01 1 0208- ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97162-966-1 01 1 9811- ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97166-390-1 01 1 9811-9910 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> ENGINE POWER N-SPEC(7QV) 		8-97166-390-1 01 1 9911-0108 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97166-390-1 01 1 0109- ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97149-201-2 01 1 9811-9905 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97229-240-0 01 1 9906- ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. ENGINE POWER N-SPEC(7QV) 		8-97173-595-1 01 1 9811-9905 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97173-595-1 01 1 9811-9905 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. ENGINE POWER N-SPEC(7QV) 		8-97229-241-0 01 1 9906-0204 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 9906-0204 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97229-241-0 01 1 0205- ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 0205- ● ● ● ●
1 00.886 DISC; CLUTCH
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97217-985-0 01 1 9811-9905 ●
1 00.886 DISC; CLUTCH
4JB1 ENG(RLF) 		8-97217-985-0 01 1 9906-0008 ●
1 00.886 DISC; CLUTCH
4JB1 ENG(RLF) 		8-97257-124-0 01 1 0009-0105 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TURBOCHARGER(K51) 		8-97169-534-0 01 1 9811-0207 ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97169-534-0 01 1 9811-0207 ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TURBOCHARGER(K51) 		8-97169-534-0 01 1 0208- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97169-534-0 01 1 0208- ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),EURO3 SPECIFICATION<NT3>,VOLTAGE 24V<7AE> ,EURO2 SPECIFICATION<7AF>,HYDRO BRAKE BOOSTER<7QQ>,NOISE PACK FOR REGU LATION VAR.2<7TF> 		8-97169-534-0 01 1 0208- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51) 		8-97031-757-2 01 1 9811-0103 ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97031-757-2 01 1 9811-0103 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51) 		8-97310-796-0 01 1 0104- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97310-796-0 01 1 0104- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97038-831-2 01 1 9811-0207 ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97038-831-2 01 1 9811-0207 ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97038-831-2 01 1 0208- ● ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97038-831-2 01 1 0208- ● ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97109-246-0 01 1 9811-9905 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1 ENG(RLF) 		8-97109-246-0 01 1 9906-0105 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ISRAEL EQUIPMENT(7LX) 		8-97184-359-0 01 1 9811-9812 ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) 		8-97184-359-0 01 1 9811-9812 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97184-359-0 01 1 9901-9903 ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. ISRAEL EQUIPMENT(7LX) 		8-97184-359-0 01 1 9901-9903 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97184-359-0 01 1 9904- ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 9904- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JB1 ENG(RLF),4HE1 ENG(RLY) 		8-97184-358-0 01 1 9811-9812 ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. ISRAEL EQUIPMENT(7LX) 		8-97184-358-0 01 1 9901-9903 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JB1 ENG(RLF) 		8-97184-358-0 01 1 9901-9903 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 9904-0105 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JB1 ENG(RLF) 		8-97184-358-0 01 1 9904-0105 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0106-0207 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0208- ● ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
4JB1 ENG(RLF) 		8-97017-094-0 01 1 9811-0105 ●
57 00.795 FORK; SHIFT,CLU
TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 		8-97310-456-1 01 1 0208- ●
57 00.795 FORK; SHIFT,CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97187-936-0 01 1 9811- ● ● ●
57 00.795 FORK; SHIFT,CLU
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97187-936-0 01 1 9811- ● ●
57 00.795 FORK; SHIFT,CLU
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 		1-31341-028-0 01 1 9811-0108 ● ●
57 00.795 FORK; SHIFT,CLU 1-31341-028-0 01 1 0109- ● ●
57 00.795 FORK; SHIFT,CLU
4JB1 ENG(RLF) 		8-97033-701-0 01 1 9811-0105 ●
116 00.799 BLOCK; SHIFT,CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97089-652-0 01 1 9811- ● ● ●
116 00.799 BLOCK; SHIFT,CLU
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97089-652-0 01 1 9811- ● ●
116 00.799 BLOCK; SHIFT,CLU
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 		1-31320-034-0 01 1 9811-0108 ● ●
116 00.799 BLOCK; SHIFT,CLU 1-31320-034-0 01 1 0109- ● ●
116 00.799 BLOCK; SHIFT,CLU
4JB1 ENG(RLF) 		8-97033-699-0 01 1 9811-0105 ●
118 00.799 BEARING; CLU RELEASE
TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 		1-31310-012-0 01 1 0208- ●
118 00.799 BEARING; CLU RELEASE
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 		1-09820-078-0 01 1 9811-0108 ● ●
118 00.799 BEARING; CLU RELEASE 1-09820-078-0 01 1 0109-0111 ● ●
118 00.799 BEARING; CLU RELEASE 1-09820-115-0 01 1 0112- ● ●
118 00.799 BEARING; CLU RELEASE
4JB1 ENG(RLF) JTEKT 		8-94379-499-0 01 1 9811-0105 ●
137 00.862 BOLT; CLU COVER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9811-0207 ● ● ● ● ●
137 00.862 BOLT; CLU COVER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0208- ● ● ● ● ● ●
137 00.862 BOLT; CLU COVER
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9811-9905 ●
137 00.862 BOLT; CLU COVER
4JB1 ENG(RLF) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9906-0105 ●
140 00.862 PIN; STRAIGHT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) L=25 		8-94410-361-0 02 1 9811-0207 ● ● ● ● ●
140 00.862 PIN; STRAIGHT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) L=25 		8-94410-361-0 02 1 0208- ● ● ● ● ● ●
140 00.862 PIN; STRAIGHT
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> OD=6 L=24 		9-09878-532-0 02 1 9811-9905 ●
140 00.862 PIN; STRAIGHT
4JB1 ENG(RLF) OD=6 L=24 		9-09878-532-0 02 1 9906-0105 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9811-0105 ● ● ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0106- ● ● ● ● ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) TURBOCHARGER(K51) 		8-97166-854-1 01 1 9811- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 9811- ● ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) EXC. TURBOCHARGER(K51) 		8-97162-962-1 01 1 9811- ● ● ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 9811- ● ● ● ● ●

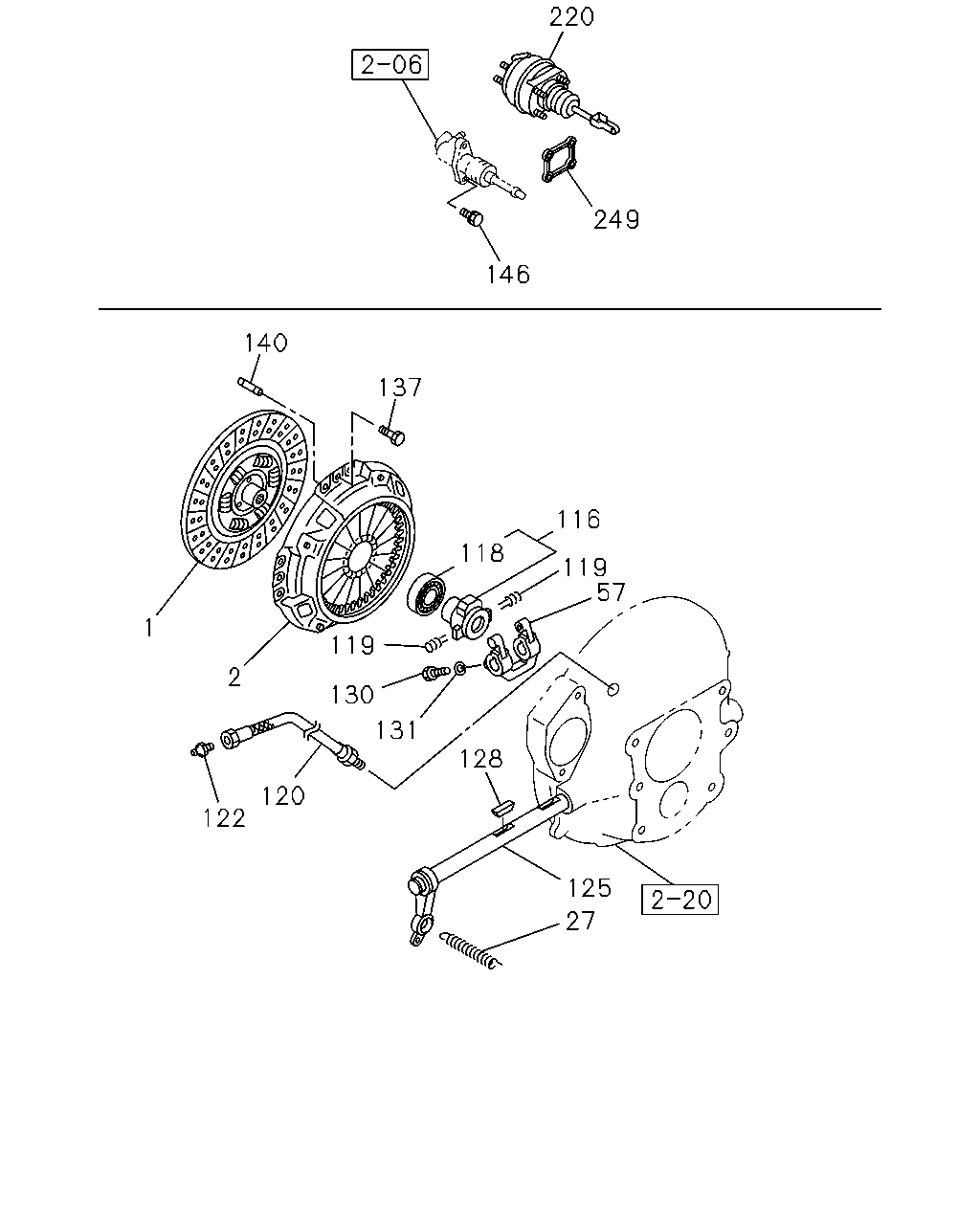

çizim 50902
220 249 146 140 137 116 118 119 57 1 119 2 130 131 128 120 122 125 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97307-712-0 01 1 0208- ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97320-355-0 01 1 0208- ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97259-940-0 01 1 0208- ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. ENGINE POWER N-SPEC(7QV) 		8-97259-940-0 01 1 0208- ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97162-966-1 01 1 9811- ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97166-390-1 01 1 9811-9910 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> ENGINE POWER N-SPEC(7QV) 		8-97166-390-1 01 1 9911-0108 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97166-390-1 01 1 0109- ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97149-201-2 01 1 9811-9905 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97229-240-0 01 1 9906- ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. ENGINE POWER N-SPEC(7QV) 		8-97173-595-1 01 1 9811-9905 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97173-595-1 01 1 9811-9905 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. ENGINE POWER N-SPEC(7QV) 		8-97229-241-0 01 1 9906-0204 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 9906-0204 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97229-241-0 01 1 0205- ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 0205- ● ● ● ●
1 00.886 DISC; CLUTCH
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97217-985-0 01 1 9811-9905 ●
1 00.886 DISC; CLUTCH
4JB1 ENG(RLF) 		8-97217-985-0 01 1 9906-0008 ●
1 00.886 DISC; CLUTCH
4JB1 ENG(RLF) 		8-97257-124-0 01 1 0009-0105 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TURBOCHARGER(K51) 		8-97169-534-0 01 1 9811-0207 ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97169-534-0 01 1 9811-0207 ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TURBOCHARGER(K51) 		8-97169-534-0 01 1 0208- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97169-534-0 01 1 0208- ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),EURO3 SPECIFICATION<NT3>,VOLTAGE 24V<7AE> ,EURO2 SPECIFICATION<7AF>,HYDRO BRAKE BOOSTER<7QQ>,NOISE PACK FOR REGU LATION VAR.2<7TF> 		8-97169-534-0 01 1 0208- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51) 		8-97031-757-2 01 1 9811-0103 ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97031-757-2 01 1 9811-0103 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51) 		8-97310-796-0 01 1 0104- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97310-796-0 01 1 0104- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97038-831-2 01 1 9811-0207 ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97038-831-2 01 1 9811-0207 ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97038-831-2 01 1 0208- ● ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97038-831-2 01 1 0208- ● ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97109-246-0 01 1 9811-9905 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1 ENG(RLF) 		8-97109-246-0 01 1 9906-0105 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ISRAEL EQUIPMENT(7LX) 		8-97184-359-0 01 1 9811-9812 ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) 		8-97184-359-0 01 1 9811-9812 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97184-359-0 01 1 9901-9903 ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. ISRAEL EQUIPMENT(7LX) 		8-97184-359-0 01 1 9901-9903 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97184-359-0 01 1 9904- ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 9904- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JB1 ENG(RLF),4HE1 ENG(RLY) 		8-97184-358-0 01 1 9811-9812 ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. ISRAEL EQUIPMENT(7LX) 		8-97184-358-0 01 1 9901-9903 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JB1 ENG(RLF) 		8-97184-358-0 01 1 9901-9903 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 9904-0105 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JB1 ENG(RLF) 		8-97184-358-0 01 1 9904-0105 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0106-0207 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0208- ● ● ●
57 00.795 FORK; SHIFT,CLU
TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 		8-97310-456-1 01 1 0208- ●
57 00.795 FORK; SHIFT,CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97187-936-0 01 1 9811- ● ● ●
57 00.795 FORK; SHIFT,CLU
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97187-936-0 01 1 9811- ● ●
57 00.795 FORK; SHIFT,CLU
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 		1-31341-028-0 01 1 9811-0108 ● ●
57 00.795 FORK; SHIFT,CLU 1-31341-028-0 01 1 0109- ● ●
57 00.795 FORK; SHIFT,CLU
4JB1 ENG(RLF) 		8-97033-701-0 01 1 9811-0105 ●
116 00.799 BLOCK; SHIFT,CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97089-652-0 01 1 9811- ● ● ●
116 00.799 BLOCK; SHIFT,CLU
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97089-652-0 01 1 9811- ● ●
116 00.799 BLOCK; SHIFT,CLU
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 		1-31320-034-0 01 1 9811-0108 ● ●
116 00.799 BLOCK; SHIFT,CLU 1-31320-034-0 01 1 0109- ● ●
116 00.799 BLOCK; SHIFT,CLU
4JB1 ENG(RLF) 		8-97033-699-0 01 1 9811-0105 ●
118 00.799 BEARING; CLU RELEASE
TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 		1-31310-012-0 01 1 0208- ●
118 00.799 BEARING; CLU RELEASE
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 		1-09820-078-0 01 1 9811-0108 ● ●
118 00.799 BEARING; CLU RELEASE 1-09820-078-0 01 1 0109-0111 ● ●
118 00.799 BEARING; CLU RELEASE 1-09820-115-0 01 1 0112- ● ●
118 00.799 BEARING; CLU RELEASE
4JB1 ENG(RLF) JTEKT 		8-94379-499-0 01 1 9811-0105 ●
119 00.797 SPRING; SHIFT FORK
TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 		1-31329-024-0 02 1 0208- ●
119 00.797 SPRING; SHIFT FORK
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 00.844 		1-31329-015-0 01 1 9811-0108 ● ●
119 00.797 SPRING; SHIFT FORK
00.844 		1-31329-015-0 01 1 0109- ● ●
119 00.797 SPRING; SHIFT FORK
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 00.844 		1-31329-014-0 01 1 9811-0108 ● ●
119 00.797 SPRING; SHIFT FORK
00.844 		1-31329-014-0 01 1 0109- ● ●
120 00.799 HOSE; FLEX,SHIFT BLOCK,CLU
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) L=705 		1-09364-850-0 01 1 9811-0108 ● ●
120 00.799 HOSE; FLEX,SHIFT BLOCK,CLU
L=705 		1-09364-850-0 01 1 0109- ● ●
122 00.799 NIPPLE; GREASE,FLEX HOSE,SHIFT B
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 08.984 PT1/8 STRAIGHT 		9-09031-010-0 01 1 9811-0108 ● ●
122 00.799 NIPPLE; GREASE,FLEX HOSE,SHIFT B
08.984 PT1/8 STRAIGHT 		9-09031-010-0 01 1 0109- ● ●
125 00.805 SHAFT; CLU
TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 		8-97310-435-0 01 1 0208- ●
125 00.805 SHAFT; CLU
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 		8-97038-833-1 01 1 9811-0108 ● ●
125 00.805 SHAFT; CLU 8-97038-833-1 01 1 0109- ● ●
128 00.833 KEY; FEATHER,CLU SHAFT
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 		9-09867-008-0 02 1 9811-0108 ● ●
128 00.833 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0109-0207 ● ●
128 00.833 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0208- ● ●
128 00.833 KEY; FEATHER,CLU SHAFT
TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 		9-09867-008-0 02 1 0208- ●
130 00.833 SCREW; SHIFT FORK
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 08.977 M8X14 		9-06120-814-0 01 1 9811-0108 ● ●
130 00.833 SCREW; SHIFT FORK
08.977 M8X14 		9-06120-814-0 01 1 0109-0207 ● ●
130 00.833 SCREW; SHIFT FORK
08.977 M8X14 		9-06120-814-0 01 1 0208- ● ●
130 00.833 SCREW; SHIFT FORK
TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 08.977 M8X14 		9-06120-814-0 01 1 0208- ●
131 00.833 WASHER; LK,SHIFT FORK
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 00.002 ID=8.2 		9-09150-508-0 01 1 9811-0108 ● ●
131 00.833 WASHER; LK,SHIFT FORK
00.002 ID=8.2 		9-09150-508-0 01 1 0109-0207 ● ●
131 00.833 WASHER; LK,SHIFT FORK
00.002 ID=8.2 		9-09150-508-0 01 1 0208- ● ●
131 00.833 WASHER; LK,SHIFT FORK
TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 00.002 ID=8.2 		9-09150-508-0 01 1 0208- ●
137 00.862 BOLT; CLU COVER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9811-0207 ● ● ● ● ●
137 00.862 BOLT; CLU COVER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0208- ● ● ● ● ● ●
137 00.862 BOLT; CLU COVER
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9811-9905 ●
137 00.862 BOLT; CLU COVER
4JB1 ENG(RLF) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9906-0105 ●
140 00.862 PIN; STRAIGHT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) L=25 		8-94410-361-0 02 1 9811-0207 ● ● ● ● ●
140 00.862 PIN; STRAIGHT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) L=25 		8-94410-361-0 02 1 0208- ● ● ● ● ● ●
140 00.862 PIN; STRAIGHT
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> OD=6 L=24 		9-09878-532-0 02 1 9811-9905 ●
140 00.862 PIN; STRAIGHT
4JB1 ENG(RLF) OD=6 L=24 		9-09878-532-0 02 1 9906-0105 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9811-0105 ● ● ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0106- ● ● ● ● ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) TURBOCHARGER(K51) 		8-97166-854-1 01 1 9811- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 9811- ● ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) EXC. TURBOCHARGER(K51) 		8-97162-962-1 01 1 9811- ● ● ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 9811- ● ● ● ● ●

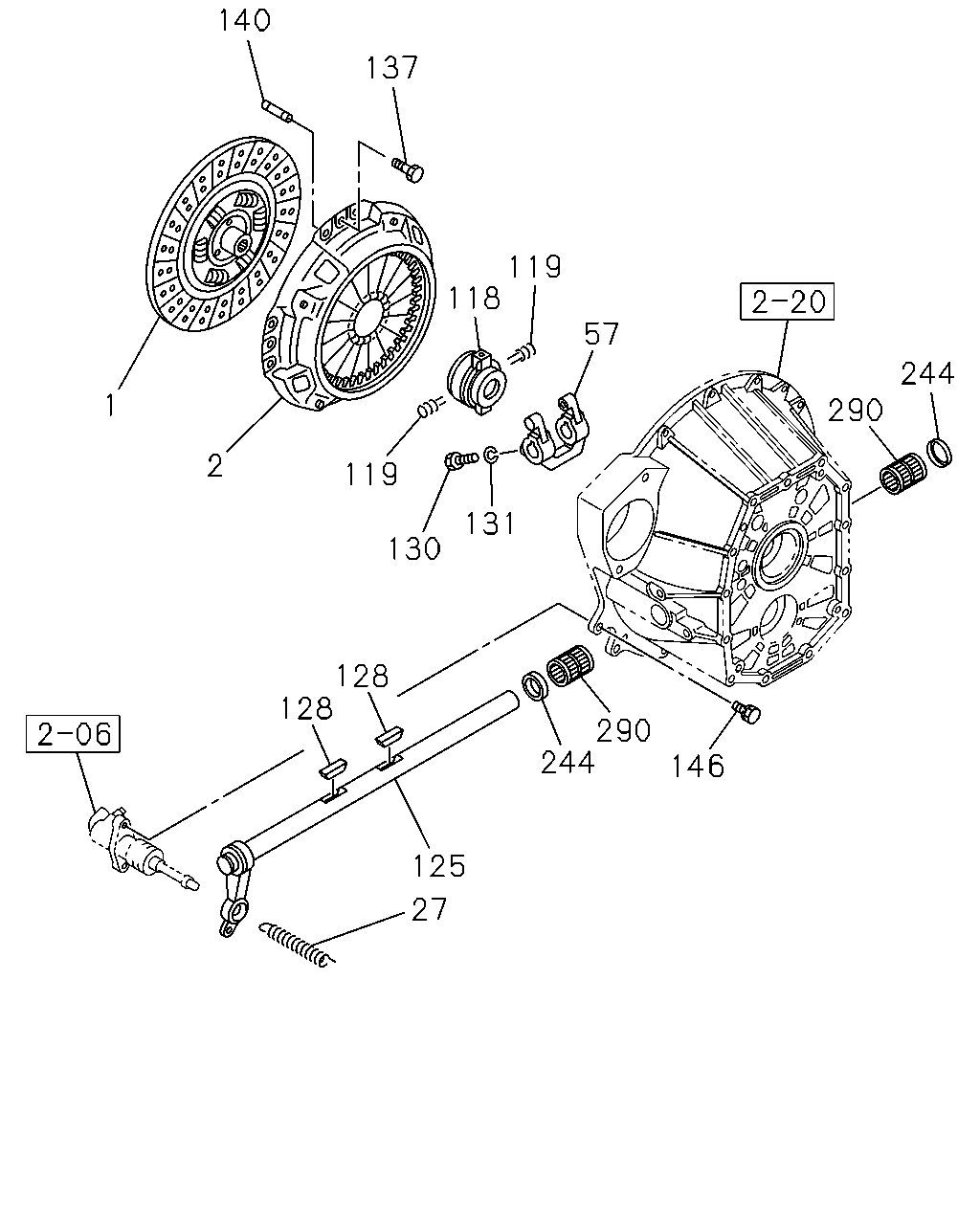

çizim 51153
140 137 119 118 57 244 1 290 2 119 131 130 128 128 290 244 146 125 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97307-712-0 01 1 0208- ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97320-355-0 01 1 0208- ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97259-940-0 01 1 0208- ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. ENGINE POWER N-SPEC(7QV) 		8-97259-940-0 01 1 0208- ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97162-966-1 01 1 9811- ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97166-390-1 01 1 9811-9910 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> ENGINE POWER N-SPEC(7QV) 		8-97166-390-1 01 1 9911-0108 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97166-390-1 01 1 0109- ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97149-201-2 01 1 9811-9905 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97229-240-0 01 1 9906- ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. ENGINE POWER N-SPEC(7QV) 		8-97173-595-1 01 1 9811-9905 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97173-595-1 01 1 9811-9905 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. ENGINE POWER N-SPEC(7QV) 		8-97229-241-0 01 1 9906-0204 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 9906-0204 ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97229-241-0 01 1 0205- ● ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 0205- ● ● ● ●
1 00.886 DISC; CLUTCH
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97217-985-0 01 1 9811-9905 ●
1 00.886 DISC; CLUTCH
4JB1 ENG(RLF) 		8-97217-985-0 01 1 9906-0008 ●
1 00.886 DISC; CLUTCH
4JB1 ENG(RLF) 		8-97257-124-0 01 1 0009-0105 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TURBOCHARGER(K51) 		8-97169-534-0 01 1 9811-0207 ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97169-534-0 01 1 9811-0207 ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TURBOCHARGER(K51) 		8-97169-534-0 01 1 0208- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97169-534-0 01 1 0208- ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),EURO3 SPECIFICATION<NT3>,VOLTAGE 24V<7AE> ,EURO2 SPECIFICATION<7AF>,HYDRO BRAKE BOOSTER<7QQ>,NOISE PACK FOR REGU LATION VAR.2<7TF> 		8-97169-534-0 01 1 0208- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51) 		8-97031-757-2 01 1 9811-0103 ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97031-757-2 01 1 9811-0103 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51) 		8-97310-796-0 01 1 0104- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97310-796-0 01 1 0104- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97038-831-2 01 1 9811-0207 ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97038-831-2 01 1 9811-0207 ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97038-831-2 01 1 0208- ● ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97038-831-2 01 1 0208- ● ● ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97109-246-0 01 1 9811-9905 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1 ENG(RLF) 		8-97109-246-0 01 1 9906-0105 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ISRAEL EQUIPMENT(7LX) 		8-97184-359-0 01 1 9811-9812 ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) 		8-97184-359-0 01 1 9811-9812 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97184-359-0 01 1 9901-9903 ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. ISRAEL EQUIPMENT(7LX) 		8-97184-359-0 01 1 9901-9903 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97184-359-0 01 1 9904- ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 9904- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JB1 ENG(RLF),4HE1 ENG(RLY) 		8-97184-358-0 01 1 9811-9812 ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. ISRAEL EQUIPMENT(7LX) 		8-97184-358-0 01 1 9901-9903 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JB1 ENG(RLF) 		8-97184-358-0 01 1 9901-9903 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 9904-0105 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JB1 ENG(RLF) 		8-97184-358-0 01 1 9904-0105 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0106-0207 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0208- ● ● ●
57 00.795 FORK; SHIFT,CLU
TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 		8-97310-456-1 01 1 0208- ●
57 00.795 FORK; SHIFT,CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97187-936-0 01 1 9811- ● ● ●
57 00.795 FORK; SHIFT,CLU
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97187-936-0 01 1 9811- ● ●
57 00.795 FORK; SHIFT,CLU
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 		1-31341-028-0 01 1 9811-0108 ● ●
57 00.795 FORK; SHIFT,CLU 1-31341-028-0 01 1 0109- ● ●
57 00.795 FORK; SHIFT,CLU
4JB1 ENG(RLF) 		8-97033-701-0 01 1 9811-0105 ●
118 00.799 BEARING; CLU RELEASE
TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 		1-31310-012-0 01 1 0208- ●
118 00.799 BEARING; CLU RELEASE
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 		1-09820-078-0 01 1 9811-0108 ● ●
118 00.799 BEARING; CLU RELEASE 1-09820-078-0 01 1 0109-0111 ● ●
118 00.799 BEARING; CLU RELEASE 1-09820-115-0 01 1 0112- ● ●
118 00.799 BEARING; CLU RELEASE
4JB1 ENG(RLF) JTEKT 		8-94379-499-0 01 1 9811-0105 ●
119 00.797 SPRING; SHIFT FORK
TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 		1-31329-024-0 02 1 0208- ●
119 00.797 SPRING; SHIFT FORK
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 00.844 		1-31329-015-0 01 1 9811-0108 ● ●
119 00.797 SPRING; SHIFT FORK
00.844 		1-31329-015-0 01 1 0109- ● ●
119 00.797 SPRING; SHIFT FORK
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 00.844 		1-31329-014-0 01 1 9811-0108 ● ●
119 00.797 SPRING; SHIFT FORK
00.844 		1-31329-014-0 01 1 0109- ● ●
125 00.805 SHAFT; CLU
TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 		8-97310-435-0 01 1 0208- ●
125 00.805 SHAFT; CLU
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 		8-97038-833-1 01 1 9811-0108 ● ●
125 00.805 SHAFT; CLU 8-97038-833-1 01 1 0109- ● ●
128 00.833 KEY; FEATHER,CLU SHAFT
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 		9-09867-008-0 02 1 9811-0108 ● ●
128 00.833 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0109-0207 ● ●
128 00.833 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0208- ● ●
128 00.833 KEY; FEATHER,CLU SHAFT
TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 		9-09867-008-0 02 1 0208- ●
130 00.833 SCREW; SHIFT FORK
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 08.977 M8X14 		9-06120-814-0 01 1 9811-0108 ● ●
130 00.833 SCREW; SHIFT FORK
08.977 M8X14 		9-06120-814-0 01 1 0109-0207 ● ●
130 00.833 SCREW; SHIFT FORK
08.977 M8X14 		9-06120-814-0 01 1 0208- ● ●
130 00.833 SCREW; SHIFT FORK
TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 08.977 M8X14 		9-06120-814-0 01 1 0208- ●
131 00.833 WASHER; LK,SHIFT FORK
4HE1 ENG(RLY) EXC. ENGINE POWER N-SPEC(7QV) 00.002 ID=8.2 		9-09150-508-0 01 1 9811-0108 ● ●
131 00.833 WASHER; LK,SHIFT FORK
00.002 ID=8.2 		9-09150-508-0 01 1 0109-0207 ● ●
131 00.833 WASHER; LK,SHIFT FORK
00.002 ID=8.2 		9-09150-508-0 01 1 0208- ● ●
131 00.833 WASHER; LK,SHIFT FORK
TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 00.002 ID=8.2 		9-09150-508-0 01 1 0208- ●
137 00.862 BOLT; CLU COVER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9811-0207 ● ● ● ● ●
137 00.862 BOLT; CLU COVER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0208- ● ● ● ● ● ●
137 00.862 BOLT; CLU COVER
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9811-9905 ●
137 00.862 BOLT; CLU COVER
4JB1 ENG(RLF) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9906-0105 ●
140 00.862 PIN; STRAIGHT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) L=25 		8-94410-361-0 02 1 9811-0207 ● ● ● ● ●
140 00.862 PIN; STRAIGHT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) L=25 		8-94410-361-0 02 1 0208- ● ● ● ● ● ●
140 00.862 PIN; STRAIGHT
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> OD=6 L=24 		9-09878-532-0 02 1 9811-9905 ●
140 00.862 PIN; STRAIGHT
4JB1 ENG(RLF) OD=6 L=24 		9-09878-532-0 02 1 9906-0105 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9811-0105 ● ● ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0106- ● ● ● ● ● ● ●
244 00.805 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 00.797 		1-09625-002-0 02 1 0208- ●
290 00.862 BEARING; NEEDLE
TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) 00.683 NTN 		1-09811-002-1 02 1 0208- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
