1 |

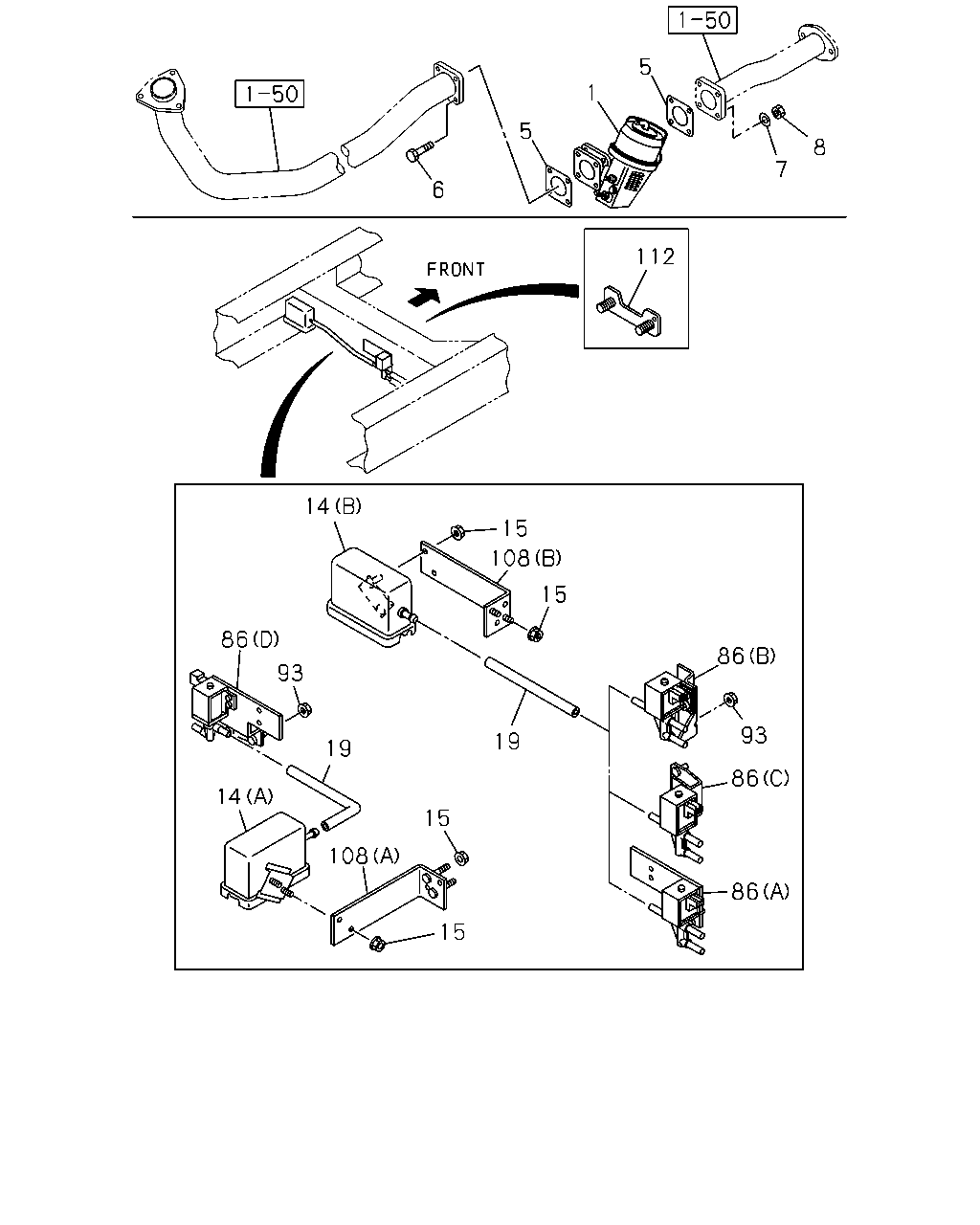

03.632 BRAKE UNIT; EXH
4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97174-739-0 |
01 |
1 |
9811-0003 |
● |
● |
● |
|
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
4HG1 ENG(RJH)
|
8-97174-739-0 |
01 |
1 |
9811-0003 |
|
|
|
● |
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97257-916-0 |
01 |
1 |
0004-0101 |
● |
● |
● |
|
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
4HG1 ENG(RJH)
|
8-97257-916-0 |
01 |
1 |
0004-0101 |
|
|
|
● |
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
4HG1 ENG(RJH),4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97257-916-1 |
01 |
1 |
0102-0202 |
● |
● |
● |
|
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
4HG1 ENG(RJH)
EXHAUST BRAKE<NF8>
|
8-97257-916-1 |
01 |
1 |
0102-0202 |
|
|
|
● |
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
4HG1 ENG(RJH),4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97257-916-1 |
01 |
1 |
0203- |
● |
● |
● |
|
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
4HG1 ENG(RJH)
EXHAUST BRAKE<NF8>
|
8-97257-916-1 |
01 |
1 |
0203- |
|
|
|
● |
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
4HF1 ENG(RLS)
|
8-97257-916-1 |
01 |
1 |
0203- |
|
|
|
|
● |
|
| |
1 |
03.632 BRAKE UNIT; EXH
4HE1 ENG(RLY)
|
8-97174-740-0 |
01 |
1 |
9811-0003 |
● |
● |
● |
● |
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
|
8-97174-740-0 |
01 |
1 |
9811-0003 |
|
|
|
|
● |
● |
| |
1 |
03.632 BRAKE UNIT; EXH
4HE1 ENG(RLY)
|
8-97258-153-0 |
01 |
1 |
0004-0101 |
● |
● |
● |
● |
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
|
8-97258-153-0 |
01 |
1 |
0004-0101 |
|
|
|
|
● |
● |
| |
1 |
03.632 BRAKE UNIT; EXH
4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
|
8-97258-153-0 |
01 |
1 |
0102-0103 |
● |
● |
● |
● |
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
|
8-97258-153-0 |
01 |
1 |
0102-0103 |
|
|
|
|
● |
● |
| |
1 |
03.632 BRAKE UNIT; EXH
4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
|
8-97308-232-1 |
01 |
1 |
0104-0202 |
● |
● |
● |
● |
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
|
8-97308-232-1 |
01 |
1 |
0104-0202 |
|
|
|
|
● |
● |
| |
1 |
03.632 BRAKE UNIT; EXH
4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
|
8-97308-232-1 |
01 |
1 |
0203- |
● |
● |
● |
● |
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
|
8-97308-232-1 |
01 |
1 |
0203- |
|
|
|
|
|
● |
| |
1 |
03.632 BRAKE UNIT; EXH
4HE1 ENG(RLY)
|
8-97308-232-1 |
01 |
1 |
0203- |
|
|
|
|
● |
|
| |
1 |
03.632 BRAKE UNIT; EXH
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
|
8-97102-372-2 |
01 |
1 |
9811-0105 |
|
● |
|
|
|
|
| |
1 |
03.632 BRAKE UNIT; EXH
4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
|
8-97102-372-2 |
01 |
1 |
0106-0106 |
|
● |
|
|
|
|
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
ID=64
|
8-97037-694-0 |
02 |
1 |
9811-0101 |
● |
● |
● |
|
|
|
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4HG1 ENG(RJH),4HE1 ENG(RLY)
ID=64
|
8-97037-694-0 |
02 |
1 |
9811-0101 |
|
|
|
● |
|
|
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
ID=64
|
8-97037-694-0 |
02 |
1 |
9811-0101 |
|
|
|
|
● |
● |
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
ID=64
|
8-97037-694-0 |
02 |
1 |
0102-0202 |
● |
● |
● |
|
|
|
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
ID=64
|
8-97037-694-0 |
02 |
1 |
0102-0202 |
|
|
|
● |
|
|
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
ID=64
|
8-97037-694-0 |
02 |
1 |
0102-0202 |
|
|
|
|
● |
● |
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
ID=64
|
8-97037-694-0 |
02 |
1 |
0203- |
● |
● |
● |
|
|
|
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
ID=64
|
8-97037-694-0 |
02 |
1 |
0203- |
|
|
|
● |
|
|
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
ID=64
|
8-97037-694-0 |
02 |
1 |
0203- |
|
|
|
|
|
● |
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4HF1 ENG(RLS),4HE1 ENG(RLY)
ID=64
|
8-97037-694-0 |
02 |
1 |
0203- |
|
|
|
|
● |
|
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
ID=54
|
8-94328-354-0 |
01 |
1 |
9811-9909 |
|
● |
|
|
|
|
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
ID=54
|
8-94328-354-0 |
02 |
1 |
9910-0105 |
|
● |
|
|
|
|
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
ID=54
|
8-94328-354-0 |
02 |
1 |
0106-0106 |
|
● |
|
|
|
|
| |
6 |
03.632 BOLT; EXH BRAKE UNIT FIX
03.708
M8X70
|
0-10805-870-0 |
04 |
1 |
9811-0105 |
● |
● |
● |
● |
● |
● |
| |
6 |
03.632 BOLT; EXH BRAKE UNIT FIX
EXHAUST BRAKE<NF8>
03.708
M8X70
|
0-10805-870-0 |
04 |
1 |
0106- |
● |
● |
● |
● |
|
|
| |
6 |
03.632 BOLT; EXH BRAKE UNIT FIX
03.708
M8X70
|
0-10805-870-0 |
04 |
1 |
0106- |
|
|
|
|
● |
● |
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
T=1.9
|
5-09500-012-0 |
04 |
1 |
9811-0105 |
● |
● |
● |
● |
● |
● |
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
EXHAUST BRAKE<NF8>
T=1.9
|
5-09500-012-0 |
04 |
1 |
0106- |
● |
● |
● |
● |
|
|
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
T=1.9
|
5-09500-012-0 |
04 |
1 |
0106- |
|
|
|
|
● |
● |
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
02.559
M8
|
9-09110-408-0 |
04 |
1 |
9811-0105 |
● |
● |
● |
● |
● |
● |
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
EXHAUST BRAKE<NF8>
02.559
M8
|
9-09110-408-0 |
04 |
1 |
0106- |
● |
● |
● |
● |
|
|
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
02.559
M8
|
9-09110-408-0 |
04 |
1 |
0106- |
|
|
|
|
● |
● |
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-94419-755-2 |
01 |
1 |
9811-0101 |
● |
|
|
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-94419-755-2 |
01 |
1 |
0102- |
● |
|
|
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97033-888-0 |
01 |
1 |
9811-9812 |
● |
|
|
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
(B)
|
8-97033-888-0 |
01 |
1 |
9811-9812 |
|
● |
● |
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HG1 ENG(RJH),4HE1 ENG(RLY)
(B)
|
8-97033-888-0 |
01 |
1 |
9811-9812 |
|
|
|
● |
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
(B)
|
8-97033-888-0 |
01 |
1 |
9811-9812 |
|
|
|
|
● |
● |
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97033-888-0 |
01 |
1 |
9901-0101 |
● |
|
|
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
(B)
|
8-97033-888-0 |
01 |
1 |
9901-0101 |
|
● |
● |
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4JB1 ENG(RLF)
TURBOCHARGER(K51)
(B)
|
8-97033-888-0 |
01 |
1 |
9901-0101 |
|
● |
|
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HG1 ENG(RJH),4HE1 ENG(RLY)
(B)
|
8-97033-888-0 |
01 |
1 |
9901-0101 |
|
|
|
● |
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
(B)
|
8-97033-888-0 |
01 |
1 |
9901-0101 |
|
|
|
|
● |
● |
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97033-888-0 |
01 |
1 |
0102-0105 |
● |
|
|
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
(B)
|
8-97033-888-0 |
01 |
1 |
0102-0105 |
|
● |
● |
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4JB1 ENG(RLF)
TURBOCHARGER(K51)
EXHAUST BRAKE<NF8>
(B)
|
8-97033-888-0 |
01 |
1 |
0102-0105 |
|
● |
|
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
(B)
|
8-97033-888-0 |
01 |
1 |
0102-0105 |
|
|
|
● |
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
(B)
|
8-97033-888-0 |
01 |
1 |
0102-0105 |
|
|
|
|
● |
● |
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97033-888-0 |
01 |
1 |
0106-0202 |
● |
|
|
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
(B)
|
8-97033-888-0 |
01 |
1 |
0106-0202 |
|
● |
● |
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
(B)
|
8-97033-888-0 |
01 |
1 |
0106-0202 |
|
|
|
● |
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
(B)
|
8-97033-888-0 |
01 |
1 |
0106-0202 |
|
|
|
|
● |
● |
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97033-888-0 |
01 |
1 |
0203- |
● |
|
|
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
(B)
|
8-97033-888-0 |
01 |
1 |
0203- |
|
● |
● |
|
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
(B)
|
8-97033-888-0 |
01 |
1 |
0203- |
|
|
|
● |
|
|
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
(B)
|
8-97033-888-0 |
01 |
1 |
0203- |
|
|
|
|
|
● |
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4HF1 ENG(RLS),4HE1 ENG(RLY)
(B)
|
8-97033-888-0 |
01 |
1 |
0203- |
|
|
|
|
● |
|
| |
15 |
03.634 NUT; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811-9812 |
● |
● |
● |
● |
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811-9812 |
● |
|
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
BRK WHL LK CONT LSPV<6PH>
EXC. FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811-9812 |
● |
|
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811-9812 |
|
|
|
|
● |
● |
| |
15 |
03.634 NUT; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9901-0101 |
● |
● |
● |
● |
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9901-0101 |
● |
|
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
BRK WHL LK CONT LSPV<6PH>
EXC. FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9901-0101 |
● |
|
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER(K51)
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9901-0101 |
|
● |
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9901-0101 |
|
|
|
|
● |
● |
| |
15 |
03.634 NUT; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0102-0105 |
● |
● |
● |
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0102-0105 |
● |
|
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
BRK WHL LK CONT LSPV<6PH>
EXC. FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0102-0105 |
● |
|
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER(K51)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0102-0105 |
|
● |
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0102-0105 |
|
|
|
● |
|
|
| |
15 |
03.634 NUT; AIR FILTER
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0102-0105 |
|
|
|
|
● |
● |
| |
15 |
03.634 NUT; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0106 |
● |
● |
● |
● |
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0106 |
● |
|
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
BRK WHL LK CONT LSPV<6PH>
EXC. FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0106 |
● |
|
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER(K51)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0106 |
|
● |
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0106 |
|
|
|
|
● |
● |
| |
15 |
03.634 NUT; AIR FILTER
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
| |
15 |
03.634 NUT; AIR FILTER
EXHAUST BRAKE<NF8>
FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106- |
● |
|
|
|
|
|
| |
15 |
03.634 NUT; AIR FILTER
EXHAUST BRAKE<NF8>
BRK WHL LK CONT LSPV<6PH>
EXC. FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106- |
● |
|
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HF1 ENG(RLS),4HE1 ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=260
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0203- |
|
|
|
|
● |
|
| |
19 |
03.630 HOSE; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
L=360
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9811-0101 |
● |
|
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
FRAME STRAIGHT TYPE<7KJ>
L=360
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0102- |
● |
|
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9811-0101 |
● |
|
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0102- |
● |
|
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
L=230
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9811-9901 |
|
● |
● |
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HG1 ENG(RJH),4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
L=230
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9811-9901 |
|
|
|
● |
|
|
| |
19 |
03.630 HOSE; AIR FILTER
L=230
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9811-9901 |
|
|
|
|
|
● |
| |
19 |
03.630 HOSE; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
L=230
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9902-0101 |
|
● |
● |
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HG1 ENG(RJH),4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
L=230
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9902-0101 |
|
|
|
● |
|
|
| |
19 |
03.630 HOSE; AIR FILTER
L=230
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9902-0101 |
|
|
|
|
● |
● |
| |
19 |
03.630 HOSE; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
FRAME STRAIGHT TYPE<7KJ>
L=230
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0102-0202 |
|
● |
● |
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
FRAME STRAIGHT TYPE<7KJ>
L=230
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0102-0202 |
|
|
|
● |
|
|
| |
19 |
03.630 HOSE; AIR FILTER
L=230
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0102-0202 |
|
|
|
|
● |
● |
| |
19 |
03.630 HOSE; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
FRAME STRAIGHT TYPE<7KJ>
L=230
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0203- |
|
● |
● |
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
FRAME STRAIGHT TYPE<7KJ>
L=230
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0203- |
|
|
|
● |
|
|
| |
19 |
03.630 HOSE; AIR FILTER
L=230
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0203- |
|
|
|
|
|
● |
| |
19 |
03.630 HOSE; AIR FILTER
4HF1 ENG(RLS),4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
L=230
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0203- |
|
|
|
|
● |
|
| |
19 |
03.630 HOSE; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=180
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9811-0101 |
|
● |
● |
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=180
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9811-0101 |
|
|
|
● |
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=180
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0102- |
|
● |
● |
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=180
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0102- |
|
|
|
● |
|
|
| |
19 |
03.630 HOSE; AIR FILTER
L=260
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9811-9812 |
|
|
|
|
● |
|
| |
19 |
03.630 HOSE; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER(K51)
L=260
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9901-9901 |
|
● |
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
L=260
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9901-9901 |
|
|
|
|
● |
|
| |
19 |
03.630 HOSE; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER(K51)
L=260
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9902-0101 |
|
● |
|
|
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4JB1 ENG(RLF)
TURBOCHARGER(K51)
EXHAUST BRAKE<NF8>
L=260
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0102-0105 |
|
● |
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
BRK WHL LK CONT LSPV<6PH>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97043-776-1 |
01 |
1 |
9811-0101 |
● |
|
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
BRK WHL LK CONT LSPV<6PH>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97043-776-1 |
01 |
1 |
0102- |
● |
|
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
(A)
|
8-97065-472-0 |
01 |
1 |
9811-9812 |
● |
|
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97065-472-0 |
01 |
1 |
9811-9812 |
|
● |
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97065-472-0 |
01 |
1 |
9811-9812 |
|
|
● |
● |
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
(A)
|
8-97065-472-0 |
01 |
1 |
9811-9812 |
|
|
|
|
● |
● |
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
(A)
|
8-97065-472-0 |
01 |
1 |
9901-9911 |
● |
|
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97065-472-0 |
01 |
1 |
9901-9911 |
|
● |
● |
● |
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
(A)
|
8-97065-472-0 |
01 |
1 |
9901-9911 |
|
|
|
|
● |
● |
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
(C)
|
8-97239-246-0 |
01 |
1 |
9912-0101 |
● |
|
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97239-246-0 |
01 |
1 |
9912-0101 |
|
● |
● |
● |
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
(C)
|
8-97239-246-0 |
01 |
1 |
9912-0101 |
|
|
|
|
● |
● |
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
(C)
|
8-97239-246-0 |
01 |
1 |
0102-0202 |
● |
|
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97239-246-0 |
01 |
1 |
0102-0202 |
|
● |
● |
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97239-246-0 |
01 |
1 |
0102-0202 |
|
|
|
● |
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
(C)
|
8-97239-246-0 |
01 |
1 |
0102-0202 |
|
|
|
|
● |
● |
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
(C)
|
8-97239-246-0 |
01 |
1 |
0203- |
● |
|
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97239-246-0 |
01 |
1 |
0203- |
|
● |
● |
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97239-246-0 |
01 |
1 |
0203- |
|
|
|
● |
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
(C)
|
8-97239-246-0 |
01 |
1 |
0203- |
|
|
|
|
|
● |
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HF1 ENG(RLS),4HE1 ENG(RLY)
(C)
|
8-97239-246-0 |
01 |
1 |
0203- |
|
|
|
|
● |
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97090-972-0 |
01 |
1 |
9811-0101 |
● |
|
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97090-972-0 |
01 |
1 |
0102- |
● |
|
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97101-047-0 |
01 |
1 |
9811-0101 |
|
● |
● |
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97101-047-0 |
01 |
1 |
9811-0101 |
|
|
|
● |
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97101-047-0 |
01 |
1 |
0102- |
|
● |
● |
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97101-047-0 |
01 |
1 |
0102- |
|
|
|
● |
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
(C)
|
8-97170-945-0 |
01 |
1 |
9811-9812 |
|
● |
● |
● |
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
(C)
|
8-97170-945-0 |
01 |
1 |
9901-9911 |
|
● |
● |
● |
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JB1 ENG(RLF)
TURBOCHARGER(K51)
EXC. VOLTAGE 24V<7AE>
(C)
|
8-97170-945-0 |
01 |
1 |
9901-9911 |
|
● |
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
(C)
|
8-97219-362-0 |
01 |
1 |
9912-0101 |
|
● |
● |
● |
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JB1 ENG(RLF)
TURBOCHARGER(K51)
EXC. VOLTAGE 24V<7AE>
(C)
|
8-97219-362-0 |
01 |
1 |
9912-0101 |
|
● |
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
(C)
|
8-97219-362-0 |
01 |
1 |
0102-0105 |
|
● |
● |
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JB1 ENG(RLF)
TURBOCHARGER(K51)
EXHAUST BRAKE<NF8>
EXC. VOLTAGE 24V<7AE>
(C)
|
8-97219-362-0 |
01 |
1 |
0102-0105 |
|
● |
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
(C)
|
8-97219-362-0 |
01 |
1 |
0102-0105 |
|
|
|
● |
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
(C)
|
8-97219-362-0 |
01 |
1 |
0106-0106 |
|
● |
● |
● |
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JB1 ENG(RLF)
TURBOCHARGER(K51)
EXHAUST BRAKE<NF8>
EXC. VOLTAGE 24V<7AE>
(C)
|
8-97219-362-0 |
01 |
1 |
0106-0106 |
|
● |
|
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
(C)
|
8-97219-362-0 |
01 |
1 |
0106- |
|
● |
● |
|
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
(C)
|
8-97219-362-0 |
01 |
1 |
0106- |
|
|
|
● |
|
|
| |
93 |
08.917 NUT; MAG VLV
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811-9812 |
● |
● |
● |
|
|
|
| |
93 |
08.917 NUT; MAG VLV
4HG1 ENG(RJH),4HE1 ENG(RLY)
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811-9812 |
|
|
|
● |
|
|
| |
93 |
08.917 NUT; MAG VLV
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9811-9812 |
|
|
|
|
● |
● |
| |
93 |
08.917 NUT; MAG VLV
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9901-0101 |
● |
● |
● |
● |
|
|
| |
93 |
08.917 NUT; MAG VLV
4JB1 ENG(RLF)
TURBOCHARGER(K51)
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9901-0101 |
|
● |
|
|
|
|
| |
93 |
08.917 NUT; MAG VLV
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9901-0101 |
|
|
|
|
● |
● |
| |
93 |
08.917 NUT; MAG VLV
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0102-0105 |
● |
● |
● |
|
|
|
| |
93 |
08.917 NUT; MAG VLV
4JB1 ENG(RLF)
TURBOCHARGER(K51)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0102-0105 |
|
● |
|
|
|
|
| |
93 |
08.917 NUT; MAG VLV
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0102-0105 |
|
|
|
● |
|
|
| |
93 |
08.917 NUT; MAG VLV
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0102-0105 |
|
|
|
|
● |
● |
| |
93 |
08.917 NUT; MAG VLV
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0106 |
● |
● |
● |
● |
|
|
| |
93 |
08.917 NUT; MAG VLV
4JB1 ENG(RLF)
TURBOCHARGER(K51)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0106 |
|
● |
|
|
|
|
| |
93 |
08.917 NUT; MAG VLV
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0106 |
|
|
|
|
● |
● |
| |
93 |
08.917 NUT; MAG VLV
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0202 |
● |
● |
● |
|
|
|
| |
93 |
08.917 NUT; MAG VLV
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0202 |
|
|
|
● |
|
|
| |
93 |
08.917 NUT; MAG VLV
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0106-0202 |
|
|
|
|
● |
● |
| |
93 |
08.917 NUT; MAG VLV
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0203- |
● |
● |
● |
|
|
|
| |
93 |
08.917 NUT; MAG VLV
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0203- |
|
|
|
● |
|
|
| |
93 |
08.917 NUT; MAG VLV
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0203- |
|
|
|
|
|
● |
| |
93 |
08.917 NUT; MAG VLV
4HF1 ENG(RLS),4HE1 ENG(RLY)
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0203- |
|
|
|
|
● |
|
| |
108 |
03.634 BRACKET; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
BRK WHL LK CONT LSPV<6PH>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97106-474-2 |
01 |
1 |
9811-0101 |
● |
|
|
|
|
|
| |
108 |
03.634 BRACKET; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
BRK WHL LK CONT LSPV<6PH>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97106-474-2 |
01 |
1 |
0102- |
● |
|
|
|
|
|
| |
108 |
03.634 BRACKET; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97168-156-1 |
01 |
1 |
9811-0101 |
● |
|
|
|
|
|
| |
108 |
03.634 BRACKET; AIR FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97168-156-1 |
01 |
1 |
0102- |
● |
|
|
|
|
|
| |
112 |
03.640 PLATE; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
BRK WHL LK CONT LSPV<6PH>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97091-766-0 |
01 |
1 |
9811-0101 |
● |
|
|
|
|
|
| |
112 |
03.640 PLATE; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXHAUST BRAKE<NF8>
BRK WHL LK CONT LSPV<6PH>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97091-766-0 |
01 |
1 |
0102- |
● |
|
|
|
|
|
