◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER ▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#22000) — 24 parça

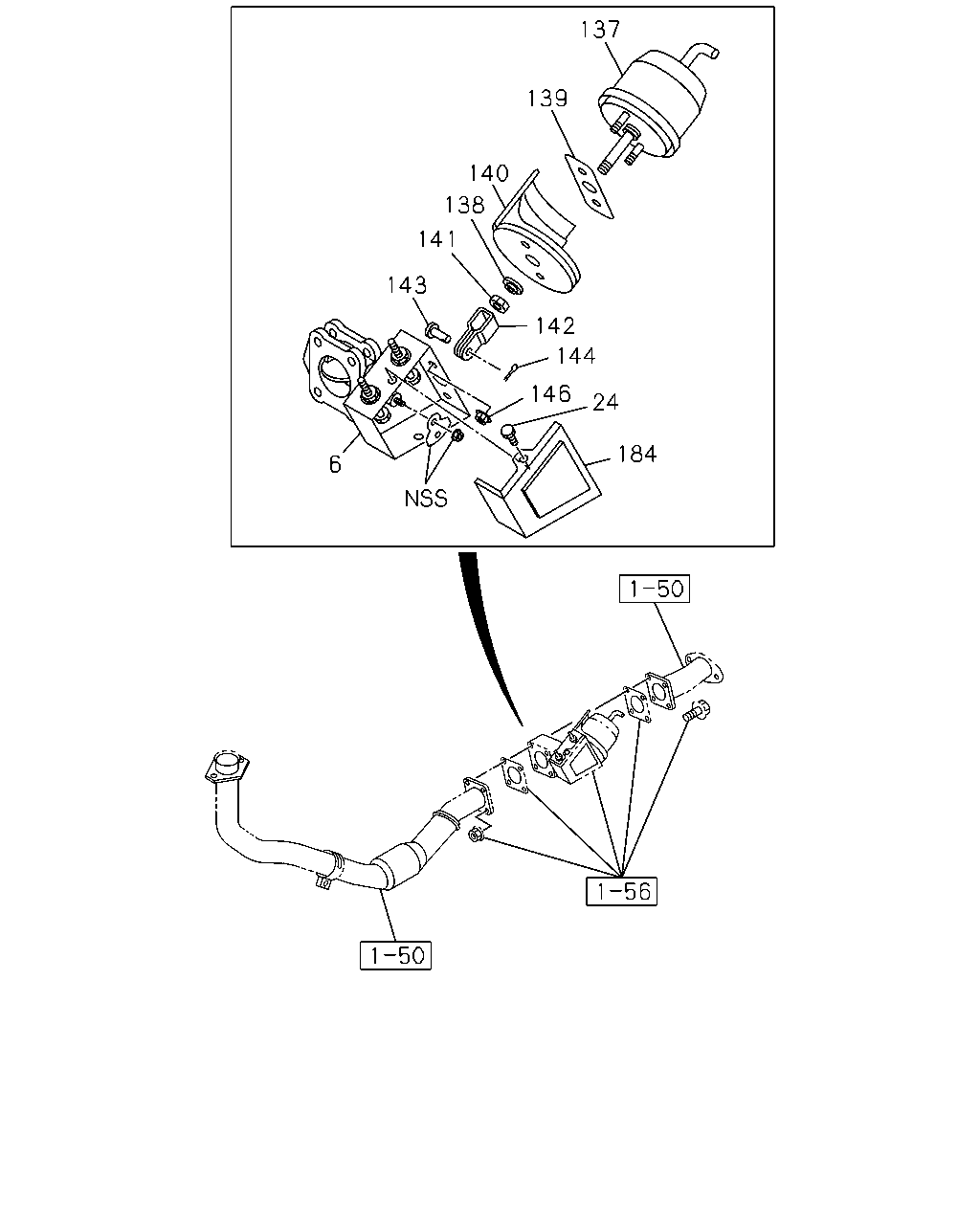

çizim 48254
137 139 140 138 141 143 142 144 146 24 184 6
BalonParca AdiParca NoAdetTipApplied Date
6 03.632 VALVE; EXH BRAKE
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97177-309-0 01 1 9811-0105
6 03.632 VALVE; EXH BRAKE
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97177-309-0 01 1 0106-0106
24 03.634 BOLT; COVER
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 03.444 		8-97065-029-0 02 1 9811-0105
24 03.634 BOLT; COVER
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 0106-0106
137 03.634 CHAMBER; POWER
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97173-327-0 01 1 9811-0105
137 03.634 CHAMBER; POWER
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97173-327-0 01 1 0106-0106
138 03.634 BEARING; EXH BRK VLV
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 03.440 		8-94311-446-0 01 1 9811-0105
138 03.634 BEARING; EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.440 		8-94311-446-0 01 1 0106-0106
139 03.634 GASKET; EXH BRK VLV
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-94328-234-0 01 1 9811-0105
139 03.634 GASKET; EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 0106-0106
140 03.634 INSULATOR; EXH BRK VLV
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97093-854-0 01 1 9811-0105
140 03.634 INSULATOR; EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97093-854-0 01 1 0106-0106
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		9-88510-009-0 01 1 9811-0105
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		9-88510-009-0 01 1 0106-0106
142 03.636 CLEVIS; EXH BRK VLV
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97177-311-0 01 1 9811-0105
142 03.636 CLEVIS; EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97177-311-0 01 1 0106-0106
143 03.636 PIN; EXH BRK VLV
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-94311-452-0 01 1 9811-0105
143 03.636 PIN; EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-94311-452-0 01 1 0106-0106
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97029-428-0 01 1 9811-0105
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97029-428-0 01 1 0106-0106
146 03.634 NUT; EXH BRK VLV
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9811-0105
146 03.634 NUT; EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0106-0106
184 03.634 COVER; BRKT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97311-447-0 01 1 9811-0105
184 03.634 COVER; BRKT
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97311-447-0 01 1 0106-0106
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
