1-35 — CHARGE AIR COOLER (#21995) — 14 parça

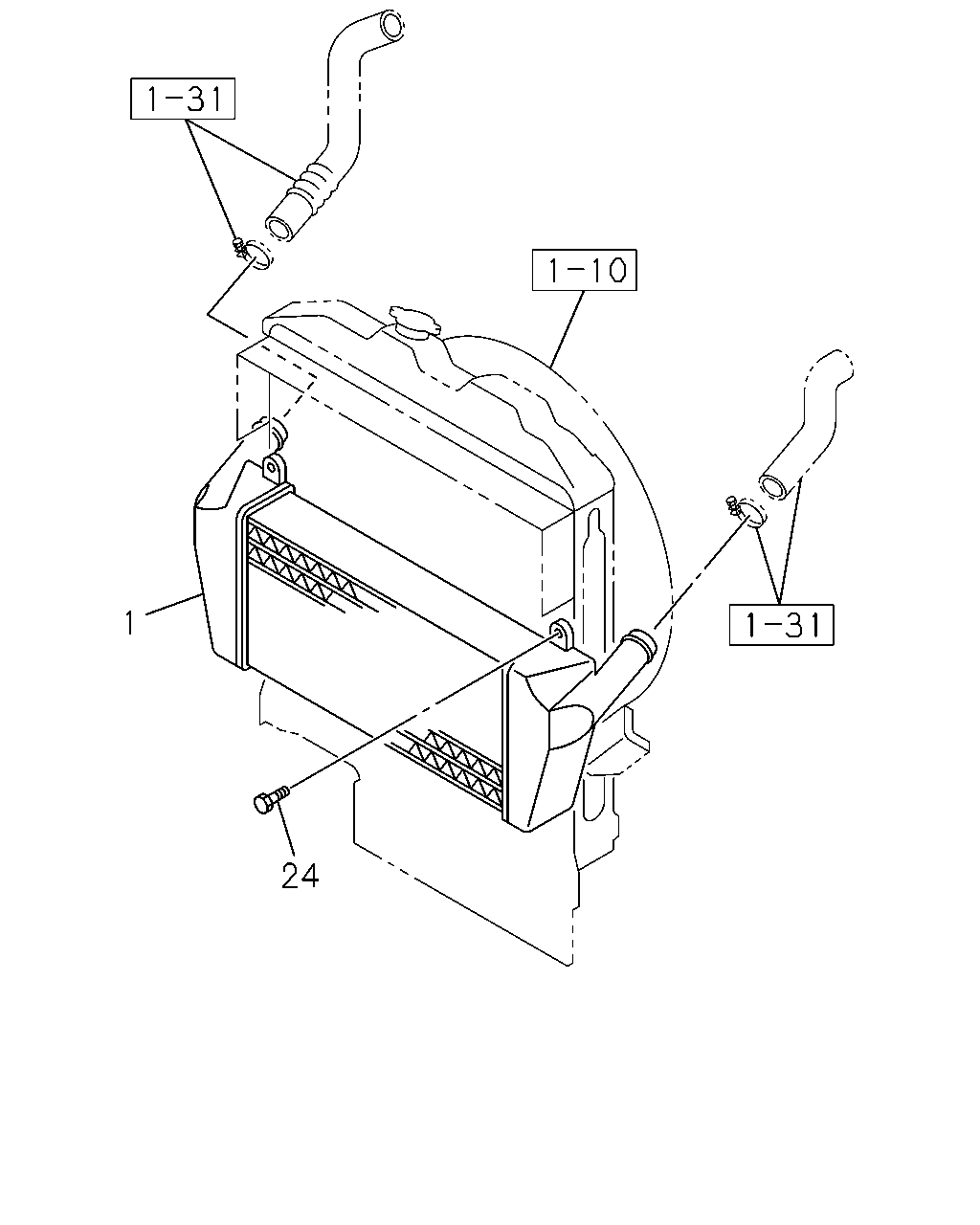

çizim 10911
1 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.374 COOLER; CHARGE AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97218-394-2 01 1 9811- ● ● ● ● ● ●
1 03.374 COOLER; CHARGE AIR
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97210-644-0 01 1 9811-0105 ●
24 03.374 BOLT; COOLER TO RAD
4JB1 ENG(RLF),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 9811-0105 ● ● ● ● ● ●
24 03.374 BOLT; COOLER TO RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0106-0203 ● ● ● ● ● ●
24 03.374 BOLT; COOLER TO RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M8X26 		8-97173-439-0 04 1 0204- ● ● ● ● ● ●

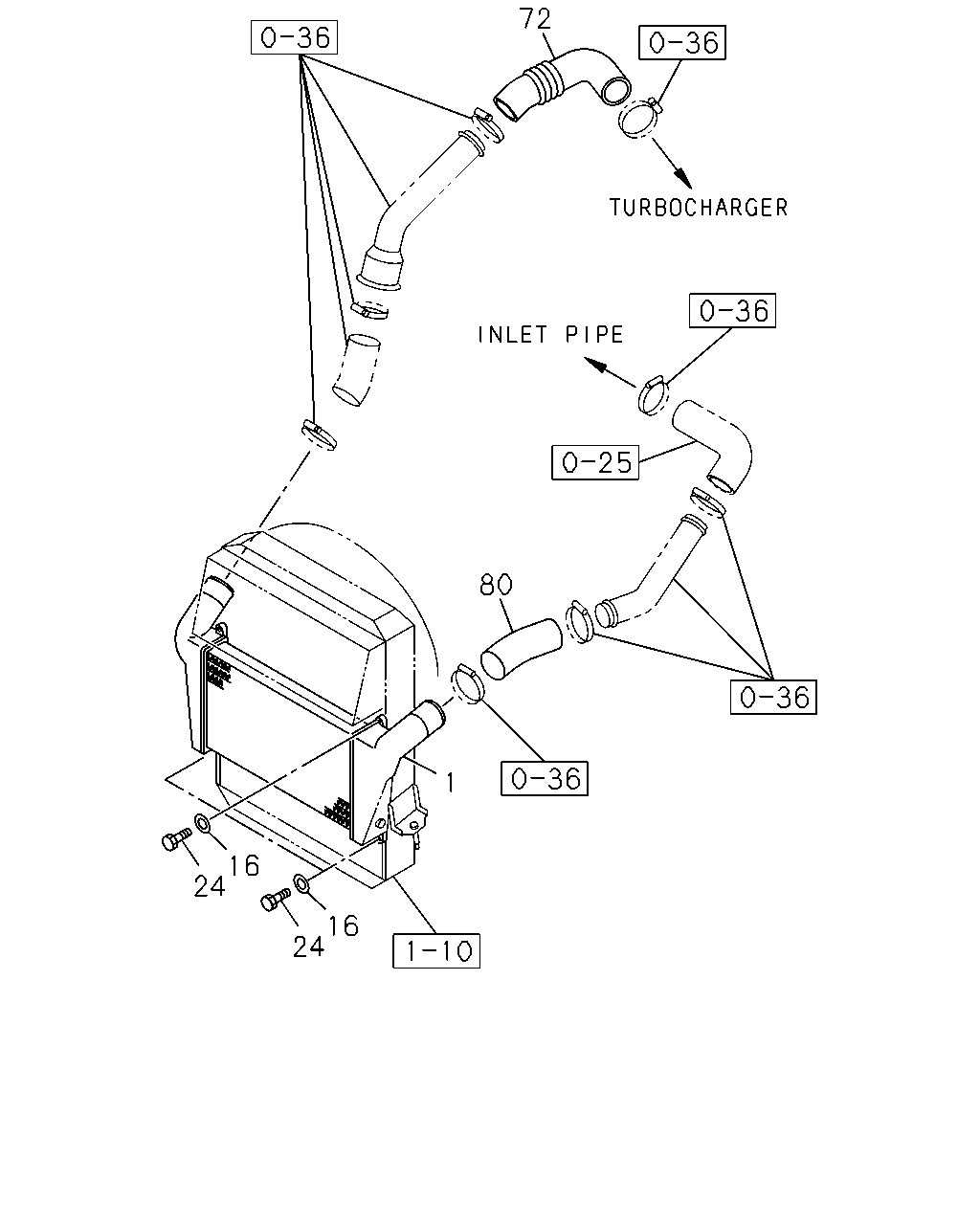

çizim 49280
72 80 1 16 24 16 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.374 COOLER; CHARGE AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97218-394-2 01 1 9811- ● ● ● ● ● ●
1 03.374 COOLER; CHARGE AIR
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97210-644-0 01 1 9811-0105 ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.674 ID=8.4 		9-09160-508-0 04 1 0204- ● ● ● ● ● ●
24 03.374 BOLT; COOLER TO RAD
4JB1 ENG(RLF),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 9811-0105 ● ● ● ● ● ●
24 03.374 BOLT; COOLER TO RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0106-0203 ● ● ● ● ● ●
24 03.374 BOLT; COOLER TO RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M8X26 		8-97173-439-0 04 1 0204- ● ● ● ● ● ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97203-993-0 01 1 9811- ● ● ● ● ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97189-629-0 01 1 9811-9909 ● ● ● ● ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97233-792-0 01 1 9910- ● ● ● ● ● ●
