◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#21993) — 800 parça

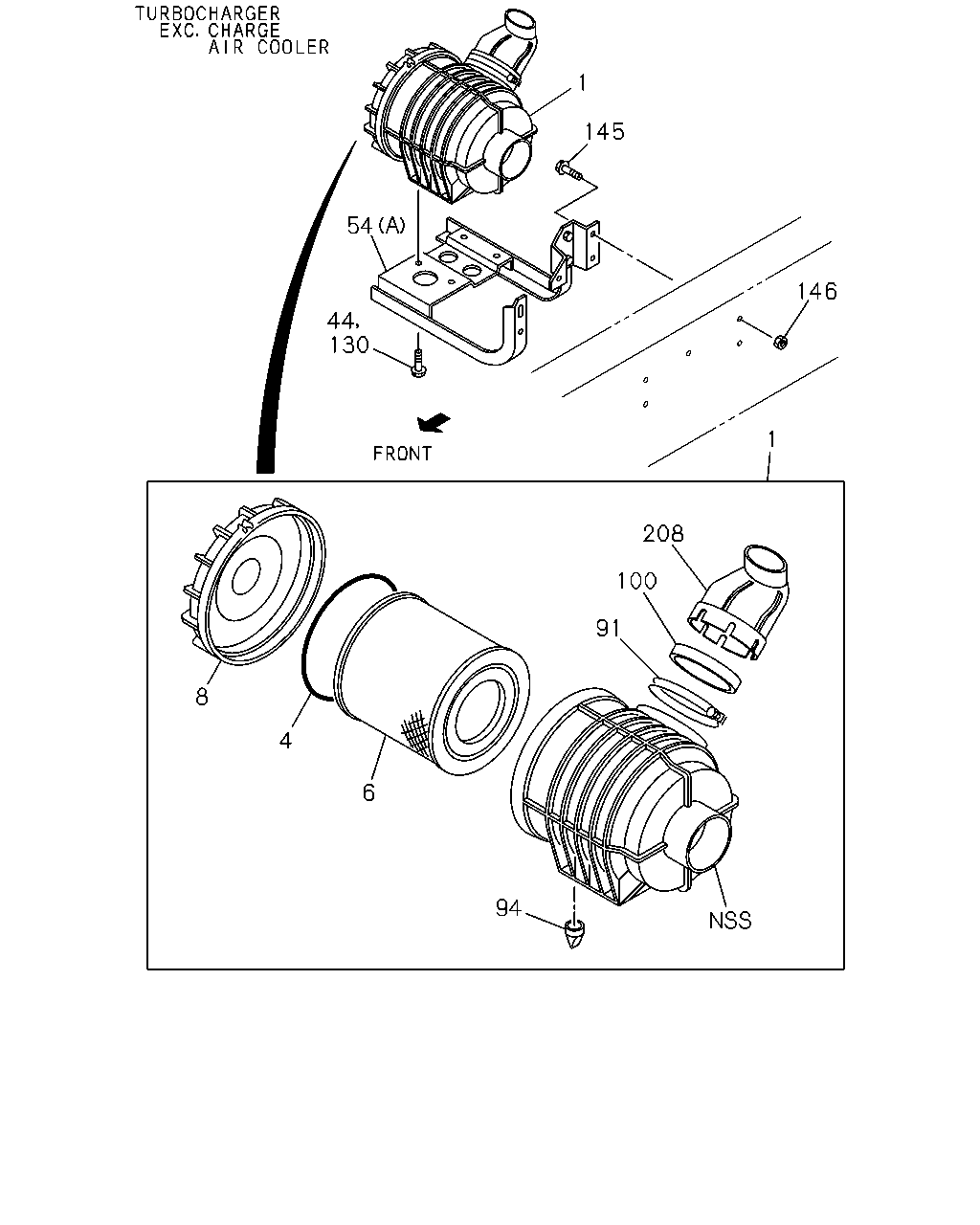

çizim 47341
1 145 54 146 44 130 1 208 100 91 8 4 6 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97162-700-1 01 1 9811-0106 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97162-700-2 01 1 0107-0202 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97162-700-2 01 1 0203- ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) SAUDI ARABIA EQUIPMENT(EU2) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97255-174-2 01 1 0107- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97140-110-0 01 1 9811-9904 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97140-110-0 01 1 9811-9904 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-084-0 01 1 9905-0105 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-084-0 01 1 9905-0105 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-084-2 01 1 0106- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-084-2 01 1 0106- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97189-166-2 01 1 9811-0105 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97189-166-3 01 1 0106-0112 ● ● ● ●
1 03.402 CLEANER ASM; AIR 8-97189-166-3 01 1 0106-0112 ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> CHARGE AIR COOLER<6PL> 		8-97189-166-4 01 1 0201- ● ● ● ●
1 03.402 CLEANER ASM; AIR 8-97189-166-4 01 1 0201- ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97189-262-2 01 1 9811-0105 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97189-262-3 01 1 0106-0112 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> 		8-97189-262-4 01 1 0201- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94326-676-2 01 1 9811-9901 ●
1 03.402 CLEANER ASM; AIR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97062-054-1 01 1 9902-0105 ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HYDRO MASTER<7LT> EXC. TURBOCHARGER(K51) 		8-97162-701-2 01 1 9811- ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-676-1 01 1 9811-0202 ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-676-1 01 1 0203- ● ● ● ●
1 03.402 CLEANER ASM; AIR
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97214-829-1 01 1 9811-0105 ●
1 03.402 CLEANER ASM; AIR
EURO2 SPECIFICATION<7AF> 		8-97214-829-3 01 1 0106-0202 ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) EURO2 SPECIFICATION<7AF> CHARGE AIR COOLER<6PL> 		8-97214-829-3 01 1 0203- ●
1 03.402 CLEANER ASM; AIR
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97214-832-1 01 1 9811-0105 ●
1 03.402 CLEANER ASM; AIR
EXC. EURO2 SPECIFICATION<7AF> 		8-97214-832-3 01 1 0106-0202 ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97214-832-3 01 1 0203- ●
4 03.403 GASKET; COVER TO BODY
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-092-0 01 1 9905-0105 ● ● ● ● ●
4 03.403 GASKET; COVER TO BODY
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-092-0 01 1 9905-0105 ● ● ● ●
4 03.403 GASKET; COVER TO BODY
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-092-0 01 1 0106- ● ● ● ●
4 03.403 GASKET; COVER TO BODY
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-092-0 01 1 0106- ● ● ● ●
4 03.403 GASKET; COVER TO BODY
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94336-334-0 01 1 9811-0105 ●
4 03.403 GASKET; COVER TO BODY
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-94361-137-0 01 1 9811- ● ● ● ●
6 03.410 FILTER; ACL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-94430-250-0 01 1 9811- ● ● ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94156-052-0 01 1 9811-0105 ● ● ● ●
6 03.410 FILTER; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94156-052-0 01 1 9811-0105 ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94156-052-0 01 1 0106-0202 ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94156-052-0 01 1 0203- ● ● ● ● ●
6 03.410 FILTER; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97062-294-0 01 1 9811-0105 ● ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97062-294-0 01 1 9811-0105 ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97062-294-0 01 1 0106- ● ● ● ●
6 03.410 FILTER; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97062-294-0 01 1 0106- ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97173-027-0 01 1 9811- ● ● ● ●
8 03.410 COVER ASM; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-97093-023-0 01 1 9811- ● ● ● ● ●
8 03.410 COVER ASM; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-074-0 01 1 9811-9904 ● ● ● ● ●
8 03.410 COVER ASM; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-074-0 01 1 9811-9904 ● ● ● ●
8 03.410 COVER ASM; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-090-0 01 1 9905-0105 ● ● ● ● ●
8 03.410 COVER ASM; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-090-0 01 1 9905-0105 ● ● ● ●
8 03.410 COVER ASM; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-090-0 01 1 0106- ● ● ● ●
8 03.410 COVER ASM; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-090-0 01 1 0106- ● ● ● ●
8 03.410 COVER ASM; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94336-333-0 01 1 9811-0105 ●
44 03.403 BOLT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9811-0105 ● ● ● ●
44 03.403 BOLT; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9811-0105 ●
44 03.403 BOLT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0106-0202 ● ● ● ●
44 03.403 BOLT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0203- ● ● ● ● ●
44 03.403 BOLT; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9811-0105 ● ● ● ● ●
44 03.403 BOLT; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9811-0105 ● ● ● ●
44 03.403 BOLT; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ● ● ● ●
44 03.403 BOLT; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ● ● ● ●
54 03.405 BRACKET; ACL
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97106-928-0 01 1 9811- ●
54 03.405 BRACKET; ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4>,FRAME STRAIGHT TYPE<7KJ> (E) 		8-97106-928-0 01 1 9811- ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97042-040-2 01 1 9811- ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (E) 		8-97104-407-0 01 1 9811- ● ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4>,CHARGE AIR COOLER<6PL> (A) 		8-97096-710-0 01 1 9811-0105 ● ● ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4>,CHARGE AIR COOLER<6PL> (A) 		8-97096-710-0 01 1 0106- ● ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B) 		8-97188-598-0 01 1 9811- ● ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> (A) 		8-97187-132-0 01 1 9811-0105 ● ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> (A) 		8-97187-132-0 01 1 0106- ● ● ● ●
54 03.405 BRACKET; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (D) 		8-94455-317-1 01 1 9811-0105 ●
54 03.405 BRACKET; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (D) 		8-97300-249-0 01 1 0106-0106 ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97164-474-0 01 1 9811-0105 ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97164-474-0 01 1 0106- ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97214-804-0 01 1 9811-0105 ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97214-804-0 01 1 0106- ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (F) 		8-97093-583-0 01 1 9811-0202 ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (F) 		8-97093-583-0 01 1 0203- ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97092-941-0 01 1 9811- ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (G) 		8-97146-331-0 01 1 9811-9901 ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (G) 		8-97146-331-0 01 1 9902- ● ● ●
54 03.405 BRACKET; ACL
CHARGE AIR COOLER<6PL> (B) 		8-97214-833-3 01 1 9811-0105 ●
54 03.405 BRACKET; ACL
(B) 		8-97214-833-3 01 1 0106-0202 ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B) 		8-97214-833-3 01 1 0203- ●
91 03.403 CLAMP
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-97093-696-2 01 1 9811- ● ● ● ● ●
91 03.403 CLAMP
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-695-1 01 1 9811-0105 ● ● ● ● ●
91 03.403 CLAMP
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-695-1 01 1 9811-0105 ● ● ● ●
91 03.403 CLAMP
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-695-1 01 1 0106- ● ● ● ●
91 03.403 CLAMP
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-695-1 01 1 0106- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-14219-075-0 01 1 9811- ● ● ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94447-157-0 01 1 9811-0105 ● ● ● ●
94 03.415 VALVE; VACUATOR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94447-157-0 01 1 9811-0105 ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94447-157-0 01 1 0106-0202 ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94447-157-0 01 1 0203- ● ● ● ● ●
94 03.415 VALVE; VACUATOR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-694-0 01 1 9811-0105 ● ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-694-0 01 1 9811-0105 ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-694-0 01 1 0106- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-694-0 01 1 0106- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (A) 		8-94439-205-0 01 1 9811- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B) 		8-97148-258-0 01 1 9811-0202 ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B) 		8-97148-258-0 01 1 0203- ● ● ● ●
100 03.417 ADAPTER; ELBOW
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-94430-259-0 01 1 9811- ● ● ● ● ● ●
100 03.417 ADAPTER; ELBOW
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-075-0 01 1 9811-0105 ● ● ● ● ●
100 03.417 ADAPTER; ELBOW
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-075-0 01 1 9811-0105 ● ● ● ●
100 03.417 ADAPTER; ELBOW
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-075-0 01 1 0106- ● ● ● ●
100 03.417 ADAPTER; ELBOW
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-075-0 01 1 0106- ● ● ● ●
130 03.405 BOLT; BRKT TO ACL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9811- ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 9811-0101 ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 9811-0101 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0102-0105 ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0102-0105 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0106- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0106- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0102-0105 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0102-0105 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0102-0105 ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0106-0202 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0106-0202 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0203- ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0203- ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 9811-0101 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 9811-0101 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 9811-0101 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 03 1 0102- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 9811-0202 ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 9811-0202 ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 0203- ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 0203- ●
145 03.405 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 0203- ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 9811-0105 ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0106-0202 ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0106-0202 ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0203- ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0203- ●
145 03.405 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0203- ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 03 1 9811-0101 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0102- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0101 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0101 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 05 1 9811-0105 ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 05 1 0106- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9811-0102 ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9811-0102 ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0103-0202 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0103-0202 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0203-0204 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0203-0204 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0205- ● ● ● ●
208 03.407 DUCT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-97103-478-1 01 1 9811- ● ● ● ● ●
208 03.407 DUCT; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97070-725-0 01 1 9811-9904 ● ● ● ● ●
208 03.407 DUCT; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97070-725-0 01 1 9811-9904 ● ● ● ●
208 03.407 DUCT; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97230-869-0 01 1 9905-0105 ● ● ● ● ●
208 03.407 DUCT; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97230-869-0 01 1 9905-0105 ● ● ● ●
208 03.407 DUCT; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97230-869-0 01 1 0106- ● ● ● ●
208 03.407 DUCT; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97230-869-0 01 1 0106- ● ● ● ●

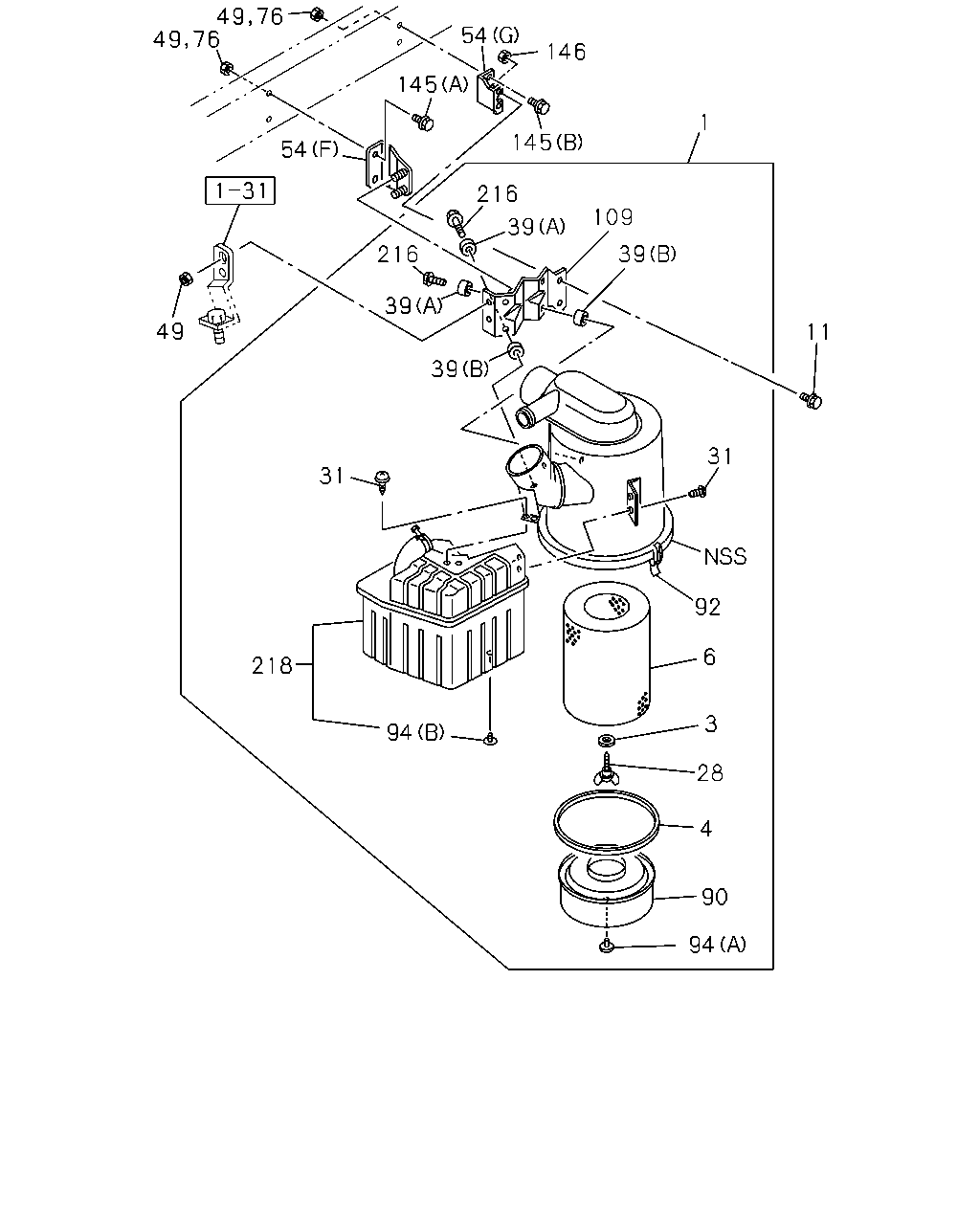

çizim 48013
54 146 145 1 145 54 216 109 39 39 216 39 49 11 39 31 31 92 6 218 3 94 28 4 90 94 49 49 76 76
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97162-700-1 01 1 9811-0106 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97162-700-2 01 1 0107-0202 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97162-700-2 01 1 0203- ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) SAUDI ARABIA EQUIPMENT(EU2) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97255-174-2 01 1 0107- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97140-110-0 01 1 9811-9904 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97140-110-0 01 1 9811-9904 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-084-0 01 1 9905-0105 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-084-0 01 1 9905-0105 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-084-2 01 1 0106- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-084-2 01 1 0106- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97189-166-2 01 1 9811-0105 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97189-166-3 01 1 0106-0112 ● ● ● ●
1 03.402 CLEANER ASM; AIR 8-97189-166-3 01 1 0106-0112 ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> CHARGE AIR COOLER<6PL> 		8-97189-166-4 01 1 0201- ● ● ● ●
1 03.402 CLEANER ASM; AIR 8-97189-166-4 01 1 0201- ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97189-262-2 01 1 9811-0105 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97189-262-3 01 1 0106-0112 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> 		8-97189-262-4 01 1 0201- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94326-676-2 01 1 9811-9901 ●
1 03.402 CLEANER ASM; AIR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97062-054-1 01 1 9902-0105 ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HYDRO MASTER<7LT> EXC. TURBOCHARGER(K51) 		8-97162-701-2 01 1 9811- ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-676-1 01 1 9811-0202 ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-676-1 01 1 0203- ● ● ● ●
1 03.402 CLEANER ASM; AIR
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97214-829-1 01 1 9811-0105 ●
1 03.402 CLEANER ASM; AIR
EURO2 SPECIFICATION<7AF> 		8-97214-829-3 01 1 0106-0202 ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) EURO2 SPECIFICATION<7AF> CHARGE AIR COOLER<6PL> 		8-97214-829-3 01 1 0203- ●
1 03.402 CLEANER ASM; AIR
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97214-832-1 01 1 9811-0105 ●
1 03.402 CLEANER ASM; AIR
EXC. EURO2 SPECIFICATION<7AF> 		8-97214-832-3 01 1 0106-0202 ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97214-832-3 01 1 0203- ●
3 03.403 WASHER; SEAL,WING NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-94447-990-0 01 1 9811- ● ● ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14219-225-0 02 1 9811-0105 ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		1-14219-225-0 02 1 9811-0105 ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14219-225-0 02 1 0106-0202 ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14219-225-0 02 1 0203- ● ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		9-14219-279-0 01 1 9811-0202 ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		9-14219-279-0 01 1 0203- ● ● ● ●
4 03.403 GASKET; COVER TO BODY
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-092-0 01 1 9905-0105 ● ● ● ● ●
4 03.403 GASKET; COVER TO BODY
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-092-0 01 1 9905-0105 ● ● ● ●
4 03.403 GASKET; COVER TO BODY
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-092-0 01 1 0106- ● ● ● ●
4 03.403 GASKET; COVER TO BODY
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-092-0 01 1 0106- ● ● ● ●
4 03.403 GASKET; COVER TO BODY
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94336-334-0 01 1 9811-0105 ●
4 03.403 GASKET; COVER TO BODY
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-94361-137-0 01 1 9811- ● ● ● ●
6 03.410 FILTER; ACL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-94430-250-0 01 1 9811- ● ● ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94156-052-0 01 1 9811-0105 ● ● ● ●
6 03.410 FILTER; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94156-052-0 01 1 9811-0105 ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94156-052-0 01 1 0106-0202 ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94156-052-0 01 1 0203- ● ● ● ● ●
6 03.410 FILTER; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97062-294-0 01 1 9811-0105 ● ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97062-294-0 01 1 9811-0105 ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97062-294-0 01 1 0106- ● ● ● ●
6 03.410 FILTER; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97062-294-0 01 1 0106- ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97173-027-0 01 1 9811- ● ● ● ●
11 03.403 BOLT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9811-0105 ● ● ●
11 03.403 BOLT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0106-0202 ● ●
11 03.403 BOLT; ACL
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0106-0202 ●
11 03.403 BOLT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0203- ● ●
11 03.403 BOLT; ACL
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0203- ●
11 03.403 BOLT; ACL
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0203- ●
28 03.403 BOLT; WING,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		9-14217-090-0 01 1 9811- ● ● ● ●
31 03.406 SCREW; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 03.402 		8-97100-001-0 04 1 9811- ● ● ● ●
39 03.403 RUBBER; MTG,BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (A) 		8-97100-002-0 04 1 9811- ● ● ● ●
39 03.403 RUBBER; MTG,BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B) 		8-97100-007-0 02 1 9811- ● ● ● ●
49 03.403 NUT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811- ● ● ● ●
54 03.405 BRACKET; ACL
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97106-928-0 01 1 9811- ●
54 03.405 BRACKET; ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4>,FRAME STRAIGHT TYPE<7KJ> (E) 		8-97106-928-0 01 1 9811- ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97042-040-2 01 1 9811- ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (E) 		8-97104-407-0 01 1 9811- ● ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4>,CHARGE AIR COOLER<6PL> (A) 		8-97096-710-0 01 1 9811-0105 ● ● ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4>,CHARGE AIR COOLER<6PL> (A) 		8-97096-710-0 01 1 0106- ● ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B) 		8-97188-598-0 01 1 9811- ● ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> (A) 		8-97187-132-0 01 1 9811-0105 ● ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> (A) 		8-97187-132-0 01 1 0106- ● ● ● ●
54 03.405 BRACKET; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (D) 		8-94455-317-1 01 1 9811-0105 ●
54 03.405 BRACKET; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (D) 		8-97300-249-0 01 1 0106-0106 ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97164-474-0 01 1 9811-0105 ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97164-474-0 01 1 0106- ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97214-804-0 01 1 9811-0105 ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97214-804-0 01 1 0106- ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (F) 		8-97093-583-0 01 1 9811-0202 ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (F) 		8-97093-583-0 01 1 0203- ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97092-941-0 01 1 9811- ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (G) 		8-97146-331-0 01 1 9811-9901 ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (G) 		8-97146-331-0 01 1 9902- ● ● ●
54 03.405 BRACKET; ACL
CHARGE AIR COOLER<6PL> (B) 		8-97214-833-3 01 1 9811-0105 ●
54 03.405 BRACKET; ACL
(B) 		8-97214-833-3 01 1 0106-0202 ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B) 		8-97214-833-3 01 1 0203- ●
76 03.405 NUT; BRKT TO ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0105 ● ● ●
76 03.405 NUT; BRKT TO ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0106-0202 ● ●
76 03.405 NUT; BRKT TO ACL
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0106-0202 ●
76 03.405 NUT; BRKT TO ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0203- ● ●
76 03.405 NUT; BRKT TO ACL
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0203- ●
76 03.405 NUT; BRKT TO ACL
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0203- ●
90 03.406 CUP; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97215-621-0 01 1 9811- ● ● ● ●
92 03.405 CLIP; WIRE,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-94118-230-0 03 1 9811- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-14219-075-0 01 1 9811- ● ● ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94447-157-0 01 1 9811-0105 ● ● ● ●
94 03.415 VALVE; VACUATOR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94447-157-0 01 1 9811-0105 ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94447-157-0 01 1 0106-0202 ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94447-157-0 01 1 0203- ● ● ● ● ●
94 03.415 VALVE; VACUATOR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-694-0 01 1 9811-0105 ● ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-694-0 01 1 9811-0105 ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-694-0 01 1 0106- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-694-0 01 1 0106- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (A) 		8-94439-205-0 01 1 9811- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B) 		8-97148-258-0 01 1 9811-0202 ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B) 		8-97148-258-0 01 1 0203- ● ● ● ●
109 03.405 STAY; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97215-622-0 01 1 9811- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 9811-0101 ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 9811-0101 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0102-0105 ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0102-0105 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0106- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0106- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0102-0105 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0102-0105 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0102-0105 ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0106-0202 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0106-0202 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0203- ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0203- ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 9811-0101 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 9811-0101 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 9811-0101 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 03 1 0102- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 9811-0202 ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 9811-0202 ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 0203- ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 0203- ●
145 03.405 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 0203- ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 9811-0105 ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0106-0202 ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0106-0202 ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0203- ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0203- ●
145 03.405 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0203- ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 03 1 9811-0101 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0102- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0101 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0101 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 05 1 9811-0105 ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 05 1 0106- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9811-0102 ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9811-0102 ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0103-0202 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0103-0202 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0203-0204 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0203-0204 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0205- ● ● ● ●
216 03.402 BOLT; ACL TO SILENCER
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97126-074-0 04 1 9811- ● ● ● ●
218 03.417 RESONATOR; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97106-120-1 01 1 9811- ● ● ● ●

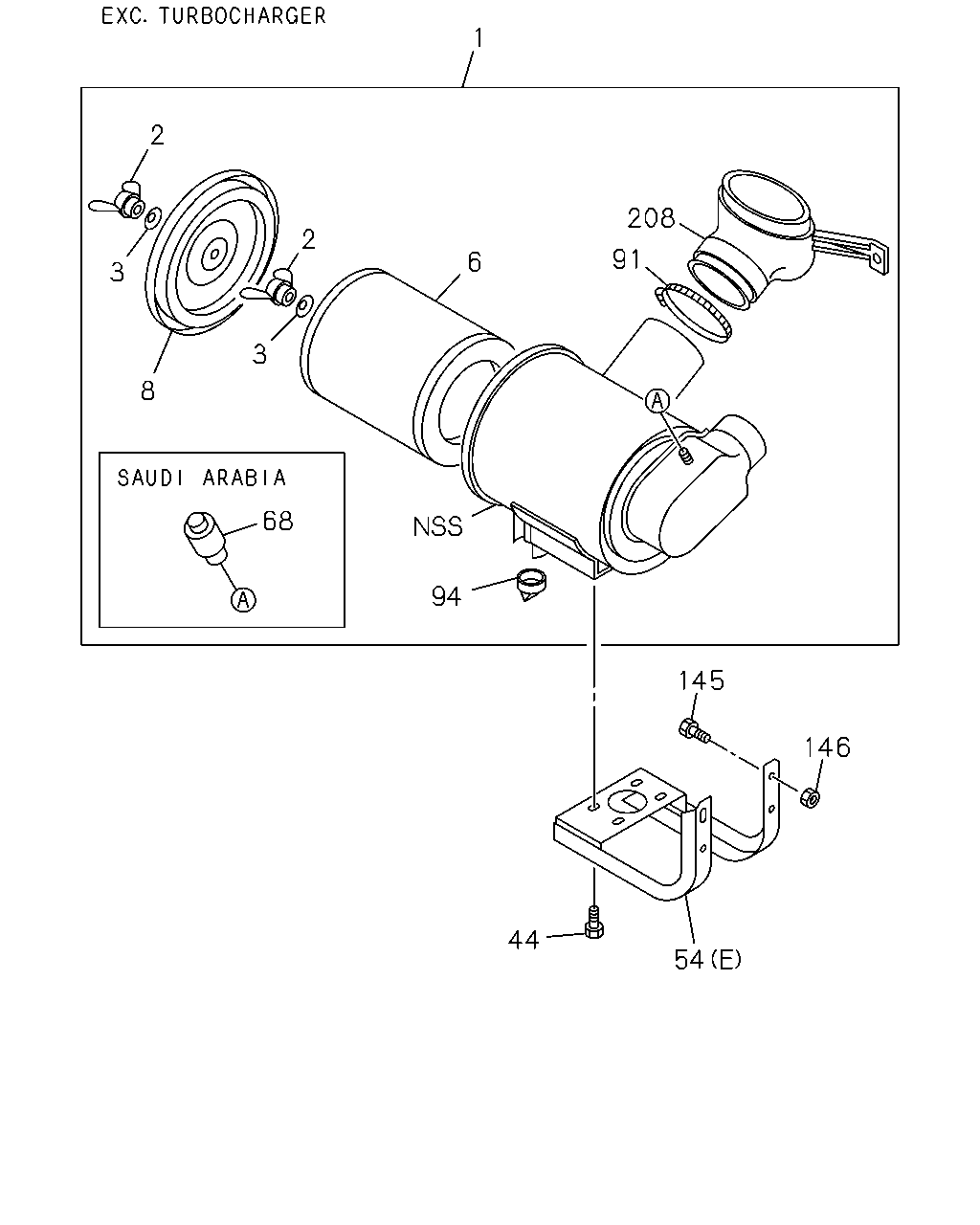

çizim 48301
1 2 208 2 91 6 3 3 8 68 94 145 146 44 54
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97162-700-1 01 1 9811-0106 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97162-700-2 01 1 0107-0202 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97162-700-2 01 1 0203- ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) SAUDI ARABIA EQUIPMENT(EU2) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97255-174-2 01 1 0107- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97140-110-0 01 1 9811-9904 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97140-110-0 01 1 9811-9904 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-084-0 01 1 9905-0105 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-084-0 01 1 9905-0105 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-084-2 01 1 0106- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-084-2 01 1 0106- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97189-166-2 01 1 9811-0105 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97189-166-3 01 1 0106-0112 ● ● ● ●
1 03.402 CLEANER ASM; AIR 8-97189-166-3 01 1 0106-0112 ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> CHARGE AIR COOLER<6PL> 		8-97189-166-4 01 1 0201- ● ● ● ●
1 03.402 CLEANER ASM; AIR 8-97189-166-4 01 1 0201- ●

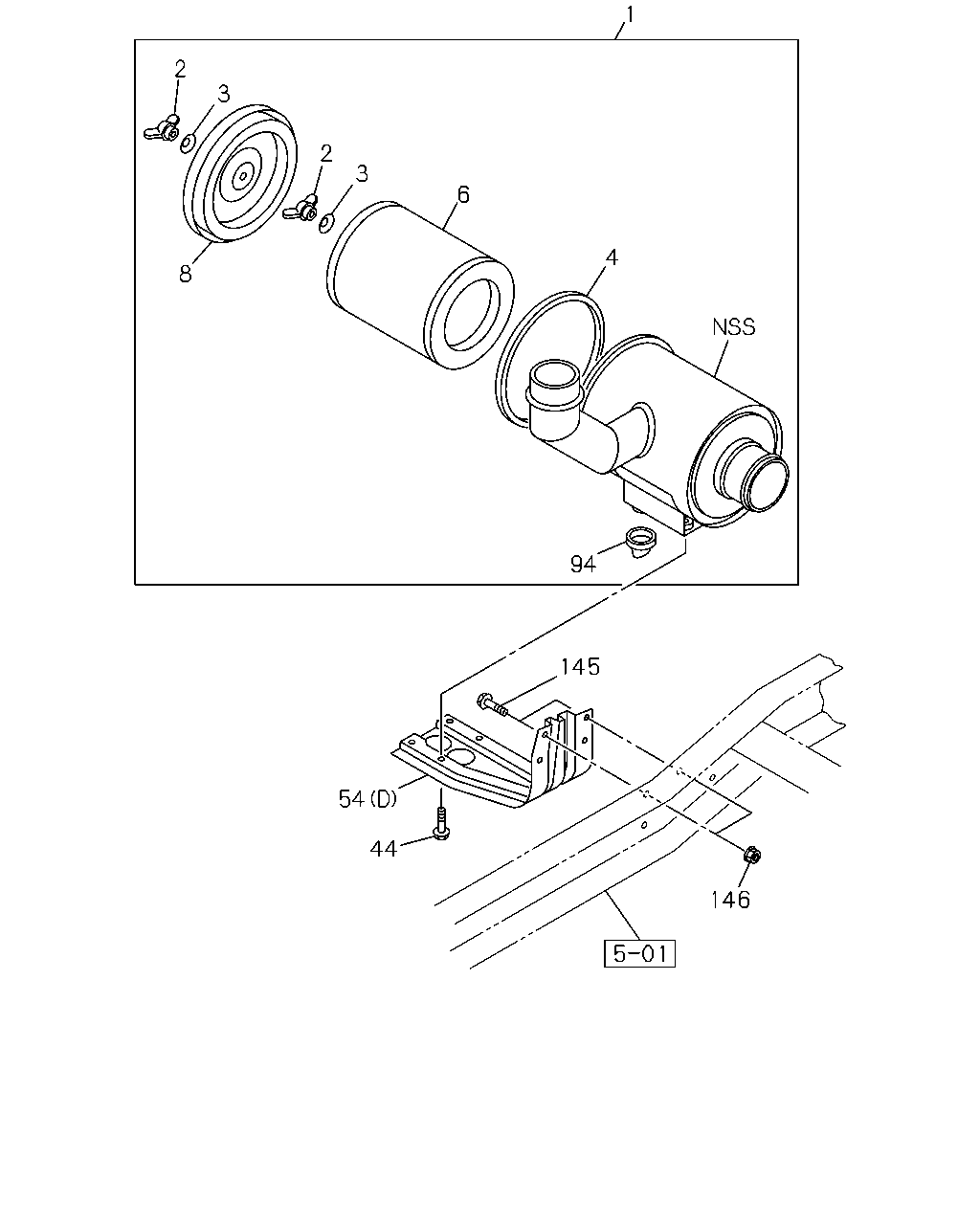

1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97189-262-2 01 1 9811-0105 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97189-262-3 01 1 0106-0112 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> 		8-97189-262-4 01 1 0201- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94326-676-2 01 1 9811-9901 ●
1 03.402 CLEANER ASM; AIR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97062-054-1 01 1 9902-0105 ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HYDRO MASTER<7LT> EXC. TURBOCHARGER(K51) 		8-97162-701-2 01 1 9811- ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-676-1 01 1 9811-0202 ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-676-1 01 1 0203- ● ● ● ●
1 03.402 CLEANER ASM; AIR
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97214-829-1 01 1 9811-0105 ●
1 03.402 CLEANER ASM; AIR
EURO2 SPECIFICATION<7AF> 		8-97214-829-3 01 1 0106-0202 ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) EURO2 SPECIFICATION<7AF> CHARGE AIR COOLER<6PL> 		8-97214-829-3 01 1 0203- ●
1 03.402 CLEANER ASM; AIR
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97214-832-1 01 1 9811-0105 ●
1 03.402 CLEANER ASM; AIR
EXC. EURO2 SPECIFICATION<7AF> 		8-97214-832-3 01 1 0106-0202 ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97214-832-3 01 1 0203- ●
2 03.403 NUT; WING,ELEMENT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-94447-989-0 01 1 9811- ● ● ● ● ● ●
2 03.403 NUT; WING,ELEMENT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14217-068-0 02 1 9811-0105 ● ● ● ●
2 03.403 NUT; WING,ELEMENT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		1-14217-068-0 02 1 9811-0105 ●
2 03.403 NUT; WING,ELEMENT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14217-068-0 02 1 0106-0202 ● ● ● ●
2 03.403 NUT; WING,ELEMENT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14217-068-0 02 1 0203- ● ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-94447-990-0 01 1 9811- ● ● ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14219-225-0 02 1 9811-0105 ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		1-14219-225-0 02 1 9811-0105 ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14219-225-0 02 1 0106-0202 ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14219-225-0 02 1 0203- ● ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		9-14219-279-0 01 1 9811-0202 ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		9-14219-279-0 01 1 0203- ● ● ● ●
6 03.410 FILTER; ACL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-94430-250-0 01 1 9811- ● ● ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94156-052-0 01 1 9811-0105 ● ● ● ●
6 03.410 FILTER; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94156-052-0 01 1 9811-0105 ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94156-052-0 01 1 0106-0202 ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94156-052-0 01 1 0203- ● ● ● ● ●
6 03.410 FILTER; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97062-294-0 01 1 9811-0105 ● ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97062-294-0 01 1 9811-0105 ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97062-294-0 01 1 0106- ● ● ● ●
6 03.410 FILTER; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97062-294-0 01 1 0106- ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97173-027-0 01 1 9811- ● ● ● ●
8 03.410 COVER ASM; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-97093-023-0 01 1 9811- ● ● ● ● ●
8 03.410 COVER ASM; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-074-0 01 1 9811-9904 ● ● ● ● ●
8 03.410 COVER ASM; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-074-0 01 1 9811-9904 ● ● ● ●
8 03.410 COVER ASM; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-090-0 01 1 9905-0105 ● ● ● ● ●
8 03.410 COVER ASM; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-090-0 01 1 9905-0105 ● ● ● ●
8 03.410 COVER ASM; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-090-0 01 1 0106- ● ● ● ●
8 03.410 COVER ASM; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-090-0 01 1 0106- ● ● ● ●
8 03.410 COVER ASM; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94336-333-0 01 1 9811-0105 ●
44 03.403 BOLT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9811-0105 ● ● ● ●
44 03.403 BOLT; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9811-0105 ●
44 03.403 BOLT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0106-0202 ● ● ● ●
44 03.403 BOLT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0203- ● ● ● ● ●
44 03.403 BOLT; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9811-0105 ● ● ● ● ●
44 03.403 BOLT; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9811-0105 ● ● ● ●
44 03.403 BOLT; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ● ● ● ●
44 03.403 BOLT; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ● ● ● ●
54 03.405 BRACKET; ACL
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97106-928-0 01 1 9811- ●
54 03.405 BRACKET; ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4>,FRAME STRAIGHT TYPE<7KJ> (E) 		8-97106-928-0 01 1 9811- ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97042-040-2 01 1 9811- ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (E) 		8-97104-407-0 01 1 9811- ● ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4>,CHARGE AIR COOLER<6PL> (A) 		8-97096-710-0 01 1 9811-0105 ● ● ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4>,CHARGE AIR COOLER<6PL> (A) 		8-97096-710-0 01 1 0106- ● ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B) 		8-97188-598-0 01 1 9811- ● ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> (A) 		8-97187-132-0 01 1 9811-0105 ● ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> (A) 		8-97187-132-0 01 1 0106- ● ● ● ●
54 03.405 BRACKET; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (D) 		8-94455-317-1 01 1 9811-0105 ●
54 03.405 BRACKET; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (D) 		8-97300-249-0 01 1 0106-0106 ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97164-474-0 01 1 9811-0105 ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97164-474-0 01 1 0106- ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97214-804-0 01 1 9811-0105 ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97214-804-0 01 1 0106- ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (F) 		8-97093-583-0 01 1 9811-0202 ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (F) 		8-97093-583-0 01 1 0203- ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97092-941-0 01 1 9811- ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (G) 		8-97146-331-0 01 1 9811-9901 ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (G) 		8-97146-331-0 01 1 9902- ● ● ●
54 03.405 BRACKET; ACL
CHARGE AIR COOLER<6PL> (B) 		8-97214-833-3 01 1 9811-0105 ●
54 03.405 BRACKET; ACL
(B) 		8-97214-833-3 01 1 0106-0202 ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B) 		8-97214-833-3 01 1 0203- ●
68 03.415 INDICATOR; SERVICE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) SAUDI ARABIA EQUIPMENT(EU2) AIR INTAKE REAR VERTICAL<KJ3> 		1-14219-212-0 01 1 0107- ● ● ● ●
91 03.403 CLAMP
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-97093-696-2 01 1 9811- ● ● ● ● ●
91 03.403 CLAMP
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-695-1 01 1 9811-0105 ● ● ● ● ●
91 03.403 CLAMP
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-695-1 01 1 9811-0105 ● ● ● ●
91 03.403 CLAMP
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-695-1 01 1 0106- ● ● ● ●
91 03.403 CLAMP
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-695-1 01 1 0106- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-14219-075-0 01 1 9811- ● ● ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94447-157-0 01 1 9811-0105 ● ● ● ●
94 03.415 VALVE; VACUATOR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94447-157-0 01 1 9811-0105 ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94447-157-0 01 1 0106-0202 ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94447-157-0 01 1 0203- ● ● ● ● ●
94 03.415 VALVE; VACUATOR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-694-0 01 1 9811-0105 ● ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-694-0 01 1 9811-0105 ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-694-0 01 1 0106- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-694-0 01 1 0106- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (A) 		8-94439-205-0 01 1 9811- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B) 		8-97148-258-0 01 1 9811-0202 ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B) 		8-97148-258-0 01 1 0203- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 9811-0101 ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 9811-0101 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0102-0105 ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0102-0105 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0106- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0106- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0102-0105 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0102-0105 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0102-0105 ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0106-0202 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0106-0202 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0203- ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0203- ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 9811-0101 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 9811-0101 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 9811-0101 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 03 1 0102- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 9811-0202 ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 9811-0202 ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 0203- ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 0203- ●
145 03.405 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 0203- ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 9811-0105 ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0106-0202 ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0106-0202 ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0203- ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0203- ●
145 03.405 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0203- ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 03 1 9811-0101 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0102- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0101 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0101 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 05 1 9811-0105 ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 05 1 0106- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9811-0102 ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9811-0102 ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0103-0202 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0103-0202 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0203-0204 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0203-0204 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0205- ● ● ● ●
208 03.407 DUCT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-97103-478-1 01 1 9811- ● ● ● ● ●
208 03.407 DUCT; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97070-725-0 01 1 9811-9904 ● ● ● ● ●
208 03.407 DUCT; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97070-725-0 01 1 9811-9904 ● ● ● ●
208 03.407 DUCT; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97230-869-0 01 1 9905-0105 ● ● ● ● ●
208 03.407 DUCT; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97230-869-0 01 1 9905-0105 ● ● ● ●
208 03.407 DUCT; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97230-869-0 01 1 0106- ● ● ● ●
208 03.407 DUCT; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97230-869-0 01 1 0106- ● ● ● ●
çizim 48524
1 2 3 99 6 100 94 145 146 54 50 130
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97162-700-1 01 1 9811-0106 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97162-700-2 01 1 0107-0202 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97162-700-2 01 1 0203- ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) SAUDI ARABIA EQUIPMENT(EU2) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97255-174-2 01 1 0107- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97140-110-0 01 1 9811-9904 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97140-110-0 01 1 9811-9904 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-084-0 01 1 9905-0105 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-084-0 01 1 9905-0105 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-084-2 01 1 0106- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-084-2 01 1 0106- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97189-166-2 01 1 9811-0105 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97189-166-3 01 1 0106-0112 ● ● ● ●
1 03.402 CLEANER ASM; AIR 8-97189-166-3 01 1 0106-0112 ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> CHARGE AIR COOLER<6PL> 		8-97189-166-4 01 1 0201- ● ● ● ●
1 03.402 CLEANER ASM; AIR 8-97189-166-4 01 1 0201- ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97189-262-2 01 1 9811-0105 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97189-262-3 01 1 0106-0112 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> 		8-97189-262-4 01 1 0201- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94326-676-2 01 1 9811-9901 ●
1 03.402 CLEANER ASM; AIR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97062-054-1 01 1 9902-0105 ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HYDRO MASTER<7LT> EXC. TURBOCHARGER(K51) 		8-97162-701-2 01 1 9811- ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-676-1 01 1 9811-0202 ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-676-1 01 1 0203- ● ● ● ●
1 03.402 CLEANER ASM; AIR
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97214-829-1 01 1 9811-0105 ●
1 03.402 CLEANER ASM; AIR
EURO2 SPECIFICATION<7AF> 		8-97214-829-3 01 1 0106-0202 ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) EURO2 SPECIFICATION<7AF> CHARGE AIR COOLER<6PL> 		8-97214-829-3 01 1 0203- ●
1 03.402 CLEANER ASM; AIR
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97214-832-1 01 1 9811-0105 ●
1 03.402 CLEANER ASM; AIR
EXC. EURO2 SPECIFICATION<7AF> 		8-97214-832-3 01 1 0106-0202 ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97214-832-3 01 1 0203- ●
2 03.403 NUT; WING,ELEMENT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-94447-989-0 01 1 9811- ● ● ● ● ● ●
2 03.403 NUT; WING,ELEMENT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14217-068-0 02 1 9811-0105 ● ● ● ●
2 03.403 NUT; WING,ELEMENT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		1-14217-068-0 02 1 9811-0105 ●
2 03.403 NUT; WING,ELEMENT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14217-068-0 02 1 0106-0202 ● ● ● ●
2 03.403 NUT; WING,ELEMENT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14217-068-0 02 1 0203- ● ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-94447-990-0 01 1 9811- ● ● ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14219-225-0 02 1 9811-0105 ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		1-14219-225-0 02 1 9811-0105 ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14219-225-0 02 1 0106-0202 ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14219-225-0 02 1 0203- ● ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		9-14219-279-0 01 1 9811-0202 ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		9-14219-279-0 01 1 0203- ● ● ● ●
6 03.410 FILTER; ACL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-94430-250-0 01 1 9811- ● ● ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94156-052-0 01 1 9811-0105 ● ● ● ●
6 03.410 FILTER; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94156-052-0 01 1 9811-0105 ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94156-052-0 01 1 0106-0202 ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94156-052-0 01 1 0203- ● ● ● ● ●
6 03.410 FILTER; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97062-294-0 01 1 9811-0105 ● ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97062-294-0 01 1 9811-0105 ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97062-294-0 01 1 0106- ● ● ● ●
6 03.410 FILTER; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97062-294-0 01 1 0106- ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97173-027-0 01 1 9811- ● ● ● ●
50 03.403 WASHER; PL,ACL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.085 ID=10.5 OD=22 		9-09164-610-0 04 1 9811- ● ● ● ● ● ●
54 03.405 BRACKET; ACL
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97106-928-0 01 1 9811- ●
54 03.405 BRACKET; ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4>,FRAME STRAIGHT TYPE<7KJ> (E) 		8-97106-928-0 01 1 9811- ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97042-040-2 01 1 9811- ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (E) 		8-97104-407-0 01 1 9811- ● ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4>,CHARGE AIR COOLER<6PL> (A) 		8-97096-710-0 01 1 9811-0105 ● ● ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4>,CHARGE AIR COOLER<6PL> (A) 		8-97096-710-0 01 1 0106- ● ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B) 		8-97188-598-0 01 1 9811- ● ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> (A) 		8-97187-132-0 01 1 9811-0105 ● ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> (A) 		8-97187-132-0 01 1 0106- ● ● ● ●
54 03.405 BRACKET; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (D) 		8-94455-317-1 01 1 9811-0105 ●
54 03.405 BRACKET; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (D) 		8-97300-249-0 01 1 0106-0106 ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97164-474-0 01 1 9811-0105 ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97164-474-0 01 1 0106- ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97214-804-0 01 1 9811-0105 ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97214-804-0 01 1 0106- ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (F) 		8-97093-583-0 01 1 9811-0202 ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (F) 		8-97093-583-0 01 1 0203- ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97092-941-0 01 1 9811- ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (G) 		8-97146-331-0 01 1 9811-9901 ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (G) 		8-97146-331-0 01 1 9902- ● ● ●
54 03.405 BRACKET; ACL
CHARGE AIR COOLER<6PL> (B) 		8-97214-833-3 01 1 9811-0105 ●
54 03.405 BRACKET; ACL
(B) 		8-97214-833-3 01 1 0106-0202 ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B) 		8-97214-833-3 01 1 0203- ●
94 03.415 VALVE; VACUATOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-14219-075-0 01 1 9811- ● ● ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94447-157-0 01 1 9811-0105 ● ● ● ●
94 03.415 VALVE; VACUATOR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94447-157-0 01 1 9811-0105 ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94447-157-0 01 1 0106-0202 ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94447-157-0 01 1 0203- ● ● ● ● ●
94 03.415 VALVE; VACUATOR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-694-0 01 1 9811-0105 ● ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-694-0 01 1 9811-0105 ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-694-0 01 1 0106- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-694-0 01 1 0106- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (A) 		8-94439-205-0 01 1 9811- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B) 		8-97148-258-0 01 1 9811-0202 ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B) 		8-97148-258-0 01 1 0203- ● ● ● ●
99 03.403 CAP; NIPPLE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-94448-008-0 01 1 9811- ● ● ● ● ● ●
100 03.417 ADAPTER; ELBOW
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-94430-259-0 01 1 9811- ● ● ● ● ● ●
100 03.417 ADAPTER; ELBOW
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-075-0 01 1 9811-0105 ● ● ● ● ●
100 03.417 ADAPTER; ELBOW
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-075-0 01 1 9811-0105 ● ● ● ●
100 03.417 ADAPTER; ELBOW
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-075-0 01 1 0106- ● ● ● ●
100 03.417 ADAPTER; ELBOW
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-075-0 01 1 0106- ● ● ● ●
130 03.405 BOLT; BRKT TO ACL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9811- ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 9811-0101 ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 9811-0101 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0102-0105 ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0102-0105 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0106- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0106- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0102-0105 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0102-0105 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0102-0105 ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0106-0202 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0106-0202 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0203- ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0203- ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 9811-0101 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 9811-0101 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 9811-0101 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 03 1 0102- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 9811-0202 ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 9811-0202 ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 0203- ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 0203- ●
145 03.405 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 0203- ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 9811-0105 ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0106-0202 ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0106-0202 ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0203- ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0203- ●
145 03.405 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0203- ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 03 1 9811-0101 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0102- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0101 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0101 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 05 1 9811-0105 ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 05 1 0106- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9811-0102 ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9811-0102 ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0103-0202 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0103-0202 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0203-0204 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0203-0204 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0205- ● ● ● ●
çizim 49609
1 2 3 2 3 6 4 8 94 145 54 44 146
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97162-700-1 01 1 9811-0106 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97162-700-2 01 1 0107-0202 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97162-700-2 01 1 0203- ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) SAUDI ARABIA EQUIPMENT(EU2) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97255-174-2 01 1 0107- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97140-110-0 01 1 9811-9904 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97140-110-0 01 1 9811-9904 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-084-0 01 1 9905-0105 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-084-0 01 1 9905-0105 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-084-2 01 1 0106- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-084-2 01 1 0106- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97189-166-2 01 1 9811-0105 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97189-166-3 01 1 0106-0112 ● ● ● ●
1 03.402 CLEANER ASM; AIR 8-97189-166-3 01 1 0106-0112 ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> CHARGE AIR COOLER<6PL> 		8-97189-166-4 01 1 0201- ● ● ● ●
1 03.402 CLEANER ASM; AIR 8-97189-166-4 01 1 0201- ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97189-262-2 01 1 9811-0105 ● ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97189-262-3 01 1 0106-0112 ● ● ● ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> 		8-97189-262-4 01 1 0201- ● ● ● ●
1 03.402 CLEANER ASM; AIR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94326-676-2 01 1 9811-9901 ●
1 03.402 CLEANER ASM; AIR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97062-054-1 01 1 9902-0105 ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HYDRO MASTER<7LT> EXC. TURBOCHARGER(K51) 		8-97162-701-2 01 1 9811- ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-676-1 01 1 9811-0202 ● ● ●
1 03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-676-1 01 1 0203- ● ● ● ●
1 03.402 CLEANER ASM; AIR
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97214-829-1 01 1 9811-0105 ●
1 03.402 CLEANER ASM; AIR
EURO2 SPECIFICATION<7AF> 		8-97214-829-3 01 1 0106-0202 ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) EURO2 SPECIFICATION<7AF> CHARGE AIR COOLER<6PL> 		8-97214-829-3 01 1 0203- ●
1 03.402 CLEANER ASM; AIR
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97214-832-1 01 1 9811-0105 ●
1 03.402 CLEANER ASM; AIR
EXC. EURO2 SPECIFICATION<7AF> 		8-97214-832-3 01 1 0106-0202 ●
1 03.402 CLEANER ASM; AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97214-832-3 01 1 0203- ●
2 03.403 NUT; WING,ELEMENT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-94447-989-0 01 1 9811- ● ● ● ● ● ●
2 03.403 NUT; WING,ELEMENT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14217-068-0 02 1 9811-0105 ● ● ● ●
2 03.403 NUT; WING,ELEMENT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		1-14217-068-0 02 1 9811-0105 ●
2 03.403 NUT; WING,ELEMENT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14217-068-0 02 1 0106-0202 ● ● ● ●
2 03.403 NUT; WING,ELEMENT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14217-068-0 02 1 0203- ● ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-94447-990-0 01 1 9811- ● ● ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14219-225-0 02 1 9811-0105 ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		1-14219-225-0 02 1 9811-0105 ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14219-225-0 02 1 0106-0202 ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		1-14219-225-0 02 1 0203- ● ● ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		9-14219-279-0 01 1 9811-0202 ● ● ●
3 03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		9-14219-279-0 01 1 0203- ● ● ● ●
4 03.403 GASKET; COVER TO BODY
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-092-0 01 1 9905-0105 ● ● ● ● ●
4 03.403 GASKET; COVER TO BODY
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-092-0 01 1 9905-0105 ● ● ● ●
4 03.403 GASKET; COVER TO BODY
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-092-0 01 1 0106- ● ● ● ●
4 03.403 GASKET; COVER TO BODY
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-092-0 01 1 0106- ● ● ● ●
4 03.403 GASKET; COVER TO BODY
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94336-334-0 01 1 9811-0105 ●
4 03.403 GASKET; COVER TO BODY
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-94361-137-0 01 1 9811- ● ● ● ●
6 03.410 FILTER; ACL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-94430-250-0 01 1 9811- ● ● ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94156-052-0 01 1 9811-0105 ● ● ● ●
6 03.410 FILTER; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94156-052-0 01 1 9811-0105 ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94156-052-0 01 1 0106-0202 ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94156-052-0 01 1 0203- ● ● ● ● ●
6 03.410 FILTER; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97062-294-0 01 1 9811-0105 ● ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97062-294-0 01 1 9811-0105 ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97062-294-0 01 1 0106- ● ● ● ●
6 03.410 FILTER; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97062-294-0 01 1 0106- ● ● ● ●
6 03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97173-027-0 01 1 9811- ● ● ● ●
8 03.410 COVER ASM; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-97093-023-0 01 1 9811- ● ● ● ● ●
8 03.410 COVER ASM; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-074-0 01 1 9811-9904 ● ● ● ● ●
8 03.410 COVER ASM; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-074-0 01 1 9811-9904 ● ● ● ●
8 03.410 COVER ASM; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-090-0 01 1 9905-0105 ● ● ● ● ●
8 03.410 COVER ASM; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-090-0 01 1 9905-0105 ● ● ● ●
8 03.410 COVER ASM; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97228-090-0 01 1 0106- ● ● ● ●
8 03.410 COVER ASM; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97228-090-0 01 1 0106- ● ● ● ●
8 03.410 COVER ASM; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94336-333-0 01 1 9811-0105 ●
44 03.403 BOLT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9811-0105 ● ● ● ●
44 03.403 BOLT; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9811-0105 ●
44 03.403 BOLT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0106-0202 ● ● ● ●
44 03.403 BOLT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0203- ● ● ● ● ●
44 03.403 BOLT; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9811-0105 ● ● ● ● ●
44 03.403 BOLT; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9811-0105 ● ● ● ●
44 03.403 BOLT; ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ● ● ● ●
44 03.403 BOLT; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ● ● ● ●
54 03.405 BRACKET; ACL
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97106-928-0 01 1 9811- ●
54 03.405 BRACKET; ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4>,FRAME STRAIGHT TYPE<7KJ> (E) 		8-97106-928-0 01 1 9811- ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97042-040-2 01 1 9811- ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (E) 		8-97104-407-0 01 1 9811- ● ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4>,CHARGE AIR COOLER<6PL> (A) 		8-97096-710-0 01 1 9811-0105 ● ● ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4>,CHARGE AIR COOLER<6PL> (A) 		8-97096-710-0 01 1 0106- ● ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B) 		8-97188-598-0 01 1 9811- ● ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> (A) 		8-97187-132-0 01 1 9811-0105 ● ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> (A) 		8-97187-132-0 01 1 0106- ● ● ● ●
54 03.405 BRACKET; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (D) 		8-94455-317-1 01 1 9811-0105 ●
54 03.405 BRACKET; ACL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (D) 		8-97300-249-0 01 1 0106-0106 ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97164-474-0 01 1 9811-0105 ● ● ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97164-474-0 01 1 0106- ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97214-804-0 01 1 9811-0105 ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97214-804-0 01 1 0106- ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (F) 		8-97093-583-0 01 1 9811-0202 ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (F) 		8-97093-583-0 01 1 0203- ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97092-941-0 01 1 9811- ● ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (G) 		8-97146-331-0 01 1 9811-9901 ● ● ●
54 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (G) 		8-97146-331-0 01 1 9902- ● ● ●
54 03.405 BRACKET; ACL
CHARGE AIR COOLER<6PL> (B) 		8-97214-833-3 01 1 9811-0105 ●
54 03.405 BRACKET; ACL
(B) 		8-97214-833-3 01 1 0106-0202 ●
54 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B) 		8-97214-833-3 01 1 0203- ●
94 03.415 VALVE; VACUATOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-14219-075-0 01 1 9811- ● ● ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94447-157-0 01 1 9811-0105 ● ● ● ●
94 03.415 VALVE; VACUATOR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94447-157-0 01 1 9811-0105 ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94447-157-0 01 1 0106-0202 ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-94447-157-0 01 1 0203- ● ● ● ● ●
94 03.415 VALVE; VACUATOR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-694-0 01 1 9811-0105 ● ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-694-0 01 1 9811-0105 ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97093-694-0 01 1 0106- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97093-694-0 01 1 0106- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (A) 		8-94439-205-0 01 1 9811- ● ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B) 		8-97148-258-0 01 1 9811-0202 ● ● ●
94 03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B) 		8-97148-258-0 01 1 0203- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 9811-0101 ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 9811-0101 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0102-0105 ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0102-0105 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0106- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 05 1 0106- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0102-0105 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0102-0105 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0102-0105 ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0106-0202 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0106-0202 ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0203- ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0203- ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 9811-0101 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 9811-0101 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 9811-0101 ● ● ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 03 1 0102- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 9811-0202 ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 9811-0202 ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 0203- ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 0203- ●
145 03.405 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 02 1 0203- ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 9811-0105 ● ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0106-0202 ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0106-0202 ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0203- ● ●
145 03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0203- ●
145 03.405 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE 		0-28681-025-0 02 1 0203- ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 03 1 9811-0101 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0102- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0101 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0101 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0102-0102 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0103-0105 ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 05 1 9811-0105 ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 05 1 0106- ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9811-0102 ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9811-0102 ● ● ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0103-0202 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0103-0202 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0203-0204 ● ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0203-0204 ● ● ●
146 03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0205- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
