1-11 — RADIATOR HOSE AND SUB TANK (#21992) — 248 parça
çizim 7688
56 128 56 55 56 128 56 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97177-372-0 01 1 9811-9902 ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97177-372-0 01 1 9811-9902 ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97177-372-0 01 1 9903- ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97177-372-0 01 1 9903- ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97124-743-0 01 1 9811-9902 ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1 ENG(RLS) 		8-97124-743-0 01 1 9811-9902 ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97124-743-0 01 1 9903-0202 ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1 ENG(RLS) 		8-97124-743-0 01 1 9903-0202 ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97124-743-0 01 1 0203- ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1 ENG(RLS) 		8-97124-743-0 01 1 0203- ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97216-029-0 01 1 9811- ● ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97133-143-0 01 1 9811-0105 ● ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97133-143-0 01 1 0106-0202 ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97133-143-0 01 1 0203- ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4JB1 ENG(RLF) 		8-97089-916-1 01 1 9811-0105 ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 02 1 0002-0202 ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=40 		8-97245-216-0 02 1 0002-0202 ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40 		8-97245-216-0 02 1 0002-0202 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40 		8-97245-216-0 02 1 0203- ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) ID=48 		5-09704-049-0 02 1 9811-0001 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=48 		5-09704-049-0 02 1 9811-0001 ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=48 		5-09704-049-0 02 1 9811-0001 ●
56 01.166 CLIP; WATER HOSE,RAD
4JB1 ENG(RLF) ID=48 		5-09704-049-0 02 1 0002-0105 ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97210-676-0 01 1 9811- ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97210-676-0 01 1 9811- ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97147-472-0 01 1 9811- ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HF1 ENG(RLS) 		8-97147-472-0 01 1 9811- ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97160-257-1 01 1 9811- ● ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97133-142-0 01 1 9811-0105 ● ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97133-142-0 01 1 0106-0202 ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97133-142-0 01 1 0203- ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97177-853-0 01 1 9811-9908 ●
128 01.159 HOSE; WATER,RAD INL
4JB1 ENG(RLF) 		8-97177-853-0 01 1 9909-0105 ●
128 01.159 HOSE; WATER,RAD INL
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97147-473-0 01 1 9811-0105 ●

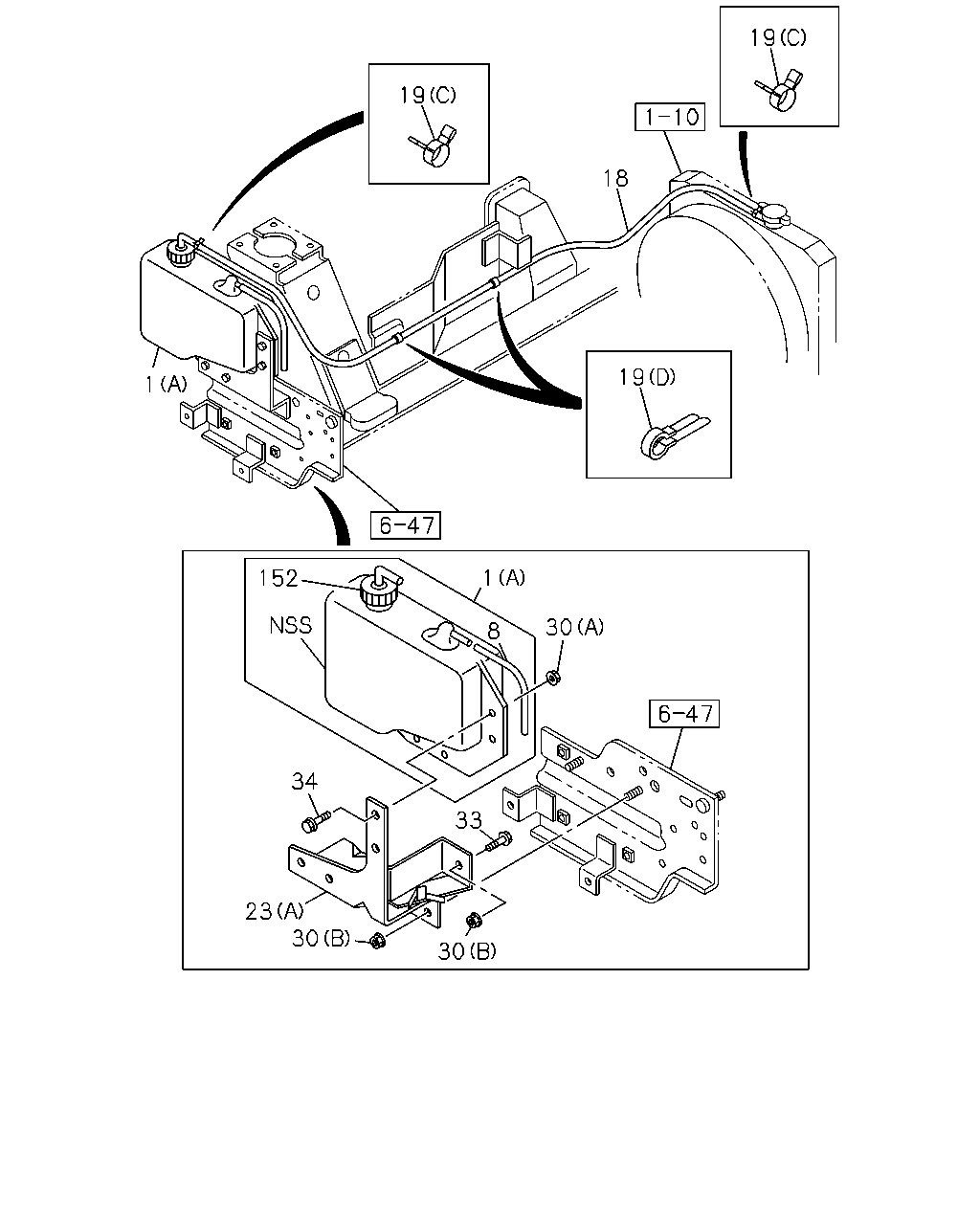

çizim 10209
19 19 18 19 1 152 1 30 8 34 33 23 30 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) 		8-97131-202-0 01 1 9811-9811 ● ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) 		8-97210-844-0 01 1 9812- ● ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) (A) 		8-97205-136-0 01 1 9811-0105 ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 9811-0202 ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS),4HE1 ENG(RLY) (C) 		8-94378-388-1 01 1 0203- ●
8 01.166 HOSE; VINYL
4JB1 ENG(RLF) 01.240 L=500 		1-09366-179-0 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=580 SERVICED BY L=3050 		8-94437-735-0 01 1 0203-0205 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=680 SERVICED BY L=3000 		0-03457-300-0 01 1 0206- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) L=1455 		8-97148-535-0 01 1 9811-0012 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) L=1455 		8-97148-535-0 01 1 9811-0012 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) L=1455 		8-97148-535-0 01 1 0101-0105 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) L=1455 		8-97148-535-0 01 1 0101-0105 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) L=1455 		8-97148-535-0 01 1 0101-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) L=1455 		8-97148-535-1 01 1 0106- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) L=1455 		8-97148-535-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450 		8-97218-446-0 01 1 9811-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
CHARGE AIR COOLER<6PL> L=1450 		8-97218-446-0 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450 		8-97218-446-0 01 1 0106- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1450 		8-97218-446-0 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 9811-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 0106- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97205-588-1 01 1 9811-9901 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) 		8-97225-442-1 01 1 9902-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
CHARGE AIR COOLER<6PL> L=2170 		8-97214-383-5 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=2170 		8-97214-383-5 01 1 0106-0202 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=2170 		8-97214-383-5 01 1 0203- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 03.164 (E) L=217 		8-94235-793-0 01 1 0203- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 9811-9901 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 9811-9901 ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=14 L=47 		5-09700-319-0 01 1 9811-9901 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 9902-0105 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=14 L=47 		5-09700-319-0 01 1 9902-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 9902-0105 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 0106- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 9811-9908 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 9811-9908 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 9811-9908 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 9909- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 12 		8-94416-613-0 01 1 9811-9912 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=10 & 12 		8-94416-613-0 01 1 9811-9912 ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 9811- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 9904-0105 ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=14 L=47 		5-09700-319-0 02 1 0106-0202 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 0203- ●
23 01.219 BRACKET; RESERVE TANK
4HF1 ENG(RLS) (C) 		8-97061-510-0 01 1 0203- ●
23 01.219 BRACKET; RESERVE TANK
4JB1 ENG(RLF) (A) 		8-97225-271-1 01 1 9902-0105 ●
23 01.219 BRACKET; RESERVE TANK
CHARGE AIR COOLER<6PL> (B) 		8-97214-324-1 01 1 9811-0105 ●
23 01.219 BRACKET; RESERVE TANK
(B) 		8-97214-324-1 01 1 0106-0202 ●
23 01.219 BRACKET; RESERVE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97214-324-1 01 1 0203- ●
30 01.203 NUT
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0203- ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 9811-9908 ● ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 9811-9908 ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9811-9908 ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 9909- ● ● ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) 01.540 (A) M8 FLANGE 		0-91150-208-0 04 1 9811-9901 ●
30 01.203 NUT
4JB1 ENG(RLF) 01.540 (A),(B) M8 FLANGE 		0-91150-208-0 07 1 9902-9907 ●
30 01.203 NUT
4JB1 ENG(RLF) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 9908-0105 ●
30 01.203 NUT
4JB1 ENG(RLF) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9908-0105 ●
30 01.203 NUT
CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0105 ●
30 01.203 NUT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0106-0202 ●
30 01.203 NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0203- ●
33 01.277 BOLT; BRKT
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0203- ●
33 01.277 BOLT; BRKT
4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9902-0105 ●
33 01.277 BOLT; BRKT
CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9811-0105 ●
33 01.277 BOLT; BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0106-0202 ●
33 01.277 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0203- ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 9811- ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9811-0105 ●
152 01.203 CAP ASM; SURGE TANK
4JB1 ENG(RLF) 		8-97217-799-0 01 1 9811-0105 ●

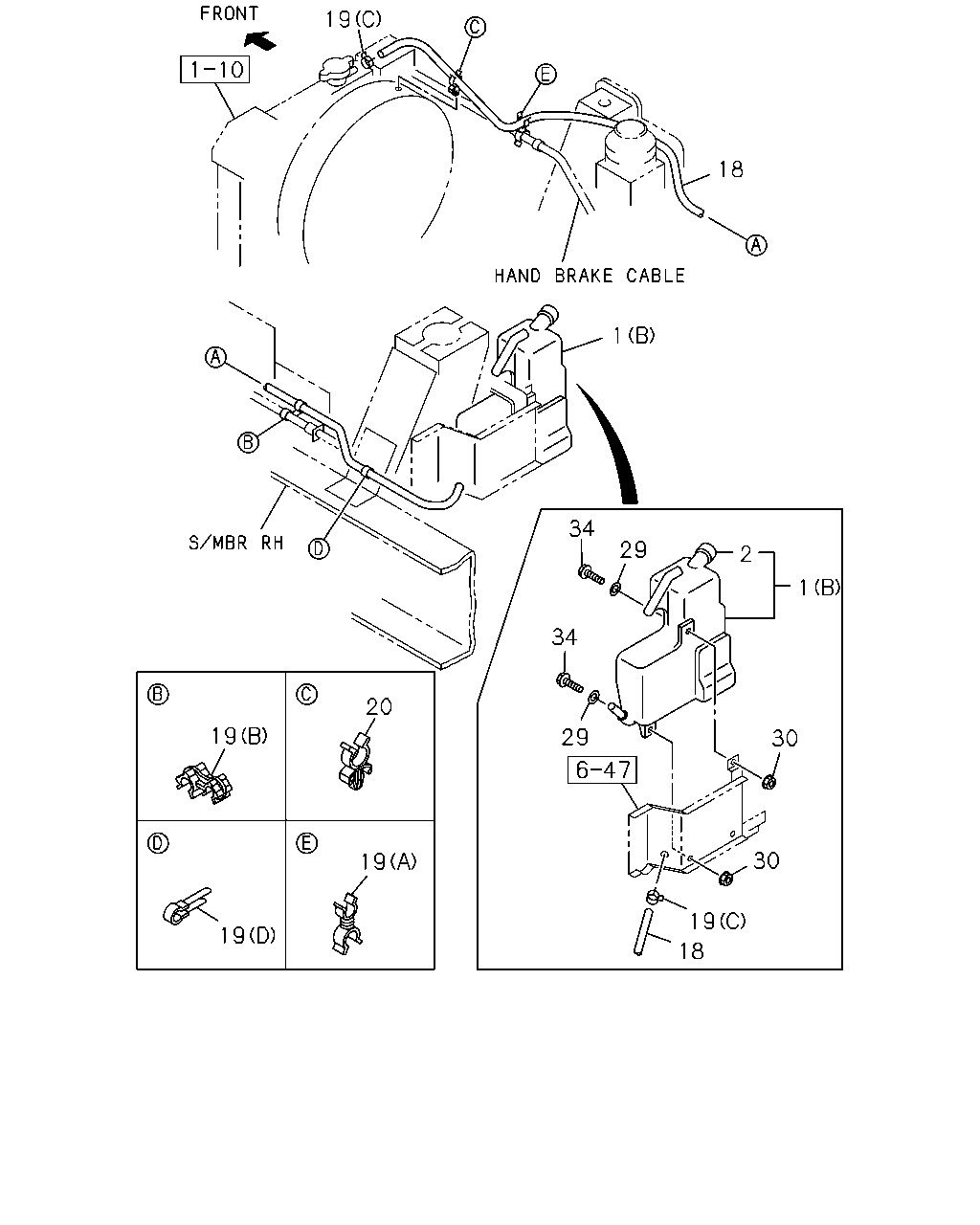

çizim 47575
19 18 1 34 29 2 1 34 20 19 29 30 30 19 19 19 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) 		8-97131-202-0 01 1 9811-9811 ● ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) 		8-97210-844-0 01 1 9812- ● ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) (A) 		8-97205-136-0 01 1 9811-0105 ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 9811-0202 ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS),4HE1 ENG(RLY) (C) 		8-94378-388-1 01 1 0203- ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97126-876-0 01 1 9811-9811 ● ● ● ● ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97217-796-0 01 1 9812- ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9811-0202 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-94449-363-0 01 1 0203- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=580 SERVICED BY L=3050 		8-94437-735-0 01 1 0203-0205 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=680 SERVICED BY L=3000 		0-03457-300-0 01 1 0206- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) L=1455 		8-97148-535-0 01 1 9811-0012 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) L=1455 		8-97148-535-0 01 1 9811-0012 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) L=1455 		8-97148-535-0 01 1 0101-0105 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) L=1455 		8-97148-535-0 01 1 0101-0105 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) L=1455 		8-97148-535-0 01 1 0101-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) L=1455 		8-97148-535-1 01 1 0106- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) L=1455 		8-97148-535-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450 		8-97218-446-0 01 1 9811-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
CHARGE AIR COOLER<6PL> L=1450 		8-97218-446-0 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450 		8-97218-446-0 01 1 0106- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1450 		8-97218-446-0 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 9811-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 0106- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97205-588-1 01 1 9811-9901 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) 		8-97225-442-1 01 1 9902-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
CHARGE AIR COOLER<6PL> L=2170 		8-97214-383-5 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=2170 		8-97214-383-5 01 1 0106-0202 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=2170 		8-97214-383-5 01 1 0203- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 03.164 (E) L=217 		8-94235-793-0 01 1 0203- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 9811-9901 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 9811-9901 ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=14 L=47 		5-09700-319-0 01 1 9811-9901 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 9902-0105 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=14 L=47 		5-09700-319-0 01 1 9902-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 9902-0105 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 0106- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 9811-9908 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 9811-9908 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 9811-9908 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 9909- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 12 		8-94416-613-0 01 1 9811-9912 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=10 & 12 		8-94416-613-0 01 1 9811-9912 ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 9811- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 9904-0105 ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=14 L=47 		5-09700-319-0 02 1 0106-0202 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 0203- ●
20 01.166 CLIP; HOSE,RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ID=10.8 		8-97354-231-0 01 1 0210- ● ● ● ●
20 01.166 CLIP; HOSE,RAD
ID=10.8 		8-97354-231-0 01 1 0210- ●
20 01.166 CLIP; HOSE,RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ID=10.8 		8-97354-231-0 02 1 0210- ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9811-9908 ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9811-9908 ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9811-9908 ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9909- ● ● ● ● ●
30 01.203 NUT
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0203- ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 9811-9908 ● ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 9811-9908 ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9811-9908 ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 9909- ● ● ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) 01.540 (A) M8 FLANGE 		0-91150-208-0 04 1 9811-9901 ●
30 01.203 NUT
4JB1 ENG(RLF) 01.540 (A),(B) M8 FLANGE 		0-91150-208-0 07 1 9902-9907 ●
30 01.203 NUT
4JB1 ENG(RLF) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 9908-0105 ●
30 01.203 NUT
4JB1 ENG(RLF) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9908-0105 ●
30 01.203 NUT
CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0105 ●
30 01.203 NUT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0106-0202 ●
30 01.203 NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0203- ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 9811- ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9811-0105 ●

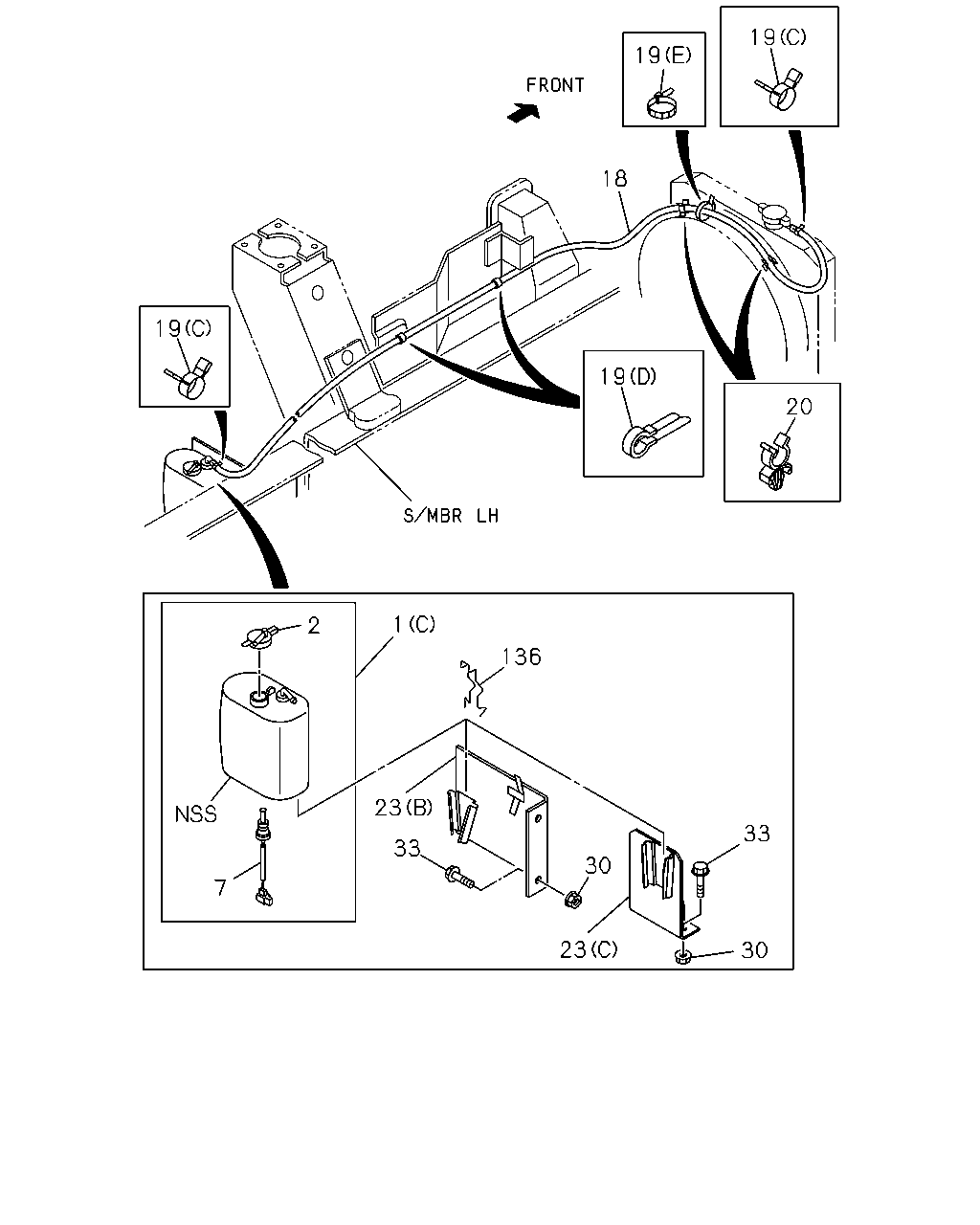

çizim 49279
19 19 18 19 19 20 1 2 136 23 33 33 30 7 23 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) 		8-97131-202-0 01 1 9811-9811 ● ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) 		8-97210-844-0 01 1 9812- ● ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) (A) 		8-97205-136-0 01 1 9811-0105 ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 9811-0202 ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS),4HE1 ENG(RLY) (C) 		8-94378-388-1 01 1 0203- ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97126-876-0 01 1 9811-9811 ● ● ● ● ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97217-796-0 01 1 9812- ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9811-0202 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-94449-363-0 01 1 0203- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=580 SERVICED BY L=3050 		8-94437-735-0 01 1 0203-0205 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=680 SERVICED BY L=3000 		0-03457-300-0 01 1 0206- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) L=1455 		8-97148-535-0 01 1 9811-0012 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) L=1455 		8-97148-535-0 01 1 9811-0012 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) L=1455 		8-97148-535-0 01 1 0101-0105 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) L=1455 		8-97148-535-0 01 1 0101-0105 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) L=1455 		8-97148-535-0 01 1 0101-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) L=1455 		8-97148-535-1 01 1 0106- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) L=1455 		8-97148-535-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450 		8-97218-446-0 01 1 9811-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
CHARGE AIR COOLER<6PL> L=1450 		8-97218-446-0 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450 		8-97218-446-0 01 1 0106- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1450 		8-97218-446-0 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 9811-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 0106- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97205-588-1 01 1 9811-9901 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) 		8-97225-442-1 01 1 9902-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
CHARGE AIR COOLER<6PL> L=2170 		8-97214-383-5 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=2170 		8-97214-383-5 01 1 0106-0202 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=2170 		8-97214-383-5 01 1 0203- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 03.164 (E) L=217 		8-94235-793-0 01 1 0203- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 9811-9901 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 9811-9901 ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=14 L=47 		5-09700-319-0 01 1 9811-9901 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 9902-0105 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=14 L=47 		5-09700-319-0 01 1 9902-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 9902-0105 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 0106- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 9811-9908 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 9811-9908 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 9811-9908 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 9909- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 12 		8-94416-613-0 01 1 9811-9912 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=10 & 12 		8-94416-613-0 01 1 9811-9912 ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 9811- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 9904-0105 ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=14 L=47 		5-09700-319-0 02 1 0106-0202 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 0203- ●
20 01.166 CLIP; HOSE,RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ID=10.8 		8-97354-231-0 01 1 0210- ● ● ● ●
20 01.166 CLIP; HOSE,RAD
ID=10.8 		8-97354-231-0 01 1 0210- ●
20 01.166 CLIP; HOSE,RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ID=10.8 		8-97354-231-0 02 1 0210- ●
23 01.219 BRACKET; RESERVE TANK
4HF1 ENG(RLS) (C) 		8-97061-510-0 01 1 0203- ●
23 01.219 BRACKET; RESERVE TANK
4JB1 ENG(RLF) (A) 		8-97225-271-1 01 1 9902-0105 ●
23 01.219 BRACKET; RESERVE TANK
CHARGE AIR COOLER<6PL> (B) 		8-97214-324-1 01 1 9811-0105 ●
23 01.219 BRACKET; RESERVE TANK
(B) 		8-97214-324-1 01 1 0106-0202 ●
23 01.219 BRACKET; RESERVE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97214-324-1 01 1 0203- ●
30 01.203 NUT
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0203- ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 9811-9908 ● ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 9811-9908 ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9811-9908 ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 9909- ● ● ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) 01.540 (A) M8 FLANGE 		0-91150-208-0 04 1 9811-9901 ●
30 01.203 NUT
4JB1 ENG(RLF) 01.540 (A),(B) M8 FLANGE 		0-91150-208-0 07 1 9902-9907 ●
30 01.203 NUT
4JB1 ENG(RLF) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 9908-0105 ●
30 01.203 NUT
4JB1 ENG(RLF) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9908-0105 ●
30 01.203 NUT
CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0105 ●
30 01.203 NUT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0106-0202 ●
30 01.203 NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0203- ●
33 01.277 BOLT; BRKT
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0203- ●
33 01.277 BOLT; BRKT
4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9902-0105 ●
33 01.277 BOLT; BRKT
CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9811-0105 ●
33 01.277 BOLT; BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0106-0202 ●
33 01.277 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0203- ●
136 01.219 STOPPER; SURGE TANK 8-97087-220-0 01 1 9811-0202 ●
136 01.219 STOPPER; SURGE TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97087-220-0 01 1 0203- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
