◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#21991) — 1173 parça

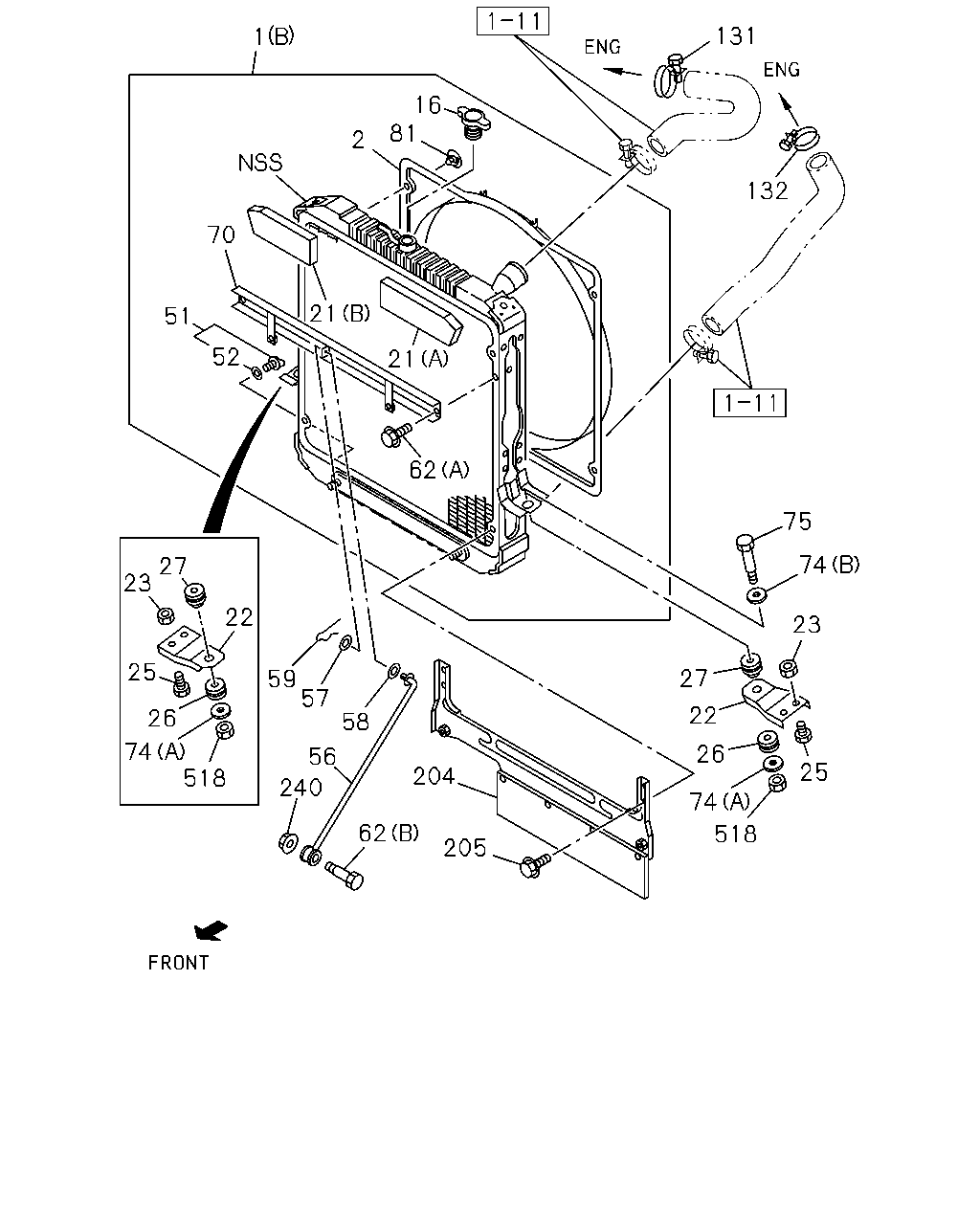

çizim 7806
131 1 16 81 2 132 70 21 51 52 21 62 75 74 27 23 22 23 25 27 59 57 22 26 58 74 518 26 56 25 204 240 74 62 518 205
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) (A) 		8-97148-287-1 01 1 9811-9902 ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97148-287-1 01 1 9811-9902 ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) (A) 		8-97148-287-1 01 1 9903-0202 ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97148-287-1 01 1 9903-0202 ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) (A) 		8-97148-287-1 01 1 0203- ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97148-287-1 01 1 0203- ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9811-9902 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9811-9902 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9903-9907 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9903-9907 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9908- ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9908- ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97213-664-1 01 1 9811-0209 ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97354-362-0 01 1 0210- ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97213-663-1 01 1 9811-0209 ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97354-365-0 01 1 0210- ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 9811-0105 ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0106-0202 ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0203- ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97178-666-2 01 1 9811-9901 ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97178-667-2 01 1 9902-0105 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97066-016-0 01 1 9811-9902 ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 9811-9902 ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97066-016-0 01 1 9903-9908 ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 9903-9908 ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 9909-0202 ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 0203- ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97068-803-0 01 1 9811- ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97218-802-1 01 1 9811- ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97066-018-0 01 1 9811-9812 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-018-0 01 1 9811-9812 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9811-9812 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9901-9902 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97066-018-0 01 1 9901-9902 ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-018-0 01 1 9901-9902 ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9903-9908 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97066-018-0 01 1 9903-9908 ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-018-0 01 1 9903-9908 ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9909-0105 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 0106-0202 ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 0203- ● ● ● ● ●
2 01.277 GUIDE; FAN
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97066-011-0 01 1 9811-0105 ●
16 01.203 CAP; RAD 8-97177-872-0 01 1 9811-0008 ● ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0009-0105 ● ● ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0009-0105 ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0009-0105 ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0106-0106 ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0106-0106 ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0106-0106 ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0106-0202 ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0106-0202 ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0203- ● ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0203- ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0009- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9811-9902 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9811-9902 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9903-9907 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9903-9907 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9908- ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9908- ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9811-9902 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9811-9902 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9903-9907 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9903-9907 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9908- ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9908- ● ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97218-801-1 01 1 9811- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 		8-97161-476-0 01 1 9811-0105 ● ● ● ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 		8-97161-476-0 01 1 0106-0202 ● ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 		8-97161-476-0 01 1 0203- ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97219-807-1 01 1 9811-0105 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97096-452-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 9811-9902 ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97096-452-0 02 1 9903-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 9903-0202 ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97096-452-0 02 1 0203- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0203- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97074-093-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG 8-97074-093-0 02 1 9811-9902 ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9903- ● ● ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97074-093-0 02 1 9903- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9903- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 9811-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 9811-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0203- ● ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0203- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 9811-0105 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-94101-621-1 02 1 9811-0105 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0106-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0203- ● ● ● ● ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 9811- ● ● ● ● ● ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 9811- ● ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 9811- ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 9811- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET 		1-09609-023-0 01 1 9811- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 9811-9907 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 9811-9907 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 9908-0105 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 9908-0105 ● ● ● ●
51 08.951 PLUG; DRAIN
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 9908-0105 ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0106 ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0106 ● ● ● ●
51 08.951 PLUG; DRAIN
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0106 ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0202 ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0202 ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0203- ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 0203- ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.203 ID=10 		9-09720-557-0 01 1 9811-9907 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 9811-9907 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 9908-0105 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 01.203 ID=10 		9-09720-557-0 01 1 9908-0105 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 9908-0105 ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 01.203 ID=10 		9-09720-557-0 01 1 0106-0106 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0106-0106 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0106-0106 ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0106-0202 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 01.203 ID=10 		9-09720-557-0 01 1 0106-0202 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0203- ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 01.203 ID=10 		9-09720-557-0 01 1 0203- ● ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 9811-9902 ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 9903-0105 ● ● ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 9903-0105 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 9903-0105 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 0106-0202 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 0106-0202 ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0106-0202 ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0203- ● ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97032-798-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
4HF1 ENG(RLS) 		8-97032-798-2 01 1 9811-9902 ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97032-798-2 01 1 9903-0202 ● ● ● ●
56 01.270 STAY; RAD
4HF1 ENG(RLS) 		8-97032-798-2 01 1 9903-0202 ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97032-798-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HF1 ENG(RLS) 		8-97032-798-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-424-2 01 1 9811- ● ● ● ● ● ●
56 01.270 STAY; RAD
4JB1 ENG(RLF) 		8-97083-079-2 01 1 9811-0105 ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 9811- ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 9811- ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 9811- ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9811- ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9811- ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97047-899-0 01 1 9811-9812 ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) 		8-97047-899-0 01 1 9811-9812 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97047-899-0 01 1 9811-9812 ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 9811-9812 ● ●
70 01.271 STAY; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97047-899-0 01 1 9811-9812 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97047-899-0 01 1 9901-9902 ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 9901-9902 ● ● ●
70 01.271 STAY; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97047-899-0 01 1 9901-9902 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97047-899-0 01 1 9903-0105 ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 9903-0105 ● ● ●
70 01.271 STAY; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97047-899-0 01 1 9903-0105 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97047-899-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 0106-0202 ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97047-899-0 01 1 0203- ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 0203- ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9811-9812 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9811-9812 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) 		8-97073-125-0 01 1 9811-9812 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9901-9902 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9901-9902 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9901-9902 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9901-9902 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9903-9907 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9903-9907 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9903-9907 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9903-9907 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9908-0105 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9908-0105 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9908-0105 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9908-0105 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0106-0202 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) 		8-97073-125-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0203- ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0203- ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 0203- ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) 		8-97073-125-0 01 1 0203- ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 9811- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 9811- ● ● ● ● ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 9811- ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97088-810-0 04 1 9811-9907 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 9811-9907 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 9908-0105 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97088-810-0 04 1 9908-0105 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 9908-0105 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97088-810-0 04 1 0106-0106 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0106-0106 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0106-0106 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0106-0202 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97088-810-0 04 1 0106-0202 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0203- ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97088-810-0 04 1 0203- ● ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 00.413 ID=52 		1-09704-057-0 01 1 9811-0001 ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HE1 ENG(RLY) 00.413 ID=52 		1-09704-057-0 01 1 9811-0001 ●
131 01.166 CLIP; ENG SIDE TOP
00.413 ID=52 		1-09704-057-0 01 1 9811-0001 ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0002-0202 ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0002-0202 ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0002-0202 ● ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0203- ● ● ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4JB1 ENG(RLF) ID=42 		5-09704-047-1 01 1 9811-0105 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) ID=62 		9-09915-068-1 01 1 9811-0001 ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62 		9-09915-068-1 01 1 9811-0001 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=62 		9-09915-068-1 01 1 9811-0001 ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0002-0202 ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0002-0202 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0002-0202 ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0203- ● ● ● ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4JB1 ENG(RLF) ID=48 		5-09704-049-0 01 1 9811-0105 ●
204 01.267 GUIDE ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97038-894-1 01 1 9811-0202 ● ● ●
204 01.267 GUIDE ASM; AIR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97038-894-1 01 1 9811-0202 ●
204 01.267 GUIDE ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97038-894-1 01 1 0203- ● ● ●
204 01.267 GUIDE ASM; AIR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97038-894-1 01 1 0203- ●
204 01.267 GUIDE ASM; AIR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97038-894-1 01 1 0203- ●
204 01.267 GUIDE ASM; AIR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97038-895-1 01 1 9811-0105 ● ● ● ●
204 01.267 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97038-895-1 01 1 9811-0105 ● ●
204 01.267 GUIDE ASM; AIR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97038-895-1 01 1 0106-0202 ● ● ● ●
204 01.267 GUIDE ASM; AIR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97038-895-1 01 1 0203- ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9811-0105 ● ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9811-0105 ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0106-0202 ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0106-0202 ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0203- ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0203- ● ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 9811-9901 ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 9811-9901 ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 9811-9901 ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ● ● ● ●
240 01.271 NUT; STAY
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 0106-0202 ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 0106-0202 ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0106-0202 ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 0203- ● ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 0203- ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0203- ●
518 01.270 NUT
00.854 M8 FLANGE 		5-09440-005-0 02 1 9811- ● ● ● ● ● ●

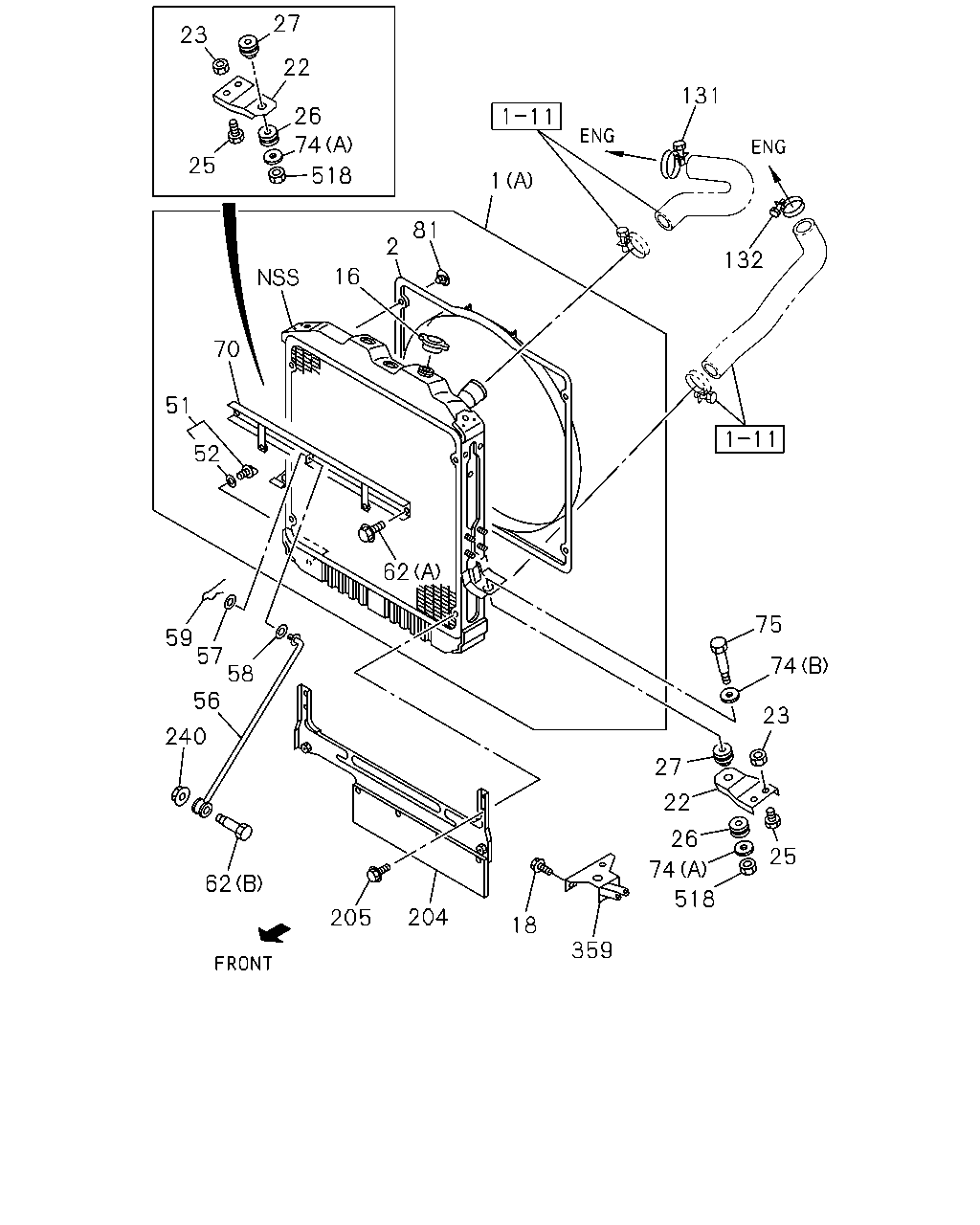

çizim 7807
27 23 22 131 26 74 25 518 1 81 2 132 16 70 51 52 62 75 59 57 58 56 74 23 240 27 22 26 25 74 62 518 204 205 18 359
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) (A) 		8-97148-287-1 01 1 9811-9902 ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97148-287-1 01 1 9811-9902 ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) (A) 		8-97148-287-1 01 1 9903-0202 ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97148-287-1 01 1 9903-0202 ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) (A) 		8-97148-287-1 01 1 0203- ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97148-287-1 01 1 0203- ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9811-9902 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9811-9902 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9903-9907 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9903-9907 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9908- ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9908- ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97213-664-1 01 1 9811-0209 ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97354-362-0 01 1 0210- ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97213-663-1 01 1 9811-0209 ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97354-365-0 01 1 0210- ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 9811-0105 ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0106-0202 ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0203- ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97178-666-2 01 1 9811-9901 ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97178-667-2 01 1 9902-0105 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97066-016-0 01 1 9811-9902 ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 9811-9902 ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97066-016-0 01 1 9903-9908 ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 9903-9908 ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 9909-0202 ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 0203- ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97068-803-0 01 1 9811- ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97218-802-1 01 1 9811- ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97066-018-0 01 1 9811-9812 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-018-0 01 1 9811-9812 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9811-9812 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9901-9902 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97066-018-0 01 1 9901-9902 ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-018-0 01 1 9901-9902 ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9903-9908 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97066-018-0 01 1 9903-9908 ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-018-0 01 1 9903-9908 ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9909-0105 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 0106-0202 ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 0203- ● ● ● ● ●
2 01.277 GUIDE; FAN
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97066-011-0 01 1 9811-0105 ●
16 01.203 CAP; RAD 8-97177-872-0 01 1 9811-0008 ● ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0009-0105 ● ● ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0009-0105 ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0009-0105 ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0106-0106 ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0106-0106 ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0106-0106 ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0106-0202 ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0106-0202 ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0203- ● ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0203- ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0009- ● ● ● ● ● ●
18 01.276 BOLT; RAD
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811- ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97096-452-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 9811-9902 ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97096-452-0 02 1 9903-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 9903-0202 ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97096-452-0 02 1 0203- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0203- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97074-093-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG 8-97074-093-0 02 1 9811-9902 ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9903- ● ● ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97074-093-0 02 1 9903- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9903- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 9811-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 9811-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0203- ● ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0203- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 9811-0105 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-94101-621-1 02 1 9811-0105 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0106-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0203- ● ● ● ● ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 9811- ● ● ● ● ● ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 9811- ● ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 9811- ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 9811- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET 		1-09609-023-0 01 1 9811- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 9811-9907 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 9811-9907 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 9908-0105 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 9908-0105 ● ● ● ●
51 08.951 PLUG; DRAIN
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 9908-0105 ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0106 ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0106 ● ● ● ●
51 08.951 PLUG; DRAIN
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0106 ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0202 ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0202 ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0203- ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 0203- ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.203 ID=10 		9-09720-557-0 01 1 9811-9907 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 9811-9907 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 9908-0105 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 01.203 ID=10 		9-09720-557-0 01 1 9908-0105 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 9908-0105 ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 01.203 ID=10 		9-09720-557-0 01 1 0106-0106 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0106-0106 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0106-0106 ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0106-0202 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 01.203 ID=10 		9-09720-557-0 01 1 0106-0202 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0203- ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 01.203 ID=10 		9-09720-557-0 01 1 0203- ● ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 9811-9902 ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 9903-0105 ● ● ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 9903-0105 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 9903-0105 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 0106-0202 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 0106-0202 ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0106-0202 ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0203- ● ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97032-798-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
4HF1 ENG(RLS) 		8-97032-798-2 01 1 9811-9902 ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97032-798-2 01 1 9903-0202 ● ● ● ●
56 01.270 STAY; RAD
4HF1 ENG(RLS) 		8-97032-798-2 01 1 9903-0202 ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97032-798-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HF1 ENG(RLS) 		8-97032-798-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-424-2 01 1 9811- ● ● ● ● ● ●
56 01.270 STAY; RAD
4JB1 ENG(RLF) 		8-97083-079-2 01 1 9811-0105 ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 9811- ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 9811- ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 9811- ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9811- ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9811- ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97047-899-0 01 1 9811-9812 ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) 		8-97047-899-0 01 1 9811-9812 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97047-899-0 01 1 9811-9812 ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 9811-9812 ● ●
70 01.271 STAY; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97047-899-0 01 1 9811-9812 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97047-899-0 01 1 9901-9902 ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 9901-9902 ● ● ●
70 01.271 STAY; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97047-899-0 01 1 9901-9902 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97047-899-0 01 1 9903-0105 ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 9903-0105 ● ● ●
70 01.271 STAY; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97047-899-0 01 1 9903-0105 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97047-899-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 0106-0202 ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97047-899-0 01 1 0203- ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 0203- ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9811-9812 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9811-9812 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) 		8-97073-125-0 01 1 9811-9812 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9901-9902 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9901-9902 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9901-9902 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9901-9902 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9903-9907 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9903-9907 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9903-9907 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9903-9907 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9908-0105 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9908-0105 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9908-0105 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9908-0105 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0106-0202 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) 		8-97073-125-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0203- ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0203- ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 0203- ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) 		8-97073-125-0 01 1 0203- ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 9811- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 9811- ● ● ● ● ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 9811- ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97088-810-0 04 1 9811-9907 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 9811-9907 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 9908-0105 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97088-810-0 04 1 9908-0105 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 9908-0105 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97088-810-0 04 1 0106-0106 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0106-0106 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0106-0106 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0106-0202 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97088-810-0 04 1 0106-0202 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0203- ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97088-810-0 04 1 0203- ● ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 00.413 ID=52 		1-09704-057-0 01 1 9811-0001 ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HE1 ENG(RLY) 00.413 ID=52 		1-09704-057-0 01 1 9811-0001 ●
131 01.166 CLIP; ENG SIDE TOP
00.413 ID=52 		1-09704-057-0 01 1 9811-0001 ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0002-0202 ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0002-0202 ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0002-0202 ● ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0203- ● ● ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4JB1 ENG(RLF) ID=42 		5-09704-047-1 01 1 9811-0105 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) ID=62 		9-09915-068-1 01 1 9811-0001 ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62 		9-09915-068-1 01 1 9811-0001 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=62 		9-09915-068-1 01 1 9811-0001 ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0002-0202 ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0002-0202 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0002-0202 ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0203- ● ● ● ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4JB1 ENG(RLF) ID=48 		5-09704-049-0 01 1 9811-0105 ●
204 01.267 GUIDE ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97038-894-1 01 1 9811-0202 ● ● ●
204 01.267 GUIDE ASM; AIR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97038-894-1 01 1 9811-0202 ●
204 01.267 GUIDE ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97038-894-1 01 1 0203- ● ● ●
204 01.267 GUIDE ASM; AIR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97038-894-1 01 1 0203- ●
204 01.267 GUIDE ASM; AIR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97038-894-1 01 1 0203- ●
204 01.267 GUIDE ASM; AIR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97038-895-1 01 1 9811-0105 ● ● ● ●
204 01.267 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97038-895-1 01 1 9811-0105 ● ●
204 01.267 GUIDE ASM; AIR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97038-895-1 01 1 0106-0202 ● ● ● ●
204 01.267 GUIDE ASM; AIR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97038-895-1 01 1 0203- ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9811-0105 ● ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9811-0105 ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0106-0202 ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0106-0202 ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0203- ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0203- ● ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 9811-9901 ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 9811-9901 ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 9811-9901 ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ● ● ● ●
240 01.271 NUT; STAY
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 0106-0202 ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 0106-0202 ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0106-0202 ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 0203- ● ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 0203- ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0203- ●
359 01.271 BRACKET; RAD STAY
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.686 		8-97170-632-0 01 1 9811- ● ● ●
518 01.270 NUT
00.854 M8 FLANGE 		5-09440-005-0 02 1 9811- ● ● ● ● ● ●

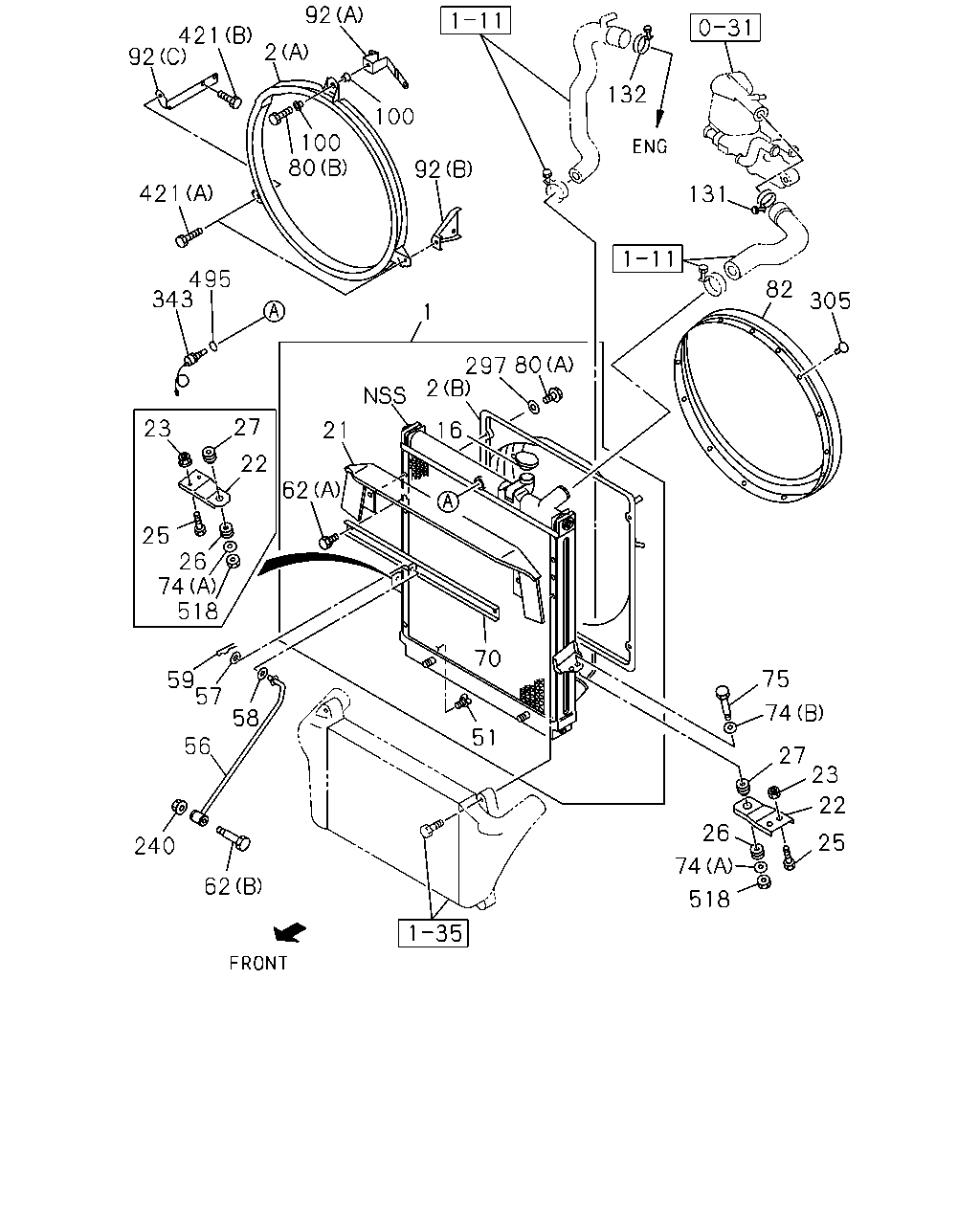

çizim 9808
92 421 92 2 132 100 100 80 92 421 131 495 343 82 305 1 2 27 23 21 16 22 62 25 26 74 518 70 75 59 57 74 58 51 56 27 23 22 26 25 240 74 62 518 297 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) (A) 		8-97148-287-1 01 1 9811-9902 ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97148-287-1 01 1 9811-9902 ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) (A) 		8-97148-287-1 01 1 9903-0202 ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97148-287-1 01 1 9903-0202 ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) (A) 		8-97148-287-1 01 1 0203- ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97148-287-1 01 1 0203- ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9811-9902 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9811-9902 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9903-9907 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9903-9907 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9908- ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9908- ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97213-664-1 01 1 9811-0209 ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97354-362-0 01 1 0210- ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97213-663-1 01 1 9811-0209 ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97354-365-0 01 1 0210- ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 9811-0105 ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0106-0202 ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0203- ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97178-666-2 01 1 9811-9901 ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97178-667-2 01 1 9902-0105 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97066-016-0 01 1 9811-9902 ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 9811-9902 ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97066-016-0 01 1 9903-9908 ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 9903-9908 ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 9909-0202 ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 0203- ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97068-803-0 01 1 9811- ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97218-802-1 01 1 9811- ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97066-018-0 01 1 9811-9812 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-018-0 01 1 9811-9812 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9811-9812 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9901-9902 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97066-018-0 01 1 9901-9902 ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-018-0 01 1 9901-9902 ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9903-9908 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97066-018-0 01 1 9903-9908 ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-018-0 01 1 9903-9908 ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9909-0105 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 0106-0202 ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 0203- ● ● ● ● ●
2 01.277 GUIDE; FAN
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97066-011-0 01 1 9811-0105 ●
16 01.203 CAP; RAD 8-97177-872-0 01 1 9811-0008 ● ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0009-0105 ● ● ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0009-0105 ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0009-0105 ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0106-0106 ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0106-0106 ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0106-0106 ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0106-0202 ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0106-0202 ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0203- ● ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0203- ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0009- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9811-9902 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9811-9902 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9903-9907 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9903-9907 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9908- ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9908- ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9811-9902 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9811-9902 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9903-9907 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9903-9907 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9908- ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9908- ● ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97218-801-1 01 1 9811- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 		8-97161-476-0 01 1 9811-0105 ● ● ● ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 		8-97161-476-0 01 1 0106-0202 ● ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 		8-97161-476-0 01 1 0203- ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97219-807-1 01 1 9811-0105 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97096-452-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 9811-9902 ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97096-452-0 02 1 9903-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 9903-0202 ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97096-452-0 02 1 0203- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0203- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97074-093-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG 8-97074-093-0 02 1 9811-9902 ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9903- ● ● ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97074-093-0 02 1 9903- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9903- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 9811-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 9811-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0203- ● ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0203- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 9811-0105 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-94101-621-1 02 1 9811-0105 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0106-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0203- ● ● ● ● ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 9811- ● ● ● ● ● ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 9811- ● ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 9811- ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 9811- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET 		1-09609-023-0 01 1 9811- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 9811-9907 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 9811-9907 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 9908-0105 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 9908-0105 ● ● ● ●
51 08.951 PLUG; DRAIN
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 9908-0105 ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0106 ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0106 ● ● ● ●
51 08.951 PLUG; DRAIN
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0106 ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0202 ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0202 ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0203- ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 0203- ● ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 9811-9902 ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 9903-0105 ● ● ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 9903-0105 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 9903-0105 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 0106-0202 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 0106-0202 ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0106-0202 ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0203- ● ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97032-798-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
4HF1 ENG(RLS) 		8-97032-798-2 01 1 9811-9902 ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97032-798-2 01 1 9903-0202 ● ● ● ●
56 01.270 STAY; RAD
4HF1 ENG(RLS) 		8-97032-798-2 01 1 9903-0202 ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97032-798-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HF1 ENG(RLS) 		8-97032-798-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-424-2 01 1 9811- ● ● ● ● ● ●
56 01.270 STAY; RAD
4JB1 ENG(RLF) 		8-97083-079-2 01 1 9811-0105 ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 9811- ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 9811- ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 9811- ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9811- ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9811- ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97047-899-0 01 1 9811-9812 ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) 		8-97047-899-0 01 1 9811-9812 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97047-899-0 01 1 9811-9812 ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 9811-9812 ● ●
70 01.271 STAY; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97047-899-0 01 1 9811-9812 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97047-899-0 01 1 9901-9902 ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 9901-9902 ● ● ●
70 01.271 STAY; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97047-899-0 01 1 9901-9902 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97047-899-0 01 1 9903-0105 ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 9903-0105 ● ● ●
70 01.271 STAY; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97047-899-0 01 1 9903-0105 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97047-899-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 0106-0202 ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97047-899-0 01 1 0203- ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 0203- ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9811-9812 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9811-9812 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) 		8-97073-125-0 01 1 9811-9812 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9901-9902 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9901-9902 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9901-9902 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9901-9902 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9903-9907 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9903-9907 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9903-9907 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9903-9907 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9908-0105 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9908-0105 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9908-0105 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9908-0105 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0106-0202 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) 		8-97073-125-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0203- ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0203- ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 0203- ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) 		8-97073-125-0 01 1 0203- ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 9811- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 9811- ● ● ● ● ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 9811- ● ● ● ● ● ●
80 01.277 BOLT; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 9811- ● ● ● ● ● ●
80 01.277 BOLT; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 9811- ● ● ● ● ● ●
82 01.277 COVER; FAN,RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97218-799-0 01 1 9811- ● ● ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97148-940-0 01 1 9811- ● ● ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) 		8-97148-941-1 01 1 9811- ● ● ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97189-394-0 01 1 9811- ● ● ● ● ● ●
100 01.277 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09337-027-0 06 1 9811- ● ● ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 00.413 ID=52 		1-09704-057-0 01 1 9811-0001 ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HE1 ENG(RLY) 00.413 ID=52 		1-09704-057-0 01 1 9811-0001 ●
131 01.166 CLIP; ENG SIDE TOP
00.413 ID=52 		1-09704-057-0 01 1 9811-0001 ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0002-0202 ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0002-0202 ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0002-0202 ● ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0203- ● ● ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4JB1 ENG(RLF) ID=42 		5-09704-047-1 01 1 9811-0105 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) ID=62 		9-09915-068-1 01 1 9811-0001 ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62 		9-09915-068-1 01 1 9811-0001 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=62 		9-09915-068-1 01 1 9811-0001 ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0002-0202 ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0002-0202 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0002-0202 ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0203- ● ● ● ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4JB1 ENG(RLF) ID=48 		5-09704-049-0 01 1 9811-0105 ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 9811-9901 ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 9811-9901 ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 9811-9901 ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ● ● ● ●
240 01.271 NUT; STAY
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 0106-0202 ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 0106-0202 ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0106-0202 ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 0203- ● ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 0203- ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0203- ●
297 01.277 WASHER; PL,FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 04 1 9811- ● ● ● ● ● ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.742 D6.8X11 PUSH RIVET 		1-73318-230-0 12 1 9811-0209 ● ● ● ● ● ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09470-009-0 12 1 0210- ● ● ● ● ● ●
343 01.271 PLUG; WATER LEVEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M18X12 		1-09604-081-0 01 1 9811- ● ● ● ● ● ●
421 01.277 BOLT; BRKT FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 9811- ● ● ● ● ● ●
421 01.277 BOLT; BRKT FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.540 (B) M10X20 FLANGE 		0-28181-020-0 02 1 9811- ● ● ● ● ● ●
495 01.274 GASKET; SENSOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.097 		1-09623-185-0 01 1 9811- ● ● ● ● ● ●
518 01.270 NUT
00.854 M8 FLANGE 		5-09440-005-0 02 1 9811- ● ● ● ● ● ●
çizim 10948
131 132 1 81 16 2 21 317 51 52 70 27 23 62 75 22 74 25 23 59 26 57 58 27 74 518 204 22 56 26 25 74 518 240 62 205
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) (A) 		8-97148-287-1 01 1 9811-9902 ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97148-287-1 01 1 9811-9902 ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) (A) 		8-97148-287-1 01 1 9903-0202 ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97148-287-1 01 1 9903-0202 ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) (A) 		8-97148-287-1 01 1 0203- ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97148-287-1 01 1 0203- ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9811-9902 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9811-9902 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9903-9907 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9903-9907 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9908- ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9908- ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97213-664-1 01 1 9811-0209 ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97354-362-0 01 1 0210- ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97213-663-1 01 1 9811-0209 ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97354-365-0 01 1 0210- ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 9811-0105 ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0106-0202 ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0203- ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97178-666-2 01 1 9811-9901 ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97178-667-2 01 1 9902-0105 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97066-016-0 01 1 9811-9902 ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 9811-9902 ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97066-016-0 01 1 9903-9908 ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 9903-9908 ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 9909-0202 ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 0203- ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97068-803-0 01 1 9811- ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97218-802-1 01 1 9811- ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97066-018-0 01 1 9811-9812 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-018-0 01 1 9811-9812 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9811-9812 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9901-9902 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97066-018-0 01 1 9901-9902 ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-018-0 01 1 9901-9902 ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9903-9908 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97066-018-0 01 1 9903-9908 ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-018-0 01 1 9903-9908 ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9909-0105 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 0106-0202 ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 0203- ● ● ● ● ●
2 01.277 GUIDE; FAN
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97066-011-0 01 1 9811-0105 ●
16 01.203 CAP; RAD 8-97177-872-0 01 1 9811-0008 ● ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0009-0105 ● ● ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0009-0105 ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0009-0105 ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0106-0106 ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0106-0106 ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0106-0106 ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0106-0202 ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0106-0202 ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0203- ● ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0203- ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0009- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9811-9902 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9811-9902 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9903-9907 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9903-9907 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9908- ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9908- ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9811-9902 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9811-9902 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9903-9907 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9903-9907 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9908- ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9908- ● ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97218-801-1 01 1 9811- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 		8-97161-476-0 01 1 9811-0105 ● ● ● ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 		8-97161-476-0 01 1 0106-0202 ● ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 		8-97161-476-0 01 1 0203- ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97219-807-1 01 1 9811-0105 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97096-452-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 9811-9902 ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97096-452-0 02 1 9903-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 9903-0202 ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97096-452-0 02 1 0203- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0203- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97074-093-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG 8-97074-093-0 02 1 9811-9902 ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9903- ● ● ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97074-093-0 02 1 9903- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9903- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 9811-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 9811-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0203- ● ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0203- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 9811-0105 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-94101-621-1 02 1 9811-0105 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0106-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0203- ● ● ● ● ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 9811- ● ● ● ● ● ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 9811- ● ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 9811- ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 9811- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET 		1-09609-023-0 01 1 9811- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 9811-9907 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 9811-9907 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 9908-0105 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 9908-0105 ● ● ● ●
51 08.951 PLUG; DRAIN
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 9908-0105 ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0106 ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0106 ● ● ● ●
51 08.951 PLUG; DRAIN
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0106 ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0202 ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0202 ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0203- ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 0203- ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.203 ID=10 		9-09720-557-0 01 1 9811-9907 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 9811-9907 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 9908-0105 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 01.203 ID=10 		9-09720-557-0 01 1 9908-0105 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 9908-0105 ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 01.203 ID=10 		9-09720-557-0 01 1 0106-0106 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0106-0106 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0106-0106 ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0106-0202 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 01.203 ID=10 		9-09720-557-0 01 1 0106-0202 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0203- ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 01.203 ID=10 		9-09720-557-0 01 1 0203- ● ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 9811-9902 ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 9903-0105 ● ● ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 9903-0105 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 9903-0105 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 0106-0202 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 0106-0202 ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0106-0202 ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0203- ● ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97032-798-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
4HF1 ENG(RLS) 		8-97032-798-2 01 1 9811-9902 ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97032-798-2 01 1 9903-0202 ● ● ● ●
56 01.270 STAY; RAD
4HF1 ENG(RLS) 		8-97032-798-2 01 1 9903-0202 ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97032-798-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HF1 ENG(RLS) 		8-97032-798-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-424-2 01 1 9811- ● ● ● ● ● ●
56 01.270 STAY; RAD
4JB1 ENG(RLF) 		8-97083-079-2 01 1 9811-0105 ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 9811- ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 9811- ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 9811- ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9811- ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9811- ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97047-899-0 01 1 9811-9812 ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) 		8-97047-899-0 01 1 9811-9812 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97047-899-0 01 1 9811-9812 ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 9811-9812 ● ●
70 01.271 STAY; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97047-899-0 01 1 9811-9812 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97047-899-0 01 1 9901-9902 ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 9901-9902 ● ● ●
70 01.271 STAY; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97047-899-0 01 1 9901-9902 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97047-899-0 01 1 9903-0105 ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 9903-0105 ● ● ●
70 01.271 STAY; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97047-899-0 01 1 9903-0105 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97047-899-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 0106-0202 ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97047-899-0 01 1 0203- ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 0203- ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9811-9812 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9811-9812 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) 		8-97073-125-0 01 1 9811-9812 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9901-9902 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9901-9902 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9901-9902 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9901-9902 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9903-9907 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9903-9907 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9903-9907 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9903-9907 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9908-0105 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9908-0105 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9908-0105 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9908-0105 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0106-0202 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) 		8-97073-125-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0203- ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0203- ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 0203- ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) 		8-97073-125-0 01 1 0203- ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 9811- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 9811- ● ● ● ● ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 9811- ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97088-810-0 04 1 9811-9907 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 9811-9907 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 9908-0105 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97088-810-0 04 1 9908-0105 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 9908-0105 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97088-810-0 04 1 0106-0106 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0106-0106 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0106-0106 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0106-0202 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97088-810-0 04 1 0106-0202 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0203- ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97088-810-0 04 1 0203- ● ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 00.413 ID=52 		1-09704-057-0 01 1 9811-0001 ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HE1 ENG(RLY) 00.413 ID=52 		1-09704-057-0 01 1 9811-0001 ●
131 01.166 CLIP; ENG SIDE TOP
00.413 ID=52 		1-09704-057-0 01 1 9811-0001 ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0002-0202 ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0002-0202 ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0002-0202 ● ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0203- ● ● ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4JB1 ENG(RLF) ID=42 		5-09704-047-1 01 1 9811-0105 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) ID=62 		9-09915-068-1 01 1 9811-0001 ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62 		9-09915-068-1 01 1 9811-0001 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=62 		9-09915-068-1 01 1 9811-0001 ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0002-0202 ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0002-0202 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0002-0202 ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0203- ● ● ● ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4JB1 ENG(RLF) ID=48 		5-09704-049-0 01 1 9811-0105 ●
204 01.267 GUIDE ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97038-894-1 01 1 9811-0202 ● ● ●
204 01.267 GUIDE ASM; AIR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97038-894-1 01 1 9811-0202 ●
204 01.267 GUIDE ASM; AIR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97038-894-1 01 1 0203- ● ● ●
204 01.267 GUIDE ASM; AIR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97038-894-1 01 1 0203- ●
204 01.267 GUIDE ASM; AIR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97038-894-1 01 1 0203- ●
204 01.267 GUIDE ASM; AIR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97038-895-1 01 1 9811-0105 ● ● ● ●
204 01.267 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97038-895-1 01 1 9811-0105 ● ●
204 01.267 GUIDE ASM; AIR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97038-895-1 01 1 0106-0202 ● ● ● ●
204 01.267 GUIDE ASM; AIR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97038-895-1 01 1 0203- ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9811-0105 ● ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9811-0105 ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0106-0202 ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0106-0202 ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0203- ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0203- ● ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 9811-9901 ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 9811-9901 ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 9811-9901 ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ● ● ● ●
240 01.271 NUT; STAY
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 0106-0202 ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 0106-0202 ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0106-0202 ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 0203- ● ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 0203- ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0203- ●
317 01.271 BOLT; SEAL
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9811-0105 ● ● ● ● ● ●
317 01.271 BOLT; SEAL
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0106-0202 ● ● ● ●
317 01.271 BOLT; SEAL
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0203- ● ● ● ● ●
518 01.270 NUT
00.854 M8 FLANGE 		5-09440-005-0 02 1 9811- ● ● ● ● ● ●
çizim 48522
131 27 23 22 26 74 1 25 518 132 81 16 2 62 51 52 70 59 57 58 75 74 240 27 21 56 62 23 25 22 26 74 518
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) (A) 		8-97148-287-1 01 1 9811-9902 ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97148-287-1 01 1 9811-9902 ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) (A) 		8-97148-287-1 01 1 9903-0202 ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97148-287-1 01 1 9903-0202 ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) (A) 		8-97148-287-1 01 1 0203- ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) (A) 		8-97148-287-1 01 1 0203- ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9811-9902 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9811-9902 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9903-9907 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9903-9907 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9908- ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) (B) 		8-97177-193-1 01 1 9908- ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97213-664-1 01 1 9811-0209 ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97354-362-0 01 1 0210- ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97213-663-1 01 1 9811-0209 ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97354-365-0 01 1 0210- ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 9811-0105 ● ● ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0106-0202 ● ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0203- ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97178-666-2 01 1 9811-9901 ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97178-667-2 01 1 9902-0105 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97066-016-0 01 1 9811-9902 ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 9811-9902 ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97066-016-0 01 1 9903-9908 ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 9903-9908 ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 9909-0202 ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97066-016-0 01 1 0203- ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97068-803-0 01 1 9811- ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97218-802-1 01 1 9811- ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97066-018-0 01 1 9811-9812 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-018-0 01 1 9811-9812 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9811-9812 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9901-9902 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97066-018-0 01 1 9901-9902 ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-018-0 01 1 9901-9902 ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9903-9908 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97066-018-0 01 1 9903-9908 ● ● ● ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-018-0 01 1 9903-9908 ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 9909-0105 ● ● ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 0106-0202 ● ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97066-018-0 01 1 0203- ● ● ● ● ●
2 01.277 GUIDE; FAN
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97066-011-0 01 1 9811-0105 ●
16 01.203 CAP; RAD 8-97177-872-0 01 1 9811-0008 ● ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0009-0105 ● ● ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0009-0105 ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0009-0105 ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0106-0106 ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0106-0106 ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0106-0106 ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0106-0202 ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0106-0202 ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0203- ● ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97177-872-0 01 1 0203- ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0009- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9811-9902 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9811-9902 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9903-9907 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9903-9907 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9908- ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 9908- ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9811-9902 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9811-9902 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9903-9907 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9903-9907 ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9908- ● ● ● ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 9908- ● ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97218-801-1 01 1 9811- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 		8-97161-476-0 01 1 9811-0105 ● ● ● ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 		8-97161-476-0 01 1 0106-0202 ● ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 		8-97161-476-0 01 1 0203- ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97219-807-1 01 1 9811-0105 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97096-452-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 9811-9902 ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97096-452-0 02 1 9903-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 9903-0202 ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97096-452-0 02 1 0203- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0203- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97074-093-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9811-9902 ● ● ● ●
22 01.270 BRACKET; RAD MTG 8-97074-093-0 02 1 9811-9902 ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9903- ● ● ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97074-093-0 02 1 9903- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 9903- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 9811-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 9811-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0203- ● ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0203- ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 9811-0105 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-94101-621-1 02 1 9811-0105 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0106-0202 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0203- ● ● ● ● ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 9811- ● ● ● ● ● ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 9811- ● ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 9811- ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 9811- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET 		1-09609-023-0 01 1 9811- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 9811-9907 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 9811-9907 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 9908-0105 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 9908-0105 ● ● ● ●
51 08.951 PLUG; DRAIN
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 9908-0105 ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0106 ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0106 ● ● ● ●
51 08.951 PLUG; DRAIN
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0106 ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0202 ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 0106-0202 ● ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0203- ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 08.915 W/GASKET 		8-94321-236-0 01 1 0203- ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.203 ID=10 		9-09720-557-0 01 1 9811-9907 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 9811-9907 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 9908-0105 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 01.203 ID=10 		9-09720-557-0 01 1 9908-0105 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 9908-0105 ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 01.203 ID=10 		9-09720-557-0 01 1 0106-0106 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0106-0106 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0106-0106 ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0106-0202 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 01.203 ID=10 		9-09720-557-0 01 1 0106-0202 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0203- ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 01.203 ID=10 		9-09720-557-0 01 1 0203- ● ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 9811-9902 ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 9903-0105 ● ● ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 9903-0105 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 9903-0105 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 0106-0202 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 0106-0202 ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0106-0202 ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0203- ● ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97032-802-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97032-802-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97032-798-2 01 1 9811-9902 ● ● ● ●
56 01.270 STAY; RAD
4HF1 ENG(RLS) 		8-97032-798-2 01 1 9811-9902 ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97032-798-2 01 1 9903-0202 ● ● ● ●
56 01.270 STAY; RAD
4HF1 ENG(RLS) 		8-97032-798-2 01 1 9903-0202 ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97032-798-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HF1 ENG(RLS) 		8-97032-798-2 01 1 0203- ● ● ● ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-424-2 01 1 9811- ● ● ● ● ● ●
56 01.270 STAY; RAD
4JB1 ENG(RLF) 		8-97083-079-2 01 1 9811-0105 ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 9811- ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 9811- ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 9811- ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9811- ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9811- ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97047-899-0 01 1 9811-9812 ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) 		8-97047-899-0 01 1 9811-9812 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97047-899-0 01 1 9811-9812 ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 9811-9812 ● ●
70 01.271 STAY; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97047-899-0 01 1 9811-9812 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97047-899-0 01 1 9901-9902 ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 9901-9902 ● ● ●
70 01.271 STAY; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97047-899-0 01 1 9901-9902 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97047-899-0 01 1 9903-0105 ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 9903-0105 ● ● ●
70 01.271 STAY; RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97047-899-0 01 1 9903-0105 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97047-899-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 0106-0202 ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97047-899-0 01 1 0203- ● ● ● ●
70 01.271 STAY; RAD
4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97047-899-0 01 1 0203- ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9811-9812 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9811-9812 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) 		8-97073-125-0 01 1 9811-9812 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9901-9902 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9901-9902 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9901-9902 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9901-9902 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9903-9907 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9903-9907 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9903-9907 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9903-9907 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9908-0105 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 9908-0105 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 9908-0105 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) 		8-97073-125-0 01 1 9908-0105 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0106-0202 ● ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) 		8-97073-125-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0106-0202 ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0203- ● ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0203- ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97073-125-0 01 1 0203- ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) TURBOCHARGER(K51) 		8-97073-125-0 01 1 0203- ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 9811- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 9811- ● ● ● ● ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 9811- ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97088-810-0 04 1 9811-9907 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 9811-9907 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 9908-0105 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97088-810-0 04 1 9908-0105 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 9908-0105 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97088-810-0 04 1 0106-0106 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0106-0106 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0106-0106 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0106-0202 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97088-810-0 04 1 0106-0202 ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0203- ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 		8-97088-810-0 04 1 0203- ● ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 00.413 ID=52 		1-09704-057-0 01 1 9811-0001 ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HE1 ENG(RLY) 00.413 ID=52 		1-09704-057-0 01 1 9811-0001 ●
131 01.166 CLIP; ENG SIDE TOP
00.413 ID=52 		1-09704-057-0 01 1 9811-0001 ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0002-0202 ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0002-0202 ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0002-0202 ● ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0203- ● ● ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4JB1 ENG(RLF) ID=42 		5-09704-047-1 01 1 9811-0105 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) ID=62 		9-09915-068-1 01 1 9811-0001 ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62 		9-09915-068-1 01 1 9811-0001 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=62 		9-09915-068-1 01 1 9811-0001 ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0002-0202 ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0002-0202 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0002-0202 ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0203- ● ● ● ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4JB1 ENG(RLF) ID=48 		5-09704-049-0 01 1 9811-0105 ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 9811-9901 ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 9811-9901 ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 9811-9901 ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ● ● ● ●
240 01.271 NUT; STAY
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 9902-0105 ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 0106-0202 ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 0106-0202 ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0106-0202 ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE 		8-94178-701-0 01 1 0203- ● ● ● ● ●
240 01.271 NUT; STAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		8-94178-701-0 01 1 0203- ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0203- ●
518 01.270 NUT
00.854 M8 FLANGE 		5-09440-005-0 02 1 9811- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
