Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#21990) — 351 parça

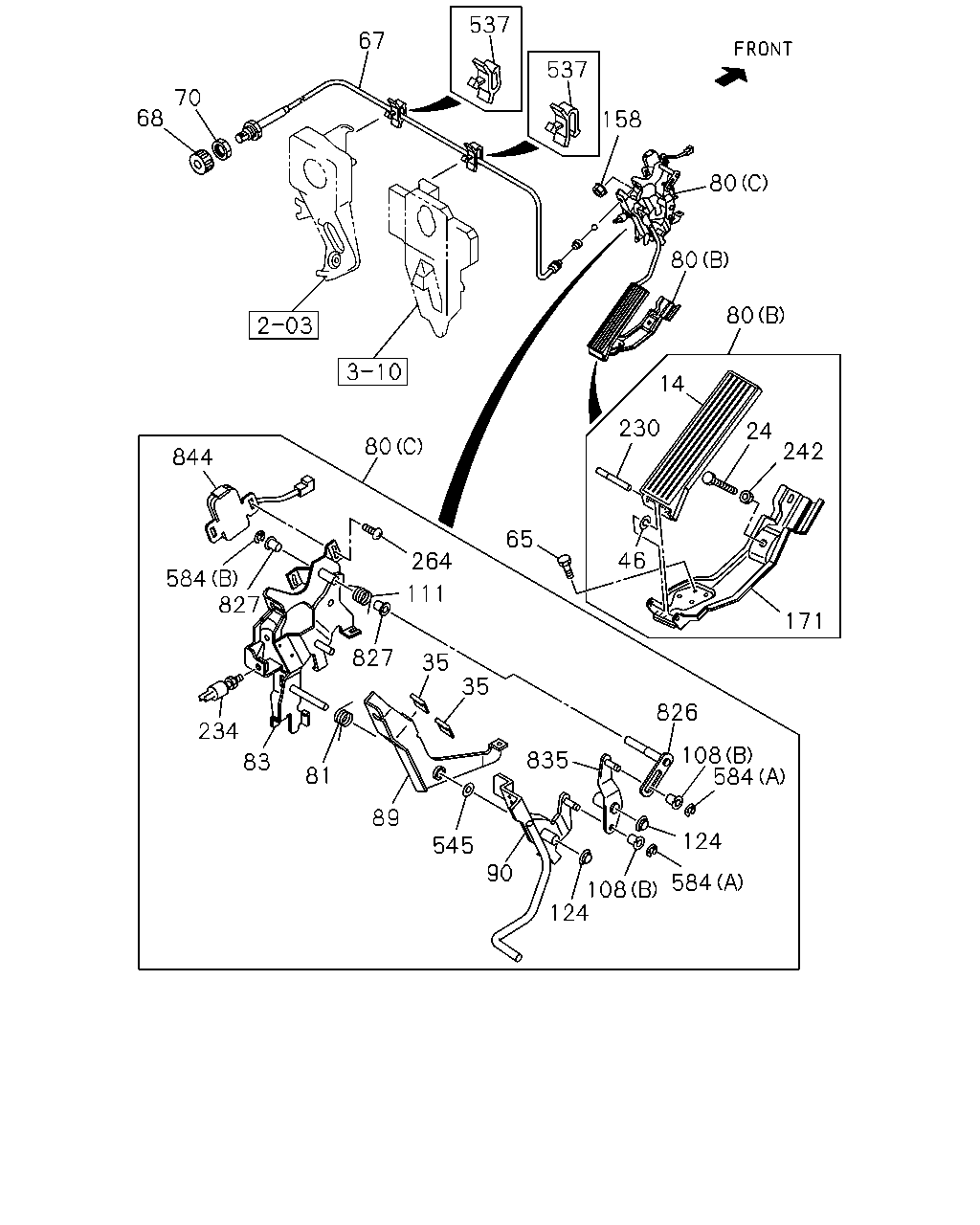

537 67 537 70 68 158 80 80 80 14 230 24 80 242 844 65 46 264 584 827 111 171 35 827 35 826 234 108 584 835 83 81 89 124 545 90 584 108 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	9811-	●	●	●	●	●	●
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	9811-	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9811-0012	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	02	1	0101-	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9811-	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	9811-	●	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=945	8-97856-223-4	01	1	9811-	●	●	●	●	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	9811-	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	9811-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	9811-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) (A)	8-97859-518-2	01	1	9811-9812	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MSB5R(RNN) (A)	8-97859-518-3	01	1	9901-0105	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) (A)	8-97859-518-3	01	1	0106-0207	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MZZ6U(RSF) (A)	8-97859-518-3	01	1	0208-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT A/T 4 SPEED-AISIN(RNJ) (C)	8-97867-873-2	01	1	9811-		●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9811-	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97859-519-0	01	1	9811-9812	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MSB5R(RNN)	8-97859-519-0	01	1	9901-0105	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97859-519-0	01	1	0106-0207	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MZZ6U(RSF)	8-97859-519-0	01	1	0208-	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK A/T 4 SPEED-AISIN(RNJ)	8-97859-520-0	01	1	9811-		●	●	●	●	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97857-617-4	01	1	9811-9812	●	●	●	●	●	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MSB5R(RNN)	8-97857-617-4	01	1	9901-0105	●	●	●	●	●	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97857-617-4	01	1	0106-0207	●	●	●	●	●	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MZZ6U(RSF)	8-97857-617-4	01	1	0208-	●	●	●	●	●	●
89	03.454 LEVER; RELAY A/T 4 SPEED-AISIN(RNJ)	8-97867-876-0	01	1	9811-		●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97857-613-6	01	1	9811-9812	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MSB5R(RNN)	8-97857-613-6	01	1	9901-0105	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97857-613-6	01	1	0106-0207	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MZZ6U(RSF)	8-97857-613-6	01	1	0208-	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT A/T 4 SPEED-AISIN(RNJ)	8-97867-874-0	01	1	9811-		●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97120-004-0	01	1	9811-0105	●	●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97120-004-0	01	1	0106-0202	●	●	●	●
108	03.463 BUSHING; ENG CONT (A)	8-97120-004-0	01	1	0106-0202					●	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97120-004-0	01	1	0203-	●	●	●	●		●
108	03.463 BUSHING; ENG CONT (A)	8-97120-004-0	01	1	0203-					●
108	03.463 BUSHING; ENG CONT A/T 4 SPEED-AISIN(RNJ) (B)	8-97044-236-0	02	1	9811-		●	●	●	●	●
111	03.459 SPRING; RETURN A/T 4 SPEED-AISIN(RNJ)	8-97046-174-0	01	1	9811-		●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	9811-9812	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MSB5R(RNN) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	9901-0105	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0106-0207	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MZZ6U(RSF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0208-	●	●	●	●	●	●
124	03.463 NUT; LEVER A/T 4 SPEED-AISIN(RNJ) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	9811-		●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	9811-	●	●	●	●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	9811-	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9811-	●	●	●	●	●	●
234	03.452 SWITCH; ACCEL A/T 4 SPEED-AISIN(RNJ)	8-97855-058-0	01	1	9811-		●	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 M8	9-09110-408-0	01	1	9811-	●	●	●	●	●	●
264	03.425 SCREW; ACCEL SW A/T 4 SPEED-AISIN(RNJ) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	02	1	9811-		●	●	●	●	●
537	03.483 CLIP; IDLING CONT CABLE 04.342 ID=7	5-09707-053-0	02	1	9811-	●	●	●	●	●	●
545	03.463 WASHER; NYLON 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	9811-	●	●	●	●	●	●
584	03.452 RING; SNAP A/T 4 SPEED-AISIN(RNJ) 04.040 (A) ID=4	9-09185-404-0	02	1	9811-		●	●	●	●	●
584	03.452 RING; SNAP A/T 4 SPEED-AISIN(RNJ) 04.040 (B) ID=6	9-09185-406-0	01	1	9811-		●	●	●	●	●
826	03.454 LEVER ASM; TPS A/T 4 SPEED-AISIN(RNJ)	8-97857-935-0	01	1	9811-		●	●	●	●	●
827	03.463 BUSHING; LEVER,TPS A/T 4 SPEED-AISIN(RNJ) 16.585 OD=9.9	8-94279-701-3	02	1	9811-		●	●	●	●	●
835	03.463 LINK; TPS A/T 4 SPEED-AISIN(RNJ)	8-97857-934-1	01	1	9811-		●	●	●	●	●
844	03.452 SWITCH; THROTTLE VLV A/T 4 SPEED-AISIN(RNJ)	8-97112-742-0	01	1	9811-		●	●	●	●	●

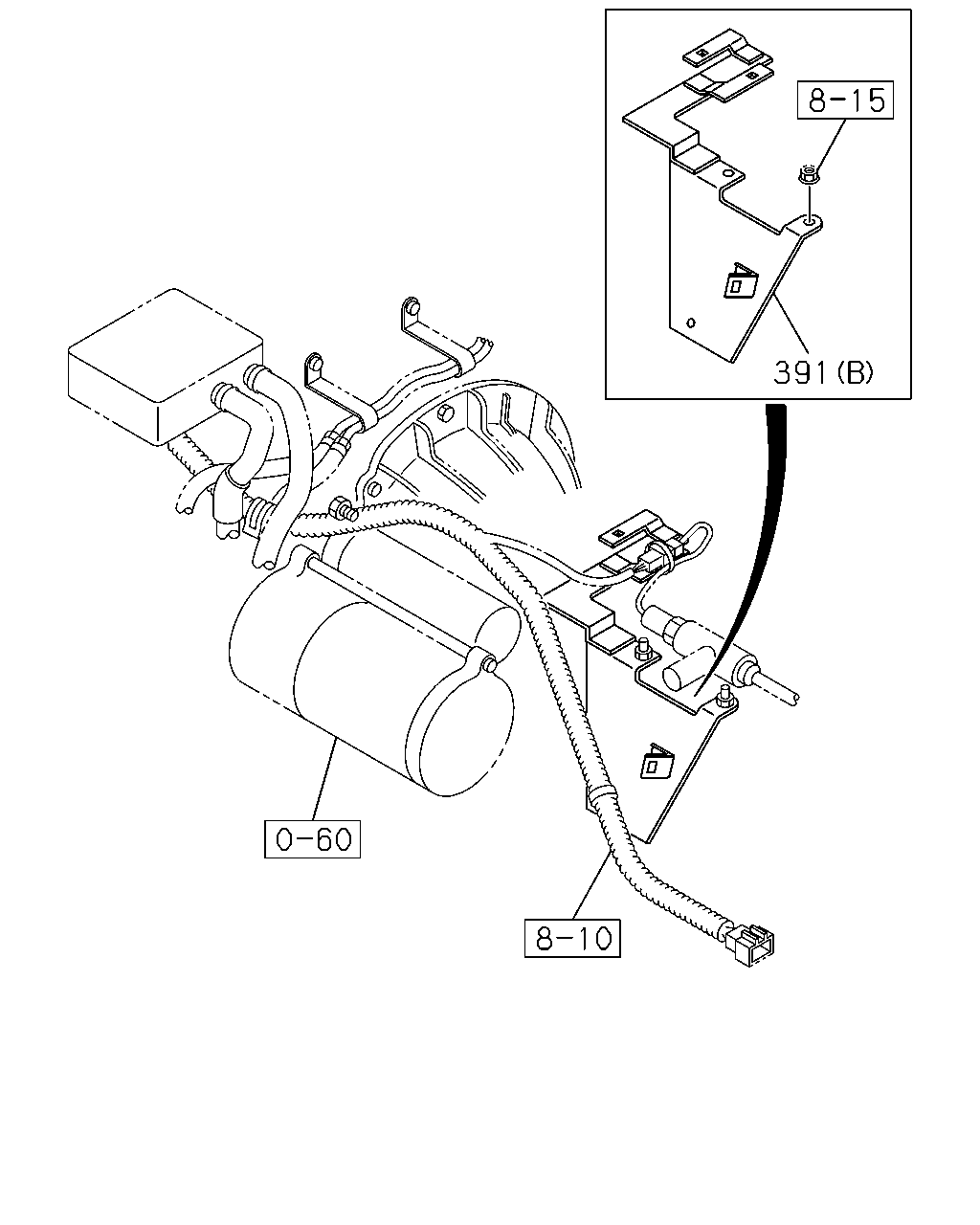

391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
391	03.452 BRACKET; ENG CONT 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B)	8-97351-929-0	01	1	0208-			●	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	9811-0105	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0106-0202	●	●	●	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0203-	●	●	●	●		●

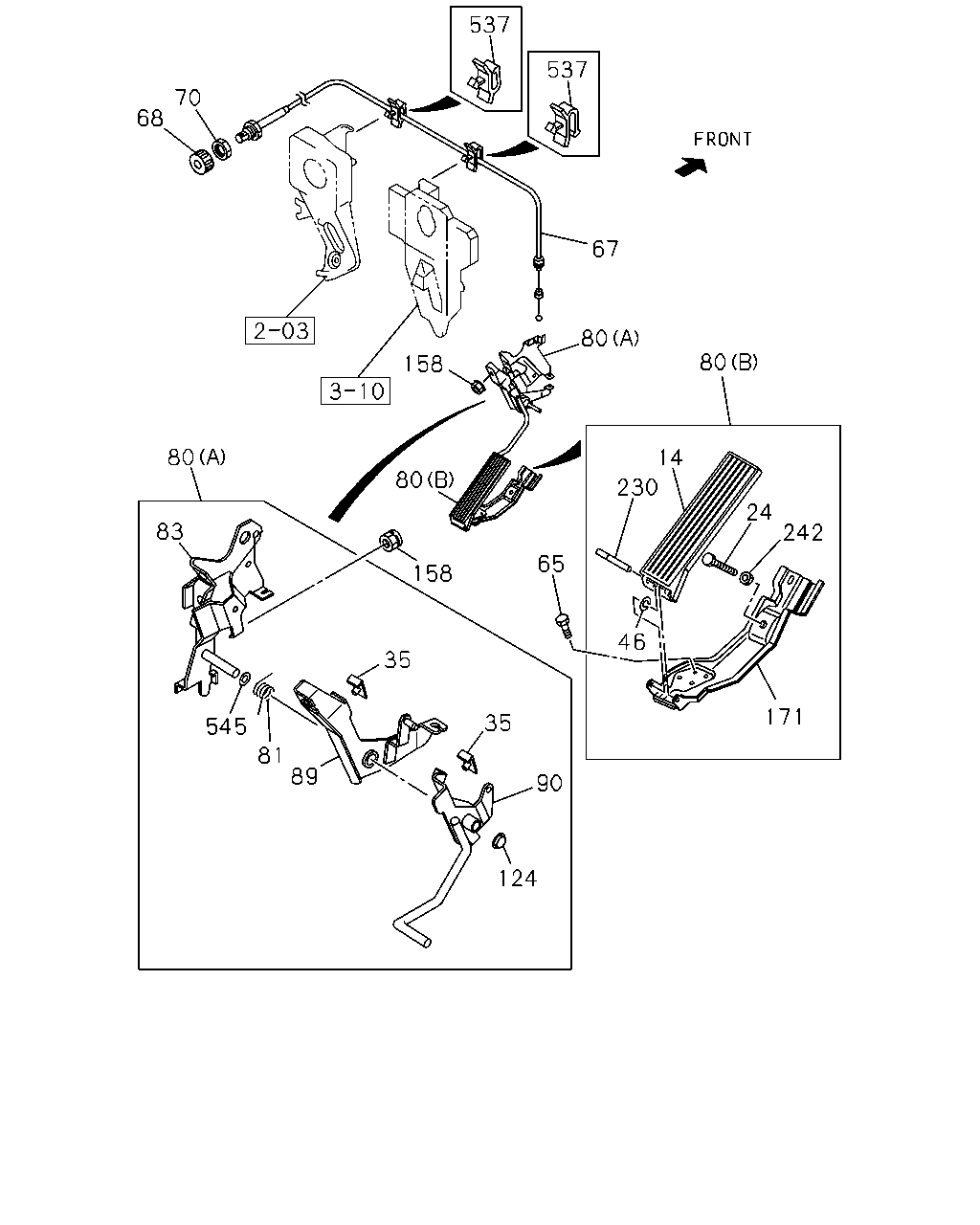

537 537 70 68 67 80 80 158 80 14 80 230 24 83 242 65 158 46 35 171 35 545 81 89 90 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	9811-	●	●	●	●	●	●
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	9811-	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9811-0012	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	02	1	0101-	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9811-	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	9811-	●	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=945	8-97856-223-4	01	1	9811-	●	●	●	●	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	9811-	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	9811-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	9811-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) (A)	8-97859-518-2	01	1	9811-9812	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MSB5R(RNN) (A)	8-97859-518-3	01	1	9901-0105	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) (A)	8-97859-518-3	01	1	0106-0207	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MZZ6U(RSF) (A)	8-97859-518-3	01	1	0208-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT A/T 4 SPEED-AISIN(RNJ) (C)	8-97867-873-2	01	1	9811-		●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9811-	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97859-519-0	01	1	9811-9812	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MSB5R(RNN)	8-97859-519-0	01	1	9901-0105	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97859-519-0	01	1	0106-0207	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MZZ6U(RSF)	8-97859-519-0	01	1	0208-	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK A/T 4 SPEED-AISIN(RNJ)	8-97859-520-0	01	1	9811-		●	●	●	●	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97857-617-4	01	1	9811-9812	●	●	●	●	●	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MSB5R(RNN)	8-97857-617-4	01	1	9901-0105	●	●	●	●	●	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97857-617-4	01	1	0106-0207	●	●	●	●	●	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MZZ6U(RSF)	8-97857-617-4	01	1	0208-	●	●	●	●	●	●
89	03.454 LEVER; RELAY A/T 4 SPEED-AISIN(RNJ)	8-97867-876-0	01	1	9811-		●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97857-613-6	01	1	9811-9812	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MSB5R(RNN)	8-97857-613-6	01	1	9901-0105	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97857-613-6	01	1	0106-0207	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MZZ6U(RSF)	8-97857-613-6	01	1	0208-	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT A/T 4 SPEED-AISIN(RNJ)	8-97867-874-0	01	1	9811-		●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	9811-9812	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MSB5R(RNN) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	9901-0105	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0106-0207	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MBP6P(RNC),M/T MBP6Q(RNM) ,M/T MZZ6U(RSF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0208-	●	●	●	●	●	●
124	03.463 NUT; LEVER A/T 4 SPEED-AISIN(RNJ) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	9811-		●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	9811-	●	●	●	●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	9811-	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9811-	●	●	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 M8	9-09110-408-0	01	1	9811-	●	●	●	●	●	●
537	03.483 CLIP; IDLING CONT CABLE 04.342 ID=7	5-09707-053-0	02	1	9811-	●	●	●	●	●	●
545	03.463 WASHER; NYLON 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	9811-	●	●	●	●	●	●

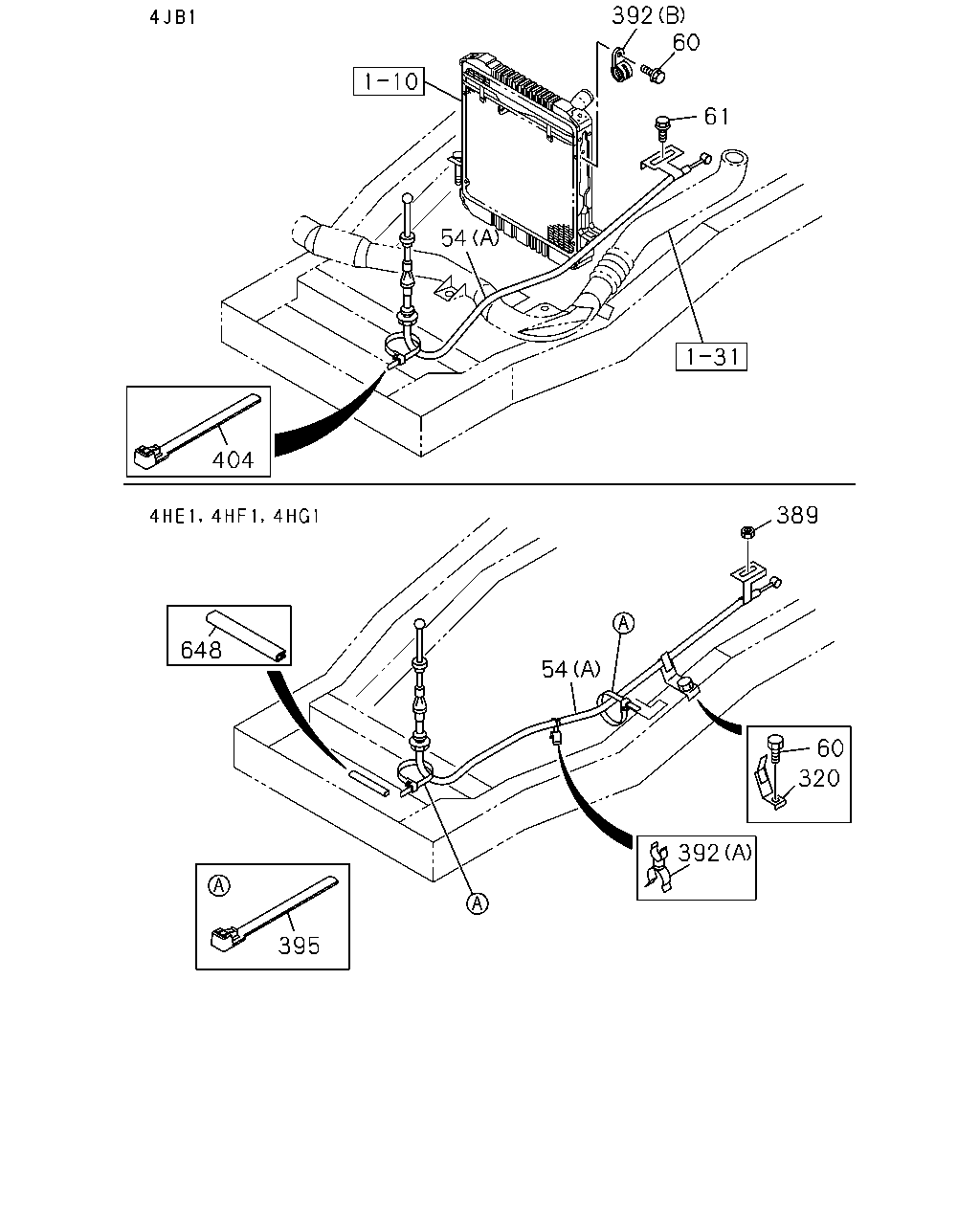

392 60 61 54 404 389 648 54 60 320 392 395

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> (B) L=381	8-97352-082-0	01	1	0209-	●		●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2061	8-97205-847-2	01	1	9811-0202	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2061	8-97205-847-2	01	1	0203-	●	●	●			●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2164	8-97118-536-1	01	1	9811-0202	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) (A) L=2164	8-97118-536-1	01	1	9811-0202	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2164	8-97118-536-2	01	1	0203-	●	●	●	●		●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) (A) L=2164	8-97118-536-2	01	1	0203-	●	●	●			●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	9811-0208	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (B) L=384	8-97168-299-1	01	1	0209-	●		●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0209-		●				●
54	03.430 CABLE; ENG CONT (B) L=384	8-97168-299-1	01	1	0209-					●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-3	01	1	9811-9901	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-4	01	1	9902-	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9811-9903	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9904-0105	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0106-0202	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0203-	●	●	●	●		●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2283	8-97122-494-1	01	1	9811-0105	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2283	8-97122-494-2	01	1	0106-0202	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2283	8-97122-494-2	01	1	0203-	●	●	●	●		●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) (A) L=1816	8-97118-538-1	01	1	9811-9904		●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) (A) L=1834	8-97229-106-1	01	1	9905-0105		●
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL> (A) L=2451	8-97220-039-0	01	1	9902-0105						●
54	03.430 CABLE; ENG CONT (A) L=2451	8-97220-039-1	01	1	0106-0202						●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97220-039-1	01	1	0203-						●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	9811-0202	●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	9811-0202				●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	0203-	●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	0203-				●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	0203-						●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-0202	●	●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0203-	●	●	●	●		●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-0105		●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JB1 ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-0105		●
320	03.483 CLIP; FRAME 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	9811-	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 M6 FLANGE	0-91150-106-0	01	1	9811-0202	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.594 M6 FLANGE	0-91150-106-0	01	1	9811-0202				●
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 M6 FLANGE	0-91150-106-0	01	1	9811-0202					●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 M6 FLANGE	0-91150-106-0	01	1	0203-	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 07.833 M8 W/LK WASHER	8-94327-073-0	01	1	9811-9902	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.833 M8 W/LK WASHER	8-94327-073-0	01	1	9811-9902	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 07.833 M8 W/LK WASHER	8-94327-073-0	01	1	9903-0105	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 07.833 M8 W/LK WASHER	8-94327-073-0	01	1	9903-0105	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 07.833 M8 W/LK WASHER	8-94327-073-0	01	1	0106-0202	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 07.833 M8 W/LK WASHER	8-94327-073-0	01	1	0106-0202	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 07.833 M8 W/LK WASHER	8-94327-073-0	01	1	0203-	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 07.833 M8 W/LK WASHER	8-94327-073-0	01	1	0203-	●	●	●	●		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	9811-9902	●	●	●	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.342 (A) ID=8.3 & 10	8-94176-792-0	01	1	9811-0202	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.342 (A) ID=8.3 & 10	8-94176-792-0	01	1	9811-0202				●
392	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.342 (A) ID=8.3 & 10	8-94176-792-0	01	1	0203-	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.342 (A) ID=8.3 & 10	8-94176-792-0	01	1	0203-				●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.342 (A) ID=8.3 & 10	8-94176-792-0	01	1	0203-						●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.334 (B) ID=16	9-09525-552-0	01	1	9811-0105		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	9811-	●	●	●	●	●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	9811-	●	●	●	●		●
404	03.483 CLIP; CABLE 4JB1 ENG(RLF) 02.559 L=250	5-09707-030-1	01	1	9811-0105		●
648	03.483 PROTECTOR 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	9811-0202	●	●	●
648	03.483 PROTECTOR 4HG1 ENG(RJH),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	9811-0202				●
648	03.483 PROTECTOR 03.008 L=80	5-22439-006-0	01	1	9811-0202					●	●
648	03.483 PROTECTOR 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	0203-	●	●	●
648	03.483 PROTECTOR 4HG1 ENG(RJH),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	0203-				●
648	03.483 PROTECTOR 03.008 L=80	5-22439-006-0	01	1	0203-					●
648	03.483 PROTECTOR 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	0203-						●

54 99 54 114 99 108 729 101 101 100 104 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> (B) L=381	8-97352-082-0	01	1	0209-	●		●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2061	8-97205-847-2	01	1	9811-0202	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2061	8-97205-847-2	01	1	0203-	●	●	●			●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2164	8-97118-536-1	01	1	9811-0202	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) (A) L=2164	8-97118-536-1	01	1	9811-0202	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2164	8-97118-536-2	01	1	0203-	●	●	●	●		●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) (A) L=2164	8-97118-536-2	01	1	0203-	●	●	●			●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	9811-0208	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (B) L=384	8-97168-299-1	01	1	0209-	●		●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0209-		●				●
54	03.430 CABLE; ENG CONT (B) L=384	8-97168-299-1	01	1	0209-					●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-3	01	1	9811-9901	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-4	01	1	9902-	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9811-9903	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9904-0105	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0106-0202	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0203-	●	●	●	●		●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2283	8-97122-494-1	01	1	9811-0105	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2283	8-97122-494-2	01	1	0106-0202	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2283	8-97122-494-2	01	1	0203-	●	●	●	●		●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) (A) L=1816	8-97118-538-1	01	1	9811-9904		●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) (A) L=1834	8-97229-106-1	01	1	9905-0105		●
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL> (A) L=2451	8-97220-039-0	01	1	9902-0105						●
54	03.430 CABLE; ENG CONT (A) L=2451	8-97220-039-1	01	1	0106-0202						●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97220-039-1	01	1	0203-						●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> (A)	8-97302-093-2	01	1	0201-	●		●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-871-3	01	1	9811-9901	●	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-871-3	01	1	9902-0105	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF CHARGE AIR COOLER<6PL> (A)	8-97167-871-3	01	1	9902-0105					●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-871-3	01	1	0106-0112	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF (A)	8-97167-871-3	01	1	0106-0112					●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-871-3	01	1	0201-	●		●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (A)	8-97167-871-3	01	1	0201-	●		●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-871-3	01	1	0201-		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF (A)	8-97167-871-3	01	1	0201-					●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-729-0	01	1	9811-0105	●	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-729-0	01	1	0106-0202	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-729-0	01	1	0203-	●	●	●	●		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF CHARGE AIR COOLER<6PL> (A)	8-97225-505-0	01	1	9902-0105						●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF (A)	8-97225-505-0	01	1	0106-0202						●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97225-505-0	01	1	0203-						●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> (A)	8-97302-094-0	01	1	0201-	●		●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	9811-9908	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	9909-0105	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	9909-0105					●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	0106-0112	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT (A)	8-97167-870-2	01	1	0106-0112					●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-870-2	01	1	0201-0202	●		●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (A)	8-97167-870-2	01	1	0201-0202	●		●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	0201-0202		●
100	03.463 SHAFT ASM; ENG CONT (A)	8-97167-870-2	01	1	0201-0202					●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-870-2	01	1	0203-	●		●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (A)	8-97167-870-2	01	1	0203-	●		●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	0203-		●				●
100	03.463 SHAFT ASM; ENG CONT (A)	8-97167-870-2	01	1	0203-					●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-737-0	01	1	9811-0105	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-737-0	01	1	0106-0202	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-737-0	01	1	0203-	●	●	●	●		●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	9811-0105	●	●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	0106-0202	●	●	●	●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	0106-0202					●	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	0203-	●	●	●	●		●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	0203-					●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●	●	●	●	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0202	●	●	●	●
104	03.463 NUT; ENG CONT 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0202					●	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	0203-	●	●	●	●		●
104	03.463 NUT; ENG CONT 07.633 M8 FLANGE	0-91150-108-0	01	1	0203-					●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97120-004-0	01	1	9811-0105	●	●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97120-004-0	01	1	0106-0202	●	●	●	●
108	03.463 BUSHING; ENG CONT (A)	8-97120-004-0	01	1	0106-0202					●	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97120-004-0	01	1	0203-	●	●	●	●		●
108	03.463 BUSHING; ENG CONT (A)	8-97120-004-0	01	1	0203-					●
108	03.463 BUSHING; ENG CONT A/T 4 SPEED-AISIN(RNJ) (B)	8-97044-236-0	02	1	9811-		●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9811-	●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9811-9903	●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9904-0105	●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0106-0202	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0203-	●	●	●	●		●
114	03.483 CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 ID=7-10	8-94472-578-0	01	1	9811-0105	●	●	●	●
114	03.483 CLIP; HARNESS CONNECTOR CHARGE AIR COOLER<6PL> 02.559 ID=7-10	8-94472-578-0	01	1	9811-0105					●	●
114	03.483 CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 ID=7-10	8-94472-578-0	01	1	0106-0202	●	●	●	●
114	03.483 CLIP; HARNESS CONNECTOR 02.559 ID=7-10	8-94472-578-0	01	1	0106-0202					●	●
114	03.483 CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 ID=7-10	8-94472-578-0	01	1	0203-	●	●	●	●		●
114	03.483 CLIP; HARNESS CONNECTOR 02.559 ID=7-10	8-94472-578-0	01	1	0203-					●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	9811-0105	●	●	●	●	●	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	0106-0202	●	●	●	●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	0106-0202					●	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	0203-	●	●	●	●		●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	0203-					●

54 99 54 99 100 101 108 729 218 101 104 391 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> (B) L=381	8-97352-082-0	01	1	0209-	●		●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2061	8-97205-847-2	01	1	9811-0202	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2061	8-97205-847-2	01	1	0203-	●	●	●			●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2164	8-97118-536-1	01	1	9811-0202	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) (A) L=2164	8-97118-536-1	01	1	9811-0202	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2164	8-97118-536-2	01	1	0203-	●	●	●	●		●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) (A) L=2164	8-97118-536-2	01	1	0203-	●	●	●			●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	9811-0208	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (B) L=384	8-97168-299-1	01	1	0209-	●		●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0209-		●				●
54	03.430 CABLE; ENG CONT (B) L=384	8-97168-299-1	01	1	0209-					●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-3	01	1	9811-9901	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-4	01	1	9902-	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9811-9903	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9904-0105	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0106-0202	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0203-	●	●	●	●		●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2283	8-97122-494-1	01	1	9811-0105	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2283	8-97122-494-2	01	1	0106-0202	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2283	8-97122-494-2	01	1	0203-	●	●	●	●		●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) (A) L=1816	8-97118-538-1	01	1	9811-9904		●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) (A) L=1834	8-97229-106-1	01	1	9905-0105		●
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL> (A) L=2451	8-97220-039-0	01	1	9902-0105						●
54	03.430 CABLE; ENG CONT (A) L=2451	8-97220-039-1	01	1	0106-0202						●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97220-039-1	01	1	0203-						●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> (A)	8-97302-093-2	01	1	0201-	●		●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-871-3	01	1	9811-9901	●	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-871-3	01	1	9902-0105	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF CHARGE AIR COOLER<6PL> (A)	8-97167-871-3	01	1	9902-0105					●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-871-3	01	1	0106-0112	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF (A)	8-97167-871-3	01	1	0106-0112					●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-871-3	01	1	0201-	●		●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (A)	8-97167-871-3	01	1	0201-	●		●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-871-3	01	1	0201-		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF (A)	8-97167-871-3	01	1	0201-					●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-729-0	01	1	9811-0105	●	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-729-0	01	1	0106-0202	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-729-0	01	1	0203-	●	●	●	●		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF CHARGE AIR COOLER<6PL> (A)	8-97225-505-0	01	1	9902-0105						●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF (A)	8-97225-505-0	01	1	0106-0202						●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97225-505-0	01	1	0203-						●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> (A)	8-97302-094-0	01	1	0201-	●		●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	9811-9908	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	9909-0105	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	9909-0105					●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	0106-0112	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT (A)	8-97167-870-2	01	1	0106-0112					●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-870-2	01	1	0201-0202	●		●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (A)	8-97167-870-2	01	1	0201-0202	●		●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	0201-0202		●
100	03.463 SHAFT ASM; ENG CONT (A)	8-97167-870-2	01	1	0201-0202					●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-870-2	01	1	0203-	●		●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (A)	8-97167-870-2	01	1	0203-	●		●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	0203-		●				●
100	03.463 SHAFT ASM; ENG CONT (A)	8-97167-870-2	01	1	0203-					●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-737-0	01	1	9811-0105	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-737-0	01	1	0106-0202	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-737-0	01	1	0203-	●	●	●	●		●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	9811-0105	●	●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	0106-0202	●	●	●	●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	0106-0202					●	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	0203-	●	●	●	●		●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	0203-					●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●	●	●	●	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0202	●	●	●	●
104	03.463 NUT; ENG CONT 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0202					●	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	0203-	●	●	●	●		●
104	03.463 NUT; ENG CONT 07.633 M8 FLANGE	0-91150-108-0	01	1	0203-					●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97120-004-0	01	1	9811-0105	●	●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97120-004-0	01	1	0106-0202	●	●	●	●
108	03.463 BUSHING; ENG CONT (A)	8-97120-004-0	01	1	0106-0202					●	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97120-004-0	01	1	0203-	●	●	●	●		●
108	03.463 BUSHING; ENG CONT (A)	8-97120-004-0	01	1	0203-					●
108	03.463 BUSHING; ENG CONT A/T 4 SPEED-AISIN(RNJ) (B)	8-97044-236-0	02	1	9811-		●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9811-	●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9811-9903	●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9904-0105	●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0106-0202	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0203-	●	●	●	●		●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●	●	●	●	●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0202	●	●	●	●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0203-	●	●	●	●		●
391	03.452 BRACKET; ENG CONT 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B)	8-97351-929-0	01	1	0208-			●	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	9811-0105	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0106-0202	●	●	●	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0203-	●	●	●	●		●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	9811-0105	●	●	●	●	●	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	0106-0202	●	●	●	●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	0106-0202					●	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	0203-	●	●	●	●		●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	0203-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
