Sayfa 2-07 - Isuzu EPC

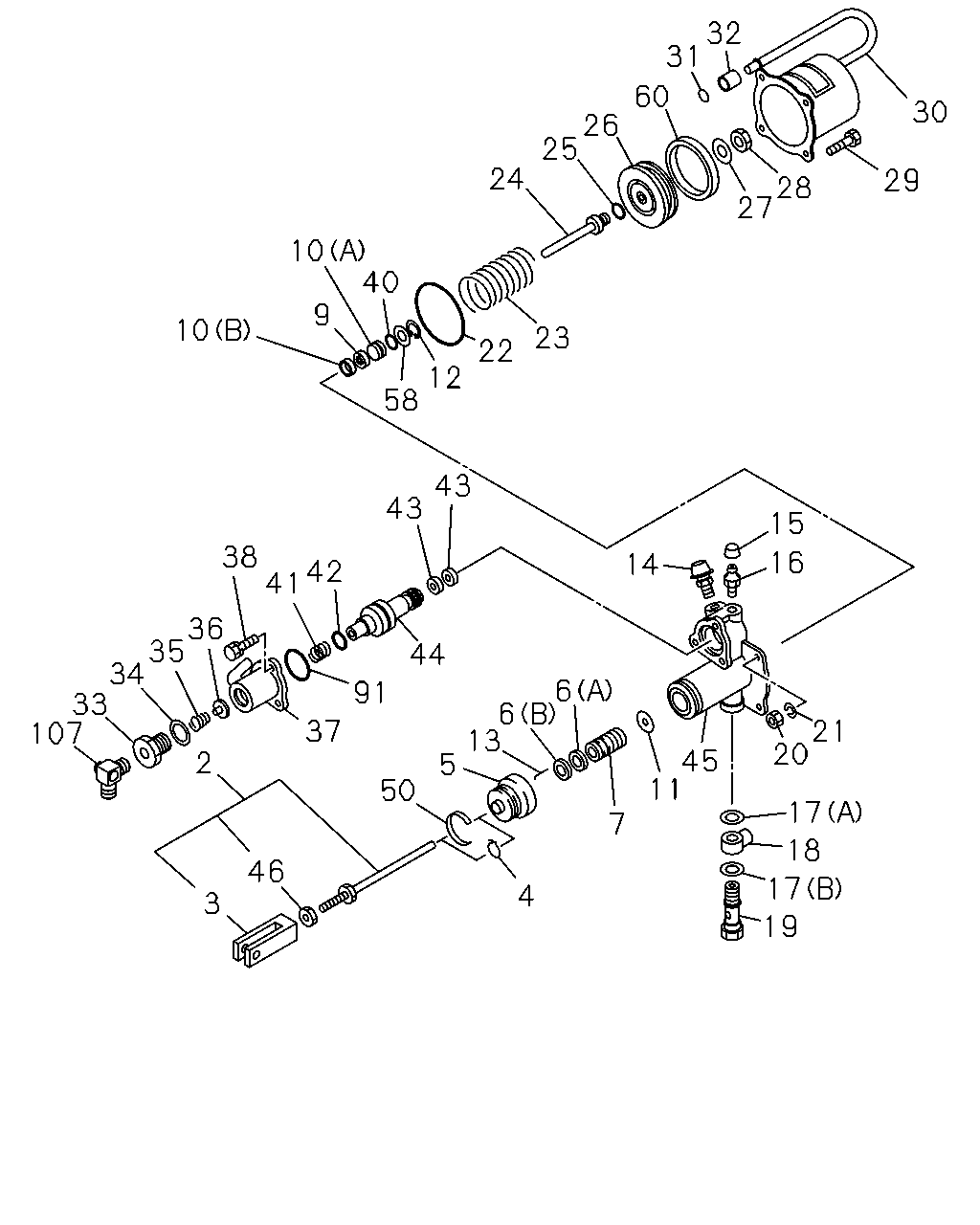

2-07 — CLUTCH BOOSTER; MINIPACK (#2199) — 183 parça

32 31 60 30 26 25 24 29 28 27 10 40 9 10 23 22 12 58 43 43 15 38 42 41 16 14 36 35 34 33 107 44 6 6 13 91 2 21 20 37 45 11 5 50 17 7 18 46 17 4 3 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	ROD; PUSH,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31824-208-0	01	1	0107-0203	●	●	●	●	●	●
2	ROD; PUSH,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-31824-208-0	01	1	0107-0203							●
2	ROD; PUSH,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31824-138-0	01	1	9101-0106	●	●	●	●	●	●	●
2	ROD; PUSH,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31824-138-0	01	1	0107-0203							●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-538-0	01	1	0107-0203	●	●	●	●	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31829-538-0	01	1	0107-0203							●
3	CLEVIS; PUSH ROD,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-186-0	01	1	9101-0106	●	●	●	●	●	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-186-0	01	1	0107-0203							●
4	CLAMP; BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-168-0	01	1	9101-0106	●	●	●	●	●	●	●
4	CLAMP; BOOSTER 15 INCH CLUTCH<RE9>	1-31829-168-0	01	1	0107-0203							●
5	GUARD; PISTON,CLU BOOSTER	1-31829-503-0	01	1	0107-0203	●	●	●	●	●	●
5	GUARD; PISTON,CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31829-503-0	01	1	0107-0203							●
5	GUARD; PISTON,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-174-0	01	1	9101-0106	●	●	●	●	●	●	●
5	GUARD; PISTON,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-174-0	01	1	0107-0203							●
6	GASKET; PISTON CUP,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) (A)	1-31829-055-0	01	1	9101-0203	●	●	●	●	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) (B)	1-31829-056-0	01	1	9101-0203	●	●	●	●	●	●	●
7	PISTON; CLU BOOSTER	1-31821-048-0	01	1	0107-0203	●	●	●	●	●	●
7	PISTON; CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31821-048-0	01	1	0107-0203							●
7	PISTON; CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31821-013-0	01	1	9101-0106	●	●	●	●	●	●	●
7	PISTON; CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31821-013-0	01	1	0107-0203							●
9	GASKET; PISTON CUP,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-003-0	01	1	9101-9102	●	●	●	●	●	●	●
9	GASKET; PISTON CUP,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-003-0	01	1	9103-0203	●	●	●	●	●	●
9	GASKET; PISTON CUP,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-31829-003-0	01	1	9103-0203							●
9	GASKET; PISTON CUP,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-251-0	01	1	9103-0203							●
10	RETAINER; PISTON,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) (A)	1-31829-107-0	01	1	9101-9102	●	●	●	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) (A)	1-31829-107-0	01	1	9103-0203	●	●	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9> (A)	1-31829-107-0	01	1	9103-0203							●
10	RETAINER; PISTON,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) (B)	1-31829-108-0	01	1	9101-9102	●	●	●	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) (B)	1-31829-108-0	01	1	9103-0203	●	●	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9> (B)	1-31829-108-0	01	1	9103-0203							●
10	RETAINER; PISTON,CLU BOOSTER 15 INCH CLUTCH<RE9> (A)	1-31829-285-0	01	1	9103-0203							●
10	RETAINER; PISTON,CLU BOOSTER 15 INCH CLUTCH<RE9> (B)	1-31829-293-0	01	1	9103-0203							●
11	WASHER; PISTON,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-105-0	01	1	9101-0203	●	●	●	●	●	●	●
12	RING; RET,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	9-83315-315-0	01	1	9101-0203	●	●	●	●	●	●	●
13	PIN; SPR CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-109-0	01	1	9101-0203	●	●	●	●	●	●	●
14	COVER; EXH,CLU BOOSTER	1-31829-365-0	01	1	0107-0203	●	●	●	●	●	●
14	COVER; EXH,CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31829-365-0	01	1	0107-0203							●
14	COVER; EXH,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-102-0	01	1	9101-0106	●	●	●	●	●	●	●
14	COVER; EXH,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-102-0	01	1	0107-0203							●
15	PROTECTOR; END PLATE,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	9-83335-044-0	01	1	9101-0203	●	●	●	●	●	●	●
16	PLUG; END PLATE,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	9-83331-704-0	01	1	9101-0203	●	●	●	●	●	●	●
17	GASKET; CONN,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) (A)	9-09920-267-0	01	1	9101-0203	●	●	●	●	●	●	●
17	GASKET; CONN,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) (B)	9-09920-268-0	01	1	9101-0203	●	●	●	●	●	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-248-0	01	1	9101-0203	●	●	●	●	●	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	9-83315-047-0	01	1	9101-0203	●	●	●	●	●	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	9-83315-085-0	04	1	9101-0203	●	●	●	●	●	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) ID=8.2	9-09150-508-0	04	1	9101-0203	●	●	●	●	●	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-09623-327-0	01	1	9101-0203	●	●	●	●	●	●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-358-0	01	1	0107-0203	●	●	●	●	●	●
23	SPRING; SHELL,CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31829-358-0	01	1	0107-0203							●
23	SPRING; SHELL,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-110-0	01	1	9101-0106	●	●	●	●	●	●	●
23	SPRING; SHELL,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-110-0	01	1	0107-0203							●
24	ROD; PUSH,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-112-0	01	1	9101-9102	●	●	●	●	●	●	●
24	ROD; PUSH,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-112-0	01	1	9103-9204	●	●	●	●	●	●
24	ROD; PUSH,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-31829-112-0	01	1	9103-9204							●
24	ROD; PUSH,CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31829-112-0	01	1	9205-9205	●	●	●	●	●	●	●
24	ROD; PUSH,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-112-0	01	1	9206-0203	●	●	●	●	●	●
24	ROD; PUSH,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-31829-112-0	01	1	9206-0203							●
24	ROD; PUSH,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-334-0	01	1	9103-0203							●
25	GASKET; PUSH ROD,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-09623-321-0	01	1	9101-0203	●	●	●	●	●	●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-083-0	01	1	0107-0203	●	●	●	●	●	●
26	PISTON; SHELL,CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31821-083-0	01	1	0107-0203							●
26	PISTON; SHELL,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31821-057-0	01	1	9101-0106	●	●	●	●	●	●	●
26	PISTON; SHELL,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31821-057-0	01	1	0107-0203							●
27	SPRING; CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-111-0	01	1	9101-0203	●	●	●	●	●	●	●
28	NUT; PUSH ROD,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	9-88510-365-0	01	1	9101-0203	●	●	●	●	●	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-015-0	04	1	9101-0203	●	●	●	●	●	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-123-0	01	1	0107-0203	●	●	●	●	●	●
30	SHELL; CYL,CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31811-123-0	01	1	0107-0203							●
30	SHELL; CYL,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31811-026-0	01	1	9101-0106	●	●	●	●	●	●	●
30	SHELL; CYL,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31811-026-0	01	1	0107-0203							●
31	GASKET; SHELL,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-113-0	01	1	9101-0203	●	●	●	●	●	●	●
32	BUSHING; SHELL,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-114-0	01	1	9101-0203	●	●	●	●	●	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-212-0	01	1	9101-0203	●	●	●	●	●	●	●
34	GASKET; CONN,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-053-0	01	1	9101-0203	●	●	●	●	●	●	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-537-0	01	1	0107-0203	●	●	●	●	●	●
35	SPRING; POPPET VLV,CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31829-537-0	01	1	0107-0203							●
35	SPRING; POPPET VLV,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-077-0	01	1	9101-0106	●	●	●	●	●	●	●
35	SPRING; POPPET VLV,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-077-0	01	1	0107-0203							●
36	VALVE; POPPET,CLU BOOSTER	1-31829-536-0	01	1	0107-0203	●	●	●	●	●	●
36	VALVE; POPPET,CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31829-536-0	01	1	0107-0203							●
36	VALVE; POPPET,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-016-0	01	1	9101-0106	●	●	●	●	●	●	●
36	VALVE; POPPET,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-016-0	01	1	0107-0203							●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-089-0	01	1	0107-0203	●	●	●	●	●	●
37	BODY; UPR,VLV,CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31811-089-0	01	1	0107-0203							●
37	BODY; UPR,VLV,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31811-018-0	01	1	9101-0106	●	●	●	●	●	●	●
37	BODY; UPR,VLV,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31811-018-0	01	1	0107-0203							●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE CLUTCH SYSTEM MINIPACK(B1Z)	1-44519-022-0	03	1	9101-9102	●	●	●	●	●	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE CLUTCH SYSTEM MINIPACK(B1Z)	1-44519-022-0	03	1	9103-0203	●	●	●	●	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-44519-022-0	03	1	9103-0203							●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE CLUTCH SYSTEM MINIPACK(B1Z) 15 INCH CLUTCH<RE9>	9-83315-113-0	03	1	9103-0203							●
40	GASKET; PISTON,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-037-0	01	1	9101-0203	●	●	●	●	●	●	●
41	SPRING; DIAPH,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-420-0	01	1	9602-0203	●	●	●	●	●	●
41	SPRING; DIAPH,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-31829-420-0	01	1	9602-0203							●
41	SPRING; DIAPH,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-104-0	01	1	9101-9102	●	●	●	●	●	●	●
41	SPRING; DIAPH,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-104-0	01	1	9103-9204	●	●	●	●	●	●
41	SPRING; DIAPH,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-104-0	01	1	9103-9204							●
41	SPRING; DIAPH,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-104-0	01	1	9205-9601	●	●	●	●	●	●	●
41	SPRING; DIAPH,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-104-0	01	1	9602-0203							●
41	SPRING; DIAPH,CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31829-422-0	01	1	9103-9204							●
42	GASKET; FITTING,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-123-0	01	1	9101-0203	●	●	●	●	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-060-0	02	1	9101-9205	●	●	●	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-060-0	02	1	9206-0203	●	●	●	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-31829-060-0	02	1	9206-0203							●
43	GASKET; UPR VLV,CLU BOOSTER FINAL GEAR 43/7 15.5"(W1R)	1-31829-069-0	02	1	9101-9102							●
43	GASKET; UPR VLV,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) 15 INCH CLUTCH<RE9>	1-31829-083-0	02	1	9103-0203							●
44	PISTON; UPR VLV,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31821-019-0	01	1	9101-9205	●	●	●	●	●	●
44	PISTON; UPR VLV,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31821-019-0	01	1	9206-0203	●	●	●	●	●	●
44	PISTON; UPR VLV,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-31821-019-0	01	1	9206-0203							●
44	PISTON; UPR VLV,CLU BOOSTER FINAL GEAR 43/7 15.5"(W1R)	1-31821-055-0	01	1	9101-9102							●
44	PISTON; UPR VLV,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) 15 INCH CLUTCH<RE9>	1-31821-030-0	01	1	9103-0203							●
45	PLATE; END,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31811-062-0	01	1	9101-9205	●	●	●	●	●	●
45	PLATE; END,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31811-062-0	01	1	9206-0203	●	●	●	●	●	●
45	PLATE; END,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-31811-062-0	01	1	9206-0203							●
45	PLATE; END,CLU BOOSTER FINAL GEAR 43/7 15.5"(W1R)	1-31811-065-0	01	1	9101-9102							●
45	PLATE; END,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) 15 INCH CLUTCH<RE9>	1-31811-064-0	01	1	9103-0203							●
46	NUT; PUSH ROD,CLU BOOSTER	1-31824-126-0	02	1	0107-0203	●	●	●	●	●	●
46	NUT; PUSH ROD,CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31824-126-0	02	1	0107-0203							●
46	NUT; PUSH ROD,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31824-126-0	01	1	9101-0106	●	●	●	●	●	●	●
46	NUT; PUSH ROD,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31824-126-0	01	1	0107-0203							●
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-504-0	01	1	0107-0203	●	●	●	●	●	●
50	CLAMP; PISTON GUARD,CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31829-504-0	01	1	0107-0203							●
58	WASHER; PISTON,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-294-0	01	1	9103-0203							●
60	GASKET; SHELL,CLU BOOSTER	1-31829-535-0	01	1	0107-0203	●	●	●	●	●	●
60	GASKET; SHELL,CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31829-535-0	01	1	0107-0203							●
60	GASKET; SHELL,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-066-0	01	1	9101-0106	●	●	●	●	●	●	●
60	GASKET; SHELL,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-066-0	01	1	0107-0203							●
91	GASKET; CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-103-0	01	1	9101-0203	●	●	●	●	●	●	●
107	CONNECTOR; ELBOW CLUTCH SYSTEM MINIPACK(B1Z) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9101-0203	●	●	●	●	●	●	●

1 32 31 15 43 43 42 91 58 10 27 60 25 12 40 9 36 34 6 6 22 17 5 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	REPAIR KIT; CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-183-0	01	1	9101-9204	●	●	●	●	●	●
1	REPAIR KIT; CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-31829-183-0	01	1	9101-9204							●
1	REPAIR KIT; CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-183-0	01	1	9206-0106	●	●	●	●	●	●
1	REPAIR KIT; CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-31829-183-0	01	1	9206-0106							●
1	REPAIR KIT; CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-540-0	01	1	0107-0203	●	●	●	●	●	●
1	REPAIR KIT; CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-31829-540-0	01	1	0107-0203							●
1	REPAIR KIT; CLU BOOSTER FINAL GEAR 43/7 15.5"(W1R)	1-31829-327-0	01	1	9101-9102							●
1	REPAIR KIT; CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31829-331-0	01	1	9103-9204							●
1	REPAIR KIT; CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-330-0	01	1	9103-0203							●
5	GUARD; PISTON,CLU BOOSTER	1-31829-503-0	01	1	0107-0203	●	●	●	●	●	●
5	GUARD; PISTON,CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31829-503-0	01	1	0107-0203							●
5	GUARD; PISTON,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-174-0	01	1	9101-0106	●	●	●	●	●	●	●
5	GUARD; PISTON,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-174-0	01	1	0107-0203							●
6	GASKET; PISTON CUP,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) (A)	1-31829-055-0	01	1	9101-0203	●	●	●	●	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) (B)	1-31829-056-0	01	1	9101-0203	●	●	●	●	●	●	●
9	GASKET; PISTON CUP,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-003-0	01	1	9101-9102	●	●	●	●	●	●	●
9	GASKET; PISTON CUP,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-003-0	01	1	9103-0203	●	●	●	●	●	●
9	GASKET; PISTON CUP,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-31829-003-0	01	1	9103-0203							●
9	GASKET; PISTON CUP,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-251-0	01	1	9103-0203							●
10	RETAINER; PISTON,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) (A)	1-31829-107-0	01	1	9101-9102	●	●	●	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) (A)	1-31829-107-0	01	1	9103-0203	●	●	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9> (A)	1-31829-107-0	01	1	9103-0203							●
10	RETAINER; PISTON,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) (B)	1-31829-108-0	01	1	9101-9102	●	●	●	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) (B)	1-31829-108-0	01	1	9103-0203	●	●	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9> (B)	1-31829-108-0	01	1	9103-0203							●
10	RETAINER; PISTON,CLU BOOSTER 15 INCH CLUTCH<RE9> (A)	1-31829-285-0	01	1	9103-0203							●
10	RETAINER; PISTON,CLU BOOSTER 15 INCH CLUTCH<RE9> (B)	1-31829-293-0	01	1	9103-0203							●
12	RING; RET,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	9-83315-315-0	01	1	9101-0203	●	●	●	●	●	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	9-83335-044-0	01	1	9101-0203	●	●	●	●	●	●	●
17	GASKET; CONN,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) (A)	9-09920-267-0	01	1	9101-0203	●	●	●	●	●	●	●
17	GASKET; CONN,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) (B)	9-09920-268-0	01	1	9101-0203	●	●	●	●	●	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-09623-327-0	01	1	9101-0203	●	●	●	●	●	●	●
25	GASKET; PUSH ROD,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-09623-321-0	01	1	9101-0203	●	●	●	●	●	●	●
27	SPRING; CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-111-0	01	1	9101-0203	●	●	●	●	●	●	●
31	GASKET; SHELL,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-113-0	01	1	9101-0203	●	●	●	●	●	●	●
32	BUSHING; SHELL,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-114-0	01	1	9101-0203	●	●	●	●	●	●	●
34	GASKET; CONN,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-053-0	01	1	9101-0203	●	●	●	●	●	●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-536-0	01	1	0107-0203	●	●	●	●	●	●
36	VALVE; POPPET,CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31829-536-0	01	1	0107-0203							●
36	VALVE; POPPET,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-016-0	01	1	9101-0106	●	●	●	●	●	●	●
36	VALVE; POPPET,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-016-0	01	1	0107-0203							●
40	GASKET; PISTON,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-037-0	01	1	9101-0203	●	●	●	●	●	●	●
42	GASKET; FITTING,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-123-0	01	1	9101-0203	●	●	●	●	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-060-0	02	1	9101-9205	●	●	●	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-060-0	02	1	9206-0203	●	●	●	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-31829-060-0	02	1	9206-0203							●
43	GASKET; UPR VLV,CLU BOOSTER FINAL GEAR 43/7 15.5"(W1R)	1-31829-069-0	02	1	9101-9102							●
43	GASKET; UPR VLV,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) 15 INCH CLUTCH<RE9>	1-31829-083-0	02	1	9103-0203							●
58	WASHER; PISTON,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-294-0	01	1	9103-0203							●
60	GASKET; SHELL,CLU BOOSTER	1-31829-535-0	01	1	0107-0203	●	●	●	●	●	●
60	GASKET; SHELL,CLU BOOSTER EXC. 15 INCH CLUTCH<RE9>	1-31829-535-0	01	1	0107-0203							●
60	GASKET; SHELL,CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-066-0	01	1	9101-0106	●	●	●	●	●	●	●
60	GASKET; SHELL,CLU BOOSTER 15 INCH CLUTCH<RE9>	1-31829-066-0	01	1	0107-0203							●
91	GASKET; CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z)	1-31829-103-0	01	1	9101-0203	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
