0-86 — MISCELLANEOUS PARTS; INJECTION PUMP (#21988) — 25 parça

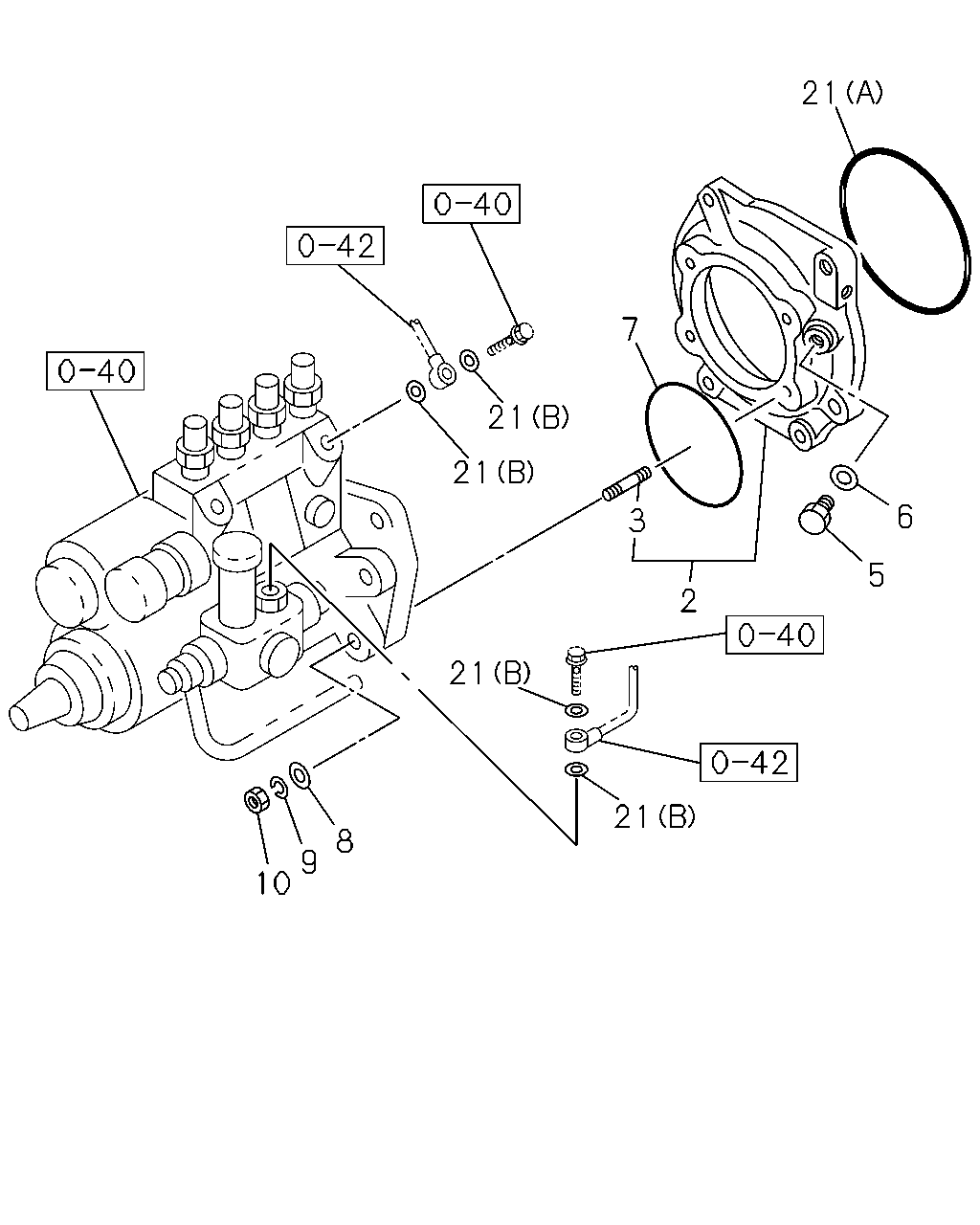

21 7 21 21 6 3 5 2 21 21 8 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97123-609-0	01	1	9811-0012	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97123-609-0	01	1	0101-	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97121-616-0	01	1	9811-0111		●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP EXC. ENGINE POWER N-SPEC(7QV)	8-97121-616-0	01	1	0112-		●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP CHARGE AIR COOLER<6PL>	8-97188-880-1	01	1	9811-			●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP EXC. CHARGE AIR COOLER<6PL>	8-97125-957-0	01	1	9811-			●
3	03.330 STUD; HSG BRKT,INJ PUMP 08.981 M10X30 L=45	9-04101-030-0	04	1	9811-0111		●
3	03.330 STUD; HSG BRKT,INJ PUMP EXC. CHARGE AIR COOLER<6PL> 08.981 M10X30 L=45	9-04101-030-0	04	1	9811-0111			●
3	03.330 STUD; HSG BRKT,INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 08.981 M10X30 L=45	9-04101-030-0	04	1	0112-		●
3	03.330 STUD; HSG BRKT,INJ PUMP EXC. CHARGE AIR COOLER<6PL> 08.981 M10X30 L=45	9-04101-030-0	04	1	0112-			●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	9811-	●	●	●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	9811-	●	●	●
7	03.306 GASKET; HSG BRKT,ENG SIDE CHARGE AIR COOLER<6PL>	8-97188-881-0	01	1	9811-			●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	9811-	●	●	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.002 ID=10.2	9-09150-510-0	04	1	0212-			●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	9811-0211	●		●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	0212-	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 00.002 ID=10.2	9-09150-610-0	04	1	0212-			●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP EXC. CHARGE AIR COOLER<6PL> 00.002 ID=10.2	9-09150-610-0	04	1	0212-			●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	9811-	●	●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	9811-	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	9811-			●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	9811-	●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	9811-			●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	9811-	●	●	●
