1 |

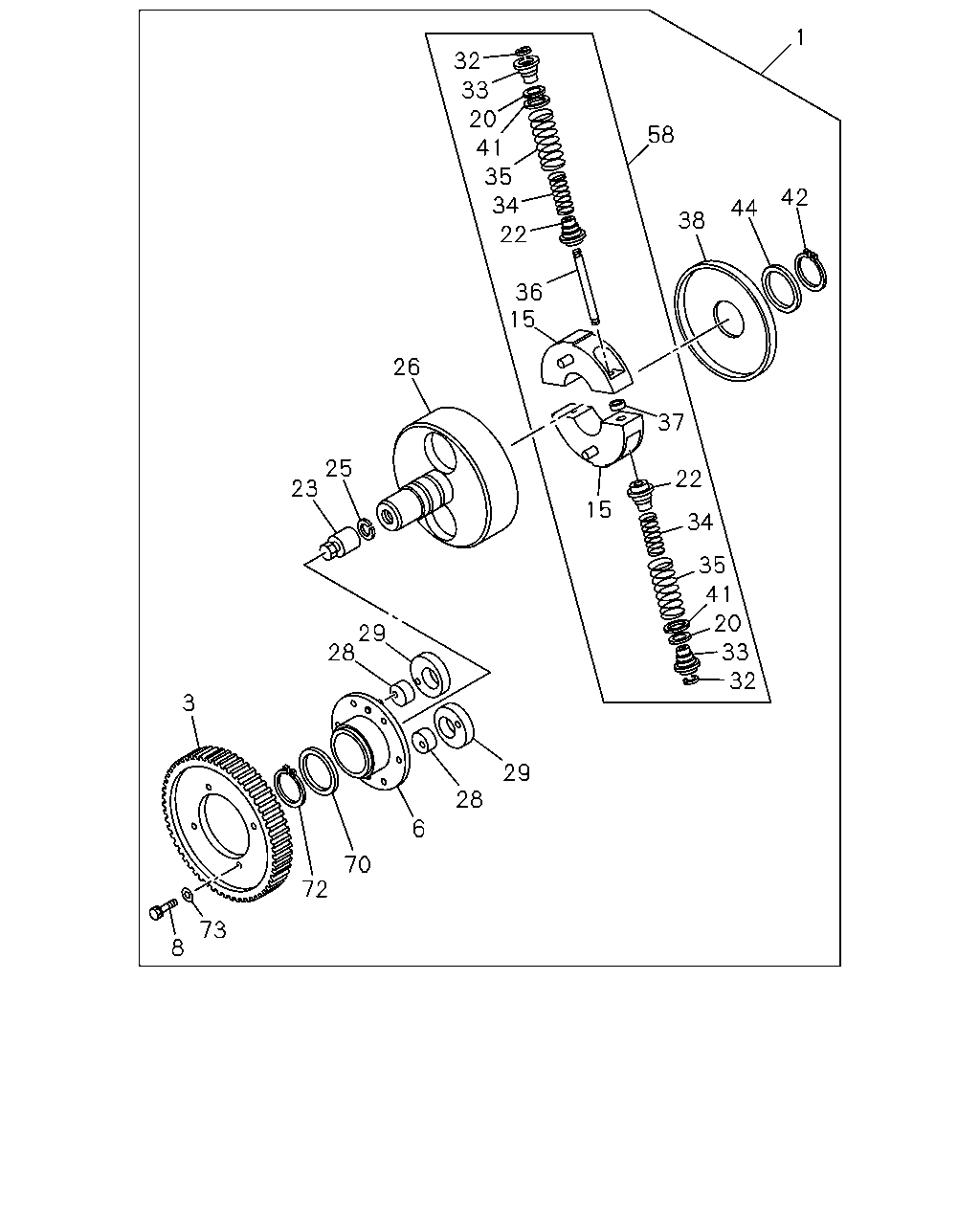

03.340 TIMER ASM; INJ PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505
|
8-97125-955-0 |
01 |
1 |
- |
| |
1 |
03.340 TIMER ASM; INJ PUMP
ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704
|
8-97223-287-0 |
01 |
1 |
- |
| |
1 |
03.340 TIMER ASM; INJ PUMP
ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102
|
8-97224-581-0 |
01 |
1 |
- |
| |
1 |
03.340 TIMER ASM; INJ PUMP
ASM PART: G = 8-97225-663-0, 97225663
|
8-97228-911-0 |
01 |
1 |
- |
| |
1 |
03.340 TIMER ASM; INJ PUMP
ASM PART: H = 8-97231-181-2, 97231181
|
8-97241-105-0 |
01 |
1 |
- |
| |
3 |
03.340 GEAR; DRIVE,INJ PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505
|
8-97123-615-0 |
01 |
1 |
- |
| |
3 |
03.340 GEAR; DRIVE,INJ PUMP
ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102
|
8-97203-920-0 |
01 |
1 |
- |
| |
3 |
03.340 GEAR; DRIVE,INJ PUMP
ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704
|
8-97214-465-0 |
01 |
1 |
- |
| |
3 |
03.340 GEAR; DRIVE,INJ PUMP
ASM PART: G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97225-664-0 |
01 |
1 |
- |
| |
6 |
03.340 FLANGE; DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102
|
8-97085-031-0 |
01 |
1 |
- |
| |
6 |
03.340 FLANGE; DRIVE GEAR,INJ PUMP
ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97223-409-0 |
01 |
1 |
- |
| |
8 |
03.340 BOLT; DRIVE GEAR FIX,INJ PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102
|
8-97085-049-0 |
04 |
1 |
- |
| |
8 |
03.340 BOLT; DRIVE GEAR FIX,INJ PUMP
ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97223-410-0 |
04 |
1 |
- |
| |
15 |
03.340 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102
|
8-97125-962-0 |
02 |
1 |
- |
| |
15 |
03.340 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663
|
8-97223-402-0 |
02 |
1 |
- |
| |
15 |
03.340 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: H = 8-97231-181-2, 97231181
|
8-97241-113-0 |
02 |
1 |
- |
| |
20 |
03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.10
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-394-0 |
AR |
1 |
- |
| |
20 |
03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.30
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-395-0 |
AR |
1 |
- |
| |
20 |
03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.50
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-396-0 |
AR |
1 |
- |
| |
20 |
03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=1.00
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-397-0 |
AR |
1 |
- |
| |
20 |
03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.40
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-495-0 |
AR |
1 |
- |
| |
20 |
03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.70
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-496-0 |
AR |
1 |
- |
| |
22 |
03.340 SEAT; INNER SPRING,TIMER,INJ PUM
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-026-0 |
04 |
1 |
- |
| |
23 |
03.340 NUT; TIMER FLANGE,INJ PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-144-0 |
01 |
1 |
- |
| |
25 |
03.340 WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-145-0 |
01 |
1 |
- |
| |
26 |
03.330 FLANGE; TIMER,INJ PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102
|
8-97125-966-0 |
01 |
1 |
- |
| |
26 |
03.330 FLANGE; TIMER,INJ PUMP
ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97223-399-0 |
01 |
1 |
- |
| |
28 |
03.330 CAM; INNER,ECCENTRIC,TIMER,INJ P
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-94172-269-0 |
02 |
1 |
- |
| |
29 |
03.330 CAM; OUTER,ECCENTRIC,TIMER,INJ P
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-030-0 |
02 |
1 |
- |
| |
32 |
03.330 RING; SNAP,SPRING SEAT,TIMER,INJ
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-159-0 |
04 |
1 |
- |
| |
33 |
03.340 SEAT; OUTER SPRING,TIMER,INJ PUM
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-026-0 |
04 |
1 |
- |
| |
34 |
03.340 SPRING; TIMER,INNER,INJ PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102
|
8-97125-963-0 |
04 |
1 |
- |
| |
34 |
03.340 SPRING; TIMER,INNER,INJ PUMP
ASM PART: H = 8-97231-181-2, 97231181
|
8-97241-115-0 |
04 |
1 |
- |
| |
35 |
03.340 SPRING; TIMER,OUTER,INJ PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102
|
8-97125-967-0 |
04 |
1 |
- |
| |
35 |
03.340 SPRING; TIMER,OUTER,INJ PUMP
ASM PART: H = 8-97231-181-2, 97231181
|
8-97241-114-0 |
04 |
1 |
- |
| |
36 |
03.340 PIN; PILOT,TIMER SPRING,INJ PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-029-0 |
02 |
1 |
- |
| |
37 |
03.340 SPACER; FLYWEIGHT,TIMER,INJ PUMP
ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-402-0 |
02 |
1 |
- |
| |
38 |
03.318 COVER; TIMER,INJ PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-037-0 |
01 |
1 |
- |
| |
41 |
03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.10
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-390-0 |
AR |
1 |
- |
| |
41 |
03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.30
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-391-0 |
AR |
1 |
- |
| |
41 |
03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.50
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-392-0 |
AR |
1 |
- |
| |
41 |
03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=1.00
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-393-0 |
AR |
1 |
- |
| |
41 |
03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.40
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-493-0 |
AR |
1 |
- |
| |
41 |
03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.70
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-494-0 |
AR |
1 |
- |
| |
42 |
03.340 RING; SNAP,TIMER COVER,INJ PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-185-0 |
01 |
1 |
- |
| |
44 |
03.340 SHIM; TIMER COVER,INJ PUMP
T=0.10
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-038-0 |
AR |
1 |
- |
| |
44 |
03.340 SHIM; TIMER COVER,INJ PUMP
T=0.12
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-039-0 |
AR |
1 |
- |
| |
44 |
03.340 SHIM; TIMER COVER,INJ PUMP
T=0.14
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-040-0 |
AR |
1 |
- |
| |
44 |
03.340 SHIM; TIMER COVER,INJ PUMP
T=0.16
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-041-0 |
AR |
1 |
- |
| |
44 |
03.340 SHIM; TIMER COVER,INJ PUMP
T=0.18
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-042-0 |
AR |
1 |
- |
| |
44 |
03.340 SHIM; TIMER COVER,INJ PUMP
T=0.90
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-043-0 |
AR |
1 |
- |
| |
44 |
03.340 SHIM; TIMER COVER,INJ PUMP
T=1.10
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-044-0 |
AR |
1 |
- |
| |
44 |
03.340 SHIM; TIMER COVER,INJ PUMP
T=1.30
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-045-0 |
AR |
1 |
- |
| |
44 |
03.340 SHIM; TIMER COVER,INJ PUMP
T=1.50
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-046-0 |
AR |
1 |
- |
| |
44 |
03.340 SHIM; TIMER COVER,INJ PUMP
T=1.70
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-047-0 |
AR |
1 |
- |
| |
58 |
03.340 FLYWEIGHT ASM; TIMER,INJ PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102
|
8-97125-961-0 |
01 |
1 |
- |
| |
58 |
03.340 FLYWEIGHT ASM; TIMER,INJ PUMP
ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663
|
8-97223-400-0 |
01 |
1 |
- |
| |
58 |
03.340 FLYWEIGHT ASM; TIMER,INJ PUMP
ASM PART: H = 8-97231-181-2, 97231181
|
8-97241-112-0 |
01 |
1 |
- |
| |
70 |
03.340 SHIM; FLANGE,TIMER
T=0.20
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-032-0 |
AR |
1 |
- |
| |
70 |
03.340 SHIM; FLANGE,TIMER
T=0.30
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-033-0 |
AR |
1 |
- |
| |
70 |
03.340 SHIM; FLANGE,TIMER
T=0.40
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-034-0 |
AR |
1 |
- |
| |
70 |
03.340 SHIM; FLANGE,TIMER
T=0.50
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-035-0 |
AR |
1 |
- |
| |
70 |
03.340 SHIM; FLANGE,TIMER
T=0.80
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97085-036-0 |
AR |
1 |
- |
| |
72 |
03.340 RING; SNAP,FLANGE TIMER
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101,
E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
1-15749-205-0 |
01 |
1 |
- |
| |
73 |
03.340 WASHER; DRIVE GEAR,INJ PUMP
00.669, ID=8
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102
|
1-14319-034-0 |
04 |
1 |
- |
| |
73 |
03.340 WASHER; DRIVE GEAR,INJ PUMP
ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704,
G = 8-97225-663-0, 97225663, H = 8-97231-181-2, 97231181
|
8-97211-797-0 |
04 |
1 |
- |
