◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#2198) — 31 parça

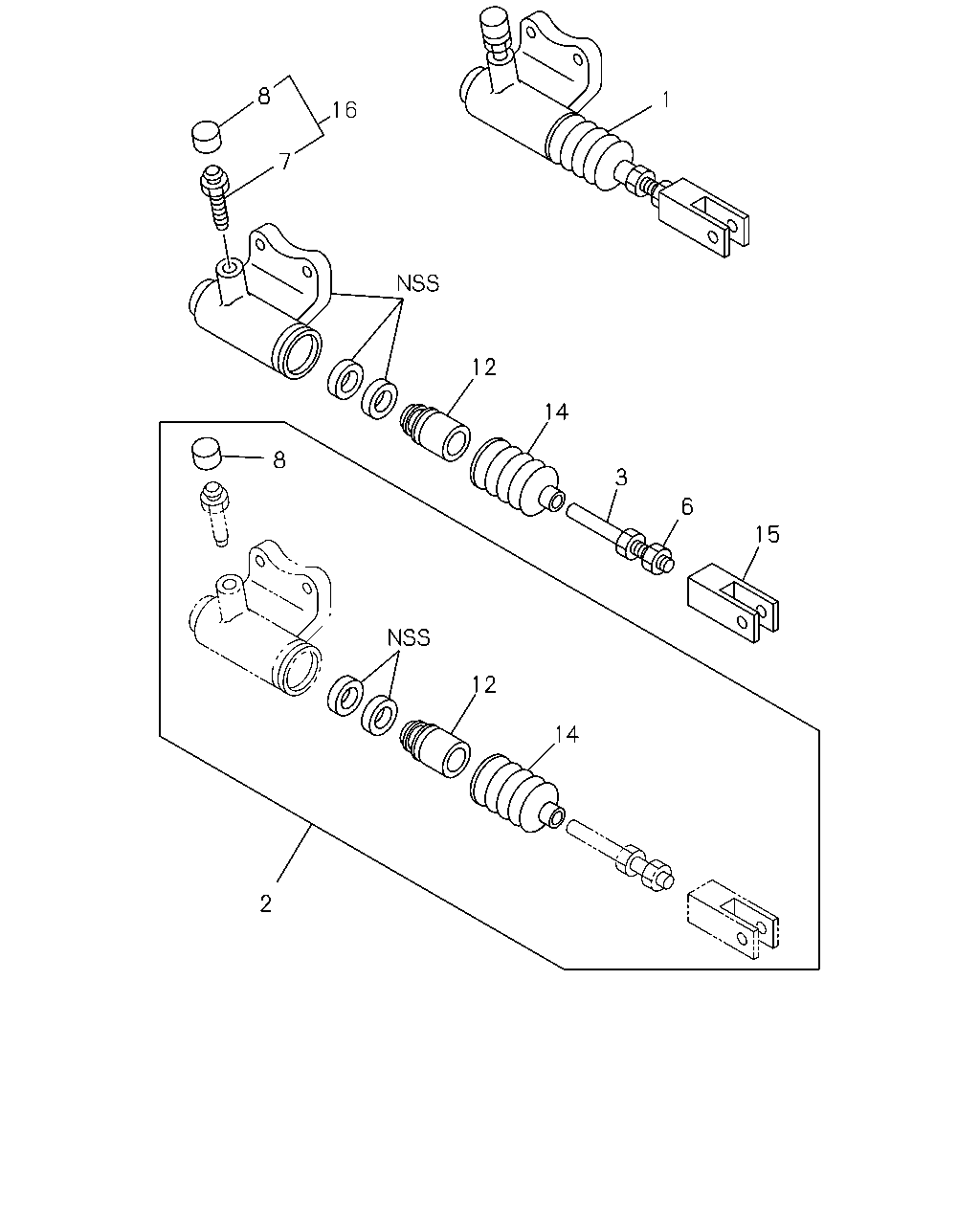

çizim 94444
8 1 16 7 12 14 8 3 6 15 12 14 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER; SLAVE,CLU
EXC. CLUTCH SYSTEM MINIPACK(B1Z) 		1-47570-050-1 01 1 9101-9102 ● ●
1 CYLINDER; SLAVE,CLU
EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9> 		1-47570-050-2 01 1 9103-0203 ● ●
1 CYLINDER; SLAVE,CLU 1-47570-050-2 01 1 0204- ● ●
2 REPAIR KIT; CLU SLAVE CYL
EXC. CLUTCH SYSTEM MINIPACK(B1Z) 		1-87830-533-0 01 1 9101-9102 ● ●
2 REPAIR KIT; CLU SLAVE CYL
EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9> 		1-87830-533-0 01 1 9103-0203 ● ●
2 REPAIR KIT; CLU SLAVE CYL 1-87830-533-0 01 1 0204- ● ●
3 ROD; PUSH,SLAVE CYL
EXC. CLUTCH SYSTEM MINIPACK(B1Z) 		1-47573-005-0 01 1 9101-9102 ● ●
3 ROD; PUSH,SLAVE CYL
EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9> 		1-47573-005-0 01 1 9103-0203 ● ●
3 ROD; PUSH,SLAVE CYL 1-47573-005-0 01 1 0204- ● ●
6 NUT; LK,ROD END
EXC. CLUTCH SYSTEM MINIPACK(B1Z) M10 		9-09111-410-0 01 1 9101-9102 ● ●
6 NUT; LK,ROD END
EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9> M10 		9-09111-410-0 01 1 9103-0203 ● ●
6 NUT; LK,ROD END
M10 		9-09111-410-0 01 1 0204- ● ●
7 SCREW; BLEEDER,SLAVE CYL
EXC. CLUTCH SYSTEM MINIPACK(B1Z) 		9-47615-008-1 01 1 9101-9102 ● ●
7 SCREW; BLEEDER,SLAVE CYL
EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9> 		9-47615-008-1 01 1 9103-9302 ● ●
7 SCREW; BLEEDER,SLAVE CYL
EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9> 		1-47615-019-0 01 1 9303-0203 ● ●
7 SCREW; BLEEDER,SLAVE CYL 1-47615-019-0 01 1 0204- ● ●
8 CAP; BLEEDER,SLAVE CYL
EXC. CLUTCH SYSTEM MINIPACK(B1Z) OD=9.5 		9-47619-005-0 01 1 9101-9102 ● ●
8 CAP; BLEEDER,SLAVE CYL
EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9> OD=9.5 		9-47619-005-0 01 1 9103-0203 ● ●
8 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 0204- ● ●
12 PISTON; SLAVE CYL
EXC. CLUTCH SYSTEM MINIPACK(B1Z) 		1-47572-006-0 01 1 9101-9102 ● ●
12 PISTON; SLAVE CYL
EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9> 		1-47572-006-0 01 1 9103-0203 ● ●
12 PISTON; SLAVE CYL 1-47572-006-0 01 1 0204- ● ●
14 BOOT; SLAVE CYL
EXC. CLUTCH SYSTEM MINIPACK(B1Z) 		1-47579-048-0 01 1 9101-9102 ● ●
14 BOOT; SLAVE CYL
EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9> 		1-47579-048-0 01 1 9103-0203 ● ●
14 BOOT; SLAVE CYL 1-47579-048-0 01 1 0204- ● ●
15 JOINT; JAW,SLAVE CYL
EXC. CLUTCH SYSTEM MINIPACK(B1Z) 		1-47579-014-1 01 1 9101-9102 ● ●
15 JOINT; JAW,SLAVE CYL
EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9> 		1-47579-014-1 01 1 9103-0203 ● ●
15 JOINT; JAW,SLAVE CYL 1-47579-014-1 01 1 0204- ● ●
16 VALVE; SLAVE CYL
EXC. CLUTCH SYSTEM MINIPACK(B1Z) 		9-48410-037-0 01 1 9101-9102 ● ●
16 VALVE; SLAVE CYL
EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9> 		9-48410-037-0 01 1 9103-0203 ● ●
16 VALVE; SLAVE CYL 9-48410-037-0 01 1 0204- ● ●
