0-82D — BOOST COMPENSATOR; INJECTION GOVERNOR (#21973) — 6 parça

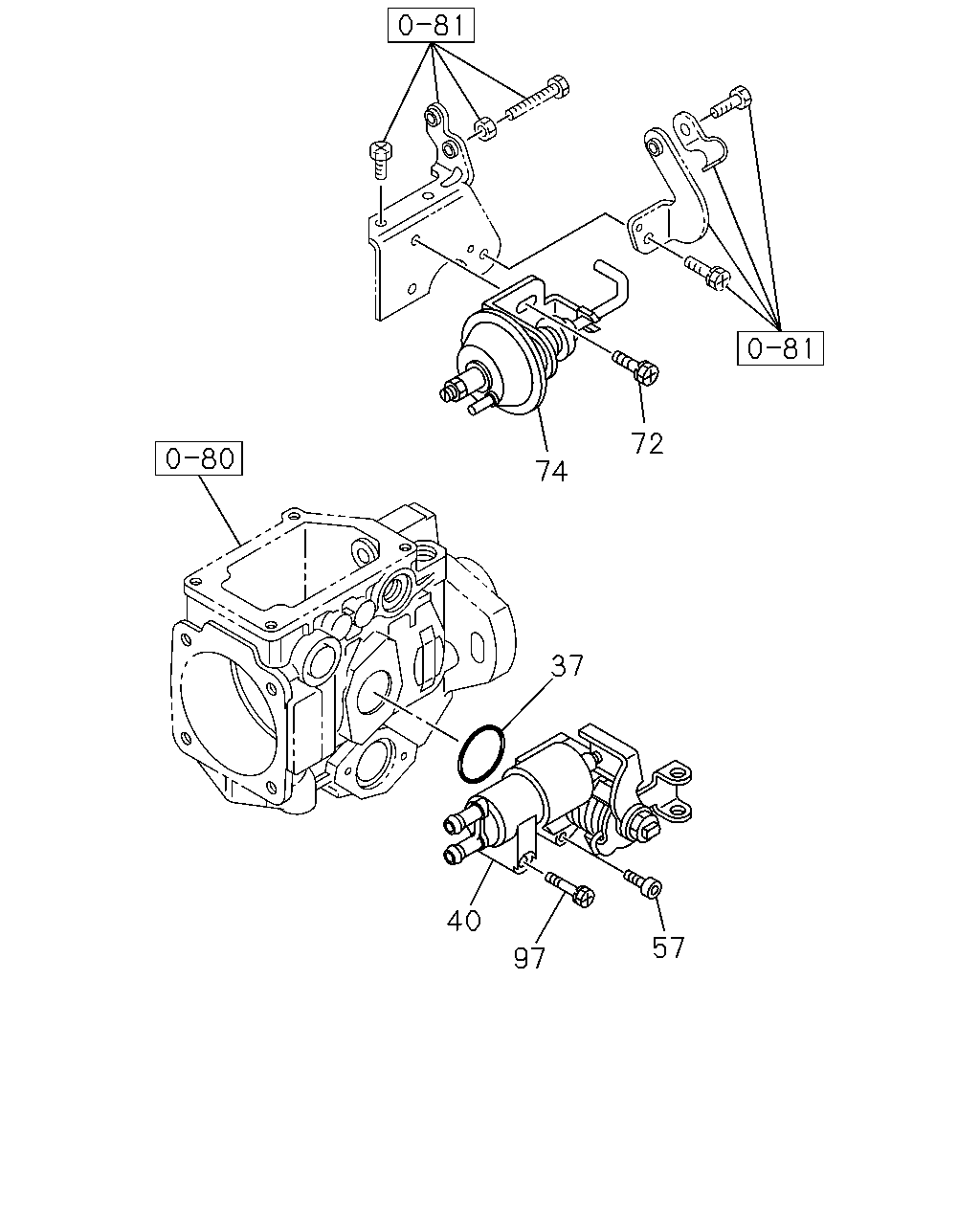

çizim 9925
72 74 37 40 57 97
BalonParca AdiParca NoAdetTipApplied Date
37 03.306 GASKET; STARTING ADVANCER,INJ PU
ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405 		8-94227-491-0 01 1 -
40 03.308 ADVANCER ASM; STARTING,GOV
ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405 		8-97148-141-0 01 1 -
57 03.308 BOLT; START ADVANCE
ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405 		1-15619-276-0 02 1 -
72 03.330 BOLT; BRKT FIX,INJ PUMP
ASM PART: E = 8-97324-405-1, 97324405 		8-94343-302-0 02 1 -
74 03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ
ASM PART: E = 8-97324-405-1, 97324405 		8-97180-420-0 01 1 -
97 03.306 BOLT; PLATE,START ADVANCE
ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405 		8-97029-204-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
