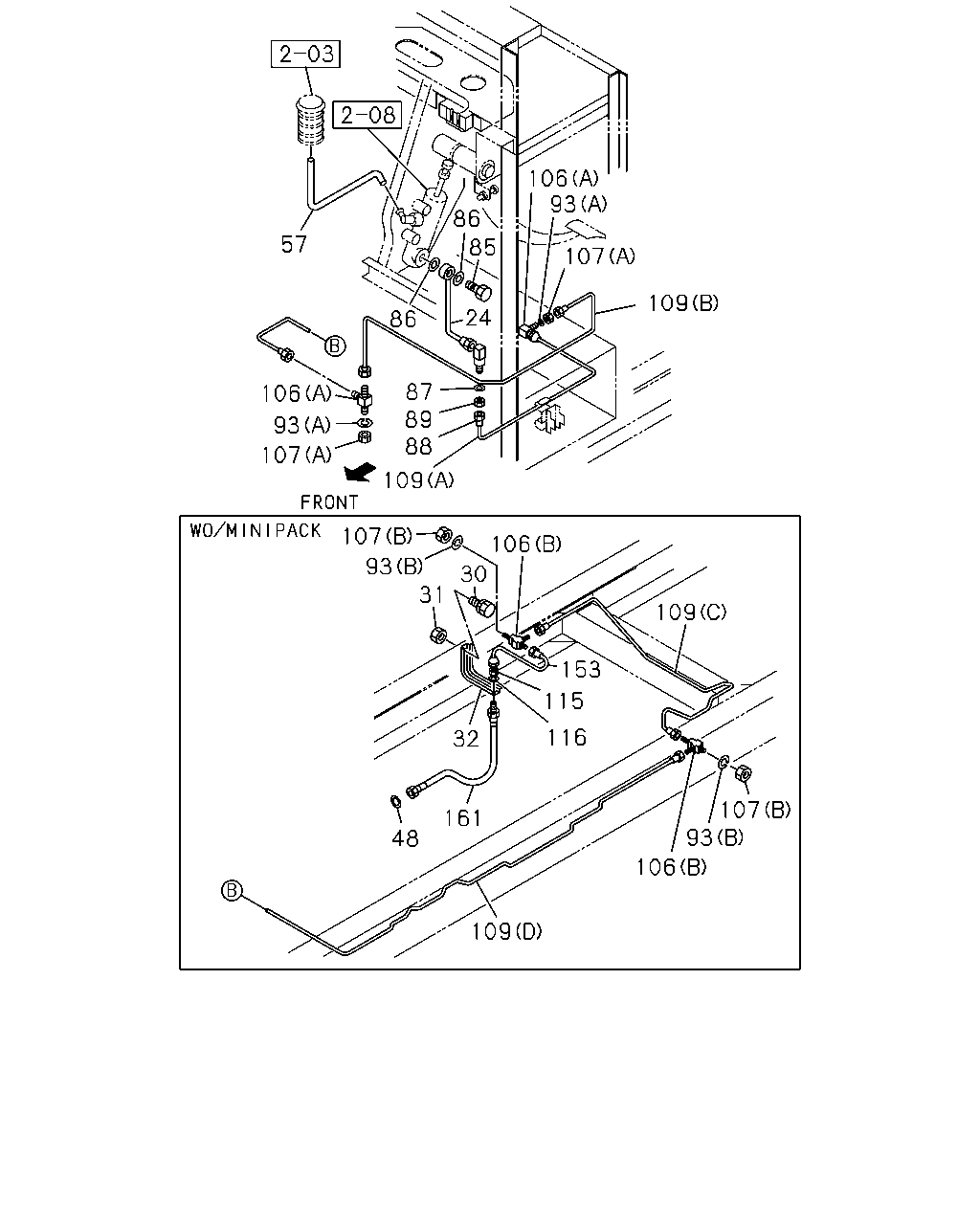

2-05 — CLUTCH PIPING (#2197) — 114 parça

47 131 49 47 129 129 138 45 46 128 129 55 9 128 140 45 47 136 46 138 47 139 139 128 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	NUT; BRKT,FLEX HOSE EXC. CLUTCH SYSTEM MINIPACK(B1Z) M8	9-09110-408-0	02	1	9101-9204	●
9	NUT; BRKT,FLEX HOSE CLUTCH SYSTEM MINIPACK(B1Z) M8	9-09110-408-0	02	1	9205-9205	●
9	NUT; BRKT,FLEX HOSE CLUTCH SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91150-208-0	02	1	9206-0203	●
45	NUT; FLEX HOSE,CLU CONT CLUTCH SYSTEM MINIPACK(B1Z) M12	9-99111-412-0	02	1	9101-9101	●	●	●	●	●	●	●
45	NUT; FLEX HOSE,CLU CONT CLUTCH SYSTEM MINIPACK(B1Z) M12	9-09840-280-0	02	1	9102-0203	●	●	●	●	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT CLUTCH SYSTEM MINIPACK(B1Z) ID=12.2	9-09150-512-0	02	1	9101-9312	●	●	●	●	●	●	●
47	HOSE; FLEX,CLU CONT CLUTCH SYSTEM MINIPACK(B1Z) (A) L=450	0-07030-450-0	01	1	9101-0203	●	●	●	●	●	●	●
47	HOSE; FLEX,CLU CONT CLUTCH SYSTEM MINIPACK(B1Z) (B) L=450	1-09364-369-0	01	1	9101-0203	●	●	●	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CLUTCH SYSTEM MINIPACK(B1Z) L=211	1-47449-064-0	01	1	9101-0203	●	●	●	●	●	●	●
55	WASHER; LK,BRKT,FLEX HOSE EXC. CLUTCH SYSTEM MINIPACK(B1Z) ID=8.2	9-09150-508-0	02	1	9101-9204	●
55	WASHER; LK,BRKT,FLEX HOSE CLUTCH SYSTEM MINIPACK(B1Z) ID=8.2	9-09150-508-0	02	1	9205-9205	●
128	CLIP; AIR PIPE RIGHT HAND DRIVE(MTR5FB) CLUTCH SYSTEM MINIPACK(B1Z) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9101-0203		●	●	●	●	●	●
128	CLIP; AIR PIPE CLUTCH SYSTEM MINIPACK(B1Z) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9101-0203	●
128	CLIP; AIR PIPE RIGHT HAND DRIVE(MTR5FB) CLUTCH SYSTEM MINIPACK(B1Z) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9101-9101		●	●	●	●	●	●
128	CLIP; AIR PIPE CLUTCH SYSTEM MINIPACK(B1Z) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9101-9101	●
128	CLIP; AIR PIPE RIGHT HAND DRIVE(MTR5FB) CLUTCH SYSTEM MINIPACK(B1Z) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9102-0203		●	●	●	●	●	●
128	CLIP; AIR PIPE CLUTCH SYSTEM MINIPACK(B1Z) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9102-0203	●
129	BOLT; PIPE CLIP RIGHT HAND DRIVE(MTR5FB) CLUTCH SYSTEM MINIPACK(B1Z) M8X16 W/LK WASHER	0-50040-816-0	01	1	9101-9101		●	●	●	●	●	●
129	BOLT; PIPE CLIP CLUTCH SYSTEM MINIPACK(B1Z) M8X16 W/LK WASHER	0-50040-816-0	01	1	9101-9101	●
129	BOLT; PIPE CLIP RIGHT HAND DRIVE(MTR5FB) CLUTCH SYSTEM MINIPACK(B1Z) M8X16 W/LK WASHER	0-50040-816-0	04	1	9102-0203		●	●	●	●	●	●
129	BOLT; PIPE CLIP CLUTCH SYSTEM MINIPACK(B1Z) M8X16 W/LK WASHER	0-50040-816-0	04	1	9102-0203	●
131	PIPE; AIR,UNION TO FLEX HOSE RIGHT HAND DRIVE(MTR5FB) CLUTCH SYSTEM MINIPACK(B1Z) USER DAEWOO MOTORS<D4S> L=1770 SERVICED BY L=1820	1-47434-394-0	01	1	9101-0203		●	●	●	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE CLUTCH SYSTEM MINIPACK(B1Z) USER DAEWOO MOTORS<D4S> L=1770 SERVICED BY L=1820	1-47434-394-0	01	1	9101-0203	●
131	PIPE; AIR,UNION TO FLEX HOSE RIGHT HAND DRIVE(MTR5FB) CLUTCH SYSTEM MINIPACK(B1Z) EXC. USER DAEWOO MOTORS<D4S> L=1794 SERVICED BY L=1820	1-47434-394-0	01	1	9101-0203		●	●	●	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE CLUTCH SYSTEM MINIPACK(B1Z) EXC. USER DAEWOO MOTORS<D4S> L=1794 SERVICED BY L=1820	1-47434-394-0	01	1	9101-0203	●
131	PIPE; AIR,UNION TO FLEX HOSE LEFT HAND DRIVE(MTR6FB) CLUTCH SYSTEM MINIPACK(B1Z) L=288 SERVICED BY L=350	9-47415-348-0	01	1	9101-0203		●	●	●	●	●	●
136	NUT; PIPE CLIP RIGHT HAND DRIVE(MTR5FB) CLUTCH SYSTEM MINIPACK(B1Z) M8	9-09110-408-0	01	1	9101-9101		●	●	●	●	●	●
136	NUT; PIPE CLIP CLUTCH SYSTEM MINIPACK(B1Z) M8	9-09110-408-0	01	1	9101-9101	●
136	NUT; PIPE CLIP RIGHT HAND DRIVE(MTR5FB) CLUTCH SYSTEM MINIPACK(B1Z) M8	9-09110-408-0	03	1	9102-0203		●	●	●	●	●	●
136	NUT; PIPE CLIP CLUTCH SYSTEM MINIPACK(B1Z) M8	9-09110-408-0	03	1	9102-0203	●
138	BRACKET; AIR PIPE RIGHT HAND DRIVE(MTR5FB) CLUTCH SYSTEM MINIPACK(B1Z) (A)	1-47475-272-1	01	1	9101-0203		●	●	●	●	●	●
138	BRACKET; AIR PIPE CLUTCH SYSTEM MINIPACK(B1Z) (A)	1-47475-272-1	01	1	9101-0203	●
138	BRACKET; AIR PIPE RIGHT HAND DRIVE(MTR5FB) CLUTCH SYSTEM MINIPACK(B1Z) (B) M8 W/NUT	1-47475-729-0	01	1	9102-0203		●	●	●	●	●	●
138	BRACKET; AIR PIPE CLUTCH SYSTEM MINIPACK(B1Z) (B) M8 W/NUT	1-47475-729-0	01	1	9102-0203	●
139	BOLT; BRKT RIGHT HAND DRIVE(MTR5FB) CLUTCH SYSTEM MINIPACK(B1Z) M8X25 W/LK WASHER	0-50040-825-0	03	1	9101-9101		●	●	●	●	●	●
139	BOLT; BRKT CLUTCH SYSTEM MINIPACK(B1Z) M8X25 W/LK WASHER	0-50040-825-0	03	1	9101-9101	●
139	BOLT; BRKT RIGHT HAND DRIVE(MTR5FB) CLUTCH SYSTEM MINIPACK(B1Z) M8X25 W/LK WASHER	0-50040-825-0	02	1	9102-0203		●	●	●	●	●	●
139	BOLT; BRKT CLUTCH SYSTEM MINIPACK(B1Z) M8X25 W/LK WASHER	0-50040-825-0	02	1	9102-0203	●
140	NUT; PIPE BRKT RIGHT HAND DRIVE(MTR5FB) CLUTCH SYSTEM MINIPACK(B1Z) M8	9-09110-408-0	02	1	9101-0203		●	●	●	●	●	●
140	NUT; PIPE BRKT CLUTCH SYSTEM MINIPACK(B1Z) M8	9-09110-408-0	02	1	9101-0203	●

106 93 86 57 107 85 109 24 86 87 89 88 106 93 107 109 107 106 93 30 31 109 153 115 116 32 107 93 161 48 106 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	PIPE ASM; CLU,M/CYL TO UNION	1-47417-115-0	01	1	9101-9212	●	●	●	●	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION	1-47425-345-0	01	1	9301-	●	●	●	●	●	●	●
30	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9101-9204	●	●	●	●	●	●	●
30	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●	●	●	●	●	●	●
31	NUT; BRKT M8	9-09110-408-0	02	1	9101-	●	●	●	●	●	●	●
32	BRACKET; CLIP OIL PIPE	1-47475-529-1	01	1	9101-	●	●	●	●	●	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9101-	●	●	●	●	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	9101-	●	●	●	●	●	●	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE BOLT	9-09906-325-1	01	1	9101-	●	●	●	●	●	●	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9101-	●	●	●	●	●	●	●
87	UNION; OIL PIPE M14	9-09225-108-1	01	1	9101-	●	●	●	●	●	●	●
88	NUT; PIPE UNION M14	9-99111-414-0	01	1	9101-	●	●	●	●	●	●	●
89	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	01	1	9101-9312	●	●	●	●	●	●	●
93	WASHER; LK,UNION,OIL PIPE LEFT HAND DRIVE(MTR6FB) (B) ID=12.2	9-09150-512-0	02	1	9101-9312		●	●	●	●	●	●
93	WASHER; LK,UNION,OIL PIPE (A) ID=14.2	9-09150-514-0	01	1	9101-9312	●	●	●	●	●	●	●
106	UNION; OIL PIPE LEFT HAND DRIVE(MTR6FB) (B) M14 2WAY	1-09654-034-2	02	1	9101-		●	●	●	●	●	●
106	UNION; OIL PIPE (A) M14	9-09225-108-1	01	1	9101-	●	●	●	●	●	●	●
107	NUT; UNION,OIL PIPE LEFT HAND DRIVE(MTR6FB) (B) M12	9-99111-412-0	02	1	9101-		●	●	●	●	●	●
107	NUT; UNION,OIL PIPE (A) M14	9-99111-414-0	01	1	9101-	●	●	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(MTR6FB) (B) L=853 SERVICED BY L=900	1-47434-407-0	01	1	9101-9212		●	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(MTR6FB) (B) L=854 SERVICED BY L=900	1-47426-384-0	01	1	9301-		●	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(MTR6FB) (C) L=1643 SERVICED BY L=1700	1-47434-412-0	01	1	9101-9212		●	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(MTR6FB) (C) L=1643 SERVICED BY L=1700	1-47434-412-0	01	1	9301-		●	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(MTR6FB) (D) L=2144 SERVICED BY L=2150	1-47437-958-0	01	1	9101-9212		●	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(MTR6FB) (D) L=2145 SERVICED BY L=2150	1-47437-958-0	01	1	9301-		●	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION (A) L=610 SERVICED BY L=620	1-47426-380-0	01	1	9101-9212	●	●	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION (A) L=610 SERVICED BY L=620	1-47426-380-0	01	1	9301-	●	●	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9101-	●	●	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-614-0	01	1	9101-	●	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX RIGHT HAND DRIVE(MTR5FB) L=2262 SERVICED BY L=2400	1-47437-959-0	01	1	9101-9212		●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2262 SERVICED BY L=2400	1-47437-959-0	01	1	9101-9212	●
153	PIPE ASM; CLU,UNION TO FLEX RIGHT HAND DRIVE(MTR5FB) L=2262 SERVICED BY L=2400	1-47426-395-0	01	1	9301-		●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2262 SERVICED BY L=2400	1-47426-395-0	01	1	9301-	●
153	PIPE ASM; CLU,UNION TO FLEX LEFT HAND DRIVE(MTR6FB) L=349 SERVICED BY L=350	9-47415-377-0	01	1	9101-9212		●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX LEFT HAND DRIVE(MTR6FB) L=349 SERVICED BY L=350	1-47426-373-0	01	1	9301-		●	●	●	●	●	●
161	HOSE; FLEX,SLAVE CYL EXC. CLUTCH SYSTEM MINIPACK(B1Z) L=450	1-09364-369-0	01	1	9101-0203	●	●	●	●	●	●	●
161	HOSE; FLEX,SLAVE CYL L=450	1-09364-369-0	01	1	0204-	●	●	●	●	●	●	●

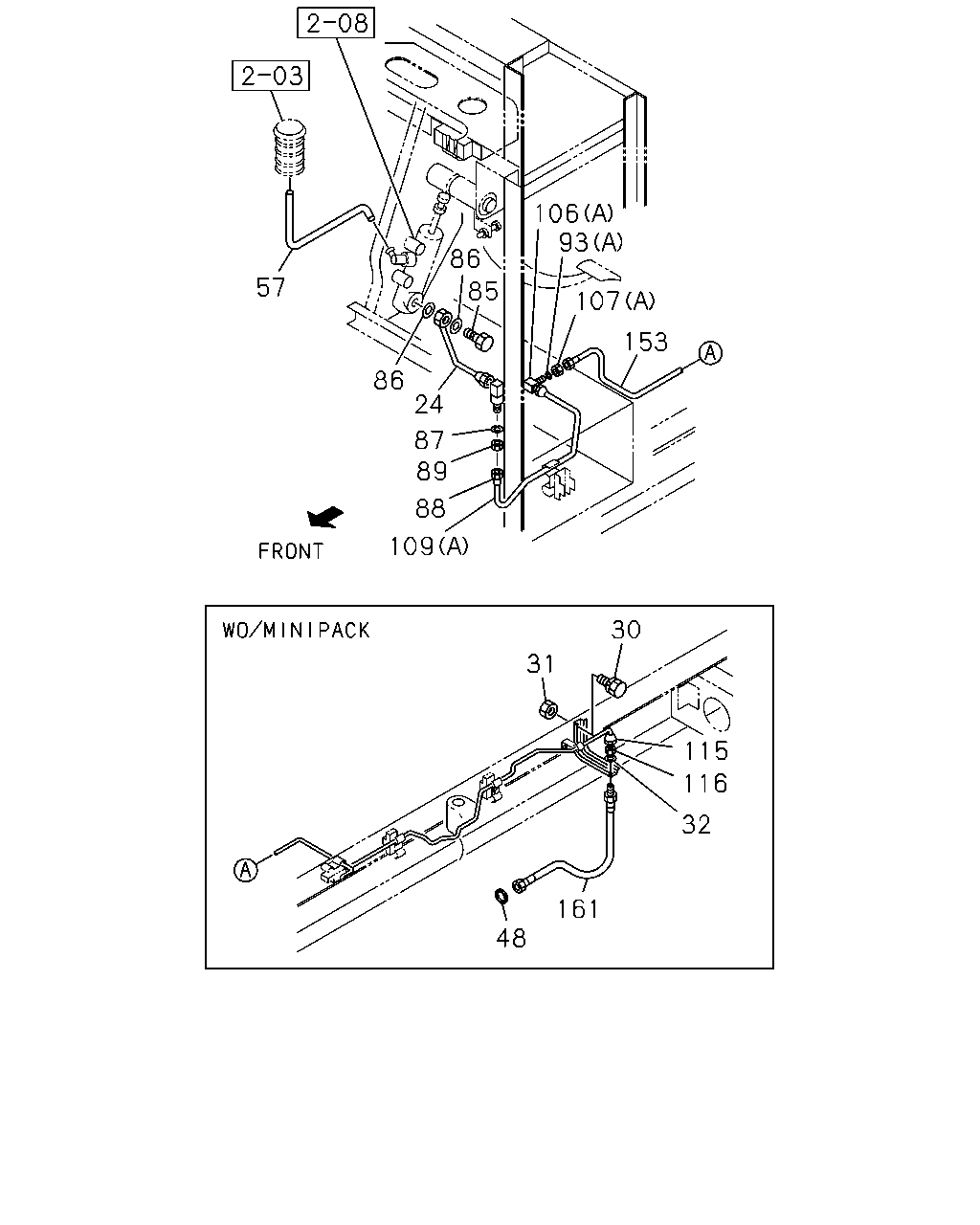

106 93 86 57 107 85 153 86 24 87 89 88 109 30 31 115 116 32 161 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	PIPE ASM; CLU,M/CYL TO UNION	1-47417-115-0	01	1	9101-9212	●	●	●	●	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION	1-47425-345-0	01	1	9301-	●	●	●	●	●	●	●
30	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9101-9204	●	●	●	●	●	●	●
30	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●	●	●	●	●	●	●
31	NUT; BRKT M8	9-09110-408-0	02	1	9101-	●	●	●	●	●	●	●
32	BRACKET; CLIP OIL PIPE	1-47475-529-1	01	1	9101-	●	●	●	●	●	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9101-	●	●	●	●	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	9101-	●	●	●	●	●	●	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE BOLT	9-09906-325-1	01	1	9101-	●	●	●	●	●	●	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9101-	●	●	●	●	●	●	●
87	UNION; OIL PIPE M14	9-09225-108-1	01	1	9101-	●	●	●	●	●	●	●
88	NUT; PIPE UNION M14	9-99111-414-0	01	1	9101-	●	●	●	●	●	●	●
89	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	01	1	9101-9312	●	●	●	●	●	●	●
93	WASHER; LK,UNION,OIL PIPE LEFT HAND DRIVE(MTR6FB) (B) ID=12.2	9-09150-512-0	02	1	9101-9312		●	●	●	●	●	●
93	WASHER; LK,UNION,OIL PIPE (A) ID=14.2	9-09150-514-0	01	1	9101-9312	●	●	●	●	●	●	●
106	UNION; OIL PIPE LEFT HAND DRIVE(MTR6FB) (B) M14 2WAY	1-09654-034-2	02	1	9101-		●	●	●	●	●	●
106	UNION; OIL PIPE (A) M14	9-09225-108-1	01	1	9101-	●	●	●	●	●	●	●
107	NUT; UNION,OIL PIPE LEFT HAND DRIVE(MTR6FB) (B) M12	9-99111-412-0	02	1	9101-		●	●	●	●	●	●
107	NUT; UNION,OIL PIPE (A) M14	9-99111-414-0	01	1	9101-	●	●	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(MTR6FB) (B) L=853 SERVICED BY L=900	1-47434-407-0	01	1	9101-9212		●	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(MTR6FB) (B) L=854 SERVICED BY L=900	1-47426-384-0	01	1	9301-		●	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(MTR6FB) (C) L=1643 SERVICED BY L=1700	1-47434-412-0	01	1	9101-9212		●	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(MTR6FB) (C) L=1643 SERVICED BY L=1700	1-47434-412-0	01	1	9301-		●	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(MTR6FB) (D) L=2144 SERVICED BY L=2150	1-47437-958-0	01	1	9101-9212		●	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION LEFT HAND DRIVE(MTR6FB) (D) L=2145 SERVICED BY L=2150	1-47437-958-0	01	1	9301-		●	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION (A) L=610 SERVICED BY L=620	1-47426-380-0	01	1	9101-9212	●	●	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION (A) L=610 SERVICED BY L=620	1-47426-380-0	01	1	9301-	●	●	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9101-	●	●	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-614-0	01	1	9101-	●	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX RIGHT HAND DRIVE(MTR5FB) L=2262 SERVICED BY L=2400	1-47437-959-0	01	1	9101-9212		●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2262 SERVICED BY L=2400	1-47437-959-0	01	1	9101-9212	●
153	PIPE ASM; CLU,UNION TO FLEX RIGHT HAND DRIVE(MTR5FB) L=2262 SERVICED BY L=2400	1-47426-395-0	01	1	9301-		●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2262 SERVICED BY L=2400	1-47426-395-0	01	1	9301-	●
153	PIPE ASM; CLU,UNION TO FLEX LEFT HAND DRIVE(MTR6FB) L=349 SERVICED BY L=350	9-47415-377-0	01	1	9101-9212		●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX LEFT HAND DRIVE(MTR6FB) L=349 SERVICED BY L=350	1-47426-373-0	01	1	9301-		●	●	●	●	●	●
161	HOSE; FLEX,SLAVE CYL EXC. CLUTCH SYSTEM MINIPACK(B1Z) L=450	1-09364-369-0	01	1	9101-0203	●	●	●	●	●	●	●
161	HOSE; FLEX,SLAVE CYL L=450	1-09364-369-0	01	1	0204-	●	●	●	●	●	●	●
