8-65 — CONTROL LEVER; HEATER AND AIR CON (#21963) — 20 parça

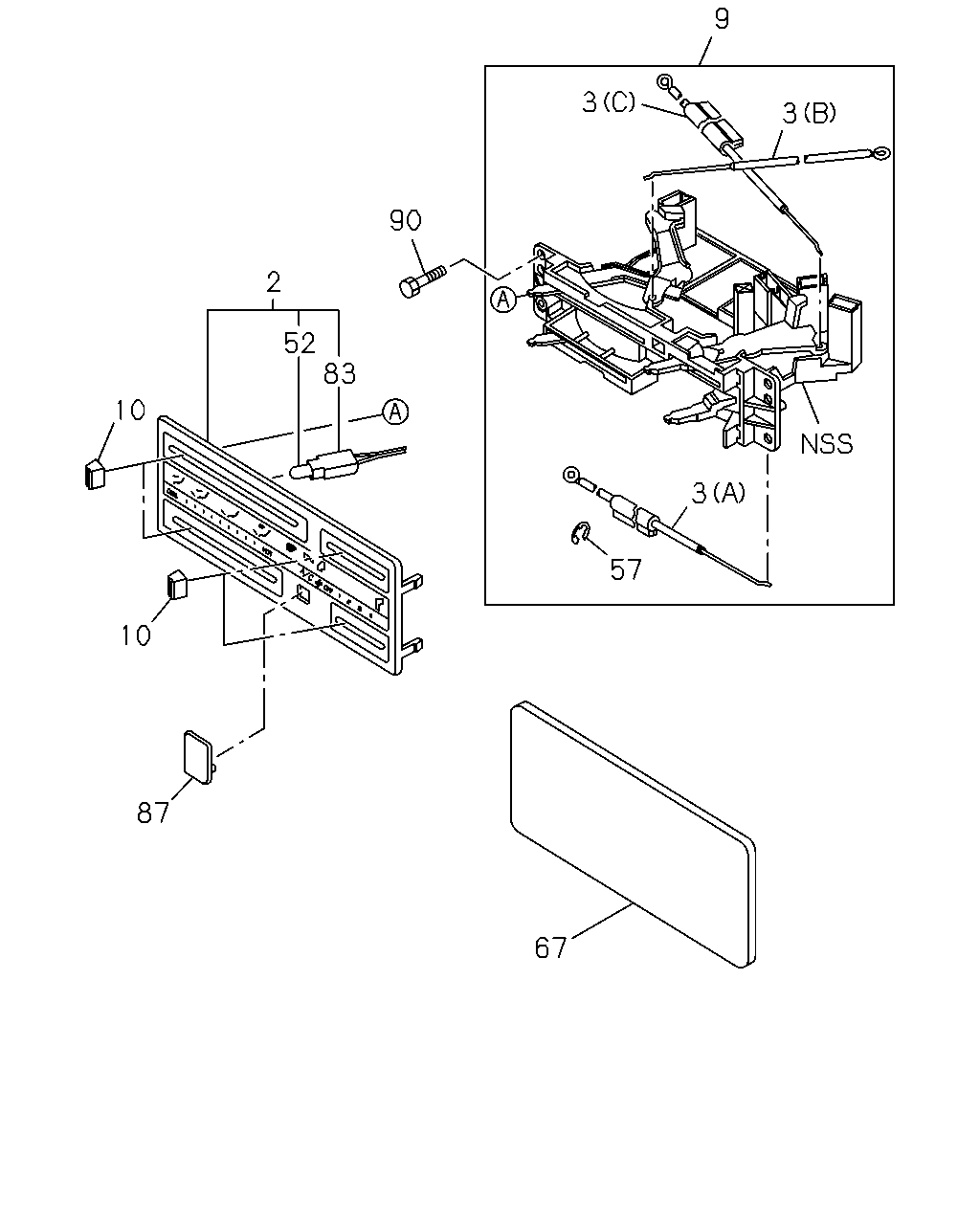

çizim 56488
9 3 3 90 2 52 83 10 3 57 10 87 67
BalonParca AdiParca NoAdetTipApplied Date
2 PANEL ASM; CONT,ILLUMINATION 8-97048-331-2 01 1 0504-
3 CABLE; HTR CONT LVR
(A) MIX 		8-97101-660-2 01 1 0504-0609
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MIX 		8-97101-660-2 01 1 0610-
3 CABLE; HTR CONT LVR
(B) MODE 		8-97101-674-2 01 1 0504-
3 CABLE; HTR CONT LVR
(C) FRESH 		8-97102-659-3 01 1 0504-
9 LEVER ASM; HTR & A/C CONT 8-97073-344-1 01 1 0504-0609
9 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97073-344-1 01 1 0610-
9 LEVER ASM; HTR & A/C CONT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) 		8-97073-345-0 01 1 0610-
10 KNOB; CONT LEVER 8-97114-430-0 04 1 0504-0609
10 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 04 1 0610-
10 KNOB; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) 		8-97114-430-0 03 1 0610-
52 BULB; PANEL ILLUMINATION
28V 65MA 		8-97182-225-0 01 1 0504-
57 RING; SNAP,HTR CONT LVR 8-97311-509-0 01 1 0504-0609
57 RING; SNAP,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97311-509-0 01 1 0610-
67 CAP; BEZEL,CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) 		8-97071-228-0 01 1 0610-
83 HARNESS; CONT PANEL 8-97308-566-0 01 1 0504-
87 CAP; A/C SWITCH 8-97065-448-2 01 1 0504-0609
87 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97065-448-2 01 1 0610-
90 BOLT; CONT PANEL
M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 0504-1210
90 BOLT; CONT PANEL
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 03 1 1211-
