◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51038 - NQR(IRAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#21961) — 24 parça

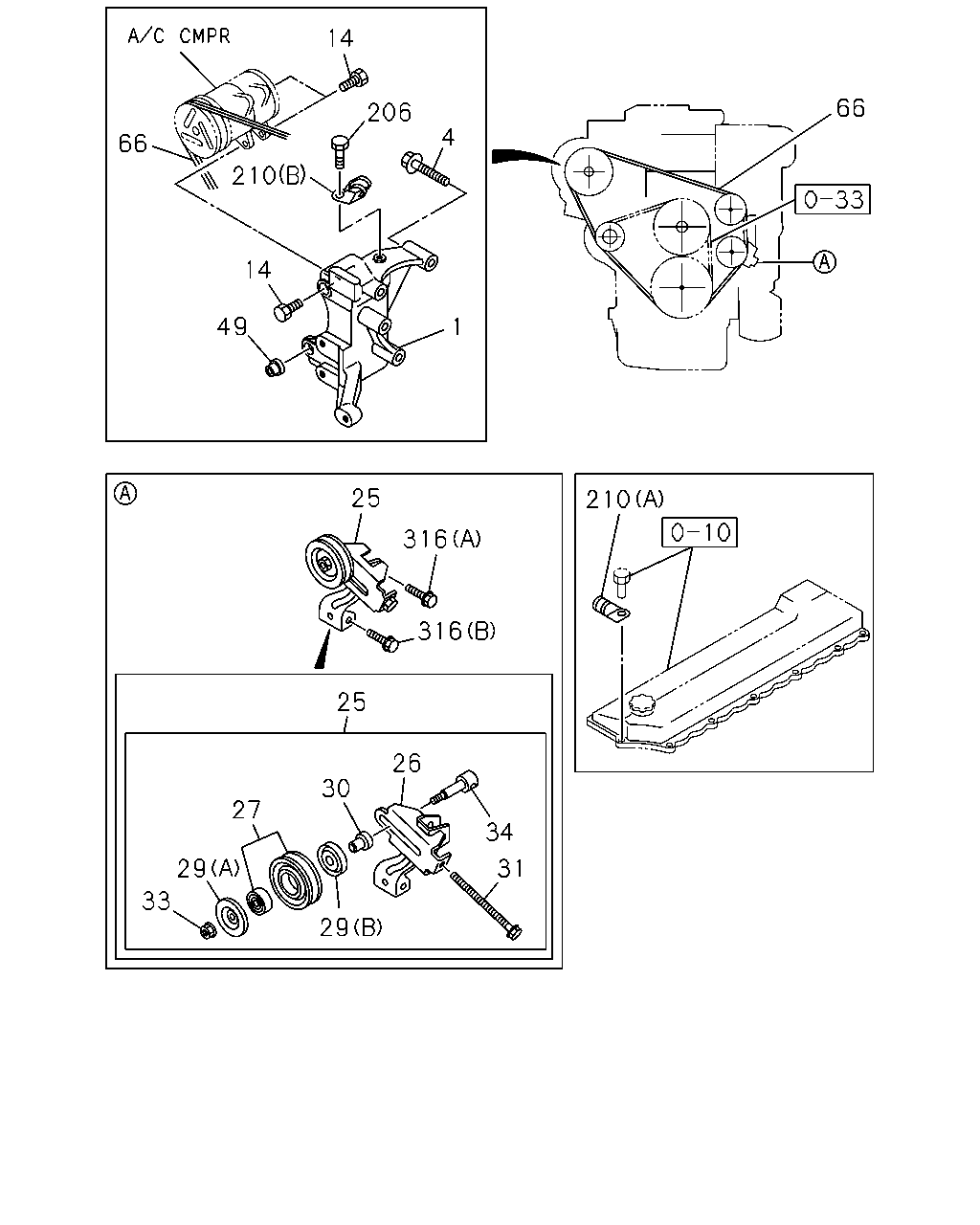

çizim 56830
14 66 206 4 66 210 14 49 1 25 210 316 316 25 26 30 27 34 29 31 33 29
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 		8-97116-230-2 01 1 0610-
4 BOLT; A/C CMPR BRKT
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) M10X85 FLANGE 		8-94397-359-1 02 1 0610-
4 BOLT; A/C CMPR BRKT
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) M10X55 FLANGE 		8-94399-863-1 02 1 0610-0805
4 BOLT; A/C CMPR BRKT
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) M10X55 FLANGE 		8-97365-449-0 02 1 0806-
14 BOLT; CMPR
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) M10X40 FLANGE 		0-28251-040-0 04 1 0610-
25 PULLEY ASM; IDLER,CMPR
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 0610-
26 BRACKET; IDLE PULLEY,A/C
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-1 01 1 0610-
27 PULLEY; IDLE,A/C
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 0610-
29 COVER; DUST,IDLE PULLEY
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0610-
29 COVER; DUST,IDLE PULLEY
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0610-
30 COLLAR; IDLE PULLEY
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 0610-
31 BOLT; ADJ,IDLE PULLEY
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 0610-
33 NUT; IDLER PULLEY
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 0610-
34 SHAFT; IDLE PULLEY
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 0610-
49 COLLAR; BRKT,CMPR
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 		8-94201-057-1 02 1 0610-
66 BELT; A/C CMPR
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-3 01 1 0610-
66 BELT; A/C CMPR
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-097-0 01 1 0610-
206 BOLT; CLIP BRKT
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE 		0-28250-612-0 01 1 0610-
210 CLIP; HARNESS
4HE1 ENG(RLY) (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0504-0609
210 CLIP; HARNESS
4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41) (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0610-0801
210 CLIP; HARNESS
4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41) (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802-
210 CLIP; HARNESS
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0610-
316 BOLT; BRKT FIX
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) (A) M8X50 FLANGE 		0-28050-850-0 01 1 0610-
316 BOLT; BRKT FIX
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) (B) M10X65 FLANGE 		8-94344-540-1 01 1 0610-
