◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#2196) — 50 parça

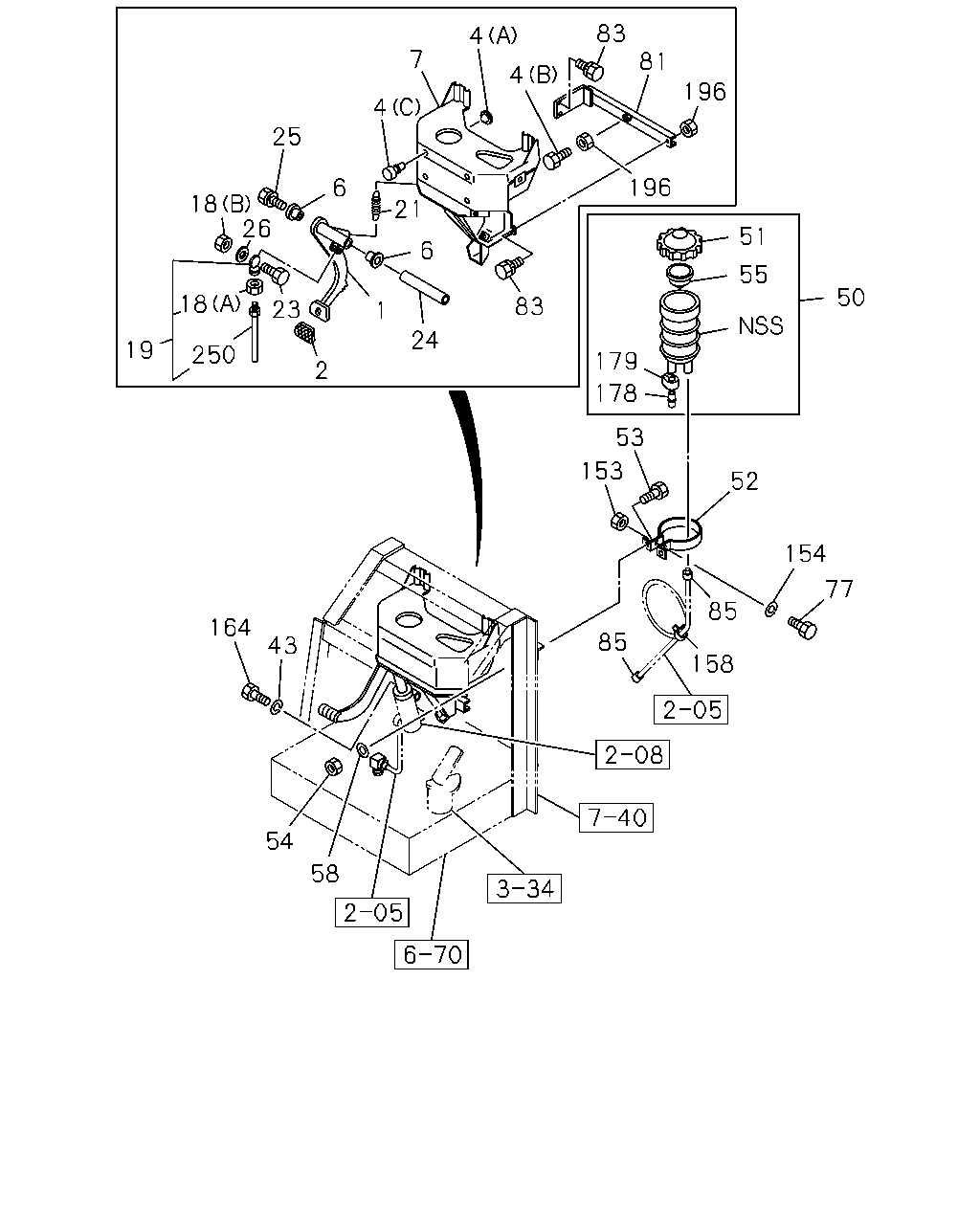

çizim 28592
83 4 7 81 4 196 4 25 196 6 18 26 21 51 6 55 50 18 83 23 1 24 19 250 179 2 178 53 153 52 154 77 85 164 85 43 158 54 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
BUS USER THAILAND BMTA<D5B> 		1-31411-165-0 01 1 9101-0203 ●
1 PEDAL; CLU
EXC. BUS USER THAILAND BMTA<D5B> 		1-31411-141-4 01 1 9101-0203 ●
1 PEDAL; CLU 1-31411-141-4 01 1 9101-0203 ●
1 PEDAL; CLU 1-31411-141-4 01 1 0204- ● ●
2 COVER; CLU PEDAL 8-94204-810-0 01 1 9101-0106 ● ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0107- ● ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 01 1 9101- ● ●
4 STOPPER; CLU PEDAL
(C) 		5-31419-003-0 01 1 9101- ● ●
4 STOPPER; CLU PEDAL
(B) 		9-54359-079-0 01 1 9101- ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 9101- ● ●
7 BRACKET; CLU PEDAL 1-73990-013-1 01 1 9101- ● ●
18 NUT; PUSH ROD
BUS USER THAILAND BMTA<D5B> (A) M8 		9-09110-408-0 02 1 9101-0106 ●
18 NUT; PUSH ROD
(A) M8 		9-09110-408-0 02 1 0107- ● ●
18 NUT; PUSH ROD
(B) M8 		9-09110-508-0 02 1 9101- ● ●
19 ROD ASM; PUSH,CLU 1-31422-009-2 01 1 9101- ● ●
21 SPRING; RETURN,CLU PEDAL 1-73998-401-1 01 1 9101- ● ●
23 BOLT; PUSH ROD
M8X35 		9-01060-835-0 01 1 9101- ● ●
24 SHAFT; CLU PEDAL 1-31415-007-0 01 1 9101- ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		9-01931-025-0 02 1 9101-0106 ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 0107- ● ●
26 WASHER; LK,PUSH ROD
BUS USER THAILAND BMTA<D5B> ID=8.2 		9-09150-608-0 01 1 9101-0106 ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0107- ● ●
43 WASHER; LK,CLU M/CYL
ID=10.2 		9-09150-510-0 02 1 9101- ● ●
50 TANK; OIL,CLU 1-47530-165-0 01 1 9101-9204 ● ●
50 TANK; OIL,CLU 1-47530-149-1 01 1 9205-0009 ● ●
50 TANK; OIL,CLU 1-47530-183-0 01 1 0010- ● ●
51 CAP; OIL TANK,CLU 1-47525-027-0 01 1 9101-9204 ● ●
51 CAP; OIL TANK,CLU 9-47525-032-1 01 1 9205- ● ●
52 BRACKET; OIL TANK,CLU M/CYL 9-47537-023-1 01 1 9101- ● ●
53 BOLT; BRKT,OIL TANK,CLU M/CYL
M5X16 		9-92040-516-0 02 1 9101-9204 ● ●
53 BOLT; BRKT,OIL TANK,CLU M/CYL
M5X16 		0-20800-516-0 02 1 9205- ● ●
54 NUT; BRKT,OIL TANK,CLU M/CYL
M5 		9-99110-405-0 02 1 9101- ● ●
55 BAFFLE; RUBBER,CLU M/CYL 1-47529-013-0 01 1 9101-9204 ● ●
55 BAFFLE; RUBBER,CLU M/CYL 9-47529-031-0 01 1 9205- ● ●
58 WASHER; PL,BRKT,OIL TANK,CLU M/CYL
ID=5.3 		9-09160-505-0 02 1 9101- ● ●
77 BOLT; CABLE CLIP
M5X16 		9-92040-516-0 01 1 9101-9204 ● ●
77 BOLT; CABLE CLIP
M5X16 		0-20800-516-0 01 1 9205- ● ●
81 BRACKET; STOPPER,CLU PEDAL 8-94300-652-1 01 1 9101- ● ●
83 BOLT; STOPPER BRKT,CLU PEDAL
M8X20 W/LK WASHER 		0-50040-820-0 03 1 9101- ● ●
85 CLIP; HOSE TO M/CYL
ID=15 		9-09715-098-0 02 1 9101- ● ●
153 NUT; CABLE CLIP
M5 		9-99110-405-0 01 1 9101- ● ●
154 WASHER; LK,CABLE CLIP
ID=5.1 		9-09150-505-0 01 1 9101- ● ●
158 CLIP; BAND,WIRE
L=250 		5-09707-030-1 01 1 9101- ● ●
164 BOLT; CLU M/CYL
M10X65 		9-01046-065-0 02 1 9101-9204 ● ●
164 BOLT; CLU M/CYL
M10X65 		0-10806-065-0 02 1 9205- ● ●
178 CAP; OIL TANK HOSE 1-47539-005-0 01 1 9101- ● ●
179 CLIP; CAP TO OIL TANK
ID=15 		9-09715-098-0 01 1 9101- ● ●
196 NUT; STOPPER LOCK
M8 		9-09110-408-0 03 1 9101- ● ●
196 NUT; STOPPER LOCK
M10 		9-09110-510-0 01 1 9101- ● ●
250 ROD; PUSH,CLU
M8X31 L=128 		1-31422-010-2 01 1 9101- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
