Isuzu WW
▶
TRUCKS
▶
NQR
▶
51038 - NQR(IRAN)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#21958) — 46 parça
◀
[828A] NO.3 (8 parça)
[828A] '06/10-(NO.5) (9 parça)
[828A] -'06/9 (8 parça)
[828A] NO.1 (12 parça)
[828A] NO.2 (9 parça)
▶

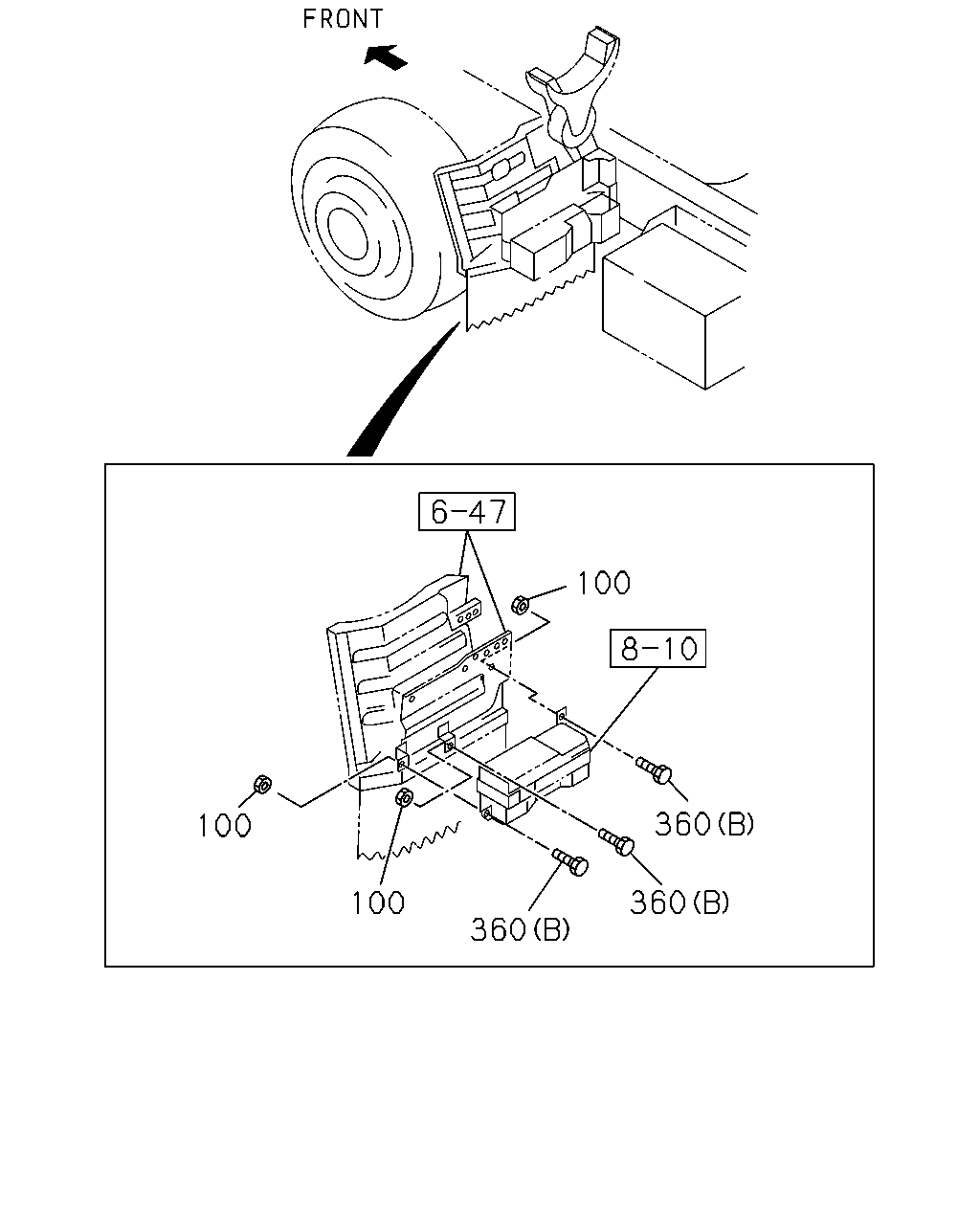

100
360
100
360
100
360
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
NUT; RELAY BOX COVER
M8 FLANGE
0-91150-108-0
03
1
0504-0602
100
NUT; RELAY BOX COVER
M8 FLANGE
0-91180-108-0
03
1
0603-0609
100
NUT; RELAY BOX COVER
4HE1-TCN ENG(RDR) M8 FLANGE
0-91180-108-0
03
1
0610-
360
BOLT; RELAY BOX
(B) M8X25 FLANGE
0-28680-825-0
03
1
0504-0512
360
BOLT; RELAY BOX
(B) M8X25 FLANGE
0-28650-825-0
03
1
0601-0609
360
BOLT; RELAY BOX
4HE1-TCN ENG(RDR) (B) M8X25 FLANGE
0-28650-825-0
03
1
0610-
360
BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER
8-94139-963-0
04
1
0504-1210
360
BOLT; RELAY BOX
(A) M6X19.5 W/LK&PL WASHER
8-97360-226-0
04
1
1211-

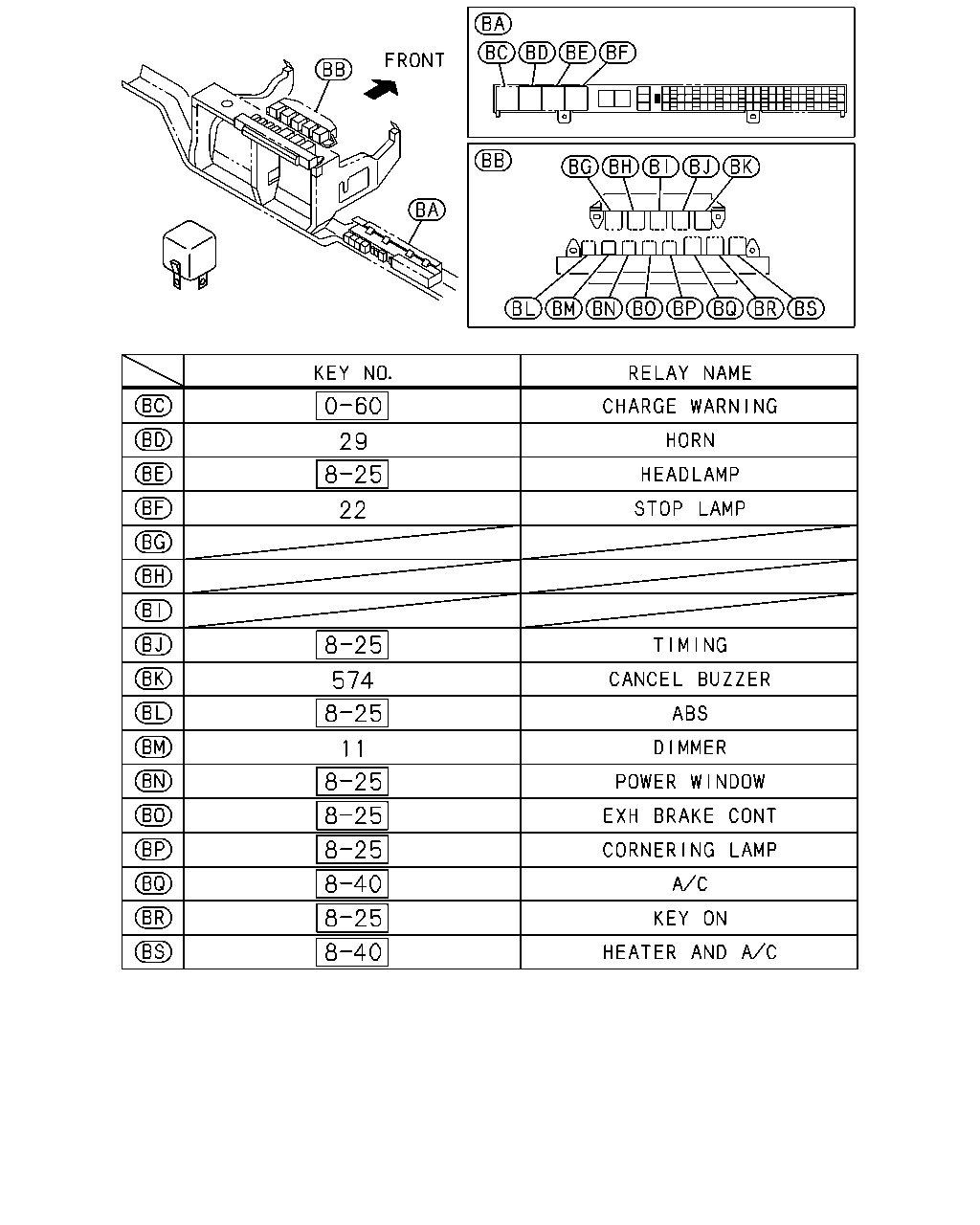

29
22
574
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
RELAY; DIMMER
24V 12.5A PANASONIC
8-97262-933-0
01
1
0504-0609
11
RELAY; DIMMER
24V 10A PANASONIC
8-97173-035-1
01
1
0610-
22
RELAY; STOP LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0504-0609
22
RELAY; STOP LAMP
24V 10A PANASONIC
8-97173-035-1
01
1
0610-1111
22
RELAY; STOP LAMP
24V 10A PANASONIC
8-97173-035-1
01
1
1112-
22
RELAY; STOP LAMP
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 10A PANASONIC
8-97173-035-1
01
1
1112-
29
RELAY; HORN
24V 12.5A PANASONIC
8-97262-933-0
01
1
0504-0609
29
RELAY; HORN
24V 10A PANASONIC
8-97173-035-1
01
1
0610-
574
RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 24V 10A PANASONIC
8-97173-035-1
01
1
0911-
22
11
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
RELAY; DIMMER
24V 12.5A PANASONIC
8-97262-933-0
01
1
0504-0609
11
RELAY; DIMMER
24V 10A PANASONIC
8-97173-035-1
01
1
0610-
22
RELAY; STOP LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0504-0609
22
RELAY; STOP LAMP
24V 10A PANASONIC
8-97173-035-1
01
1
0610-1111
22
RELAY; STOP LAMP
24V 10A PANASONIC
8-97173-035-1
01
1
1112-
22
RELAY; STOP LAMP
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 10A PANASONIC
8-97173-035-1
01
1
1112-
29
RELAY; HORN
24V 12.5A PANASONIC
8-97262-933-0
01
1
0504-0609
29
RELAY; HORN
24V 10A PANASONIC
8-97173-035-1
01
1
0610-

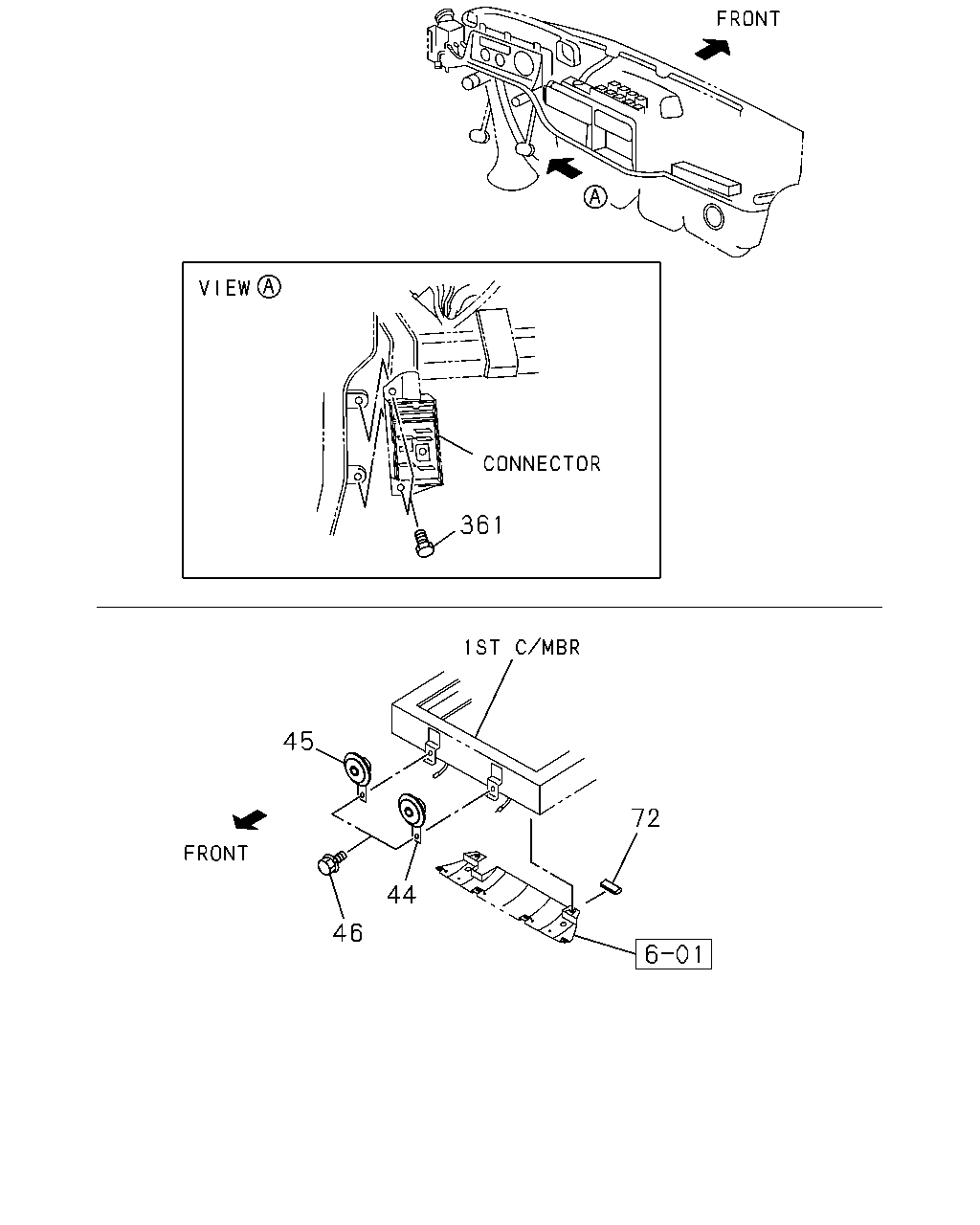

361
45
72
44
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
HORN; HIGH NOTE
DUAL TONE HORN<U05>
8-97211-741-2
01
1
0610-
45
HORN; LOW NOTE
8-97211-740-1
01
1
0504-0609
45
HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN<6HG>
8-97211-740-2
01
1
0610-
45
HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>
8-97109-364-1
01
1
0610-
46
BOLT; HORN TO BODY
M8X20 W/LK&PL WASHER
8-97086-825-0
01
1
0504-0609
46
BOLT; HORN TO BODY
DUAL TONE HORN<U05> M8X20 W/LK&PL WASHER
8-97086-825-0
02
1
0610-1004
46
BOLT; HORN TO BODY
DUAL TONE HORN<U05> M8X18.5 W/PL WASHER
8-98141-255-0
02
1
1005-
46
BOLT; HORN TO BODY
EXC. DUAL TONE HORN<U05> M8X20 W/LK&PL WASHER
8-97086-825-0
01
1
0610-1004
46
BOLT; HORN TO BODY
EXC. DUAL TONE HORN<U05> M8X18.5 W/PL WASHER
8-98141-255-0
01
1
1005-
72
PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) L=80
5-22439-006-0
01
1
0610-
361
BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0504-1210
361
BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER
8-97360-226-0
01
1
1211-

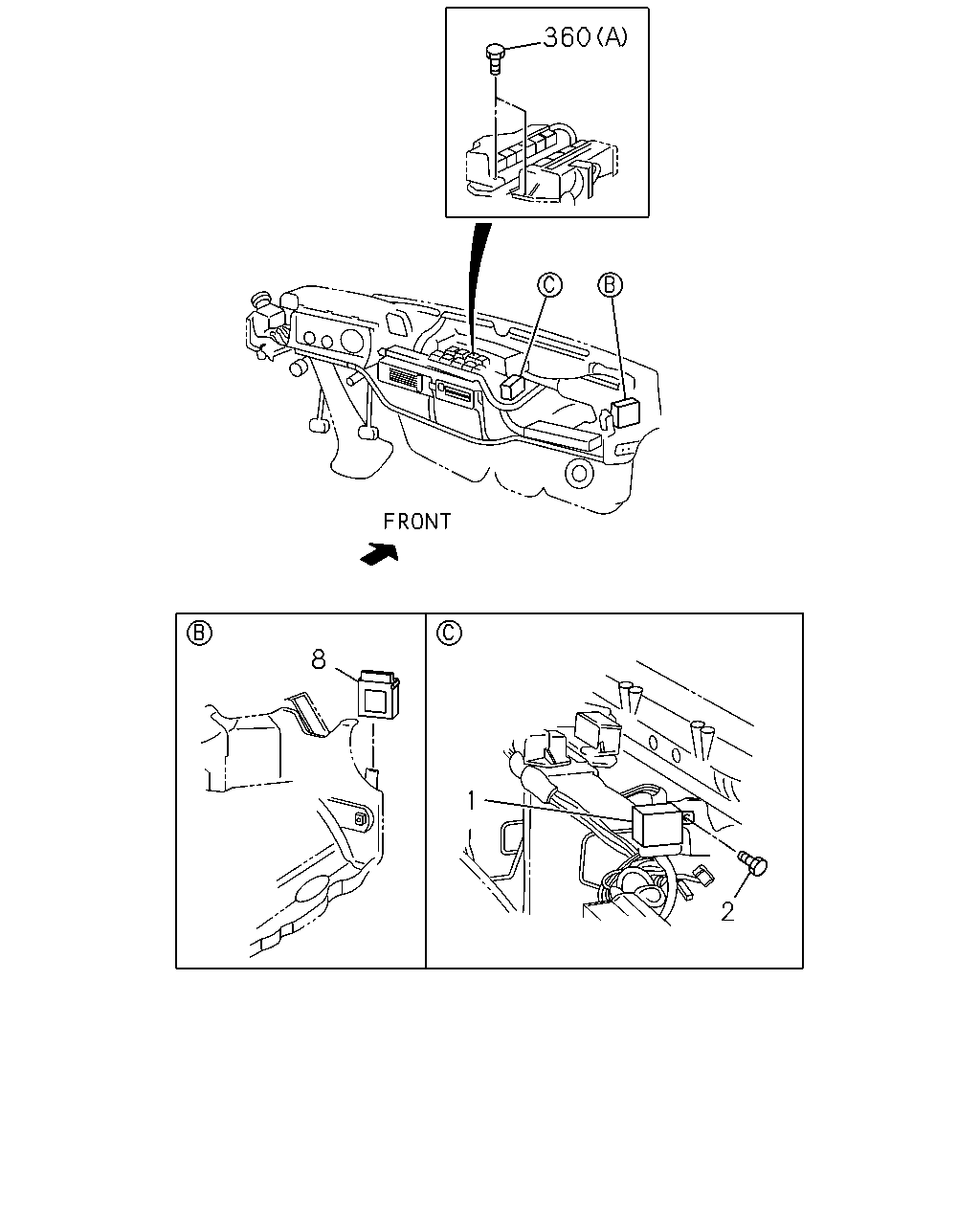

360
8
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
8-97360-084-1
01
1
0504-
2
BOLT; FLASHER UNIT
M6X16 W/LK&PL WASHER
8-94139-963-0
01
1
0504-1210
2
BOLT; FLASHER UNIT
M6X19.5 W/LK&PL WASHER
8-97360-226-0
01
1
1211-
8
RELAY; WIPER
INTERMITTENT WIPER<C13>
8-97363-983-0
01
1
0504-
360
BOLT; RELAY BOX
(B) M8X25 FLANGE
0-28680-825-0
03
1
0504-0512
360
BOLT; RELAY BOX
(B) M8X25 FLANGE
0-28650-825-0
03
1
0601-0609
360
BOLT; RELAY BOX
4HE1-TCN ENG(RDR) (B) M8X25 FLANGE
0-28650-825-0
03
1
0610-
360
BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER
8-94139-963-0
04
1
0504-1210
360
BOLT; RELAY BOX
(A) M6X19.5 W/LK&PL WASHER
8-97360-226-0
04
1
1211-
