Isuzu WW
▶
TRUCKS
▶
NQR
▶
51038 - NQR(IRAN)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#21957) — 18 parça
◀
[826A] NO.1 (6 parça)
[826A] NO.2 (12 parça)
▶

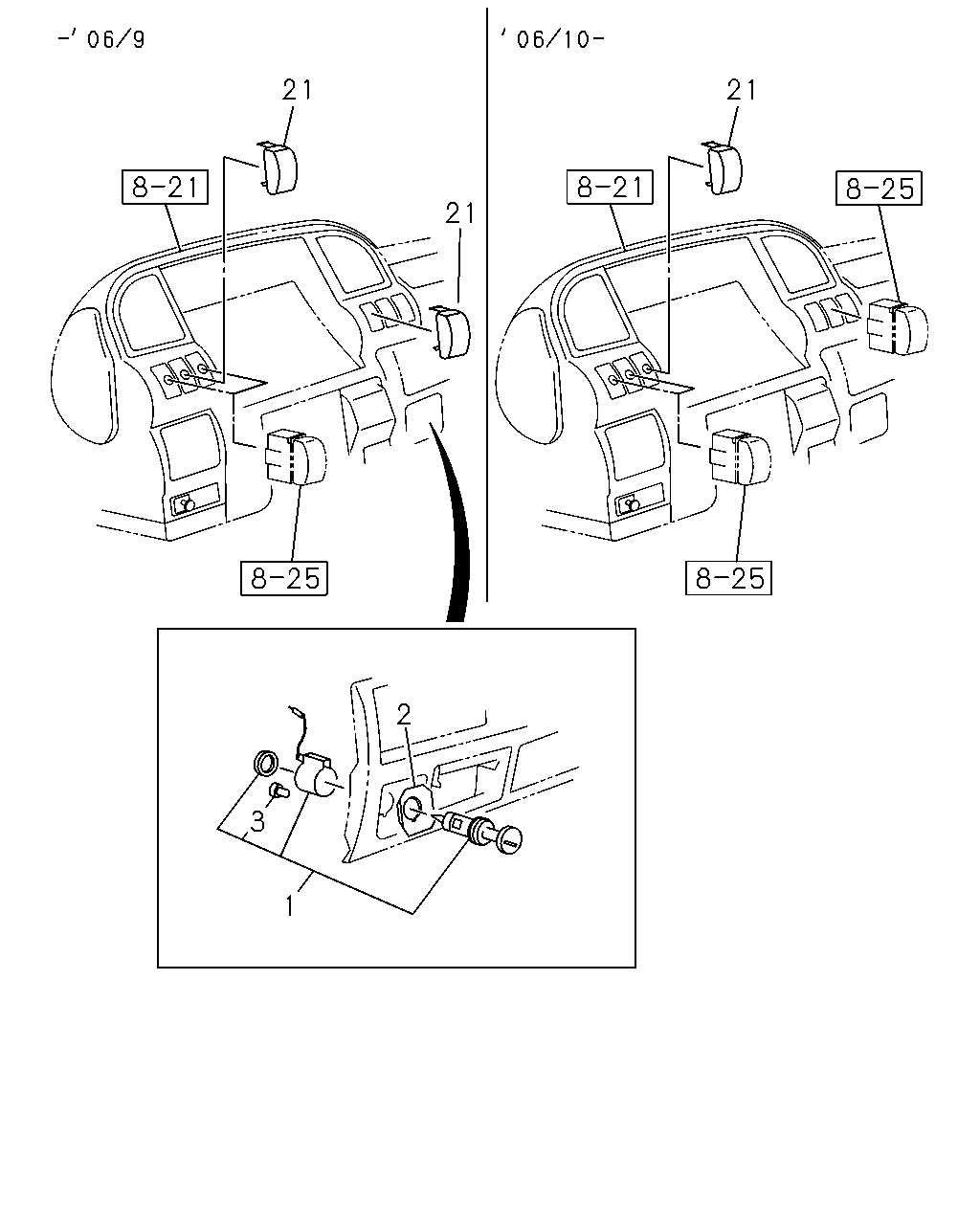

21
21
21
2
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-97320-325-0
01
1
0504-
2
BEZEL; CIGAR LIGHTER
8-97853-159-1
01
1
0504-0706
2
BEZEL; CIGAR LIGHTER
8-98091-060-0
01
1
0707-
3
BULB; CIGAR LIGHTER
28V 1.8W
8-97173-159-0
01
1
0504-
21
COVER; HOLE
8-97136-694-0
02
1
0504-0609
21
COVER; HOLE
8-97136-694-0
01
1
0610-

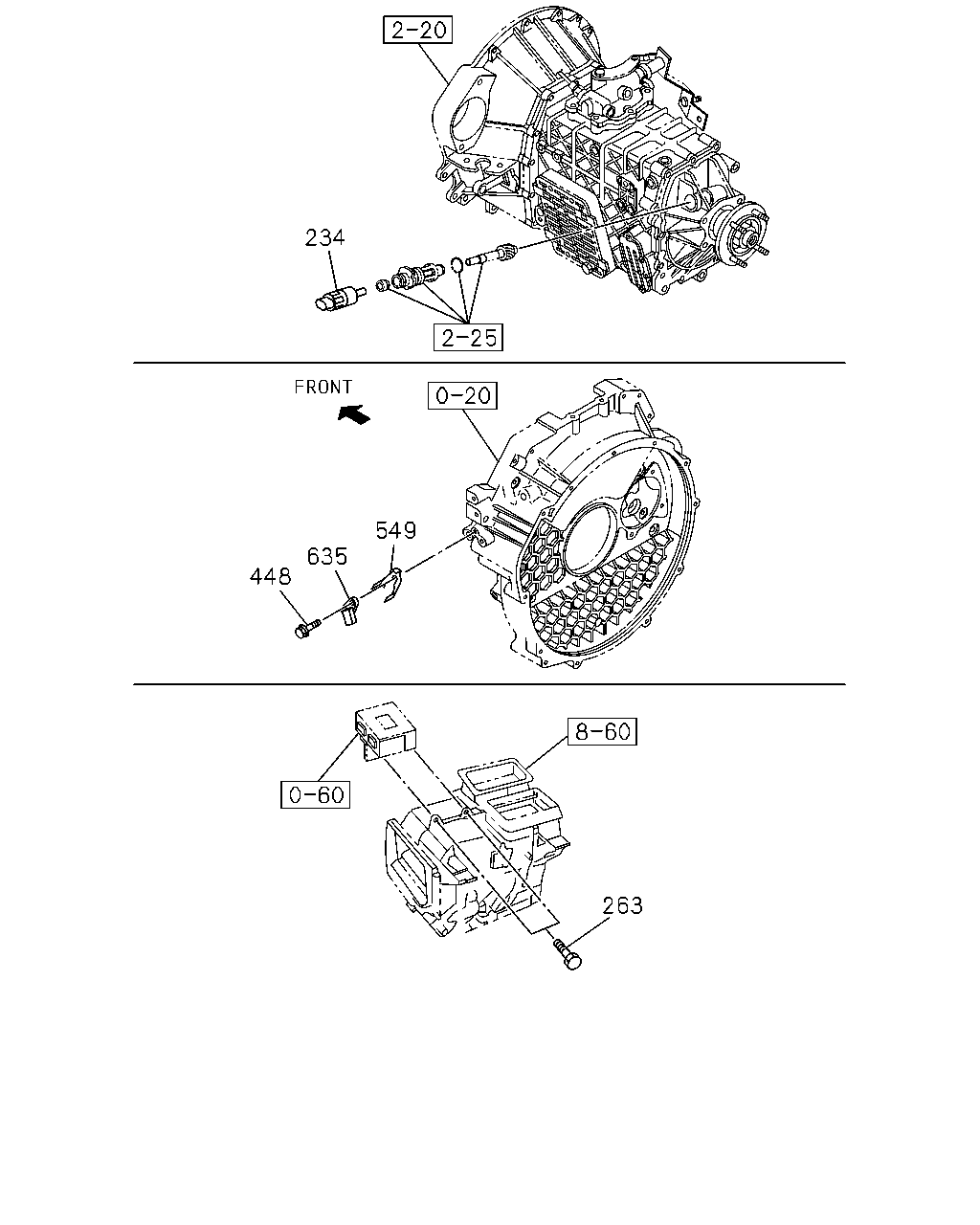

234
549
635
448
263
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
4 PULSE ALUMINUM
8-97256-525-0
01
1
0504-0609
234
SENSOR; VEHICLE SPD
4HE1-TCN ENG(RDR) 4 PULSE ALUMINUM
8-97256-525-0
01
1
0610-
263
BOLT; CONT UNIT
M6X20 FLANGE
0-28680-620-0
02
1
0504-0512
263
BOLT; CONT UNIT
M6X20 FLANGE
0-28650-620-0
02
1
0601-0609
263
BOLT; CONT UNIT
4HE1-TCN ENG(RDR) M6X20 FLANGE
0-28650-620-0
02
1
0610-
448
BOLT; SENSOR
4HE1 ENG(RLY) M6X16 FLANGE
0-28080-616-0
01
1
0504-0512
448
BOLT; SENSOR
4HE1 ENG(RLY) M6X16 FLANGE
0-28050-616-0
01
1
0601-0609
448
BOLT; SENSOR
4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41) M6X16 FLANGE
0-28050-616-0
01
1
0610-
549
SHEET
4HE1 ENG(RLY)
8-97161-633-2
01
1
0504-0609
549
SHEET
4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41)
8-97161-633-2
01
1
0610-
635
SENSOR; TACHOMETER
4HE1 ENG(RLY) YAZAKI
8-97214-325-0
01
1
0504-0609
635
SENSOR; TACHOMETER
4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41) YAZAKI
8-97214-325-0
01
1
0610-
