8-21 — METER ASM (#21955) — 91 parça

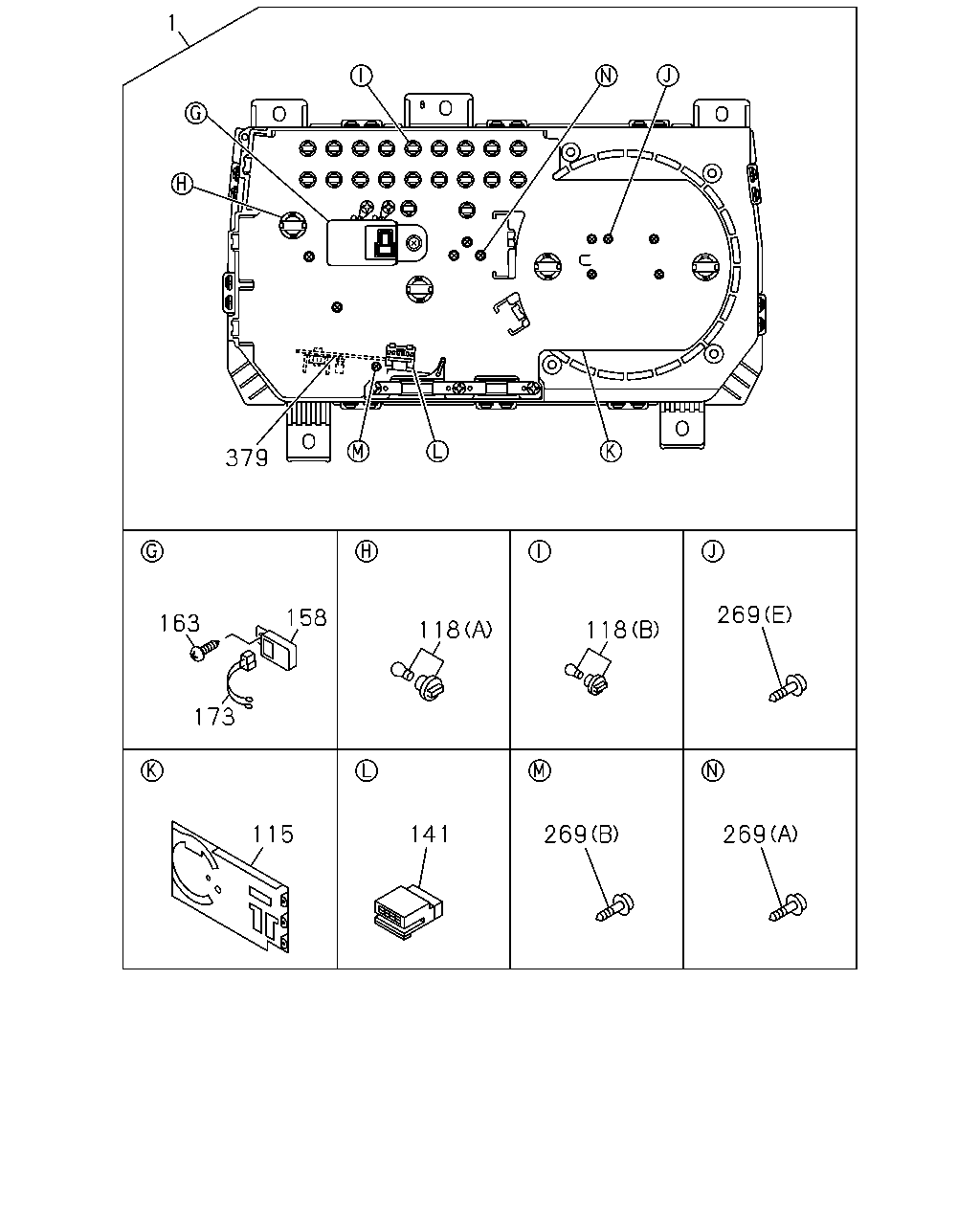

1 379 269 158 163 118 118 173 115 269 269 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16>	8-97217-065-0	01	1	0504-0609
1	METER COMPL; CLUSTER 4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16>	8-97383-490-0	01	1	0610-
1	METER COMPL; CLUSTER 4HE1-TCN ENG(RDR) TACHOMETER<U16>	8-97385-410-1	01	1	0610-
115	CIRCUIT; PRINTED,CLUSTER METER 4HE1 ENG(RLY) TACHOMETER<U16>	8-97185-507-0	01	1	0504-0609
115	CIRCUIT; PRINTED,CLUSTER METER 4HE1-TCN ENG(RDR) TACHOMETER<U16>	8-97185-493-0	01	1	0610-
115	CIRCUIT; PRINTED,CLUSTER METER 4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16>	8-97185-489-0	01	1	0610-
118	BULB; CLUSTER METER (A) 24V SOCKET COLOR DARK BROWN	8-97185-538-0	AR	1	0504-
118	BULB; CLUSTER METER (B) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	AR	1	0504-
118	BULB; CLUSTER METER (B) 24V SOCKET COLOR REDDISH BROWN	8-97185-540-0	AR	1	0504-
141	CONNECTOR; CLUSTER METER 4HE1 ENG(RLY) TACHOMETER<U16>	8-97185-513-0	01	1	0504-0609
141	CONNECTOR; CLUSTER METER 4HE1-TCN ENG(RDR)	8-97185-513-0	01	1	0610-
158	BUZZER; VAC WARNING 4HE1 ENG(RLY) TACHOMETER<U16> 24V	8-97185-519-0	01	1	0504-0609
158	BUZZER; VAC WARNING 4HE1-TCN ENG(RDR) 24V	8-97185-519-0	01	1	0610-
163	SCREW; BUZZER 4HE1 ENG(RLY) TACHOMETER<U16>	8-97185-527-0	01	1	0504-0609
163	SCREW; BUZZER 4HE1-TCN ENG(RDR)	8-97185-527-0	01	1	0610-
173	WIRE; LEAD 4HE1 ENG(RLY) TACHOMETER<U16>	8-97185-643-0	01	1	0504-0609
173	WIRE; LEAD 4HE1-TCN ENG(RDR)	8-97185-643-0	01	1	0610-
269	SCREW; METER CLUSTER (D) M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0504-1210
269	SCREW; METER CLUSTER (D) M6X19.5 W/LK&PL WASHER	8-97360-226-0	05	1	1211-
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> (B)	8-97185-523-0	01	1	0504-0609
269	SCREW; METER CLUSTER 4HE1-TCN ENG(RDR) (B)	8-97185-523-0	01	1	0610-
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> (E)	8-97185-524-0	08	1	0504-0609
269	SCREW; METER CLUSTER 4HE1-TCN ENG(RDR) TACHOMETER<U16> (E)	8-97185-524-0	08	1	0610-
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> (A)	8-97185-525-0	06	1	0504-0609
269	SCREW; METER CLUSTER 4HE1-TCN ENG(RDR) (A)	8-97185-525-0	06	1	0610-
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> (C)	8-97185-528-0	05	1	0504-0609
269	SCREW; METER CLUSTER 4HE1-TCN ENG(RDR) (C)	8-97185-528-0	05	1	0610-
269	SCREW; METER CLUSTER 4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16> (E)	8-97185-524-0	07	1	0610-
379	CIRCUIT; DROP 4HE1 ENG(RLY) TACHOMETER<U16>	8-97185-512-0	01	1	0504-0609
379	CIRCUIT; DROP 4HE1-TCN ENG(RDR)	8-97185-512-0	01	1	0610-

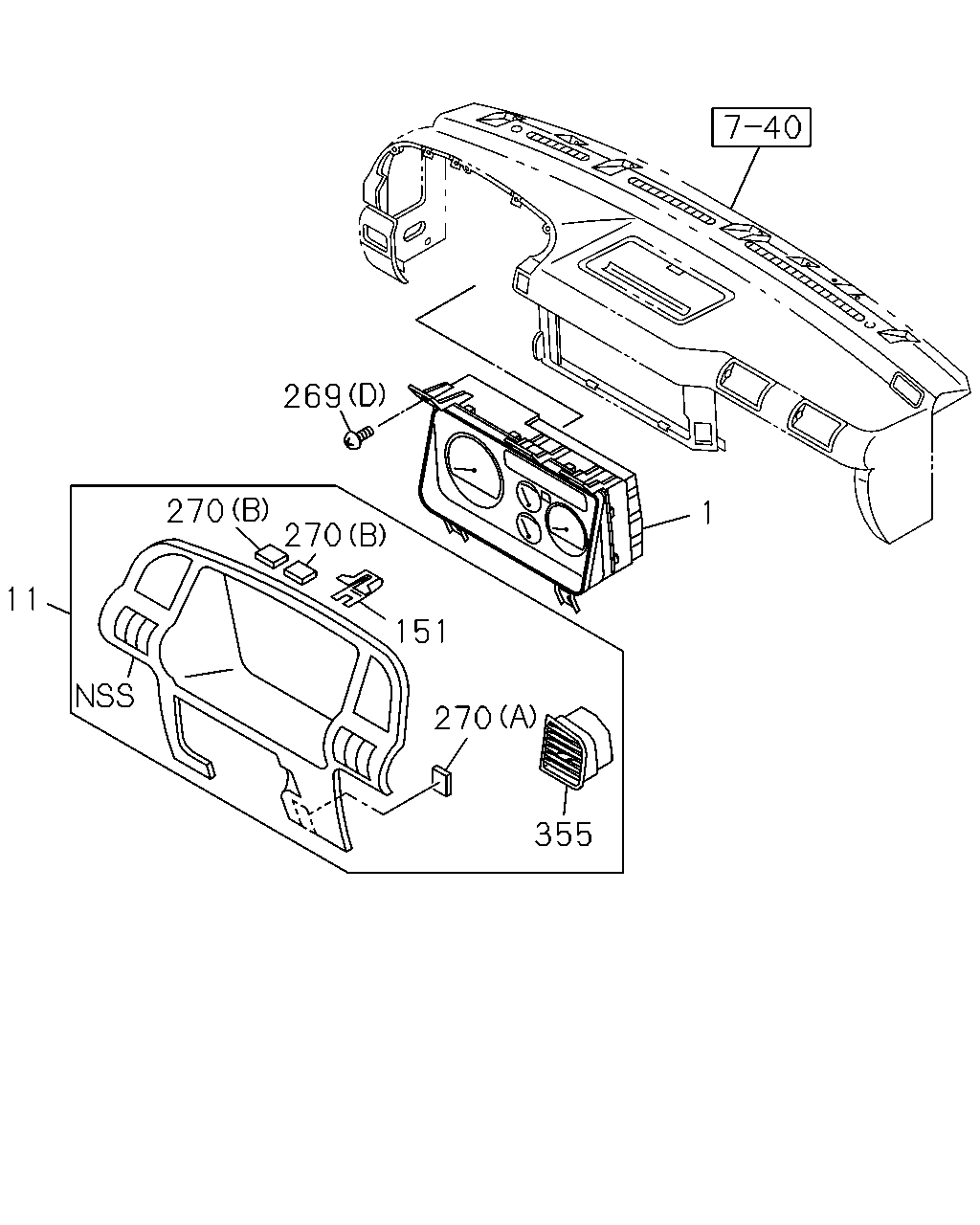

270 1 11 151 355 269 270 270

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16>	8-97217-065-0	01	1	0504-0609
1	METER COMPL; CLUSTER 4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16>	8-97383-490-0	01	1	0610-
1	METER COMPL; CLUSTER 4HE1-TCN ENG(RDR) TACHOMETER<U16>	8-97385-410-1	01	1	0610-
11	CLUSTER ASM; METER BLACK	8-97195-965-2	01	1	0504-
151	CLIP; METER CLUSTER	8-97217-066-0	07	1	0504-
269	SCREW; METER CLUSTER (D) M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0504-1210
269	SCREW; METER CLUSTER (D) M6X19.5 W/LK&PL WASHER	8-97360-226-0	05	1	1211-
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> (B)	8-97185-523-0	01	1	0504-0609
269	SCREW; METER CLUSTER 4HE1-TCN ENG(RDR) (B)	8-97185-523-0	01	1	0610-
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> (E)	8-97185-524-0	08	1	0504-0609
269	SCREW; METER CLUSTER 4HE1-TCN ENG(RDR) TACHOMETER<U16> (E)	8-97185-524-0	08	1	0610-
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> (A)	8-97185-525-0	06	1	0504-0609
269	SCREW; METER CLUSTER 4HE1-TCN ENG(RDR) (A)	8-97185-525-0	06	1	0610-
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> (C)	8-97185-528-0	05	1	0504-0609
269	SCREW; METER CLUSTER 4HE1-TCN ENG(RDR) (C)	8-97185-528-0	05	1	0610-
269	SCREW; METER CLUSTER 4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16> (E)	8-97185-524-0	07	1	0610-
270	CUSHION; METER CLUSTER (A) 15X30 T=5	8-94270-366-2	01	1	0504-
270	CUSHION; METER CLUSTER (B) 6X30 T=2	8-94270-378-1	02	1	0504-
355	GRILLE; VENT BLACK	8-97195-967-1	01	1	0504-
355	GRILLE; VENT BLACK	8-97195-966-1	01	1	0504-

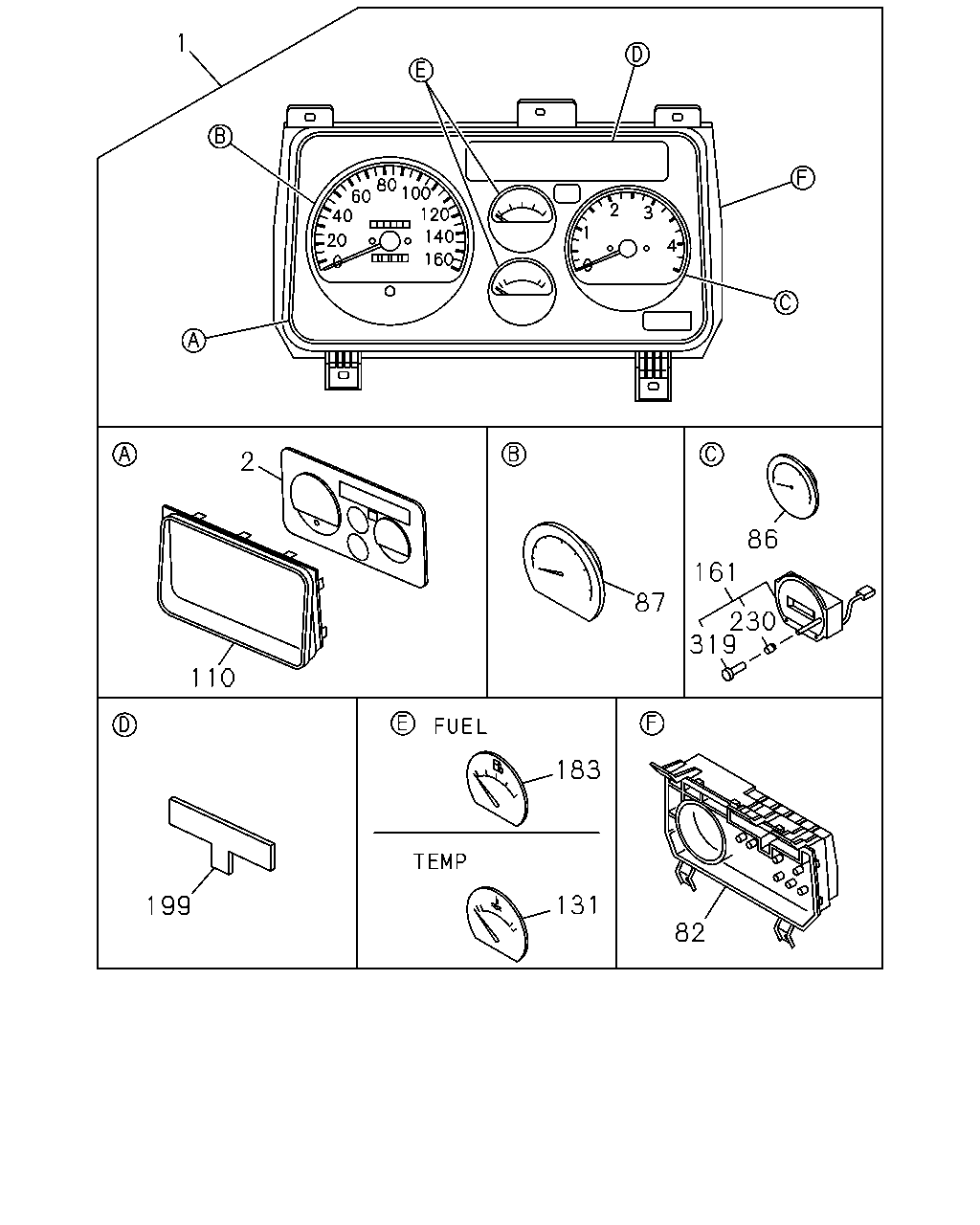

1 2 86 161 87 230 319 110 183 131 199 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16>	8-97217-065-0	01	1	0504-0609
1	METER COMPL; CLUSTER 4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16>	8-97383-490-0	01	1	0610-
1	METER COMPL; CLUSTER 4HE1-TCN ENG(RDR) TACHOMETER<U16>	8-97385-410-1	01	1	0610-
2	PANEL; CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16>	8-97185-443-0	01	1	0504-0609
2	PANEL; CLUSTER 4HE1-TCN ENG(RDR)	8-97185-443-0	01	1	0610-
82	CASE ASM; CLUSTER METER 4HE1 ENG(RLY) TACHOMETER<U16>	8-97185-448-0	01	1	0504-0609
82	CASE ASM; CLUSTER METER 4HE1-TCN ENG(RDR)	8-97185-448-0	01	1	0610-
86	TACHOMETER; CLUSTER METER 4HE1 ENG(RLY) TACHOMETER<U16>	8-97218-460-0	01	1	0504-0609
86	TACHOMETER; CLUSTER METER 4HE1-TCN ENG(RDR) TACHOMETER<U16>	8-98002-113-0	01	1	0610-
87	SPEEDOMETER 4HE1 ENG(RLY) TACHOMETER<U16>	8-97185-457-0	01	1	0504-0609
87	SPEEDOMETER 4HE1-TCN ENG(RDR)	8-98002-108-0	01	1	0610-
110	GLASS; CLUSTER METER 4HE1 ENG(RLY) TACHOMETER<U16>	8-97185-452-0	01	1	0504-0609
110	GLASS; CLUSTER METER 4HE1-TCN ENG(RDR) TACHOMETER<U16>	8-97185-452-0	01	1	0610-
110	GLASS; CLUSTER METER 4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16>	8-97185-451-0	01	1	0610-
131	GAUGE; TEMP,CLUSTER METER 4HE1 ENG(RLY) TACHOMETER<U16>	8-97185-475-0	01	1	0504-0609
131	GAUGE; TEMP,CLUSTER METER 4HE1-TCN ENG(RDR)	8-98002-121-0	01	1	0610-
161	CLOCK; CLUSTER METER 4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16>	8-98002-110-0	01	1	0610-
183	GAUGE; FUEL 4HE1 ENG(RLY) TACHOMETER<U16>	8-97185-473-0	01	1	0504-0609
183	GAUGE; FUEL 4HE1-TCN ENG(RDR)	8-98002-118-0	01	1	0610-
199	LENS; WARNING LAMP 4HE1 ENG(RLY) TACHOMETER<U16>	8-97185-481-0	01	1	0504-0609
199	LENS; WARNING LAMP 4HE1-TCN ENG(RDR)	8-98002-124-0	01	1	0610-
230	KNOB; DIGITAL CLOCK,SUB METER 4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16>	8-97185-644-0	01	1	0610-
319	SCREW; KNOB,CLUSTER METER 4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16>	8-97185-522-0	01	1	0610-

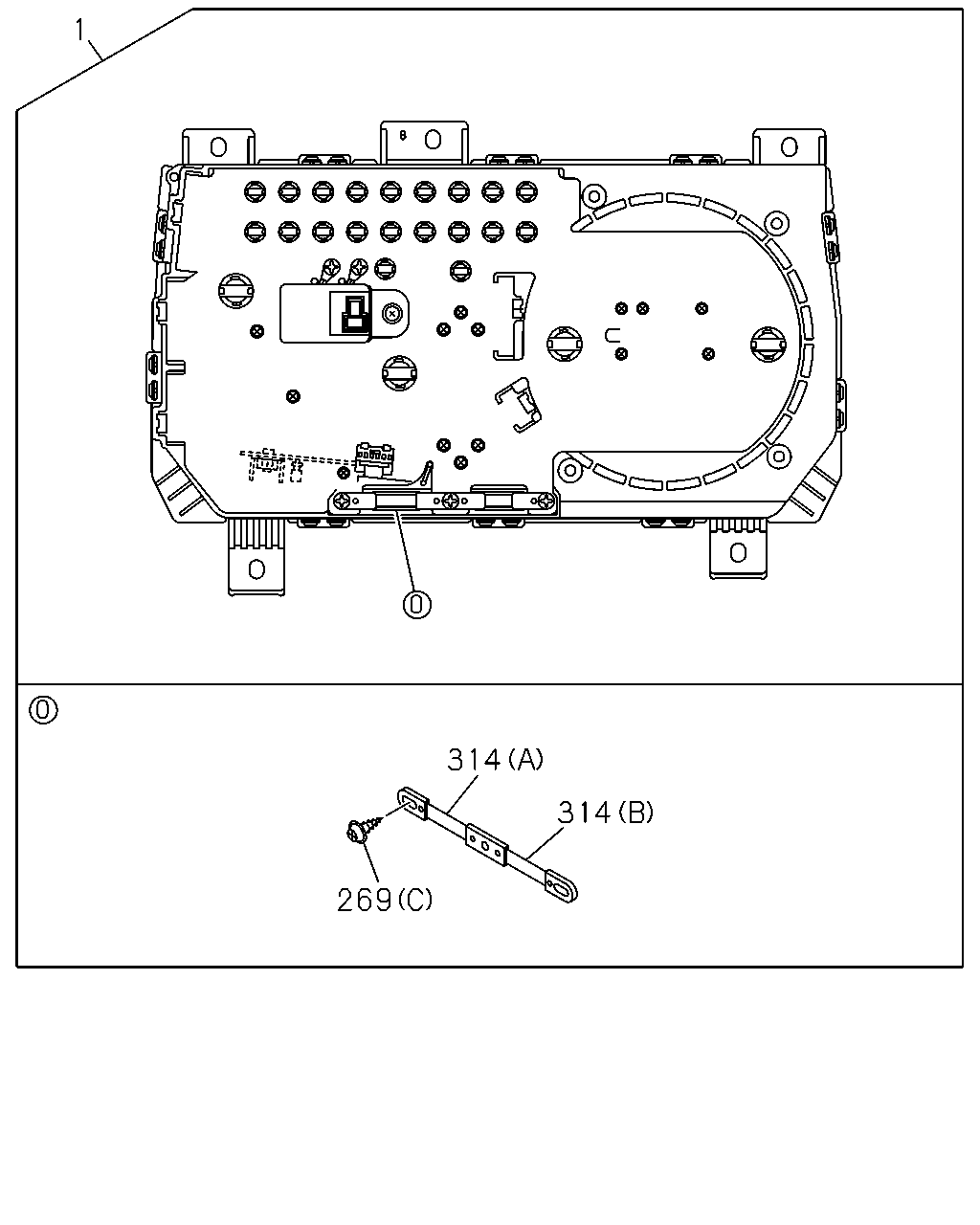

1 314 314 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16>	8-97217-065-0	01	1	0504-0609
1	METER COMPL; CLUSTER 4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16>	8-97383-490-0	01	1	0610-
1	METER COMPL; CLUSTER 4HE1-TCN ENG(RDR) TACHOMETER<U16>	8-97385-410-1	01	1	0610-
269	SCREW; METER CLUSTER (D) M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0504-1210
269	SCREW; METER CLUSTER (D) M6X19.5 W/LK&PL WASHER	8-97360-226-0	05	1	1211-
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> (B)	8-97185-523-0	01	1	0504-0609
269	SCREW; METER CLUSTER 4HE1-TCN ENG(RDR) (B)	8-97185-523-0	01	1	0610-
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> (E)	8-97185-524-0	08	1	0504-0609
269	SCREW; METER CLUSTER 4HE1-TCN ENG(RDR) TACHOMETER<U16> (E)	8-97185-524-0	08	1	0610-
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> (A)	8-97185-525-0	06	1	0504-0609
269	SCREW; METER CLUSTER 4HE1-TCN ENG(RDR) (A)	8-97185-525-0	06	1	0610-
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> (C)	8-97185-528-0	05	1	0504-0609
269	SCREW; METER CLUSTER 4HE1-TCN ENG(RDR) (C)	8-97185-528-0	05	1	0610-
269	SCREW; METER CLUSTER 4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16> (E)	8-97185-524-0	07	1	0610-
314	RESISTOR; COMB METER,CLUSTER METER 4HE1 ENG(RLY) TACHOMETER<U16> (A)	8-97185-515-0	01	1	0504-0609
314	RESISTOR; COMB METER,CLUSTER METER 4HE1-TCN ENG(RDR) (A)	8-97185-515-0	01	1	0610-
314	RESISTOR; COMB METER,CLUSTER METER 4HE1 ENG(RLY) TACHOMETER<U16> (B)	8-97185-516-0	01	1	0504-0609
314	RESISTOR; COMB METER,CLUSTER METER 4HE1-TCN ENG(RDR) (B)	8-97185-516-0	01	1	0610-
