◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51038 - NQR(IRAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#21954) — 158 parça
çizim 56430
16 48 220 483 488 16 16 48 16 205 16 48 48 142 16 48 16 48 48 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 AR 1 0504-
16 CLIP; HARNESS
(D) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0504-
16 CLIP; HARNESS
(B) ID=14 L=47 		5-09700-319-0 AR 1 0504-
16 CLIP; HARNESS
(H) L=140 		5-09707-031-1 AR 1 0504-
16 CLIP; HARNESS
(E) ID=10 & 16 		8-94413-325-0 AR 1 0504-
16 CLIP; HARNESS
(C) ID=22 & 22 		8-94464-837-0 AR 1 0504-
16 CLIP; HARNESS
(F) ID=6 & 10-13 		8-97069-515-0 AR 1 0504-
16 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0504-
16 CLIP; HARNESS
(G) ID=15-32 		8-97174-404-0 AR 1 0504-
16 CLIP; HARNESS
(I) L=100 		8-94327-067-1 AR 1 0504-
16 CLIP; HARNESS
(K) ID=27 		5-09700-323-0 AR 1 0911-
16 CLIP; HARNESS
(L) T=4.5 & 9 		5-09709-023-0 AR 1 0911-
16 CLIP; HARNESS
(M) T=6.0 		5-09709-024-0 AR 1 0911-
48 CLIP; FRAME HARNESS
(G) ID=32 L=75 		1-09700-702-0 AR 1 0504-
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 AR 1 0504-
48 CLIP; FRAME HARNESS
(A) ID=31 L=30 		1-09700-969-0 AR 1 0504-
48 CLIP; FRAME HARNESS
(E) L=170.3 		1-09987-182-0 AR 1 0504-
48 CLIP; FRAME HARNESS
(H) ID=14 L=47 		5-09700-319-0 AR 1 0504-
48 CLIP; FRAME HARNESS
(B) L=140 		5-09707-031-1 AR 1 0504-
48 CLIP; FRAME HARNESS
(D) T=4.5 & 9 		5-09709-023-0 AR 1 0504-
48 CLIP; FRAME HARNESS
(J) T=6.0 		5-09709-024-0 AR 1 0504-
48 CLIP; FRAME HARNESS
(I) ID=9 		8-97063-874-0 AR 1 0504-
48 CLIP; FRAME HARNESS
(F) ID=30 W/STUD 		8-97078-642-2 AR 1 0504-
48 CLIP; FRAME HARNESS
(K) ID=27 		5-09700-323-0 AR 1 0911-
142 CLIP; HARNESS,ENG
(A) L=170.3 		1-09987-182-0 01 1 0504-
142 CLIP; HARNESS,ENG
(B) 		8-97101-436-0 01 1 0504-0609
142 CLIP; HARNESS,ENG
4HE1-TCN ENG(RDR) (B) 		8-97101-436-0 01 1 0610-
205 CLIP; BACK LAMP HARNESS
L=135 		1-09987-143-1 01 1 0504-
220 CLIP; HARNESS TO CABLE
4HE1 ENG(RLY) L=140 		5-09707-031-1 01 1 0504-0609
220 CLIP; HARNESS TO CABLE
4HE1-TCN ENG(RDR) L=140 		5-09707-031-1 01 1 0610-
483 CLIP; ENG HARNESS
4HE1 ENG(RLY) L=140 		5-09707-031-1 02 1 0504-0609
483 CLIP; ENG HARNESS
4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41) L=140 		5-09707-031-1 02 1 0610-
488 CLIP; CABLE,TRAILER
L=250 		5-09707-030-1 01 1 0504-
çizim 56431
386 8 386 139 386 377 386 19 38 8 38 239 294 219 219 294 515 294 469 515 519 525
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0504-0512
8 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
8 BOLT; BRKT,CONNECTOR
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0504-1210
8 BOLT; BRKT,CONNECTOR
(A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 03 1 1211-
19 BOLT; PROTECTOR
4HE1 ENG(RLY) M10X35 FLANGE 		0-28681-035-0 01 1 0504-0512
19 BOLT; PROTECTOR
4HE1 ENG(RLY) M10X35 FLANGE 		0-28651-035-0 01 1 0601-0609
19 BOLT; PROTECTOR
M10X35 FLANGE 		0-28651-035-0 01 1 0610-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0504-0512
38 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0504-0512
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0504-0512
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609
38 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0610-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0610-
38 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) (B) M8X30 FLANGE 		0-28680-830-0 01 1 0504-0512
38 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0609
38 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0610-
139 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 03 1 0504-0512
139 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 03 1 0601-
219 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0504-0602
219 NUT
4HE1 ENG(RLY) (B) M8 FLANGE 		0-91150-108-0 01 1 0504-0602
219 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0504-0602
219 NUT
4HE1 ENG(RLY) (B) M8 FLANGE 		0-91150-108-0 01 1 0504-0602
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-0609
219 NUT
4HE1 ENG(RLY) (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0609
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-0609
219 NUT
4HE1 ENG(RLY) (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0609
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0610-
219 NUT
4HE1-TCN ENG(RDR) (B) M8 FLANGE 		0-91180-108-0 01 1 0610-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0610-
219 NUT
4HE1 ENG(RLY) (A) M6 FLANGE 		0-91150-106-0 02 1 0504-0602
219 NUT
4HE1 ENG(RLY) (A) M6 FLANGE 		0-91180-106-0 02 1 0603-0609
219 NUT
(A) M6 FLANGE 		0-91180-106-0 02 1 0610-
239 BOLT; GRAND
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0504-1004
239 BOLT; GRAND
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005-
294 NUT
(C) M8 FLANGE 		0-91150-108-0 02 1 0504-0602
294 NUT
(C) M8 FLANGE 		0-91180-108-0 02 1 0603-
294 NUT
(B) M10 FLANGE 		0-91150-110-0 01 1 0504-0602
294 NUT
(B) M10 FLANGE 		0-91180-110-0 01 1 0603-
294 NUT
4HE1 ENG(RLY) (A) M6 FLANGE 		0-91150-106-0 01 1 0504-0602
294 NUT
4HE1 ENG(RLY) (A) M6 FLANGE 		0-91180-106-0 01 1 0603-0609
377 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0504-1004
377 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005-
386 BOLT; GRAND HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> (D) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1112-
386 BOLT; GRAND HARNESS
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0504-0609
386 BOLT; GRAND HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0610-1004
386 BOLT; GRAND HARNESS
(C) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005-
469 NUT; PROTECTOR
4HE1 ENG(RLY) M10 FLANGE 		0-91150-110-0 01 1 0504-0602
469 NUT; PROTECTOR
4HE1 ENG(RLY) M10 FLANGE 		0-91180-110-0 01 1 0603-0609
469 NUT; PROTECTOR
M10 FLANGE 		0-91180-110-0 01 1 0610-
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 01 1 0610-
515 NUT; BRKT
4HE1 ENG(RLY) (A) M8 FLANGE 		0-91150-108-0 01 1 0504-0602
515 NUT; BRKT
4HE1 ENG(RLY) (A) M8 FLANGE 		0-91180-108-0 01 1 0603-0609
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0610-
515 NUT; BRKT
EXC. TOOL & STORAGE BOX<VK2> (A) M8 FLANGE 		0-91180-108-0 01 1 0610-
519 NUT; EARTH CABLE
4HE1 ENG(RLY) M10 FLANGE 		0-91150-110-0 01 1 0504-0602
519 NUT; EARTH CABLE
4HE1 ENG(RLY) M10 FLANGE 		0-91180-110-0 01 1 0603-0609
519 NUT; EARTH CABLE
4HE1-TCN ENG(RDR) M10 FLANGE 		0-91180-110-0 01 1 0610-
525 NUT; CLIP
M10 FLANGE 		0-91150-110-0 01 1 0504-0602
525 NUT; CLIP
M10 FLANGE 		0-91180-110-0 01 1 0603-0609
525 NUT; CLIP
4HE1-TCN ENG(RDR) M10 FLANGE 		0-91180-110-0 01 1 0610-

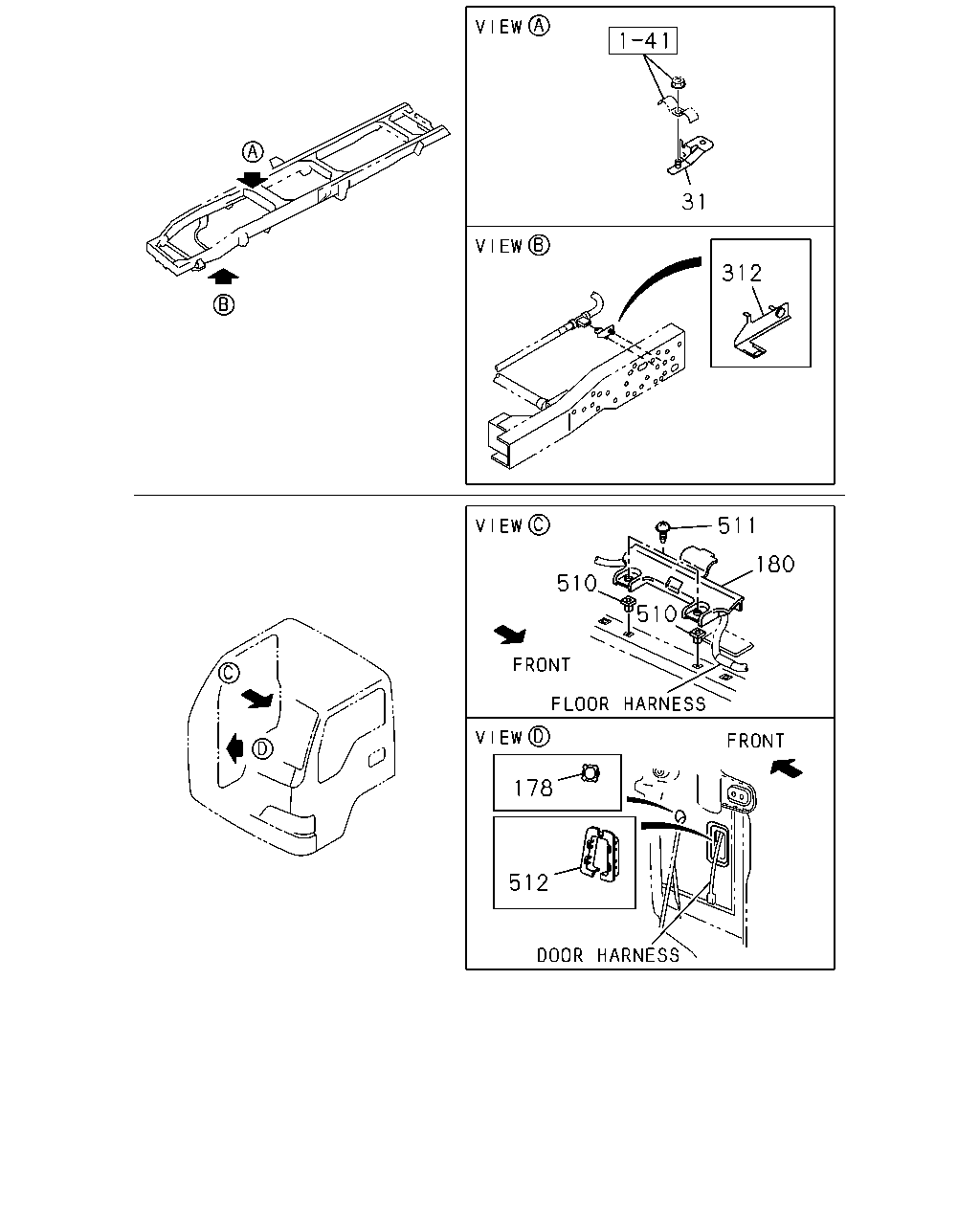

çizim 56451
31 312 511 180 510 510 178 512
BalonParca AdiParca NoAdetTipApplied Date
31 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) L=47 		8-97042-635-0 01 1 0504-0609
31 BRACKET; HARNESS CLIP,PIPE
4HE1-TCN ENG(RDR) L=47 		8-97042-635-0 01 1 0610-
31 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) L=73 		8-97077-845-0 02 1 0504-0609
31 BRACKET; HARNESS CLIP,PIPE
4HE1-TCN ENG(RDR) L=73 		8-97077-845-0 02 1 0610-
178 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 0504-
180 COVER; HARNESS 8-97856-130-4 02 1 0504-
312 BRACKET; CLIP HARNESS
4HE1 ENG(RLY) 		8-97017-072-2 01 1 0504-0609
312 BRACKET; CLIP HARNESS 8-97017-072-2 01 1 0610-
510 GROMMET; SCREW
H=15 		8-94463-268-1 04 1 0504-
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0504-0604
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0605-0702
511 SCREW; HARNESS COVER
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 0703-
512 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0504-0609
512 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0504-0609
512 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 		8-97072-950-0 02 1 0504-0609
512 PROTECTOR; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0504-0609
512 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0610-
512 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0610-
512 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97072-950-0 02 1 0610-
512 PROTECTOR; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0610-
çizim 56813
16 48 48 48 142 48 53 412 53 7 16 264 16 264 504 514
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-97094-992-1 01 1 0504-
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 AR 1 0504-
16 CLIP; HARNESS
(D) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0504-
16 CLIP; HARNESS
(B) ID=14 L=47 		5-09700-319-0 AR 1 0504-
16 CLIP; HARNESS
(H) L=140 		5-09707-031-1 AR 1 0504-
16 CLIP; HARNESS
(E) ID=10 & 16 		8-94413-325-0 AR 1 0504-
16 CLIP; HARNESS
(C) ID=22 & 22 		8-94464-837-0 AR 1 0504-
16 CLIP; HARNESS
(F) ID=6 & 10-13 		8-97069-515-0 AR 1 0504-
16 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0504-
16 CLIP; HARNESS
(G) ID=15-32 		8-97174-404-0 AR 1 0504-
16 CLIP; HARNESS
(I) L=100 		8-94327-067-1 AR 1 0504-
16 CLIP; HARNESS
(K) ID=27 		5-09700-323-0 AR 1 0911-
16 CLIP; HARNESS
(L) T=4.5 & 9 		5-09709-023-0 AR 1 0911-
16 CLIP; HARNESS
(M) T=6.0 		5-09709-024-0 AR 1 0911-
48 CLIP; FRAME HARNESS
(G) ID=32 L=75 		1-09700-702-0 AR 1 0504-
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 AR 1 0504-
48 CLIP; FRAME HARNESS
(A) ID=31 L=30 		1-09700-969-0 AR 1 0504-
48 CLIP; FRAME HARNESS
(E) L=170.3 		1-09987-182-0 AR 1 0504-
48 CLIP; FRAME HARNESS
(H) ID=14 L=47 		5-09700-319-0 AR 1 0504-
48 CLIP; FRAME HARNESS
(B) L=140 		5-09707-031-1 AR 1 0504-
48 CLIP; FRAME HARNESS
(D) T=4.5 & 9 		5-09709-023-0 AR 1 0504-
48 CLIP; FRAME HARNESS
(J) T=6.0 		5-09709-024-0 AR 1 0504-
48 CLIP; FRAME HARNESS
(I) ID=9 		8-97063-874-0 AR 1 0504-
48 CLIP; FRAME HARNESS
(F) ID=30 W/STUD 		8-97078-642-2 AR 1 0504-
48 CLIP; FRAME HARNESS
(K) ID=27 		5-09700-323-0 AR 1 0911-
53 BRACKET; HARNESS
(B) 		8-98003-050-0 01 1 0610-
53 BRACKET; HARNESS
4HE1 ENG(RLY) (A) 		8-97352-527-0 01 1 0504-0609
53 BRACKET; HARNESS
(A) 		8-97352-527-0 01 1 0610-
142 CLIP; HARNESS,ENG
(A) L=170.3 		1-09987-182-0 01 1 0504-
142 CLIP; HARNESS,ENG
(B) 		8-97101-436-0 01 1 0504-0609
142 CLIP; HARNESS,ENG
4HE1-TCN ENG(RDR) (B) 		8-97101-436-0 01 1 0610-
264 CLIP; HARNESS,HEADLAMP
(A) ID=10 & 16 		8-94413-325-0 02 1 0504-0609
264 CLIP; HARNESS,HEADLAMP
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0504-
412 BRACKET; HARNESS,TRANS 8-97324-451-1 01 1 0504-
504 PROTECTOR; HARNESS
L=200 		8-97096-423-0 01 1 0504-
514 FINISHER; HARNESS
L=120 SERVICED BY L=2040 		1-71997-513-1 04 1 0504-0609
514 FINISHER; HARNESS
L=120 SERVICED BY L=500 		1-79937-746-0 01 1 0610-
514 FINISHER; HARNESS
L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0504-0609
514 FINISHER; HARNESS
L=120 SERVICED BY L=500 		1-79937-746-0 03 1 0610-
514 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0504-0609
514 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0610-1508
514 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 1509-
514 FINISHER; HARNESS
4HE1-TCN ENG(RDR) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0610-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
