Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#21953) — 235 parça

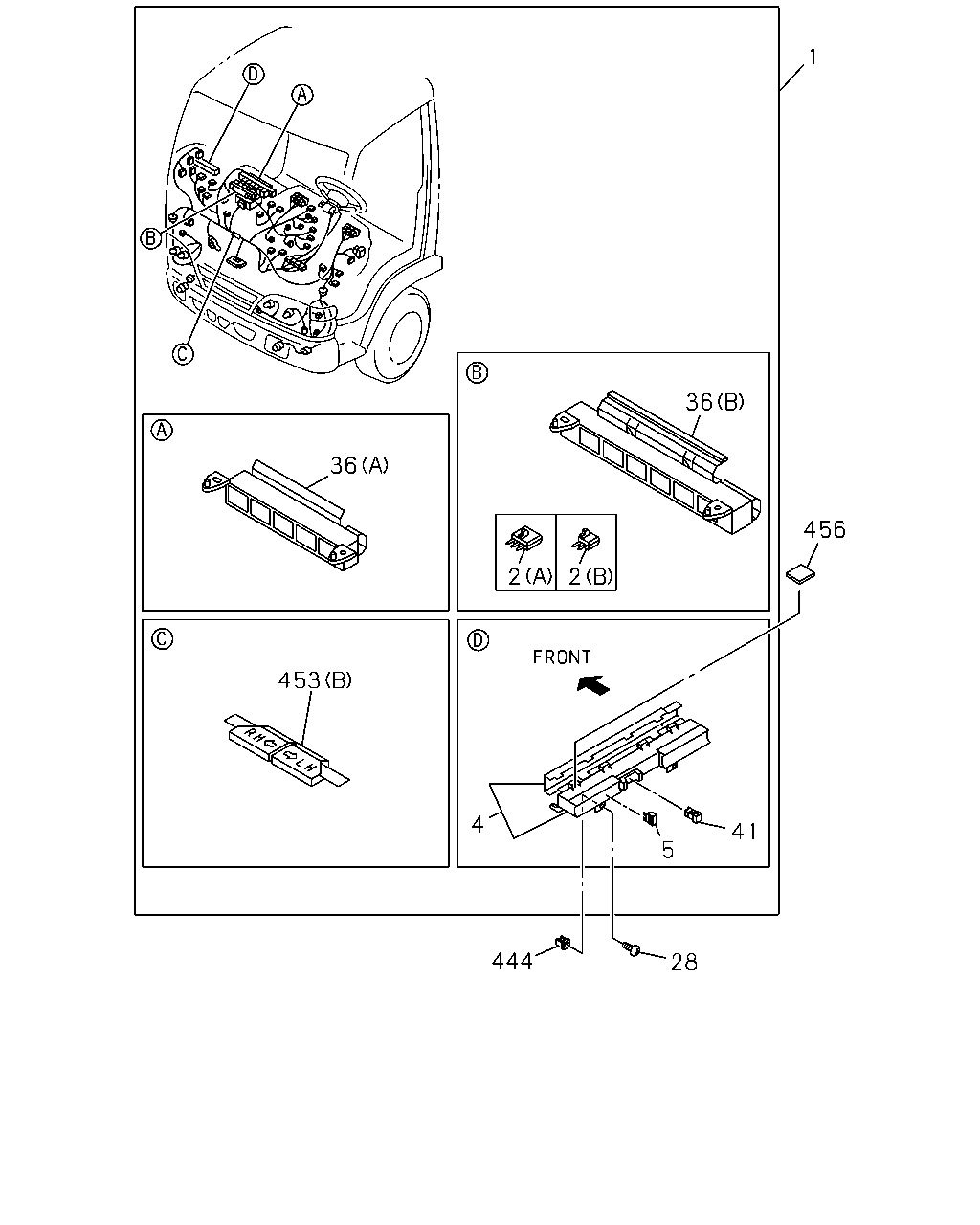

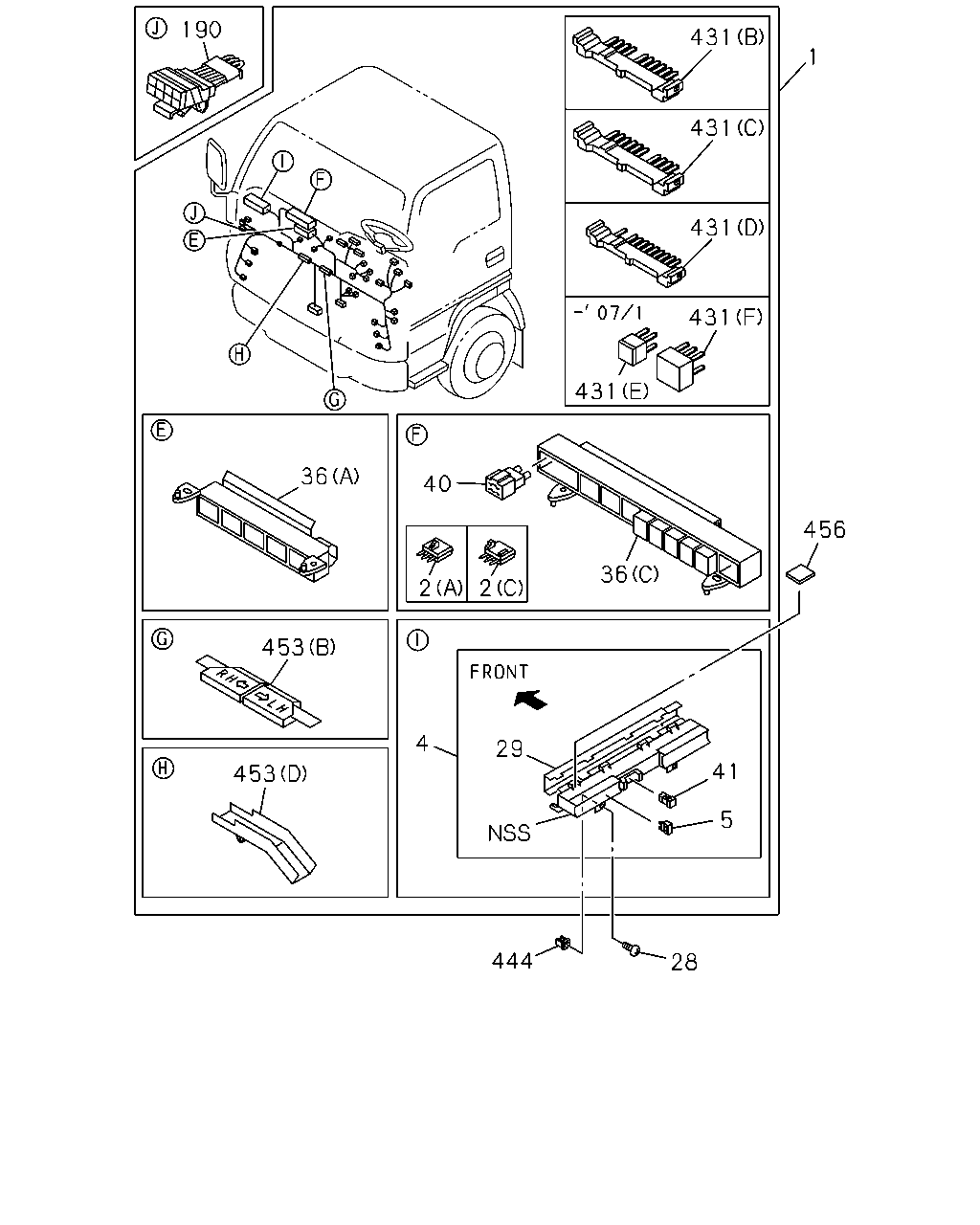

190 431 1 431 431 431 431 36 40 456 36 2 2 453 4 29 41 453 5 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-154-0	01	1	0911-1508
1	HARNESS; CAB 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ>	8-98158-154-0	01	1	1509-
1	HARNESS; CAB 4HE1 ENG(RLY)	8-97217-165-4	01	1	0504-0609
1	HARNESS; CAB 4HE1-TCN ENG(RDR)	8-98029-087-3	01	1	0610-0910
1	HARNESS; CAB 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98029-087-3	01	1	0911-1508
1	HARNESS; CAB 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ>	8-98029-087-3	01	1	1509-
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	0504-0609
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	AR	1	0504-
2	DIODE; CABLE HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	AR	1	0610-
4	BOX ASM; FUSE,HARNESS 4HE1 ENG(RLY)	8-97214-415-0	01	1	0504-0609
4	BOX ASM; FUSE,HARNESS 4HE1-TCN ENG(RDR)	8-97187-921-1	01	1	0610-1508
4	BOX ASM; FUSE,HARNESS 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ>	8-97187-921-1	01	1	1509-
4	BOX ASM; FUSE,HARNESS 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ>	8-97187-921-1	01	1	1509-
5	FUSE; FACIA HARNESS 10A RED	5-82516-002-0	AR	1	0504-0609
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	AR	1	0504-0609
5	FUSE; FACIA HARNESS 10A MINI RED	8-97062-022-0	AR	1	0610-
5	FUSE; FACIA HARNESS 15A MINI BLUE	8-97062-023-0	AR	1	0610-
5	FUSE; FACIA HARNESS 20A MINI YELLOW	8-97062-024-0	AR	1	0610-
28	SCREW; FUSE BOX M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0504-0604
28	SCREW; FUSE BOX M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-0612
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0701-1101
28	SCREW; FUSE BOX M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-
29	COVER; FUSE BOX 4HE1-TCN ENG(RDR)	8-97074-955-0	01	1	0610-1508
29	COVER; FUSE BOX 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ>	8-97074-955-0	01	1	1509-
29	COVER; FUSE BOX 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ>	8-97074-955-0	01	1	1509-
36	BOX; RELAY 4HE1 ENG(RLY) (B)	8-97087-639-1	01	1	0504-0609
36	BOX; RELAY 4HE1-TCN ENG(RDR) (C)	8-97187-918-1	01	1	0610-1508
36	BOX; RELAY 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (C)	8-97187-918-1	01	1	1509-
36	BOX; RELAY 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (C)	8-97187-918-1	01	1	1509-
36	BOX; RELAY 4HE1 ENG(RLY) (A)	8-97087-640-1	01	1	0504-0609
36	BOX; RELAY 4HE1-TCN ENG(RDR) (A)	8-97087-640-1	01	1	0610-1508
36	BOX; RELAY 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97087-640-1	01	1	1509-
36	BOX; RELAY 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97087-640-1	01	1	1509-
40	BOX; DIODE 4HE1-TCN ENG(RDR) NATURAL 8P	8-97200-753-0	01	1	0610-1508
40	BOX; DIODE 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> NATURAL 8P	8-97200-753-0	01	1	1509-
40	BOX; DIODE 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> NATURAL 8P	8-97200-753-0	01	1	1509-
41	PULLER; FUSE 4HE1 ENG(RLY) L=25.3 B=11.5	8-94121-482-0	01	1	0504-0609
41	PULLER; FUSE 4HE1-TCN ENG(RDR)	8-97103-388-0	01	1	0610-1508
41	PULLER; FUSE 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ>	8-97103-388-0	01	1	1509-
41	PULLER; FUSE 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ>	8-97103-388-0	01	1	1509-
190	CONNECTOR; SHORT CIRCUIT EXC. INTERMITTENT WIPER<C13>	8-98036-238-0	01	1	0610-
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) (B) 10P BLUE	1-82699-598-0	02	1	0610-1508
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (B) 10P BLUE	1-82699-598-0	02	1	1509-
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (B) 10P BLUE	1-82699-598-0	02	1	1509-
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) (C) 10P GREEN	1-82699-599-0	03	1	0610-1508
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (C) 10P GREEN	1-82699-599-0	03	1	1509-
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (C) 10P GREEN	1-82699-599-0	03	1	1509-
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) (D) 10P BROWN	1-82699-601-0	03	1	0610-1508
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (D) 10P BROWN	1-82699-601-0	03	1	1509-
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (D) 10P BROWN	1-82699-601-0	03	1	1509-
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) (E) 4P	8-97077-939-0	02	1	0610-0701
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) (F) 6P	8-97077-941-0	02	1	0610-0701
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) (A) 6P	8-97381-428-0	02	1	0610-
444	GROMMET; SCREW,FUSE BOX D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0504-
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) (B)	8-97074-957-0	01	1	0504-0609
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) (B)	8-97074-957-0	01	1	0610-1508
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97074-957-0	01	1	1509-
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (B)	8-97074-957-0	01	1	1509-
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) (C)	8-97093-668-1	01	1	0504-0609
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) (C)	8-97093-668-1	01	1	0610-0910
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97093-668-1	01	1	0911-
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) (A)	8-97120-591-1	01	1	0504-0609
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) (A)	8-97120-591-1	01	1	0610-
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) (D)	8-97088-615-0	01	1	0610-1508
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (D)	8-97088-615-0	01	1	1509-
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (D)	8-97088-615-0	01	1	1509-
456	CUSHION; FUSE BOX 15X30 T=5	8-94270-366-2	01	1	0504-

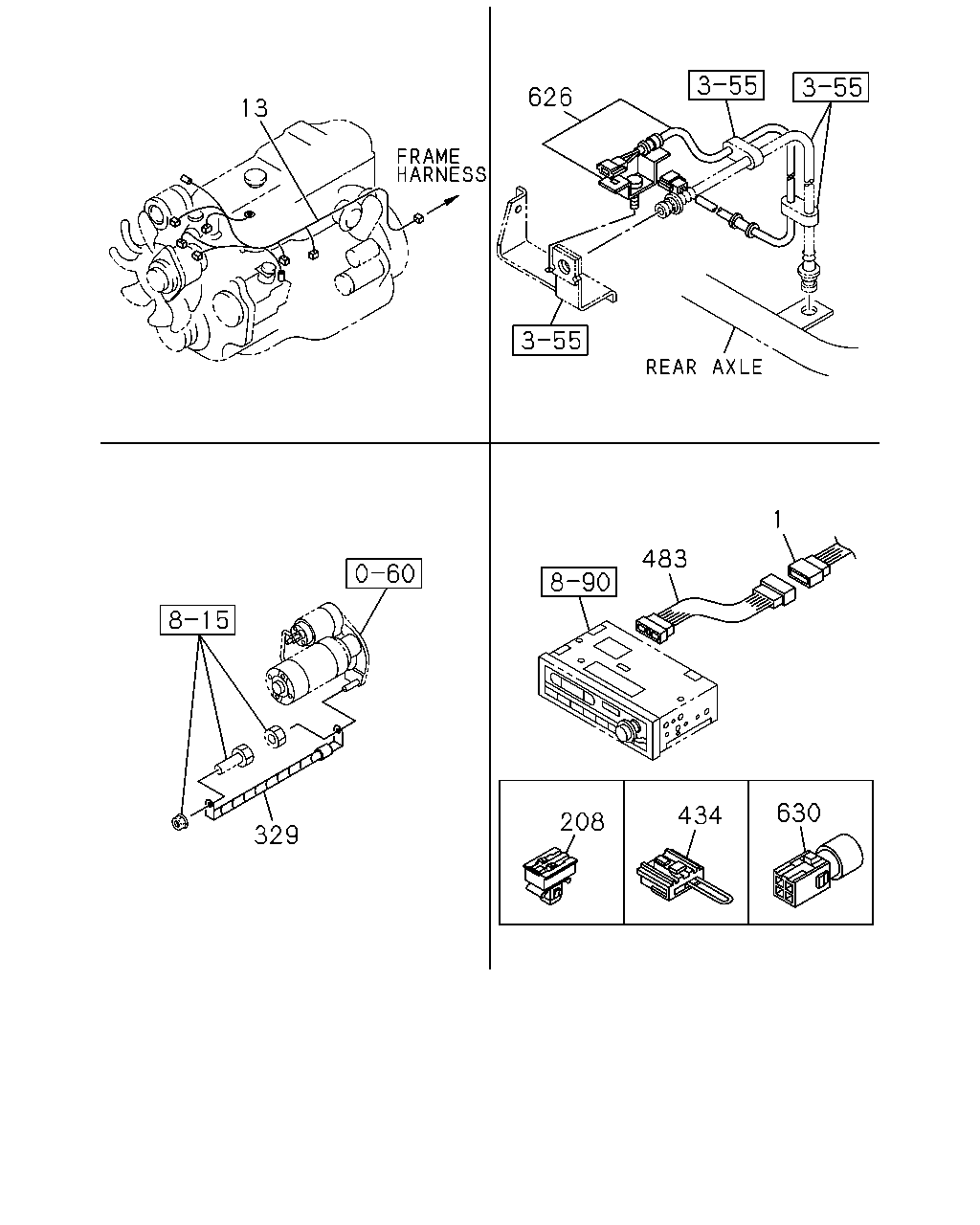

626 13 1 483 630 434 208 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-154-0	01	1	0911-1508
1	HARNESS; CAB 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ>	8-98158-154-0	01	1	1509-
1	HARNESS; CAB 4HE1 ENG(RLY)	8-97217-165-4	01	1	0504-0609
1	HARNESS; CAB 4HE1-TCN ENG(RDR)	8-98029-087-3	01	1	0610-0910
1	HARNESS; CAB 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98029-087-3	01	1	0911-1508
1	HARNESS; CAB 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ>	8-98029-087-3	01	1	1509-
13	HARNESS; ENG 4HE1 ENG(RLY)	8-97356-989-0	01	1	0504-0609
13	HARNESS; ENG 4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41)	8-97356-989-0	01	1	0610-
208	HOLDER; CONNECTOR 4HE1 ENG(RLY)	8-94459-973-1	01	1	0504-0609
208	HOLDER; CONNECTOR 4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41)	8-94459-973-1	01	1	0610-
329	CABLE; ENG TO FRAME 4HE1 ENG(RLY)	8-97182-112-0	01	1	0504-0609
329	CABLE; ENG TO FRAME 4HE1-TCN ENG(RDR)	8-97182-112-0	01	1	0610-
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ>	8-98158-158-0	01	1	0911-
434	CONNECTOR; SHORT CIRCUIT 4HE1 ENG(RLY)	8-97140-182-0	01	1	0504-0609
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCN ENG(RDR)	8-97388-448-0	01	1	0610-0910
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCN ENG(RDR) EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97388-448-0	01	1	0911-
483	HARNESS; EXT,RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ)	8-97383-850-0	01	1	0610-
626	HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-968-1	01	1	0911-
626	HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-969-1	01	1	0911-
630	CONNECTOR; SHORT,ABS 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97308-277-0	01	1	0911-

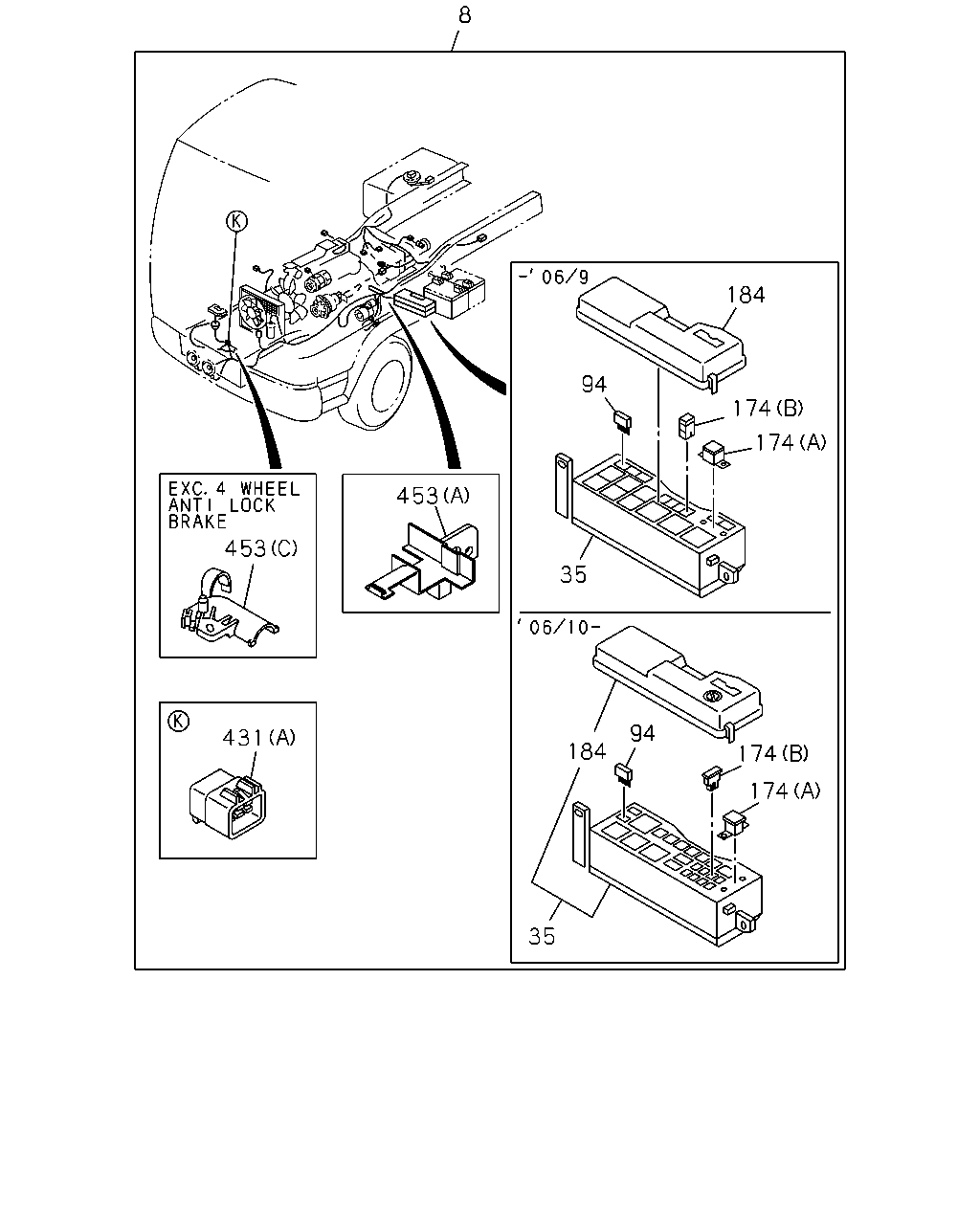

8 184 94 174 174 453 453 35 94 431 184 174 174 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	HARNESS; FRAME,FRT 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-386-0	01	1	0911-1004
8	HARNESS; FRAME,FRT 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98171-402-0	01	1	1005-
8	HARNESS; FRAME,FRT 4HE1 ENG(RLY)	8-97350-653-2	01	1	0504-0609
8	HARNESS; FRAME,FRT 4HE1-TCN ENG(RDR)	8-98029-088-0	01	1	0610-0910
8	HARNESS; FRAME,FRT 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98029-088-0	01	1	0911-
35	BOX; RELAY & FUSE 4HE1 ENG(RLY)	8-97063-150-1	01	1	0504-0609
35	BOX; RELAY & FUSE 4HE1-TCN ENG(RDR)	8-97377-739-0	01	1	0610-
94	DIODE; FRAME HARNESS 4HE1 ENG(RLY) BLACK 4P-1.5A	8-94381-730-0	01	1	0504-0609
94	DIODE; FRAME HARNESS 4HE1-TCN ENG(RDR) BLACK 4P-1.5A	8-94381-730-0	01	1	0610-
174	FUSE; SLOW BLOW (A) 60A YELLOW	8-94388-303-1	AR	1	0504-0609
174	FUSE; SLOW BLOW (B) 60A YELLOW	8-94468-664-0	AR	1	0504-0609
174	FUSE; SLOW BLOW (A) 100A BLUE	8-94388-306-0	AR	1	0610-
174	FUSE; SLOW BLOW (B) 30A PINK	8-97183-643-0	AR	1	0610-
174	FUSE; SLOW BLOW (B) 40A GREEN	8-97183-644-0	AR	1	0610-
174	FUSE; SLOW BLOW (B) 60A YELLOW	8-97219-407-0	AR	1	0610-
184	COVER; RELAY & FUSE BOX 4HE1 ENG(RLY)	8-97063-152-1	01	1	0504-0609
184	COVER; RELAY & FUSE BOX 4HE1-TCN ENG(RDR)	8-97377-741-0	01	1	0610-
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) (B) 10P BLUE	1-82699-598-0	02	1	0610-1508
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (B) 10P BLUE	1-82699-598-0	02	1	1509-
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (B) 10P BLUE	1-82699-598-0	02	1	1509-
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) (C) 10P GREEN	1-82699-599-0	03	1	0610-1508
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (C) 10P GREEN	1-82699-599-0	03	1	1509-
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (C) 10P GREEN	1-82699-599-0	03	1	1509-
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) (D) 10P BROWN	1-82699-601-0	03	1	0610-1508
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (D) 10P BROWN	1-82699-601-0	03	1	1509-
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (D) 10P BROWN	1-82699-601-0	03	1	1509-
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) (E) 4P	8-97077-939-0	02	1	0610-0701
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) (F) 6P	8-97077-941-0	02	1	0610-0701
431	CONNECTOR; JOINT 4HE1-TCN ENG(RDR) (A) 6P	8-97381-428-0	02	1	0610-
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) (B)	8-97074-957-0	01	1	0504-0609
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) (B)	8-97074-957-0	01	1	0610-1508
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97074-957-0	01	1	1509-
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (B)	8-97074-957-0	01	1	1509-
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) (C)	8-97093-668-1	01	1	0504-0609
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) (C)	8-97093-668-1	01	1	0610-0910
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97093-668-1	01	1	0911-
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) (A)	8-97120-591-1	01	1	0504-0609
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) (A)	8-97120-591-1	01	1	0610-
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) (D)	8-97088-615-0	01	1	0610-1508
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (D)	8-97088-615-0	01	1	1509-
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (D)	8-97088-615-0	01	1	1509-

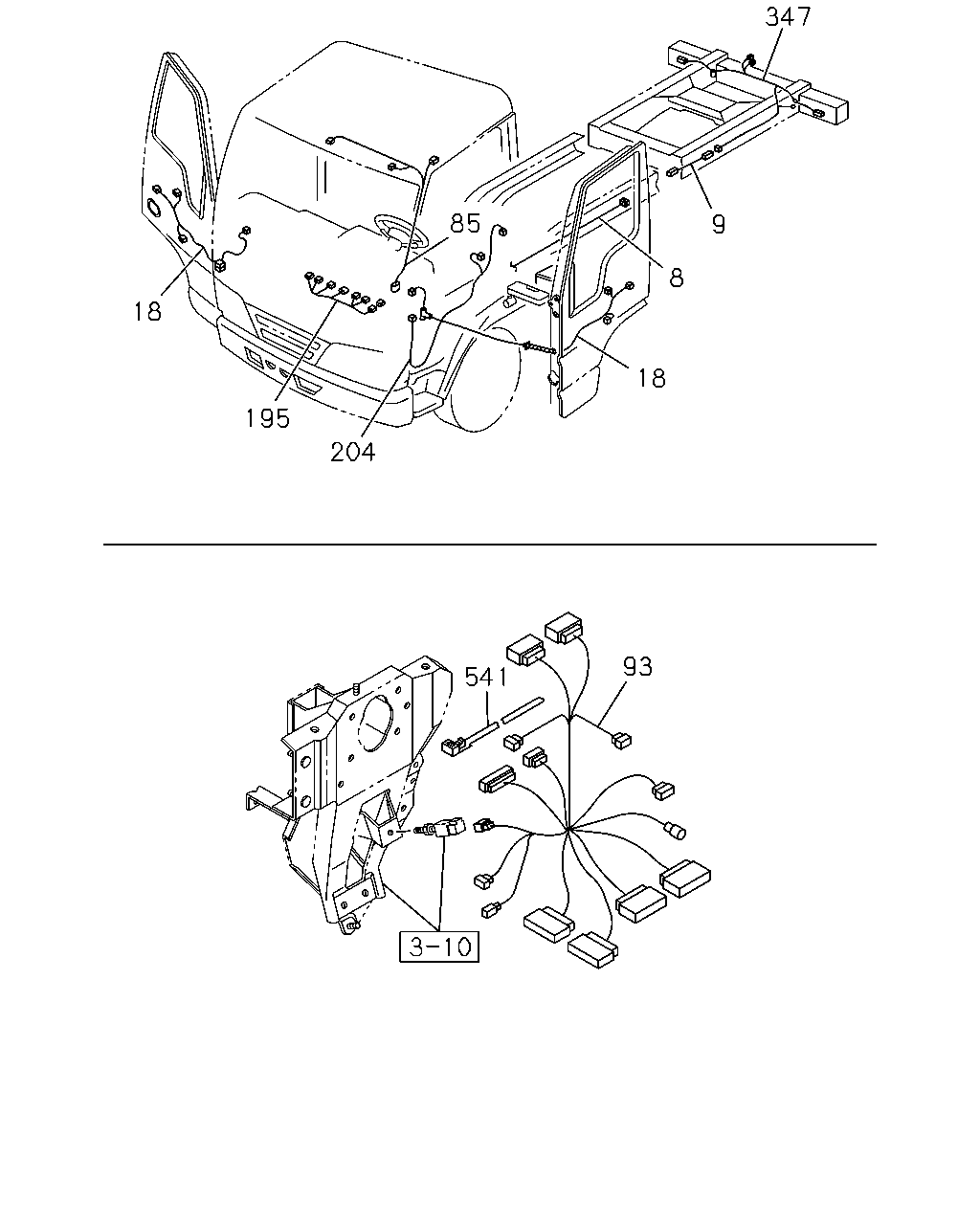

93 541 18 8 9 347 85 204 195 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	HARNESS; FRAME,FRT 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-386-0	01	1	0911-1004
8	HARNESS; FRAME,FRT 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98171-402-0	01	1	1005-
8	HARNESS; FRAME,FRT 4HE1 ENG(RLY)	8-97350-653-2	01	1	0504-0609
8	HARNESS; FRAME,FRT 4HE1-TCN ENG(RDR)	8-98029-088-0	01	1	0610-0910
8	HARNESS; FRAME,FRT 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98029-088-0	01	1	0911-
9	HARNESS; FRAME,RR 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98000-797-1	01	1	0911-
9	HARNESS; FRAME,RR	8-97377-067-1	01	1	0610-0910
9	HARNESS; FRAME,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97377-067-1	01	1	0911-
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4>	8-97226-669-0	01	1	1011-1405
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97226-669-0	01	1	1406-
18	HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97226-671-1	01	1	1011-1405
18	HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	1011-1405
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	1406-
18	HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97226-671-1	01	1	1406-
18	HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	1406-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97105-571-1	01	1	0610-
18	HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97105-571-1	01	1	0610-
18	HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97105-571-1	01	1	0610-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	0610-1009
18	HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97226-671-1	01	1	0610-1009
18	HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	0610-1009
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-98166-819-0	01	1	1010-1010
18	HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-98166-819-0	01	1	1010-1010
18	HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98166-819-0	01	1	1010-1010
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-98166-819-0	01	1	1011-1405
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97185-142-1	01	1	0504-
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97226-669-0	01	1	0504-1009
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98166-820-0	01	1	1010-1010
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98166-820-0	01	1	1011-1405
85	HARNESS; ROOM LAMP	8-97364-159-0	01	1	0504-
93	HARNESS; RELAY 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98202-964-0	01	1	1112-
195	HARNESS; EXT 4HE1 ENG(RLY)	8-97172-039-3	01	1	0504-0609
195	HARNESS; EXT 4HE1-TCN ENG(RDR)	8-97172-039-3	01	1	0610-
204	HARNESS; CABLE,FLOOR	8-97364-140-0	01	1	0504-
347	HARNESS; CABLE,RR BODY	8-97364-152-0	01	1	0504-
541	CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> L=250	5-09707-030-1	01	1	1112-
541	CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> L=140	5-09707-031-1	02	1	1112-

1 36 36 456 2 2 453 4 41 5 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-154-0	01	1	0911-1508
1	HARNESS; CAB 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ>	8-98158-154-0	01	1	1509-
1	HARNESS; CAB 4HE1 ENG(RLY)	8-97217-165-4	01	1	0504-0609
1	HARNESS; CAB 4HE1-TCN ENG(RDR)	8-98029-087-3	01	1	0610-0910
1	HARNESS; CAB 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98029-087-3	01	1	0911-1508
1	HARNESS; CAB 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ>	8-98029-087-3	01	1	1509-
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	0504-0609
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	AR	1	0504-
2	DIODE; CABLE HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	AR	1	0610-
4	BOX ASM; FUSE,HARNESS 4HE1 ENG(RLY)	8-97214-415-0	01	1	0504-0609
4	BOX ASM; FUSE,HARNESS 4HE1-TCN ENG(RDR)	8-97187-921-1	01	1	0610-1508
4	BOX ASM; FUSE,HARNESS 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ>	8-97187-921-1	01	1	1509-
4	BOX ASM; FUSE,HARNESS 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ>	8-97187-921-1	01	1	1509-
5	FUSE; FACIA HARNESS 10A RED	5-82516-002-0	AR	1	0504-0609
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	AR	1	0504-0609
5	FUSE; FACIA HARNESS 10A MINI RED	8-97062-022-0	AR	1	0610-
5	FUSE; FACIA HARNESS 15A MINI BLUE	8-97062-023-0	AR	1	0610-
5	FUSE; FACIA HARNESS 20A MINI YELLOW	8-97062-024-0	AR	1	0610-
28	SCREW; FUSE BOX M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0504-0604
28	SCREW; FUSE BOX M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-0612
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0701-1101
28	SCREW; FUSE BOX M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-
36	BOX; RELAY 4HE1 ENG(RLY) (B)	8-97087-639-1	01	1	0504-0609
36	BOX; RELAY 4HE1-TCN ENG(RDR) (C)	8-97187-918-1	01	1	0610-1508
36	BOX; RELAY 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (C)	8-97187-918-1	01	1	1509-
36	BOX; RELAY 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (C)	8-97187-918-1	01	1	1509-
36	BOX; RELAY 4HE1 ENG(RLY) (A)	8-97087-640-1	01	1	0504-0609
36	BOX; RELAY 4HE1-TCN ENG(RDR) (A)	8-97087-640-1	01	1	0610-1508
36	BOX; RELAY 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97087-640-1	01	1	1509-
36	BOX; RELAY 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97087-640-1	01	1	1509-
41	PULLER; FUSE 4HE1 ENG(RLY) L=25.3 B=11.5	8-94121-482-0	01	1	0504-0609
41	PULLER; FUSE 4HE1-TCN ENG(RDR)	8-97103-388-0	01	1	0610-1508
41	PULLER; FUSE 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ>	8-97103-388-0	01	1	1509-
41	PULLER; FUSE 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ>	8-97103-388-0	01	1	1509-
444	GROMMET; SCREW,FUSE BOX D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0504-
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) (B)	8-97074-957-0	01	1	0504-0609
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) (B)	8-97074-957-0	01	1	0610-1508
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97074-957-0	01	1	1509-
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (B)	8-97074-957-0	01	1	1509-
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) (C)	8-97093-668-1	01	1	0504-0609
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) (C)	8-97093-668-1	01	1	0610-0910
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97093-668-1	01	1	0911-
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) (A)	8-97120-591-1	01	1	0504-0609
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) (A)	8-97120-591-1	01	1	0610-
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) (D)	8-97088-615-0	01	1	0610-1508
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (D)	8-97088-615-0	01	1	1509-
453	PROTECTOR; HARNESS 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (D)	8-97088-615-0	01	1	1509-
456	CUSHION; FUSE BOX 15X30 T=5	8-94270-366-2	01	1	0504-

13 626 1 483 208 434 630 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-154-0	01	1	0911-1508
1	HARNESS; CAB 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ>	8-98158-154-0	01	1	1509-
1	HARNESS; CAB 4HE1 ENG(RLY)	8-97217-165-4	01	1	0504-0609
1	HARNESS; CAB 4HE1-TCN ENG(RDR)	8-98029-087-3	01	1	0610-0910
1	HARNESS; CAB 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98029-087-3	01	1	0911-1508
1	HARNESS; CAB 4HE1-TCN ENG(RDR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ>	8-98029-087-3	01	1	1509-
13	HARNESS; ENG 4HE1 ENG(RLY)	8-97356-989-0	01	1	0504-0609
13	HARNESS; ENG 4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41)	8-97356-989-0	01	1	0610-
208	HOLDER; CONNECTOR 4HE1 ENG(RLY)	8-94459-973-1	01	1	0504-0609
208	HOLDER; CONNECTOR 4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41)	8-94459-973-1	01	1	0610-
329	CABLE; ENG TO FRAME 4HE1 ENG(RLY)	8-97182-112-0	01	1	0504-0609
329	CABLE; ENG TO FRAME 4HE1-TCN ENG(RDR)	8-97182-112-0	01	1	0610-
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ>	8-98158-158-0	01	1	0911-
434	CONNECTOR; SHORT CIRCUIT 4HE1 ENG(RLY)	8-97140-182-0	01	1	0504-0609
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCN ENG(RDR)	8-97388-448-0	01	1	0610-0910
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCN ENG(RDR) EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97388-448-0	01	1	0911-
483	HARNESS; EXT,RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ)	8-97383-850-0	01	1	0610-
626	HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-968-1	01	1	0911-
626	HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-969-1	01	1	0911-
630	CONNECTOR; SHORT,ABS 4HE1-TCN ENG(RDR) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97308-277-0	01	1	0911-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
