8-03 — LAMP; REAR AND REAR SIDE (#21952) — 30 parça

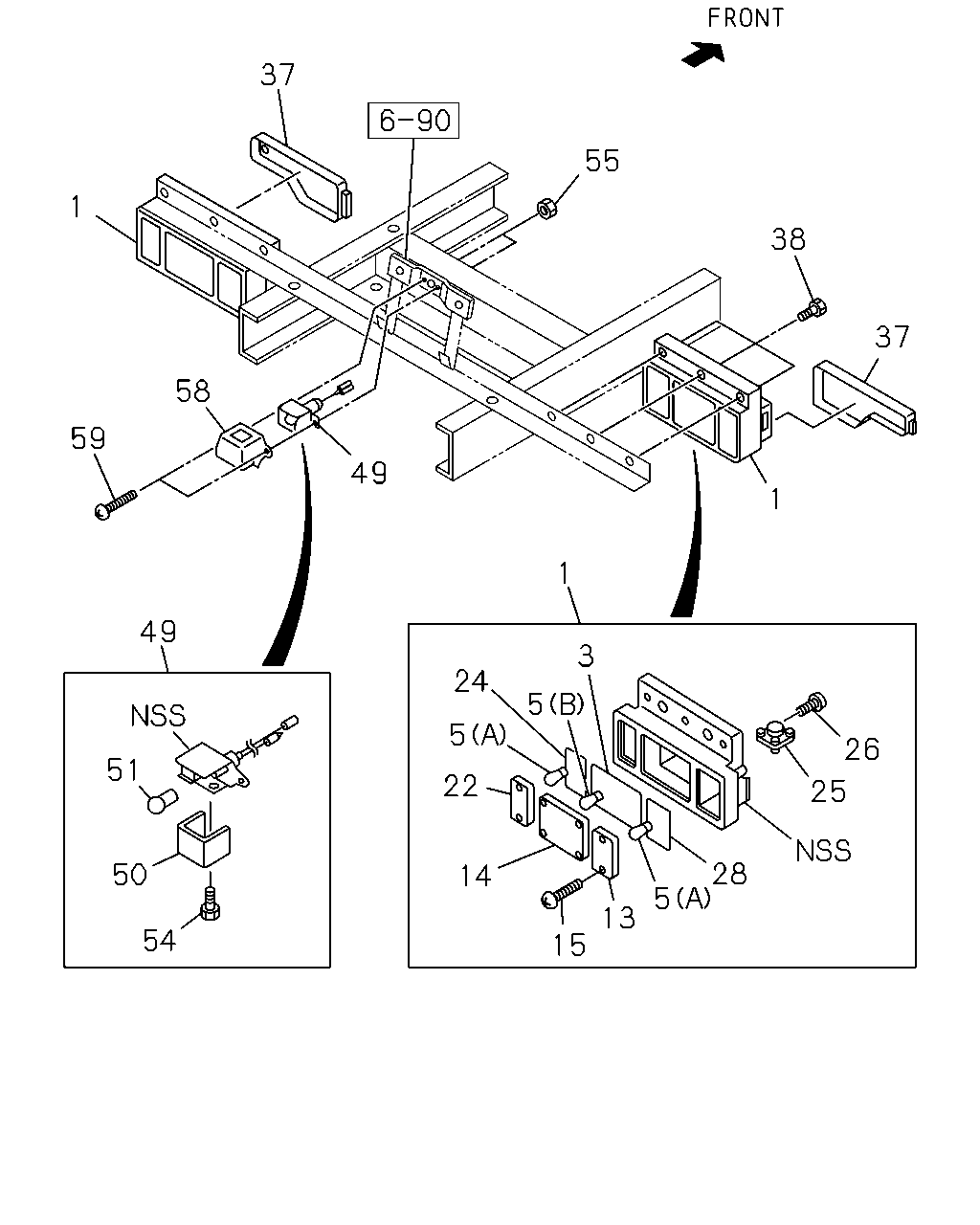

çizim 56461
37 55 1 38 37 58 59 49 1 1 49 3 24 5 5 26 51 22 25 28 50 14 5 13 54 15
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB 8-97213-369-0 01 1 0504-
1 LAMP ASM; RR COMB 8-97213-368-0 01 1 0504-0609
1 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-97213-368-0 01 1 0610-
1 LAMP ASM; RR COMB
BACK BUZZER<YM9> 		8-97213-370-0 01 1 0610-
3 GASKET; RR COMB LAMP 8-94257-505-0 02 1 1504-
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 04 1 0504-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 0504-
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 0504-
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 0504-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 0504-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 0504-
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 0504-
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 02 1 0504-
24 GASKET; BACK,LAMP 8-94257-506-0 02 1 0504-
25 HORN ASM; BACK
BACK BUZZER<YM9> 		8-94257-518-0 01 1 0610-
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 0504-
26 SCREW; BACK HORN
M4X12 TAPPING 		9-07076-412-0 01 1 0504-0609
26 SCREW; BACK HORN
BACK BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 0610-
26 SCREW; BACK HORN
EXC. BACK BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 0610-
28 GASKET; TURN,LAMP 8-94257-507-0 02 1 0504-
37 COVER; RR COMB LAMP 8-94129-274-4 01 1 0504-
37 COVER; RR COMB LAMP 8-94128-858-4 01 1 0504-
38 BOLT; LAMP,RR COMB
M6X20 		8-94402-623-0 06 1 0504-
49 LAMP; LICENSE PLATE
24V 12W 		5-82120-021-1 01 1 0504-
50 LENS; LICENSE PLATE LAMP 5-82125-004-0 01 1 0504-
51 BULB; LICENSE PLATE LAMP
24V 12W 		1-82194-004-0 01 1 0504-
54 SCREW; LICENSE PLATE LAMP
M4X8 		8-94419-312-0 01 1 0504-
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		8-94153-039-0 02 1 0504-
58 COVER; LICENSE PLATE LAMP 8-97076-590-1 01 1 0504-
59 SCREW; TAP,LICENSE LAMP BODY
M5X20 		9-93490-520-0 02 1 0504-
