◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51038 - NQR(IRAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#21951) — 152 parça

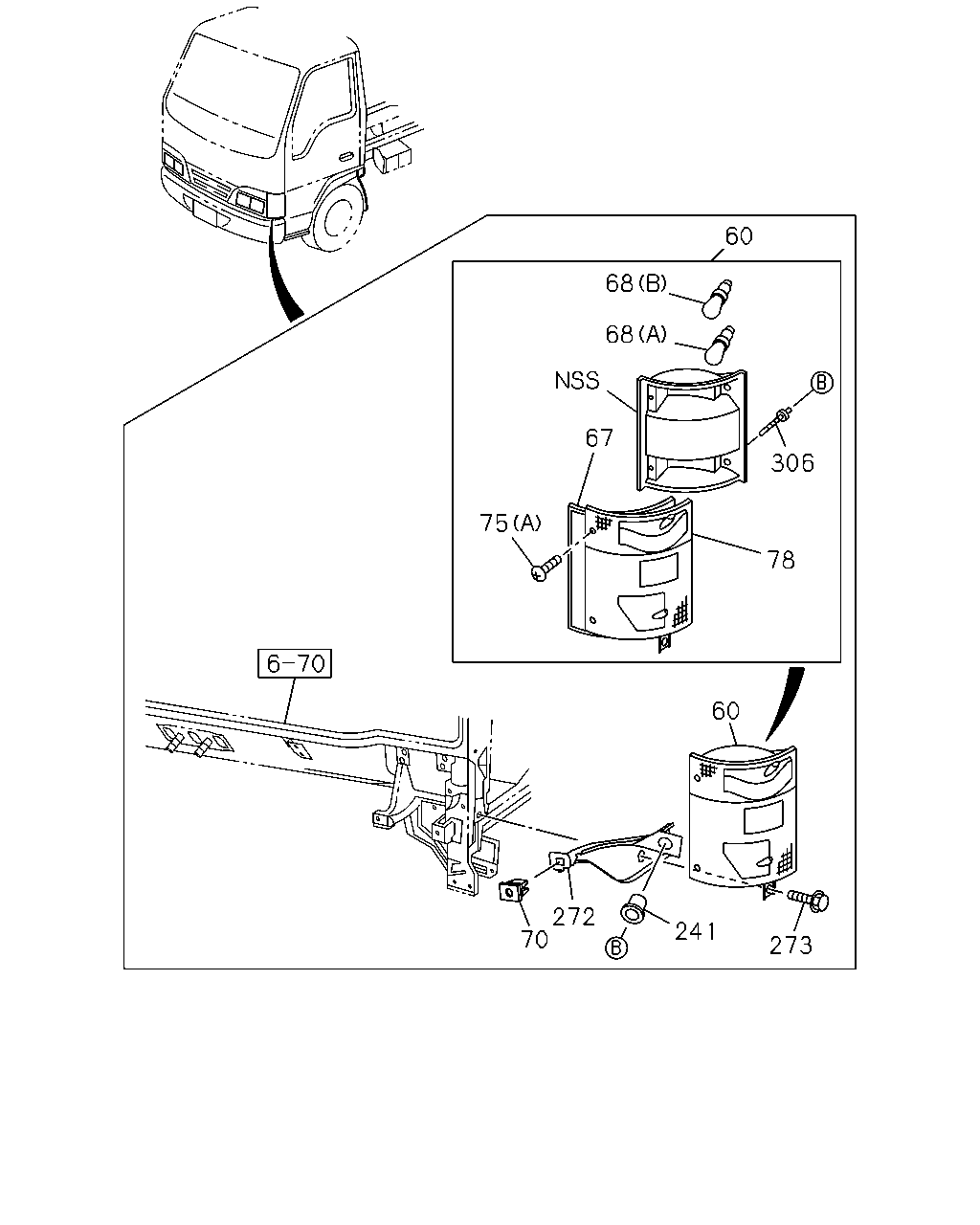

çizim 56356
60 68 68 67 306 75 78 60 272 70 241 273
BalonParca AdiParca NoAdetTipApplied Date
60 LAMP ASM; FRT COMB 8-97855-008-2 01 1 0504-0609
60 LAMP ASM; FRT COMB 8-98010-892-0 01 1 0610-
60 LAMP ASM; FRT COMB 8-97855-007-2 01 1 0504-0609
60 LAMP ASM; FRT COMB 8-98010-891-0 01 1 0610-
67 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 0504-0609
67 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0610-
68 BULB; FRT COMB LAMP
(A) 24V 30/10W 		1-82194-065-0 02 1 0504-0609
68 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0610-
68 BULB; FRT COMB LAMP
(B) 24V 25W 		9-82691-347-0 02 1 0504-0609
68 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0610-
70 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0504-0609
70 GROMMET; SCREW,FRT COMB LAMP 1-09983-081-0 02 1 0610-
75 SCREW; FRT COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0504-0609
75 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0610-
75 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0610-
78 LENS ASM; FRT COMB 8-97855-131-0 01 1 0504-0609
78 LENS ASM; FRT COMB 8-97855-128-0 01 1 0504-0609
241 GROMMET; FRT LAMP 8-94452-095-0 04 1 0504-0609
241 GROMMET; FRT LAMP 8-97380-030-0 02 1 0610-
272 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 0504-0609
272 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 0504-0609
273 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0504-0609
306 PIVOT; FRT COMB LAMP 8-97219-053-0 04 1 0504-0609

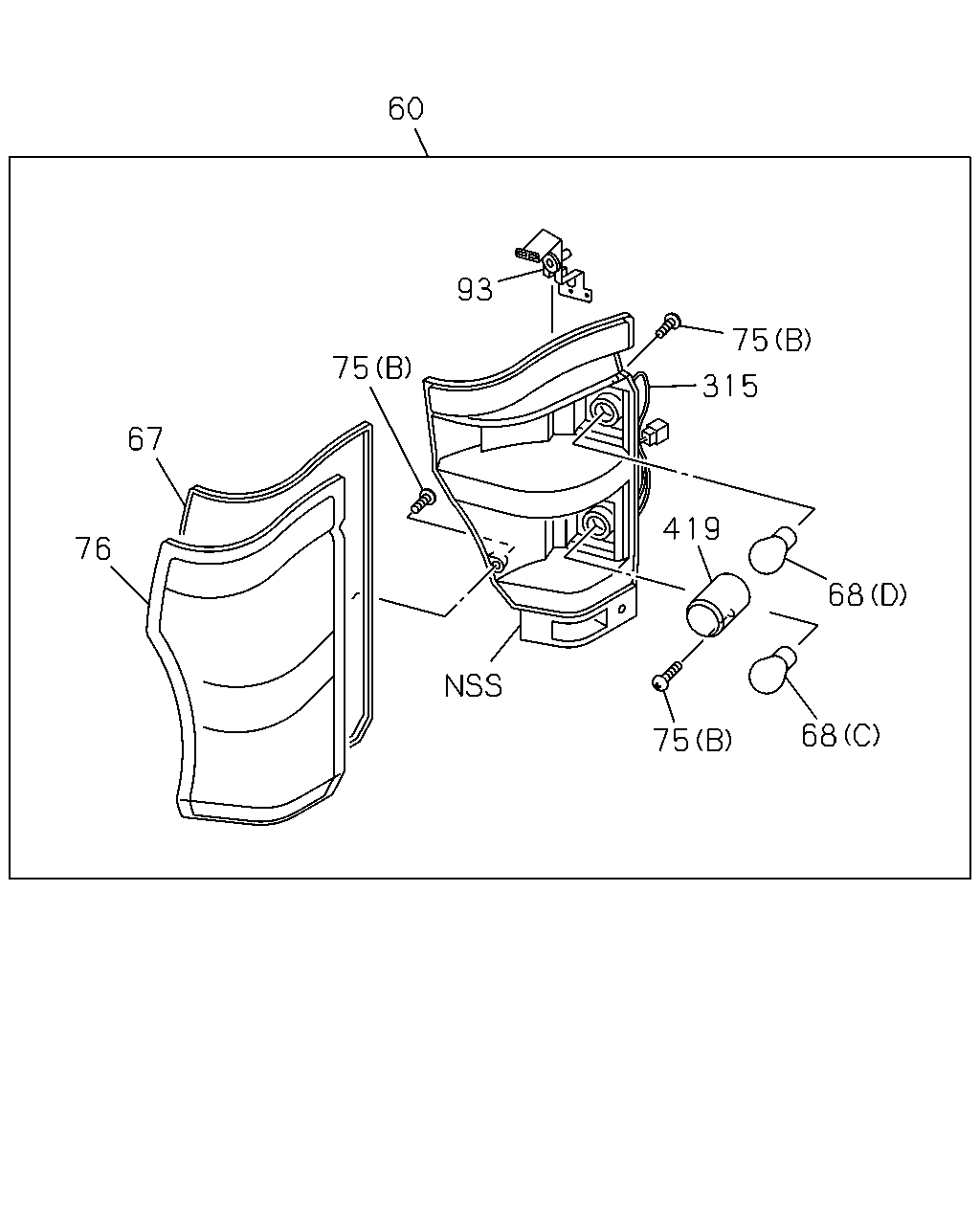

çizim 56357
60 93 75 75 315 67 419 76 68 68 75
BalonParca AdiParca NoAdetTipApplied Date
60 LAMP ASM; FRT COMB 8-97855-008-2 01 1 0504-0609
60 LAMP ASM; FRT COMB 8-98010-892-0 01 1 0610-
60 LAMP ASM; FRT COMB 8-97855-007-2 01 1 0504-0609
60 LAMP ASM; FRT COMB 8-98010-891-0 01 1 0610-
67 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 0504-0609
67 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0610-
68 BULB; FRT COMB LAMP
(A) 24V 30/10W 		1-82194-065-0 02 1 0504-0609
68 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0610-
68 BULB; FRT COMB LAMP
(B) 24V 25W 		9-82691-347-0 02 1 0504-0609
68 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0610-
75 SCREW; FRT COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0504-0609
75 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0610-
75 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0610-
76 LENS; FRT COMB LAMP 8-97378-966-0 01 1 0610-
76 LENS; FRT COMB LAMP 8-97378-965-0 01 1 0610-
93 BRACKET; SIDE COMB LAMP 8-97378-945-0 01 1 0610-
93 BRACKET; SIDE COMB LAMP 8-97378-943-0 01 1 0610-
315 HARNESS; FRT COMB LAMP 8-98010-916-0 02 1 0610-
419 LENS; INNER,FRT COMB LAMP 8-97378-947-0 01 1 0610-
419 LENS; INNER,FRT COMB LAMP 8-97378-946-0 01 1 0610-
çizim 56809
1 4 182 408 23 20 420 5 32 49 57 36 15 53 54 55 58 57 52 39 42
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 8-97855-089-4 01 1 0504-0609
1 LAMP ASM; HEAD 8-97376-898-2 01 1 0610-0701
1 LAMP ASM; HEAD 8-98053-914-0 01 1 0702-
1 LAMP ASM; HEAD 8-97855-088-4 01 1 0504-0609
1 LAMP ASM; HEAD 8-97376-897-2 01 1 0610-0701
1 LAMP ASM; HEAD 8-98053-913-0 01 1 0702-
4 HEADLAMP UNIT
(A) 24V 55/50W 		8-94101-734-0 02 1 0504-0609
4 HEADLAMP UNIT
(C) 		8-98009-822-0 01 1 0610-
4 HEADLAMP UNIT
(B) 24V 55W 		8-94101-740-0 02 1 0504-0609
4 HEADLAMP UNIT
(C) 		8-98009-823-0 01 1 0610-
5 BULB; HEADLAMP
24V 55/50W CLEAR 		5-82193-003-0 04 1 0504-0609
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0610-
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 55W 		1-82194-095-0 02 1 0610-1401
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 55W 		8-98230-031-0 02 1 1402-
20 SCREW; HEADLAMP
(A) M4X8 		8-94165-886-0 08 1 0504-0609
20 SCREW; HEADLAMP
(C) 		8-97378-871-0 02 1 0610-
20 SCREW; HEADLAMP
(B) 		8-97228-675-0 08 1 0504-0609
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0610-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-546-0 01 1 0610-0612
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98054-005-1 01 1 0701-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-545-0 01 1 0610-0612
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98054-004-1 01 1 0701-
36 CORD; FOG LAMP
FOG LAMP<T96> 		8-97095-518-0 02 1 0610-
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97119-301-0 01 1 0610-0612
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98063-417-0 01 1 0701-
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97104-061-0 01 1 0610-0612
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98063-416-0 01 1 0701-
42 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97104-089-0 04 1 0610-
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-095-0 01 1 0610-
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-094-0 01 1 0610-
52 RING; MTG,FOG LAMP
FOG LAMP<T96> 		8-97104-062-0 02 1 0610-
53 NUT; MTG RING,FOG LAMP
FOG LAMP<T96> 		8-94379-802-0 04 1 0610-
54 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> M5X12 		8-94379-803-0 04 1 0610-
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97104-087-0 02 1 0610-
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-94379-806-0 06 1 0610-
58 HOLDER; FOG LAMP
FOG LAMP<T96> 		8-97104-088-0 02 1 0610-
182 GASKET; HEADLAMP 8-97378-869-0 02 1 0610-
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0610-
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0610-

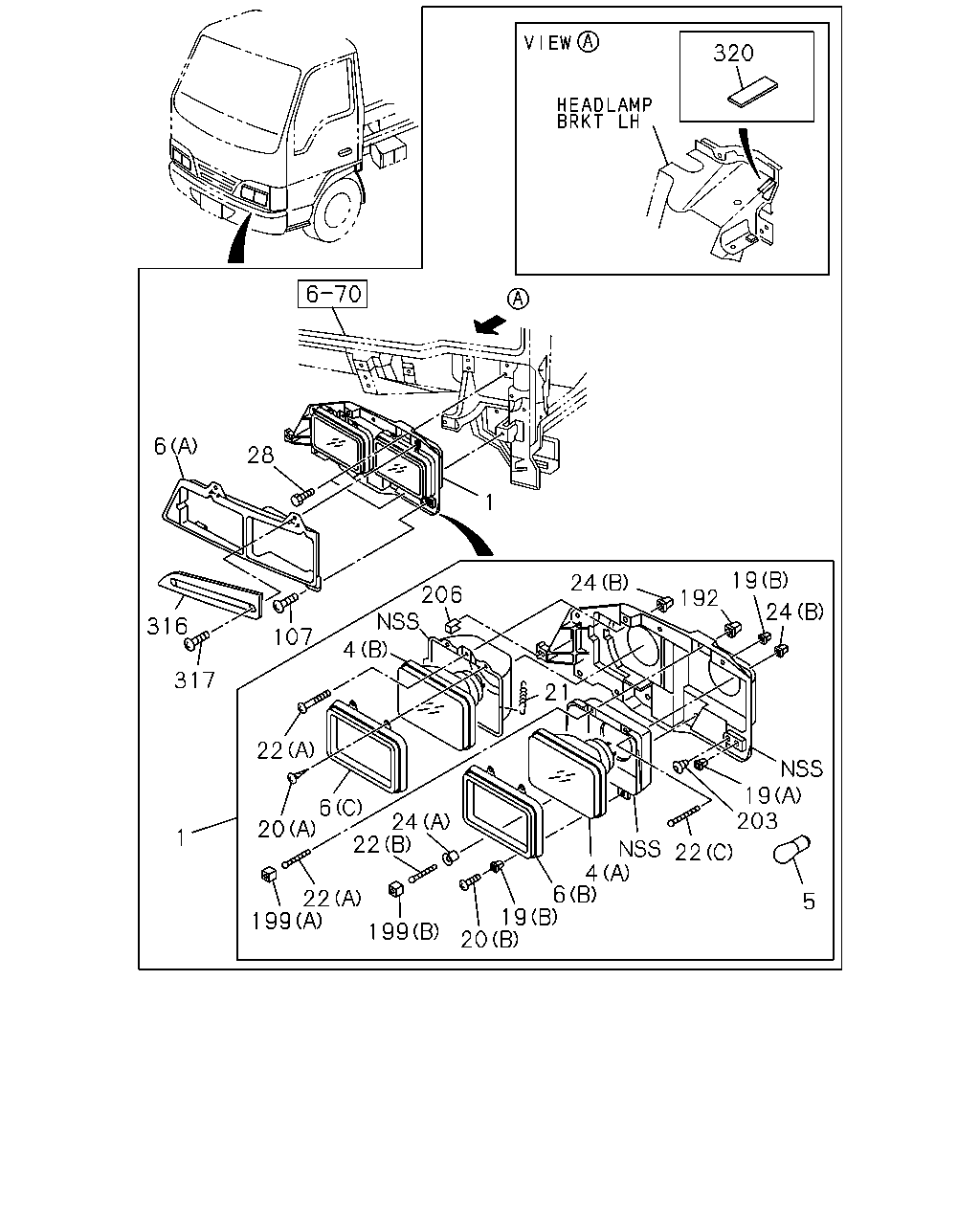

çizim 56812
320 6 28 1 19 24 206 4 192 24 316 107 21 317 22 19 203 6 24 22 20 1 4 6 19 20 22 22 199 5 199
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 8-97855-089-4 01 1 0504-0609
1 LAMP ASM; HEAD 8-97376-898-2 01 1 0610-0701
1 LAMP ASM; HEAD 8-98053-914-0 01 1 0702-
1 LAMP ASM; HEAD 8-97855-088-4 01 1 0504-0609
1 LAMP ASM; HEAD 8-97376-897-2 01 1 0610-0701
1 LAMP ASM; HEAD 8-98053-913-0 01 1 0702-
4 HEADLAMP UNIT
(A) 24V 55/50W 		8-94101-734-0 02 1 0504-0609
4 HEADLAMP UNIT
(C) 		8-98009-822-0 01 1 0610-
4 HEADLAMP UNIT
(B) 24V 55W 		8-94101-740-0 02 1 0504-0609
4 HEADLAMP UNIT
(C) 		8-98009-823-0 01 1 0610-
5 BULB; HEADLAMP
24V 55/50W CLEAR 		5-82193-003-0 04 1 0504-0609
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0610-
6 RIM; HEADLAMP
(C) 		1-82114-016-0 02 1 0504-0609
6 RIM; HEADLAMP
(B) 		8-97855-211-0 02 1 0504-0609
6 RIM; HEADLAMP
(A) 		8-97581-089-0 01 1 0504-0609
6 RIM; HEADLAMP
(A) 		8-97581-088-0 01 1 0504-0609
19 NUT; HEADLAMP
(A) 		8-97044-618-0 08 1 0504-0609
19 NUT; HEADLAMP
(B) 		8-97044-623-0 08 1 0504-0609
20 SCREW; HEADLAMP
(A) M4X8 		8-94165-886-0 08 1 0504-0609
20 SCREW; HEADLAMP
(C) 		8-97378-871-0 02 1 0610-
20 SCREW; HEADLAMP
(B) 		8-97228-675-0 08 1 0504-0609
21 SPRING; ADJ HEADLAMP 1-82119-021-0 02 1 0504-0609
22 SCREW; ADJ,HEADLAMP
(A) 		8-97855-205-0 04 1 0504-0609
22 SCREW; ADJ,HEADLAMP
(B) 		8-97855-206-0 02 1 0504-0609
22 SCREW; ADJ,HEADLAMP
(C) 		8-97855-207-0 02 1 0504-0609
24 MOUNTING; ADJ SCREW HD LAMP
(B) 		8-94387-097-0 06 1 0504-0609
24 MOUNTING; ADJ SCREW HD LAMP
(A) 		8-97855-208-0 02 1 0504-0609
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0504-0607
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608-1401
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1402-
107 SCREW; RIM,HEADLAMP
M4X20 TAPPING 		8-97326-998-0 04 1 0504-0609
192 PIVOT; HEADLAMP 8-94381-595-0 02 1 0504-0609
199 BUSHING
(A) 		8-94381-605-0 04 1 0504-0609
199 BUSHING
(B) 		8-97855-212-0 02 1 0504-0609
203 FASTENER; HEADLAMP 8-94382-231-0 04 1 0504-0609
206 HOLDER; HEADLAMP 8-97868-156-0 02 1 0504-0609
316 ORNAMENT; HEAD LAMP 8-97867-775-0 01 1 0504-0609
316 ORNAMENT; HEAD LAMP 8-97867-774-0 01 1 0504-0609
317 SCREW; ORNAMENT
M4X20 TAPPING 		8-97326-998-0 04 1 0504-0609
320 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0504-

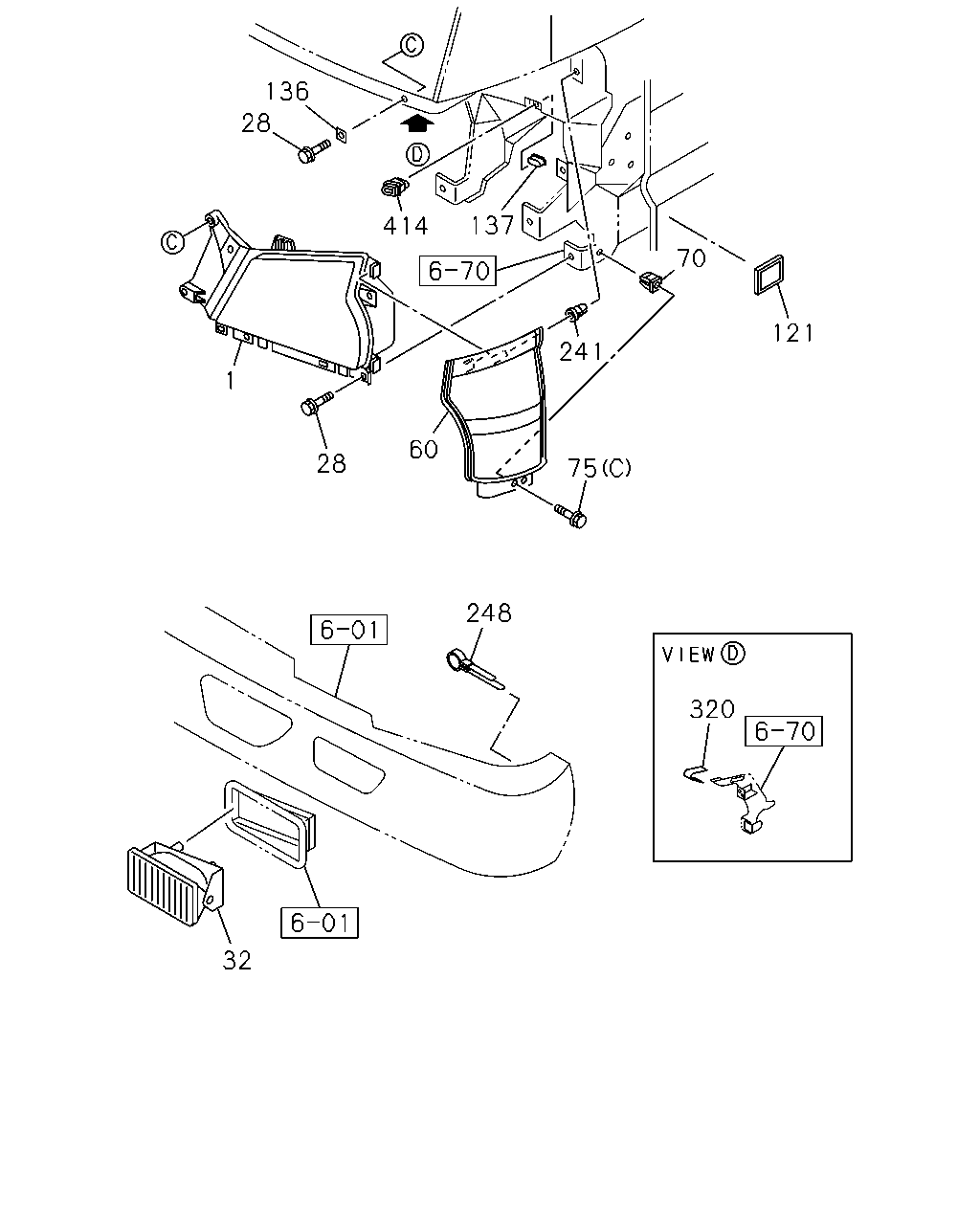

çizim 56825
136 28 137 414 70 121 241 1 60 28 75 248 320 32
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 8-97855-089-4 01 1 0504-0609
1 LAMP ASM; HEAD 8-97376-898-2 01 1 0610-0701
1 LAMP ASM; HEAD 8-98053-914-0 01 1 0702-
1 LAMP ASM; HEAD 8-97855-088-4 01 1 0504-0609
1 LAMP ASM; HEAD 8-97376-897-2 01 1 0610-0701
1 LAMP ASM; HEAD 8-98053-913-0 01 1 0702-
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0504-0607
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608-1401
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1402-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-546-0 01 1 0610-0612
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98054-005-1 01 1 0701-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-545-0 01 1 0610-0612
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98054-004-1 01 1 0701-
60 LAMP ASM; FRT COMB 8-97855-008-2 01 1 0504-0609
60 LAMP ASM; FRT COMB 8-98010-892-0 01 1 0610-
60 LAMP ASM; FRT COMB 8-97855-007-2 01 1 0504-0609
60 LAMP ASM; FRT COMB 8-98010-891-0 01 1 0610-
70 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0504-0609
70 GROMMET; SCREW,FRT COMB LAMP 1-09983-081-0 02 1 0610-
75 SCREW; FRT COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0504-0609
75 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0610-
75 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0610-
121 REFLECTOR; REFLEX 8-98013-990-1 02 1 0610-
136 SEAL; HEADLAMP
25X25 		8-94272-533-0 02 1 0610-
137 GROMMET; HEADLAMP 8-97581-666-0 02 1 0610-
241 GROMMET; FRT LAMP 8-94452-095-0 04 1 0504-0609
241 GROMMET; FRT LAMP 8-97380-030-0 02 1 0610-
248 CLIP; HARNESS
FOG LAMP<T96> ID=20 		5-09700-321-0 02 1 0610-
320 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0504-
414 PIN; HEADLAMP,RIM 8-97581-667-0 02 1 0610-
