◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51038 - NQR(IRAN) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#21950) — 39 parça

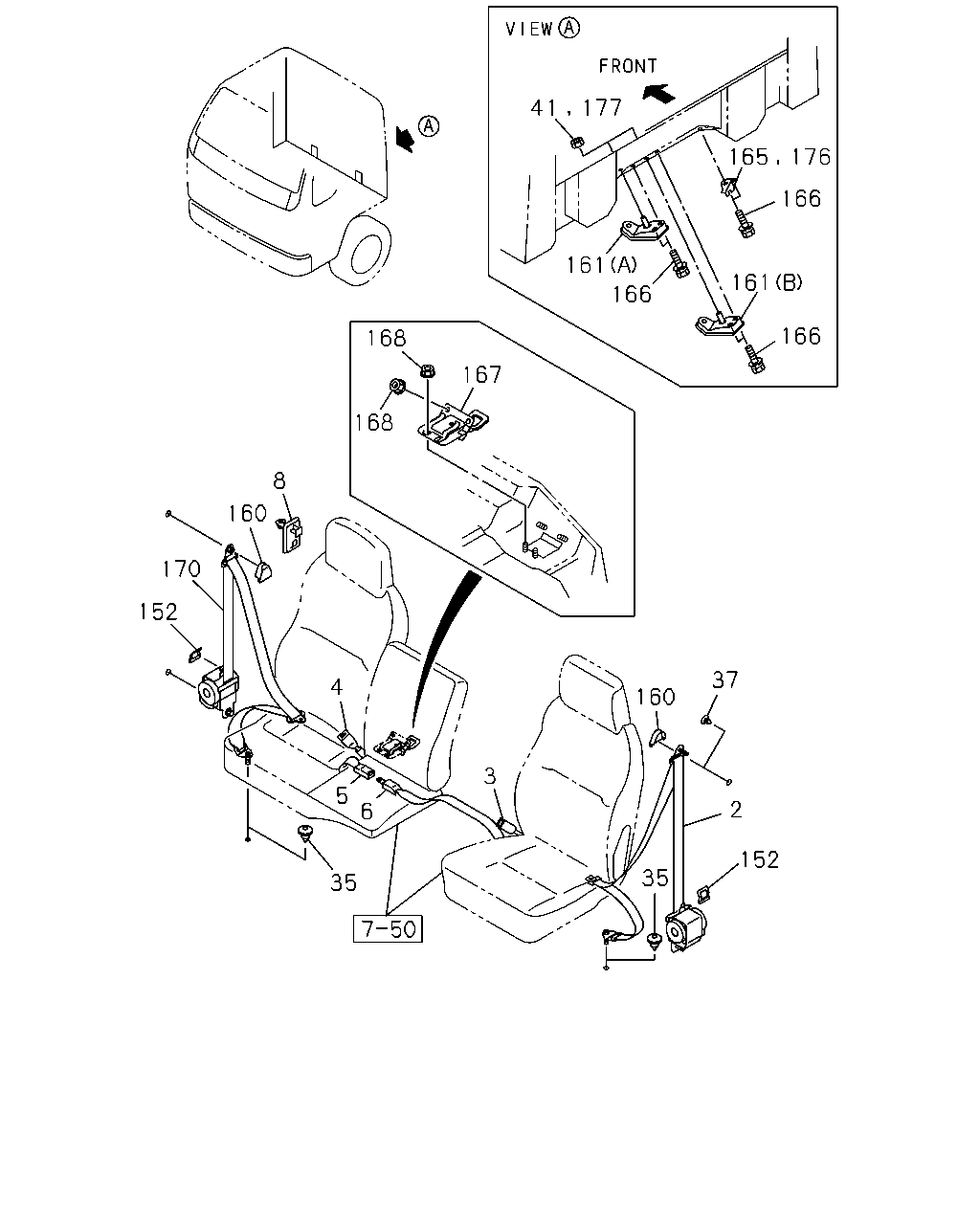

çizim 56810
177 41 165 176 166 161 161 166 166 168 167 168 8 160 170 152 37 4 160 3 5 2 6 152 35 35
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0610-
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97394-512-1 01 1 0504-0609
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97400-623-2 01 1 0610-
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97394-508-0 01 1 0504-0609
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELTFRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97400-348-0 01 1 0610-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELTFRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-354-0 01 1 0610-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97326-220-0 01 1 0504-0609
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELTFRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97396-952-0 01 1 0610-
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97401-501-0 01 1 0504-0512
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97406-749-0 01 1 0601-0609
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97404-304-0 01 1 0610-
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-224-0 01 1 0504-0609
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-451-1 01 1 0610-
8 HOOK; SEAT BELT
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> 		8-94276-268-1 02 1 0610-
35 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELTFRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0610-
35 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEATBELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 0610-
37 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEATBELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0610-
41 NUT; BRKT,ANCHOR
MANUAL TILT CAB<RWZ> M8 W/LK WASHER 		8-94327-073-0 04 1 0504-0805
41 NUT; BRKT,ANCHOR
MANUAL TILT CAB<RWZ> M8 W/LK WASHER 		8-97581-234-0 04 1 0806-
152 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97287-563-0 02 1 0504-
160 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0504-0609
160 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 02 1 0610-1506
160 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 01 1 1507-
161 REINFORCEMENT; SEAT BELT ANCHOR
(B) CENTER 		8-97850-427-1 01 1 0504-
161 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-376-2 01 1 0504-
161 REINFORCEMENT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> (A) 		8-97850-286-5 01 1 0504-
165 HOOK; SEAT BELT ANCHOR
EXC. MANUAL TILT CAB<RWZ> 		8-97869-416-0 01 1 0610-
166 BOLT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> M8X25 FLANGE 		0-28680-825-0 07 1 0504-0512
166 BOLT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> M8X25 FLANGE 		0-28650-825-0 07 1 0601-
166 BOLT; SEAT BELT ANCHOR
EXC. MANUAL TILT CAB<RWZ> M8X25 FLANGE 		0-28650-825-0 06 1 0610-
167 PLATE; ANCHOR
EXC. MANUAL TILT CAB<RWZ> 		8-97869-412-2 01 1 0610-
168 NUT; ANCHOR PLATE
EXC. MANUAL TILT CAB<RWZ> M8 FLANGE 		5-09440-005-0 04 1 0610-0712
168 NUT; ANCHOR PLATE
EXC. MANUAL TILT CAB<RWZ> M8 FLANGE 		0-91180-108-0 04 1 0801-
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0610-
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97392-992-1 01 1 0504-0609
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97397-380-2 01 1 0610-
176 PATCH ASM; ANCHOR HOLE FIX
MANUAL TILT CAB<RWZ> 		1-79998-900-0 01 1 0504-
177 NUT
EXC. MANUAL TILT CAB<RWZ> M8 W/LK WASHER 		8-94327-073-0 02 1 0610-0805
177 NUT
EXC. MANUAL TILT CAB<RWZ> M8 W/LK WASHER 		8-97581-234-0 02 1 0806-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
