Sayfa 2-01 - Isuzu EPC

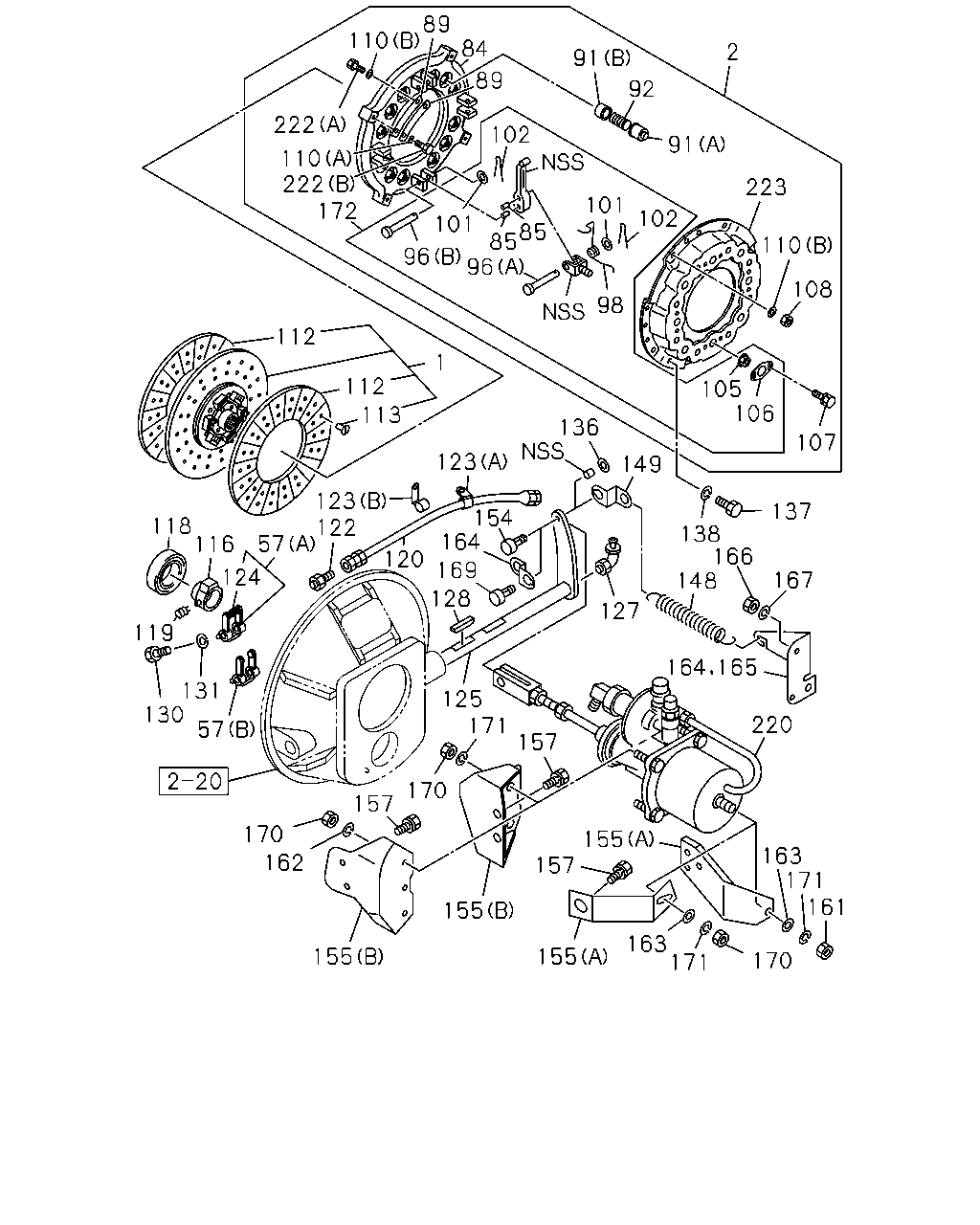

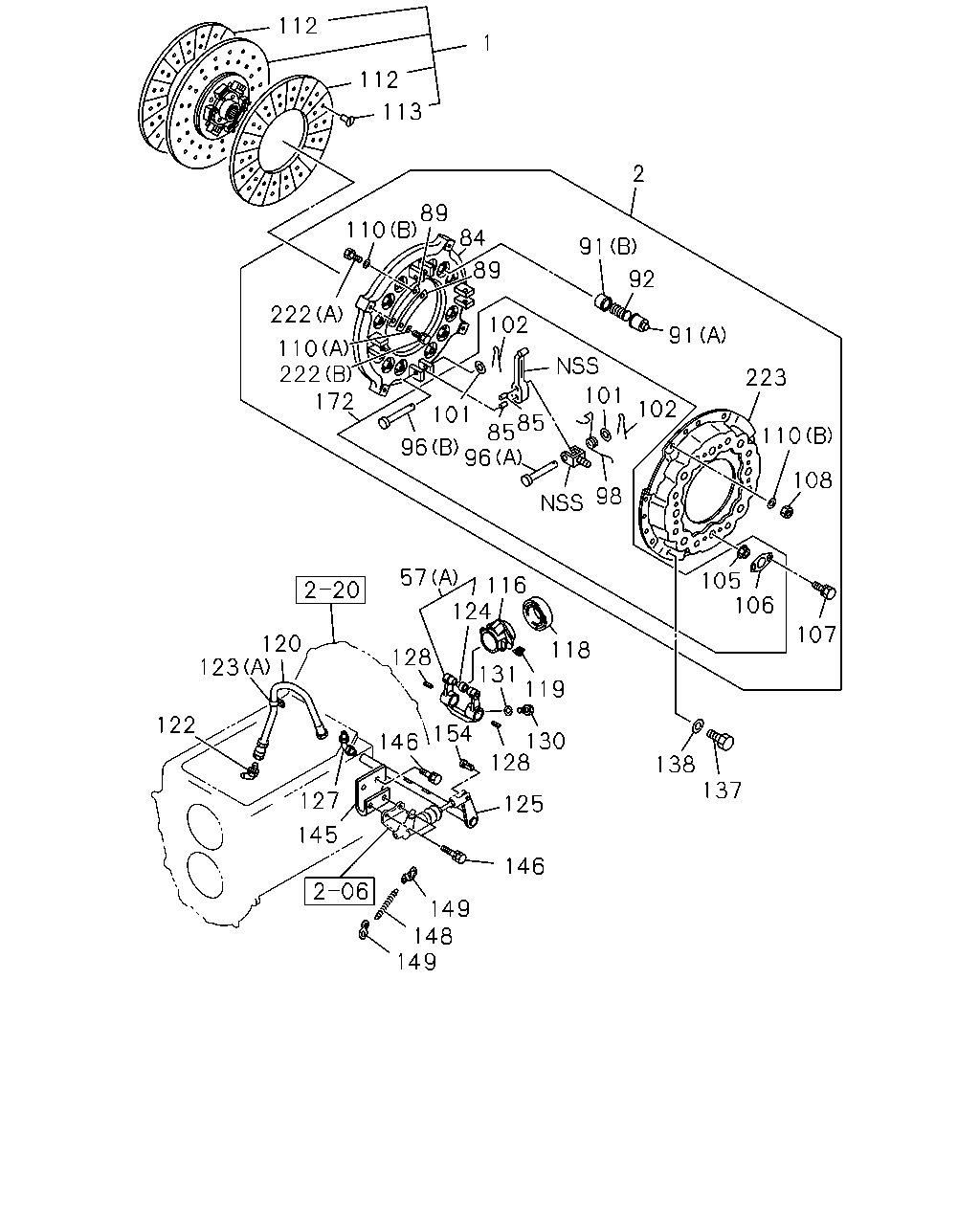

2-01 — CLUTCH (#2195) — 371 parça

112 1 112 113 2 89 110 84 91 89 92 222 102 91 110 222 172 223 85 85 96 96 101 101 102 110 108 98 57 105 106 116 124 107 120 118 128 123 131 119 122 154 130 128 146 138 137 127 125 145 146 149 148 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DISC; CLUTCH 14"	1-31240-301-0	01	1	9101-9102	●	●	●	●	●	●	●
1	DISC; CLUTCH EXC. 15 INCH CLUTCH<RE9> 14"	1-31240-301-0	01	1	9103-9309	●	●	●	●	●	●	●
1	DISC; CLUTCH EXC. 15 INCH CLUTCH<RE9> 14"	1-31240-671-0	01	1	9310-0105	●	●	●	●	●	●	●
1	DISC; CLUTCH EXC. 15 INCH CLUTCH<RE9> 14"	1-31240-901-0	01	1	0106-0203	●	●	●	●	●	●	●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0204-	●	●	●	●	●	●	●
1	DISC; CLUTCH 15 INCH CLUTCH<RE9> 15"	1-31240-303-0	01	1	9103-9309	●
1	DISC; CLUTCH 15 INCH CLUTCH<RE9> 15"	1-31240-676-0	01	1	9310-0105	●
1	DISC; CLUTCH 15 INCH CLUTCH<RE9> 15"	1-31240-902-0	01	1	0106-0203	●
2	PLATE ASM; PRESSURE,CLU EXC. BUS USER THAILAND BMTA<D5B> 14"	1-31220-158-1	01	1	9101-9102	●	●	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU EXC. BUS USER THAILAND BMTA<D5B>,15 INCH CLUTCH<RE9> 14"	1-31220-158-1	01	1	9103-9204	●	●	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU EXC. 15 INCH CLUTCH<RE9> 14"	1-31220-158-1	01	1	9205-0109	●	●	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU EXC. 15 INCH CLUTCH<RE9>	1-31220-356-0	01	1	0110-0203	●	●	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-356-2	01	1	0204-	●	●	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU BUS USER THAILAND BMTA<D5B> 14"	1-31220-182-1	01	1	9101-9102	●
2	PLATE ASM; PRESSURE,CLU BUS USER THAILAND BMTA<D5B> EXC. 15 INCH CLUTCH<RE9> 14"	1-31220-182-1	01	1	9103-9204	●
2	PLATE ASM; PRESSURE,CLU BUS USER THAILAND BMTA<D5B> 15 INCH CLUTCH<RE9>	1-31220-268-0	01	1	9103-9204	●
2	PLATE ASM; PRESSURE,CLU 15 INCH CLUTCH<RE9>	1-31220-268-0	01	1	9205-9211	●
2	PLATE ASM; PRESSURE,CLU 15 INCH CLUTCH<RE9>	1-31220-285-1	01	1	9212-0109	●
2	PLATE ASM; PRESSURE,CLU 15 INCH CLUTCH<RE9>	1-31220-372-0	01	1	0110-0203	●
57	FORK; SHIFT,CLU (A)	1-31341-028-0	01	1	0204-			●		●	●
57	FORK; SHIFT,CLU (A)	1-31341-028-0	01	1	9101-0203		●	●	●	●	●	●
57	FORK; SHIFT,CLU (B)	1-31340-056-0	01	1	9101-	●
84	PLATE; PRESSURE 14"	1-31221-044-0	01	1	9101-9102	●	●	●	●	●	●	●
84	PLATE; PRESSURE EXC. 15 INCH CLUTCH<RE9> 14"	1-31221-044-0	01	1	9103-0203	●	●	●	●	●	●	●
84	PLATE; PRESSURE 15 INCH CLUTCH<RE9> 15"	1-31221-051-0	01	1	9103-9810	●
84	PLATE; PRESSURE 15 INCH CLUTCH<RE9> 15"	1-31221-100-0	01	1	9811-0203	●
84	PLATE; PRESSURE 14"	1-31221-044-0	01	1	0204-	●	●	●	●	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9101-	●	●	●	●	●	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	9101-9102	●	●	●	●	●	●	●
89	PLATE; STRAP EXC. 15 INCH CLUTCH<RE9>	1-31229-001-0	08	1	9103-0203	●	●	●	●	●	●	●
89	PLATE; STRAP 15 INCH CLUTCH<RE9>	1-31229-001-0	12	1	9103-9810	●
89	PLATE; STRAP 15 INCH CLUTCH<RE9>	1-31229-050-0	16	1	9811-0203	●
89	PLATE; STRAP	1-31229-001-0	08	1	0204-	●	●	●	●	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9101-	●	●	●	●	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9101-	●	●	●	●	●	●	●
92	SPRING; CLU EXC. BUS USER THAILAND BMTA<D5B>	1-09580-236-0	12	1	9101-9102	●	●	●	●	●	●	●
92	SPRING; CLU EXC. BUS USER THAILAND BMTA<D5B>,15 INCH CLUTCH<RE9>	1-09580-236-0	12	1	9103-9204	●	●	●	●	●	●	●
92	SPRING; CLU EXC. 15 INCH CLUTCH<RE9>	1-09580-236-0	12	1	9205-0203	●	●	●	●	●	●	●
92	SPRING; CLU	1-09580-236-0	12	1	0204-0308	●	●	●	●	●	●	●
92	SPRING; CLU	1-31214-090-0	12	1	0309-	●	●	●	●	●	●	●
92	SPRING; CLU BUS USER THAILAND BMTA<D5B>	1-09580-412-0	12	1	9101-9102	●
92	SPRING; CLU BUS USER THAILAND BMTA<D5B> EXC. 15 INCH CLUTCH<RE9>	1-09580-412-0	12	1	9103-9204	●
92	SPRING; CLU 15 INCH CLUTCH<RE9>	1-31214-049-0	12	1	9205-9211	●
92	SPRING; CLU 15 INCH CLUTCH<RE9>	1-31214-050-0	12	1	9212-0203	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9101-	●	●	●	●	●	●	●
96	PIN; RELEASE LEVER EXC. 15 INCH CLUTCH<RE9> (B) L=57.0	1-31232-008-0	04	1	9101-0109	●	●	●	●	●	●	●
96	PIN; RELEASE LEVER 15 INCH CLUTCH<RE9> (B) L=57	1-31232-004-0	04	1	9212-9810	●
96	PIN; RELEASE LEVER 15 INCH CLUTCH<RE9> (B) L=57.0	1-31232-014-0	04	1	9811-0109	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0110-	●	●	●	●	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9101-	●	●	●	●	●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9101-0109	●	●	●	●	●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0110-	●	●	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9101-9102	●	●	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER EXC. 15 INCH CLUTCH<RE9> OD=2.7 L=22	9-08113-022-0	08	1	9103-0203	●	●	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 15 INCH CLUTCH<RE9> OD=2.7 L=22	9-08103-022-0	08	1	9103-0203	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0204-	●	●	●	●	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9101-0109	●	●	●	●	●	●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308	●	●	●	●	●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-	●	●	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9101-	●	●	●	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9101-0308	●	●	●	●	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-	●	●	●	●	●	●	●
108	NUT; STRAP	1-09449-036-0	04	1	9101-	●	●	●	●	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=3.2	1-09503-095-0	08	1	9101-0403	●	●	●	●	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=3.2	8-97374-512-0	08	1	0404-	●	●	●	●	●	●	●
110	WASHER; SPECIAL,STRAP (B) T=1.2	1-31229-009-0	04	1	9101-	●	●	●	●	●	●	●
112	FACING; FRICTION	1-31246-033-0	02	1	9101-9102	●	●	●	●	●	●	●
112	FACING; FRICTION EXC. 15 INCH CLUTCH<RE9>	1-31246-033-0	02	1	9103-9309	●	●	●	●	●	●	●
113	RIVET; FACING	1-09732-009-0	36	1	9101-9102	●	●	●	●	●	●	●
113	RIVET; FACING EXC. 15 INCH CLUTCH<RE9>	1-09732-009-0	36	1	9103-9309	●	●	●	●	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-054-0	01	1	0204-			●		●	●
116	BLOCK; SHIFT,CLU	1-31321-054-0	01	1	9101-0203		●	●	●	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	9101-	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9101-0111	●	●	●	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-0203	●	●	●	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0204-0212	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0301-	●		●		●	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	0204-			●		●	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	0204-			●		●	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9101-0203		●	●	●	●	●	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9101-0203		●	●	●	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9101-	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9101-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	9101-0203	●	●	●	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	0204-0212	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	0301-	●		●		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	9101-0203	●	●	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	0204-	●		●		●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=15.5	1-09700-814-1	01	1	0204-			●		●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=15.5	1-09700-814-1	01	1	9101-0203		●	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=22	1-09700-644-1	01	1	9101-	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (A) ID=15.5	9-09917-613-0	01	1	9101-	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9101-	●
125	SHAFT; CLU	1-31342-265-0	01	1	0204-			●		●	●
125	SHAFT; CLU CLUTCH SYSTEM MINIPACK(B1Z)	1-31342-168-0	01	1	9101-9105		●	●	●	●	●	●
125	SHAFT; CLU CLUTCH SYSTEM MINIPACK(B1Z)	1-31342-266-1	01	1	9106-0203		●	●	●	●	●	●
125	SHAFT; CLU EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31342-164-0	01	1	9101-9105		●	●	●	●	●	●
125	SHAFT; CLU EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31342-265-0	01	1	9106-0203		●	●	●	●	●	●
125	SHAFT; CLU	1-31342-200-0	01	1	9101-9204	●
125	SHAFT; CLU THAILAND EQUIPMENT(PM9)	1-31342-200-0	01	1	9205-0203	●
125	SHAFT; CLU BUS USER THAILAND BMTA<D5B>	1-31342-200-0	01	1	9205-0203	●
125	SHAFT; CLU EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9),15 INCH CLUTCH<RE9>	1-31342-169-1	01	1	9205-0203	●
125	SHAFT; CLU	1-31342-169-1	01	1	0204-	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9101-9204	●
127	NIPPLE; GREASE,CLU SHAFT THAILAND EQUIPMENT(PM9) PT1/8 ELBOW	9-09031-210-0	02	1	9205-0203	●
127	NIPPLE; GREASE,CLU SHAFT BUS USER THAILAND BMTA<D5B> PT1/8 ELBOW	9-09031-210-0	02	1	9205-0203	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9101-0203	●	●	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0204-	●		●		●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9101-0203	●	●	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0204-	●		●		●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9101-0203	●	●	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0204-	●		●		●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9101-	●	●	●	●	●	●	●
138	WASHER; LK,CLU COVER ID=10.2	9-09150-510-0	12	1	9101-9504	●	●	●	●	●	●	●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-007-0	01	1	0204-			●		●	●
145	BRACKET; SLAVE CYL,OIL CLU EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-47579-007-0	01	1	9101-0203		●	●	●	●	●	●
145	BRACKET; SLAVE CYL,OIL CLU EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-47579-011-1	01	1	9101-9204	●
145	BRACKET; SLAVE CYL,OIL CLU EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-47579-011-1	01	1	9205-0203	●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-011-1	01	1	0204-	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. CLUTCH SYSTEM MINIPACK(B1Z) M10X25 W/LK WASHER	0-50051-025-0	04	1	9101-9102	●	●	●			●	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. CLUTCH SYSTEM MINIPACK(B1Z) M10X25 W/LK WASHER	0-50051-025-0	04	1	9103-9205		●	●			●	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9> M10X25 W/LK WASHER	0-50051-025-0	04	1	9103-9205	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. CLUTCH SYSTEM MINIPACK(B1Z) M10X25 FLANGE	0-28181-025-0	04	1	9206-0203		●	●			●	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9> M10X25 FLANGE	0-28181-025-0	04	1	9206-0203	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	0204-0212	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	0301-	●		●			●
148	SPRING; CLU RETURN CLUTCH SYSTEM MINIPACK(B1Z)	9-09942-530-1	01	1	9101-0203	●	●	●	●	●	●	●
148	SPRING; CLU RETURN EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-09583-249-0	01	1	9101-9102	●	●	●	●	●	●	●
148	SPRING; CLU RETURN EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-09583-249-0	01	1	9103-0203		●	●	●	●	●	●
148	SPRING; CLU RETURN EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-09583-249-0	01	1	9103-0203	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	0204-0212	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	0301-	●		●		●	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31426-019-1	01	1	9101-9102		●	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-019-1	01	1	9101-9102	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31426-019-1	01	1	9103-9204		●	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-31426-019-1	01	1	9103-9204	●
149	EYE; SPRING,RETURN SPRING CLUTCH SYSTEM MINIPACK(B1Z)	1-31426-019-1	01	1	9103-9204	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31426-019-1	01	1	9205-0203		●	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-019-1	01	1	9205-0203	●
149	EYE; SPRING,RETURN SPRING	1-31426-019-1	01	1	0204-0212	●
149	EYE; SPRING,RETURN SPRING	1-31426-019-1	01	1	0301-	●		●		●	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z) ID=12.5	9-47324-022-0	01	1	9101-9206		●	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z) T=2.3	1-47324-005-0	01	1	9101-9204	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9> T=2.3	1-47324-005-1	01	1	9205-9206	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z) T=2.3	1-47324-005-1	01	1	9207-0203		●	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9> T=2.3	1-47324-005-1	01	1	9207-0203	●
149	EYE; SPRING,RETURN SPRING T=2.3	1-47324-005-1	01	1	0204-0212	●
149	EYE; SPRING,RETURN SPRING T=2.3	1-47324-005-1	01	1	0301-	●		●		●	●
154	PIN; JAW JOINT EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31424-001-1	01	1	9101-9102		●	●	●	●	●	●
154	PIN; JAW JOINT	1-31424-001-1	01	1	9101-9102	●
154	PIN; JAW JOINT EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31424-001-1	01	1	9103-9204		●	●	●	●	●	●
154	PIN; JAW JOINT EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-31424-001-1	01	1	9103-9204	●
154	PIN; JAW JOINT CLUTCH SYSTEM MINIPACK(B1Z)	1-31424-001-1	01	1	9103-9204	●
154	PIN; JAW JOINT EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31424-001-1	01	1	9205-9312		●	●	●	●	●	●
154	PIN; JAW JOINT	1-31424-001-1	01	1	9205-9312	●
154	PIN; JAW JOINT EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31424-009-0	01	1	9401-0203		●	●	●	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9401-0203	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0204-0212	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0301-	●		●		●	●
172	LEVER KIT; RELEASE,CLU	1-87830-902-1	01	1	0204-0305	●	●	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	0306-	●	●	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-620-0	01	1	9101-9211	●	●	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU EXC. 15 INCH CLUTCH<RE9>	1-87830-620-0	01	1	9212-0109	●	●	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-620-2	01	1	0110-0203	●	●	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU 15 INCH CLUTCH<RE9> 15"	1-87410-042-1	01	1	9212-0109	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9101-	●	●	●	●	●	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9101-	●	●	●	●	●	●	●
223	COVER; CLU EXC. 15 INCH CLUTCH<RE9>	1-31211-018-1	01	1	9101-	●	●	●	●	●	●	●
223	COVER; CLU 15 INCH CLUTCH<RE9>	1-31211-019-0	01	1	9103-9208	●
223	COVER; CLU 15 INCH CLUTCH<RE9>	1-31211-019-1	01	1	9209-0203	●

89 110 84 2 91 89 92 222 102 91 110 222 172 223 85 85 96 96 101 101 102 110 108 98 112 1 112 105 106 113 136 107 123 149 123 122 137 154 164 118 116 138 166 148 57 120 169 128 124 167 127 119 164 131 130 125 171 220 57 157 170 157 170 162 155 163 171 161 157 155 163 171 155 155 170 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DISC; CLUTCH 14"	1-31240-301-0	01	1	9101-9102	●	●	●	●	●	●	●
1	DISC; CLUTCH EXC. 15 INCH CLUTCH<RE9> 14"	1-31240-301-0	01	1	9103-9309	●	●	●	●	●	●	●
1	DISC; CLUTCH EXC. 15 INCH CLUTCH<RE9> 14"	1-31240-671-0	01	1	9310-0105	●	●	●	●	●	●	●
1	DISC; CLUTCH EXC. 15 INCH CLUTCH<RE9> 14"	1-31240-901-0	01	1	0106-0203	●	●	●	●	●	●	●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0204-	●	●	●	●	●	●	●
1	DISC; CLUTCH 15 INCH CLUTCH<RE9> 15"	1-31240-303-0	01	1	9103-9309	●
1	DISC; CLUTCH 15 INCH CLUTCH<RE9> 15"	1-31240-676-0	01	1	9310-0105	●
1	DISC; CLUTCH 15 INCH CLUTCH<RE9> 15"	1-31240-902-0	01	1	0106-0203	●
2	PLATE ASM; PRESSURE,CLU EXC. BUS USER THAILAND BMTA<D5B> 14"	1-31220-158-1	01	1	9101-9102	●	●	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU EXC. BUS USER THAILAND BMTA<D5B>,15 INCH CLUTCH<RE9> 14"	1-31220-158-1	01	1	9103-9204	●	●	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU EXC. 15 INCH CLUTCH<RE9> 14"	1-31220-158-1	01	1	9205-0109	●	●	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU EXC. 15 INCH CLUTCH<RE9>	1-31220-356-0	01	1	0110-0203	●	●	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-356-2	01	1	0204-	●	●	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU BUS USER THAILAND BMTA<D5B> 14"	1-31220-182-1	01	1	9101-9102	●
2	PLATE ASM; PRESSURE,CLU BUS USER THAILAND BMTA<D5B> EXC. 15 INCH CLUTCH<RE9> 14"	1-31220-182-1	01	1	9103-9204	●
2	PLATE ASM; PRESSURE,CLU BUS USER THAILAND BMTA<D5B> 15 INCH CLUTCH<RE9>	1-31220-268-0	01	1	9103-9204	●
2	PLATE ASM; PRESSURE,CLU 15 INCH CLUTCH<RE9>	1-31220-268-0	01	1	9205-9211	●
2	PLATE ASM; PRESSURE,CLU 15 INCH CLUTCH<RE9>	1-31220-285-1	01	1	9212-0109	●
2	PLATE ASM; PRESSURE,CLU 15 INCH CLUTCH<RE9>	1-31220-372-0	01	1	0110-0203	●
57	FORK; SHIFT,CLU (A)	1-31341-028-0	01	1	0204-			●		●	●
57	FORK; SHIFT,CLU (A)	1-31341-028-0	01	1	9101-0203		●	●	●	●	●	●
57	FORK; SHIFT,CLU (B)	1-31340-056-0	01	1	9101-	●
84	PLATE; PRESSURE 14"	1-31221-044-0	01	1	9101-9102	●	●	●	●	●	●	●
84	PLATE; PRESSURE EXC. 15 INCH CLUTCH<RE9> 14"	1-31221-044-0	01	1	9103-0203	●	●	●	●	●	●	●
84	PLATE; PRESSURE 15 INCH CLUTCH<RE9> 15"	1-31221-051-0	01	1	9103-9810	●
84	PLATE; PRESSURE 15 INCH CLUTCH<RE9> 15"	1-31221-100-0	01	1	9811-0203	●
84	PLATE; PRESSURE 14"	1-31221-044-0	01	1	0204-	●	●	●	●	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9101-	●	●	●	●	●	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	9101-9102	●	●	●	●	●	●	●
89	PLATE; STRAP EXC. 15 INCH CLUTCH<RE9>	1-31229-001-0	08	1	9103-0203	●	●	●	●	●	●	●
89	PLATE; STRAP 15 INCH CLUTCH<RE9>	1-31229-001-0	12	1	9103-9810	●
89	PLATE; STRAP 15 INCH CLUTCH<RE9>	1-31229-050-0	16	1	9811-0203	●
89	PLATE; STRAP	1-31229-001-0	08	1	0204-	●	●	●	●	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9101-	●	●	●	●	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9101-	●	●	●	●	●	●	●
92	SPRING; CLU EXC. BUS USER THAILAND BMTA<D5B>	1-09580-236-0	12	1	9101-9102	●	●	●	●	●	●	●
92	SPRING; CLU EXC. BUS USER THAILAND BMTA<D5B>,15 INCH CLUTCH<RE9>	1-09580-236-0	12	1	9103-9204	●	●	●	●	●	●	●
92	SPRING; CLU EXC. 15 INCH CLUTCH<RE9>	1-09580-236-0	12	1	9205-0203	●	●	●	●	●	●	●
92	SPRING; CLU	1-09580-236-0	12	1	0204-0308	●	●	●	●	●	●	●
92	SPRING; CLU	1-31214-090-0	12	1	0309-	●	●	●	●	●	●	●
92	SPRING; CLU BUS USER THAILAND BMTA<D5B>	1-09580-412-0	12	1	9101-9102	●
92	SPRING; CLU BUS USER THAILAND BMTA<D5B> EXC. 15 INCH CLUTCH<RE9>	1-09580-412-0	12	1	9103-9204	●
92	SPRING; CLU 15 INCH CLUTCH<RE9>	1-31214-049-0	12	1	9205-9211	●
92	SPRING; CLU 15 INCH CLUTCH<RE9>	1-31214-050-0	12	1	9212-0203	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9101-	●	●	●	●	●	●	●
96	PIN; RELEASE LEVER EXC. 15 INCH CLUTCH<RE9> (B) L=57.0	1-31232-008-0	04	1	9101-0109	●	●	●	●	●	●	●
96	PIN; RELEASE LEVER 15 INCH CLUTCH<RE9> (B) L=57	1-31232-004-0	04	1	9212-9810	●
96	PIN; RELEASE LEVER 15 INCH CLUTCH<RE9> (B) L=57.0	1-31232-014-0	04	1	9811-0109	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0110-	●	●	●	●	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9101-	●	●	●	●	●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9101-0109	●	●	●	●	●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0110-	●	●	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9101-9102	●	●	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER EXC. 15 INCH CLUTCH<RE9> OD=2.7 L=22	9-08113-022-0	08	1	9103-0203	●	●	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 15 INCH CLUTCH<RE9> OD=2.7 L=22	9-08103-022-0	08	1	9103-0203	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0204-	●	●	●	●	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9101-0109	●	●	●	●	●	●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308	●	●	●	●	●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-	●	●	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9101-	●	●	●	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9101-0308	●	●	●	●	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-	●	●	●	●	●	●	●
108	NUT; STRAP	1-09449-036-0	04	1	9101-	●	●	●	●	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=3.2	1-09503-095-0	08	1	9101-0403	●	●	●	●	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=3.2	8-97374-512-0	08	1	0404-	●	●	●	●	●	●	●
110	WASHER; SPECIAL,STRAP (B) T=1.2	1-31229-009-0	04	1	9101-	●	●	●	●	●	●	●
112	FACING; FRICTION	1-31246-033-0	02	1	9101-9102	●	●	●	●	●	●	●
112	FACING; FRICTION EXC. 15 INCH CLUTCH<RE9>	1-31246-033-0	02	1	9103-9309	●	●	●	●	●	●	●
113	RIVET; FACING	1-09732-009-0	36	1	9101-9102	●	●	●	●	●	●	●
113	RIVET; FACING EXC. 15 INCH CLUTCH<RE9>	1-09732-009-0	36	1	9103-9309	●	●	●	●	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-054-0	01	1	0204-			●		●	●
116	BLOCK; SHIFT,CLU	1-31321-054-0	01	1	9101-0203		●	●	●	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	9101-	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9101-0111	●	●	●	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-0203	●	●	●	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0204-0212	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0301-	●		●		●	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	0204-			●		●	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	0204-			●		●	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9101-0203		●	●	●	●	●	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9101-0203		●	●	●	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9101-	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9101-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	9101-0203	●	●	●	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	0204-0212	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	0301-	●		●		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	9101-0203	●	●	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	0204-	●		●		●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=15.5	1-09700-814-1	01	1	0204-			●		●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=15.5	1-09700-814-1	01	1	9101-0203		●	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=22	1-09700-644-1	01	1	9101-	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (A) ID=15.5	9-09917-613-0	01	1	9101-	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9101-	●
125	SHAFT; CLU	1-31342-265-0	01	1	0204-			●		●	●
125	SHAFT; CLU CLUTCH SYSTEM MINIPACK(B1Z)	1-31342-168-0	01	1	9101-9105		●	●	●	●	●	●
125	SHAFT; CLU CLUTCH SYSTEM MINIPACK(B1Z)	1-31342-266-1	01	1	9106-0203		●	●	●	●	●	●
125	SHAFT; CLU EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31342-164-0	01	1	9101-9105		●	●	●	●	●	●
125	SHAFT; CLU EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31342-265-0	01	1	9106-0203		●	●	●	●	●	●
125	SHAFT; CLU	1-31342-200-0	01	1	9101-9204	●
125	SHAFT; CLU THAILAND EQUIPMENT(PM9)	1-31342-200-0	01	1	9205-0203	●
125	SHAFT; CLU BUS USER THAILAND BMTA<D5B>	1-31342-200-0	01	1	9205-0203	●
125	SHAFT; CLU EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9),15 INCH CLUTCH<RE9>	1-31342-169-1	01	1	9205-0203	●
125	SHAFT; CLU	1-31342-169-1	01	1	0204-	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9101-9204	●
127	NIPPLE; GREASE,CLU SHAFT THAILAND EQUIPMENT(PM9) PT1/8 ELBOW	9-09031-210-0	02	1	9205-0203	●
127	NIPPLE; GREASE,CLU SHAFT BUS USER THAILAND BMTA<D5B> PT1/8 ELBOW	9-09031-210-0	02	1	9205-0203	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9101-0203	●	●	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0204-	●		●		●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9101-0203	●	●	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0204-	●		●		●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9101-0203	●	●	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0204-	●		●		●	●
136	WASHER; PL CLUTCH SYSTEM MINIPACK(B1Z) ID=8.4	9-09160-508-0	01	1	9101-9205		●	●	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9101-	●	●	●	●	●	●	●
138	WASHER; LK,CLU COVER ID=10.2	9-09150-510-0	12	1	9101-9504	●	●	●	●	●	●	●
148	SPRING; CLU RETURN CLUTCH SYSTEM MINIPACK(B1Z)	9-09942-530-1	01	1	9101-0203	●	●	●	●	●	●	●
148	SPRING; CLU RETURN EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-09583-249-0	01	1	9101-9102	●	●	●	●	●	●	●
148	SPRING; CLU RETURN EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-09583-249-0	01	1	9103-0203		●	●	●	●	●	●
148	SPRING; CLU RETURN EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-09583-249-0	01	1	9103-0203	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	0204-0212	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	0301-	●		●		●	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31426-019-1	01	1	9101-9102		●	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-019-1	01	1	9101-9102	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31426-019-1	01	1	9103-9204		●	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-31426-019-1	01	1	9103-9204	●
149	EYE; SPRING,RETURN SPRING CLUTCH SYSTEM MINIPACK(B1Z)	1-31426-019-1	01	1	9103-9204	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31426-019-1	01	1	9205-0203		●	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-019-1	01	1	9205-0203	●
149	EYE; SPRING,RETURN SPRING	1-31426-019-1	01	1	0204-0212	●
149	EYE; SPRING,RETURN SPRING	1-31426-019-1	01	1	0301-	●		●		●	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z) ID=12.5	9-47324-022-0	01	1	9101-9206		●	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z) T=2.3	1-47324-005-0	01	1	9101-9204	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9> T=2.3	1-47324-005-1	01	1	9205-9206	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z) T=2.3	1-47324-005-1	01	1	9207-0203		●	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9> T=2.3	1-47324-005-1	01	1	9207-0203	●
149	EYE; SPRING,RETURN SPRING T=2.3	1-47324-005-1	01	1	0204-0212	●
149	EYE; SPRING,RETURN SPRING T=2.3	1-47324-005-1	01	1	0301-	●		●		●	●
154	PIN; JAW JOINT EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31424-001-1	01	1	9101-9102		●	●	●	●	●	●
154	PIN; JAW JOINT	1-31424-001-1	01	1	9101-9102	●
154	PIN; JAW JOINT EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31424-001-1	01	1	9103-9204		●	●	●	●	●	●
154	PIN; JAW JOINT EXC. CLUTCH SYSTEM MINIPACK(B1Z),15 INCH CLUTCH<RE9>	1-31424-001-1	01	1	9103-9204	●
154	PIN; JAW JOINT CLUTCH SYSTEM MINIPACK(B1Z)	1-31424-001-1	01	1	9103-9204	●
154	PIN; JAW JOINT EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31424-001-1	01	1	9205-9312		●	●	●	●	●	●
154	PIN; JAW JOINT	1-31424-001-1	01	1	9205-9312	●
154	PIN; JAW JOINT EXC. CLUTCH SYSTEM MINIPACK(B1Z)	1-31424-009-0	01	1	9401-0203		●	●	●	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9401-0203	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0204-0212	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0301-	●		●		●	●
155	BRACKET; MINIPACK CLUTCH SYSTEM MINIPACK(B1Z) (B)	1-31429-184-0	01	1	9101-0203		●	●	●	●	●	●
155	BRACKET; MINIPACK CLUTCH SYSTEM MINIPACK(B1Z) (A)	1-31429-185-0	01	1	9101-0203		●	●	●	●	●	●
155	BRACKET; MINIPACK EXC. CLUTCH SYSTEM MINIPACK(B1Z) (B)	1-31429-149-1	01	1	9101-9204	●
155	BRACKET; MINIPACK CLUTCH SYSTEM MINIPACK(B1Z) (B)	1-31429-149-1	01	1	9205-0203	●
155	BRACKET; MINIPACK EXC. CLUTCH SYSTEM MINIPACK(B1Z) (A)	1-31429-150-1	01	1	9101-9204	●
155	BRACKET; MINIPACK CLUTCH SYSTEM MINIPACK(B1Z) (A)	1-31429-150-1	01	1	9205-0203	●
157	BOLT; BRKT CLUTCH SYSTEM MINIPACK(B1Z) M10X25 W/LK WASHER	0-50051-025-0	02	1	9101-9205		●	●	●	●	●	●
157	BOLT; BRKT CLUTCH SYSTEM MINIPACK(B1Z) M10X18 FLANGE	0-28181-018-0	02	1	9206-0203		●	●	●	●	●	●
157	BOLT; BRKT CLUTCH SYSTEM MINIPACK(B1Z) M12X25 W/LK WASHER	0-50051-225-0	01	1	9101-9205		●	●	●	●	●	●
157	BOLT; BRKT CLUTCH SYSTEM MINIPACK(B1Z) M12X25 FLANGE	0-28181-225-0	01	1	9206-0203		●	●	●	●	●	●
157	BOLT; BRKT EXC. CLUTCH SYSTEM MINIPACK(B1Z) M16X40	0-23801-640-0	01	1	9101-9204	●
157	BOLT; BRKT CLUTCH SYSTEM MINIPACK(B1Z) M16X40	0-23801-640-0	01	1	9205-0203	●
157	BOLT; BRKT EXC. CLUTCH SYSTEM MINIPACK(B1Z) M10X20 W/LK WASHER	0-50051-020-0	04	1	9101-9204	●
157	BOLT; BRKT CLUTCH SYSTEM MINIPACK(B1Z) M10X20 W/LK WASHER	0-50051-020-0	04	1	9205-9205	●
157	BOLT; BRKT CLUTCH SYSTEM MINIPACK(B1Z) M10X18 FLANGE	0-28181-018-0	04	1	9206-0203	●
161	NUT; BRKT CLUTCH SYSTEM MINIPACK(B1Z) M8	9-09110-408-0	03	1	9101-9205		●	●	●	●	●	●
161	NUT; BRKT CLUTCH SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91150-208-0	03	1	9206-0203		●	●	●	●	●	●
162	WASHER; LK,BRKT CLUTCH SYSTEM MINIPACK(B1Z) ID=8.2	9-09150-508-0	03	1	9101-9205		●	●	●	●	●	●
163	WASHER; PL,MINIPACK EXC. CLUTCH SYSTEM MINIPACK(B1Z) ID=17	9-09160-516-0	01	1	9101-9204	●
163	WASHER; PL,MINIPACK CLUTCH SYSTEM MINIPACK(B1Z) ID=17	9-09160-516-0	01	1	9205-0203	●
164	EYE; SPRING CLUTCH SYSTEM MINIPACK(B1Z)	1-31426-019-1	01	1	9101-0203		●	●	●	●	●	●
164	EYE; SPRING EXC. CLUTCH SYSTEM MINIPACK(B1Z) ID=9X2 & 13	1-47475-658-0	01	1	9101-9204	●
164	EYE; SPRING CLUTCH SYSTEM MINIPACK(B1Z) ID=9X2 & 13	1-47475-658-0	01	1	9205-0203	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE CLUTCH SYSTEM MINIPACK(B1Z) ID=9X2 & 13	1-47475-658-0	01	1	9101-0203		●	●	●	●	●	●
166	NUT; SPRING EYE CLUTCH SYSTEM MINIPACK(B1Z) M8	9-09110-408-0	02	1	9101-9205		●	●	●	●	●	●
166	NUT; SPRING EYE CLUTCH SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91150-208-0	02	1	9206-0203		●	●	●	●	●	●
167	WASHER; LK,SPRING EYE CLUTCH SYSTEM MINIPACK(B1Z) ID=8.2	9-09150-508-0	02	1	9101-9205		●	●	●	●	●	●
169	PIN; JOINT,MINIPACK CLUTCH SYSTEM MINIPACK(B1Z)	1-31424-001-1	01	1	9101-9312		●	●	●	●	●	●
169	PIN; JOINT,MINIPACK CLUTCH SYSTEM MINIPACK(B1Z)	1-31424-009-0	01	1	9401-0203		●	●	●	●	●	●
170	NUT; BOOSTER FIX EXC. CLUTCH SYSTEM MINIPACK(B1Z) M8	9-09110-408-0	03	1	9101-9204	●
170	NUT; BOOSTER FIX CLUTCH SYSTEM MINIPACK(B1Z) M8	9-09110-408-0	03	1	9205-9205	●
170	NUT; BOOSTER FIX CLUTCH SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91150-208-0	03	1	9206-0203	●
171	WASHER; LK,BOOSTER FIX EXC. CLUTCH SYSTEM MINIPACK(B1Z) ID=8.2	9-09150-508-0	03	1	9101-9204	●
171	WASHER; LK,BOOSTER FIX BUS USER THAILAND BMTA<D5B> 15 INCH CLUTCH<RE9> ID=8.2	9-09150-508-0	03	1	9205-9205	●
171	WASHER; LK,BOOSTER FIX CLUTCH SYSTEM MINIPACK(B1Z) ID=8.2	9-09150-508-0	03	1	9205-9205	●
172	LEVER KIT; RELEASE,CLU	1-87830-902-1	01	1	0204-0305	●	●	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	0306-	●	●	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-620-0	01	1	9101-9211	●	●	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU EXC. 15 INCH CLUTCH<RE9>	1-87830-620-0	01	1	9212-0109	●	●	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-620-2	01	1	0110-0203	●	●	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU 15 INCH CLUTCH<RE9> 15"	1-87410-042-1	01	1	9212-0109	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLUTCH SYSTEM MINIPACK(B1Z)	1-31800-349-1	01	1	9101-9205		●	●	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLUTCH SYSTEM MINIPACK(B1Z)	1-31800-349-3	01	1	9206-0203		●	●	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-31800-349-3	01	1	9206-0203	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLUTCH SYSTEM MINIPACK(B1Z) 15 INCH CLUTCH<RE9>	1-31800-360-0	01	1	9103-9205	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLUTCH SYSTEM MINIPACK(B1Z) 15 INCH CLUTCH<RE9>	1-31800-360-1	01	1	9106-0203	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. FINAL GEAR 43/7 15.5"(W1R)	1-31800-354-0	01	1	9101-9102	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLUTCH SYSTEM MINIPACK(B1Z) EXC. 15 INCH CLUTCH<RE9>	1-31800-359-0	01	1	9103-9205	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9101-	●	●	●	●	●	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9101-	●	●	●	●	●	●	●
223	COVER; CLU EXC. 15 INCH CLUTCH<RE9>	1-31211-018-1	01	1	9101-	●	●	●	●	●	●	●
223	COVER; CLU 15 INCH CLUTCH<RE9>	1-31211-019-0	01	1	9103-9208	●
223	COVER; CLU 15 INCH CLUTCH<RE9>	1-31211-019-1	01	1	9209-0203	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
