7-50 — FRONT SEAT (#21949) — 86 parça

1 99 2 18 19 17 24 12 228 13 15 69 382 71 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT MANUAL TILT CAB<RWZ> DARK GRAY	8-97394-592-2	01	1	0504-0609
1	BACK ASM; SEAT MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97400-365-3	01	1	0610-
1	BACK ASM; SEAT MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-676-3	01	1	0610-
1	BACK ASM; SEAT MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-476-3	01	1	0610-
1	BACK ASM; SEAT EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY	8-97400-377-3	01	1	0610-
1	BACK ASM; SEAT SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-484-3	01	1	0610-
1	BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97400-678-3	01	1	0610-
2	COVER; TRIM,FRT SEAT,BACK MANUAL TILT CAB<RWZ> DARK GRAY	8-97394-593-1	01	1	0504-0609
2	COVER; TRIM,FRT SEAT,BACK MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97400-366-2	01	1	0610-
2	COVER; TRIM,FRT SEAT,BACK MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-677-2	01	1	0610-
2	COVER; TRIM,FRT SEAT,BACK MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-477-2	01	1	0610-
2	COVER; TRIM,FRT SEAT,BACK EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY	8-97400-378-2	01	1	0610-
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-485-2	01	1	0610-
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97400-679-2	01	1	0610-
12	CUSHION; SEAT,FRT MANUAL TILT CAB<RWZ> DARK GRAY	8-97394-594-0	01	1	0504-0609
12	CUSHION; SEAT,FRT MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97400-367-1	01	1	0610-
12	CUSHION; SEAT,FRT MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-100-1	01	1	0610-
12	CUSHION; SEAT,FRT MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-478-1	01	1	0610-
12	CUSHION; SEAT,FRT EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY	8-97400-375-1	01	1	0610-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-482-1	01	1	0610-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97400-093-1	01	1	0610-
13	COVER; TRIM,FRT SEAT,CUSHION MANUAL TILT CAB<RWZ> DARK GRAY	8-97394-595-0	01	1	0504-0609
13	COVER; TRIM,FRT SEAT,CUSHION MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97400-368-1	01	1	0610-
13	COVER; TRIM,FRT SEAT,CUSHION MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-101-1	01	1	0610-
13	COVER; TRIM,FRT SEAT,CUSHION MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-479-1	01	1	0610-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY	8-97400-376-1	01	1	0610-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-483-1	01	1	0610-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97400-094-1	01	1	0610-
15	FRAME; CUSHION,FRT SEAT EXC. MANUAL TILT CAB<RWZ>	8-97262-070-1	01	1	0610-
17	BOLT; RECLINING MANUAL TILT CAB<RWZ> M8X20	8-97255-906-0	02	1	0504-0609
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0610-
18	COVER; RECLINING MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-018-0	01	1	0504-0609
18	COVER; RECLINING DARK GRAY	8-97400-095-0	01	1	0610-
19	SCREW; COVER MANUAL TILT CAB<RWZ> M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0504-0604
19	SCREW; COVER MANUAL TILT CAB<RWZ> M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-0609
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0610-
24	KNOB; RECLINING,FRT,SEAT MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-019-0	01	1	0504-0609
24	KNOB; RECLINING,FRT,SEAT DARK GRAY	8-97400-096-0	01	1	0610-0804
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97415-446-0	01	1	0805-
63	ADJUSTER; SEAT SLIDE MANUAL TILT CAB<RWZ>	8-97854-670-3	01	1	0504-0609
63	ADJUSTER; SEAT SLIDE EXC. SEAT CLOTH<7FL>	8-97854-670-3	01	1	0610-
63	ADJUSTER; SEAT SLIDE SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>	8-97854-670-3	01	1	0610-
63	ADJUSTER; SEAT SLIDE SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG>	8-97854-947-3	01	1	0610-
69	NUT; FRT SEAT M8	1-09984-109-0	02	1	0504-
71	BOLT; ADJ TO SEAT MANUAL TILT CAB<RWZ> M8X20	8-97255-906-0	02	1	0504-0609
71	BOLT; ADJ TO SEAT M8X20	8-97255-906-0	02	1	0610-
99	BUSHING; SEAT BACK MANUAL TILT CAB<RWZ>	8-97854-087-0	01	1	0504-0609
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0610-
228	SCREW; KNOB MANUAL TILT CAB<RWZ> M4X6	8-97042-273-0	01	1	0504-0609
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0610-
382	WASHER; PL,DRIVER SEAT ID=8.4 OD=22	8-94127-883-1	02	1	0504-

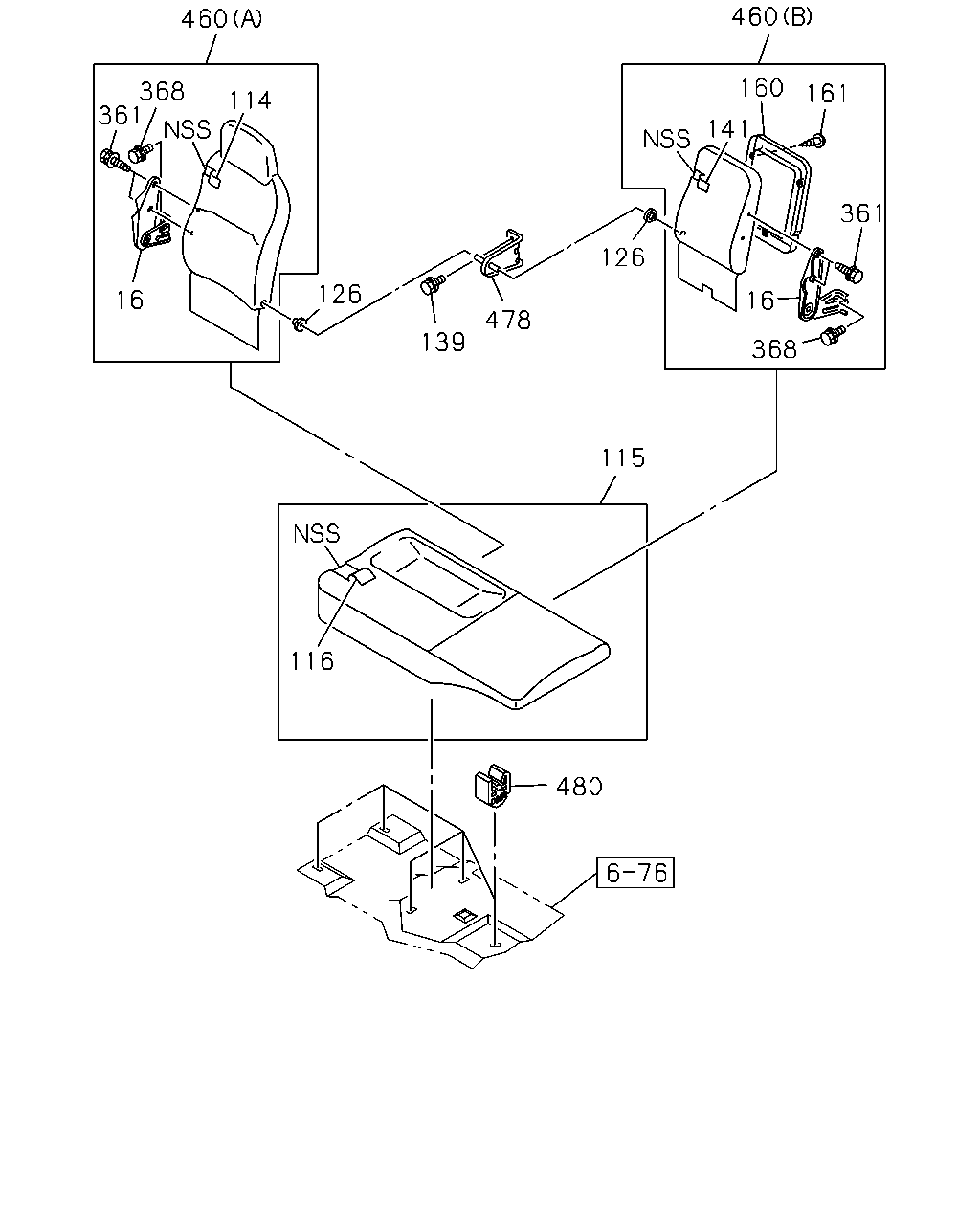

460 460 160 368 361 161 114 141 361 126 126 16 16 478 139 368 115 116 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING BLACK	8-97859-273-3	01	1	0504-
16	ADJUSTER ASM; RECLINING BLACK	8-97859-274-3	01	1	0504-
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97394-629-1	01	1	0504-0609
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97400-692-2	01	1	0610-
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97400-693-2	01	1	0610-
115	CUSHION ASM; PASSENGER SEAT MANUAL TILT CAB<RWZ> DARK GRAY	8-97394-585-1	01	1	0504-0609
115	CUSHION ASM; PASSENGER SEAT MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97400-667-3	01	1	0610-
115	CUSHION ASM; PASSENGER SEAT MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY	8-97400-666-3	01	1	0610-
115	CUSHION ASM; PASSENGER SEAT EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY	8-97400-663-2	01	1	0610-
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97400-664-2	01	1	0610-
116	COVER; TRIM,PASSENGER SEAT,CUSHION MANUAL TILT CAB<RWZ> DARK GRAY	8-97394-643-1	01	1	0504-0609
116	COVER; TRIM,PASSENGER SEAT,CUSHION MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97400-705-1	01	1	0610-
116	COVER; TRIM,PASSENGER SEAT,CUSHION MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY	8-97400-109-1	01	1	0610-
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY	8-97400-703-1	01	1	0610-
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97400-107-1	01	1	0610-
126	BUSHING; HINGE,RECLINING	8-97854-900-0	02	1	0504-0804
126	BUSHING; HINGE,RECLINING	8-98069-558-0	02	1	0805-
126	BUSHING; HINGE,RECLINING	8-98069-558-0	02	1	0805-
139	BOLT; PASSENGER SEAT M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	0504-
141	COVER; TRIM,BENCH SEAT,BACK DARK GRAY	8-97394-636-1	01	1	0504-0609
141	COVER; TRIM,BENCH SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97400-698-2	01	1	0610-
141	COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97400-105-1	01	1	0610-
160	CONSOLE; UPR,BACK CENTER DARK GRAY	8-97393-932-1	01	1	0504-0609
160	CONSOLE; UPR,BACK CENTER GRAY	8-97398-252-1	01	1	0610-
161	SCREW; CONSOLE M4X12	8-94279-351-0	04	1	0504-
361	BOLT; ADJ,RECLINING M8X18	8-94279-109-1	04	1	0504-
368	BOLT; SEAT M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	0504-
460	BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97394-568-3	01	1	0504-0609
460	BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (A) DARK GRAY	8-97400-652-3	01	1	0610-
460	BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97394-577-2	01	1	0504-0609
460	BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (B) DARK GRAY	8-97400-658-4	01	1	0610-
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (B) DARK GRAY	8-97400-075-3	01	1	0610-
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (A) DARK GRAY	8-97400-653-3	01	1	0610-
478	BRACKET ASM; HINGE,PASSENGER SEAT	8-97868-185-0	01	1	0504-
480	CLIP; CUSHION	8-94279-977-0	05	1	0504-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
