Sayfa 7-43 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51038 - NQR(IRAN) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶

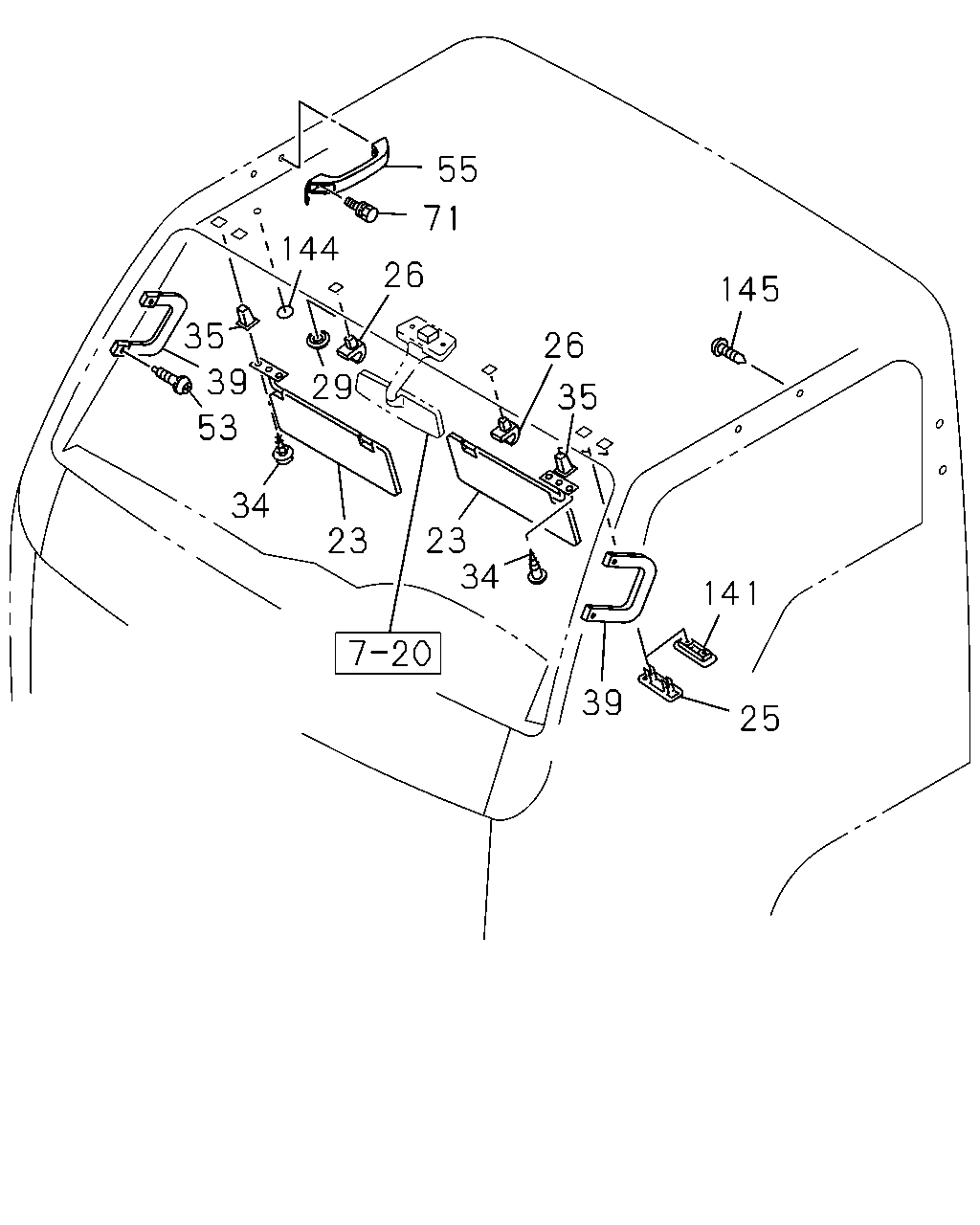

7-43 — SUN VISOR AND ASSIST GRIP (#21947) — 66 parça

55 71 144 26 145 35 26 39 29 35 53 34 23 34 23 141 39 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97997-875-1	01	1	0504-0509
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97404-451-0	01	1	0510-
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97404-441-0	01	1	0610-
23	SUN VISOR TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97997-504-1	01	1	0504-0509
23	SUN VISOR TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97404-401-0	01	1	0510-
23	SUN VISOR EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97404-443-0	01	1	0610-
25	COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-846-3	01	1	0610-0610
25	COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97406-201-3	01	1	0611-
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-184-2	02	1	0504-0610
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> DARK GRAY	8-97406-198-2	02	1	0611-
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	02	1	0610-0610
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97405-171-0	02	1	0611-
26	HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	01	1	0610-0610
26	HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97405-171-0	01	1	0611-
26	HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-184-2	01	1	0610-0610
26	HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97406-198-2	01	1	0611-
29	HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> OD=15.0	8-94279-040-0	01	1	0610-
34	SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M5X20	5-09981-059-0	04	1	0504-0609
34	SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M5X20	5-09981-059-0	04	1	0610-0612
34	SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> M5X20	5-09981-059-0	04	1	0610-0612
34	SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	0701-0706
34	SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	0701-0706
34	SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M5X18 TAPPING	0-72180-518-0	04	1	0707-
34	SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> M5X18 TAPPING	0-72180-518-0	04	1	0707-
34	SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> M5X20	5-09981-059-0	02	1	0610-0612
34	SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	0701-0706
34	SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> M5X18 TAPPING	0-72180-518-0	02	1	0707-
35	GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20>	8-94279-039-0	04	1	0504-0609
35	GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20>	8-94279-039-0	04	1	0610-
35	GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20>	8-94279-039-0	04	1	0610-
35	GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ>	8-94279-039-0	02	1	0610-
39	HANDLE; ASSIST,A-POST DARK GRAY	8-97867-209-1	02	1	0504-0609
39	HANDLE; ASSIST,A-POST GRAY	8-97582-194-1	02	1	0610-0702
39	HANDLE; ASSIST,A-POST GRAY	8-97409-477-0	02	1	0703-
53	SCREW; ASSIST HANDLE M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0504-0612
53	SCREW; ASSIST HANDLE M6X28	8-98004-344-0	04	1	0701-
55	GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97098-476-2	01	1	0504-0609
55	GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> GRAY	8-97582-294-2	01	1	0610-0610
55	GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97405-285-2	01	1	0611-
71	SCREW ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER	5-09981-064-0	02	1	0504-0612
71	SCREW ASSIST GRIP PASSENGER<EG5> M6X28	8-98004-344-0	02	1	0701-
141	COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97859-845-1	01	1	0610-
144	SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE	8-97856-832-2	04	1	0610-0610
144	SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE	8-98059-421-0	04	1	0611-
144	SEAL; LOCATION HOLE BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0610-
145	PLUG; HOLE EXC. TRAY ROOF HEAD<7EJ> OD=12 L=14.8	8-94279-921-0	04	1	0610-

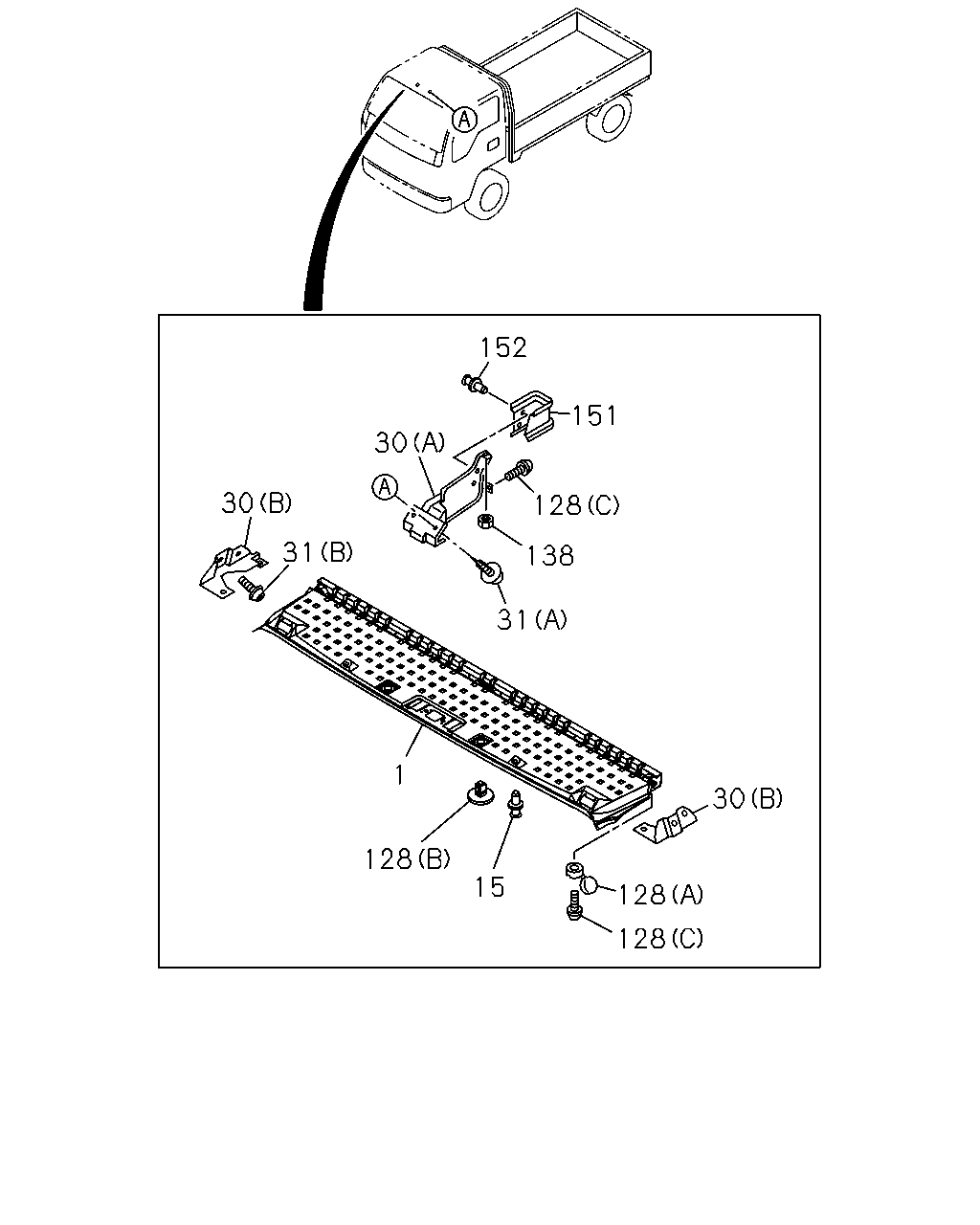

152 151 30 30 128 31 138 31 1 30 128 15 128 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97994-820-1	01	1	0504-
15	FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	0504-
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97859-388-4	01	1	0504-
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-3	01	1	0504-
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-3	01	1	0504-
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (A) M5X16	8-94279-341-0	02	1	0504-0612
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (A) M6X16	0-38050-616-0	04	1	0701-
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0504-0612
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (B) M5X16 W/TORQUES	8-98061-741-0	02	1	0701-0702
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (B) M5X16	8-94279-341-0	02	1	0703-
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (A) LIGHT GRAY	8-97892-153-2	02	1	0504-
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C)	8-97892-737-0	03	1	0504-0612
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C) M6X16 W/TORQUES	8-98064-273-0	03	1	0701-
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (B) LIGHT GRAY	8-97892-151-0	01	1	0610-
138	NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> M8 FLANGE	0-91150-108-0	01	1	0504-0602
138	NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> M8 FLANGE	0-91180-108-0	01	1	0603-
151	COVER; BRKT TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-250-0	01	1	0504-0609
151	COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-250-0	01	1	0610-
152	CLIP; BRKT TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-185-0	02	1	0504-0609
152	CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-185-0	02	1	0610-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
