0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#21945) — 105 parça

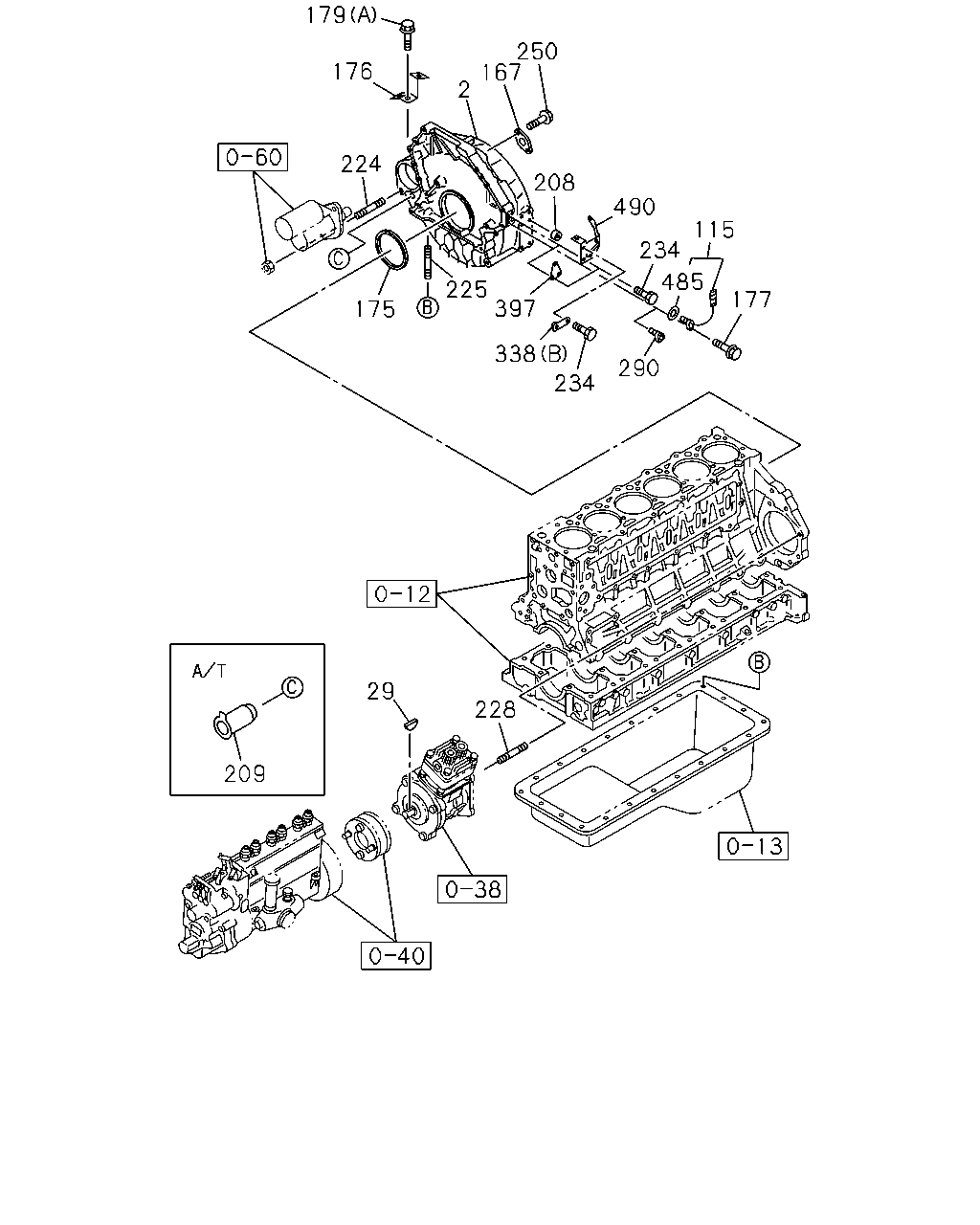

179 250 167 176 2 224 208 490 115 234 485 225 397 177 175 338 290 234 29 228 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL	8-94394-757-4	01	1	9510-0102	●
2	HOUSING; FLYWHEEL	8-94394-757-4	01	1	0103-0210	●
2	HOUSING; FLYWHEEL ISUZU M/T<X9A>	8-94394-757-4	01	1	0103-0210		●
2	HOUSING; FLYWHEEL A/T<X9D>	8-94394-759-3	01	1	0103-0210		●
29	KEY; COUPLING	9-08055-416-0	01	1	9510-0102	●
29	KEY; COUPLING	9-08055-416-0	01	1	0103-0210	●	●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-561-0	01	1	9510-0102	●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-561-0	01	1	0103-0210	●	●
167	COVER; OIL	1-11219-163-0	01	1	9510-0102	●
167	COVER; OIL	1-11219-163-0	01	1	0103-0210	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9510-0102	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	0103-0112	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0201-0210	●	●
176	BRACKET; HARNESS	1-82699-412-1	01	1	9510-0102	●
176	BRACKET; HARNESS	1-82699-412-1	01	1	0103-0210	●	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9510-0102	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	0103-0210	●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9510-0102	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0103-0210	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9510-0102	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0103-0210	●	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9510-0102	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0103-0210	●	●
209	COVER; CONV HOLE A/T<X9D>	8-94396-842-0	01	1	0103-0210		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9510-0102	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0103-0210	●	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9510-0102	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0103-0210	●	●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	9510-0102	●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	0103-0210	●	●
234	BOLT; BRKT TACHOMETER<UD7> M8X12 FLANGE	0-28080-812-0	02	1	9510-0102	●
234	BOLT; BRKT TACHOMETER<UD7> M8X12 FLANGE	0-28080-812-0	02	1	0103-0210	●
234	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0103-0210		●
234	BOLT; BRKT A/T<X9D> M8X16 FLANGE	0-28080-816-0	01	1	0103-0210		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9510-0102	●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0103-0210	●	●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7>	1-11349-157-0	01	1	9510-0102	●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7>	1-11349-157-0	01	1	0103-0205	●	●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7>	8-97101-974-0	01	1	0206-0210	●	●
338	BRACKET; CLIP,HARNESS (A)	1-82699-889-0	01	1	9510-0102	●
338	BRACKET; CLIP,HARNESS (A)	1-82699-889-0	01	1	0103-0210	●	●
338	BRACKET; CLIP,HARNESS A/T<X9D> (B)	1-82699-182-0	01	1	0103-0210		●
397	BRACKET; CONNECTOR TACHOMETER<UD7>	8-94394-411-1	01	1	9510-0102	●
397	BRACKET; CONNECTOR TACHOMETER<UD7>	8-94394-411-1	01	1	0103-0210	●	●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	9510-0102	●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	0103-0210	●	●
490	BRACKET; AIR PIPE,VSS A/T<X9D>	8-94394-857-0	01	1	0103-0210		●

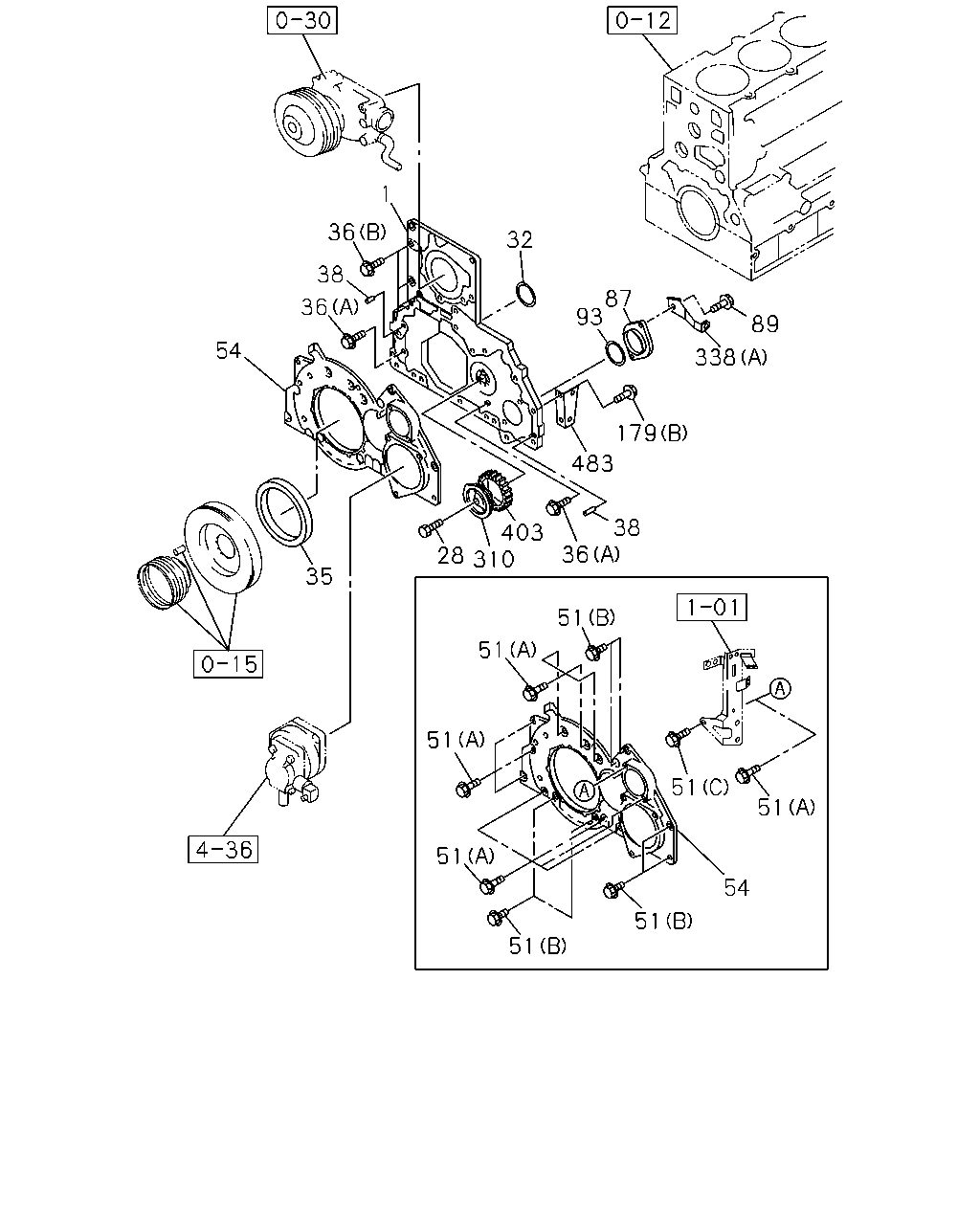

1 36 32 38 87 93 36 89 54 338 179 483 38 403 28 310 36 35 51 51 51 51 51 51 54 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR	8-94393-110-2	01	1	9510-9802	●
1	CASE; TIMING GEAR	8-94396-434-5	01	1	9803-0102	●
1	CASE; TIMING GEAR	8-94396-434-6	01	1	0103-0210	●	●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	9510-0102	●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	0103-0210	●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	8-94397-364-0	01	1	9510-9805	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	9806-0102	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	0103-0210	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9510-0102	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	0103-0112	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-0	01	1	0201-0210	●	●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	9510-0102	●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	0103-0210	●	●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	9510-0102	●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	0103-0210	●	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	9510-0102	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	0103-0210	●	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	9510-0102	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	0103-0210	●	●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	9510-0102	●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	0103-0210	●	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9510-0102	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	0103-0210	●	●
54	COVER; GEAR CASE	8-94393-304-1	01	1	9510-0102	●
54	COVER; GEAR CASE	8-94393-304-1	01	1	0103-0210	●	●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	9510-0102	●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	0103-0210	●	●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	9510-0102	●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	0103-0210	●	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	9510-0102	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	0103-0210	●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9510-0102	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0103-0210	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9510-0102	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0103-0210	●	●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	9510-0102	●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	0103-0210	●	●
338	BRACKET; CLIP,HARNESS (A)	1-82699-889-0	01	1	9510-0102	●
338	BRACKET; CLIP,HARNESS (A)	1-82699-889-0	01	1	0103-0210	●	●
338	BRACKET; CLIP,HARNESS A/T<X9D> (B)	1-82699-182-0	01	1	0103-0210		●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	9510-0102	●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	0103-0210	●	●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	9510-0102	●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	0103-0210	●	●

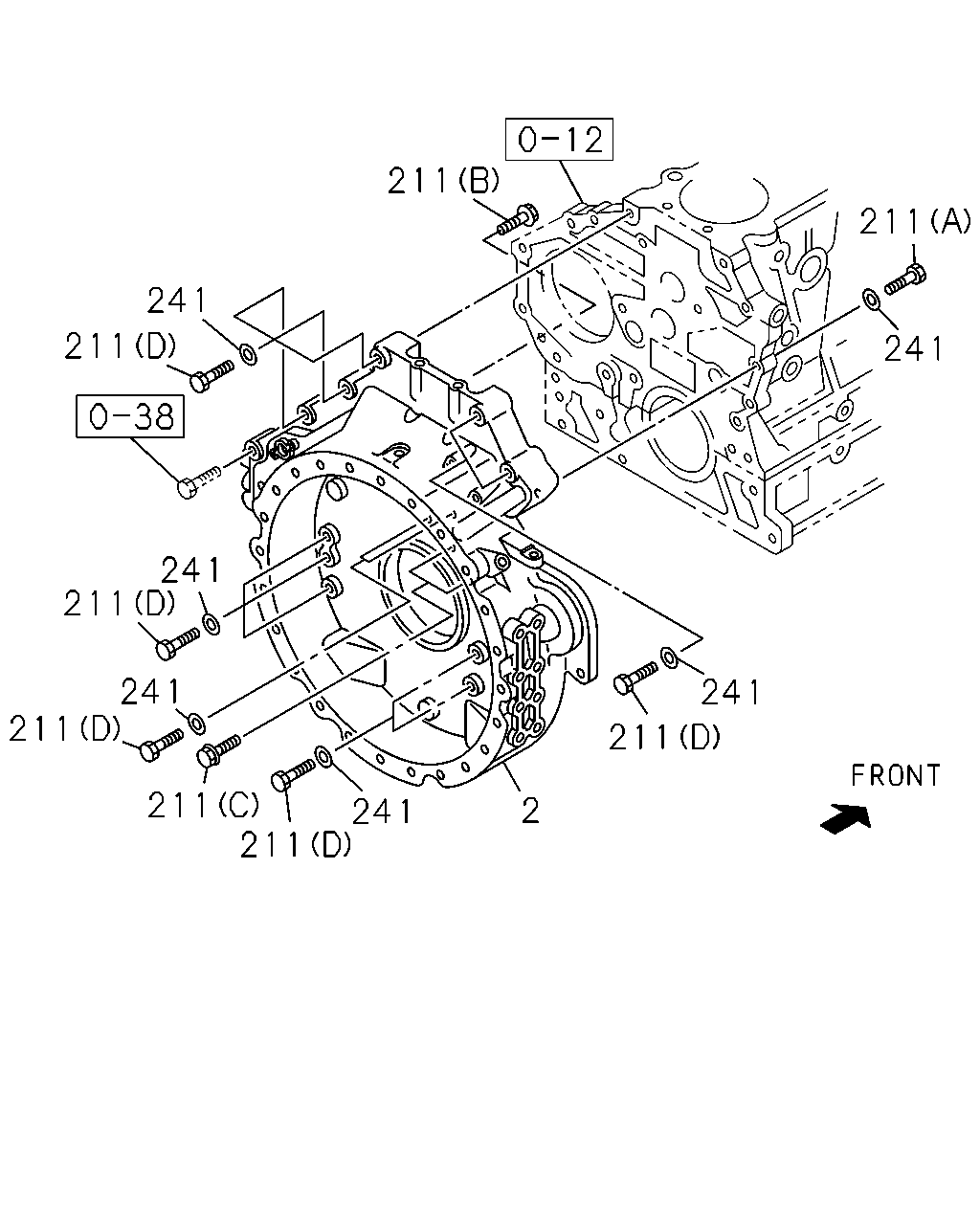

211 211 241 211 241 241 211 241 211 241 211 211 241 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL	8-94394-757-4	01	1	9510-0102	●
2	HOUSING; FLYWHEEL	8-94394-757-4	01	1	0103-0210	●
2	HOUSING; FLYWHEEL ISUZU M/T<X9A>	8-94394-757-4	01	1	0103-0210		●
2	HOUSING; FLYWHEEL A/T<X9D>	8-94394-759-3	01	1	0103-0210		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9510-0102	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0103-0210	●	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9510-0102	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0103-0210	●	●
211	BOLT; HSG (C) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9510-0102	●
211	BOLT; HSG (C) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0103-0210	●	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	12	1	9510-0102	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	12	1	0103-0210	●	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	9510-0102	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	0103-0210	●	●
