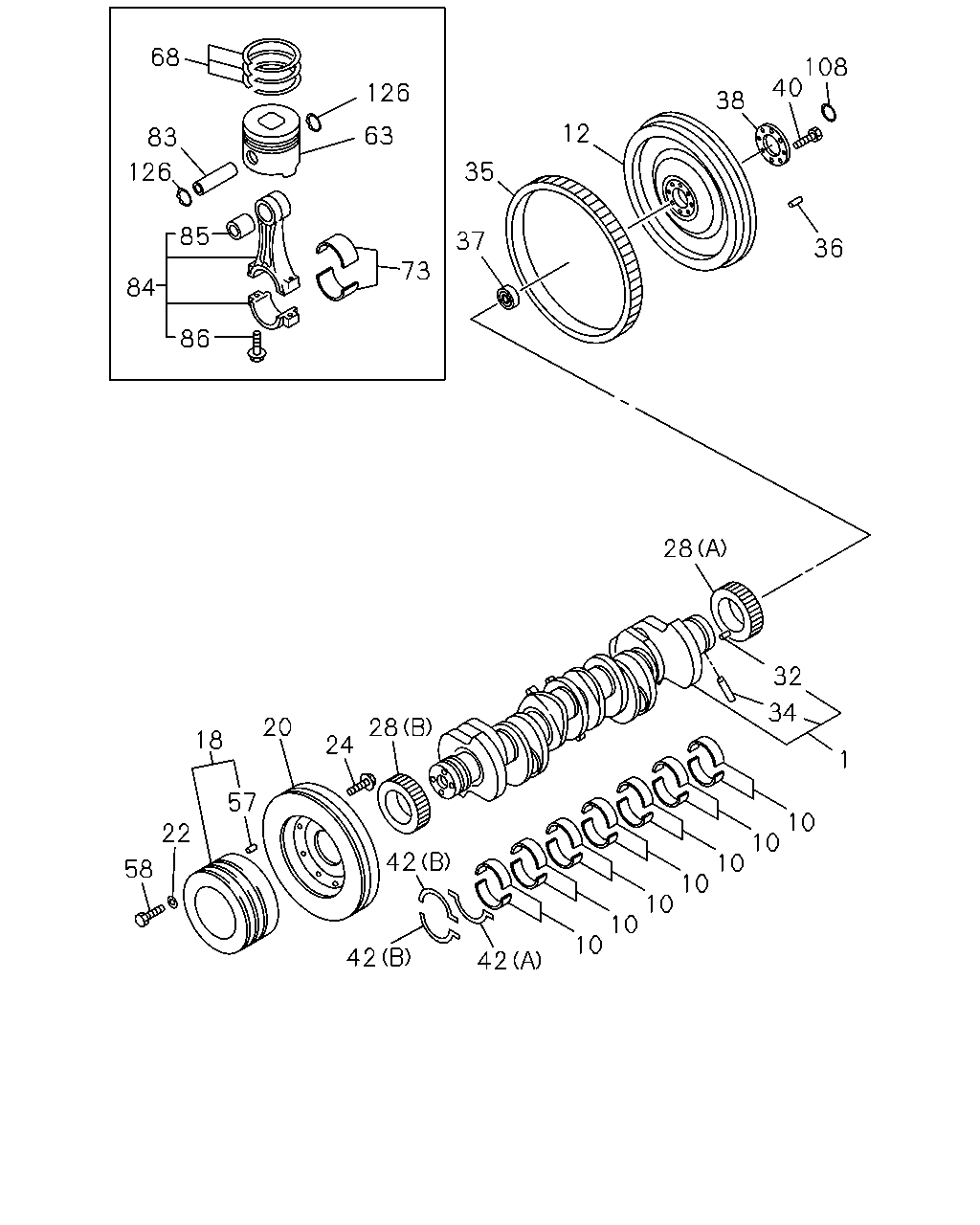

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#21944) — 76 parça

68 108 40 126 38 12 63 83 35 126 85 37 36 73 84 86 28 32 34 20 28 18 24 1 57 10 10 10 10 10 10 10 22 42 58 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-94393-291-4	01	1	9510-0102	●
1	CRANKSHAFT	8-94393-291-4	01	1	0103-0210	●	●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9510-0102	●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	0103-0210	●	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9510-0102	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	0103-0210	●	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9510-0102	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	0103-0210	●	●
12	FLYWHEEL	8-94396-052-2	01	1	9510-0102	●
12	FLYWHEEL	8-94396-052-2	01	1	0103-0210	●
12	FLYWHEEL ISUZU M/T<X9A>	8-94396-052-2	01	1	0103-0210		●
12	FLYWHEEL A/T<X9D>	8-94397-007-3	01	1	0103-0210		●
18	PULLEY; CR/SHF 3-GROOVE	8-94395-286-3	01	1	9510-0102	●
18	PULLEY; CR/SHF 3-GROOVE	8-94395-286-3	01	1	0103-0210	●
18	PULLEY; CR/SHF ISUZU M/T<X9A> 3-GROOVE	8-94395-286-3	01	1	0103-0210		●
18	PULLEY; CR/SHF A/T<X9D> 3-GROOVE	8-94390-166-2	01	1	0103-0210		●
20	DAMPER; CR/SHF	8-94394-559-1	01	1	9510-0102	●
20	DAMPER; CR/SHF	8-94394-559-1	01	1	0103-0210	●
20	DAMPER; CR/SHF ISUZU M/T<X9A>	8-94394-559-1	01	1	0103-0210		●
20	DAMPER; CR/SHF A/T<X9D>	8-94396-846-1	01	1	0103-0210		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9510-0102	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0103-0210	●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9510-0102	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0103-0210	●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9510-0102	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0103-0210	●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9510-0102	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0103-0210	●	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9510-0102	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0103-0210	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9510-0102	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0103-0210	●	●
35	GEAR; RING ID=361 Z=129	8-94393-132-0	01	1	9510-0102	●
35	GEAR; RING ID=361 Z=129	8-94393-132-0	01	1	0103-0210	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9510-0102	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0103-0205	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0206-0210	●
36	PIN; FLYWHEEL ISUZU M/T<X9A> OD=10 L=22	9-08151-022-0	02	1	0206-0210		●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9510-9901	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9902-0102	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0103-0210	●
37	BEARING; PILOT,TOP GEAR SHAFT ISUZU M/T<X9A>	8-94392-288-0	01	1	0103-0210		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9510-0102	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0103-0210	●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	9510-0102	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0103-0210	●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9510-0102	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0103-0210	●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9510-0102	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0103-0210	●	●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9510-9612	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	9701-0102	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0103-0210	●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9510-0102	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0103-0210	●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-599-0	06	1	9510-9608	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-0	06	1	9609-0102	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	0103-0210	●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-468-2	06	1	9510-9606	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-0	06	1	9607-0102	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	0103-0210	●	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	9710-0102	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	0103-0210	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	9510-0102	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	0103-0210	●	●
84	ROD ASM; CONN	8-94396-394-2	06	1	9510-0102	●
84	ROD ASM; CONN	8-94396-394-3	06	1	0103-0210	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	9510-0102	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	0103-0210	●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9510-0102	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0103-0210	●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9510-0102	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0103-0210	●
108	RING; SNAP,BRG SET ISUZU M/T<X9A> OD=59.2	9-09180-155-0	01	1	0103-0210		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	12	1	9510-0102	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	12	1	0103-0210	●	●
