0-14 — CAMSHAFT AND VALVE (#21943) — 85 parça

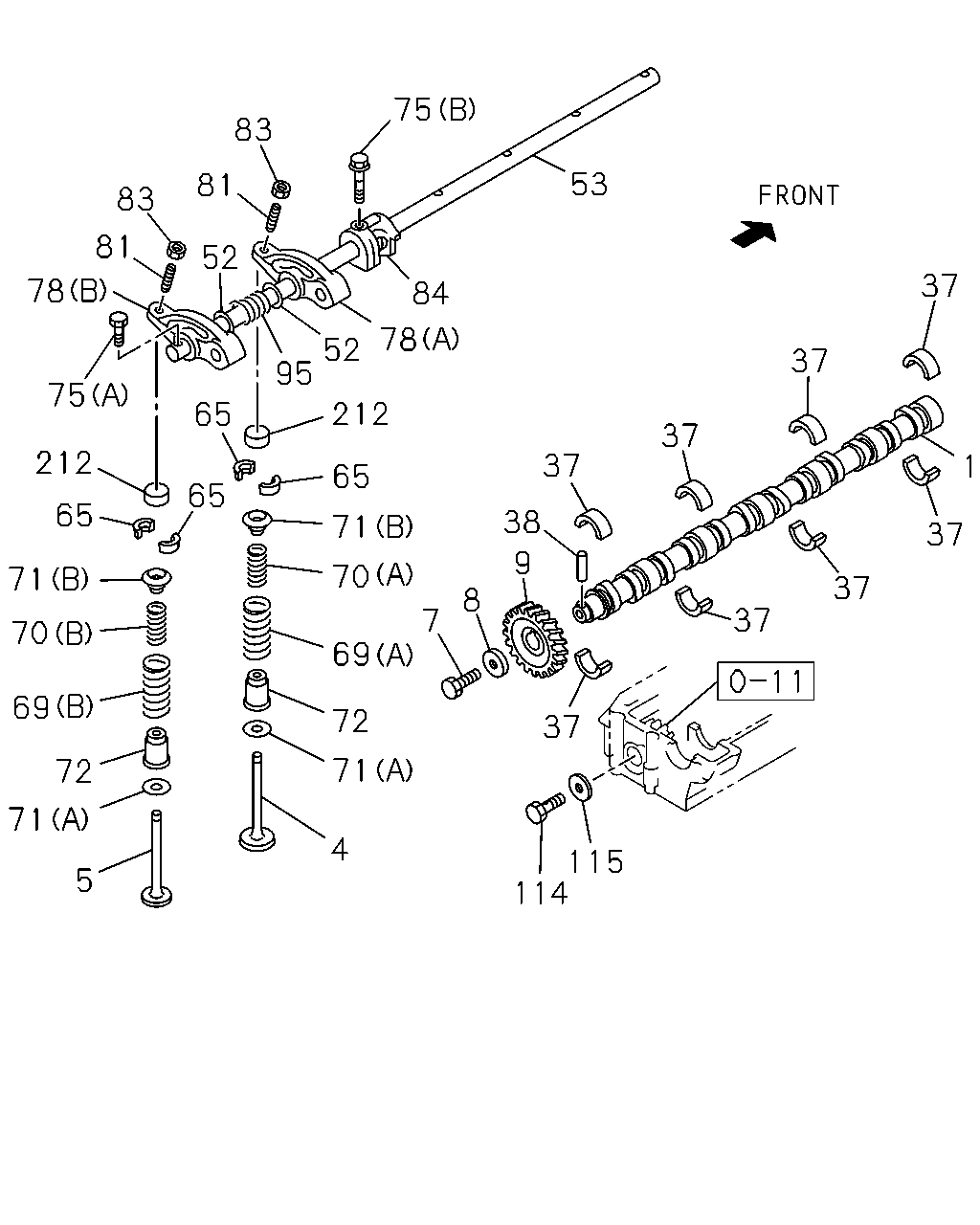

çizim 15821
75 83 53 81 83 81 52 37 78 84 78 52 95 37 75 212 65 37 212 37 1 65 65 65 38 71 37 9 71 37 8 37 7 72 37 71 72 71 4 115 114 5 70 69 70 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAMSHAFT 8-94396-425-1 01 1 9510-9510 ●
1 CAMSHAFT 8-94395-576-2 01 1 9510-0102 ●
1 CAMSHAFT 8-94395-576-2 01 1 0103-0210 ● ●
4 VALVE; INL 8-94394-160-1 06 1 9510-0102 ●
4 VALVE; INL 8-94394-160-1 06 1 0103-0210 ● ●
5 VALVE; EXH 8-94395-462-0 06 1 9510-0102 ●
5 VALVE; EXH 8-94395-462-0 06 1 0103-0210 ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9510-0102 ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0103-0210 ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9510-0102 ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0103-0210 ● ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9510-0102 ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 0103-0210 ● ●
37 METAL; CM/SHF 8-94393-380-0 14 1 9510-9608 ●
37 METAL; CM/SHF 8-94363-100-0 08 1 9609-0102 ●
37 METAL; CM/SHF 8-94363-100-1 08 1 0103-0206 ● ●
37 METAL; CM/SHF
B=22 		8-97602-698-0 08 1 0207-0210 ● ●
38 PIN; CAM BRG SET 8-94399-487-0 01 1 9510-0102 ●
38 PIN; CAM BRG SET 8-94399-487-0 01 1 0103-0210 ● ●
52 WASHER; ROCKER ARM SHAFT 8-94362-105-0 12 1 9510-0102 ●
52 WASHER; ROCKER ARM SHAFT 8-94362-105-0 12 1 0103-0210 ● ●
53 SHAFT; ROCKER ARM 8-94393-984-3 01 1 9510-0102 ●
53 SHAFT; ROCKER ARM 8-94393-984-3 01 1 0103-0210 ● ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 9510-0102 ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 0103-0210 ● ●
69 SPRING; VLV,OUTER
(B) EXHAUST MARK YELLOW 		8-94393-310-0 06 1 9510-0102 ●
69 SPRING; VLV,OUTER
(B) EXHAUST MARK YELLOW 		8-94393-310-0 06 1 0103-0210 ● ●
69 SPRING; VLV,OUTER
(A) INLET 		8-94394-996-0 06 1 9510-0102 ●
69 SPRING; VLV,OUTER
(A) INLET 		8-94394-996-0 06 1 0103-0111 ● ●
69 SPRING; VLV,OUTER
(A) INLET MARK PINK 		8-97120-912-0 06 1 0112-0210 ● ●
70 SPRING; VLV,INNER
(A) INLET 		8-94395-266-0 06 1 9510-0102 ●
70 SPRING; VLV,INNER
(A) INLET 		8-94395-266-0 06 1 0103-0111 ● ●
70 SPRING; VLV,INNER
(A) INLET MARK PINK 		8-97120-911-0 06 1 0112-0210 ● ●
70 SPRING; VLV,INNER
(B) EXHAUST MARK YELLOW 		8-94397-500-0 06 1 9510-0102 ●
70 SPRING; VLV,INNER
(B) EXHAUST MARK YELLOW 		8-94397-500-0 06 1 0103-0210 ● ●
71 SEAT; SPR
(B) OD=38 		8-94385-029-2 12 1 9510-0102 ●
71 SEAT; SPR
(B) OD=38 		8-94385-029-2 12 1 0103-0210 ● ●
71 SEAT; SPR
(A) ID=14.3 T=0.5 		8-94396-014-0 12 1 9510-0102 ●
71 SEAT; SPR
(A) ID=14.3 T=0.5 		8-94396-014-0 12 1 0103-0210 ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 9510-0102 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 0103-0210 ● ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9510-0102 ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 0103-0210 ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9510-0102 ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 0103-0210 ● ●
78 ARM; ROCKER
(A) INLET 		8-94394-424-0 06 1 9510-9512 ●
78 ARM; ROCKER
(A) INLET 		8-97074-614-0 06 1 9601-0102 ●
78 ARM; ROCKER
(A) INLET 		8-97074-614-0 06 1 0103-0210 ● ●
78 ARM; ROCKER
(B) EXHAUST 		8-94397-362-1 06 1 9510-9512 ●
78 ARM; ROCKER
(B) EXHAUST 		8-97014-258-1 06 1 9601-0102 ●
78 ARM; ROCKER
(B) EXHAUST 		8-97014-258-1 06 1 0103-0210 ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9510-0102 ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 0103-0210 ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-510-0 12 1 9510-9705 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 9706-0102 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0103-0210 ● ●
84 BRACKET; ROCKER SHAFT,INTER
JBK 		8-94388-109-3 05 1 9510-0102 ●
84 BRACKET; ROCKER SHAFT,INTER
JBK 		8-94388-109-3 05 1 0103-0210 ● ●
95 SPRING; ROCKER SHAFT
JBK 		8-94397-263-0 06 1 9510-0102 ●
95 SPRING; ROCKER SHAFT
JBK 		8-94397-263-0 06 1 0103-0210 ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9510-0102 ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 0103-0210 ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9510-0102 ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 0103-0210 ● ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9510-0102 ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 0103-0210 ● ●

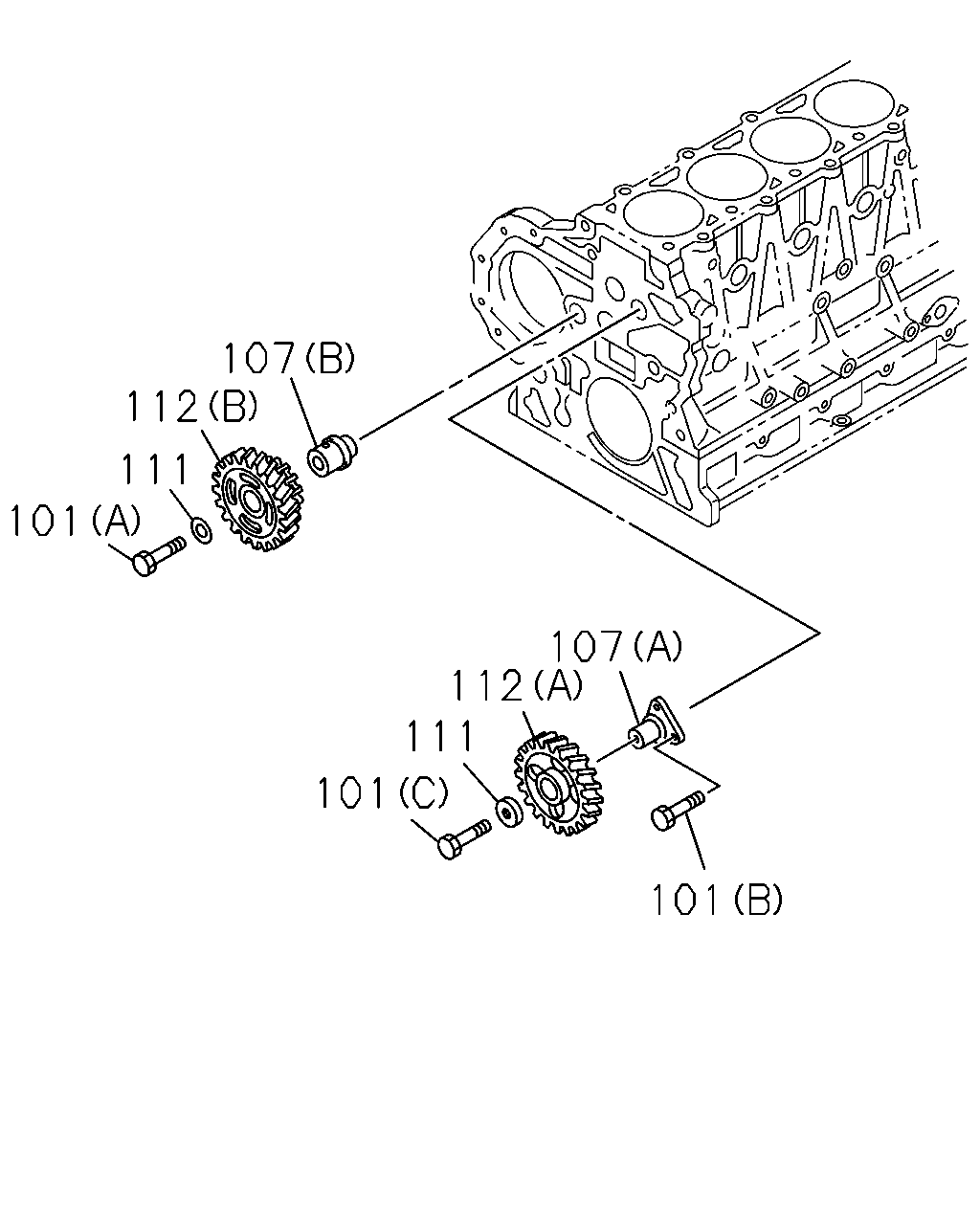

çizim 65327
107 112 111 101 107 112 111 101 101
BalonParca AdiParca NoAdetTipApplied Date A B
101 BOLT; THRUST COLLAR
(B) M8X14 		8-97073-782-0 03 1 9510-9611 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9612-0102 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 0103-0210 ● ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 9510-0102 ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 0103-0210 ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9510-0102 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 0103-0210 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97073-938-1 01 1 9510-9805 ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9806-0102 ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 0103-0204 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205-0210 ● ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 9510-0102 ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 0103-0210 ● ●
111 COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 02 1 9510-0102 ●
111 COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 02 1 0103-0210 ● ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 9510-0102 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 0103-0210 ● ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 9510-0102 ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 0103-0210 ● ●
