0-12 — CYLINDER BLOCK (#21941) — 88 parça

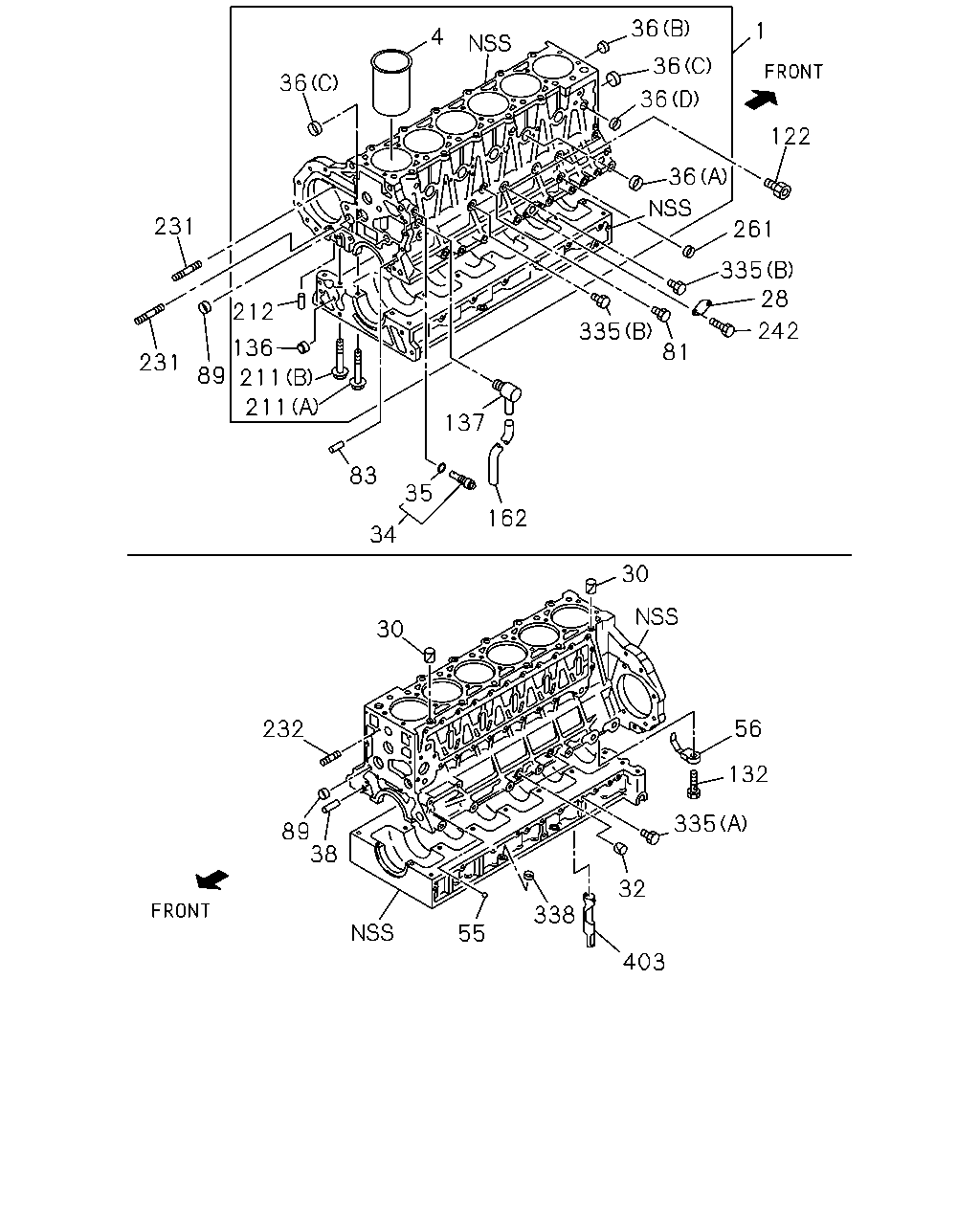

çizim 15616
36 1 4 36 36 36 122 36 231 261 335 28 212 242 335 136 89 81 231 211 211 137 83 35 162 34 30 30 56 232 132 335 89 38 32 338 55 403
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-94394-057-9 01 1 9510-9807 ●
1 BLOCK ASM; CYL 8-94392-491-2 01 1 9808-0001 ●
1 BLOCK ASM; CYL 8-97600-415-0 01 1 0002-0102 ●
1 BLOCK ASM; CYL 8-97600-415-0 01 1 0103-0210 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-0 06 1 9510-0102 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-0 06 1 0103-0210 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-0 06 1 9510-0102 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-0 06 1 0103-0210 ● ●
28 COVER; OIL PORT 1-11219-163-0 01 1 9510-0102 ●
28 COVER; OIL PORT 1-11219-163-0 01 1 0103-0210 ● ●
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 9510-0102 ●
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 0103-0210 ● ●
32 PIN; INJ PUMP BRKT
OD=14 		8-94453-344-0 02 1 9510-0102 ●
32 PIN; INJ PUMP BRKT
OD=14 		8-94453-344-0 02 1 0103-0210 ● ●
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 9510-0102 ●
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 0103-0210 ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 9510-0102 ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 0103-0210 ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-1 05 1 9510-0102 ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-1 05 1 0103-0210 ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=25 		1-09600-016-0 01 1 9510-0102 ●
36 CUP; SEALING,WATER JACKET
(D) OD=25 		1-09600-016-0 01 1 0103-0210 ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		8-94399-005-0 01 1 9510-0102 ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		8-94399-005-0 01 1 0103-0210 ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94399-639-0 04 1 9510-0102 ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94399-639-0 04 1 0103-0210 ● ●
38 PIN; TIMING GEAR CASE
L=22 		8-94483-674-0 02 1 9510-0102 ●
38 PIN; TIMING GEAR CASE
L=22 		8-94483-674-0 02 1 0103-0210 ● ●
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 02 1 9510-0102 ●
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 02 1 0103-0210 ● ●
56 JET; OIL,PISTON COOLING 8-94399-187-0 06 1 9510-0102 ●
56 JET; OIL,PISTON COOLING 8-94399-187-0 06 1 0103-0210 ● ●
81 PLUG; WATER JACKET
M14 		8-94399-225-0 01 1 9510-0102 ●
81 PLUG; WATER JACKET
M14 		8-94399-225-0 01 1 0103-0210 ● ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 9510-0102 ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 0103-0210 ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11219-192-0 03 1 9510-0102 ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11219-192-0 03 1 0103-0210 ● ●
122 ADAPTER; OIL PRESSURE SWITCH 8-94399-858-2 01 1 9510-0102 ●
122 ADAPTER; OIL PRESSURE SWITCH 8-94399-858-2 01 1 0103-0210 ● ●
132 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 06 1 9510-0102 ●
132 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 06 1 0103-0210 ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-0 02 1 9510-0102 ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-0 02 1 0103-0210 ● ●
137 COCK; DRAIN,WATER 1-09680-024-0 01 1 9510-0102 ●
137 COCK; DRAIN,WATER 1-09680-024-0 01 1 0103-0210 ● ●
162 HOSE; WATER DRAIN,C/BL
L=310 SERVICED BY L=3000 		0-03259-300-0 01 1 9510-0102 ●
162 HOSE; WATER DRAIN,C/BL
L=310 SERVICED BY L=3000 		0-03259-300-0 01 1 0103-0206 ● ●
162 HOSE; WATER DRAIN,C/BL
L=310 SERVICED BY L=3000 		0-03559-300-0 01 1 0207-0210 ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-94396-207-3 14 1 9510-0102 ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-94396-207-3 14 1 0103-0210 ● ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 9510-0102 ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 0103-0210 ● ●
212 PIN; CRANKCASE
L=22 		8-94483-674-0 02 1 9510-0102 ●
212 PIN; CRANKCASE
L=22 		8-94483-674-0 02 1 0103-0210 ● ●
231 STUD; AIR CMPR
M10X36.5 L=48.5 		8-94396-145-0 02 1 9510-0102 ●
231 STUD; AIR CMPR
M10X36.5 L=48.5 		8-94396-145-0 02 1 0103-0210 ● ●
232 STUD; WATER PUMP
M8X55 L=67 		9-04110-855-0 03 1 9510-0102 ●
232 STUD; WATER PUMP
M8X55 L=67 		9-04110-855-0 03 1 0103-0210 ● ●
242 BOLT; COVER,OIL PORT
M8X16 FLANGE 		0-28080-816-0 02 1 9510-0102 ●
242 BOLT; COVER,OIL PORT
M8X16 FLANGE 		0-28080-816-0 02 1 0103-0210 ● ●
261 PLUG; OIL PRESS UNIT
OD=12.3 		5-09600-013-0 01 1 9510-0102 ●
261 PLUG; OIL PRESS UNIT
OD=12.3 		5-09600-013-0 01 1 0103-0210 ● ●
335 PLUG; C/BL,SIDE
(B) M14 		8-94399-225-0 04 1 9510-0102 ●
335 PLUG; C/BL,SIDE
(B) M14 		8-94399-225-0 04 1 0103-0210 ● ●
335 PLUG; C/BL,SIDE
(A) M8X6 		8-94399-421-0 01 1 9510-9510 ●
335 PLUG; C/BL,SIDE
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6 		8-94399-421-0 01 1 9511-0102 ●
335 PLUG; C/BL,SIDE
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) M8X6 		8-94399-421-0 01 1 0103-0210 ● ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 01 1 9510-0102 ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 01 1 0103-0210 ● ●
403 GUIDE; GALLERY 8-94395-351-1 01 1 9510-0102 ●
403 GUIDE; GALLERY 8-94395-351-1 01 1 0103-0210 ● ●
çizim 15825
343 308 343 2 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-436-0 06 1 9510-9608 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-665-1 06 1 9609-0102 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-665-4 06 1 0103-0210 ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-437-0 06 1 9510-9608 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-666-1 06 1 9609-0102 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-666-4 06 1 0103-0210 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-0 06 1 9510-0102 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-0 06 1 0103-0210 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-0 06 1 9510-0102 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-0 06 1 0103-0210 ● ●
308 PROTECTOR; HEAT,HD COVER 8-94395-205-0 01 1 9510-9603 ●
308 PROTECTOR; HEAT,HD COVER 8-94390-548-0 01 1 9604-9901 ●
308 PROTECTOR; HEAT,HD COVER 8-94391-759-2 01 1 9902-0102 ●
308 PROTECTOR; HEAT,HD COVER 8-94391-759-2 01 1 0103-0210 ● ●
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 05 1 9510-0102 ●
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 05 1 0103-0210 ● ●
